Amana AKF-1 (BOM: P8500401S)

Model: AKF-1 (BOM: P8500401S)

Save Part Not Listed?
product name

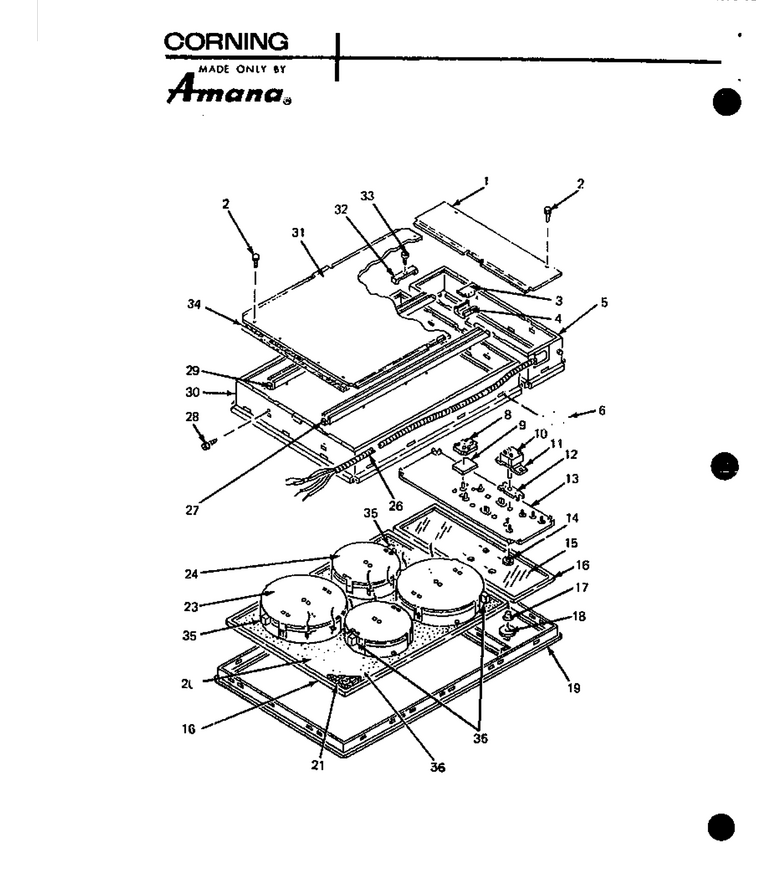

01 - Page 2

...
...
1
Cover Control Box WPL-D8518801
...
2
See Note No. 6b X 3/8 Ab Screw -- (Hardware - Purchase Locally) WPL-Y00000000
...
3
Channel WPL-B5001401
...
4
Channel WPL-B5001301
...
5
Box, Control WPL-CG984189
...
6
Clip WPL-CG985568
...
8
Light-Indicator A WPL-C2702601
...
9
Insulation, Ind. Light WPL-A4402901
...
10
Proportioner WPL-CG984853
...
11
See Note Proportioner Bracket WPL-Y00000000
...
12
See Note Proportioner Mounting Bracket WPL-Y00000000
...
13
Panel-Control Mtg WPL-CG982909
...
14
Control Shaft Seal WPL-CG980131
...
15
Glass Pnl WPL-D8517401
...
16
Tape, Vinyl Foam, Roll WPL-M0275028
...
17
Shaft Bushing WPL-CG983061
...
18
Knob Control K WPL-D8572402
...
19
S.s. Rim Frame WPL-CG982308
...
20
Heater Panel WPL-CG984935
...
21
Insulation, Hot Light WPL-CG984963
...
23
Element, Multipan, Large WPL-CG985021
...
24
Element-Small WPL-CG985020
...
26
Conduit WPL-CG985574
...
27
Hold Down Bar WPL-D8517501
...
28
See Note No. 8ab X 3/8ab Screw -- (Hardware - Purchase Locally) WPL-Y00000000
...
29
Hold Down Bar WPL-D8517502
...
30
Box-Heater WPL-CG984195
...
31
Heater Box Cover WPL-CG983142
...
32
Spring, Element WPL-74008213
...
33
See Note Screw, 3ab X 3/4 -- (Hardware - Purchase Locally) WPL-Y00000000
...
34
Baffle-Htr Box WPL-CG983143
...
35
Switch, Hot Light WPL-CG984976
...
36
Tape, Vinyl Foam, Roll WPL-M0275028
