Amana AKD1B (BOM: P8555803S)

Model: AKD1B (BOM: P8555803S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

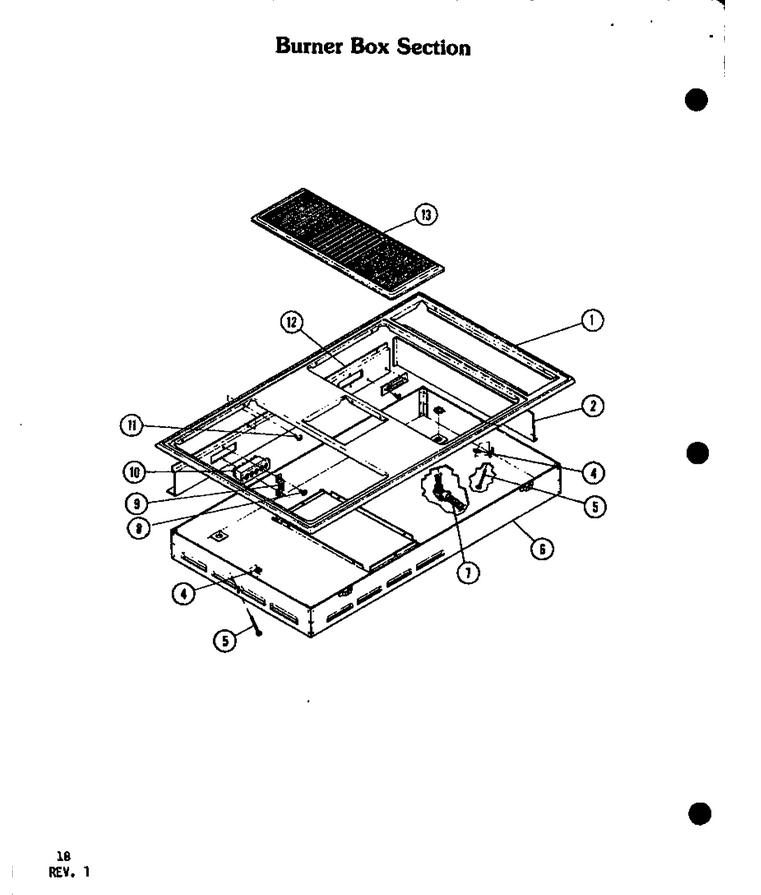

01 - Burner Box Section

...
...
NI
Wire Clip WPL-R0157976
...
1
Main Top-Chrome WPL-R0157962
...
2
Switch Shield Et-590 595 WPL-Y0040821
...
4
Nut 1/4-20 Sq. Et590 595 WPL-R0157965
...
5
Screw 1/4-20-4`` 590 595 WPL-R0157966
...
6
Burner Box WPL-R0157968
...
7
5651118 C WPL-Y0043748
...
8
Insulation, Wrapper WPL-31975801
...
9
Plug Block Mtg Brkt Et590 595 WPL-Y0040965
...
10
Plug Block Modular Top WPL-Y0042210
...
11
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
12
Plug Block Baffle WPL-R0157973

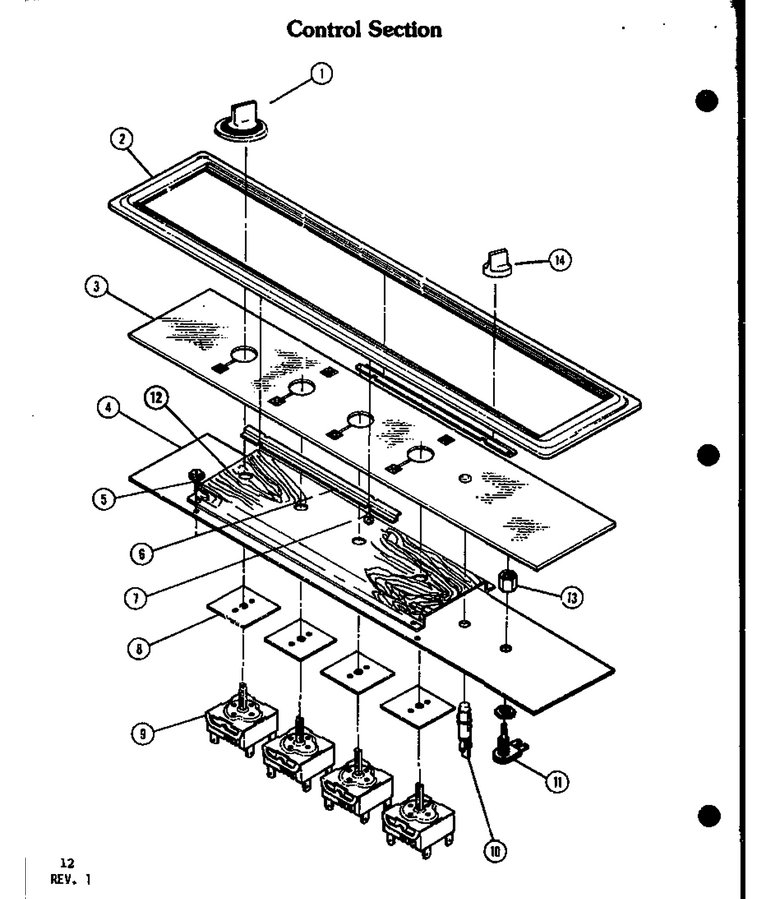

02 - Control Section

...
...
NI
Screw WPL-WP3400882
...
1
Knob WPL-R0703502
...
2
Frame, Control Panel WPL-R0705539
...
3
Control Panel Glass WPL-R0199128
...
4
Switch Mounting Bracket WPL-R0157943
...
5
Screw WPL-WP90767
...
6
Glass Retainer Ket595-590 WPL-Y0040962
...
7
Screw, Retainer Mounting WPL-R0157945
...
8
Switch Gas WPL-31953701
...
9
Infinite Switch WPL-R0702506
...
10
Indicator Light WPL-Y0042183
...
12
Wood Gr Trim Panel WPL-R0705522

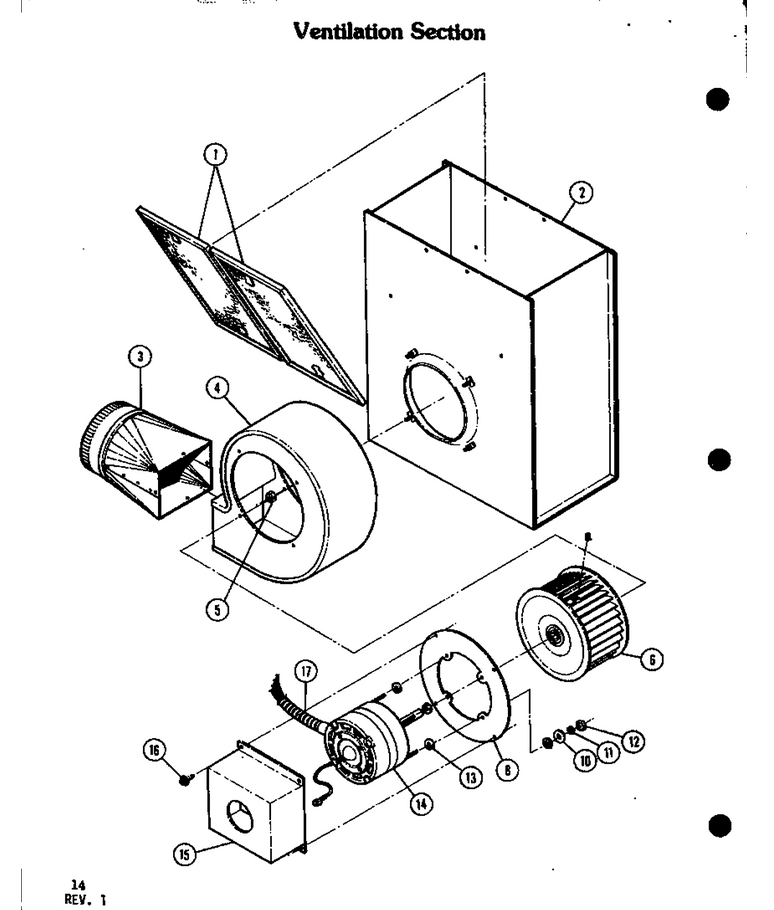

03 - Ventilation Section

...
...
NI
Orifice Assy. WPL-Y0059562
...
1
Filter Exhaust Ket595 WPL-Y0042024
...
2
Plenum WPL-R0157980
...
3
Transition WPL-R0199129
...
4
Fan Scroll WPL-R0705541
...
5
Lock-Nut Nylon Ket595 WPL-R0157984
...
6
Fan Wheel Ket595 WPL-Y0042752
...
8
Motor Mounting Plate WPL-R0157986
...
10
Washer 3/4x5/16x 080 E L Hoods WPL-R0157987
...
11
Washer Handle Mounting WPL-R0157891
...
12
Hex Nut No.10-32 Nickel WPL-R0157988
...
13
Rubber Grommet WPL-R0157989
...
14
Kit, Motor & Plate WPL-R0157990
...
15
Motor Cover Ket595 WPL-R0157991
...
16
Screw WPL-WP90767
...
17
Conduit (3/8 X 18) WPL-R0157993
