Amana AKD1 (BOM: P8555801S)

Model: AKD1 (BOM: P8555801S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

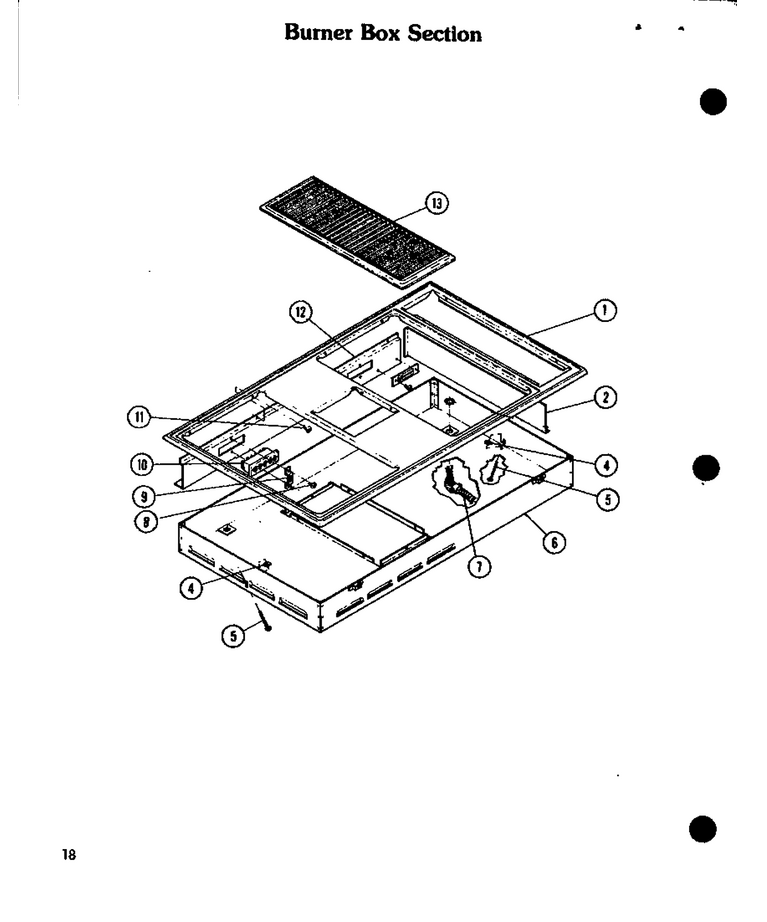

01 - Burner Box Section

...
...
NI
Element, Contact-Module Top WPL-Y0042123
...
1
Main Top, Chrome WPL-Y0040087
...
2
Switch Shield Et-590 595 WPL-Y0040821
...
4
Nut 1/4-20 Sq. Et590 595 WPL-R0157965
...
5
Screw 1/4-20-4`` 590 595 WPL-R0157966
...
6
Screw, No.6-32 X .250 Pan Hd Ph WPL-31750303
...
7
5651118 C WPL-Y0043748
...
8
Screw, No.6-32 X .250 Pan Hd Ph WPL-31750303
...
9
Plug Block Mtg Brkt Et590 595 WPL-Y0040965
...
10
Plug Block Modular Top WPL-Y0042210
...
11
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
12
Plug Block Baffle WPL-R0157973
...
13
Sub 48317, Vent Cover, Pol WPL-51425BS

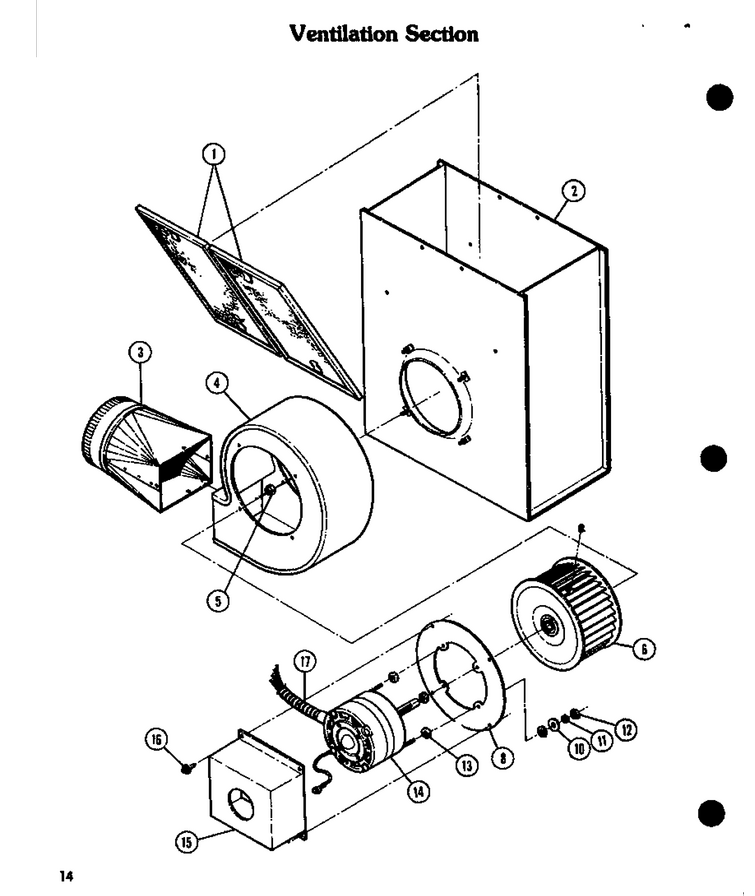

03 - Ventilation Section

...
...
NI
Orifice Assy. WPL-Y0059562
...
1
Filter Exhaust Ket595 WPL-Y0042024
...
2
Plenum WPL-R0157980
...
3
Transition Weld WPL-R0157982
...
4
Fan Scroll WPL-R0157983
...
5
Lock-Nut Nylon Ket595 WPL-R0157984
...
6
Fan Wheel Ket595 WPL-Y0042752
...
8
Motor Mounting Plate WPL-R0157986
...
10
Washer 3/4x5/16x 080 E L Hoods WPL-R0157987
...
11
Motor Cover Ket595 WPL-R0157991
...
12
Hex Nut No.10-32 Nickel WPL-R0157988
...
13
Rubber Grommet WPL-R0157989
...
14
Kit, Motor & Plate WPL-R0157990
...
15
Motor Cover Ket595 WPL-R0157991
...
16
Screw WPL-WP90767
...
17
Conduit (3/8 X 18) WPL-R0157993

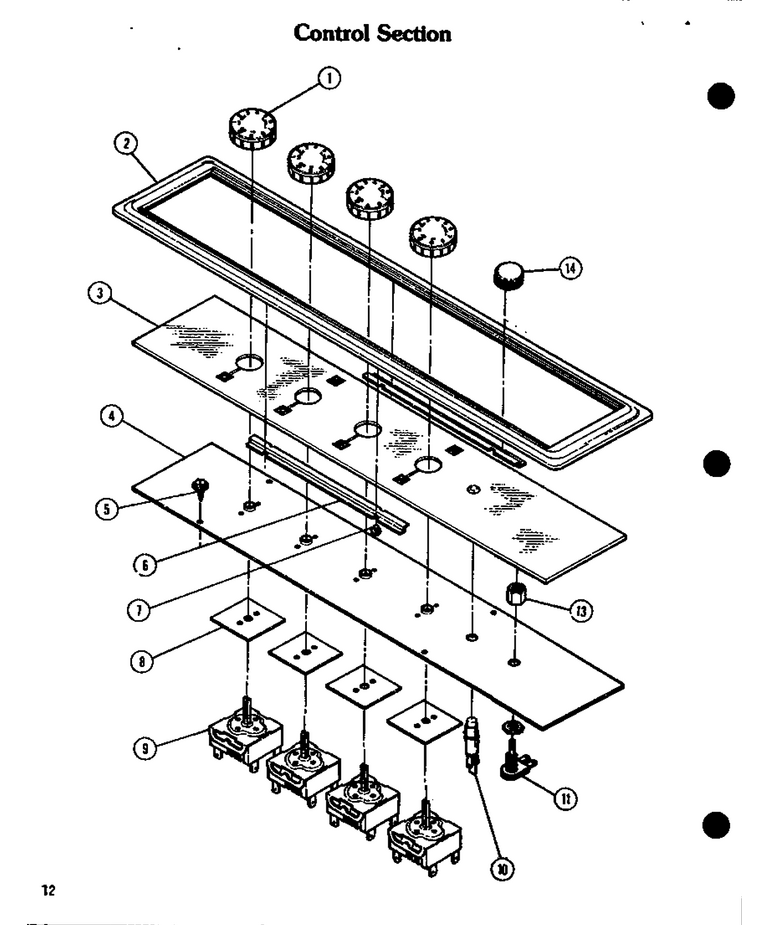

02 - Control Section

...
...
NI
5644003 W.j. WPL-R0157951
...
1
Knob WPL-R0157939
...
2
Control Pa WPL-42729BS
...
3
Glass-Control Pnl WPL-R0157942
...
4
Switch Mounting Bracket WPL-R0157943
...
5
Screw WPL-WP90767
...
6
Glass Retainer Ket595-590 WPL-Y0040962
...
7
Screw, Retainer Mounting WPL-R0157945
...
8
Switch Gas WPL-31953701
...
9
Infinite Switch WPL-R0157947
...
10
Indicator Light WPL-Y0042183
...
11
Switch, Oven Light WPL-Y0308168
...
13
Switch Bushing ,metal WPL-Y0042012
...
14
Knob, Dual Timer WPL-R0157772
