Amana AKC-3B (BOM: P8512307S)

Model: AKC-3B (BOM: P8512307S)

Save Part Not Listed?
product name

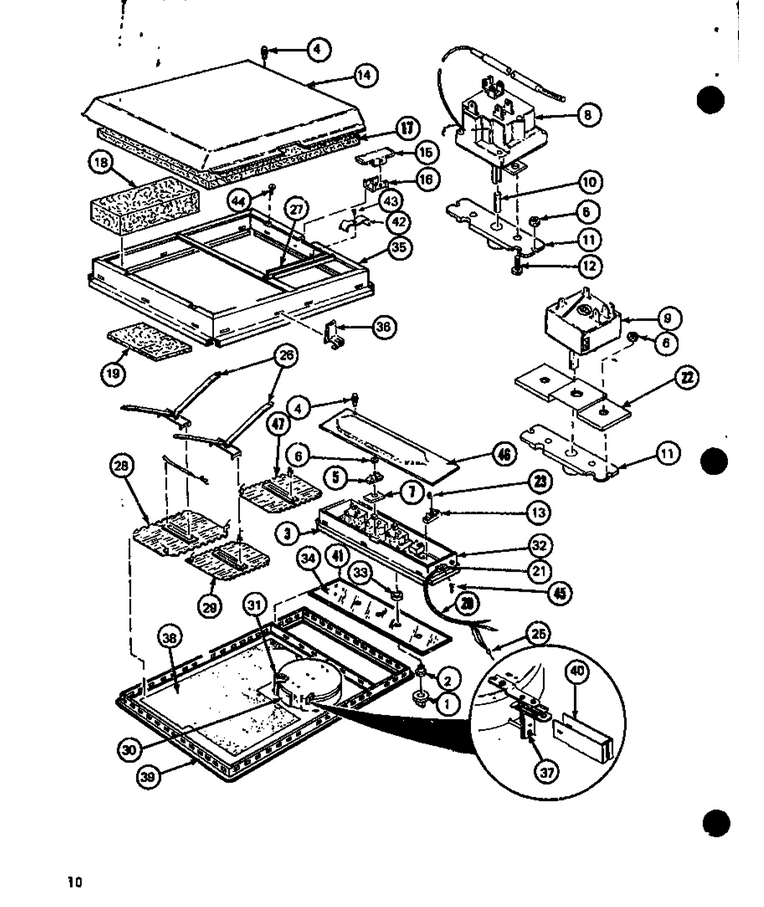

01 - Page 3

...
...
NI
Screw WPL-M0202528
...
1
Knob Control K WPL-D8572402
...
2
Bushing WPL-A4402501
...
3
Cover, Control Box Assembly WPL-D5850501
...
4
Screw WPL-WP489349
...
5
Light-Indicator A WPL-C2702601
...
6
Nut WPL-WP7103P070-60
...
7
Insulator A WPL-A4403001
...
8
Thermostat, Essex WPL-D8503901
...
9
Switch- In WPL-R0702564
...
10
Wick-Felt A WPL-A4402601
...
11
Bracket WPL-B5001701
...
12
Screw WPL-M0202514
...
13
Terminal Block A WPL-A4403401
...
14
Cover-Htr Box WPL-D8504801
...
15
Channel WPL-B5001401
...
16
Channel WPL-B5001301
...
17
Insulation WPL-A4403901
...
18
Insulation Kit WPL-R0157513
...
19
Insul-Lo-Con K WPL-C2702001
...
20
Wiring Harness WPL-D8503801
...
21
Conduit Cap A WPL-A4403101
...
22
Bracket WPL-A4403301
...
23
Usr 0041847 WPL-M0282402
...
25
Wire Splice WPL-A4403201
...
26
Hld Down Assy WPL-C2701701
...
27
Bar WPL-C2702501
...
28
Element Kit, Large WPL-R0157502
...
29
Element Kit, Small WPL-R0157501
...
30
Element, Large, Temp-Assure WPL-D8527502
...
31
See Serv Ltr Cba-136 WPL-C2702401
...
32
Control Box Assy WPL-D8504901
...
33
Seal-Shaft A WPL-B5001601
...
34
Glass, Control Panel WPL-D8521002
...
35
Htr Box Assy WPL-D8504601
...
36
Clip-Htr Box WPL-B5001501
...
37
Switch WPL-C2703201
...
38
Net-Kit,heater Panel WPL-D8505903
...
39
Frame WPL-D8504501
...
40
Dust Cover WPL-C2703001
...
41
Tape, Vinyl Foam, Roll WPL-M0275028
...
42
Spring, Element WPL-74008213
...
43
Screw (3) WPL-67006425
...
44
Screw WPL-WP90767
...
45
Screw (3) WPL-67006425
...
46
Cover WPL-D8505301
...
47
Element Kit, Small WPL-C2711003
