Amana AKC-3 (BOM: P8500203S)

Model: AKC-3 (BOM: P8500203S)

Save Part Not Listed?
product name

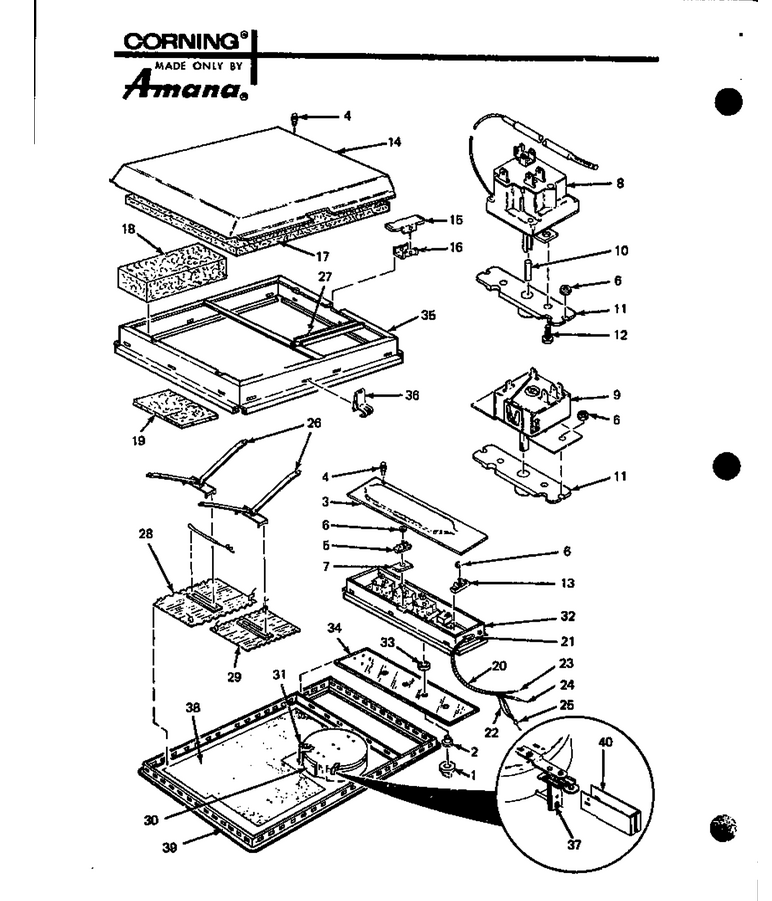

01 - Page 3

...
...
1
Knob Control K WPL-D8572402
...
2
Shaft Bushing WPL-CG983061
...
3
Cover-Control Box WPL-CG984688
...
4
Screw WPL-M0216516
...
5
Light-Indicator A WPL-C2702601
...
6
Nut WPL-WP7103P070-60
...
7
Insulation, Ind. Light WPL-A4402901
...
8
Control, Switch WPL-CG984772
...
9
Proportioner Kit WPL-R0199298
...
10
Wick-Felt A WPL-A4402601
...
11
Control Mounting Bracket WPL-CG980149
...
12
Screw WPL-M0202528
...
13
Terminal Block A WPL-A4403401
...
14
Cover, Heater Box WPL-CG984677
...
15
Channel WPL-B5001401
...
16
Channel WPL-B5001301
...
17
Insulation WPL-A4403901
...
18
Kit, Insulation WPL-CG980005
...
19
Insulation, Primary WPL-CG932521
...
20
Wiring Harness WPL-D8503801
...
21
Connector, Conduit WPL-A4410301
...
22
See Note Wire, Bare -- (12 Ga) WPL-Y00000000
...
23
See Note Wire, Black -- (14 Ga) WPL-Y00000000
...
24
See Note Wire, Red -- (14 Ga) WPL-Y00000000
...
25
See Note Wire, White -- (14 Ga) WPL-Y00000000
...
26
Hld Down Assy WPL-CG981546
...
27
Bar WPL-C2702501
...
28
Element Kit, Large WPL-CG981139
...
29
Element Kit, Small WPL-CG981134
...
30
Element, Multipan, Large WPL-CG985021
...
31
Switch, Hot Light WPL-CG984277
...
32
Box, Control Assembly WPL-CG984814
...
33
Control Shaft Seal WPL-CG980131
...
34
Glass, Control Panel Akc-3 Onl WPL-CG984753
...
35
Box-Heater WPL-CG984811
...
36
Clip WPL-CG985568
...
37
Switch WPL-CG982832
...
38
Net-Kit,heater Panel WPL-CG984787
...
39
Frame WPL-CG984660
...
40
Cover, Dust - Limiter WPL-CG984831
