Amana AK2H36W3 (BOM: P1131566N W)

Model: AK2H36W3 (BOM: P1131566N W)

Save Part Not Listed?
product name

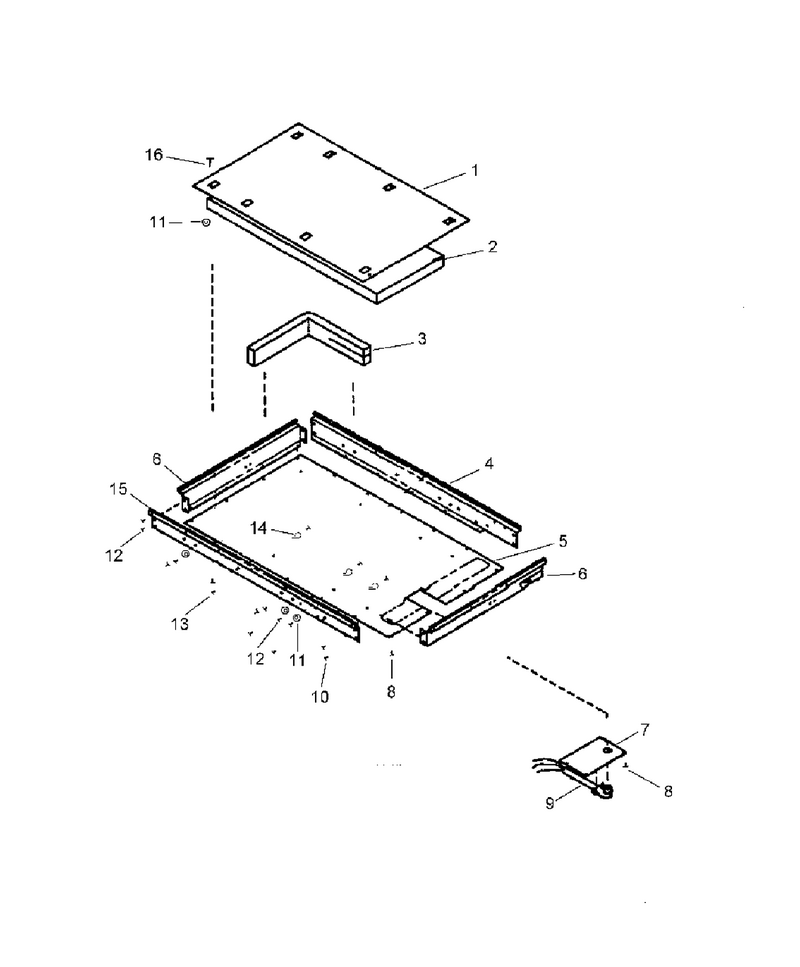

03 - Heater Box

...
...
NI
Hex Nut No.10-32 Nickel WPL-0306381
...
1
Baffle, Heater Box WPL-307490B
...
2
Insulation,bot Burner Box WPL-31974402
...
3
Insulation WPL-0307479
...
4
Side, Heater Box WPL-307614B
...
5
Panel, Access WPL-307494B
...
6
End, Heater Box WPL-307476B
...
7
Plate, Conduit WPL-Y0307451
...
8
Screw WPL-WP3388228
...
9
Ass`y, Harness/conduit WPL-Y0308396
...
10
Screw, Handle (Black) WPL-12991101
...
11
Lock Washer WPL-M0272803
...
12
Screw WPL-W11245710
...
13
Screw WPL-74009538
...
14
Clamp, Tube (1/2``) WPL-Y0307456
...
15
Side, Heater Box WPL-307418B
...
16
Pop Rivet K WPL-Y0307447

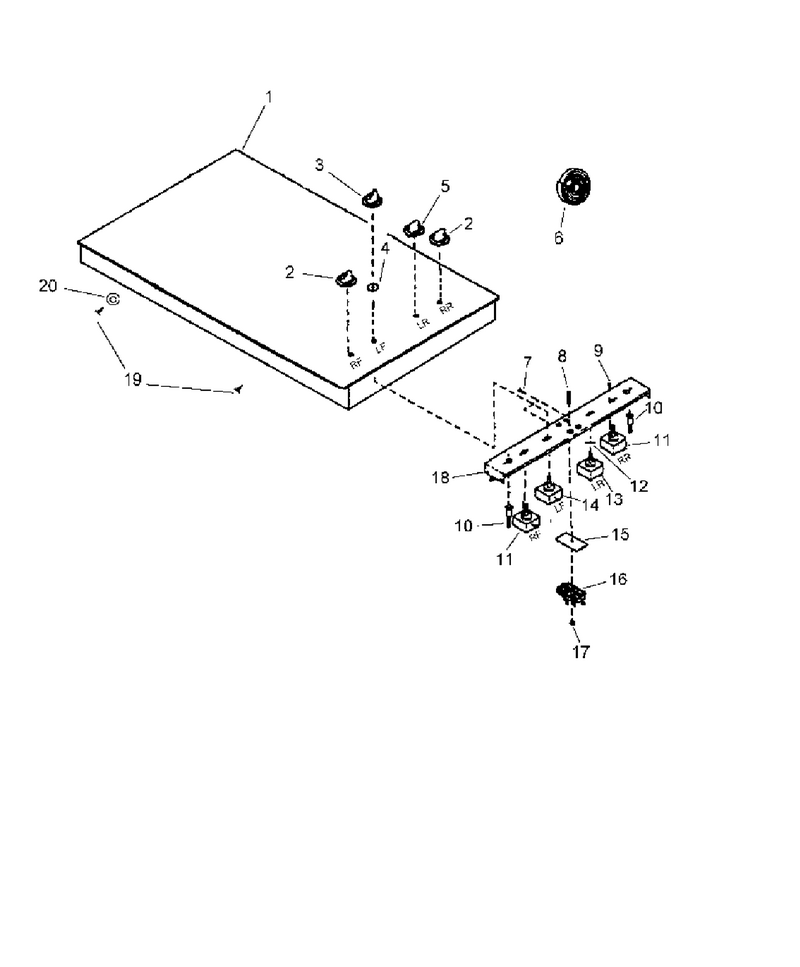

01 - Cooktop

...
...
1
Assy, 36`` Frame & Glass (Wht) WPL-309911W
...
2
Knob- Cont WPL-31760610W
...
3
Knob, Infinite Sw (White) WPL-31760602W
...
4
Cover- Hol WPL-WPY0307427
...
5
Knob, Dual Infin Sw (White) WPL-31760604W
...
6
Tape, Inch WPL-74007878
...
7
Screw WPL-M0211519
...
8
Screw WPL-M0227520
...
9
Screw, Machine WPL-0307428
...
10
Light, Indicator WPL-Y0307458
...
11
Control, Surface WPL-Y0307429
...
12
Switch Gas WPL-31953701
...
13
Switch, Dual Infinite WPL-0309550
...
14
Switch-Inf WPL-W11121639
...
15
Insulation, Ind. Light WPL-0307444
...
16
Light, Indicator WPL-Y0307442
...
17
Nut WPL-WP7103P070-60
...
18
Bracket,cont Mtg. WPL-307423B
...
19
Screw WPL-W11245710
...
20
Lock Washer WPL-M0272803

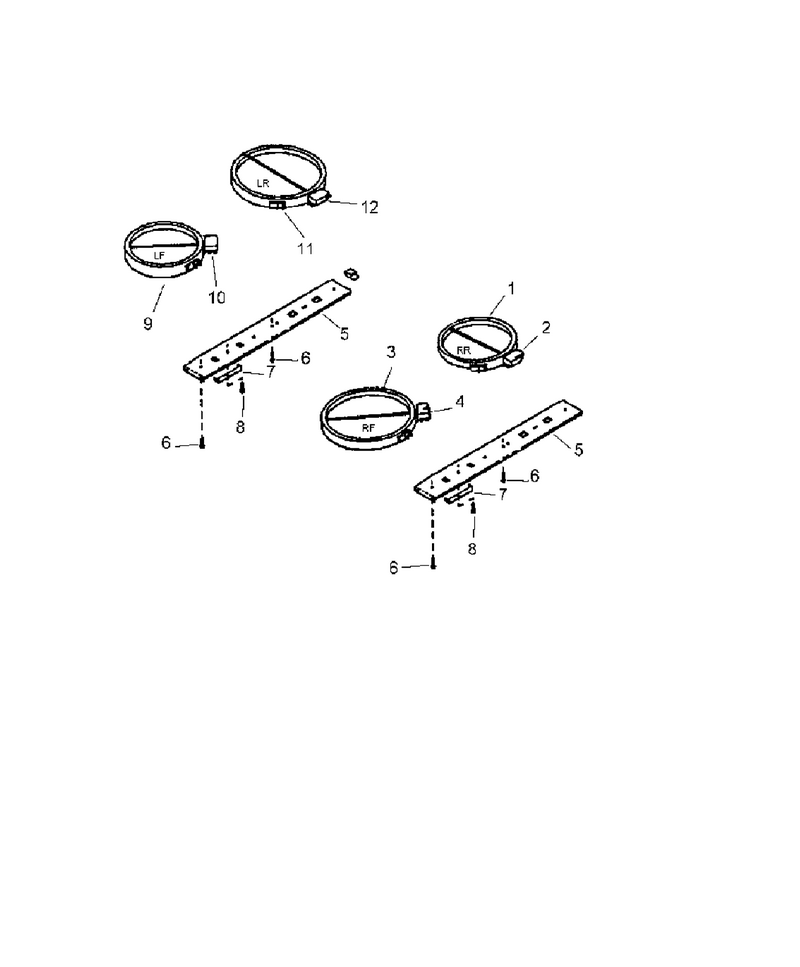

02 - Elements And Limiters

...
...
1
Element, Haloring-1500 W WPL-Y0307432
...
2
Element, Haloring-1500 W WPL-Y0307432
...
3
Element, Haloring-1800 W WPL-Y0307433
...
4
Limiter, Temp, Large WPL-10061003
...
5
Bracket, Element WPL-307425B
...
6
Screw, Shoulder WPL-0306212
...
7
Spring, Element WPL-Y0306683
...
8
Screw, No.8-18 X 3/8 Pph WPL-31750425
...
9
Elmnt-Surf WPL-WP32082801
...
10
Limiter WPL-10061016
...
11
Elmnt-Surf WPL-W10823726
