Amana AH15610.A

Model: AH15610.A

Save Part Not Listed?
product name

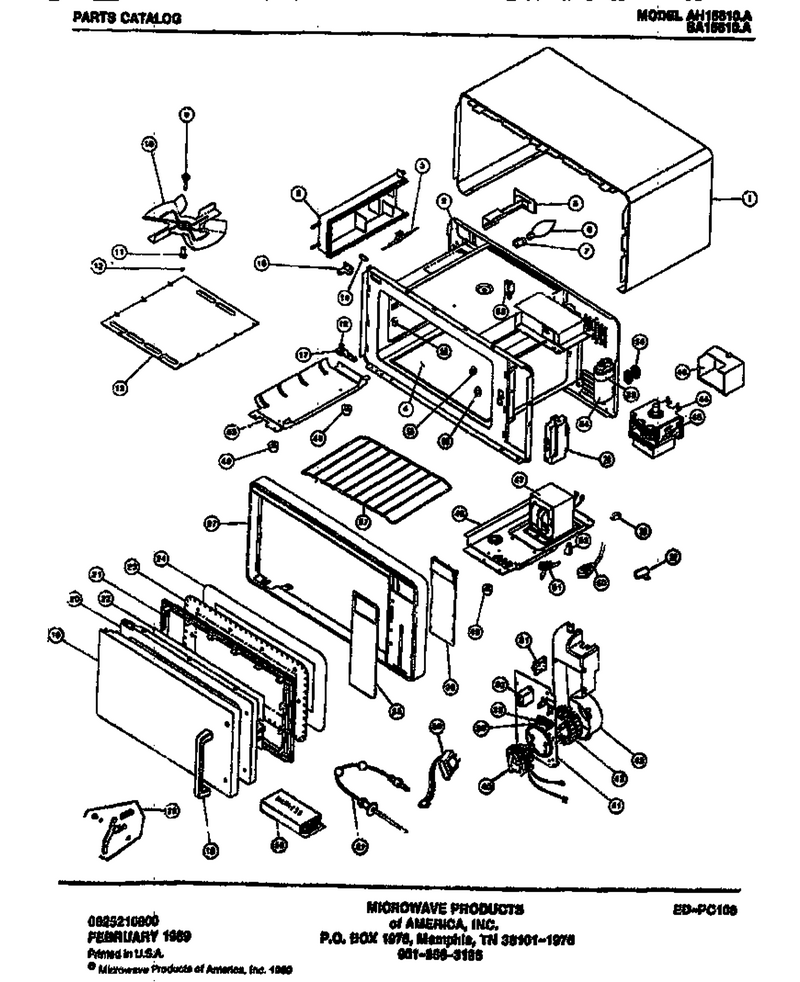

01 - Page 1

...
...
1. Some Models Are Produced With A Separate High Voltage Capacitor And Diode. WPL-NOTE:
...
NI
Driver, Tri-Wing (M95d20) WPL-92458P01
...
1
Screw WPL-WP90767
...
2
Cavity Asy WPL-M77D172
...
3
Sensor, Cavity Kit WPL-M4D102
...
4
Adhesive WPL-W10841140
...
5
Exhaust Duct Cavity WPL-M65D363
...
6
Light Bulb WPL-59002071
...
7
Socket, Lamp WPL-2042100201
...
8
Lamp Acc Intl WPL-M20D370
...
9
Stirrer Shaft Ala15000 WPL-M2D784
...
10
Kit-Insert & Blade Stirrer WPL-R0130737
...
11
M2d782 Stirrer Insert WPL-3010011301
...
12
C-Washer Insert Ala15000 WPL-M1D959
...
13
Stirrer Cover Kit WPL-M45D48
...
14
Plate Nut WPL-45010P01
...
15
No.6 Flat Hd Machine Screw WPL-M1D60
...
16
Nylon Flat Washer WPL-40370P01
...
17
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
18
Handle Intl Kit WPL-M11D105
...
19
No.8 Ab X 3/8`` Screw WPL-M1D900
...
20
Door Frame Intl WPL-M70D225
...
21
Dr Filler Intl WPL-M55D39
...
22
Outer Window WPL-M51D100
...
23
Door Screen Intl WPL-M70D226
...
24
See Note Inner Window -- (See Item 23a Above) WPL-Y00000000
...
25
Mem Swi Asy WPL-M7X32
...
26
Elect Crkt Bd WPL-M32D33
...
27
Screw WPL-WP489464
...
28
Screw WPL-WP98165
...
29
Latch Intl Kit WPL-M2D821
...
30
Toroid (Arc Suppressor) WPL-44780P01
...
31
Int`l Lst Iv WPL-4070001101
...
32
Line Filter Kit WPL-M10D90
...
33
Relay WPL-38806P01
...
34
Kit, Diode WPL-M3D71
...
35
Screw WPL-WP489464
...
36
Transformer L.v. Kit WPL-M60D109
...
37
Probe-Temp WPL-45584P01
...
38
Fuse, 10 Amp WPL-M0805106
...
39
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
40
Screw WPL-WPW10001160
...
41
Screw WPL-WP489464
...
42
Kit, Blower Wheel WPL-R0163293
...
43
Blower Housing Ala15000x WPL-3010006601
...
44
Kit, Magnetron WPL-M57D36
...
45
Thermal Prot Kit WPL-M4D115
...
46
Air Duct Mag WPL-M65D362
...
47
X-Fmr WPL-M60D141
...
48
Screw WPL-WP90767
...
49
Foot 4/pkg WPL-M2D534
...
50
Screw, Switch Mtg. WPL-M1D37
...
51
Strain Relief WPL-M2D820
...
52
Rivet, Pop WPL-A4539629
...
53
Screw WPL-WP90767
...
54
Cord Wrap WPL-M8D371
...
55
Harness Pkg WPL-M27D491
...
56
No.3/8-32 Hex Nut (25) WPL-M1D615
...
57
Rack Ala15000 WPL-M67D47
...
58
Rack Support C-Type Wht WPL-3010010002
...
59
Support Rack WPL-B8371001
...
60
Hole Plug WPL-M1D984
