product name

Amana AH01485U.A (BOM: AH01485U. A)

Model: AH01485U.A (BOM: AH01485U. A)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

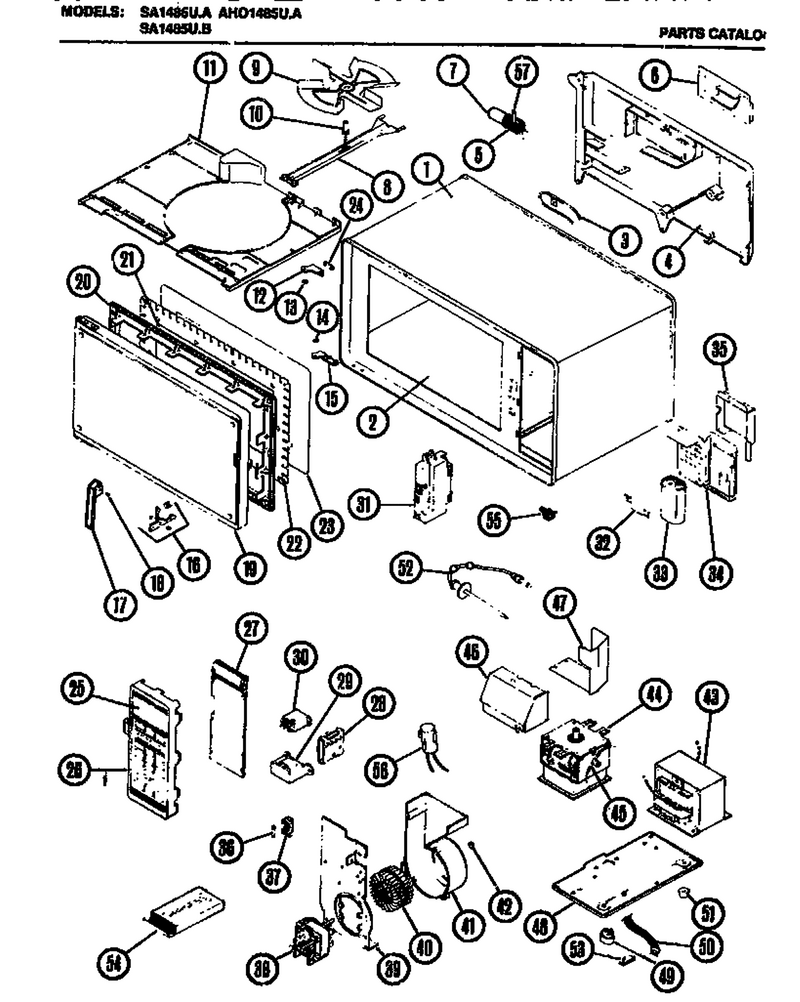

01 - Page 1

...
...
NI
Torx Driver, T-20 (M95d23) WPL-M95D23
...
1
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
2
Adhesive WPL-W10841140
...
3
Sensor Cavity Kit WPL-M4D124
...
4
Screw WPL-WP90767
...
5
Light Holder WPL-46534P01
...
6
Lamp Acc Door Kit WPL-M20D294
...
7
Light Bulb WPL-59002071
...
8
Plastic Fastener WPL-5524122001
...
9
Kit-Insert & Blade Stirrer WPL-R0130737
...
10
Ball WPL-38321P01
...
11
Stirrer Cover M45d50 WPL-3010017901
...
12
Brkt Top WPL-45009P01
...
13
No.10 Wave Washer WPL-M2D583
...
14
Nylon Flat Washer WPL-40370P01
...
15
No.8-32 Pan Hd Mach Scr (25) WPL-M1D918
...
16
Door Hook Kit WPL-R0163249
...
17
Handle WPL-M11D78
...
18
Groove Pin WPL-M2D577
...
19
Outer Door Asyx WPL-M70D175
...
20
Door Filler Kit WPL-M55D29
...
21
Outer Window Kit WPL-M51D84
...
22
No.8 Ab X 3/8`` Screw WPL-M1D906
...
23
Window, Inner WPL-10785101
...
24
Plate Nut WPL-45010P01
...
25
Display Window WPL-M2D781
...
26
Tch Pnl Asy M7d901 WPL-4001004801
...
27
Elect Crkt Bd WPL-M32D33
...
28
Screw (25) WPL-M1D590
...
29
Screw WPL-WP90767
...
30
Relay WPL-38806P01
...
31
U-Clip WPL-M2D575
...
32
Screw WPL-WP90767
...
33
Cap & Diode Kit WPL-M10D138
...
34
Screw WPL-WP90767
...
35
Screw WPL-WP90767
...
36
Fuse, 10 Amp WPL-M0805106
...
37
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
38
Blower Motor Kit WPL-M12D105
...
39
Screw WPL-WP90767
...
40
Kit, Blower Wheel WPL-R0163293
...
41
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
42
Retainer WPL-M1D892
...
43
X-Fmr WPL-M60D141
...
44
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
45
Sensor Magnetron Kit WPL-M4D101
...
46
Front Air Duct WPL-3000004301
...
47
Screw WPL-WP90767
...
48
Nut-Speed WPL-M0287001
...
49
Strain Relief WPL-M2D780
...
50
Ia Screw8-32 (25) WPL-M1D368
...
51
Foot WPL-M2D676
...
52
Probe-Temp WPL-45584P01
...
53
Rivet, Pop WPL-A4539629
...
54
H.v. Lead Kit WPL-M5D350
...
55
3/8 Int Tooth Lockwasher WPL-M1D598
...
56
Line Filter Kit WPL-M10D90
...
57
Screw WPL-WP90767
