Amana AGS730W (BOM: P1141258N W)

Model: AGS730W (BOM: P1141258N W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

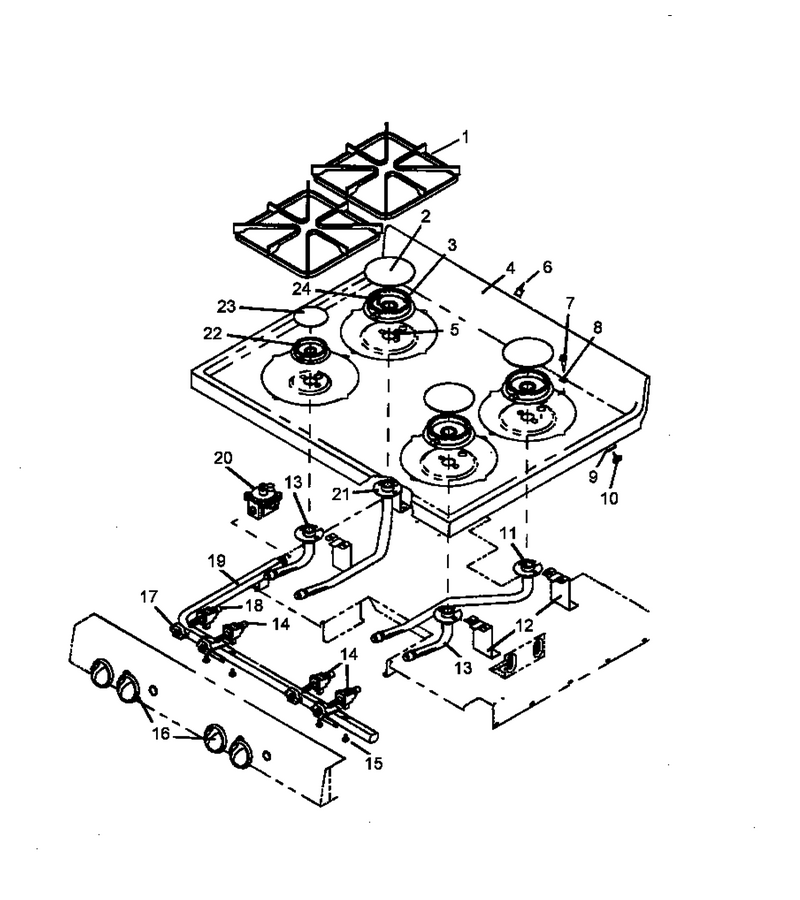

05 - Main Top Assy

...
...
NI
Shield, Switch WPL-Y0314316
...
1
Grate, Top Burner (Black) WPL-309584B
...
2
Cap, Burner (Large) WPL-314638B
...
3
Burner, 4`` Die Cast WPL-Y0307339
...
4
Maintop-White WPL-306075W
...
5
Screw WPL-8169479
...
6
Screw, Stud WPL-31750709
...
7
Elctr-Kit WPL-WP3185804
...
8
Clip, Electrode WPL-Y07714200
...
9
Spacer, Nylon (.14``) WPL-Y0062445
...
10
Metal Screw 6x3/8 Phil Pan Hd WPL-Y0092374
...
11
Assy, Venturi-Rr WPL-Y0314736
...
12
Brkt, Venturi Mtg WPL-0306149
...
13
Venturi Assy WPL-Y0306161
...
14
Valve, Top Burner WPL-0309592
...
15
Screw WPL-W10491986
...
16
Knob, Top Burner (Blk) WPL-314495B
...
17
Switch, Gas Valve WPL-0309904
...
18
Valve, Top Burner WPL-0309593
...
19
Pipe Manifold WPL-0307175
...
20
Regulator, Pressure WPL-Y0308866
...
21
Assy, Venturi-Lr WPL-0314734
...
22
Burner 3`` Die Cast WPL-Y0306073
...
23
Cap, Burner (Small) WPL-314637B
...
24
Screw Cabinet Trim WPL-Y0041813

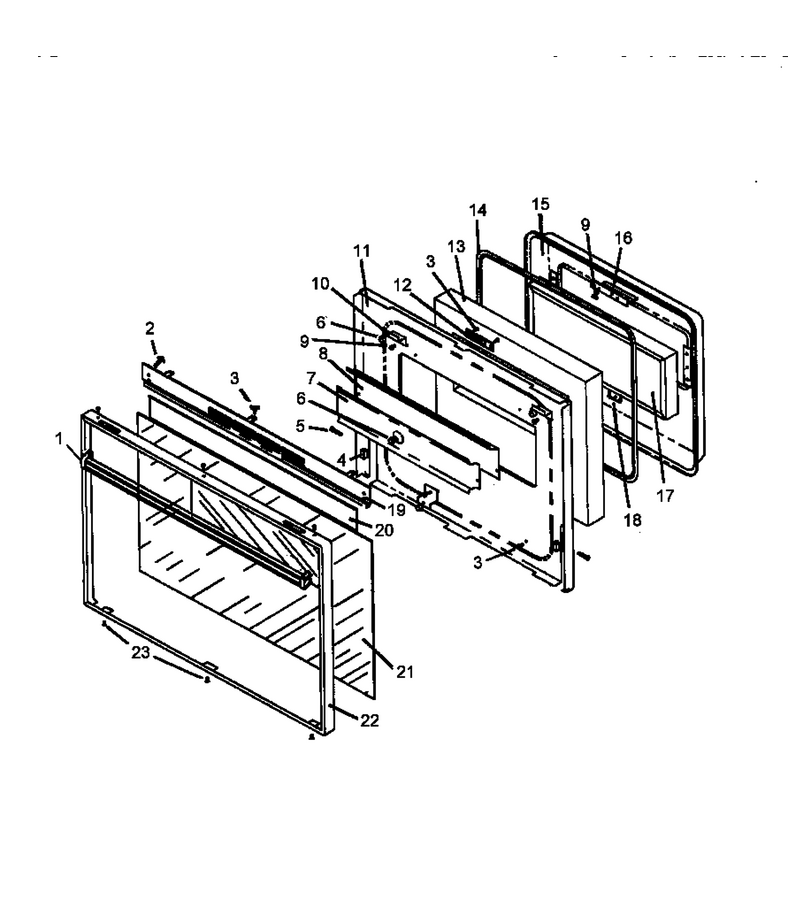

07 - Oven Door Assy

...
...
NI
Label,cleaning Instr. WPL-0300584
...
1
Kit, Dr Hndl/trim (Black) WPL-Y0305519
...
2
Screw, No.10-24x3/8 (Ph Trs Hd) WPL-Y0079863
...
3
Screw WPL-W11245710
...
4
Bumper, Rubber WPL-Y0060247
...
5
Rivet, Pop WPL-Y0302648
...
6
Bumper, Oven Door WPL-Y0063661
...
7
Heat Baffle, Glass (Black) WPL-306449B
...
8
Back, Heat Baffle (Black) WPL-306450B
...
9
Screw, No.8-18 X 3/8 P Hex Wsh T WPL-Y0309016
...
10
Support Bracket, Glass WPL-Y0062439
...
11
Backer, Door WPL-314559CG
...
12
Latch Plate WPL-Y0052039
...
13
Insulation, Wrapper WPL-31975801
...
14
Gasket, Oven Dr 82`` WPL-Y0300432
...
15
Pad, Ov Dr W/window WPL-314693CG
...
16
Retainer, Door Glass WPL-Y0052629
...
17
Window Assy WPL-0304831
...
18
Support, Door Glass WPL-Y0307910
...
19
Kit, Dr Hndl/trim (Black) WPL-306500B
...
20
Shield, Dr Glass Heat WPL-Y0306782
...
21
Glass, Oven Door WPL-314510B
...
22
Frame, Glass Door (Black) WPL-306538B
...
23
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706

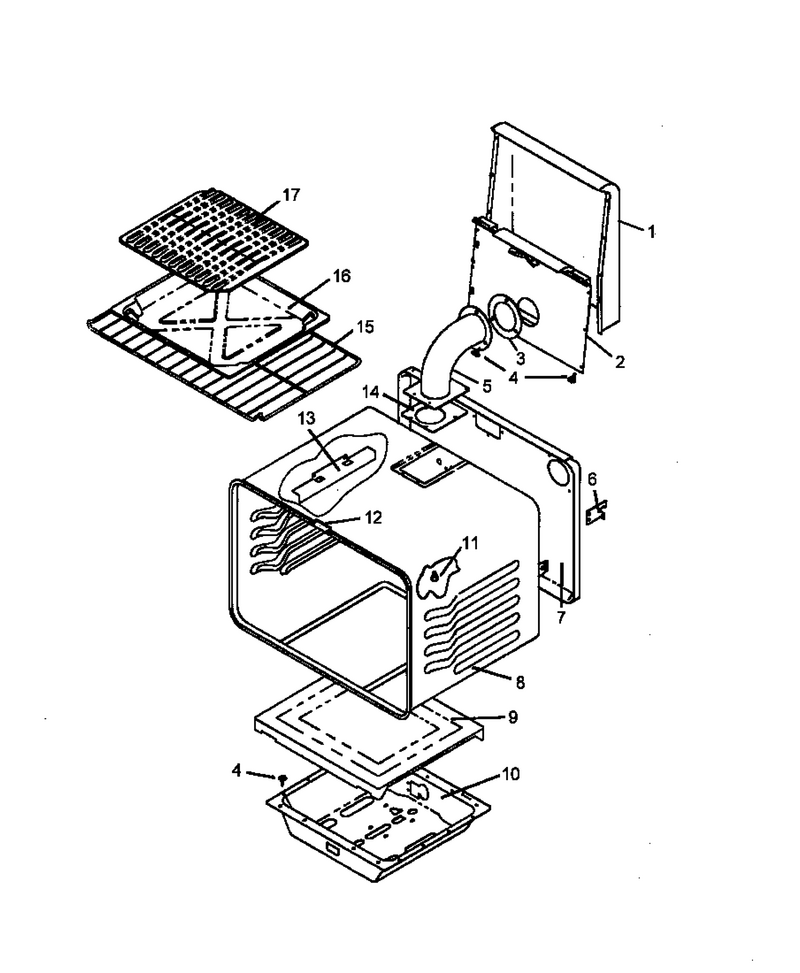

02 - Cabinet Assy

...
...
NI
Insulation, Wrapper WPL-31975801
...
1
Flue, Dilution WPL-306158B
...
2
Assy, Flue WPL-309567CG
...
3
Vent Flue Gasket WPL-Y0309724
...
4
Screw WPL-W11245710
...
5
Tube, Air Vent WPL-0309594
...
6
Bracket, Oven Cavity WPL-Y0058852
...
8
Shell, Oven (Gas) WPL-302933CG
...
9
Oven Bottom WPL-58625CG
...
10
Burner Box, Lower WPL-Y0063802
...
11
Probe Recept. Cover Stainless WPL-Y0040848
...
12
Cover, Chip WPL-Y0315022
...
13
Shield, Thermostat Bulb WPL-0062792
...
14
Vent Gasket WPL-0309725
...
15
Rack-Oven WPL-WP314763J
...
16
Pan, Broiler WPL-87722CG
...
17
Procelain Broiler (Pan And Grid) WPL-4396923

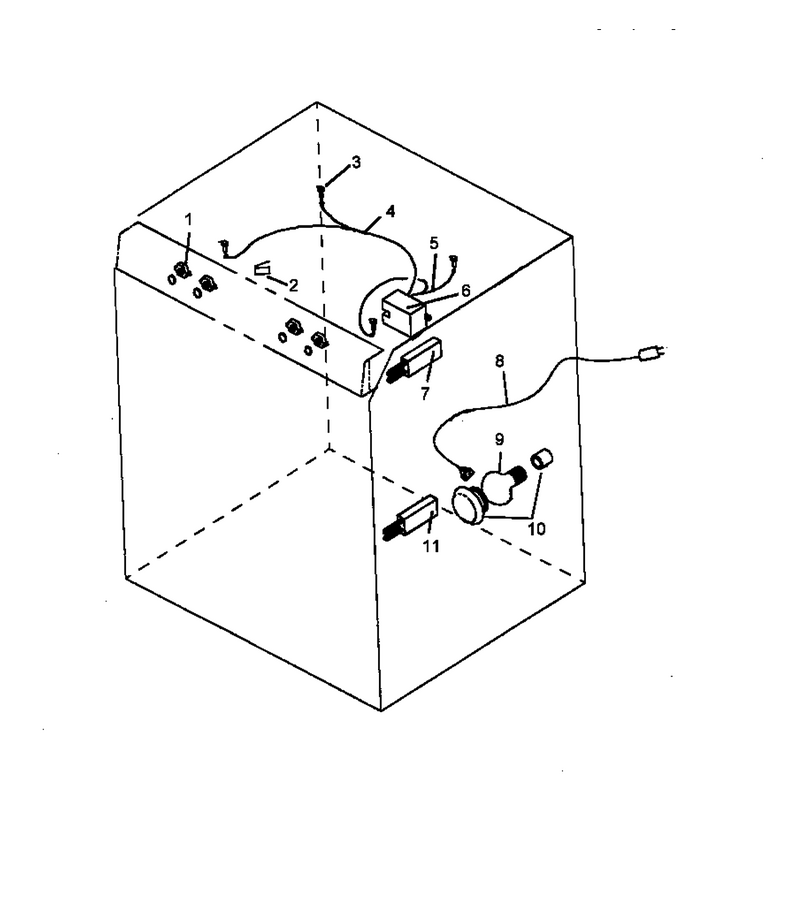

03 - Electrical Components

...
...
NI
Shield, Broiler Ignitor WPL-Y0314225
...
1
Switch, Gas Valve WPL-0309904
...
2
Switch- La WPL-77001254
...
3
Elctr-Kit WPL-WP3185804
...
4
Harness,ign Wire 31`` WPL-Y0307393
...
5
Harness,ign Wire 20`` WPL-Y0307394
...
6
Kit,spark Module(Service) WPL-Y0305451
...
7
Kit, Ignitor WPL-786324
...
8
Power Cord WPL-Y0306654
...
9
Light Bulb WPL-8009
...
10
Light- Ove WPL-WP74011278
...
11
Assy, Svc Ignitor WPL-Y0309143

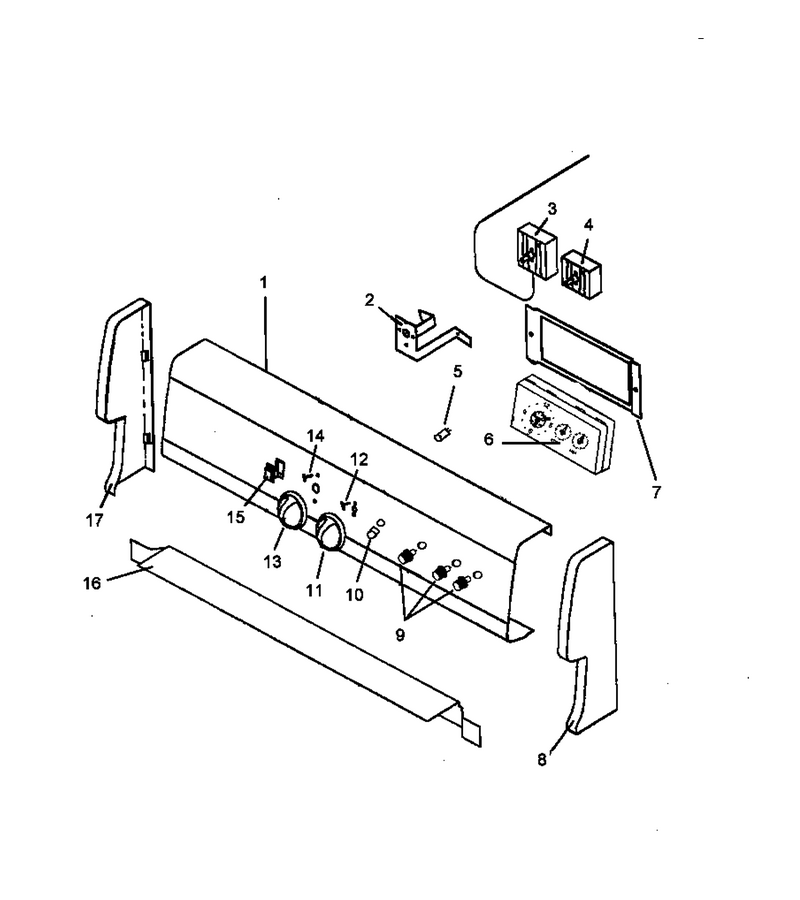

01 - Backguard Assy

...
...
NI
Screw No.8 - 18 X .250 WPL-Y0061164
...
1
Panel, Bkgd WPL-309603B
...
2
Brace, Backguard WPL-Y0309905
...
3
Oven Thermostat, Push To Turn WPL-Y0303055
...
4
Switch, Selector WPL-Y0309809
...
5
Light-Ind WPL-WP903115
...
6
Clock Analog WPL-Y0314718
...
7
Brkt, Clock Mtg WPL-0309582
...
8
End Cap, R.h. (Black) WPL-309577B
...
9
Knob- Cloc WPL-Y07715600
...
10
Lens, Indic. Light WPL-Y0309581
...
11
Knob, Selector (Blk) WPL-314496B
...
12
Screw WPL-WP3400882
...
13
Knob, Thermostat (Blk) WPL-314497B
...
14
Screw, No.3-32 X.187 Pan Hd Ph WPL-31750302
...
15
Switch, Rocker WPL-Y0063997
...
16
Retainer, Insul Bkgd WPL-314196B
...
17
End Cap, L.h. (Black) WPL-309576B

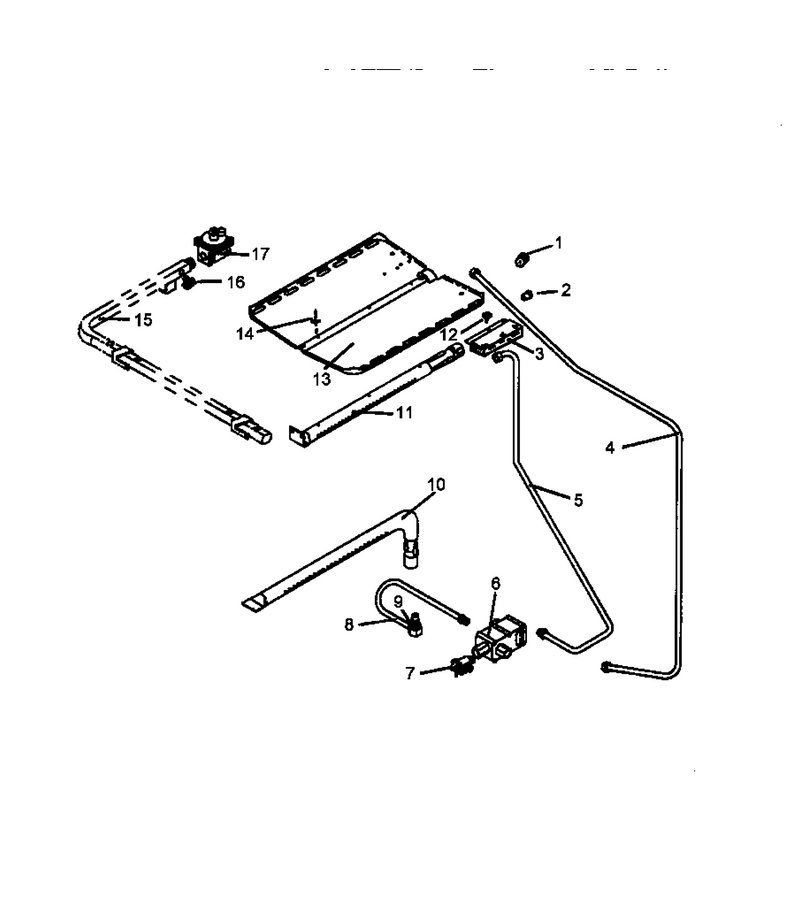

04 - Gas Components

...
...
NI
Support, Broil Burner WPL-0300072
...
1
Orifice, Broil Burner WPL-0314125
...
3
Shield, Broiler Ignitor WPL-Y0314225
...
4
Tubing, Manifold/valve WPL-0314143
...
5
Tubing, Gas WPL-0302058
...
6
Valve, Gas, Dual WPL-Y0306429
...
7
Valve, Shutoff WPL-0306428
...
8
Assy, Hood & Tubing WPL-0306594
...
9
Nut, Pal 3/4-16 X 1.062 WPL-Y0097871
...
10
Oven Burner WPL-Y0063709
...
11
Broil Burner WPL-0300070
...
12
Screw WPL-WP489128
...
13
Reflector, Broil WPL-Y0054043
...
14
Rivet, Pop WPL-Y0097822
...
15
Pipe Manifold WPL-0307175
...
16
Fitting, 1/8``x 3/8`` WPL-Y0301263
...
17
Regulator, Pressure WPL-Y0308866

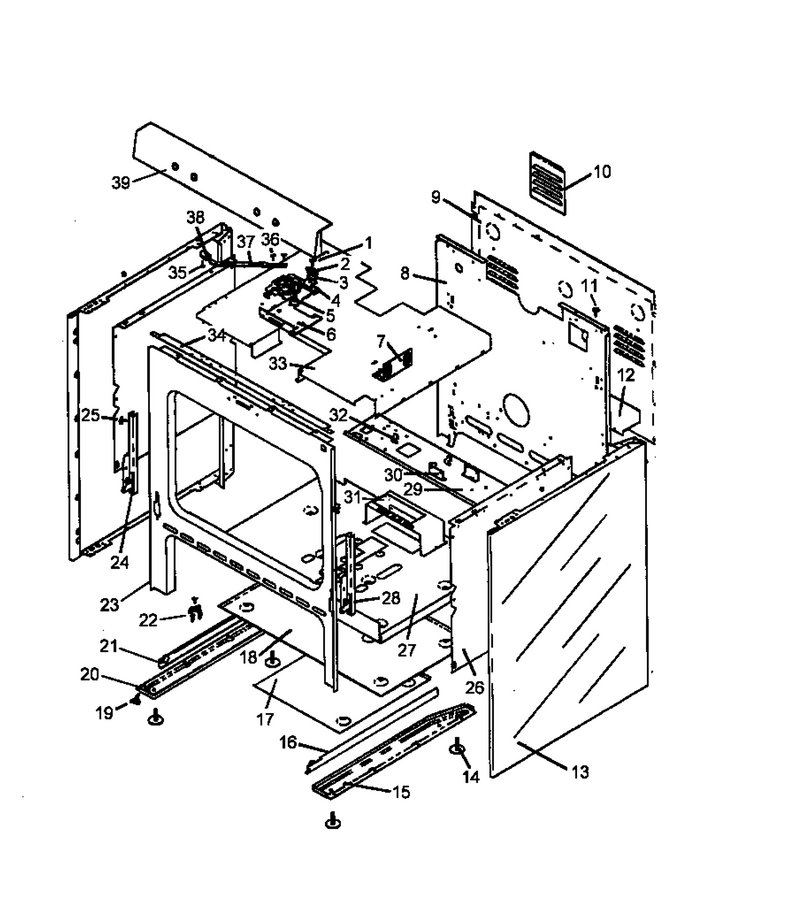

06 - Oven Assy

...
...
NI
Screw No.6-32 X 3/8 WPL-Y0072230
...
1
Screw, Tt 23 4-40 X 5/8 WPL-Y0065664
...
2
Switch- La WPL-77001254
...
3
Insulation, Esm WPL-Y0091523
...
4
Bracket, Switch WPL-Y0302316
...
5
Latch Assembly WPL-Y0063733
...
6
Bracket, Latch Mtg. WPL-Y0058918
...
7
Bracket, Spark Module WPL-0304971
...
8
Insul, Ret.-Rear WPL-Y0308315
...
9
Cover Plate, Rear WPL-Y0306791
...
10
Plate, Access WPL-31757201
...
11
Screw WPL-W11245710
...
12
Cover, Electrical WPL-Y0306827
...
13
Panel, Side (Wht) WPL-31825104W
...
14
Leg,leveling Xxx WPL-314187B
...
15
Brace, Leveling Leg (Rt) WPL-31854502
...
16
Track, Storage Dwr Rh WPL-0314663
...
17
Shield, Heat WPL-Y0315146
...
18
Shield WPL-0059596
...
19
Screw WPL-W11245710
...
20
Brace, Leveling Leg (Lt) WPL-31854501
...
21
Track, Storage Dwr Lh WPL-Y0314662
...
22
Anti-Tip Pack WPL-31970801
...
24
Kit, Door Hinge(Lh-Hs) WPL-Y0314572
...
25
Screw No.10-32 X .375 WPL-Y0300830
...
26
Retainer, Insulation (Side) WPL-0304282
...
27
Insul, Ret.-Bottom WPL-Y0308317
...
28
Hinge-Door WPL-R0706011
...
29
Shelf, Gas Valve WPL-0307065
...
30
Bracket, Gas Valve WPL-0053182
...
31
Cover, Ig/bake Burner WPL-Y0302498
...
32
Cable, Clip Esm WPL-Y0091587
...
33
Retainer, Top Insul. WPL-0315550
...
34
Filler, Front Frame WPL-Y0315148
...
35
Screw 6-32 X 3/8 WPL-Y0066765
...
36
Screw Latch Arm Mounting WPL-Y0078780
...
37
Handle, Door Latch (Blk) WPL-303040B
...
38
Knob, Latch Handle (Blk) WPL-0302300
...
39
Panel, Manifold (Black) WPL-314128B

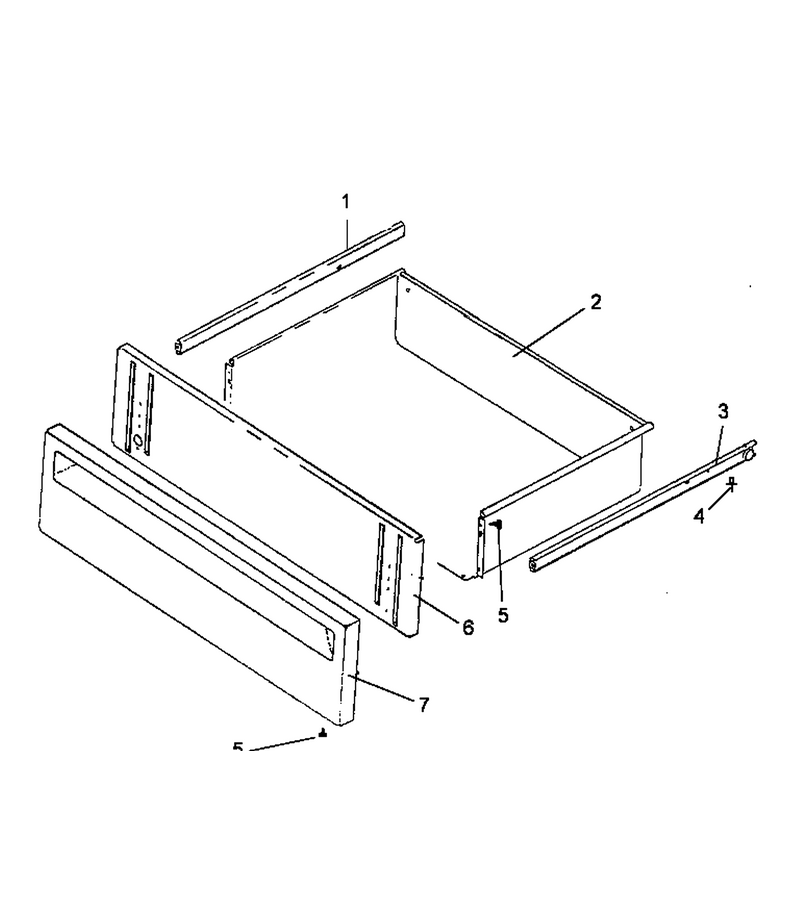

08 - Storage Drawer Assy

...
...
1
Runner Storage Dwr-Lh WPL-0314664
...
2
Drawer, Storage (Wht) WPL-306084W
...
3
Runner Storage Dwr-Rh WPL-Y0314665
...
4
Rivet, Pop WPL-Y0076357
...
5
Screw WPL-W11245710
...
6
Liner, Stor Drawer WPL-306086W
...
7
Panel, Drawer Formed WPL-306085W
