Amana AGR6603SFB8

Model: AGR6603SFB8

Save Part Not Listed?
product name

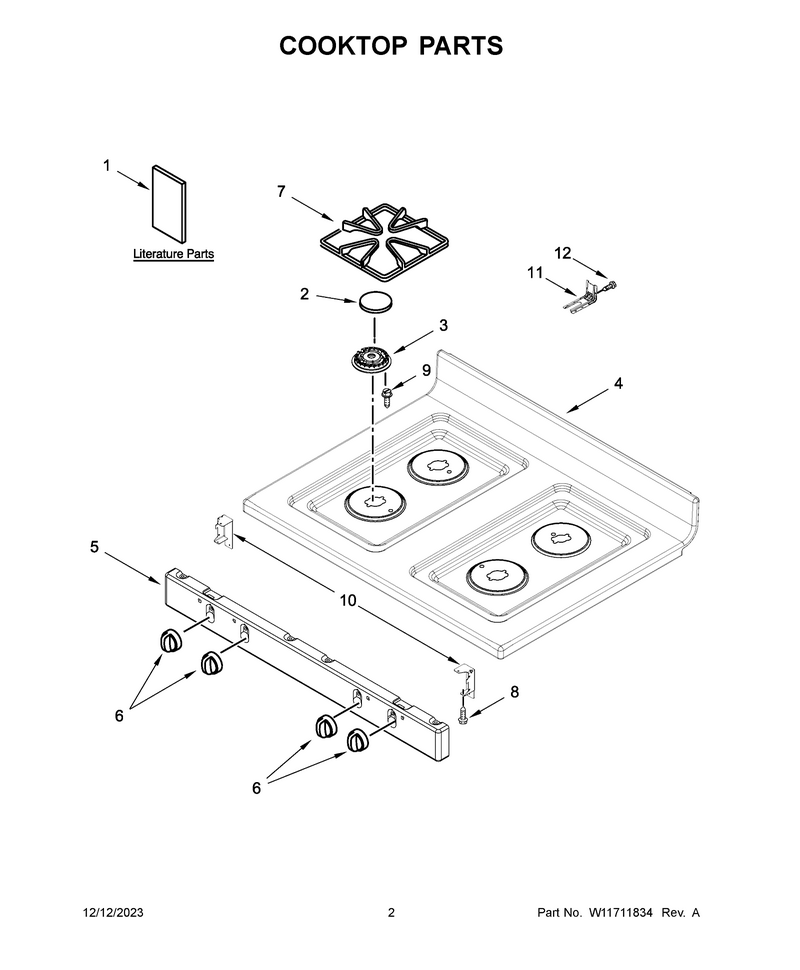

02 - Cooktop Parts

...
...
NI
Clip WPL-W10841090
...
1
Owners Manual WPL-W11450808
...
1A
Wiring Diagram WPL-W11508881
...
1B
Quick Start Guide WPL-W11427467
...
2
Cap-Burner WPL-W11455147
...
3
Burnr-Head WPL-W11435630
...
3A
Burnr-Head WPL-W11435659
...
3B
Burnr-Head WPL-W11435657
...
4
Cooktop WPL-W11475519
...
4A
Cooktop WPL-W11480487
...
5
Panel, Manifold (Black) WPL-8523855
...
5A
Panl-Mnfld WPL-WP8523854
...
6
Knob WPL-W11620562
...
6A
Knob WPL-W11620728
...
7
Grate-Kit WPL-W10915784
...
8
Screw WPL-WP3196557
...
9
Screw WPL-W11241230
...
10
Bracket, Manifold WPL-8523249
...
11
Anchor-Tip WPL-W11447673
...
12
Anchor-Tip WPL-WP7101P485-60

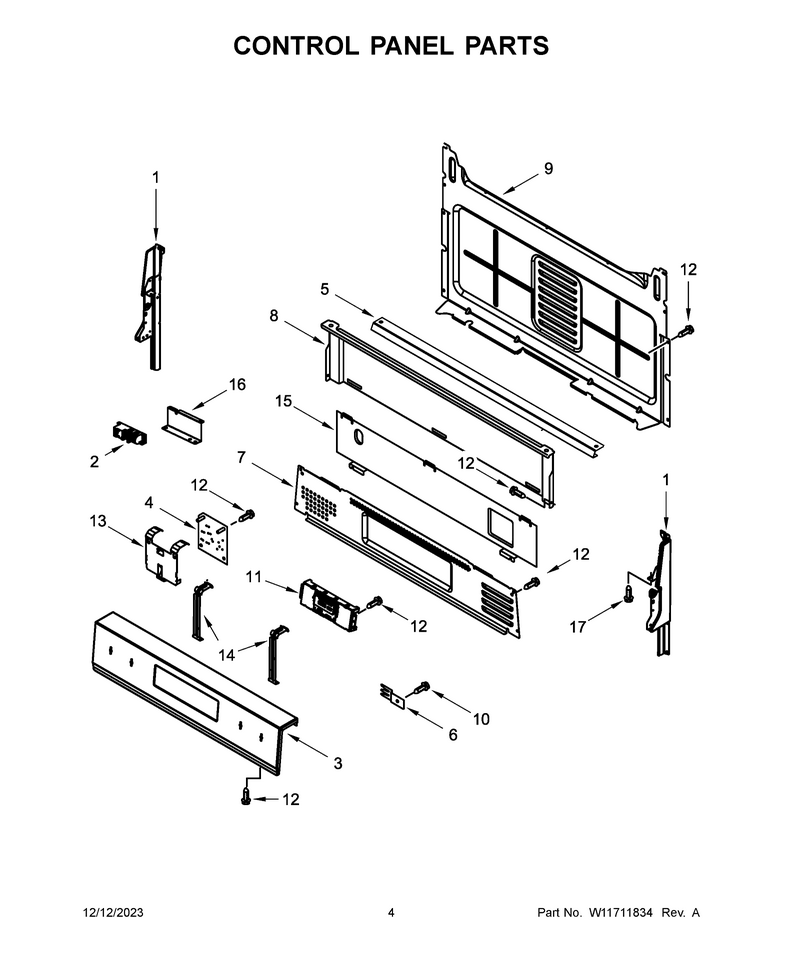

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11219664
...
1A
Endcap-Pnl WPL-W11219365
...
1B
Endcap-Pnl WPL-W11219665
...
1C
Endcap-Pnl WPL-W11219370
...
2
Module-Spk WPL-WPW10110491
...
3
Panl-Cntrl WPL-W11231173
...
3A
Panl-Cntrl WPL-W11219667
...
4
Module-Spk WPL-W11162730
...
5
Bracket, Console Mounting WPL-W10516123
...
6
Bracket, Rear Cooktop WPL-8523412
...
7
Cover, Upper WPL-W10198745
...
8
Shield, Heat WPL-W10192841
...
9
Cover, Back WPL-W10184370
...
10
Screw WPL-WP3196557
...
11
Cntrl-Elec WPL-W11620563
...
11A
Cntrl-Elec WPL-W11620729
...
12
Screw WPL-W11233072
...
13
Bracket, Dsi WPL-W10516463
...
14
Brkt-Mntg WPL-W11230932
...
15
Shield, Heat WPL-8053505
...
16
Bracket WPL-W10901176
...
17
Screw WPL-WP3196175

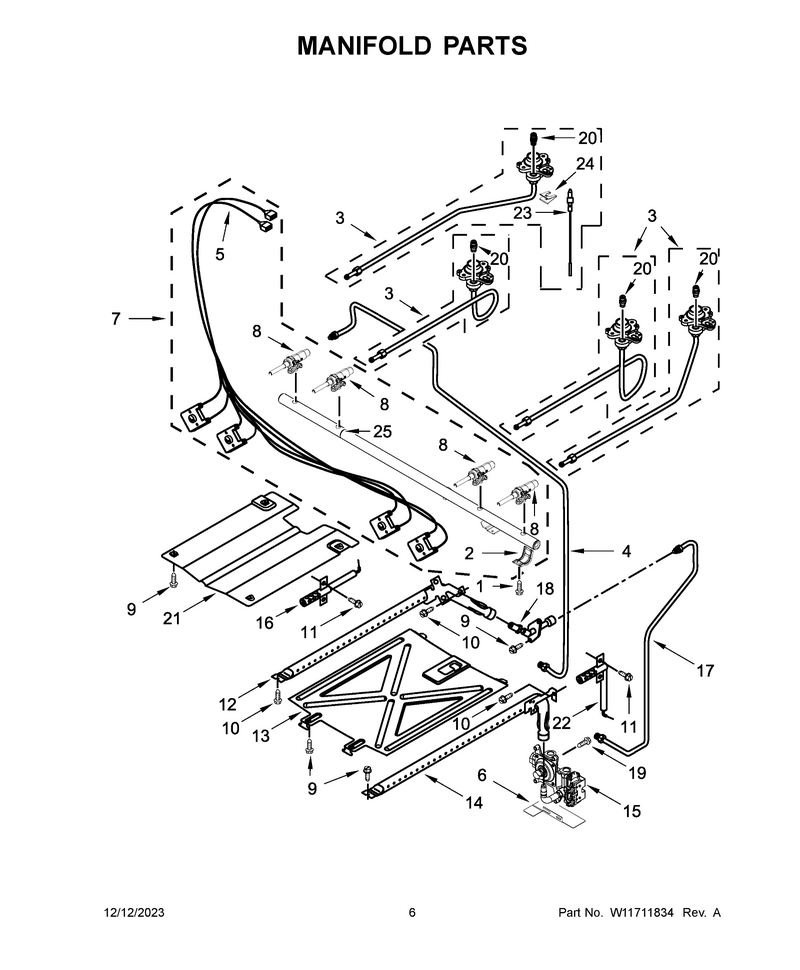

04 - Manifold Parts

...
...
NI
Orifice WPL-W10758273
...
1
Screw, Valve WPL-W11577792
...
2
Bracket, Saddle Valve WPL-W10949105
...
3
Orifice Holder Assembly (Left Front) WPL-W11459253
...
3A
Orifice Holder Assembly (Left Rear) WPL-W11459254
...
3B
Orifice Holder Assembly (Right Front) WPL-W11459255
...
3C
Orifice Holder Assembly (Right Rear) WPL-W11459256
...
4
Tubing-Gas WPL-W11680399
...
5
Harns-Wire WPL-W11701337
...
6
Bracket, Aegis WPL-W10224921
...
7
Manifold Assembly WPL-W11510001
...
8
Valve-Brnr WPL-W11759109
...
8A
Valve, Gas (Left Rear And Center) WPL-W11509686
...
8B
Valve,gas (Right Rear) WPL-W11509687
...
9
Screw WPL-W11233072
...
10
Screw WPL-3196265
...
11
Screw WPL-W11684507
...
12
Burnr-Brlr WPL-WP8054078
...
13
Baffl-Brnr WPL-WPW10184491
...
14
Burnr-Oven WPL-WP9758078
...
15
Valve-Gas WPL-W11449506
...
16
Igntr-Oven WPL-WPW10333842
...
17
Tube, Broiler Supply WPL-W10420040
...
18
Fitting, Broiler WPL-W11435700
...
19
Screw WPL-WP3400016
...
20
Orifice WPL-W11700316
...
20A
Orifice (9.5k) (Left Rear) Orifice, Not Serviced WPL-W11485873
...
20B
Orifice WPL-W11712434
...
21
Spreader, Flame (Broiler) WPL-W10137062
...
22
Igntr-Oven WPL-W11524031
...
23
Igntr-Surf WPL-W11453940
...
23A
Igntr-Surf WPL-W11453920
...
24
Clip WPL-W11684564
...
25
Tie-Wire WPL-WPW10182767

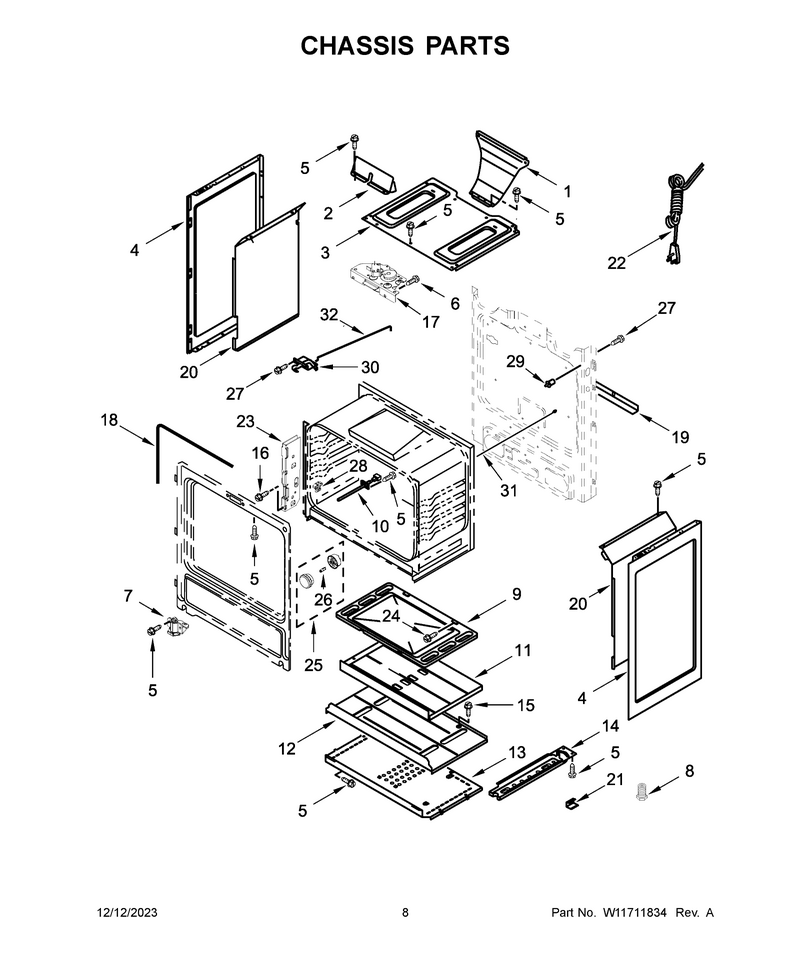

05 - Chassis Parts

...
...
NI
Insulation WPL-W11688737
...
1
Box, Flue WPL-W11457094
...
2
Shield-Ht WPL-WP8272747
...
3
Box-Burner, Gas Sealed WPL-W11379351
...
4
Panel-Side WPL-W11730303
...
4A
Panel-Side WPL-WPW10575396
...
5
Screw WPL-W11233072
...
6
Screw WPL-WP3196557
...
7
Foot-Level WPL-WPW10341186
...
8
Foot-Level WPL-WPW10058460
...
9
Bottm-Oven WPL-WP3195097
...
10
Sensor WPL-W10833885
...
11
Baffle, Burner Oven WPL-8053967
...
12
Shield, Heat WPL-8053969
...
13
Shield, Lower WPL-8053968
...
14
Rail-Base WPL-WPW10306546
...
14A
Rail-Base WPL-WPW10306546
...
15
Screw WPL-W11233072
...
16
Screw WPL-W10777162
...
17
Latch-Door WPL-WPW10107820
...
18
Gaskt-Door WPL-W11542153
...
19
Brace, Main Back WPL-W10435470
...
20
Retainer, Insulation (Left) WPL-W11379353
...
20A
Retainer, Insulation (Right) WPL-W11379943
...
21
Clip, Panel WPL-W10137382
...
22
Cord-Power WPL-W11023766
...
23
Hinge-Recv WPL-W10647259
...
24
Screw WPL-W10379120
...
25
Light-Oven WPL-W11707255
...
26
Bulb-Light WPL-WPW10571723
...
27
Screw WPL-W11169708
...
28
Glide-Drwr WPL-W10807823
...
29
Swtch-Lite WPL-W11620712
...
30
Latch-Door WPL-WP9761013
...
31
Rod, Door Switch WPL-9757239
...
32
Rod, Push Latch WPL-W10078370

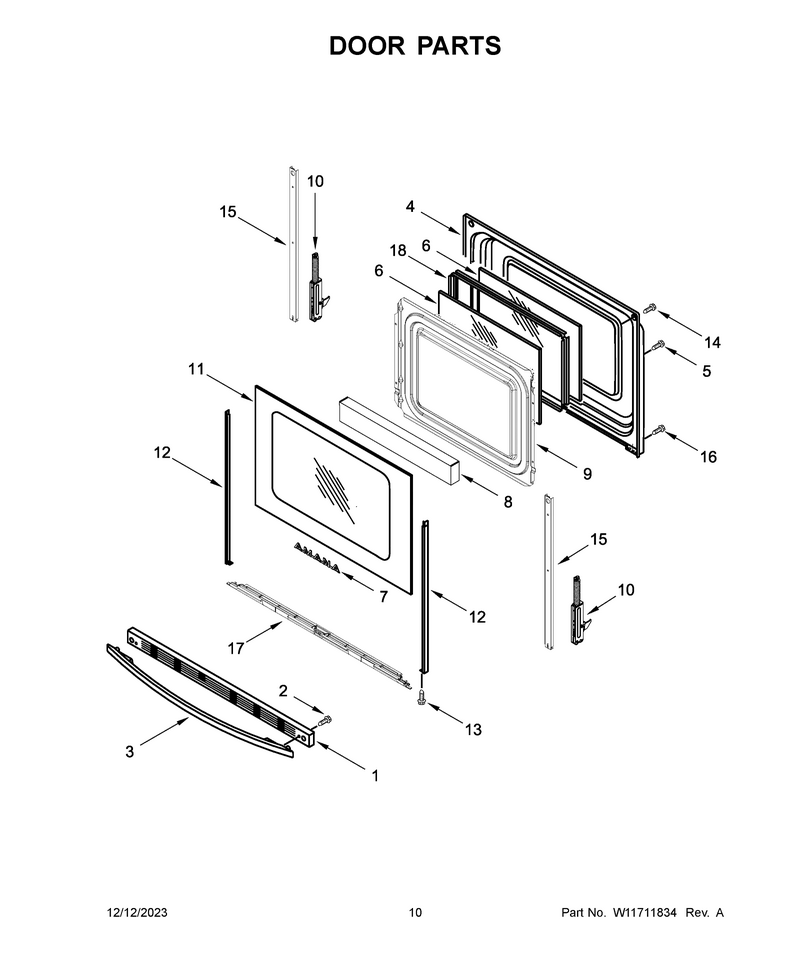

06 - Door Parts

...
...
1
Trim-Vent WPL-WPW10310922
...
1A
Trim-Vent WPL-W10817433
...
2
Screw WPL-W10817436
...
3
Hndle-Door WPL-WPW10323589
...
3A
Hndle-Door WPL-W10817434
...
4
Liner-Door WPL-WP9761344
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-WP8053948
...
7
Badge (Black) WPL-W10846751
...
7A
Badge (White) WPL-W10849465
...
8
Insulation WPL-WPW10278991
...
9
Retainer WPL-W11539580
...
10
Hinge-Door WPL-WPW10299227
...
10A
Hinge-Door WPL-WPW10299226
...
11
Glass-Door WPL-W11098210
...
11A
Glass-Door WPL-W10904906
...
12
Trim-Door WPL-W10761018
...
12A
Trim-Door WPL-WP8523172
...
12B
Trim-Door WPL-W10761014
...
12C
Trim-Door WPL-WP8523166
...
13
Screw WPL-WP355214
...
14
Screw WPL-WPW10200660
...
15
Brkt-Suprt WPL-W11502236
...
16
Screw WPL-W10777162
...
17
Trim-Door WPL-W11569689
...
17A
Trim-Door WPL-W11594186
...
18
Frame-Wndw WPL-WPW10316950

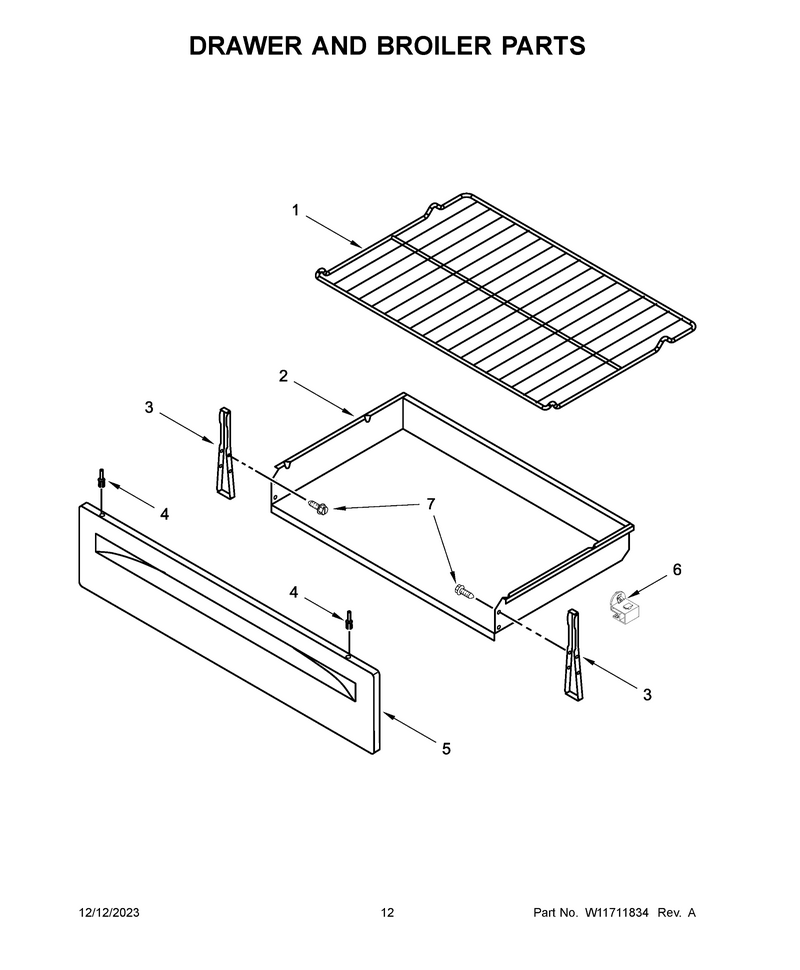

07 - Drawer And Broiler Parts

...
...
1
Rack-Oven WPL-W11520287
...
2
Drawr-Util WPL-W10813962
...
3
Bracket, Mounting WPL-W10462911
...
4
Rivet WPL-WP3196813
...
4A
Rivet WPL-WP3196814
...
5
Panel-Drwr WPL-W11230490
...
5A
Panel-Drwr WPL-W11230486
...
6
Glide-Drwr WPL-W10807828
...
7
Screw WPL-WP3196557

...
...
NI
Accessory Parts, Griddle WPL-4396096RB
