Amana AGR5844VDD5 30" Gas Freestanding Range

Model: AGR5844VDD5

Save
 Part Not Listed?Part Not Listed?
product name

Amana AGR5844VDD5

...
...
1
Range Oven Rack (Replaces W11173792, Wpw10268578) WPL-W11520287
...
2
Range Storage Drawer WPL-W10813962
...
3
Range Storage Drawer Front Panel Support Bracket (White) WPL-W10462911
...
3A
Range Storage Drawer Front Panel Support Bracket WPL-W10462909
...
4
Range Broil Drawer Front Panel Push Rivet WPL-WP3196814
...
4A
Range Broil Drawer Front Panel Push Rivet (Black) WPL-WP3196813
...
5
Drawer Panel WPL-W11230486
...
5A
Range Storage Drawer Front Panel (Black) WPL-W11230490
...
5B
Range Storage Drawer Front Panel (Universal Silver) WPL-W11226776
...
6
Range Drawer Glide, Rear (Replaces W10317898, W10674705, W10674708, Wpw10317899) WPL-W10763667
...
6A
Range Drawer Glide, Rear (Replaces W10317898, W10674705, W10674708, Wpw10317899) WPL-W10763667
...
7
Range Screw WPL-WP3196175

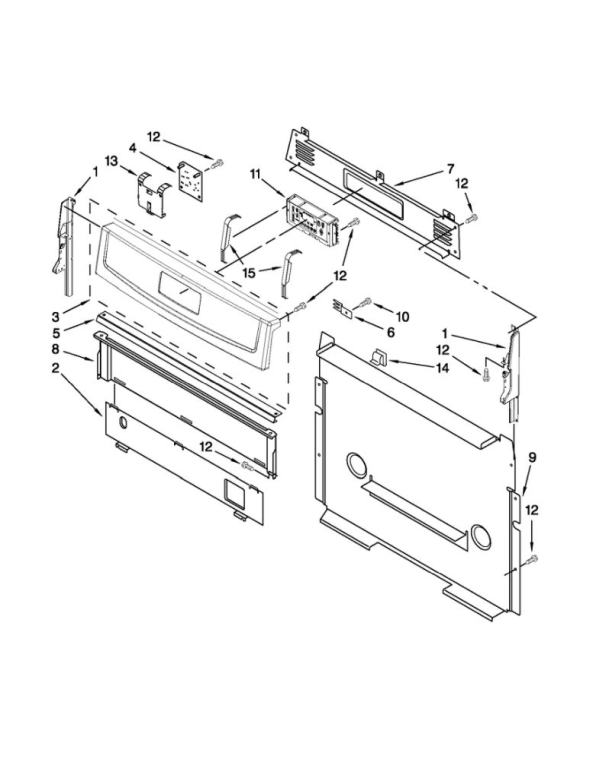

Amana AGR5844VDD5

...
...
1
Range Control Panel End Cap, Left (White) WPL-W11219365
...
1A
Range Control Panel End Cap, Left (Black) WPL-W11219664
...
1B
Range Control Panel End Cap, Right (White) WPL-W11219370
...
1C
Range Control Panel End Cap, Right WPL-W11219665
...
2
Range Control Panel Heat Shield, Lower WPL-8053505
...
4
Range Spark Module (Replaces W10331686) WPL-WPW10331686
...
6
Mounting Bracket WPL-8523412
...
7
Rear Cover WPL-W10198745
...
8
Range Control Panel Heat Shield (Replaces W10184040) WPL-W10192841
...
9
Rear Cover WPL-W10184370
...
10
Range Screw WPL-WP3196557
...
11
Range Oven Control Board WPL-W10824194
...
11A
Range Oven Control Board WPL-W10824194
...
12
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
13
Bracket-Dsi, WPL-W10516463
...
14
Clip WPL-W10334923
...
15
Mounting Bracket WPL-W11230932

Amana AGR5844VDD5

...
...
1
Range Oven Door Vent (White) (Replaces W10310920) WPL-W10817433
...
1A
Range Oven Door Vent (Black) (Replaces W10310922) WPL-WPW10310922
...
2
Range Screw (Replaces W10200660) WPL-WPW10200660
...
4
Range Oven Door Liner WPL-WP9761344
...
5
Range Screw WPL-WPW10031790
...
6
Range Oven Door Inner Glass WPL-WP8053948
...
7
Frame WPL-WPW10316950
...
8
Insulation WPL-WPW10278991
...
9
Range Oven Door Insulation Retainer Panel (Replaces 9761357) WPL-WP9761357
...
10
Range Oven Door Hinge (Replaces W10299227) WPL-WPW10299227
...
10A
Range Oven Door Hinge (Replaces W10299224) WPL-WPW10299224
...
11
Range Oven Door Outer Panel (White) (Replaces W10118454, Wp9756415) WPL-WPW10118454
...
11A
Range Oven Door Outer Panel (Black) (Replaces W10118455) WPL-WPW10118455
...
11B
Range Oven Door Outer Panel Assembly (Stainless) (Replaces W10330077) WPL-WPW10330077
...
12
Range Oven Door Trim, Left (Replaces 8523172) WPL-WP8523172
...
12A
Range Oven Door Trim, Left (Replaces 8523171, W10746436) WPL-W10761018
...
12B
Range Oven Door Trim (Replaces 8523166) WPL-WP8523166
...
12C
Range Oven Door Trim (Replaces 8523165, W10746435) WPL-W10761014
...
13
Washer Screw WPL-WP355214
...
14
Range Screw WPL-WP3196175
...
15
Range Door Bracket Strap WPL-W11502236
...
17
Range Oven Door Trim, Lower (White) (Replaces 8523175) WPL-WP8523175
...
17A
Range Oven Door Trim, Lower (Black) (Replaces 8523177) WPL-WP8523177
...
17B
Trim WPL-WPW10067550

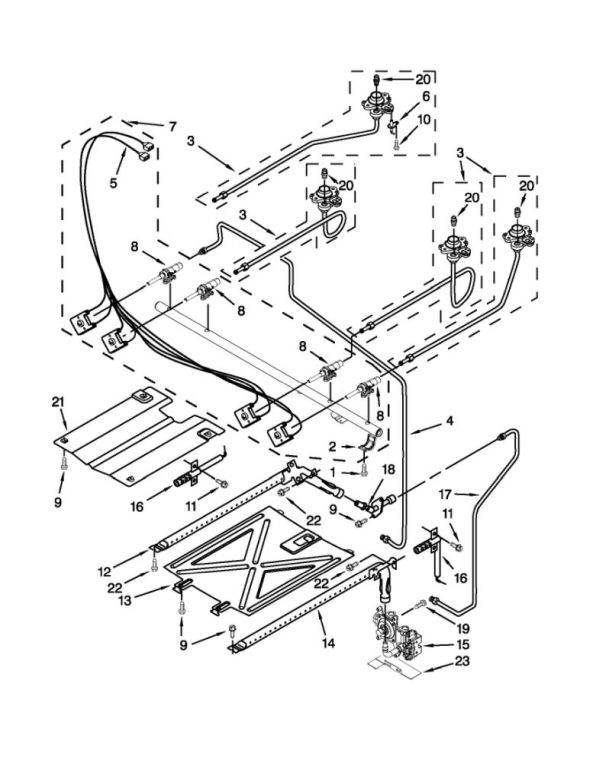

Amana AGR5844VDD5

...
...
NI
Range Lp Conversion Kit (Replaces W10170531) WPL-WPW10170531
...
NI
Range Bake Burner Lp Gas Orifice WPL-WPW10400495
...
NI
Range Bake Burner Lp Gas Orifice WPL-WPW10400498
...
1
Screw WPL-W10295997
...
2
Range Surface Burner Valve Mounting Bracket WPL-W10295996
...
3
Cooktop Holder Orifice WPL-W10462936
...
3A
Range Surface Burner Igniter And Orifice Holder, 9,500-Btu WPL-W10462928
...
3B
Holder-Orf WPL-W10462945
...
3C
Range Surface Burner Igniter And Orifice Holder, 6,000-Btu WPL-W10462940
...
4
Range Surface Burner Manifold Supply Tube WPL-W10215439
...
5
Range Igniter Switch And Harness Assembly WPL-WPW10295998
...
6
Range Surface Burner Igniter (Replaces W10216419) WPL-WPW10216419
...
7
Manifold Pipe WPL-W10314242
...
8
Range Surface Burner Valve, 9,000-Btu (Replaces W10279614) WPL-WPW10279614
...
8A
Range Surface Burner Valve, 6,000-Btu (Red) (Replaces W10247744) WPL-WPW10247744
...
9
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
10
Range Screw (Replaces 8273062) WPL-WP8273062
...
11
Range Screw WPL-3196385
...
12
Range Broil Burner WPL-WP8054078
...
13
Burner Baffle WPL-WPW10184491
...
14
Range Oven Burner (Replaces 9758078) WPL-WP9758078
...
15
Range Gas Control Valve (Replaces W10602001) WPL-WPW10602001
...
16
Range Broil Burner Igniter (Replaces 8054129) WPL-WP8054129
...
16A
Range Bake Igniter (Replaces 9758079) WPL-WP9758079
...
17
Gas Tubing WPL-W10420040
...
19
Range Screw WPL-WP3400016
...
20
Range Surface Burner Orifice, 9,000-Btu WPL-WPW10170508
...
20A
Range Surface Burner Orifice, Right Front, 12,000-Btu WPL-W10178934
...
20B
Range Surface Burner Orifice, 6,000-Btu (Replaces W10170506) WPL-WPW10170506
...
21
Range Broil Burner Baffle WPL-W10137062
...
22
Range Screw WPL-3196265
...
23
Mounting Bracket WPL-W10224921

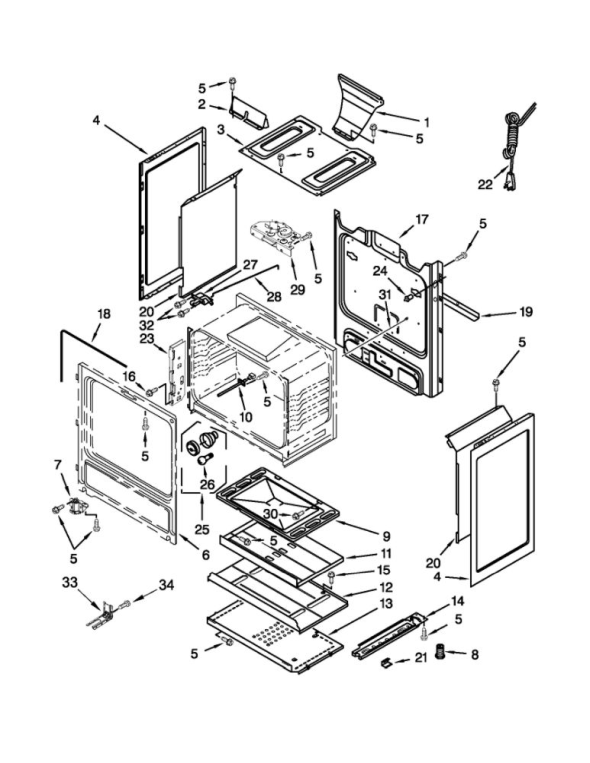

Amana AGR5844VDD5

...
...
NI
Range Oven Insulation WPL-8524099
...
NI
Range Oven Insulation, Rear WPL-W10180437
...
1
Flue Asm-Gas WPL-W11457094
...
2
Shield WPL-WP8272747
...
3
Box-Burner, Gas Sealed WPL-W11379351
...
4
Range Side Panel WPL-WPW10575396
...
4A
Range Side Panel (Black) (Replaces W10162245) WPL-WPW10162245
...
5
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
7
Range Leveling Leg (Replaces W10341186) WPL-WPW10341186
...
8
Range Leveling Leg WPL-WPW10058460
...
9
Range Oven Bottom Liner (Replaces 3195097) WPL-WP3195097
...
10
Range Oven Temperature Sensor (Replaces W10181986) WPL-WPW10181986
...
11
Baffle-Ht WPL-8053967
...
12
Range Bake Burner Shield WPL-8053969
...
13
Shield WPL-8053968
...
14
Base Rail Owner'S Manual WPL-WPW10306546
...
14A
Base Rail Owner'S Manual WPL-WPW10306546
...
15
Screw WPL-WP7101P246-60
...
18
Range Oven Door Seal (Replaces W10658354) WPL-WPW10658354
...
19
Brace WPL-W10435470
...
20
Retainer WPL-9761449
...
20A
Retainer WPL-9761448
...
21
Range Retainer Clip WPL-W10137382
...
22
Range Power Cord (Replaces 9757891) WPL-WP9757891
...
23
Range Oven Door Hinge Receiver WPL-W10647259
...
24
Range Oven Door Switch WPL-WP9757262
...
25
Range Oven Light Assembly (Replaces W11281687, W11544370) WPL-W11594027
...
26
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
27
Range Oven Door Lock Assembly WPL-WP9761013
...
28
Range Oven Door Lock Latch Rod WPL-W10078370
...
29
Range Oven Door Lock Assembly (Replaces W10107820) WPL-WPW10107820
...
30
Range Screw, 8-18 X 2-1/2-In WPL-W10379120
...
31
Range Oven Light Switch Rod WPL-9757239
...
32
8-18 X .375 WPL-W11169708
...
33
Range Anti-Tip Bracket (Replaces W10838686) WPL-W11447673
...
34
Range Anti-Tip Bracket Screw WPL-WP7101P485-60

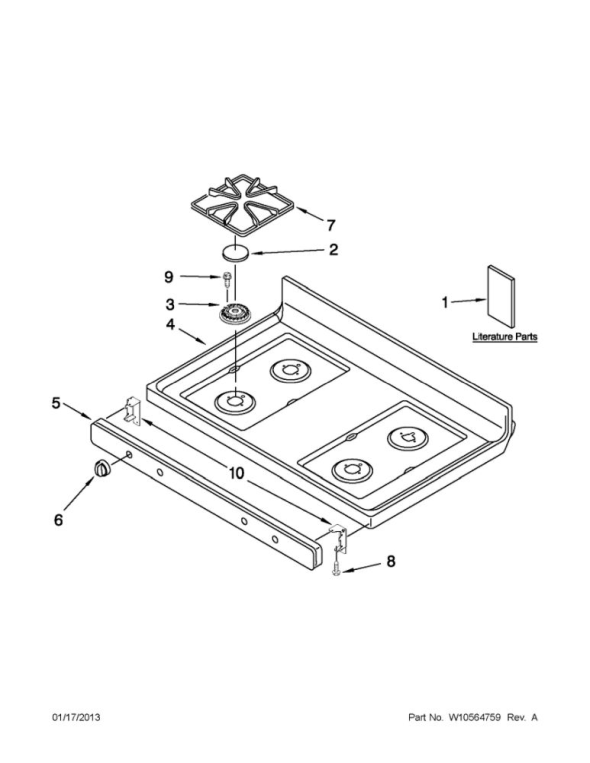

Amana AGR5844VDD5

...
...
1C
Cooking Appliance Safer Cooking Guide WPL-9762761
...
2
Range Surface Burner Cap Set (Wetstone) WPL-WPW10165809
...
2A
Range Surface Burner Cap Set (Black) WPL-WPW10170554
...
3
Range Surface Burner Head (Replaces W10406797) WPL-WPW10406797
...
3A
Range Surface Burner Head, 9,000-Btu (Replaces W10406283) WPL-WPW10406283
...
3B
Range Surface Burner Head, 6,000-Btu (Replaces W10406243) WPL-WPW10406243
...
4
Range Main Top WPL-W11213959
...
4A
Range Main Top (Replaces 8195549, W11133661) WPL-W11213958
...
5
Panl-Mnfld-W WPL-WP8523854
...
5A
Range Manifold Panel WPL-8523855
...
6
Range Surface Burner Knob WPL-WPW10163287
...
6A
Range Surface Burner Knob WPL-W11190817
...
7
Range Surface Burner Grate WPL-W10837340
...
7A
Cooktop Burner Grate WPL-WPW10268483
...
8
Range Screw, #7-18 X 3/4-In (Replaces 3368921) WPL-WP3368921
...
9
Range Screw WPL-WP3196557
...
10
Bracket Support WPL-8523249

Amana AGR5844VDD5

...
...
NI
Appliance Spray Paint (White Primer) WPL-350942
...
NI
Range Oven Insulation (Replaces W10208653) WPL-WPW10208653
...
NI
Oven Liner Touch-Up Paint, 2-Oz WPL-8212471
...
NI
Washer Wire Harness Retainer WPL-16515
...
NI
Screw WPL-W11244557
...
NI
Range Screw WPL-WP3196174
...
NI
Clip WPL-3400964
...
NI
Clip WPL-3196696
...
NI
Clip WPL-3196896
...
NI
Appliance Spray Paint (White) (Replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) WPL-350930
...
NI
Range Broil Pan WPL-4396923
...
NI
Appliance Touch-Up Paint, 2-Oz (White) WPL-511873
...
NI
Appliance Porcelain Touch-Up Paint, 1-Qt (White) WPL-799344
...
NI
Range Grounding Strap WPL-W10045060
...
NI
Range Wire Harness WPL-WPW10701462
...
NI
Range Wire Harness WPL-W10322362
...
NI
Clip WPL-W10334923
...
NI
Range Wire Harness WPL-WPW10349636
...
NI
Appliance Spray Paint (Black) (Replaces 10952, 830864) WPL-285006
...
NI
Appliance Touch-Up Paint, 0.6-Oz (White) (Replaces 21020, 72017R, 8006, W10813125, Y058028) WPL-72017
...
NI
Appliance Touch-Up Paint, 0.6-Oz (Black) (Replaces 20001009, 72032P, 72032R, W10831982) WPL-72032
...
...
...
