Amana AGR4203MNS0

Model: AGR4203MNS0

Save Part Not Listed?
product name

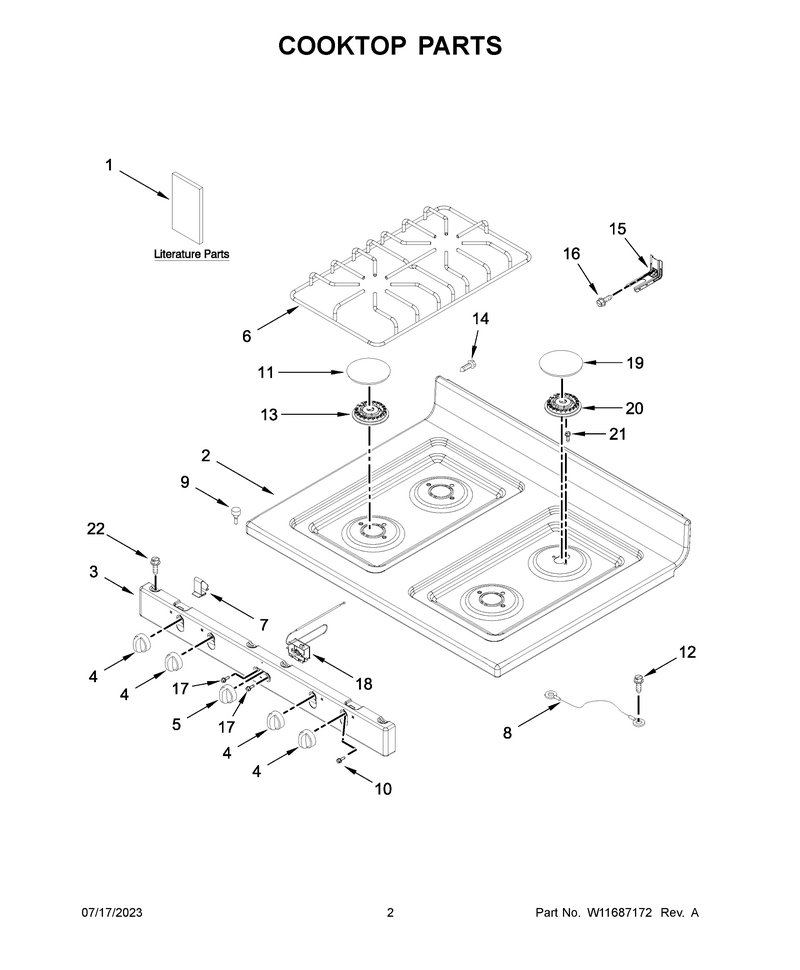

02 - Cooktop Parts

...
...
NI
Insulation WPL-W11620511
...
1
Instructions, Installation WPL-W11508839
...
1A
Guide, Use And Care WPL-W11508817
...
1B
Tips, Safe Cooking (English) WPL-98007130
...
1C
Sheet, Tech WPL-W11565447
...
2
Cooktop WPL-W11032725
...
3
Panel, Manifold (Black) WPL-W11578458
...
4
Knob WPL-W11620546
...
5
Knob WPL-W11690132
...
6
Grate-Brnr WPL-WPW10578251
...
7
Clip WPL-W11229684
...
8
Wire, Ground WPL-3184020
...
9
Bumper WPL-W10831827
...
10
Screw WPL-WP3400832
...
10A
Screw (Stainless) WPL-98005658
...
11
Cap-Burner WPL-WP98017461
...
12
Screw WPL-W10850756
...
13
Burnr-Top WPL-WPW10636224
...
14
Screw WPL-WP98007225
...
15
Bracket WPL-WPW10613666
...
16
Anchor-Tip WPL-WP7101P485-60
...
17
Screw WPL-WP3400882
...
18
Thrmst-Ovn WPL-WPW10636339
...
19
Cap-Burner WPL-WPW10169985
...
20
Burnr-Head WPL-WPW10515453
...
21
Screw-Torx WPL-WP3368921
...
22
Screw WPL-W10837731

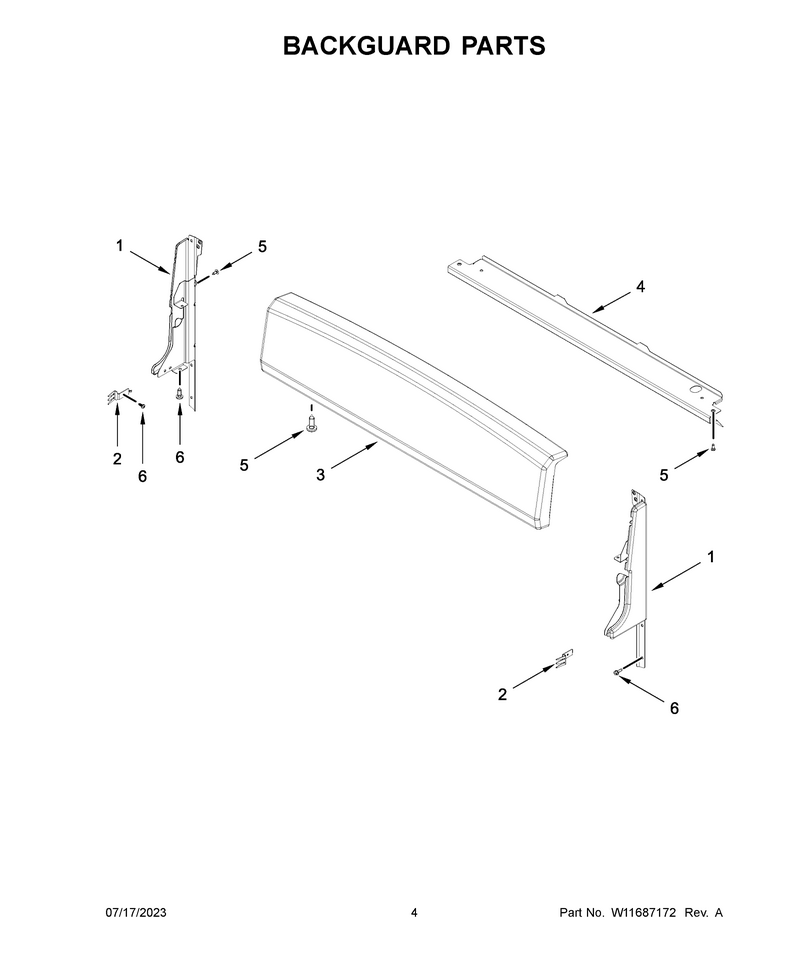

03 - Backguard Parts

...
...
1
Endcap (Left Hand) (Black) WPL-W10873109
...
1A
Endcap (Right Hand) (Black) WPL-W10873107
...
2
Bracket, Rear WPL-W10535815
...
3
Panl-Cntrl WPL-W11688796
...
4
Bracket, Console Mount WPL-W10535746
...
5
Screw WPL-WP98008545
...
6
Screw WPL-W10837731

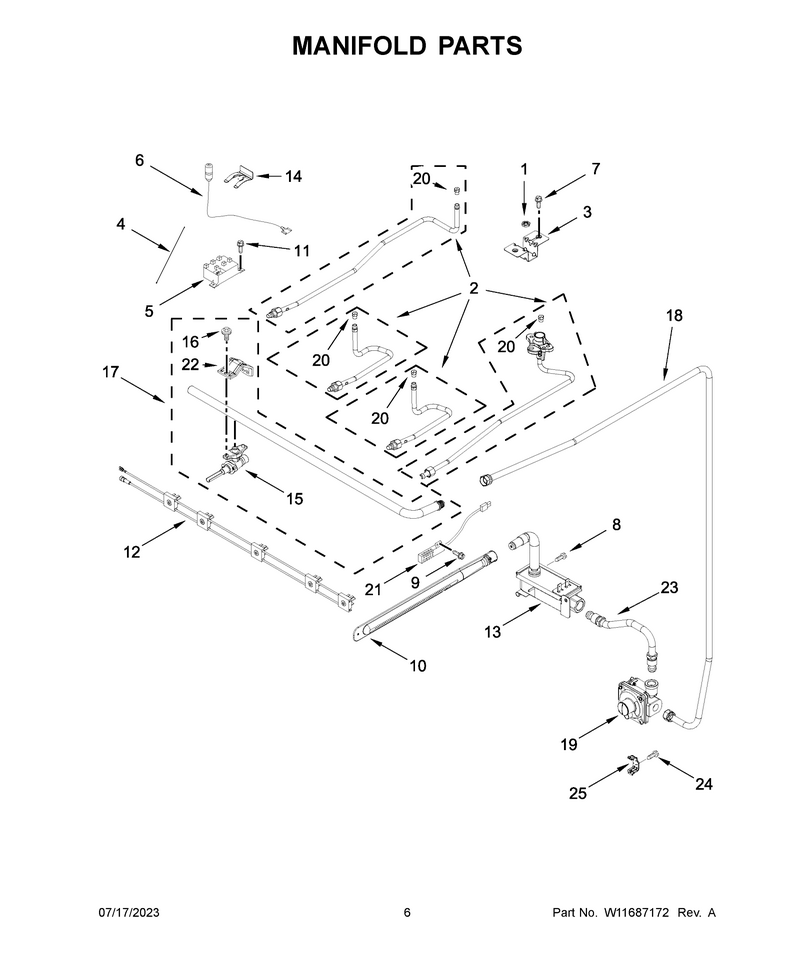

04 - Manifold Parts

...
...
NI
Spud-Orfce WPL-W11620713
...
1
Nut WPL-W10610297
...
2
Venturi WPL-W10859921
...
2A
Venturi WPL-W11213836
...
2B
Venturi WPL-W10861724
...
2C
Holder-Orf WPL-W11167099
...
3
Brkt-Mntg WPL-W11715913
...
4
Cable, Spark (Black) WPL-W10622750
...
5
Module-Spk WPL-W11590249
...
6
Igntr-Surf WPL-W11688795
...
6A
Igntr-Surf WPL-W11688763
...
7
Screw WPL-W10837674
...
8
Screw WPL-98013634
...
9
Screw WPL-W11676351
...
10
Burnr-Oven WPL-W11220387
...
11
Screw WPL-W10837731
...
12
Harns-Wire WPL-W11620523
...
13
Valve-Gas WPL-WP98014893
...
14
Clip WPL-W11688762
...
15
Valve-Gas WPL-W11620105
...
15A
Valve, Saddle (Right Rear) WPL-W11509769
...
16
Screw WPL-98017517
...
17
Assembly, Manifold WPL-W11509619
...
18
Tubing-Gas WPL-W11628651
...
19
Regulator WPL-W11346659
...
20
Orifice WPL-WP98017348
...
20A
Spud-Orfce WPL-WPW10170506
...
21
Igntr-Oven WPL-W11590294
...
22
Bracket, Valve WPL-W11615438
...
23
Tubing-Gas WPL-W11684515
...
24
Screw WPL-WP98007225
...
25
Bracket, Regulator WPL-98007410

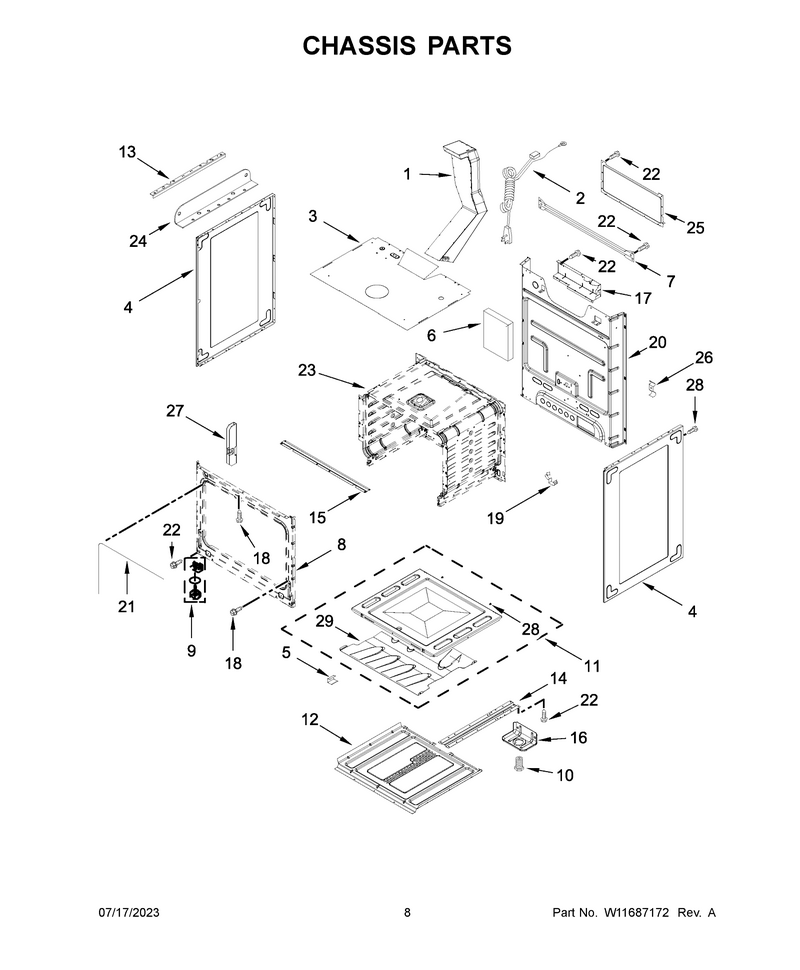

05 - Chassis Parts

...
...
NI
Wire Tie, Insulation WPL-98004294
...
1
Box, Flue WPL-W10675411
...
2
Cord-Power WPL-W11173616
...
3
Shield WPL-W11319572
...
4
Panel-Side WPL-W10816993
...
4A
Panel-Side WPL-W10816993
...
5
Clip, Oven Botton WPL-98005502
...
6
Block-Bal WPL-W11173320
...
7
Support, Rear WPL-98015363
...
8
Following Parts Not Illustrated WPL-N/P
...
9
Foot-Level WPL-W10819918
...
10
Foot-Level WPL-WPW10058460
...
11
Bottm-Oven WPL-W11688761
...
12
Deflector, Oven WPL-W10670197
...
13
Support, Side Panel WPL-W10577312
...
14
Rail, Base WPL-W10520269
...
15
Bracket, Manifold WPL-W10545322
...
16
Bracket, Foot WPL-W11172758
...
17
Safety Valve, Rear Cover WPL-W10549293
...
18
Screw WPL-WP98008545
...
19
Clip, Therm Bulb WPL-98005642
...
20
Back, Main WPL-W10554678
...
21
Gaskt-Door WPL-WPW10535778
...
22
Screw WPL-W10837731
...
23
Following Parts Not Illustrated WPL-N/P
...
24
Side Panel, Support WPL-W10532560
...
25
Cover WPL-W11492823
...
26
Clip, Tubing WPL-W11510655
...
27
Hinge-Recv WPL-W11161898
...
28
Screw WPL-WP3400832
...
29
Baffl-Brnr WPL-W11688713

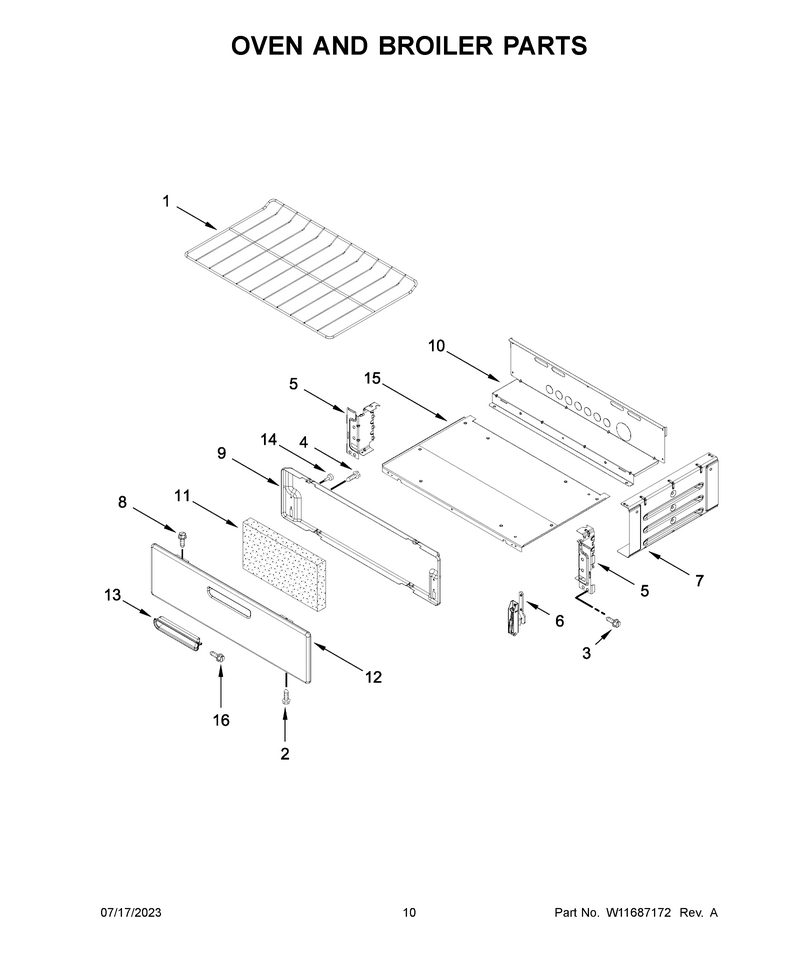

06 - Oven And Broiler Parts

...
...
1
Rack-Oven WPL-WPW10550642
...
2
Screw WPL-W10119413
...
3
Screw WPL-WP98008545
...
4
Screw WPL-W10155121
...
5
Cover, Broiler Left WPL-W10624273
...
5A
Cover, Broiler Right WPL-W10624275
...
6
Hinge WPL-W10647966
...
7
Panel, Side WPL-W10605426
...
8
Screw WPL-WP3400832
...
9
Liner, Broiler Drawer WPL-W10446851
...
10
Back Cover, Broiler WPL-W10682676
...
11
Insulation WPL-W11706803
...
12
Panel-Drwr WPL-W11596150
...
13
Handle Broiler Door- Universal Silver WPL-W11176979
...
14
Bumper, Door WPL-98004052
...
15
Baffle, Base WPL-W11620318
...
16
Screw WPL-WP59002061

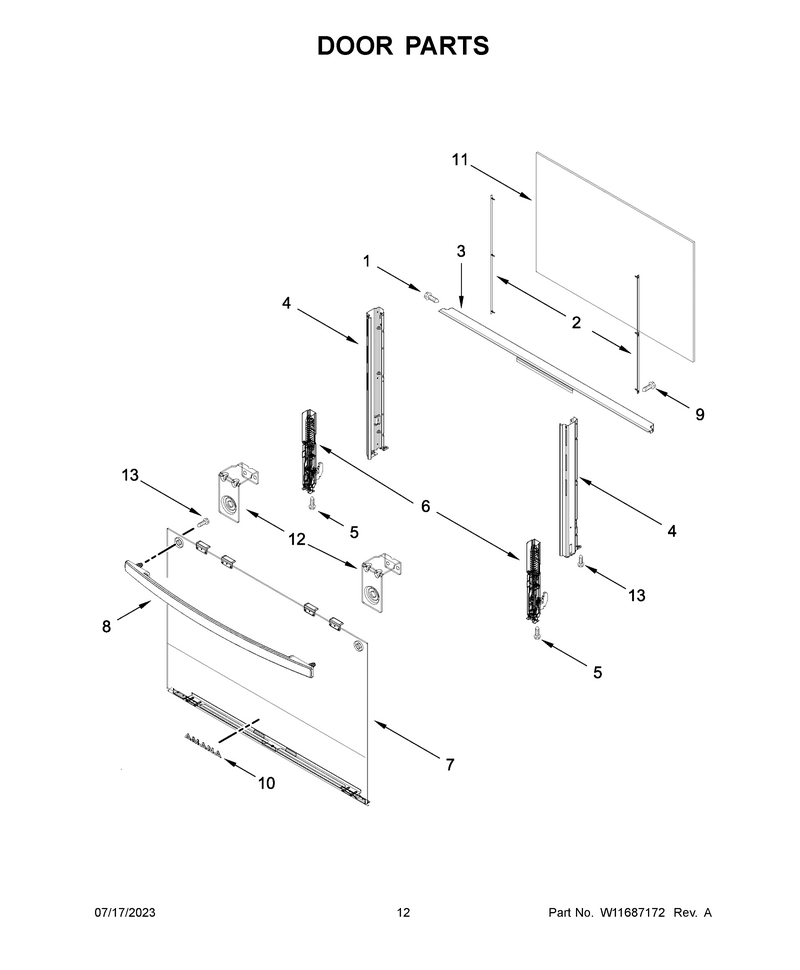

07 - Door Parts

...
...
1
Screw WPL-WP3400832
...
2
Gasket-Wnd WPL-W11104748
...
3
Brkt-Glass WPL-W11105139
...
4
Hinge-Door WPL-W11620487
...
4A
Trim-Door WPL-W11620488
...
5
Screw WPL-W10837674
...
6
Hinge-Door WPL-W10857234
...
7
Panel-Door WPL-W11688714
...
8
Hndle-Door WPL-W11620538
...
9
Screw WPL-W11206744
...
10
Nameplate WPL-W11240541
...
11
Glass-Door WPL-W11688716
...
12
Brkt-Mntg WPL-W11712435
...
13
Screw WPL-W10647533

...
...
NI
Miscellaneous, Kit, Door Pin WPL-98012220
