Amana AGG222VDW6 Free Standing Gas Range

Model: AGG222VDW6

Save
 Part Not Listed?Part Not Listed?
product name

Amana AGG222VDW6

...
...
NI
Insulation WPL-W10207891
...
NI
Insulation WPL-W10206735
...
1
Range Oven Vent WPL-WPW10116396
...
2
Clip WPL-98013690
...
3
Burner Box WPL-W10168214
...
5
Clip WPL-98005502
...
6
Block-Bal WPL-W10185442
...
7
Rear Cover WPL-W10165402
...
9
Range Leveling Leg WPL-WP3196037
...
10
Range Leveling Leg WPL-WPW10058460
...
11
Oven WPL-98004450
...
12
Range Oven Control Thermostat Bulb Clip WPL-98005642
...
13
Burner Baffle WPL-98003945
...
14
Rail Base WPL-98003830
...
15
Support WPL-98012912
...
17
Channel WPL-98006715
...
18
Nut WPL-98009179
...
19
Baffle WPL-W10121634
...
20
Rear Cover WPL-98003944
...
22
Range Screw (Replaces W10493726, Wp98006633) WPL-W10837731
...
24
Range Side Panel Support Bracket WPL-98007126
...
25
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
26
Range Oven Light Socket WPL-W10856866
...
27
Heat Shield WPL-98007191
...
28
Range Oven Light Bulb (Replaces W10788320, Wpw10452019) WPL-W10888179
...
29
Range Screw (Replaces 98008545) WPL-WP98008545
...
30
Broiler Door Seal WPL-W10555328
...
31
Aluminum Foil WPL-W10368736
...
32
Refrigerator Crisper Drawer Slide Rail Screw WPL-W10856125
...
33
Burner Box WPL-98004448
...
34
Oven WPL-98004452
...
34A
Oven WPL-98004451
...
35
Cover-Rear WPL-W10180590
...
36
Support WPL-98010054
...
37
Power Cord WPL-W10196633
...
38
Range Anti-Tip Bracket WPL-WPW10613666
...
39
Range Anti-Tip Bracket Screw WPL-WP7101P485-60
...
40
Washer WPL-98007193
...
41
Brick Support, Upper WPL-W11040327
...
42
Block-Bal WPL-W11173320
...
44
Support, Brick WPL-W11036713
...
45
Range Anti-Tip Bracket Kit WPL-WPW10477747

Amana AGG222VDW6

...
...
NI
Oven Liner Touch-Up Paint, 2-Oz WPL-8212471
...
NI
Range Oven Insulation (Replaces W10208653) WPL-WPW10208653
...
NI
Appliance Touch-Up Paint, 0.6-Oz (White) (Replaces 21020, 72017R, 8006, W10813125, Y058028) WPL-72017
...
NI
Appliance Touch-Up Paint, 2-Oz (White) WPL-511873
...
NI
Appliance Spray Paint (White) (Replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) WPL-350930
...
NI
Appliance Spray Paint (Black) (Replaces 10952, 830864) WPL-285006
...
NI
Appliance Spray Paint (White Primer) WPL-350942
...
NI
Appliance Porcelain Touch-Up Paint, 1-Qt (White) WPL-799344
...
NI
Range Oven Door Removal Hinge Pin Set WPL-98012220

Amana AGG222VDW6

...
...

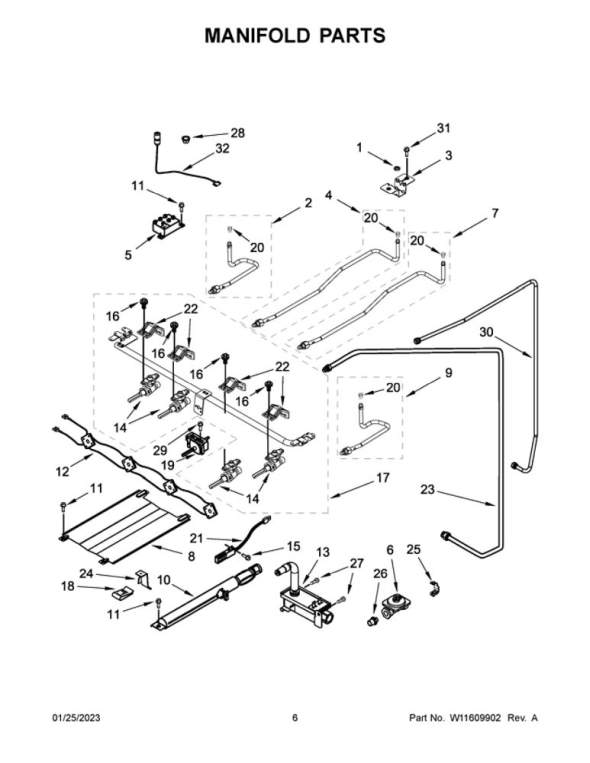

NI
Range Lp Conversion Kit WPL-W10207842
...
1
Nut WPL-W10610297
...
2
Range Surface Burner Tube And Orifice (Replaces 98017582) WPL-WP98017582
...
3
Range Surface Burner Valve Mounting Bracket WPL-W10122103
...
4
Range Surface Burner Supply Tube WPL-WP98017359
...
6
Range Pressure Regulator WPL-W10177394
...
7
Range Surface Burner Tube And Orifice WPL-WPW10110342
...
8
Burner Baffle WPL-W10212101
...
9
Range Surface Burner Tube And Orifice WPL-W10110343
...
10
Range Oven Burner WPL-WP98012138
...
11
Range Screw (Replaces W10493726, Wp98006633) WPL-W10837731
...
12
Switch Harne WPL-W11562248
...
13
Range Oven Gas Valve WPL-WPW10205816
...
15
Range Screw WPL-98005659
...
16
Screw WPL-98017517
...
18
Nut WPL-98009179
...
19
Range Oven Control Thermostat WPL-W10565875
...
20
Range Surface Burner Orifice (Replaces 98017348) WPL-WP98017348
...
20A
Range Surface Burner Orifice WPL-WP98017587
...
21
Igniter - Ho WPL-W11613927
...
22
Mounting Bracket WPL-98017516
...
23
Gas Tubing WPL-W10177392
...
24
Bracket Support WPL-98013314
...
25
Mounting Bracket WPL-98007410
...
26
Fitting WPL-98007431
...
27
Screw WPL-98013634
...
28
Range Surface Burner Igniter Clip (Replaces W10278150) WPL-WPW10278150
...
29
Range Screw (Replaces 98008545) WPL-WP98008545
...
30
Range Surface Burner Manifold Supply Tube WPL-WP98017171
...
31
Range Screw WPL-W10837674
...
32
Range Surface Burner Igniter (Replaces W10209656) WPL-WPW10209656
...
32A
Range Surface Burner Igniter (Replaces W10209657) WPL-WPW10209657

Amana AGG222VDW6

...
...

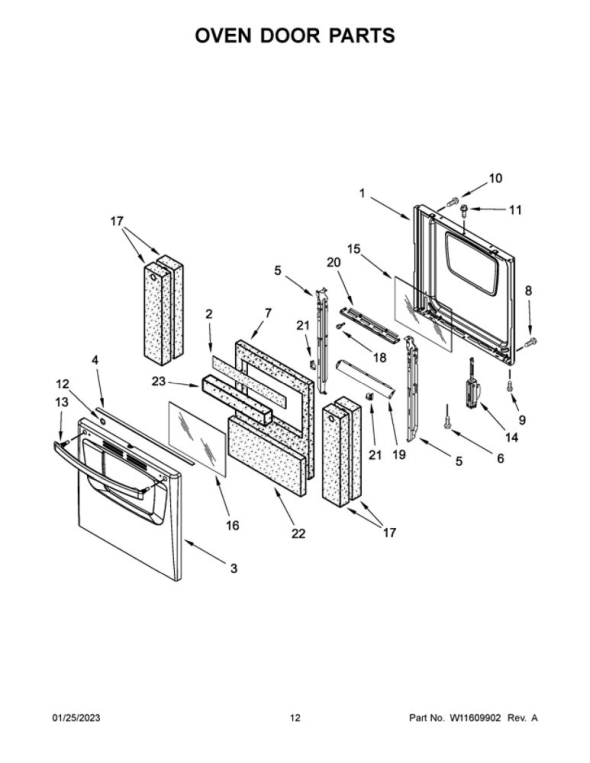

5
Range Oven Door Insulation Retainer, Right WPL-98004564
...
5A
Range Oven Door Insulation Retainer, Left WPL-98004629
...
6
Appliance Screw WPL-WP59002061
...
7
Insulation WPL-W10212696
...
8
Screw WPL-W11206744
...
9
Wall Oven Screw WPL-WP3400832
...
11
Screw (White) WPL-3196166
...
12
Range Oven Door Handle Retainer WPL-WP98004650
...
13
Microwave Door Handle WPL-WP98004947
...
14
Door Hinge WPL-98017873
...
16
Glass WPL-WPW10168624
...
17
Insulation WPL-W10212526
...
18
Bumper WPL-98004723
...
19
Retainer WPL-98012903
...
20
Retainer WPL-98004981
...
21
Range Oven Door Inner Glass Clip, Left WPL-98004952
...
21A
Range Clip WPL-98004953
...
22
Insulation WPL-W10212525

Amana AGG222VDW6

...
...
NI
Main Harness WPL-W10914404
...
NI
Switch Harne WPL-W11562248
...
NI
Wire WPL-3184020
...
NI
Clip WPL-3196696
...
NI
Range Wire Harness Retainer WPL-98004294
...
NI
Bushing WPL-98015022
...

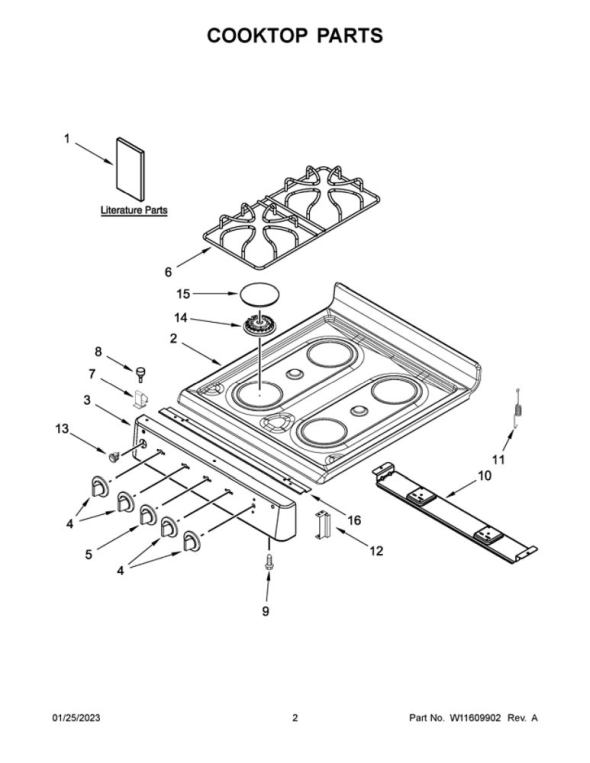

2
Main Top WPL-WPW10179560
...
3
Backguard WPL-W10225327
...
5
Range Surface Burner Knob (White) WPL-WPW10483330
...
6
Range Surface Burner Grate (Replaces W10171456, W10180089, Wpw10219702) WPL-WPW10180089
...
7
Range Main Top Clip WPL-98004722
...
8
Bumper WPL-W10207167
...
9
Range Screw (Replaces W10493726, Wp98006633) WPL-W10837731
...
10
Support WPL-98012912
...
12
Bracket, Support Left WPL-W11509664
...
12A
Bracket, Support Right WPL-W11509665
...
14
Range Surface Burner (Replaces W10243396) WPL-WPW10243396
...
15
Range Surface Burner Cap (Replaces 98017461, Wp98017465) WPL-WP98017461

Amana AGG222VDW6

...
...

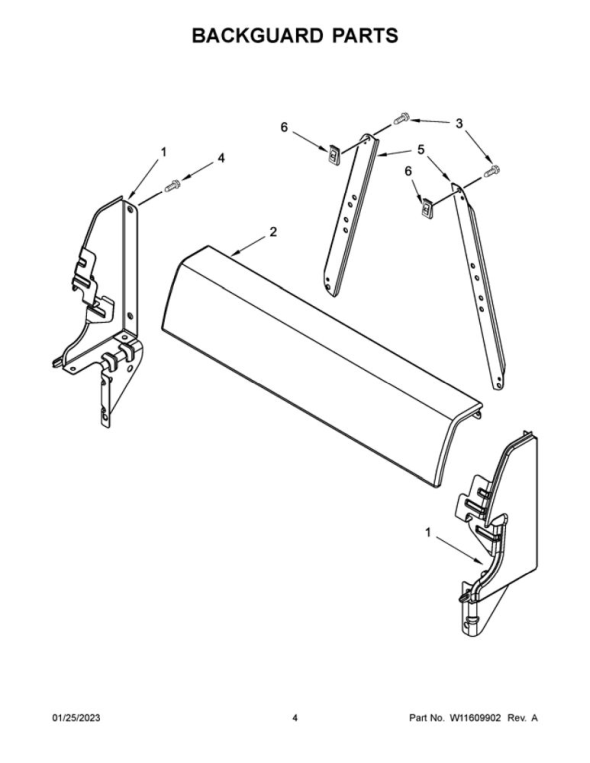

1
Oven End Cap Panel WPL-W10144828
...
1A
Oven End Cap Panel WPL-W10144829
...
2
Backguard Panel WPL-W10208451
...
3
Range Screw (Replaces W10493726, Wp98006633) WPL-W10837731
...
4
Range Screw WPL-WP3400805
...
5
Support WPL-W10145101
...
6
Nut WPL-98009179

Amana AGG222VDW6

...
...

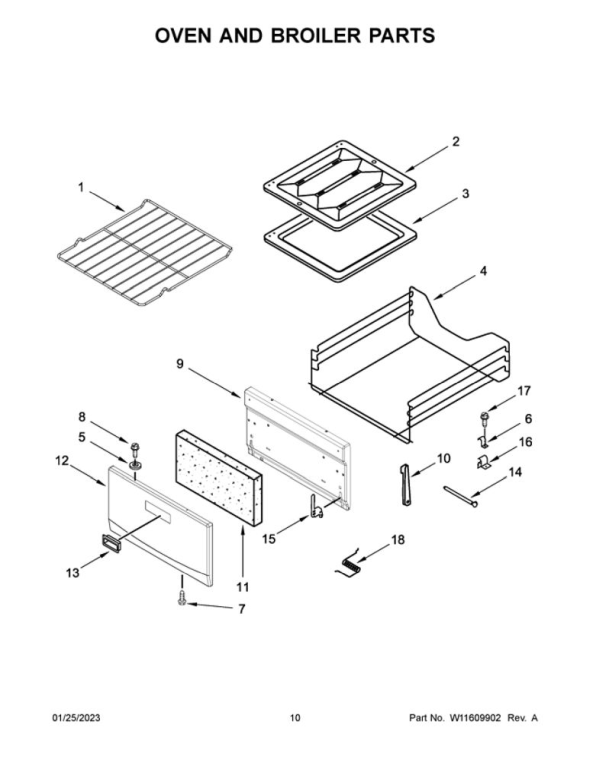

1
Range Oven Rack WPL-W11223841
...
2
Pan WPL-WP98003480
...
3
Range Broil Pan WPL-WP98016005
...
4
Pan Rack WPL-98016570
...
5
Washer WPL-W10216805
...
6
Drawer Guide WPL-98004715
...
7
Range Screw WPL-WP3400805
...
8
Screw WPL-WP98008544
...
9
Broiler Liner WPL-98004700
...
11
Insulation WPL-W10137224
...
12
Drawer Panel WPL-98017156W
...
13
Dryer Door Handle (Replaces 3405184) WPL-WP3405184
...
14
Hinge Pin WPL-98004053
...
16
Clip WPL-98008341
...
17
Range Screw (Replaces W10493726, Wp98006633) WPL-W10837731
...
18
Door Spring WPL-98009248
...
18A
Door Spring WPL-98009249
...
...
...
