Amana AFU1767AW (BOM: PAFU1767AW0)

Model: AFU1767AW (BOM: PAFU1767AW0)

Save Part Not Listed?
product name

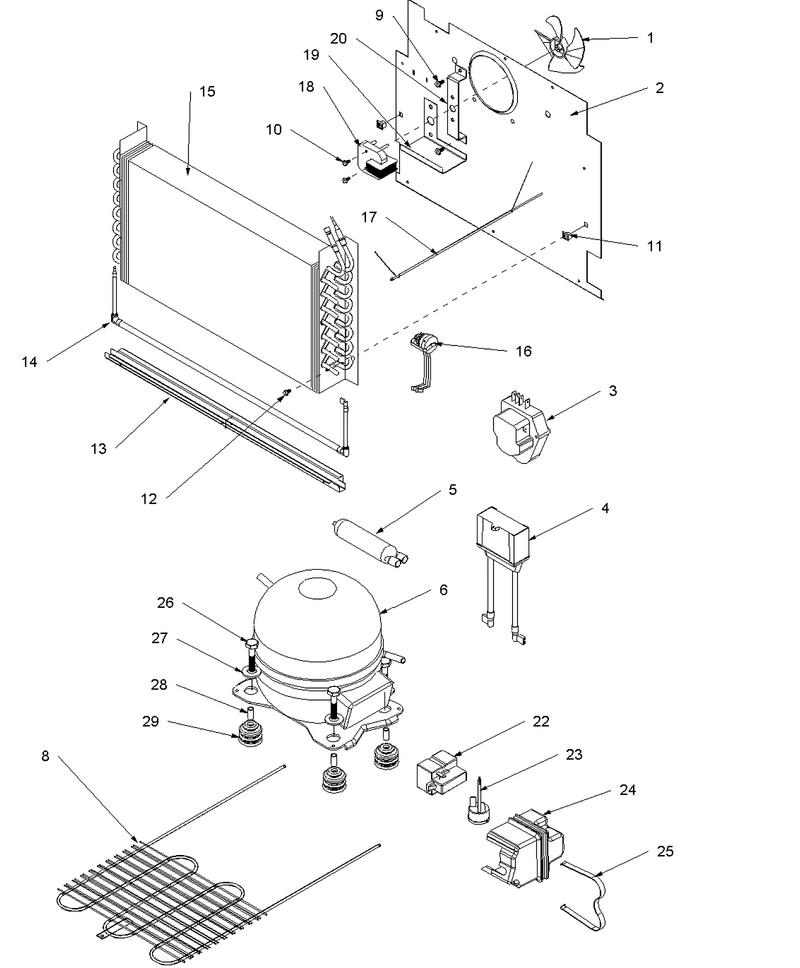

03 - Machine Compartment And System

...
...
NI
Harness, Wiring WPL-R9800589
...
1
Blade, Evap Fan (4 Blades) WPL-R0213210
...
2
Plate, Evap Mtg WPL-R0213217
...
3
Timer-Def WPL-WP3-81329
...
4
Capacitor WPL-3-35956-013
...
5
Drier WPL-WPB2150504
...
6
Compressor WPL-W10309994
...
8
Condenser,bottom WPL-R0131132
...
9
Screw-Fan Brkt Mt WPL-R0213281
...
10
Screw WPL-60001022
...
11
Grommet, Evap Mtg WPL-R0213278
...
12
Screw WPL-WP489464
...
13
Shield-Ht WPL-4357284
...
14
Heater WPL-W11175809
...
15
Evaporator WPL-WP4-81546
...
16
Bimetl-Def WPL-WP1-81801-001
...
17
Exchanger WPL-WP4357245
...
18
Motor-Evap WPL-WP3-80411-103
...
19
Shield, Motor WPL-4357128
...
20
Bracket, Fan WPL-2-80028-101
...
22
Relay-Strt WPL-WP4356738
...
23
Overload Protector WPL-R0131141
...
24
Cover,relay/overload WPL-R0131130
...
25
Clip WPL-4390604
...
26
Screw Comp Mtg WPL-R9800552
...
27
Washer, Compressor Mtg WPL-R0213138
...
28
Sleeve WPL-4356846
...
29
Compressor, Grommet WPL-4356335

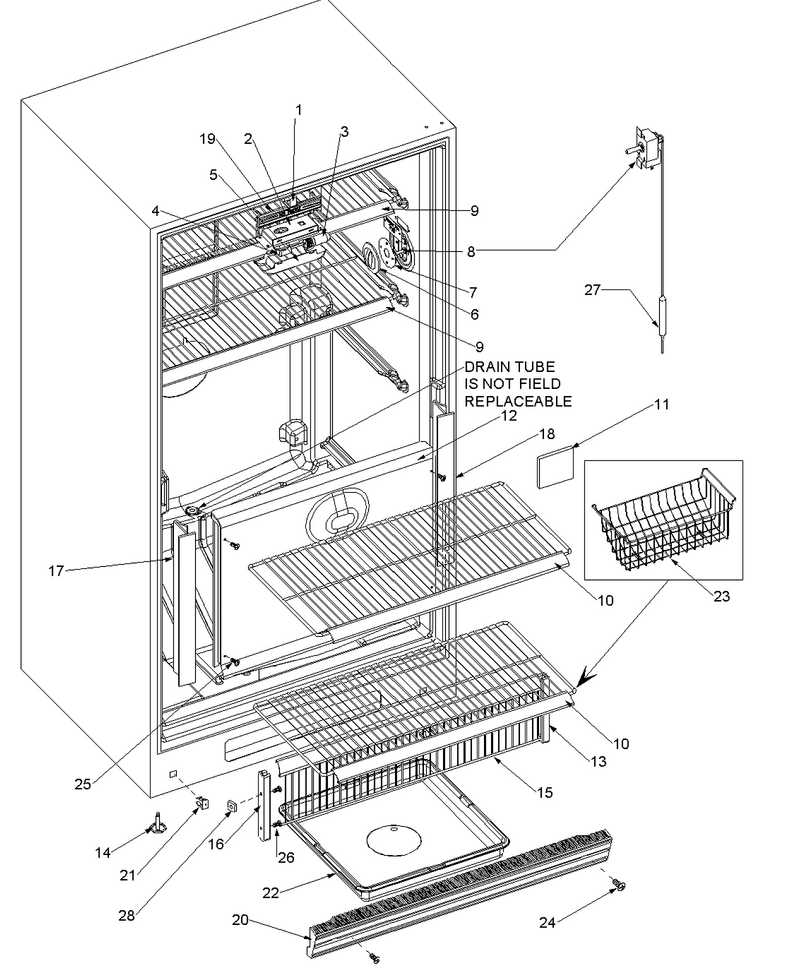

01 - Cabinet Assembly

...
...
NI
Screw WPL-WPW10068250
...
1
Switch WPL-W11384469
...
2
Bracket,light Mount WPL-R0131135
...
3
Bulb-Light WPL-WPA3073101
...
4
Socket WPL-R0213162
...
5
Shield, Light WPL-4357285
...
6
Knob, Thermostat WPL-4-81294-004
...
7
Plate, Thermostat WPL-1-81154
...
8
Thermostat WPL-WP4-83053-003
...
9
Shelf, Wire WPL-R0213194
...
10
Shelf, Wire WPL-R0213193
...
11
Seal, Air Block WPL-R0213218
...
12
Cover-Evap WPL-WP4390662
...
14
Leveler WPL-W11117769
...
17
Gasket,evap Cover-Lh WPL-R0130775
...
18
Gasket,evap Cover-Rh WPL-YR0130774
...
19
Vent-Plug WPL-WP3-80414-103
...
20
Grille WPL-WP4-60461-005
...
21
Clip WPL-1-80247-101
...
22
Pan-Drip WPL-WP4390675
...
23
Basket, Wire WPL-W10508628
...
24
Screw WPL-WP90767
...
25
Screw WPL-WP3-24004-109
...
27
Barrier WPL-WP2196003

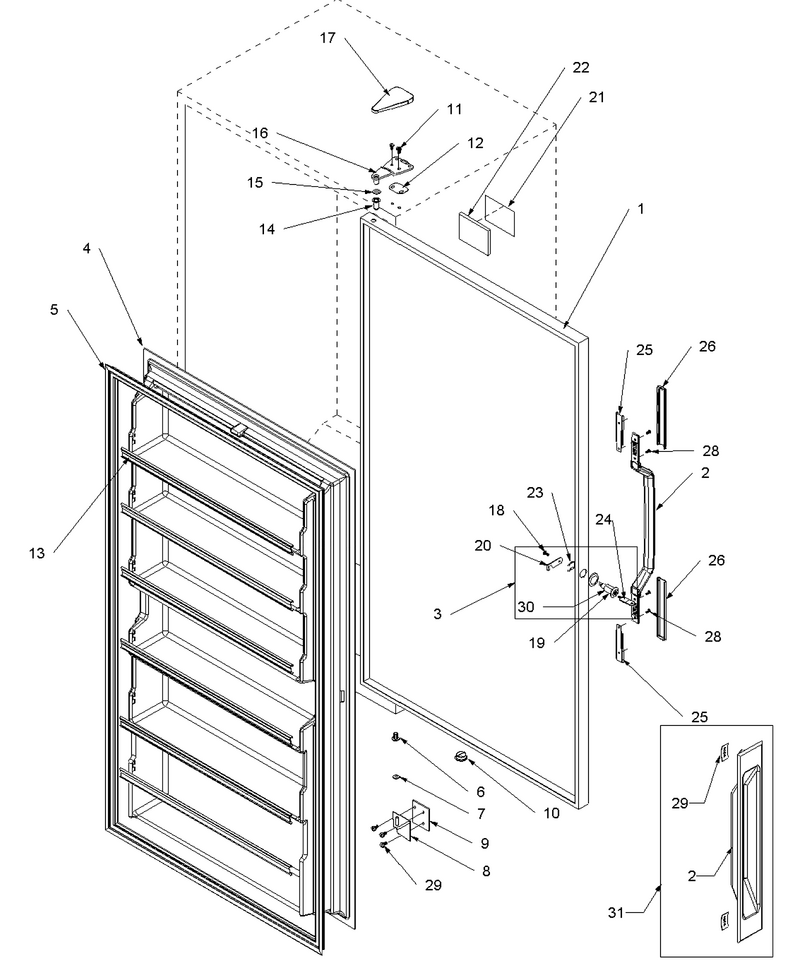

02 - Door Assembly

...
...
NI
Screw WPL-4390598
...
1
Shell,door WPL-R0131137
...
2
Handle, W-Door (White) WPL-12312001
...
3
Lock Assembly (Includes Items 12, 13, 14, 15, 16, & 17) WPL-4357145
...
4
Kit, Door Liner WPL-R9900185
...
5
Gasket-Dor WPL-WP4357142
...
6
Hinge, Bushing WPL-4390731
...
7
Washer WPL-W10851331
...
8
Bottom Hinge (White) WPL-4357250
...
9
Shim, Bottom Hinge WPL-R0213127
...
10
Vent Plug WPL-3-24898-007
...
11
Bolt WPL-WP8204624
...
12
Shim, Hinge WPL-4390489
...
13
Rail, Door Shelf WPL-R9900187
...
14
Hinge, Bushing WPL-4390731
...
15
Washer WPL-W10851331
...
16
Top, Hinge (White) WPL-4390673
...
17
Cover, Hinge (White) WPL-3-80838-003
...
18
Screw WPL-WP4159193
...
19
Lock Body WPL-Y04689701
...
20
Hook Bolt, Lock WPL-2-35195-006
...
21
Insert, Nameplate Amana WPL-R9800517
...
22
Nameplate WPL-2-82534-001
...
23
Clip, Lock WPL-68001073
...
24
Key WPL-WP61859-1
...
25
Retainer, Trim WPL-R9800538
...
26
Trim, Bot Mt W WPL-12273507
...
28
Screw WPL-WPW10348409
...
29
Bolt WPL-WP8204624
...
30
Washer, Lock WPL-R0213263
...
31
Handle Kit (Wht) WPL-R0131138
