Amana AFU1704AW (BOM: PAFU1704AW0)

Model: AFU1704AW (BOM: PAFU1704AW0)

Save Part Not Listed?
product name

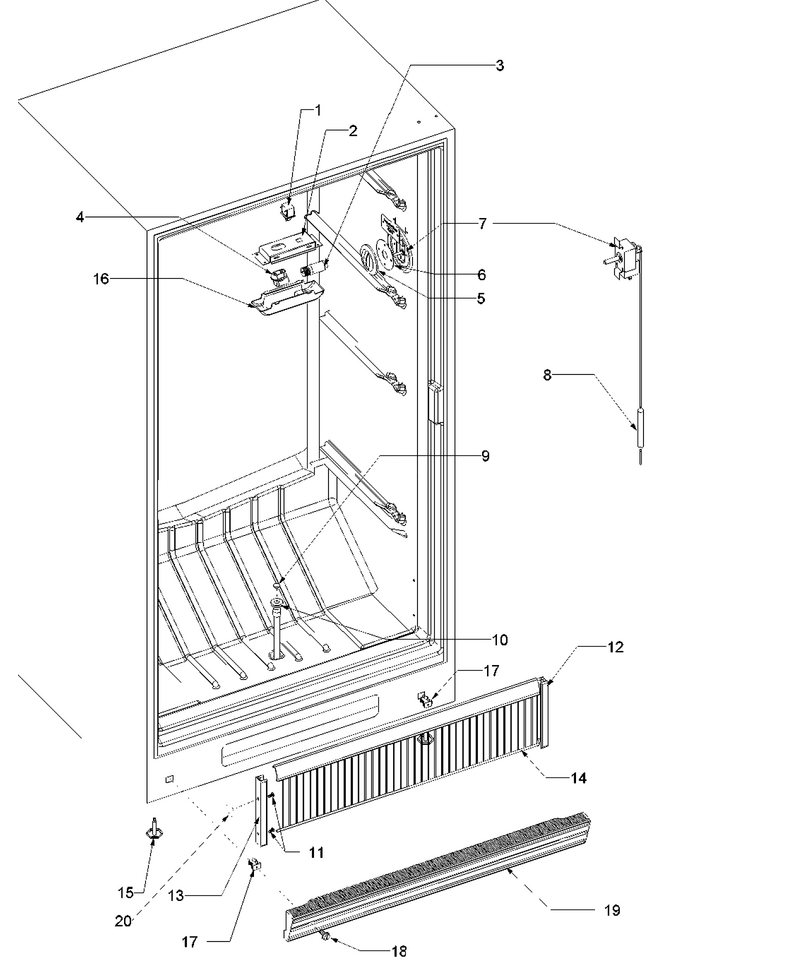

02 - Freezer Compartment

...
...
NI
Screw WPL-WPW10068250
...
1
Switch WPL-W11384469
...
2
Bracket,light Mount WPL-R0131147
...
3
Bulb-Light WPL-WPA3073101
...
4
Socket WPL-R0213162
...
5
Knob, Thermostat WPL-4-81294-004
...
6
Plate, Thermostat WPL-1-81154
...
7
Control,temperature WPL-R0131145
...
8
Barrier WPL-WP2196003
...
9
Plug, Drain WPL-R0213164
...
10
Grommet&tube,drain WPL-R0131220
...
11
Screw, Support Gate Mtg WPL-R0213107
...
12
Support Fence Rh WPL-4357293
...
13
Support Lh WPL-4-80576-202
...
14
Gate, Fence WPL-R0213166
...
15
Leveler WPL-W11117769
...
16
Shield, Light WPL-4357285
...
17
Clip WPL-1-80247-101
...
18
Screw WPL-WP90767
...
19
Grille WPL-WP4-60461-005
...
20
Plastic, Grommet WPL-3-23995-014

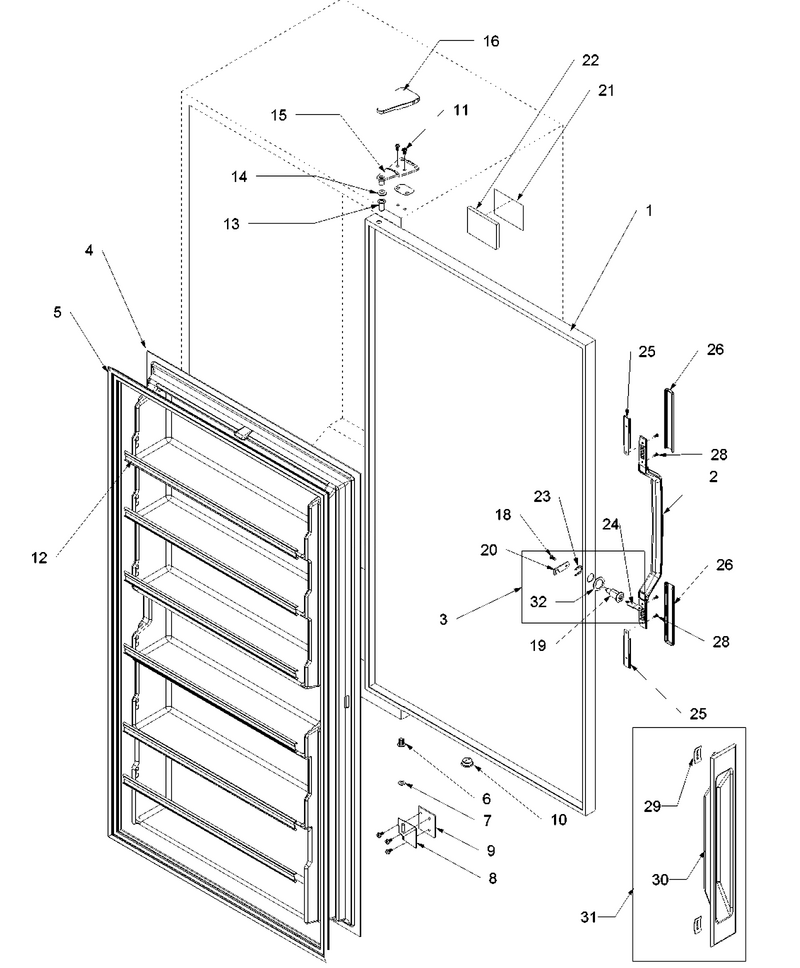

01 - Door Assembly

...
...
NI
Screw WPL-4390598
...
1
Shell,door WPL-R0131137
...
2
Handle, W-Door (White) WPL-12312001
...
3
Lock Assembly (Includes Items 12, 13, 14, 15, 16, & 17) WPL-4357145
...
4
Liner Kit (Incl. Screws) WPL-68001419
...
5
Gasket-Dor WPL-WP4357142
...
6
Hinge, Bushing WPL-4390731
...
7
Washer WPL-W10851331
...
8
Bottom Hinge (White) WPL-4357250
...
9
Shim, Bottom Hinge WPL-R0213127
...
10
Vent Plug WPL-3-24898-007
...
11
Bolt WPL-WP8204624
...
12
Rail, Door Shelf WPL-R9900187
...
13
Hinge, Bushing WPL-4390731
...
14
Washer WPL-W10851331
...
15
Top, Hinge (White) WPL-4390673
...
16
Cover, Hinge (White) WPL-3-80838-003
...
18
Screw WPL-WP4159193
...
19
Lock Body WPL-Y04689701
...
20
Lock Kit WPL-3-35284-001
...
21
Insert, Nameplate Amana WPL-R9800517
...
22
Nameplate WPL-2-82534-001
...
23
Clip, Lock WPL-68001073
...
24
Key WPL-WP61859-1
...
25
Retainer, Trim WPL-R9800538
...
26
Trim, Bot Mt W WPL-12273507
...
28
Screw WPL-WPW10348409
...
31
Handle Kit (Wht) WPL-R0131138
...
32
Washer, Lock WPL-R0213263

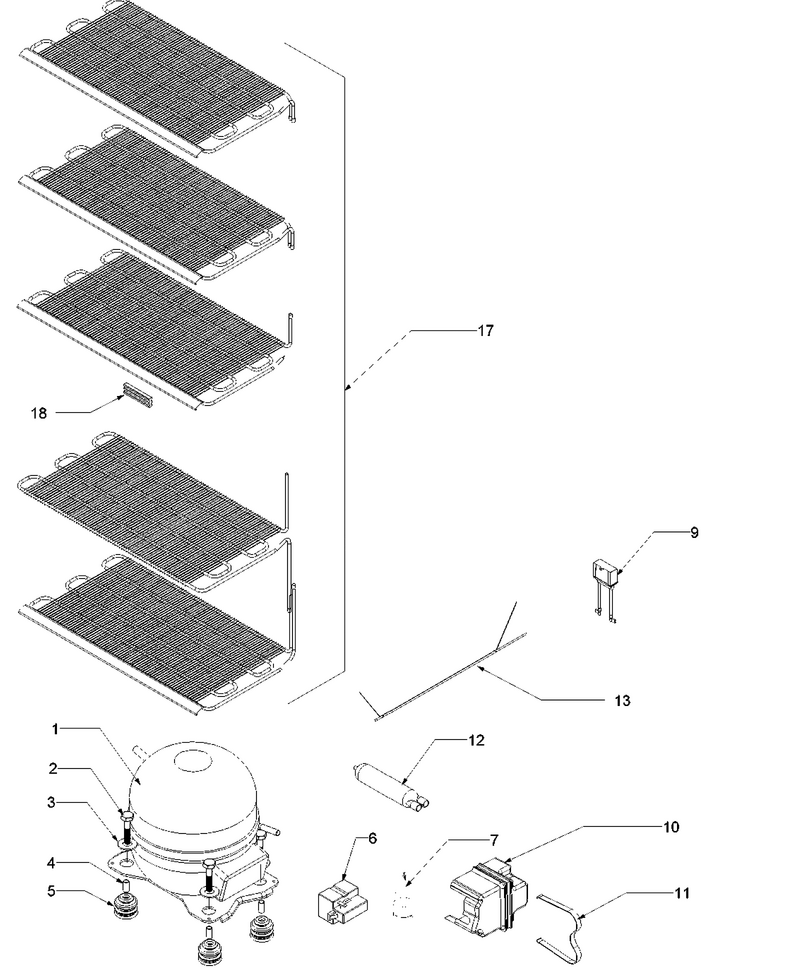

03 - Machine Compartment

...
...
NI
Screw, Compressor Mtg Pan WPL-R0213157
...
1
Compressor WPL-W10309990
...
2
Screw Comp Mtg WPL-R9800552
...
3
Washer, Compressor Mtg WPL-R0213138
...
4
Sleeve WPL-4356846
...
5
Compressor, Grommet WPL-4356335
...
6
Relay-Strt WPL-WP4356738
...
7
Overload WPL-WP2149959
...
9
Capacitor WPL-3-35956-013
...
10
Cover,relay/overload WPL-R0131148
...
12
Drier WPL-WPB2150504
...
13
Heat Exchanger WPL-R0213313
...
17
Assy,evap/heat Exchange WPL-R0131152
...
18
Clamp WPL-1-80308-101
