Amana AFU1201AW (BOM: PAFU1201AW0)

Model: AFU1201AW (BOM: PAFU1201AW0)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

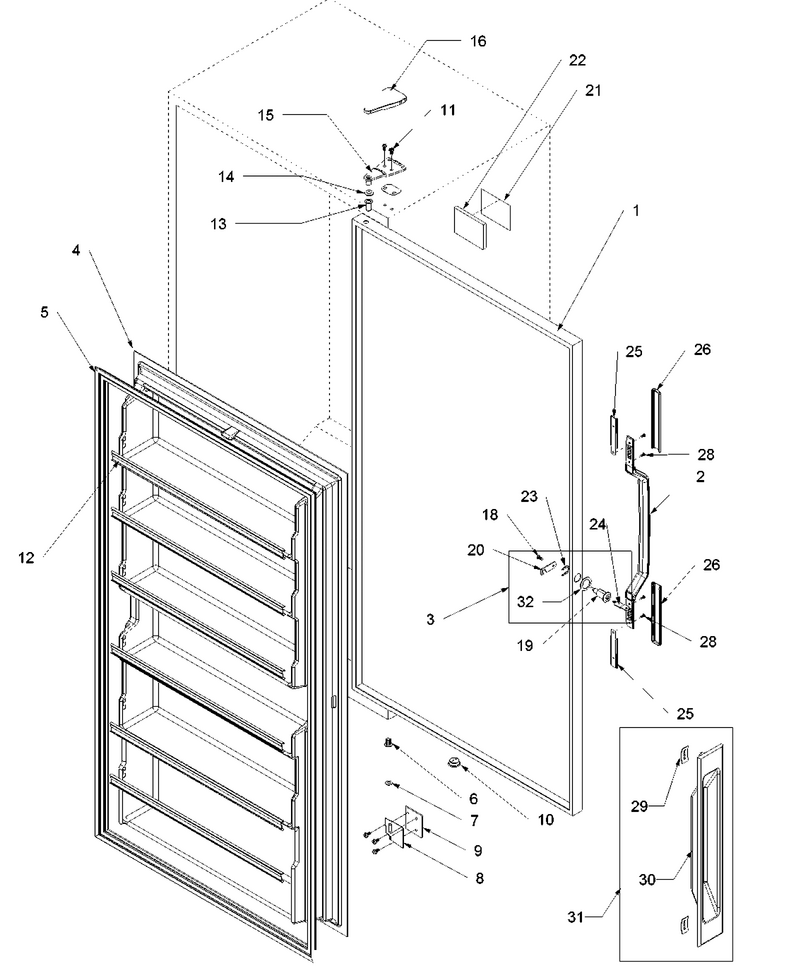

01 - Door Assembly

...
...
NI
Screw WPL-4390598
...
1
Door Assy. (Wht) WPL-68001540
...
4
Kit, Door Liner WPL-R9900195
...
5
Gasket-Dor WPL-WP4357136
...
6
Hinge, Bushing WPL-4390731
...
7
Washer WPL-W10851331
...
8
Bottom Hinge (White) WPL-4357250
...
9
Shim, Bottom Hinge WPL-R0213127
...
10
Vent Plug WPL-3-24898-007
...
11
Bolt WPL-WP8204624
...
12
Rail, Door Shelf WPL-R9900196
...
13
Hinge, Bushing WPL-4390731
...
14
Washer WPL-W10851331
...
15
Top, Hinge (White) WPL-4390673
...
16
Cover, Hinge (White) WPL-3-80838-003
...
21
Insert, Nameplate Amana WPL-R9800517
...
22
Nameplate WPL-2-82534-001
...
29
Clip, Oblong WPL-3-24059-024
...
30
Handle, Recessed WPL-R9800536
...
31
Kit,handle WPL-R0131121

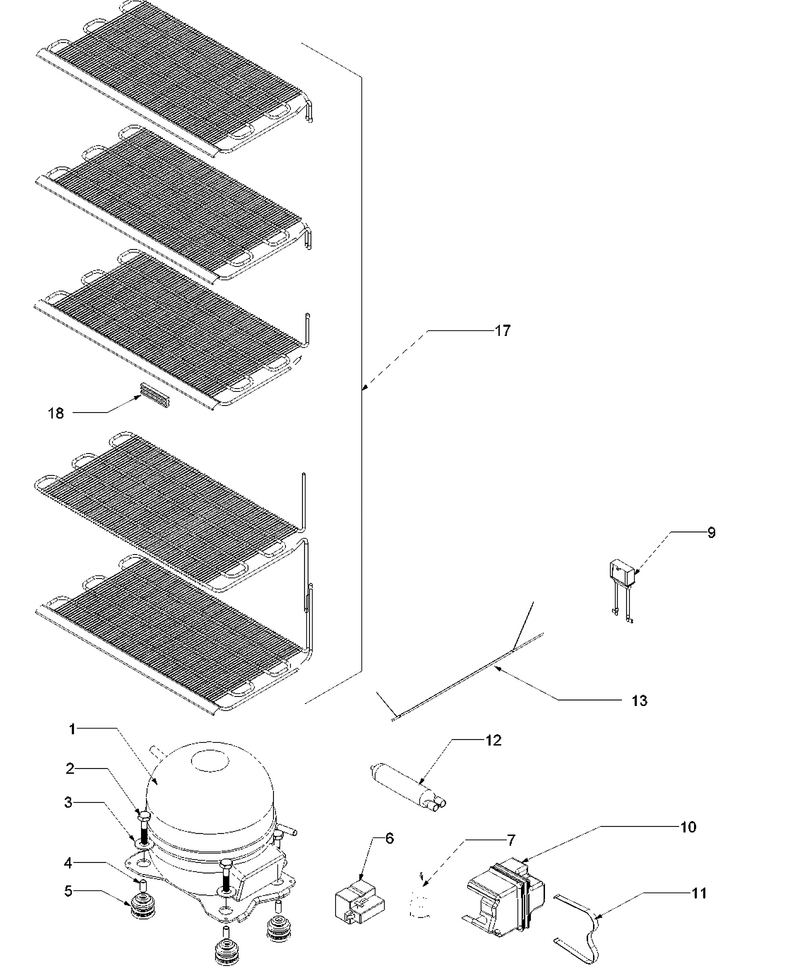

03 - Machine Compartment

...
...
NI
Screw, Compressor Mtg Pan WPL-R0213157
...
1
Compressor WPL-W10309989
...
2
Screw Comp Mtg WPL-R9800552
...
3
Washer, Compressor Mtg WPL-R0213138
...
4
Sleeve WPL-4356846
...
5
Compressor, Grommet WPL-4356335
...
6
Relay WPL-4356730
...
7
Overload (Production (Includes Relay)) WPL-2183409
...
9
Capacitor WPL-WPW10662129
...
10
Cover,relay/overload WPL-R0131130
...
11
Clip WPL-4390604
...
12
Drier WPL-WPB2150504
...
13
Heat Exchanger WPL-R0213147
...
17
Assy,evap/heat Exchange WPL-R0131149
...
18
Clamp WPL-1-80308-101

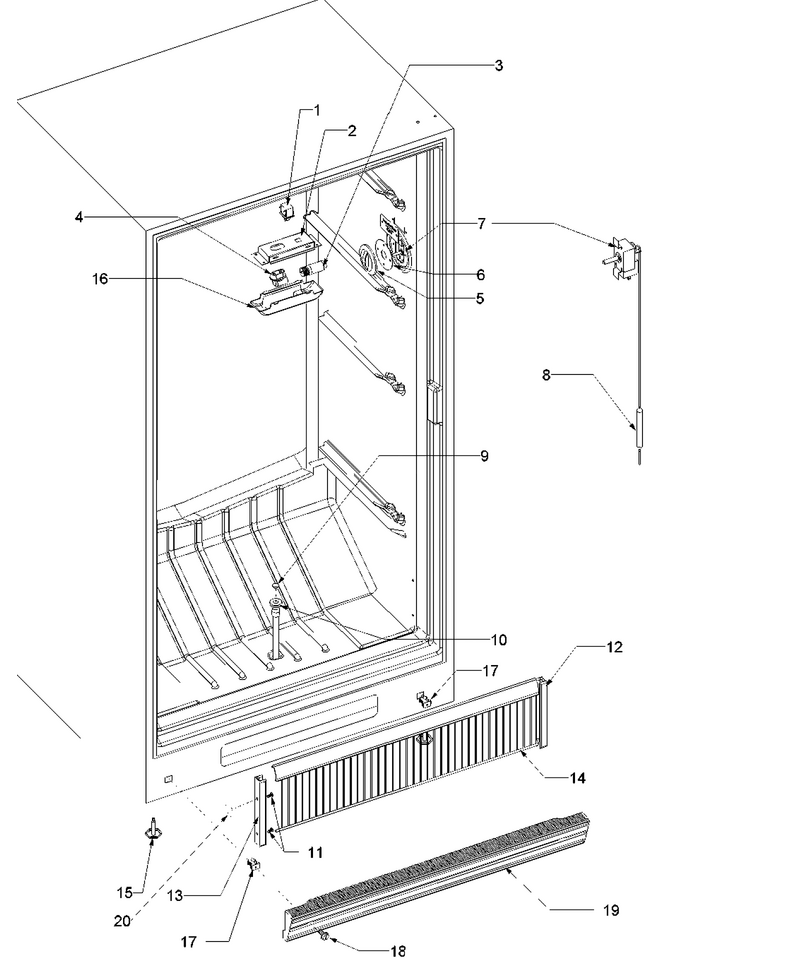

02 - Freezer Compartment

...
...
NI
Screw WPL-WPW10068250
...
5
Knob, Thermostat WPL-4-81294-004
...
6
Plate, Thermostat WPL-1-81154
...
7
Control,temperature WPL-R0131145
...
8
Barrier WPL-WP2196003
...
11
Screw, Support Gate Mtg WPL-R0213107
...
12
Support Fence Rh WPL-4357293
...
13
Support Lh WPL-4-80576-202
...
14
Gate, Fence WPL-R0213110
...
15
Leveler WPL-W11117769
...
20
Plastic, Grommet WPL-3-23995-014
