Amana AER6303MMS1

Model: AER6303MMS1

Save Part Not Listed?
product name

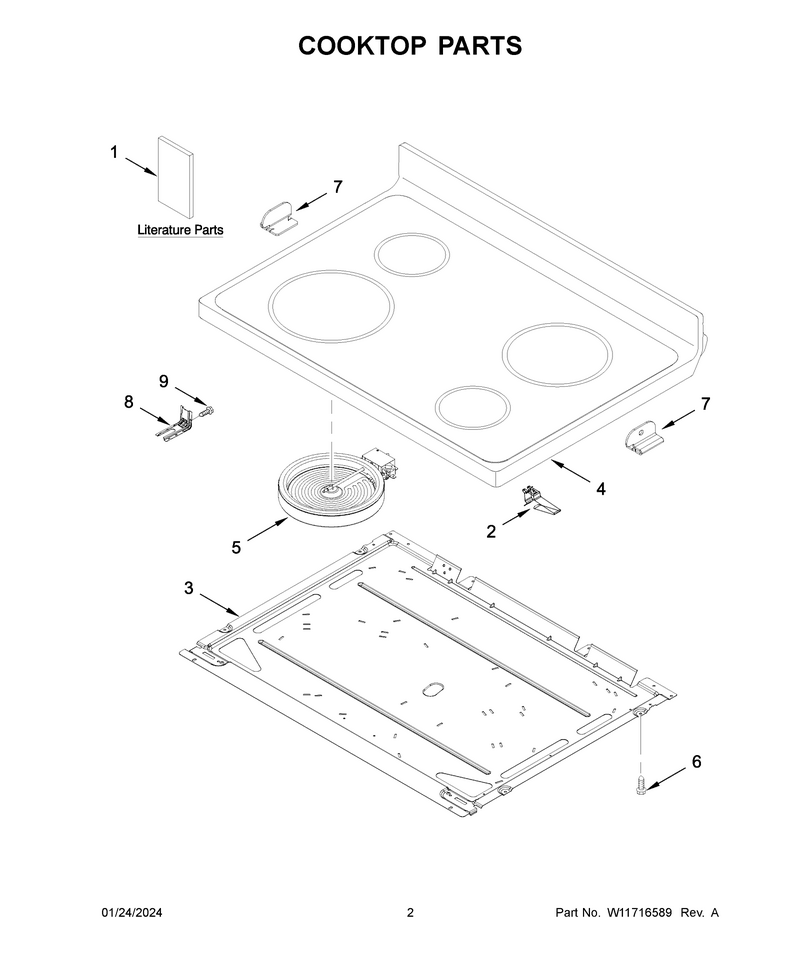

02 - Cooktop Parts

...
...
NI
Harns-Wire WPL-W11596058
...
1A
User Instructions WPL-W11509598
...
1
Quick Start Guide WPL-W11469631
...
1B
Tech Sheet WPL-W11326823
...
2
Spring WPL-W11663556
...
3
Pan WPL-W11244088
...
4
Cooktop WPL-W10906141
...
5
Elmnt-Surf WPL-WP8273993
...
5A
Elmnt-Surf WPL-W11171119
...
6
Screw WPL-WP3196557
...
7
Bracket, Cooktop (Left) WPL-W10607641
...
7A
Bracket, Cooktop (Right) WPL-W10607642
...
8
Anchor-Tip WPL-W11447673
...
9
Anchor-Tip WPL-WP7101P485-60

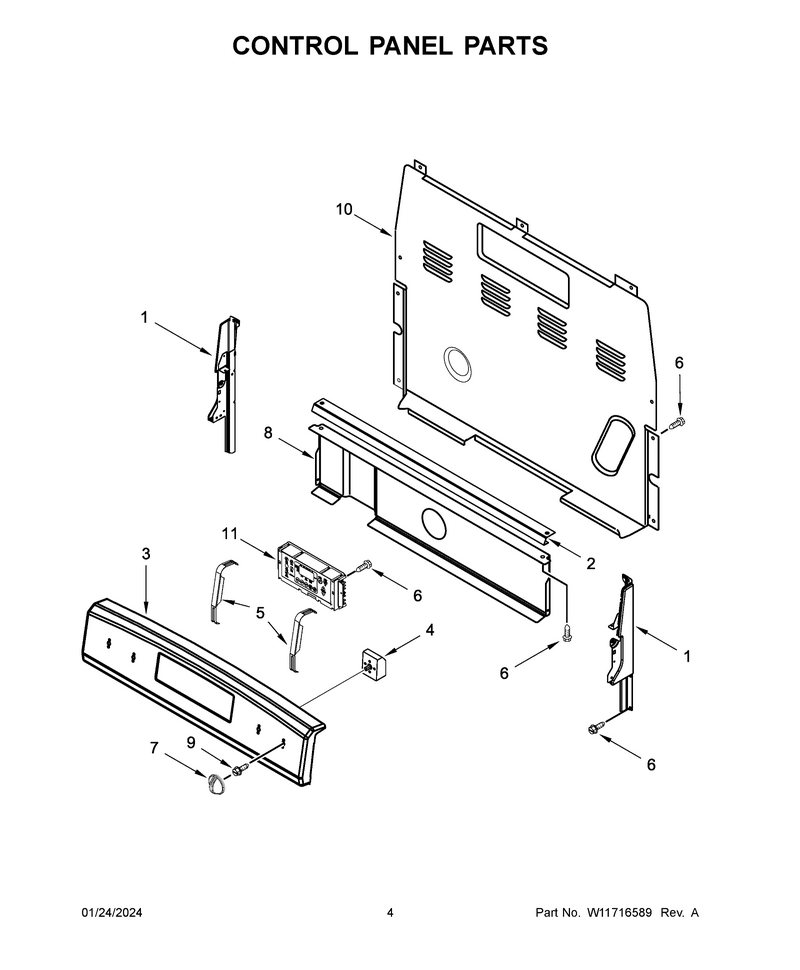

03 - Control Panel Parts

...
...
1
Endcap-Pnl WPL-W11219664
...
1A
Endcap-Pnl WPL-W11219665
...
2
Bracket, Console Mounting WPL-W10525121
...
3
Panl-Cntrl WPL-W11247313
...
4
Switch-Inf WPL-WP3148952
...
4A
Switch-Inf WPL-WP3148953
...
5
Brkt-Mntg WPL-W11230932
...
6
Screw WPL-W11233072
...
7
Knob WPL-W11210997
...
8
Shield, Heat WPL-W10134247
...
9
Screw WPL-WP3400882
...
10
Cover-Rear WPL-WP8272473
...
11
Cntrl-Elec WPL-W11536794

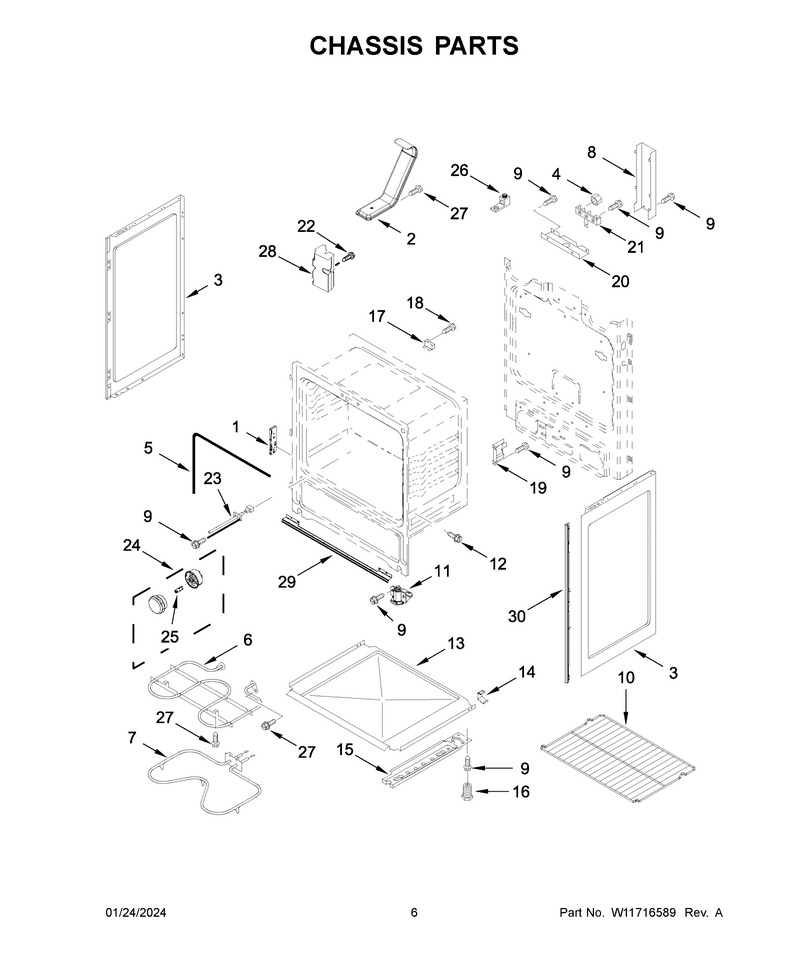

04 - Chassis Parts

...
...
NI
Insulation WPL-W11311894
...
1
Hinge-Recv WPL-W10647259
...
2
Tube-Vent WPL-WPW10134285
...
3
Panel-Side WPL-W11730303
...
4
Nut WPL-WP3400029
...
5
Gaskt-Door WPL-W11542153
...
6
Elmnt-Brol WPL-W10856603
...
7
Elmnt-Bake WPL-W11182108
...
8
Cover-Blck WPL-WPW10326122
...
9
Screw WPL-WP3196557
...
10
Rack-Oven WPL-W11520287
...
11
Foot-Level WPL-WPW10341186
...
12
Screw WPL-WPW10067840
...
13
Retainer WPL-WP8054068
...
14
Clip, Panel WPL-W10137382
...
15A
Rail-Base WPL-WPW10306546
...
15
Rail-Base WPL-WPW10306546
...
16
Foot-Level WPL-WPW10058460
...
17
Fuse-Thrml WPL-WP3196548
...
18
Screw WPL-3196172
...
19
Clip, Oven Support WPL-W10404688
...
20
Brkt-Srvce WPL-W11728255
...
21
Block-Term WPL-WPW10245259
...
22
Screw-Torx WPL-W11135756
...
23
Sensor WPL-WPW10181986
...
24
Light-Oven WPL-W11707255
...
25
Bulb-Light WPL-WPW10571723
...
26
Connector WPL-WPW10281322
...
27
Screw WPL-WP3196154
...
28
Anchor-Tip WPL-W11135752
...
29
Bracket, Front Frame WPL-W11464547
...
30
Rail-Mtg WPL-W11594227

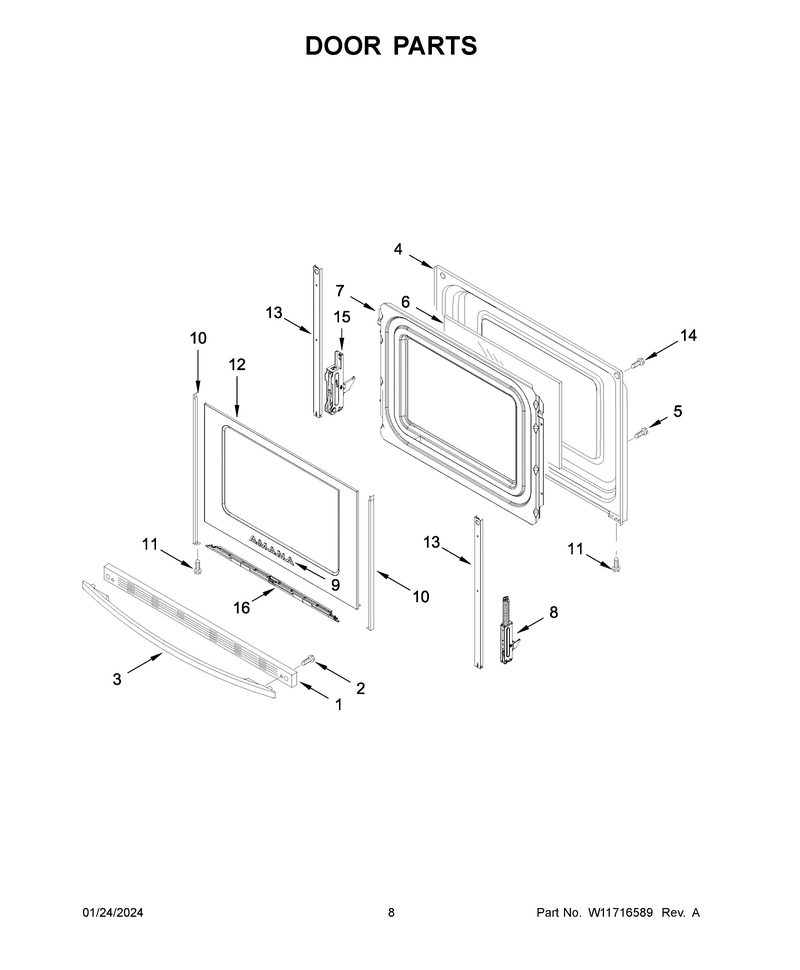

05 - Door Parts

...
...
1
Trim-Vent WPL-WPW10310922
...
2
Screw WPL-W10817436
...
3
Hndle-Door WPL-WPW10323589
...
4
Liner-Door WPL-WP9761344
...
5
Screw WPL-WPW10031790
...
6
Glass-Door WPL-W11399628
...
7
Retainer WPL-W11685635
...
8
Hinge-Door WPL-WPW10299225
...
9
Nameplate WPL-W11240541
...
10
Trim-Door WPL-W10761018
...
10A
Trim-Door WPL-W10761014
...
11
Screw WPL-WP355214
...
12
Glass-Door WPL-W11625039
...
13
Brkt-Suprt WPL-W11502236
...
14
Screw WPL-WPW10200660
...
15
Hinge-Door WPL-WPW10299227
...
16
Trim, Bottom Door WPL-W11440159

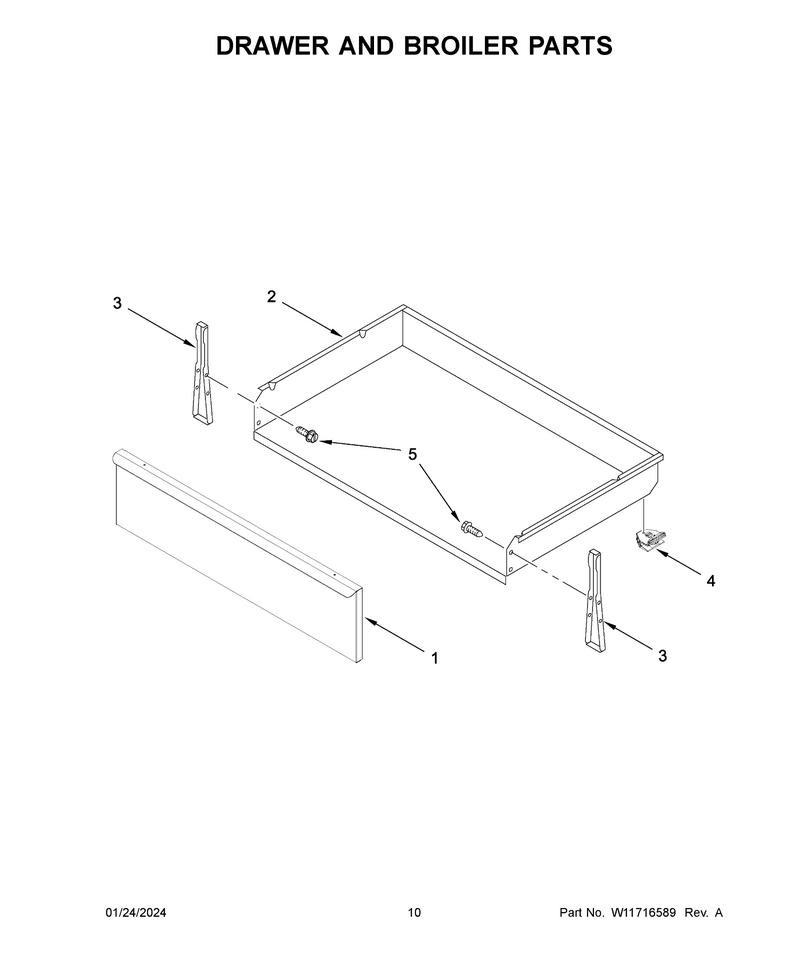

06 - Drawer And Broiler Parts

...
...
1
Panel-Drwr WPL-WPW10330070
...
2
Drawr-Util WPL-W10813962
...
3
Brkt-Mntg WPL-W10838990
...
4
Glide-Drwr WPL-W10807828
...
4A
Glide-Drwr WPL-W10807823
...
5
Screw WPL-WP3196175

...
...
NI
Accessories, Broiler Pan And Grid WPL-4396923
