Amana AER5821VAW0 Electric Freestanding Range

Model: AER5821VAW0

Save
 Part Not Listed?Part Not Listed?
product name

Amana AER5821VAW0

...
...
1E
Cooking Appliance Safer Cooking Guide WPL-9762761
...
2
Range Surface Element Mounting Spring WPL-3149191
...
3
Screw WPL-WP3196170
...
5
Range Radiant Surface Element, 8-In (Replaces W10242957) WPL-WPW10242957
...
5A
Range Radiant Surface Element, 7-In (Replaces Wp8523697) WPL-W10823699
...
6
Range Screw WPL-WP3196557

Amana AER5821VAW0

...
...
NI
Range Oven Insulation WPL-W11311894
...
NI
Range Oven Vent Insulation WPL-8053915
...
NI
Range Oven Insulation (Replaces W10208653) WPL-WPW10208653
...
1
Range Oven Door Hinge Receiver WPL-W10647259
...
3
Range Side Panel (Black) (Replaces W10162245) WPL-WPW10162245
...
3A
Range Side Panel WPL-WPW10575396
...
4
Range Hex Nut WPL-WP7103P027-60
...
5
Range Oven Door Seal (Replaces W10129032) WPL-WPW10129032
...
6
Range Broil Element (Replaces W10583047) WPL-WPW10583047
...
7
Range Bake Element (Replaces W10308477) WPL-WPW10308477
...
8
Range Clip WPL-9761517
...
9
Range Oven Light Switch Rod WPL-9757239
...
10
Range Drawer Glide (Replaces W10114344) WPL-WPW10114344
...
11
Range Leveling Leg WPL-WP3196037
...
12
Range Screw WPL-WPW10067840
...
13
Retainer WPL-WP8054068
...
15
Base Rail Owner'S Manual WPL-WPW10306546
...
16
Range Leveling Leg WPL-WPW10058460
...
17
Range Safety Thermostat (Replaces 3196548) WPL-WP3196548
...
18
Cooking Appliance Screw WPL-3196172
...
19
Range Oven Chassis Support Bracket WPL-W10404688
...
20
Range Terminal Block Bracket WPL-3186034
...
21
Range Terminal Block (Replaces 9761958) WPL-WP9761958
...
23
Range Oven Door Switch WPL-WP9757262
...
24
Range Oven Light Assembly (Replaces W11281687, W11544370) WPL-W11594027
...
25
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
26
Range Spacer (Replaces 9758701) WPL-W10877054
...
27
Range Oven Temperature Sensor (Replaces W10181986) WPL-WPW10181986
...
28
Range Screw WPL-WP3196557
...
29
Range Screw (Replaces 98008545) WPL-WP98008545
...
30
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
31
Range Screw WPL-WP3400016
...
35
Refrigerator Screw (Replaces 489491) WPL-WP489491
...
36
Range Screw WPL-WP3196174
...
37
Vent Tube WPL-WPW10134285

Amana AER5821VAW0

...
...
1
Range Oven Rack WPL-WPW10256908
...
3
Range Storage Drawer Front Panel Support Bracket WPL-W10838990
...
4
Range Broil Drawer Front Panel Push Rivet WPL-WP3196814
...
5
Range Storage Drawer Front Panel (White) WPL-W11219377
...
6
Range Drawer Glide (Replaces 8053334) WPL-WP8053334
...
7
Wall Oven Screw WPL-WP3400832
...
8
Range Oven Door Handle (Replaces 8190282) WPL-WP8190282

Amana AER5821VAW0

...
...
1
Range Control Panel End Cap, Left (White) WPL-W11219365
...
1A
Range Control Panel End Cap, Left (Black) WPL-W11219664
...
1B
Range Control Panel End Cap, Right (White) WPL-W11219370
...
1C
Range Control Panel End Cap, Right WPL-W11219665
...
4
Range Surface Element Control Switch (Replaces 3148953) WPL-WP3148953
...
4A
Range Surface Element Control Switch (Replaces 3148952) WPL-WP3148952
...
5
Range Indicator Light WPL-WP8523265
...
6
Range Indicator Light Lens (Replaces 3196068) WPL-WP3196068
...
7A
Knob WPL-W10180462
...
8
Heat Shield WPL-W10134247
...
9
Screw (White) WPL-3196166
...
10
Cover WPL-WP8272473
...
11
Clip WPL-WP8273564
...
12
Range Oven Control Board WPL-WPW10108290
...
13
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
14
Mounting Bracket WPL-9762078
...
16
Range Screw WPL-WP3400882

Amana AER5821VAW0

...
...
NI
Appliance Spray Paint (White Primer) WPL-350942
...
NI
Range Oven Insulation (Replaces W10208653) WPL-WPW10208653
...
NI
Oven Liner Touch-Up Paint, 2-Oz WPL-8212471
...
NI
Cooking Appliance 14-Gauge Splicing Wire, 200-Degree C (Red) WPL-242831
...
NI
Range Wire Harness Retainer WPL-313660
...
NI
Affresh Cooktop Cleaner (Replaces 31464) WPL-W10355051
...
NI
Range Screw WPL-WP3196154
...
NI
Screw WPL-W11244557
...
NI
Range Screw WPL-WP3196174
...
NI
Appliance Spray Paint (White) (Replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) WPL-350930
...
NI
Appliance Spray Paint (Almond) (Replaces 08001666, 094566-50, 3161012, 3204476, 4395977, 5303161012, 66288, 94566-50, A0050761, F94566-050, F94566-50, Y07020160) WPL-350956
...
NI
Range Broil Pan WPL-4396923
...
NI
Appliance Touch-Up Paint, 2-Oz (White) WPL-511873
...
NI
Range Drip Pan (Replaces 8008, Wb31M2, Wb32K10035, Wb32X0106, Wb32X5063, Wb32X5073) WPL-WB32X106
...
NI
Appliance Porcelain Touch-Up Paint, 1-Qt (White) WPL-799344
...
NI
Wire WPL-3184020
...
NI
Range Anti-Tip Bracket (Replaces W10838686) WPL-W11447673
...
NI
Range Wire Harness WPL-W11172424
...
NI
Wire Tie WPL-WPW10144763
...
NI
Appliance Spray Paint (Black) (Replaces 10952, 830864) WPL-285006
...
NI
Appliance Touch-Up Paint, 0.6-Oz (White) (Replaces 21020, 72017R, 8006, W10813125, Y058028) WPL-72017
...

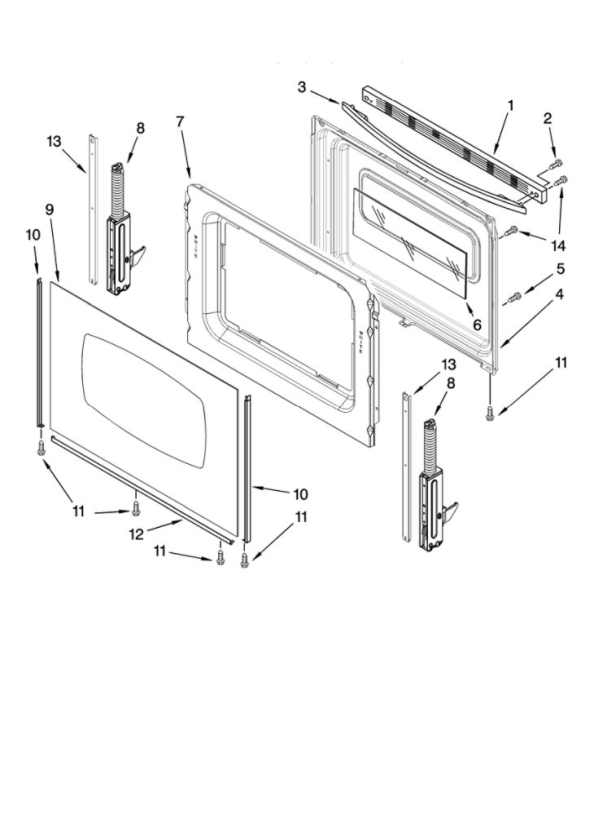

3
Door Handle (White) WPL-9758339
...
4
Range Oven Door Liner WPL-WP9761344
...
5
Range Screw WPL-WPW10031790
...
6
Range Oven Door Inner Glass WPL-WP8053948
...
7
Retainer WPL-9761505
...
8
Door Hinge WPL-W10347465
...
8A
Range Oven Door Hinge Kit WPL-W10347466
...
9A
Range Oven Door Outer Panel Assembly (Stainless) (Replaces W10330077) WPL-WPW10330077
...
10
Range Oven Door Trim, Left (Replaces 8523172) WPL-WP8523172
...
10A
Range Oven Door Trim (Replaces 8523166) WPL-WP8523166
...
10B
Range Oven Door Trim, Left (Replaces 8523171, W10746436) WPL-W10761018
...
10C
Range Oven Door Trim (Replaces 8523165, W10746435) WPL-W10761014
...
11
Range Screw (Replaces 3196160) WPL-W10491985
...
12
Range Oven Door Trim, Lower (White) (Replaces 8523175) WPL-WP8523175
...
12A
Trim WPL-WP8523180
...
13
Range Door Bracket Strap WPL-W11502236
...
...
...
