product name

Amana AER5712BAB Electric Freestanding Range

Model: AER5712BAB

Save
 Part Not Listed?Part Not Listed?
product name

Amana AER5712BAB

...
...
1A
Range Screw WPL-WP7101P434-60
...
6
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
7A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
11B
Range Screw, #8Ab X 3/8-In (Black) WPL-74003975
...
12A
Insulation WPL-WP74010942
...
13
Service Bracket WPL-W10190166
...
13B
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193
...
15
Refrigerator Capacitor Screw WPL-WP487240
...
16
Range Terminal Block (Replaces W10245259) WPL-WPW10245259
...
16A
Screw WPL-W10179708
...
16B
Range Hex Nut WPL-WP7103P027-60
...
17
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193
...
18
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193
...
19
Range Oven Door Hinge WPL-WP74011141

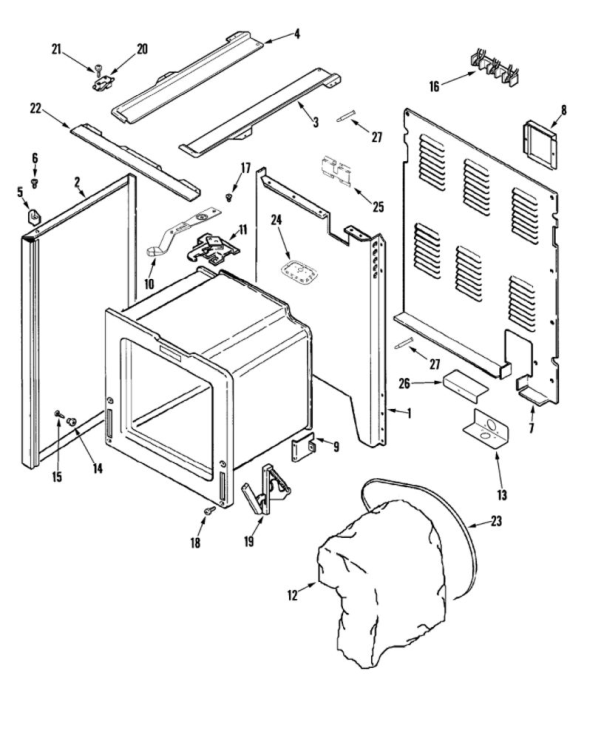

Amana AER5712BAB

...
...
3
Bracket WPL-3801F831-45
...
3B
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
3A
Bracket WPL-3801F832-45
...
4
Range Screw (Replaces 74006515, 74011674) WPL-WP74006515
...
5A
Range Oven Door Glass Support WPL-WP3807F708-71
...
8
Range Oven Door Inner Glass (Replaces 7902P436-60) WPL-74003645
...
10
Trim WPL-WP3608F116-70
...
10A
Trim WPL-WP3608F117-70
...
10B
Trim WPL-WP3608F116-71
...
10C
Trim WPL-WP3608F117-71
...
10D
Range Oven Door Foam Tape WPL-WP74004224
...
11A
Trim WPL-WP3608F141-71
...
12B
Range Screw WPL-WP7101P126-60
...
12A
Baffle WPL-3601F373-51
...
13
Insulation WPL-7002P246-60
...
14C
Range Foam Spacer WPL-WP74005546
...
14A
Range Oven Door Liner WPL-WP2402W312-19
...
15
Range Oven Door Gasket (Replaces W10162384) WPL-WPW10162384
...
16A
Mounting Bracket WPL-3801F886-51
...
16B
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
17
Range Screw (Replaces 98008545) WPL-WP98008545
...
17A
Screw WPL-WP98008544
...
19
Screw WPL-WP7101P072-60
...
20
Nut WPL-WPW10131078
...
23
Range Storage Drawer Roller WPL-WP74004078
...
25
Hex Lock Nut, 8-Pack WPL-STD541408

Amana AER5712BAB

...
...

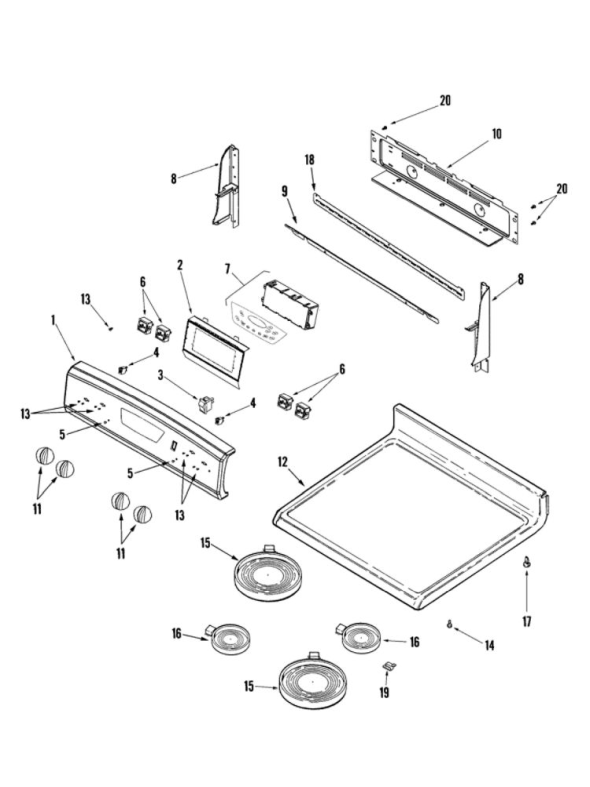

2
Mounting Bracket WPL-3801F850-51
...
2A
Screw WPL-WP74003976
...
3
Range Rocker Switch WPL-74008717
...
4
Range Indicator Light WPL-WP74004153
...
5
Range Indicator Light Lens WPL-WP7730P011-60
...
6
Range Surface Element Control Switch (Replaces 7403P238-60) WPL-WP7403P238-60
...
6A
Range Surface Element Control Switch (Replaces 7403P239-60) WPL-WP7403P239-60
...
7
Range Oven Control Board And Clock (Replaces 5701M837-60, 74009705, 74010293, Wp5701M837-60) WPL-5701M760-60
...
8F
Screw WPL-WP98008544
...
8E
Range Screw (Replaces 98008545) WPL-WP98008545
...
9A
Machine Screw WPL-STD510805
...
11A
Range Surface Element Knob WPL-74008733
...
11
Knob (Black) WPL-74008731
...
13
Screw WPL-WP7101P309-60
...
14
Screw WPL-WP7101P498-60
...
15
Range Radiant Surface Element, 8-In (Replaces Wp74009743) WPL-W10823715
...
16
Range Radiant Surface Element, 6-In (Replaces 12002141, 12002146, Wp8523698) WPL-W10823711
...
17
Range Storage Drawer Glide Bumper WPL-W11189172
...
19
Range Surface Element Support WPL-8004P093-60
...
20A
Screw WPL-W10179708
...
20
Range Screw WPL-WP7101P434-60

Amana AER5712BAB

...
...
10
Range Broil Pan WPL-4396923

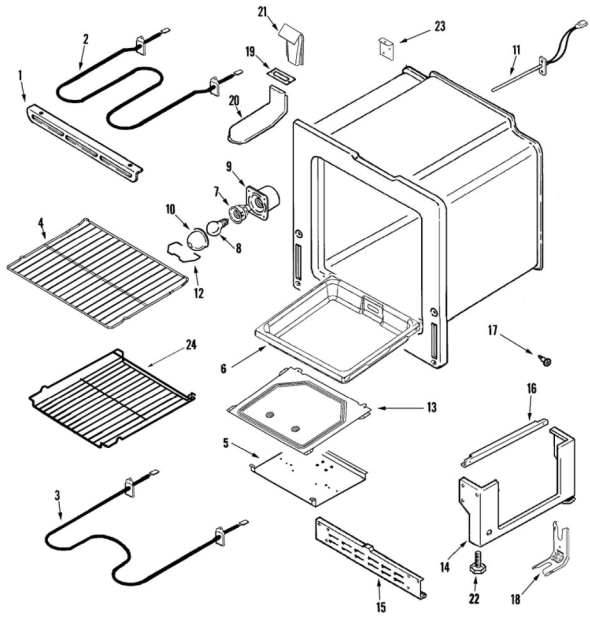

Amana AER5712BAB

...
...
1A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
2
Range Broil Element WPL-WPW10310249
...
3
Range Bake Element WPL-WP7406P438-60
...
4
Range Oven Rack WPL-WPW10282492
...
8
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
11
Range Oven Temperature Sensor (Replaces 12001554, 74004471, 74004943, 74005193, 7430P042-60, 8189679, W10127323, Y04000052, Y04100258, Y704657) WPL-12001656
...
13
Range Oven Insulation Shield, Lower WPL-3804F231-51
...
17
Range Storage Drawer Roller WPL-WP74004078
...
17A
Range Lock Nut, #8-32 WPL-74005230
...
18
Range Anti-Tip Bracket (Replaces 3801F656-51) WPL-WP3801F656-51
...
18A
Range Anti-Tip Bracket Screw WPL-WP7101P485-60
...
21A
Range Screw WPL-WP7101P434-60
...
...
...
