product name

Amana AER5712AAS Electric Freestanding Range

Model: AER5712AAS

Save
 Part Not Listed?Part Not Listed?
product name

Amana AER5712AAS

...
...
1B
Range Screw WPL-WP7101P434-60
...
6
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
7A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
11B
Range Screw, #8Ab X 3/8-In (Black) WPL-74003975
...
12A
Insulation WPL-WP74010942
...
13
Service Bracket WPL-W10190166
...
13B
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193
...
15
Refrigerator Capacitor Screw WPL-WP487240
...
16
Range Terminal Block (Replaces W10245259) WPL-WPW10245259
...
17
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193
...
18
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193
...
19
Range Oven Door Hinge WPL-WP74011141

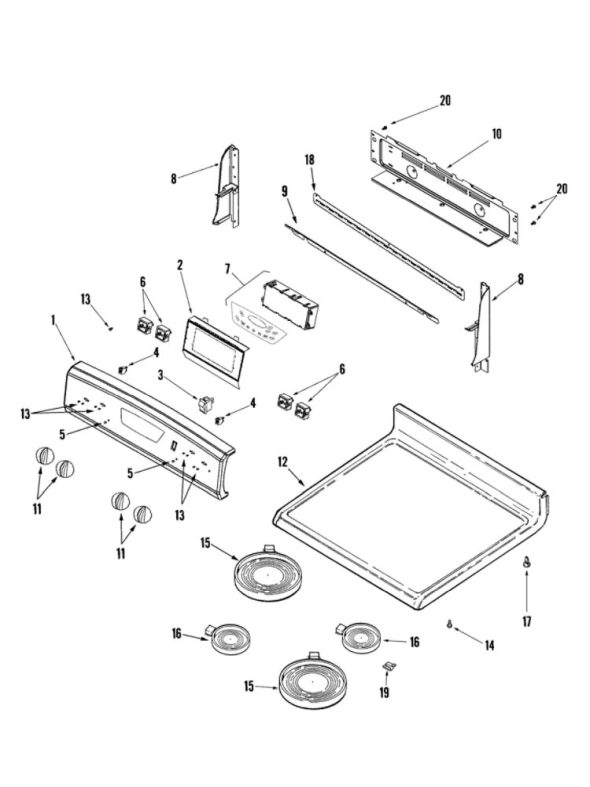

Amana AER5712AAS

...
...
4
Range Indicator Light WPL-WP74004153
...
5
Range Indicator Light Lens WPL-WP7730P011-60
...
6
Range Surface Element Control Switch (Replaces 7403P238-60) WPL-WP7403P238-60
...
6A
Range Surface Element Control Switch (Replaces 7403P239-60) WPL-WP7403P239-60
...
7A
Screw WPL-WP74003976
...
8C
Range Screw (Replaces 98008545) WPL-WP98008545
...
9A
Machine Screw WPL-STD510805
...
11
Knob (Black) WPL-74008731
...
13
Screw WPL-WP7101P309-60
...
14
Screw WPL-WP7101P498-60
...
15
Range Radiant Surface Element, 8-In (Replaces Wp74009743) WPL-W10823715
...
16
Range Radiant Surface Element, 6-In (Replaces 12002141, 12002146, Wp8523698) WPL-W10823711
...
17
Range Storage Drawer Glide Bumper WPL-W11189172
...
19
Range Surface Element Support WPL-8004P093-60
...
20
Range Screw WPL-WP7101P434-60
...
20A
Screw WPL-W10179708

Amana AER5712AAS

...
...
10
Range Broil Pan WPL-4396923

Amana AER5712AAS

...
...
1A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
2
Range Broil Element WPL-WPW10310249
...
3
Range Bake Element (Replaces 74010750) WPL-WP74010750
...
4
Range Oven Rack WPL-WPW10282492
...
8
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
11
Range Oven Temperature Sensor (Replaces 12001554, 74004471, 74004943, 74005193, 7430P042-60, 8189679, W10127323, Y04000052, Y04100258, Y704657) WPL-12001656
...
13
Range Oven Insulation Shield, Lower WPL-3804F231-51
...
17A
Range Lock Nut, #8-32 WPL-74005230
...
17
Range Storage Drawer Roller WPL-WP74004078
...
18
Range Anti-Tip Bracket (Replaces 3801F656-51) WPL-WP3801F656-51
...
18A
Range Anti-Tip Bracket Screw WPL-WP7101P485-60
...
21A
Range Screw WPL-WP7101P434-60

Amana AER5712AAS

...
...
4
Range Screw (Replaces 74006515, 74011674) WPL-WP74006515
...
4A
Range Push Nut WPL-WP74001574
...
9
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
15
Range Oven Door Gasket (Replaces W10162384) WPL-WPW10162384
...
18
Screw WPL-WP7101P072-60
...
19
Nut WPL-WPW10131078
...
24
Range Storage Drawer Roller WPL-WP74004078
...
25
Hex Lock Nut, 8-Pack WPL-STD541408
...
...
...
