Amana AER5511ACW Electric Freestanding Range

Model: AER5511ACW

Save
 Part Not Listed?Part Not Listed?
product name

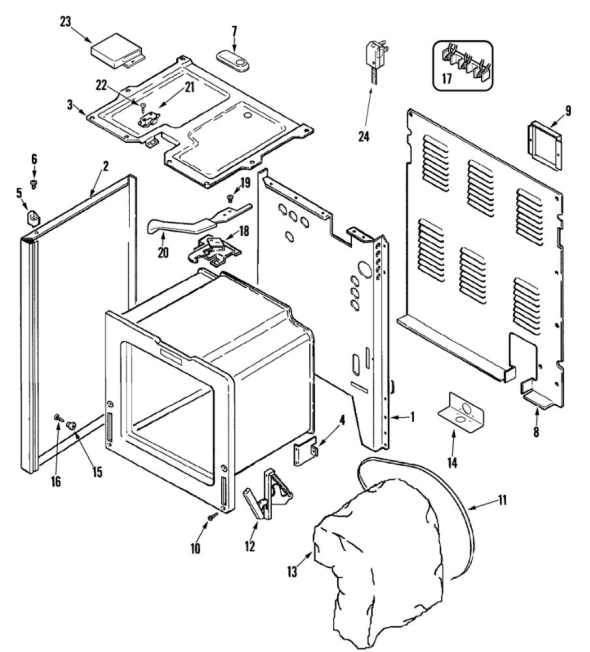

Amana AER5511ACW

...
...
1A
Range Screw WPL-WP7101P434-60
...
3B
Screw WPL-WP74003976
...
3A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
6
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
10
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193
...
12
Range Oven Door Hinge WPL-WP74011140
...
13A
Insulation WPL-WP74010942
...
14
Service Bracket WPL-W10190166
...
15A
Refrigerator Capacitor Screw WPL-WP487240
...
17
Range Terminal Block (Replaces W10245259) WPL-WPW10245259
...
17B
Range Hex Nut WPL-WP7103P027-60
...
17A
Screw WPL-W10179708
...
18A
Range Screw, #8Ab X 3/8-In (Black) WPL-74003975
...
19
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193

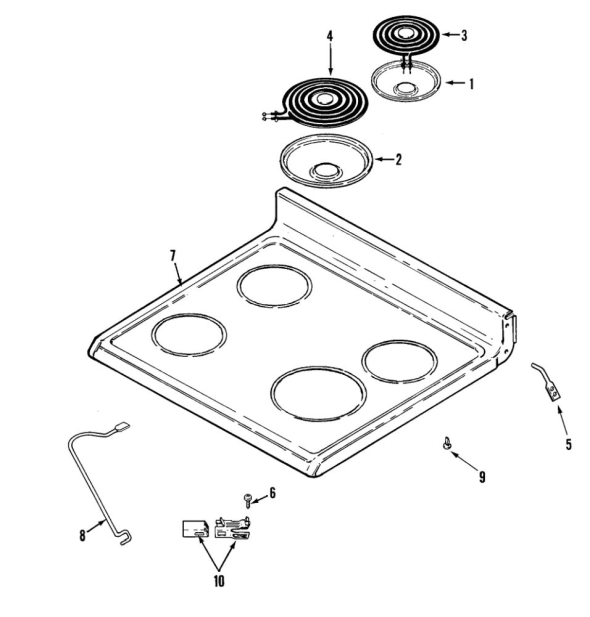

Amana AER5511ACW

...
...
1
Range Drip Pan (Replaces 14211103, 3169204, 3169204Rw, 4396088, Wpw10290353) WPL-W10290353RW
...
1A
Range Drip Pan (Replaces 14211103, 3169204, 3169204Rw, 4396088, Wpw10290353) WPL-W10290353RW
...
2
Range Drip Pan WPL-WPW10290350
...
3
Range Coil Surface Element, 6-In WPL-WPW10259868
...
4
Range Coil Surface Element, 8-In WPL-WPW10345410
...
5A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
6
Range Screw WPL-WP74004005
...
9
Range Storage Drawer Glide Bumper WPL-W11189172
...
10
Range Surface Element Receptacle Kit (Replaces 4381814, 4381831, 700125, Y04100394, Y0B03600499, Y0R01500199, Y0R01500299, Y0R01500399, Y0R01500599, Y712143, Y712361) WPL-12001676

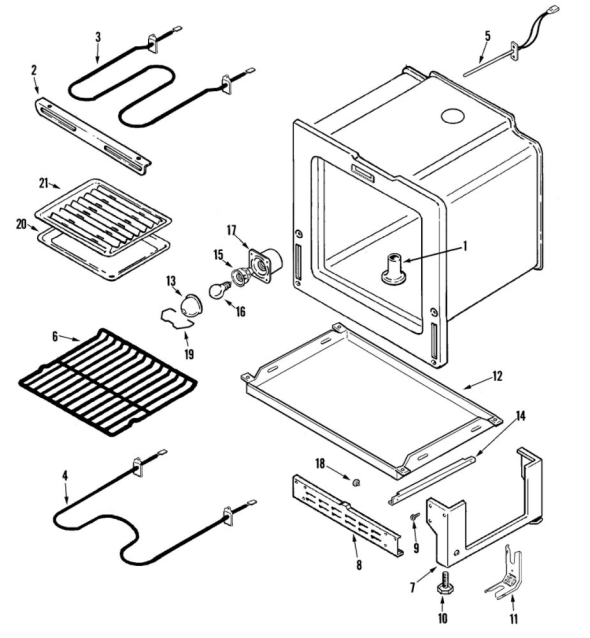

Amana AER5511ACW

...
...
1A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
3
Range Broil Element WPL-WPW10310249
...
4
Range Bake Element (Replaces 74010750) WPL-WP74010750
...
5
Range Oven Temperature Sensor (Replaces 12001554, 74004471, 74004943, 74005193, 7430P042-60, 8189679, W10127323, Y04000052, Y04100258, Y704657) WPL-12001656
...
6
Range Oven Rack WPL-WPW10282492
...
11
Range Anti-Tip Bracket (Replaces 3801F656-51) WPL-WP3801F656-51
...
11A
Range Anti-Tip Bracket Screw WPL-WP7101P485-60
...
12
Range Oven Insulation Shield, Lower WPL-3804F231-51
...
16
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
18A
Range Lock Nut, #8-32 WPL-74005230
...
18
Range Storage Drawer Roller WPL-WP74004078

Amana AER5511ACW

...
...
2
Range Oven Control Board And Clock (Replaces 5701M837-60, 74009705, 74010293, Wp5701M837-60) WPL-5701M760-60
...
2B
Screw WPL-WP74003976
...
4
Range Surface Element Control Switch (Replaces 7403P238-60) WPL-WP7403P238-60
...
4B
Screw WPL-WP7101P309-60
...
4A
Range Surface Element Control Switch (Replaces 7403P239-60) WPL-WP7403P239-60
...
5
Range Rocker Switch WPL-74008717
...
6
Range Indicator Light WPL-WP74004153
...
7
Range Indicator Light Lens WPL-WP7730P011-60
...
8E
Range Screw (Replaces 98008545) WPL-WP98008545
...
8F
Screw WPL-WP98008544
...
9B
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
10
Knob (Black) WPL-74008731
...
10A
Range Surface Element Knob WPL-74008733
...
12
Baffle WPL-3601F354-45
...
12A
Machine Screw WPL-STD510805
...
13A
Circuit Breaker WPL-74009322

Amana AER5511ACW

...
...
3A
Bracket WPL-3801F832-45
...
3
Bracket WPL-3801F831-45
...
4A
Range Screw (Replaces 74006515, 74011674) WPL-WP74006515
...
4
Range Screw (Replaces 74006515, 74011674) WPL-WP74006515
...
5B
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
5A
Range Oven Door Glass Support WPL-WP3807F708-71
...
7
Range Oven Door Gasket (Replaces W10162384) WPL-WPW10162384
...
10
Trim WPL-WP3608F116-70
...
10A
Trim WPL-WP3608F117-70
...
10B
Trim WPL-WP3608F116-71
...
10C
Trim WPL-WP3608F117-71
...
10D
Range Oven Door Foam Tape WPL-WP74004224
...
10E
Range Screw (Replaces 98008545) WPL-WP98008545
...
10F
Screw WPL-WP98008544
...
11A
Trim WPL-WP3608F141-71
...
11B
Range Screw WPL-WP7101P126-60
...
14A
Range Push Nut WPL-WP74001574
...
15
Range Foam Spacer WPL-WP74005546
...
16B
Screw WPL-WP7101P072-60
...
18
Nut WPL-WPW10131078
...
21
Range Storage Drawer Roller WPL-WP74004078
...
23
Hex Lock Nut, 8-Pack WPL-STD541408

Amana AER5511ACW

...
...
8
Range Broil Pan WPL-4396923
...
...
...
