product name

Amana AER5511AAW Electric Freestanding Range

Model: AER5511AAW

Save
 Part Not Listed?Part Not Listed?
product name

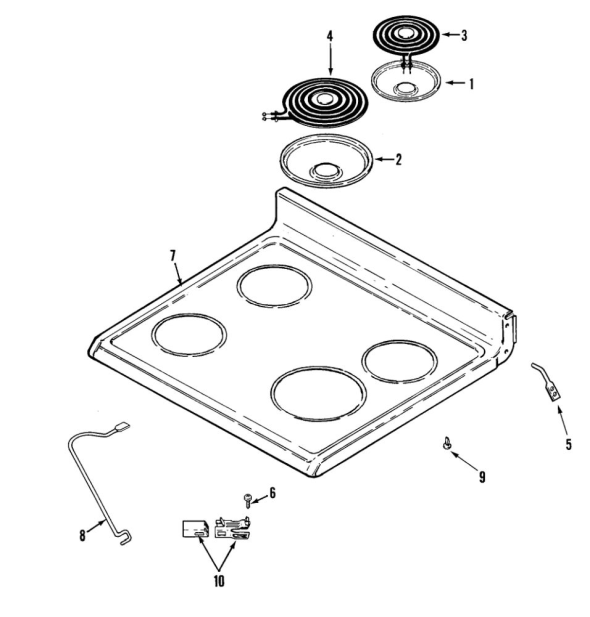

Amana AER5511AAW

...
...
1
Range Drip Pan (Replaces 241341, 242637, 244403, 256691, 305837K, 306796, 3150246Rw, 4164381, 4165495, 4165520, 4320551, 4396092, 52515, 74001212, 7725P053-60, 83148357, 83150246, 832634, 834622, 834753) WPL-W10196406RW
...
1A
Range Drip Pan, 6-In (Chrome) (Replaces W10196406) WPL-WPW10196406
...
2
Range Drip Pan, 8-In (Chrome) (Replaces W10196405) WPL-WPW10196405
...
3
Range Coil Surface Element, 6-In WPL-WPW10259868
...
4
Range Coil Surface Element, 8-In WPL-WPW10345410
...
5A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
6
Range Screw WPL-WP74004005
...
9
Range Storage Drawer Glide Bumper WPL-W11189172
...
10
Range Surface Element Receptacle Kit (Replaces 4381814, 4381831, 700125, Y04100394, Y0B03600499, Y0R01500199, Y0R01500299, Y0R01500399, Y0R01500599, Y712143, Y712361) WPL-12001676

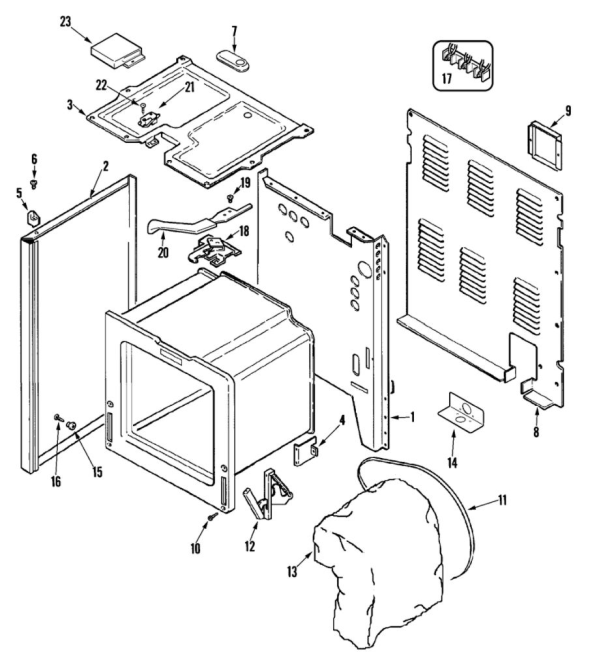

Amana AER5511AAW

...
...
1A
Range Screw WPL-WP7101P434-60
...
3B
Screw WPL-WP74003976
...
3A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
6
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
10
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193
...
12
Range Oven Door Hinge WPL-WP74011140
...
13A
Insulation WPL-WP74010942
...
14
Service Bracket WPL-W10190166
...
16
Refrigerator Capacitor Screw WPL-WP487240
...
17
Range Terminal Block (Replaces W10245259) WPL-WPW10245259
...
17B
Range Hex Nut WPL-WP7103P027-60
...
17A
Screw WPL-W10179708
...
18A
Range Screw, #8Ab X 3/8-In (Black) WPL-74003975
...
19
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193

Amana AER5511AAW

...
...
9
Range Broil Pan WPL-4396923

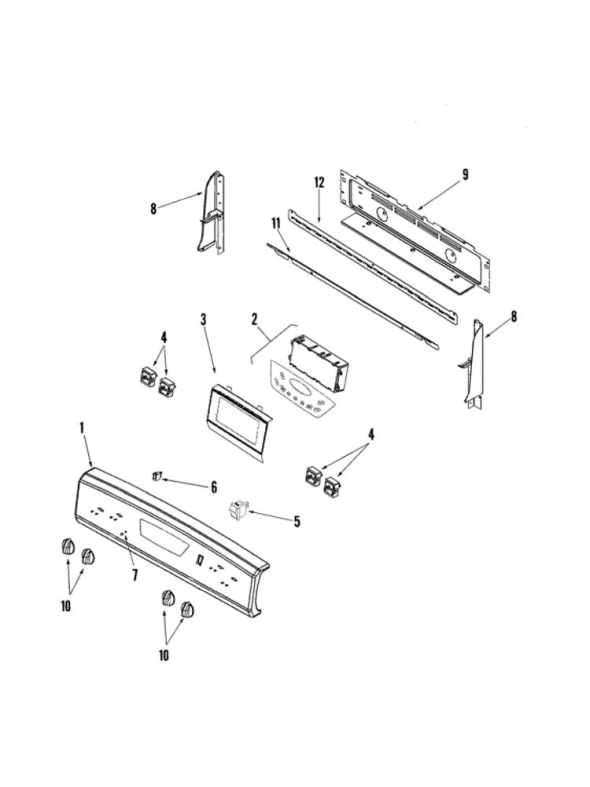

Amana AER5511AAW

...
...
2
Range Oven Control Board And Clock (Replaces 5701M837-60, 74009705, 74010293, Wp5701M837-60) WPL-5701M760-60
...
2C
Screw WPL-WP74003976
...
4
Range Surface Element Control Switch (Replaces 7403P238-60) WPL-WP7403P238-60
...
4B
Screw WPL-WP7101P309-60
...
4A
Range Surface Element Control Switch (Replaces 7403P239-60) WPL-WP7403P239-60
...
5
Range Rocker Switch WPL-74008717
...
5B
Switch Rocker (Off-White) WPL-74008765
...
6
Range Indicator Light WPL-WP74004153
...
7
Range Indicator Light Lens WPL-WP7730P011-60
...
8G
Range Screw (Replaces 98008545) WPL-WP98008545
...
8H
Screw WPL-WP98008544
...
8I
Screw WPL-WP74009541
...
9B
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
10
Knob (Black) WPL-74008731
...
10B
Range Surface Element Knob WPL-74008733
...
12A
Machine Screw WPL-STD510805
...
12
Baffle WPL-3601F354-45

Amana AER5511AAW

...
...
1A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
3
Range Broil Element WPL-WPW10310249
...
4
Range Bake Element (Replaces 74010750) WPL-WP74010750
...
5
Range Oven Temperature Sensor (Replaces 12001554, 74004471, 74004943, 74005193, 7430P042-60, 8189679, W10127323, Y04000052, Y04100258, Y704657) WPL-12001656
...
6
Range Oven Rack WPL-WPW10282492
...
11
Range Anti-Tip Bracket (Replaces 3801F656-51) WPL-WP3801F656-51
...
11A
Range Anti-Tip Bracket Screw WPL-WP7101P485-60
...
12
Range Oven Insulation Shield, Lower WPL-3804F231-51
...
16
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
18A
Range Lock Nut, #8-32 WPL-74005230
...
18
Range Storage Drawer Roller WPL-WP74004078

Amana AER5511AAW

...
...
3
Bracket WPL-3801F831-45
...
3A
Bracket WPL-3801F832-45
...
4A
Range Screw (Replaces 74006515, 74011674) WPL-WP74006515
...
4
Range Screw (Replaces 74006515, 74011674) WPL-WP74006515
...
5A
Range Oven Door Glass Support WPL-WP3807F708-71
...
5C
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
5B
Support WPL-WP3807F708-78
...
7
Range Oven Door Gasket (Replaces W10162384) WPL-WPW10162384
...
10A
Trim WPL-WP3608F117-70
...
10B
Trim WPL-WP3608F116-71
...
10C
Trim WPL-WP3608F117-71
...
10F
Range Oven Door Foam Tape WPL-WP74004224
...
10G
Range Screw (Replaces 98008545) WPL-WP98008545
...
10H
Screw WPL-WP98008544
...
10I
Screw WPL-WP74009541
...
10
Trim WPL-WP3608F116-70
...
11A
Trim WPL-WP3608F141-71
...
11C
Range Screw WPL-WP7101P126-60
...
14A
Range Push Nut WPL-WP74001574
...
15
Range Foam Spacer WPL-WP74005546
...
16C
Screw WPL-WP7101P072-60
...
18
Nut WPL-WPW10131078
...
21
Range Storage Drawer Roller WPL-WP74004078
...
23
Hex Lock Nut, 8-Pack WPL-STD541408
...
...
...
