product name

Amana AER4311AAW Electric Freestanding Range

Model: AER4311AAW

Save
 Part Not Listed?Part Not Listed?
product name

Amana AER4311AAW

...
...
1A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
3A
Screw WPL-WP74003976
...
7A
Range Screw WPL-WP7101P434-60
...
10
Stand Mixer Screw, #10-24 X 1/4-In WPL-WP4159193
...
12
Range Oven Door Hinge WPL-W10876639
...
14
Service Bracket WPL-W10190166
...
16A
Refrigerator Capacitor Screw WPL-WP487240
...
17A
Screw WPL-W10179708
...
17
Range Terminal Block (Replaces W10245259) WPL-WPW10245259
...
17B
Range Hex Nut WPL-WP7103P027-60

Amana AER4311AAW

...
...
1A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
3
Range Broil Element WPL-WPW10310249
...
4
Range Bake Element (Replaces 74010750) WPL-WP74010750
...
5
Clip WPL-WP7112P004-60
...
6
Range Oven Rack WPL-WPW10282492
...
7A
Range Anti-Tip Bracket Screw WPL-WP7101P485-60
...
11
Range Anti-Tip Bracket (Replaces 3801F656-51) WPL-WP3801F656-51
...
12
Range Oven Insulation Shield, Lower WPL-3804F231-51
...
16
Appliance Light Bulb, 40-Watt (Replaces 40A15-2Pk, 60A, 60A15Rvl, Std398091, Wr02X12328, Wx12X1510) WPL-40A15
...
20
Range Storage Drawer Roller WPL-WP74004078
...
21
Range Oven Temperature Sensor (Replaces 12001554, 74004471, 74004943, 74005193, 7430P042-60, 8189679, W10127323, Y04000052, Y04100258, Y704657) WPL-12001656

Amana AER4311AAW

...
...
1
Range Drip Pan (Replaces 241341, 242637, 244403, 256691, 305837K, 306796, 3150246Rw, 4164381, 4165495, 4165520, 4320551, 4396092, 52515, 74001212, 7725P053-60, 83148357, 83150246, 832634, 834622, 834753) WPL-W10196406RW
...
1A
Range Drip Pan, 6-In (Chrome) (Replaces W10196406) WPL-WPW10196406
...
2
Range Drip Pan, 8-In (Chrome) (Replaces W10196405) WPL-WPW10196405
...
3
Range Coil Surface Element, 6-In WPL-WPW10259868
...
4
Range Coil Surface Element, 8-In WPL-WPW10345410
...
5A
Range Screw, #8Ab X 3/8-In (Black) WPL-74003975
...
6
Range Screw WPL-WP74004005
...
9
Range Storage Drawer Glide Bumper WPL-W11189172
...
10
Range Surface Element Receptacle Kit WPL-WP74007474

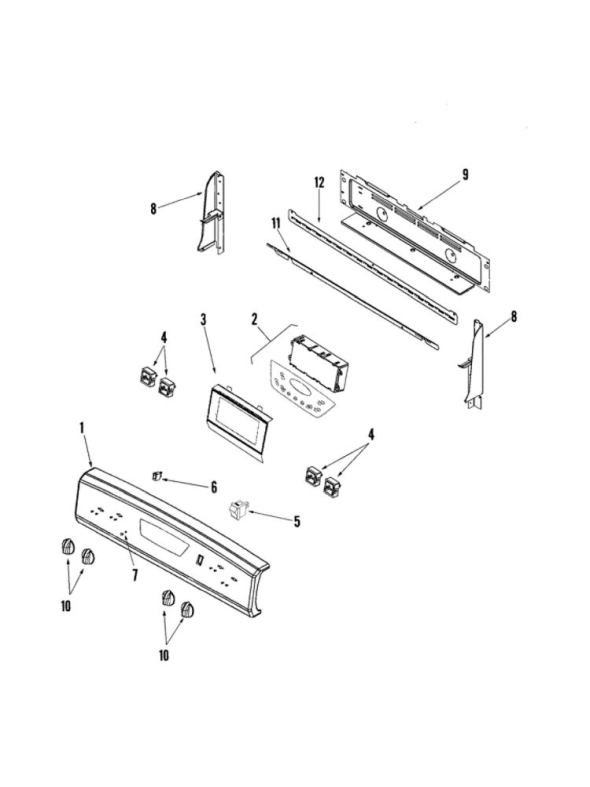

Amana AER4311AAW

...
...
2A
Screw WPL-WP74003976
...
3
Mounting Bracket WPL-3801F850-51
...
4
Range Surface Element Control Switch (Replaces 7403P238-60) WPL-WP7403P238-60
...
4B
Screw WPL-WP7101P309-60
...
4A
Range Surface Element Control Switch (Replaces 7403P239-60) WPL-WP7403P239-60
...
5
Range Rocker Switch WPL-74008717
...
6
Range Indicator Light WPL-WP74004153
...
7
Range Indicator Light Lens WPL-WP7730P011-60
...
8B
Screw WPL-WP98008544
...
9A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
10
Range Surface Element Knob WPL-74008733
...
12A
Machine Screw WPL-STD510805

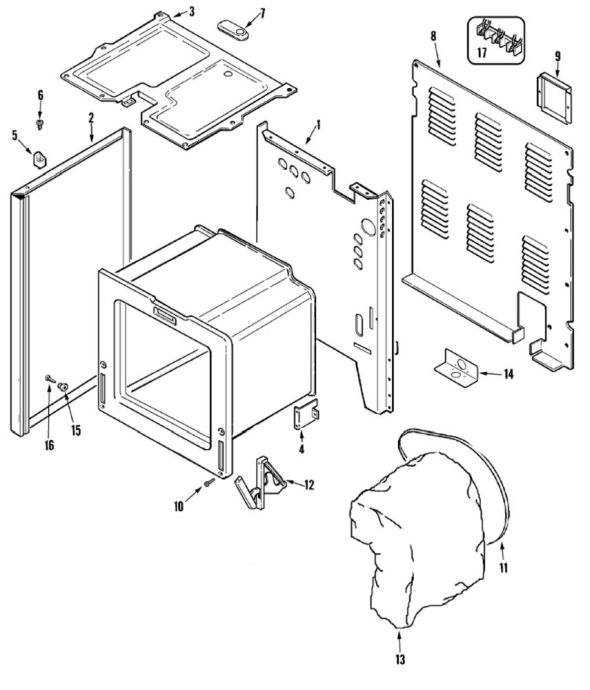

Amana AER4311AAW

...
...
1A
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
6
Range Oven Door Gasket WPL-WP7212P043-60
...
13
Range Screw (Replaces 74006515, 74011674) WPL-WP74006515
...
14
Range Storage Drawer Roller WPL-WP74004078
...
14A
Hex Lock Nut, 8-Pack WPL-STD541408
...
15
Nut WPL-WPW10131078
...
18
Room Air Conditioner Foam Seal WPL-WP854334
...
19
Screw WPL-WP7101P072-60
...
...
...
