Amana AEM477L2 (BOM: PAEM477L2)

Model: AEM477L2 (BOM: PAEM477L2)

Save Part Not Listed?
product name

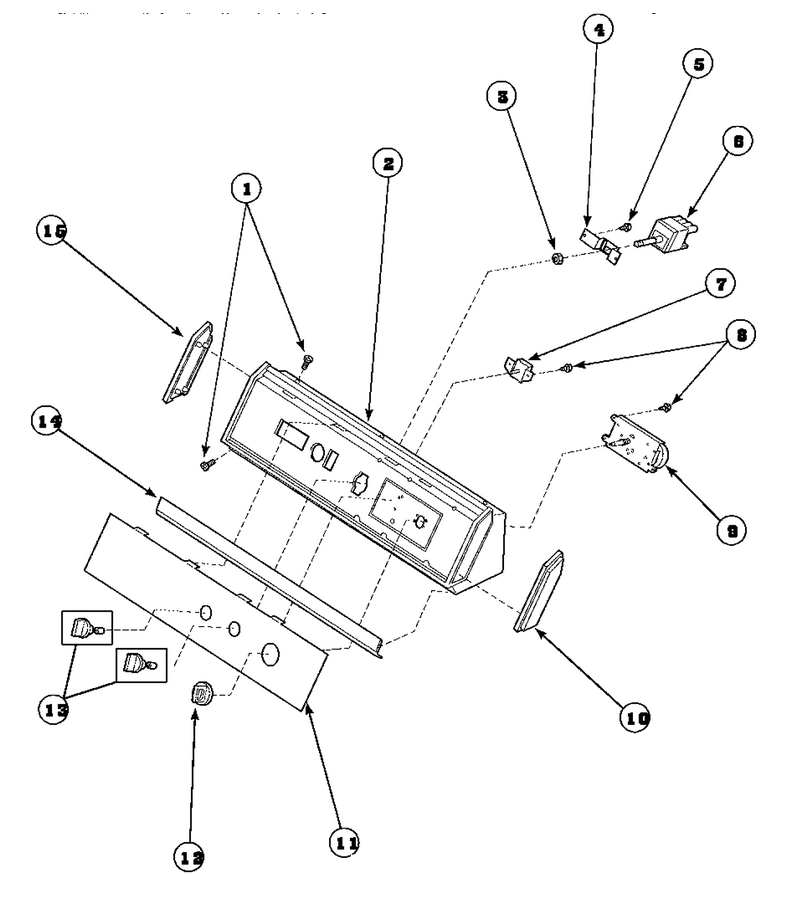

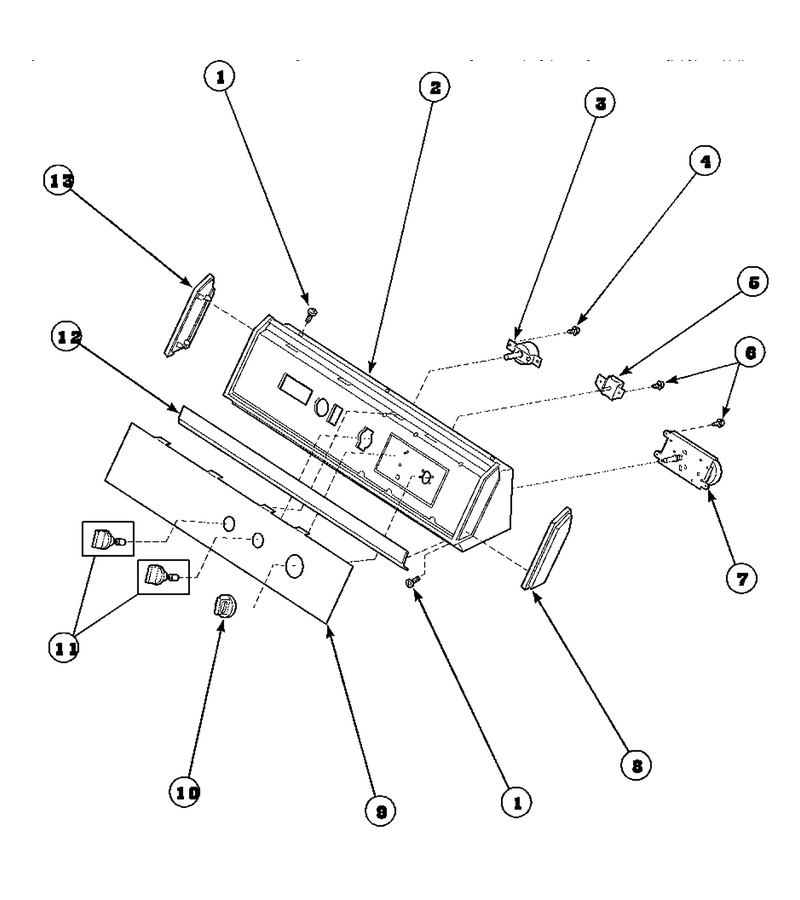

06 - Graphic Panel, Control Hood And Controls

...
...
1
Screw,no.8abx3/4 Pozidri WPL-32993
...
2
Assy, Hood Mtg WPL-59937P
...
3
Nut WPL-57584
...
4
Bracket,switch Mount WPL-59704
...
5
Screw, No.8 X 3/8 Ind H WPL-31260
...
6
Switch,fabric Selector WPL-Y61511
...
7
Complete T WPL-WFR500823
...
8
Screw WPL-WP90767
...
9
Timer, 3 Cycle WPL-502963
...
10
Cap,end-R.h.-Chrome WPL-31248
...
11
Graphic Panel Models WPL-502201
...
12
Assy,timer Knob & Skirt White WPL-62234
...
13
Assy,knob-Rotary-Black WPL-33610
...
14
Trim, Cont Pnl Top WPL-61849R
...
15
Cap,end-L.h.-Chrome WPL-31249

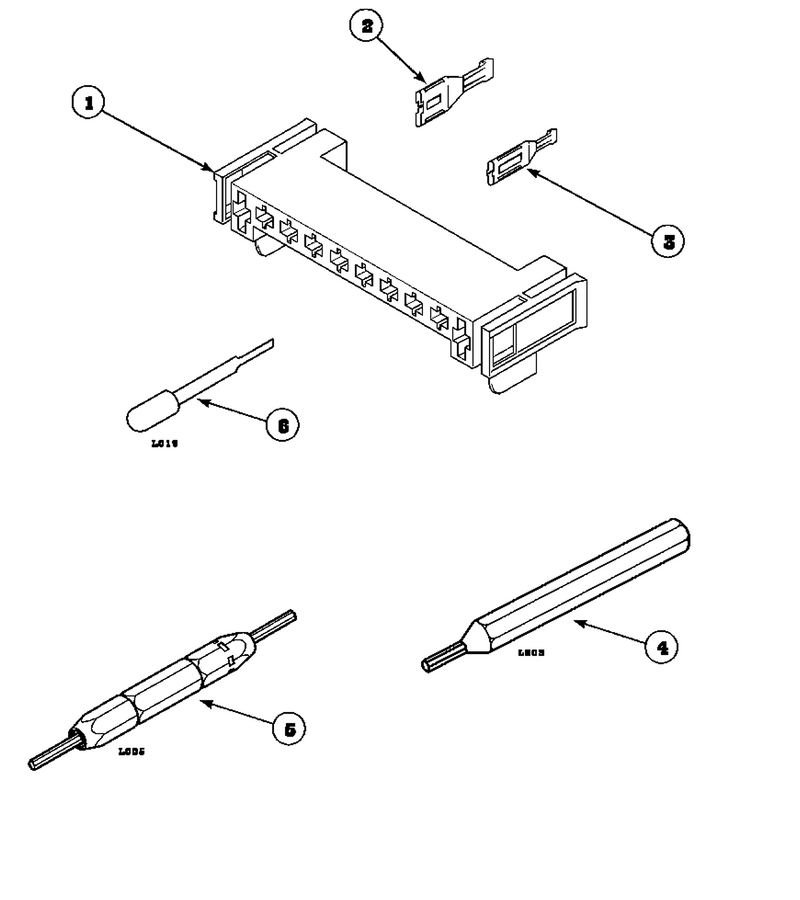

13 - Motor Connection Block, Terminals Tools

...
...
1
Housing, 10 Position WPL-500338
...
2
Spade Terminal WPL-00225
...
3
Terminal,female-Molex- WPL-Y00188
...
4
Tool,extractor-Ht-2038 WPL-128P4
...
5
Tool,extractor Ht2066a WPL-190P4
...
6
Terminal Extractor Tool WPL-283P4

07 - Graphic Panel, Control Hood And Controls

...
...
1
Screw,no.8abx3/4 Pozidri WPL-31752
...
2
Assy, Hood Mtg WPL-59937P
...
3
Switch, Temperature Select WPL-62173
...
4
Screw, No.8 X 3/8 Ind H WPL-31260
...
5
Complete T WPL-WFR500823
...
6
Screw WPL-WP90767
...
7
Timer, 5 Cycle WPL-502967
...
8
Cap,end-R.h.-Chrome WPL-31248
...
9
Panel, Graphics White WPL-502445
...
10
Assy,timer Knob & Skir WPL-62176
...
11
Assy,knob-Rotary-Black WPL-33610
...
12
Trim, Cont Pnl Top WPL-61849R
...
13
Cap,end-L.h.-Chrome WPL-31249

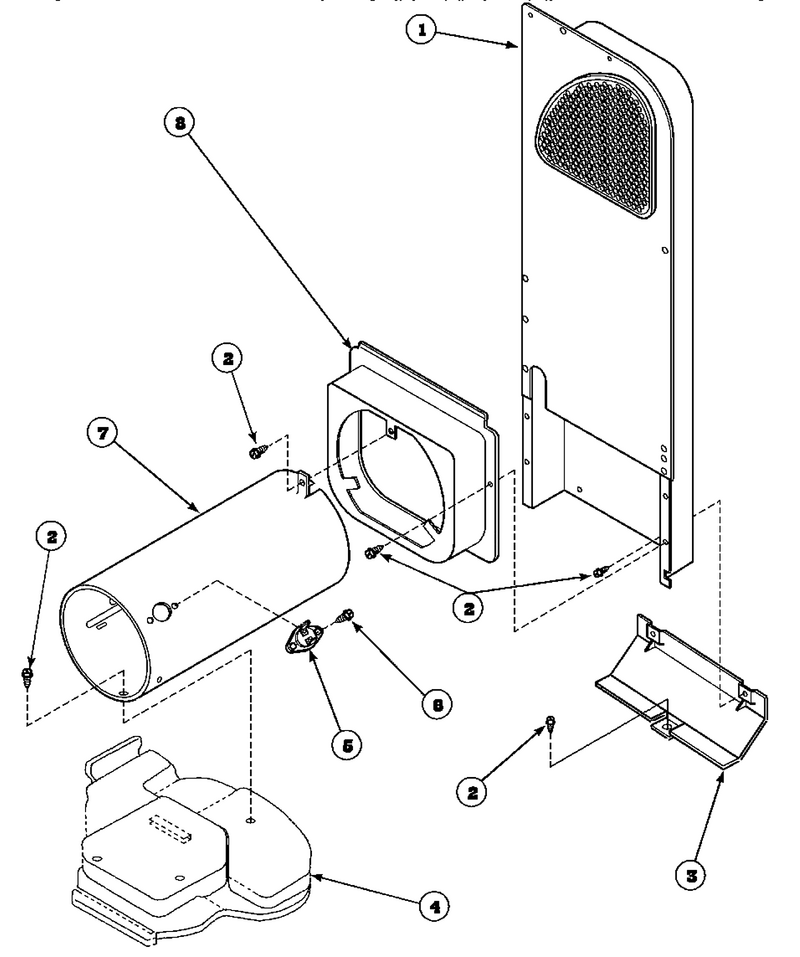

09 - Heater Box Assy Originally On Gas Dryer

...
...
1
Heater Box Assembly WPL-500179P
...
2
Screw WPL-WP3390631
...
3
Cover Plate WPL-61203
...
4
Base, Dryer WPL-500070
...
5
Thermostat, Limit WPL-Y61886
...
6
Screw, 6b-20x5/16 WPL-51782
...
7
Burner Housing WPL-61974
...
8
Shroud, Heat Duct WPL-500122

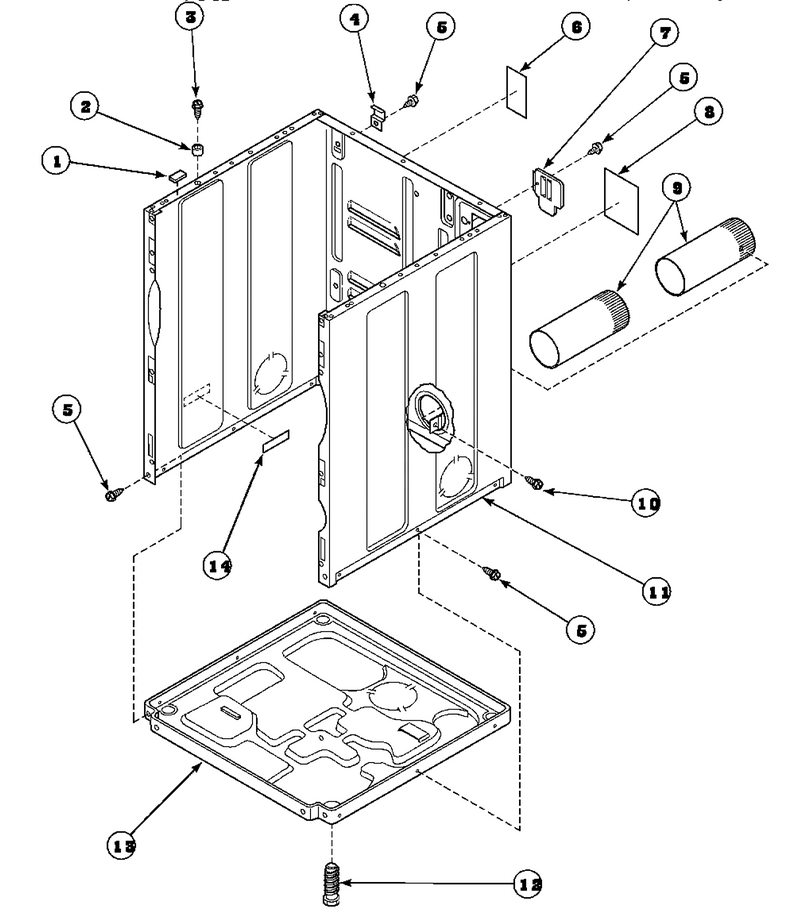

02 - Cabinet, Exhaust Duct And Base

...
...
NI
Kit,flex Vent-Display WPL-521P3
...
1
Pad, Bumper WPL-Y56128
...
2
Locator, Panel WPL-505187
...
3
Screw WPL-WPY014874
...
4
Hinge, Top WPL-500003
...
5
Screw WPL-WP27001200
...
6
Sticker Ng Or Mixed Ga WPL-500670
...
7
Contactor WPL-WFR500114
...
8
Sticker WPL-501289
...
9
Exhaust Duct WPL-500064
...
10
Screw WPL-WP3390631
...
11
Cabinet WPL-500001P
...
12
Leg, Leveling (Plastic) WPL-Y500101
...
13
Base, Dryer WPL-500070
...
14
Transformer WPL-660987

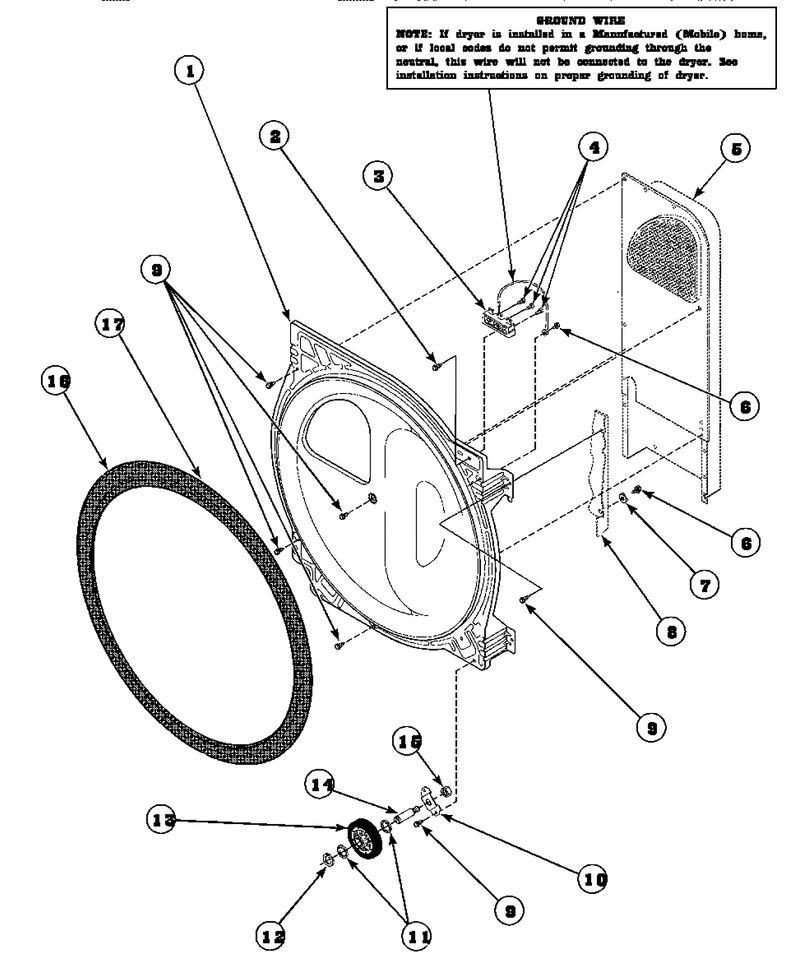

16 - Rear Blkhd/felt Seal/cyl Roller & Term

...
...
1
Rear Bulkhead WPL-5002614W
...
2
Screw, No.12 X 9/16 WPL-501285
...
3
Block- Ter WPL-WP61923
...
4
Screw WPL-WP3400094
...
5
Heater Box Assembly WPL-500179P
...
6
Screw WPL-WP3351614
...
7
Washer,13/64idx1/2odx. WPL-51474
...
8
Cabinet WPL-500001P
...
9
Screw WPL-WP3390631
...
10
Brakt-Roll WPL-WP40113601
...
11
Washer WPL-WP233520
...
12
Ring- Reta WPL-WP23748
...
13
Support WPL-WP37001042
...
14
Shaft WPL-WP56461
...
15
Nut, 3/8-16 Serrated WPL-56156
...
16
Seal- Cyli WPL-WP37001132
...
17
Adhesive,3m-1300-5 Oz. WPL-22506P

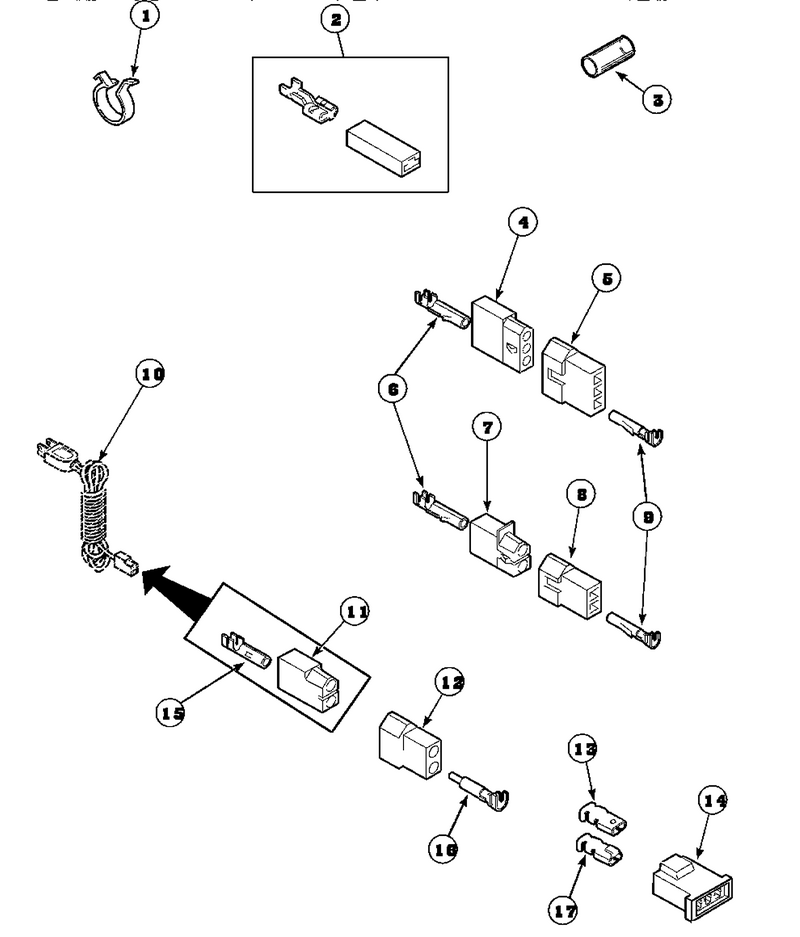

17 - Terminals

...
...
1
Clip,wire WPL-61510
...
2
Terminal,spade-1/4 Fem WPL-Y00237
...
3
Insulator Sleeve WPL-503670
...
4
Receptacle, (Gas Valve) WPL-697780
...
5
Plug, 3 Circuit WPL-23040
...
6
Female Socket Terminal WPL-Y00117
...
7
Receptacle,2 Circuit WPL-56451
...
8
Plug 2 Circuit WPL-56448
...
9
Terminal,pin-Male WPL-Y00116
...
10
Cord- Powe WPL-WP27001142
...
11
Receptacle,2 Circuit WPL-56265
...
12
Plug WPL-56266
...
13
Terminal,spade WPL-Y00189
...
14
Connector,3 Circuit WPL-58800
...
15
Terminal,pin-1/8 Femal WPL-00130
...
16
Terminal,pin-1/8 Male WPL-Y00127
...
17
Connector,receptacle WPL-Y00190

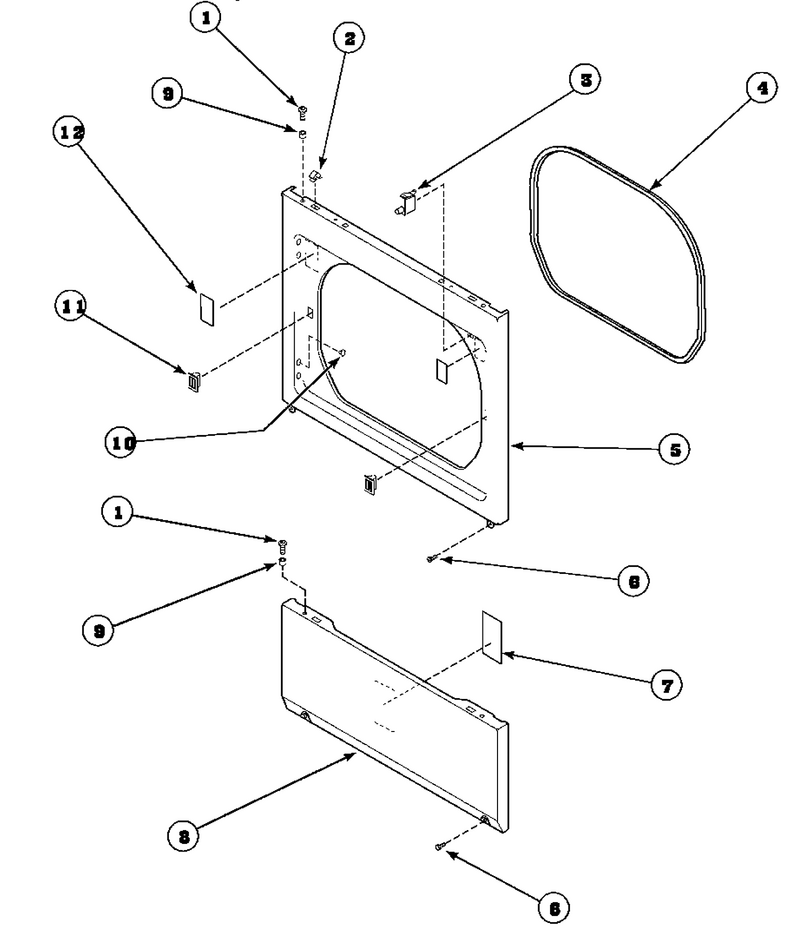

12 - Lower Access Panel, Front Panel And Seal

...
...
1
Screw WPL-WPY014874
...
2
Fastener- WPL-WP22001650
...
3
Switch-Dor WPL-W10169313
...
4
M.5 Hexago WPL-WFR500034
...
5
Front Panel WPL-500033
...
6
Screw WPL-WP27001200
...
7
Sticker Ng Or Mixed Ga WPL-500670
...
8
Lower Access Panel WPL-500044
...
9
Locator, Panel WPL-505187
...
10
Screw WPL-W10815455
...
11
Door Catch La-1003 WPL-LA-1003
...
12
Sticker WPL-500281

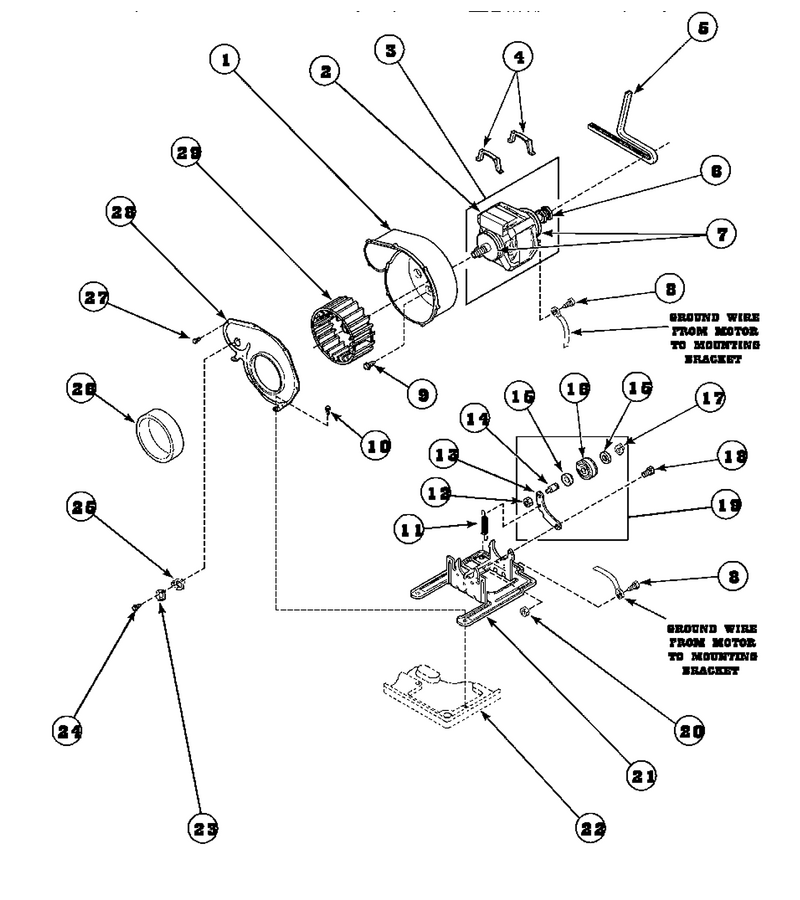

14 - Motor, Exhaust Fan And Belt

...
...
1
Housing, Blower WPL-56020
...
2
Kit- Switc WPL-R0130735
...
3
Motor-Drve WPL-WP2200376
...
4
Clamp WPL-WP660658
...
5
Belt WPL-WP40111201
...
6
Pulley,motor WPL-500011
...
7
Kit, Mtr Hub Ring WPL-590P3
...
8
Screw WPL-WP3351614
...
9
Screw WPL-WP3390631
...
10
Screw WPL-WP27001200
...
11
Spring- Id WPL-WP56076
...
12
Nut, 3/8-16 Serrated WPL-56156
...
13
Asy- Idler WPL-WP37001144
...
14
Shaft WPL-WP56461
...
15
Washer WPL-WP233520
...
16
Pulley-Idr WPL-WPY54414
...
17
Ring- Reta WPL-WP23748
...
18
Complete R WPL-WFR500824
...
19
Bracket WPL-WP37001287
...
20
Nut WPL-WPW10139757
...
21
Mount, Motor WPL-503613
...
22
Base, Dryer WPL-500070
...
23
Thermostat WPL-56410
...
24
Screw WPL-WP489464
...
25
Heatr-Stat WPL-WP61623
...
26
Ew25-30 Pi WPL-WFR500313
...
27
Screw, No.8 X 3/8 Ind H WPL-31260
...
28
Cover, Blower Housing WPL-500078
...
29
Assembly, Blower Fan WPL-56000

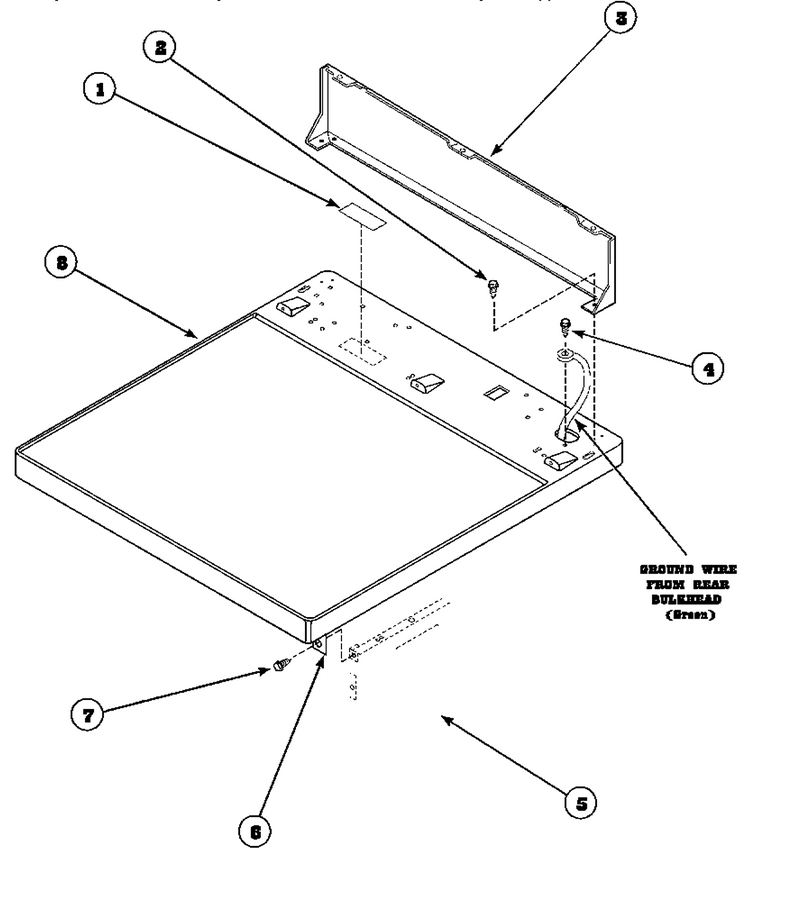

01 - Cabinet Top And Control Hood Rear Panel

...
...
1
Sticker,disconnect Pow WPL-24903
...
2
Screw WPL-WP90767
...
3
Panel,back(Home Hood) WPL-40051401P
...
4
Screw WPL-WP3351614
...
5
Cabinet WPL-500001P
...
6
Shock Susp WPL-WFR500084
...
7
Screw WPL-WP27001200
...
8
Top WPL-500085P

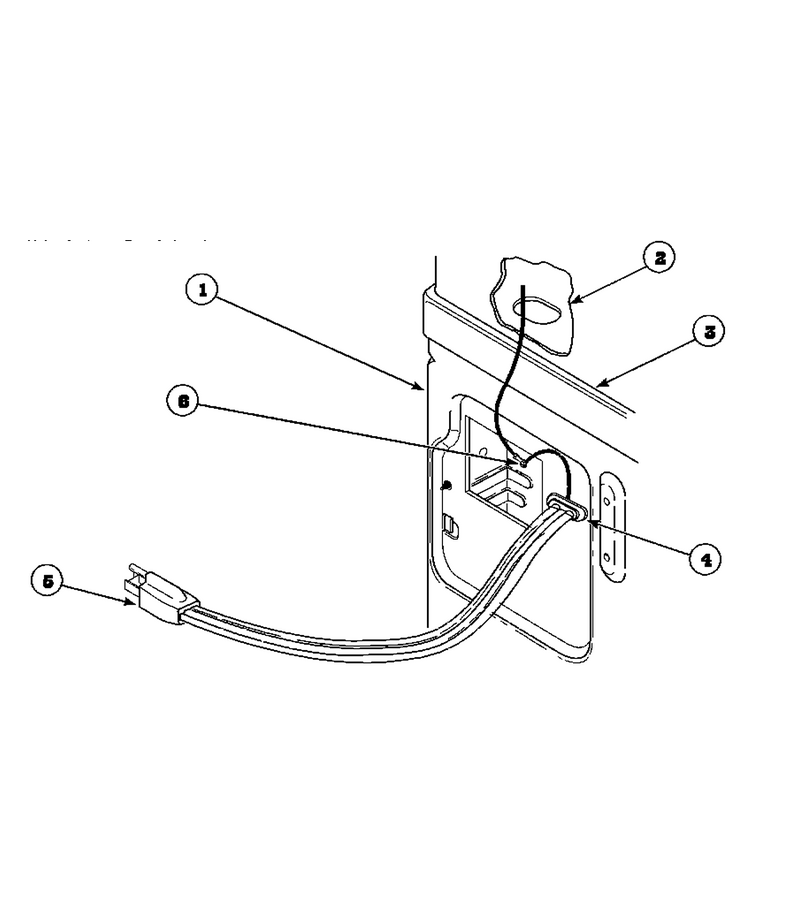

15 - Power Cords

...
...
1
Cabinet WPL-500001P
...
2
Panel,back(Home Hood) WPL-40051401P
...
3
Top WPL-500085P
...
4
Grommet, Cord WPL-211881
...
5
Cord- Powe WPL-WP27001142
...
6
Screw WPL-WP3351614

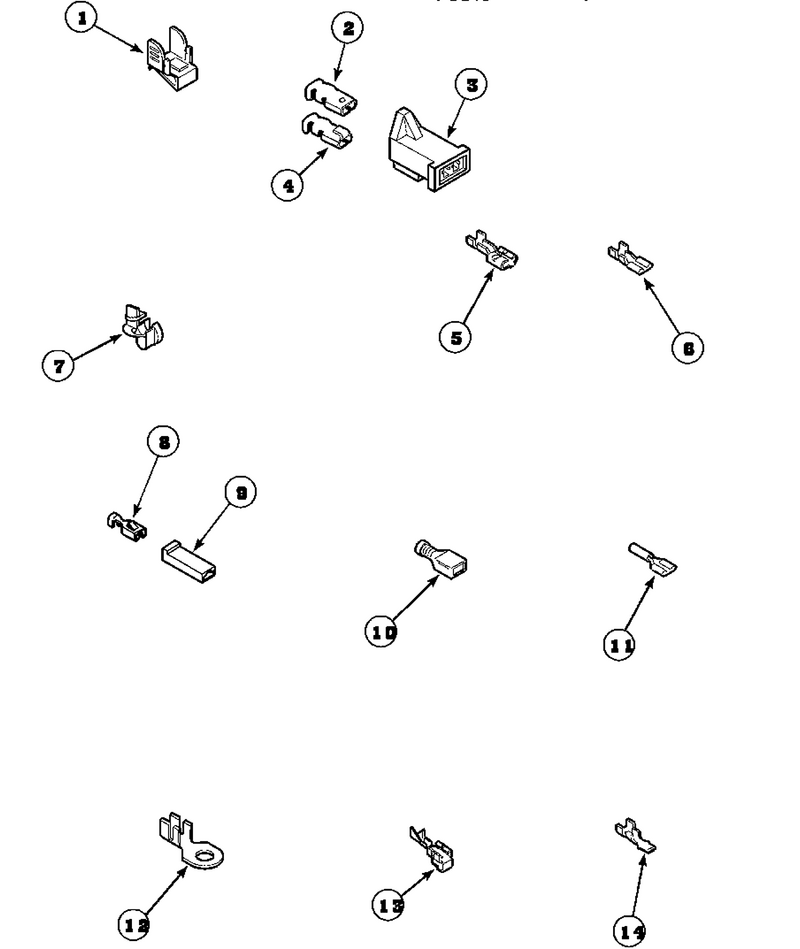

18 - Terminals

...
...
1
Ground Clip WPL-Y00161
...
2
Terminal,spade WPL-Y00189
...
3
Connector,2 Circuit WPL-58799
...
4
Connector,receptacle WPL-Y00190
...
5
Spade Terminal(18 Gauge) WPL-Y00119
...
6
Terminal,3/16 Spade WPL-Y00209
...
7
Grommet, Cord WPL-211881
...
8
Terminal,spade-1/4 Fem WPL-Y00115
...
9
Connector WPL-90789
...
10
Connector WPL-WP7405P034-60
...
11
Terminal,1/4 Spade Pre WPL-Y00215
...
12
Terminal,ring-10 Stud WPL-Y00111
...
13
Terminal,spade-1/4 Fem WPL-Y00114
...
14
Terminal,tab 1/4 Male WPL-Y00138

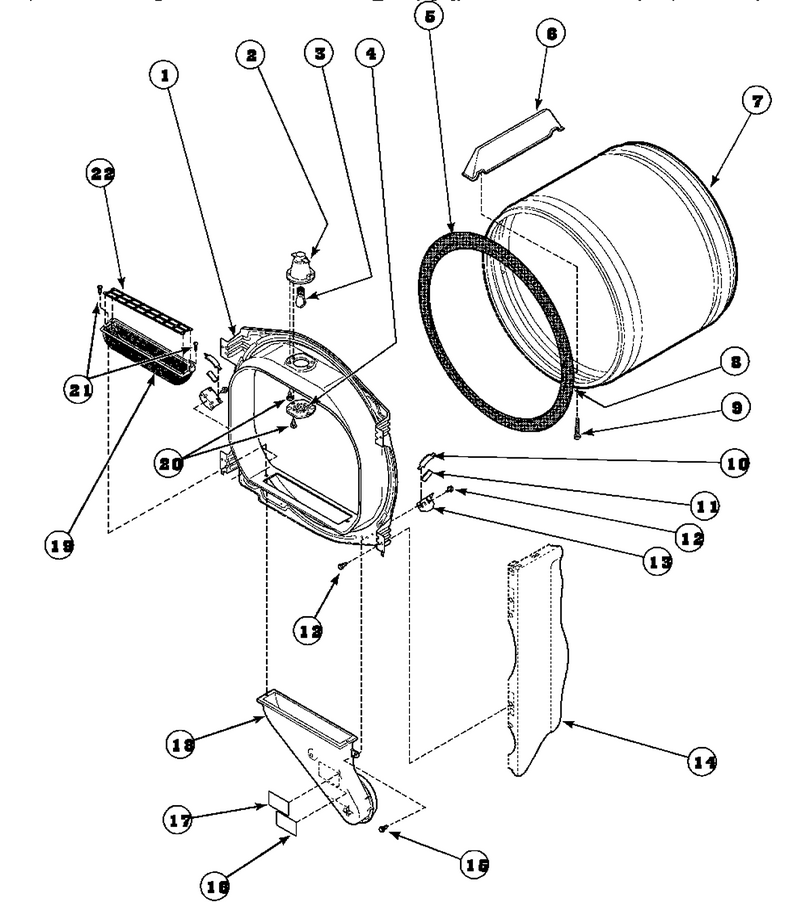

03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

...
...
1
Assy,bulkhead-Front-Comp WPL-500117W
...
2
Cylinder Light Housing WPL-500153
...
3
Bulb-Light WPL-W10857122
...
4
Lens,drum Light WPL-500094
...
5
Seal- Cyli WPL-WP37001132
...
6
Baffle,cylinder-Wht-Short WPL-500022
...
7
Assy,cylinder-Home- WPL-500013WP
...
8
Adhesive,3m-1300-5 Oz. WPL-22506P
...
9
Screw, 10bt-12 X 1 Tap WPL-Y62588
...
10
Support WPL-WP37001298
...
11
Pad WPL-WP500121
...
12
Screw WPL-WP3390631
...
13
Bracket WPL-12002090
...
14
Base, Dryer WPL-500070
...
15
Screw WPL-WP27001200
...
16
Sticker WPL-56259
...
17
Sticker WPL-500049
...
18
Duct, Heat WPL-502231
...
19
Filter, Lint Kit WPL-502140P
...
20
Screw WPL-W10815455
...
21
Screw, 8b-16x5/8 Tap WPL-500226
...
22
Cover, Lint Filter WPL-502092

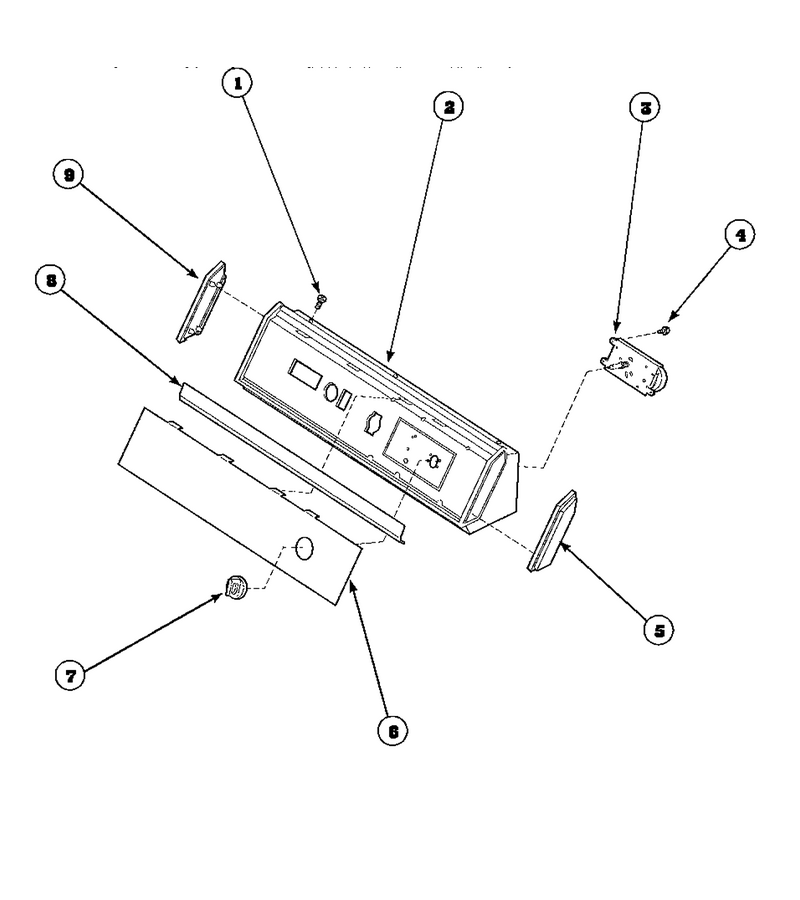

05 - Graphic Panel, Control Hood And Controls

...
...
1
Screw,no.8abx3/4 Pozidri WPL-31752
...
2
Assy, Hood Mtg WPL-59937P
...
3
Timer WPL-501881
...
4
Screw WPL-WP90767
...
5
Cap,end-R.h.-Chrome WPL-31248
...
6
Panel, Graphics Black WPL-502202
...
7
Assy,timer Knob & Skir WPL-62176
...
8
Trim, Cont Pnl Top WPL-61849R
...
9
Cap,end-L.h.-Chrome WPL-31249

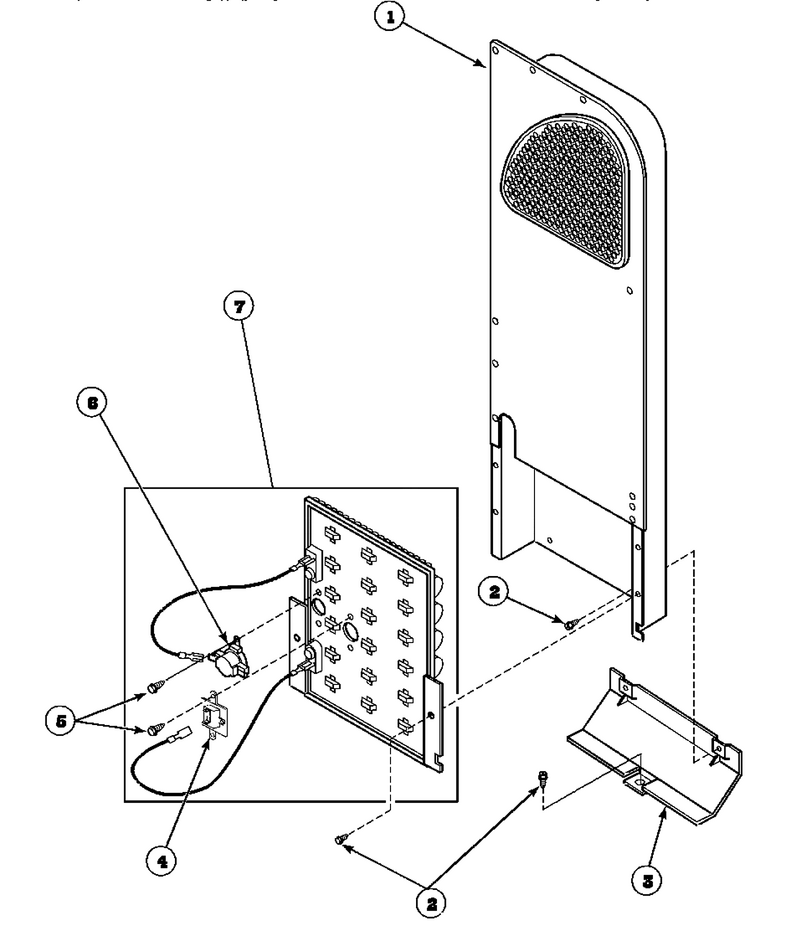

08 - Heater Box Assy Originally On Elec Dryer

...
...
1
Heater Box Assembly WPL-500179P
...
2
Screw WPL-WP3390631
...
3
Cover Plate WPL-61203
...
4
Fuse-Thrml WPL-WP40113801
...
5
Screw WPL-WP3177991
...
6
Thrmst-Fix WPL-WPW10116735
...
7
Heater Assembly 208v WPL-61928

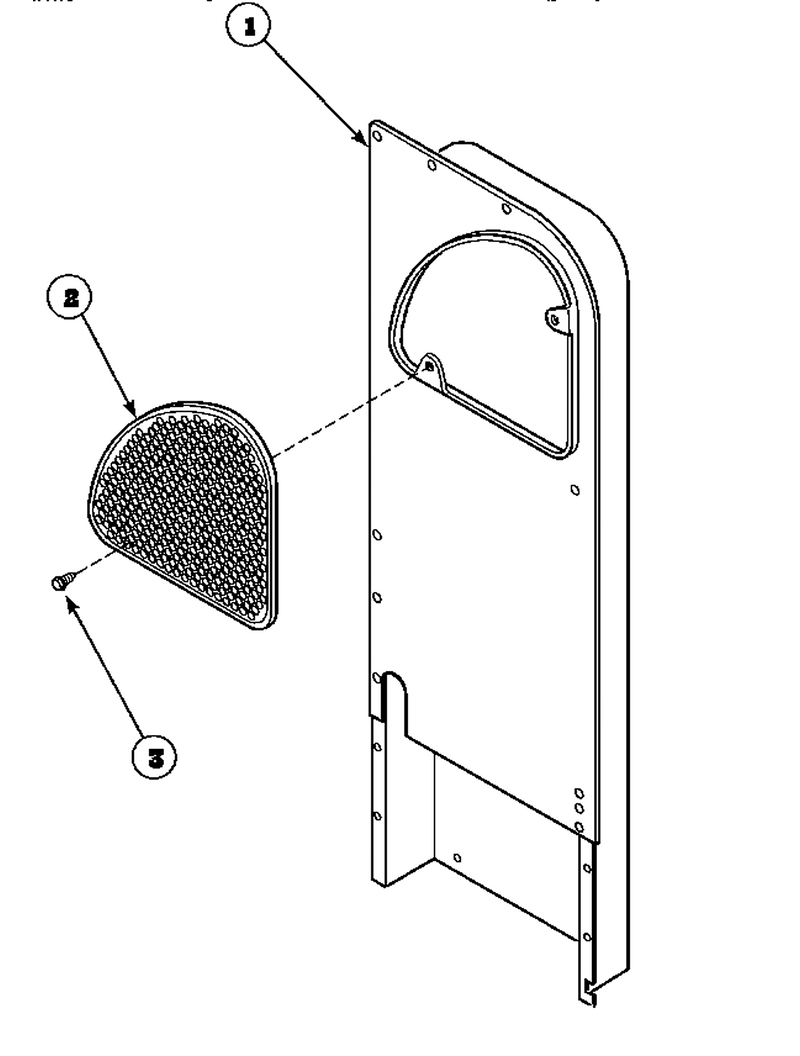

10 - Heater Box Assy Replacement

...
...
1
Heater Box Assembly WPL-500179P
...
2
Complete T WPL-WFR500820
...
3
Screw WPL-WP3390631

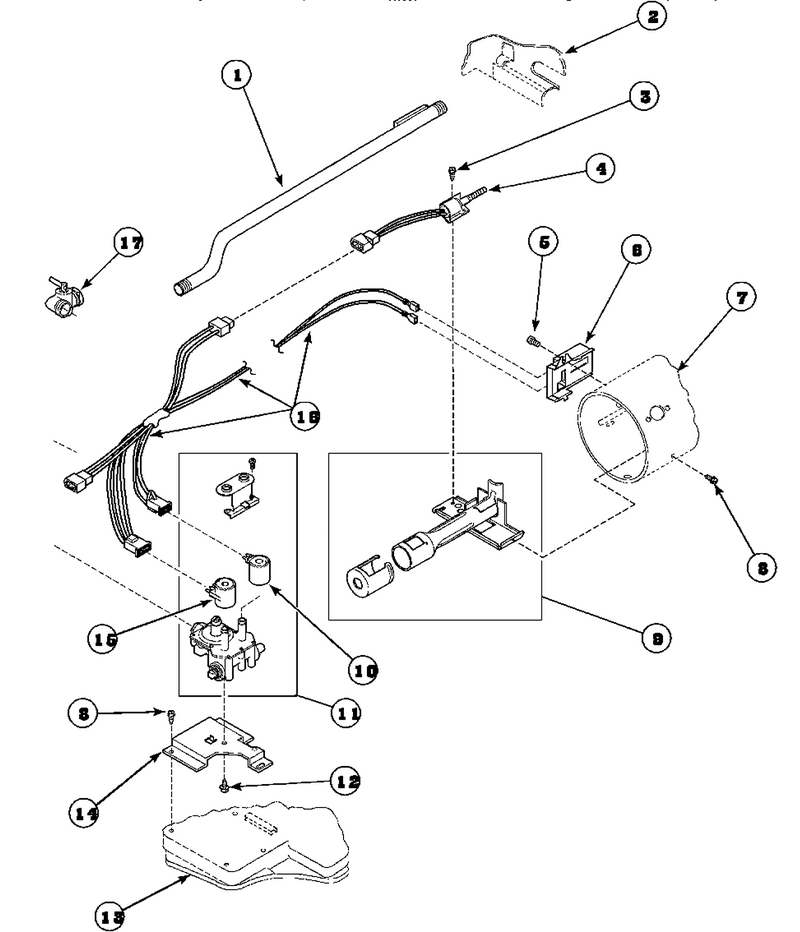

04 - Gas Valve, Igniter & Gas Conversion Kits

...
...
NI
Assy,wire Harness WPL-500695
...
1
Pipe, Lead-In WPL-500647
...
2
Cabinet WPL-500001P
...
3
Screw, 6b-20x5/16 WPL-51782
...
4
Ignitor WPL-WP37001308
...
5
Screw WPL-WP3177991
...
6
Sensor WPL-WP338906
...
7
Burner Housing WPL-61974
...
8
Screw WPL-WP3390631
...
9
Assembly, Burner WPL-Y56234
...
10
Coil-Valve WPL-279834
...
11
Assy,valve-Gas-Single- WPL-58804
...
12
Screw WPL-WP489128
...
13
Base, Dryer WPL-500070
...
14
Complete T WPL-WFR500821
...
15
Coil-Valve WPL-279834
...
16
Harness, Wire (Gas Valve) WPL-37001007
...
17
Valve,elbow Shut-Off WPL-Y56229

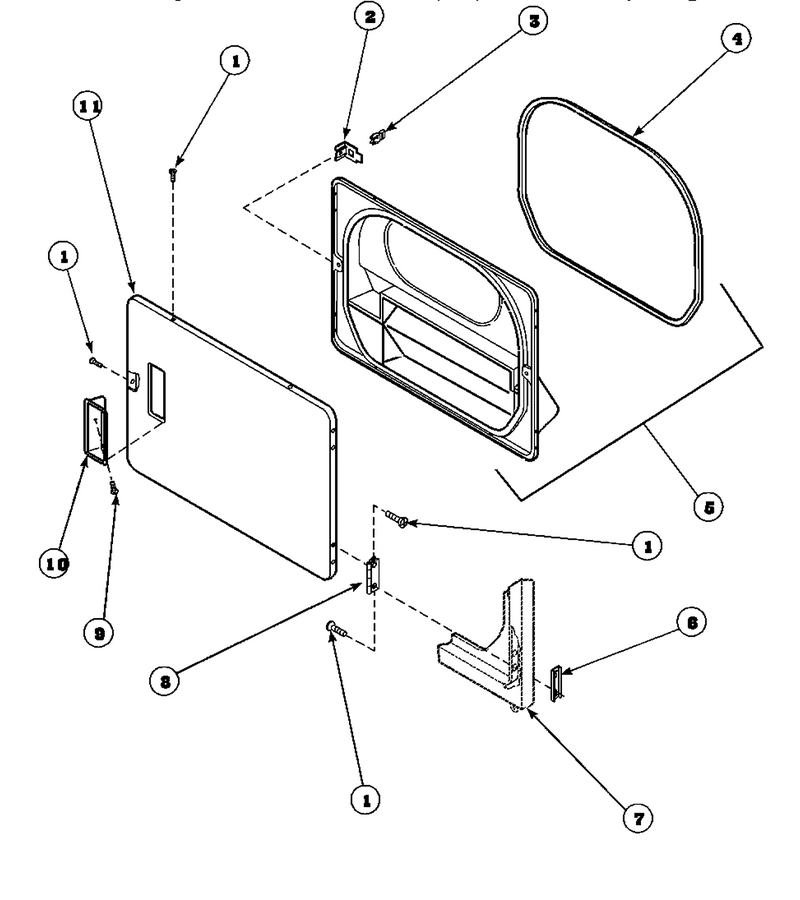

11 - Loading Door

...
...
NI
Complete Loading Door Assembly WPL-500035
...
1
Screw, 8b-16x5/8 Tap WPL-500226
...
2
Bracke, Door Strike WPL-500223
...
3
Strike WPL-WP500039
...
4
Seal,door WPL-500200
...
5
Assy,liner & Seal WPL-500199
...
6
Clip,door Hinge Mount WPL-500236
...
7
Front Panel WPL-500033
...
8
Hinge, Door & Top WPL-Y503676
...
9
Screw WPL-WP8281236
...
10
Door Pull WPL-500042
...
11
Outer Door Panel WPL-500040
