Amana AEM407L2

Model: AEM407L2

Save Part Not Listed?
product name

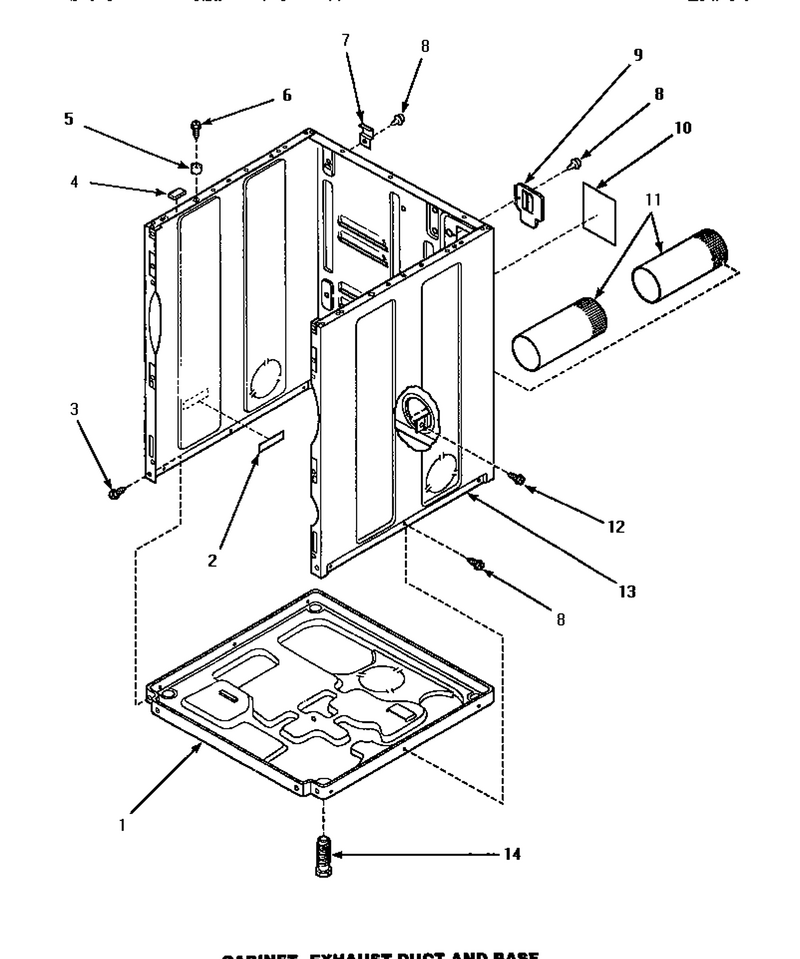

03 - Cabinet, Exhaust Duct & Base

...
...
NI
Kit,flex Vent-Display WPL-521P3
...
1
Base, Dryer WPL-500070
...
2
Transformer WPL-660987
...
3
Screw WPL-WP27001200
...
4
Pad, Bumper WPL-Y56128
...
5
Locator, Panel WPL-505187
...
6
Screw WPL-WPY014874
...
7
Hinge, Top WPL-500003
...
8
Screw WPL-WP27001200
...
9
Contactor WPL-WFR500114
...
10
Sticker WPL-501289
...
11
Exhaust Duct WPL-500064
...
12
Screw WPL-WP3390631
...
13
Assy, Cab (Home) WPL-500001LP
...
14
Leg, Leveling (Plastic) WPL-Y500101

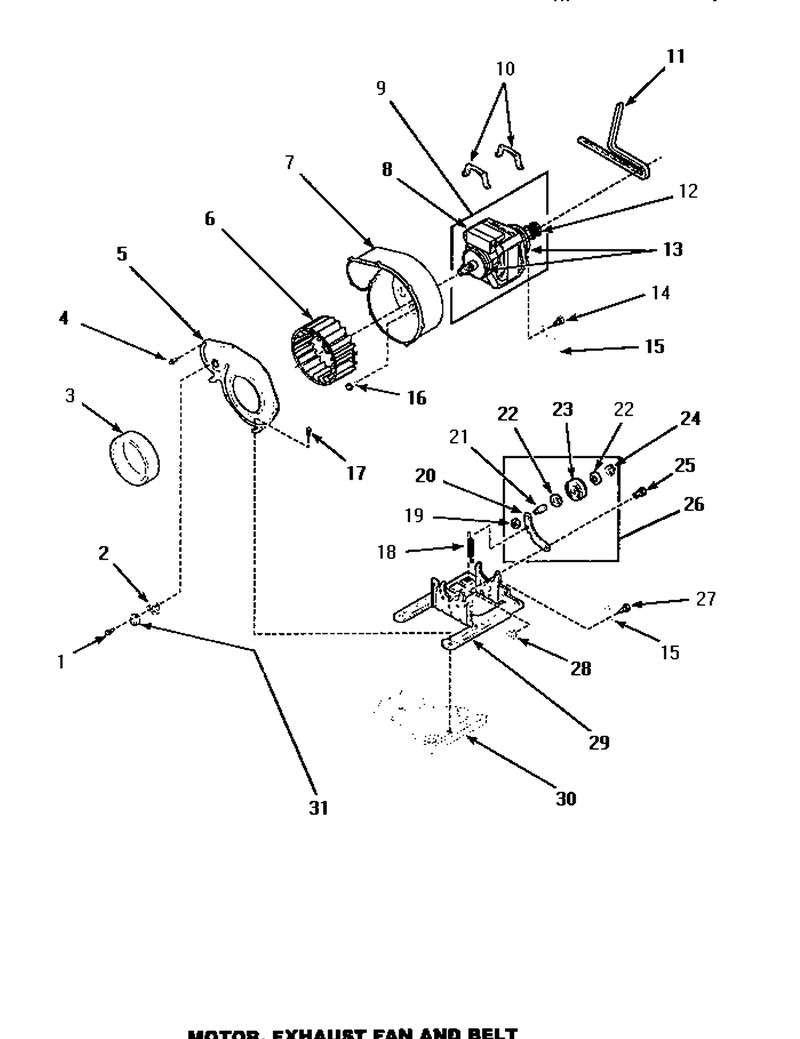

10 - Motor, Exhaust Fan & Belt

...
...
1
Screw WPL-WP3177991
...
2
Heatr-Stat WPL-WP61623
...
3
Ew25-30 Pi WPL-WFR500313
...
4
Screw, No.8 X 3/8 Ind H WPL-31260
...
5
Cover, Blower Housing WPL-500078
...
6
Assembly, Blower Fan WPL-56000
...
7
Housing, Blower WPL-56020
...
8
Kit- Switc WPL-R0130735
...
9
Motor-Drve WPL-WP2200376
...
10
Clamp WPL-WP660658
...
11
Belt WPL-WP40111201
...
12
Pulley,motor WPL-500011
...
13
Kit, Mtr Hub Ring WPL-590P3
...
14
Screw WPL-WP3351614
...
15
See Note Ground Wire From Motor To Mounting Bracket WPL-Y00000000
...
16
Screw WPL-WP3390631
...
17
Screw WPL-WP27001200
...
18
Spring- Id WPL-WP56076
...
19
Nut, 3/8-16 Serrated WPL-56156
...
20
Asy- Idler WPL-WP37001144
...
21
Shaft WPL-WP56461
...
22
Washer WPL-WP233520
...
23
Pulley-Idr WPL-WPY54414
...
24
Ring- Reta WPL-WP23748
...
25
Complete R WPL-WFR500824
...
26
Bracket WPL-WP37001287
...
27
Screw WPL-WP3351614
...
28
Nut WPL-WPW10139757
...
29
Mount, Motor WPL-503613
...
30
See Note Base -- (See Cabinet Page) WPL-Y00000000
...
31
Thermostat WPL-56410

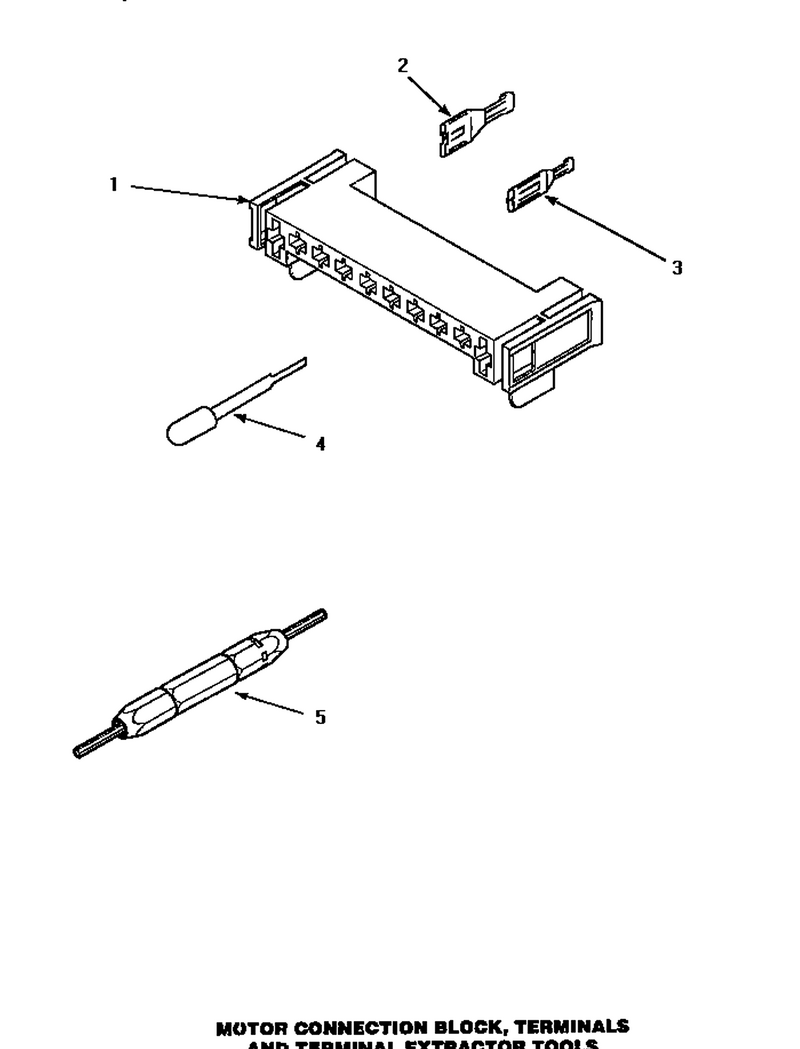

11 - Mtr Conn Block/term & Extractor Tool

...
...
1
Housing, 10 Position WPL-500338
...
2
Terminal,female 1/4 WPL-Y00256
...
3
Terminal,female-Molex- WPL-Y00188
...
4
Terminal Extractor Tool WPL-283P4
...
5
Tool,extractor Ht2066a WPL-190P4

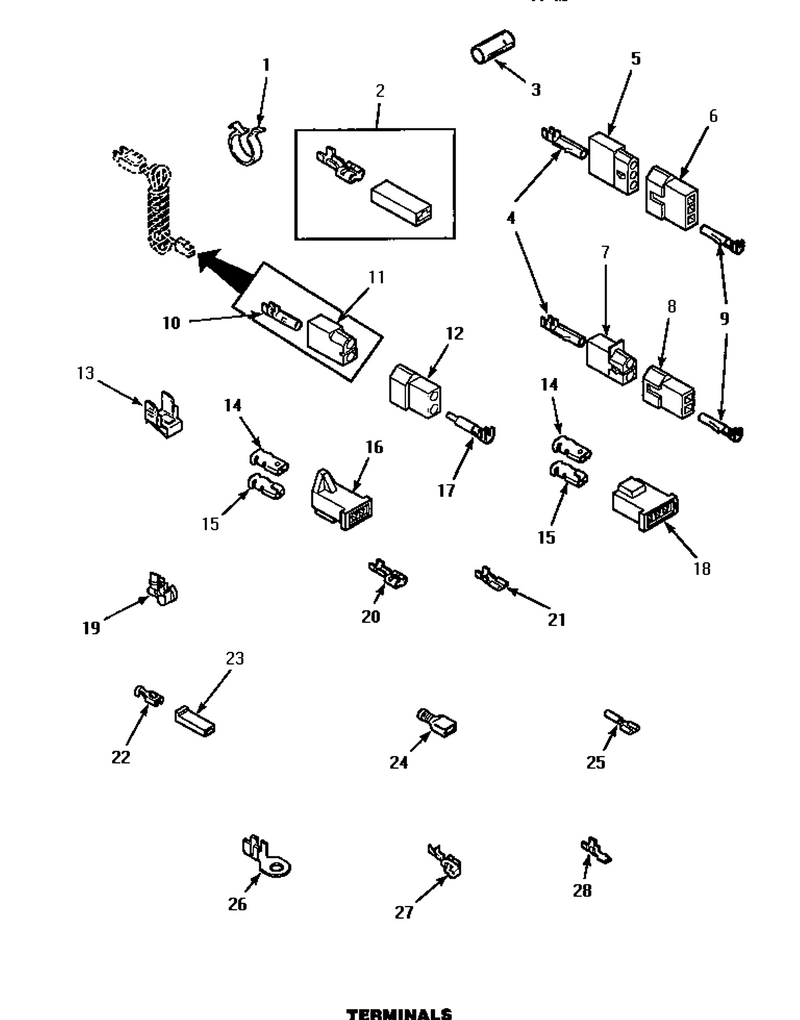

13 - Terminals

...
...
1
Clip,wire WPL-61510
...
2
Terminal,spade-1/4 Fem WPL-Y00237
...
3
Insulator Sleeve WPL-503670
...
4
Female Socket Terminal WPL-Y00117
...
5
Receptacle, (Gas Valve) WPL-697780
...
6
Plug, 3 Circuit WPL-23040
...
7
Receptacle,2 Circuit WPL-56451
...
8
Plug 2 Circuit WPL-56448
...
9
Terminal,pin-Male WPL-Y00116
...
10
Terminal,pin-1/8 Femal WPL-00130
...
11
Receptacle,2 Circuit WPL-56265
...
12
Plug WPL-56266
...
13
Ground Clip WPL-Y00161
...
14
Terminal,spade WPL-Y00189
...
15
Connector,receptacle WPL-Y00190
...
16
Connector,2 Circuit WPL-58799
...
17
Terminal,pin-1/8 Male WPL-Y00127
...
18
Connector,3 Circuit WPL-58800
...
19
Grommet, Cord WPL-211881
...
20
Spade Terminal(18 Gauge) WPL-Y00119
...
21
Terminal,spade 3/16 WPL-00156
...
22
Terminal,spade-1/4 Fem WPL-Y00115
...
23
Connector WPL-90789
...
24
Terminal WPL-WP285432
...
25
Terminal,1/4 Spade Pre WPL-Y00215
...
26
Terminal,ring-10 Stud WPL-Y00111
...
27
Terminal,spade-1/4 Fem WPL-Y00114
...
28
Terminal,tab 1/4 Male WPL-Y00138

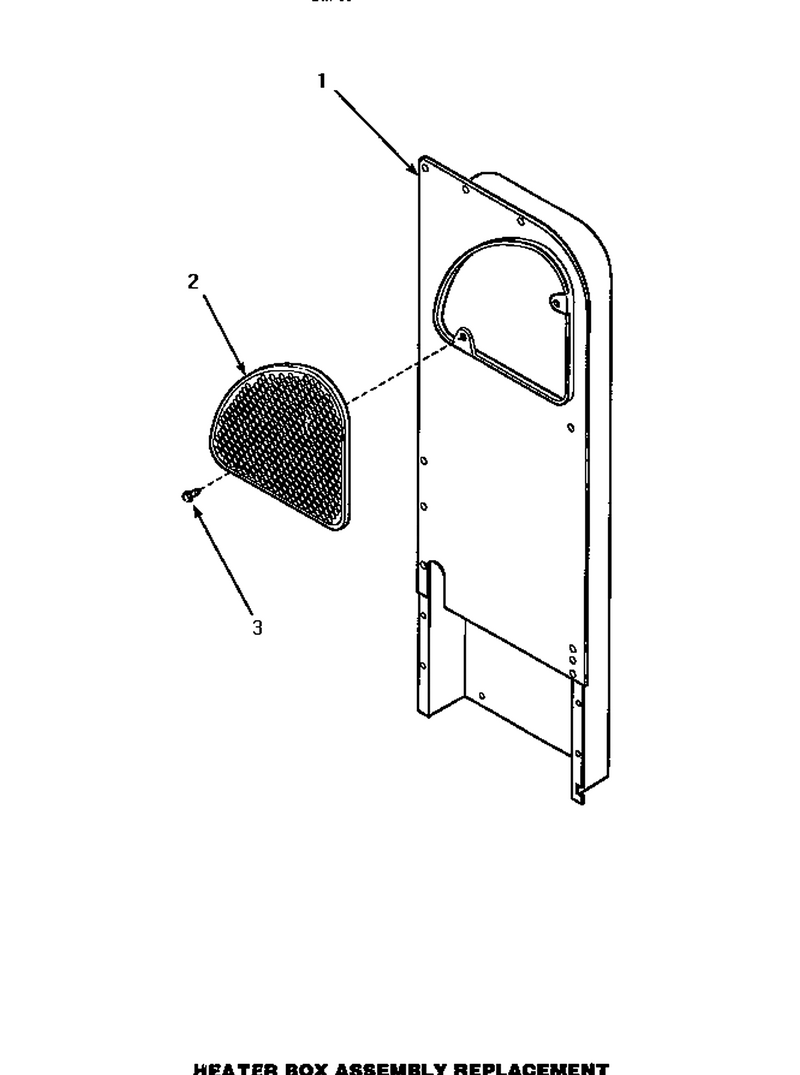

06 - Heater Box Assy Replacement

...
...
1
Heater Box Assembly WPL-500179P
...
2
Complete T WPL-WFR500820
...
3
Screw WPL-WP3390631

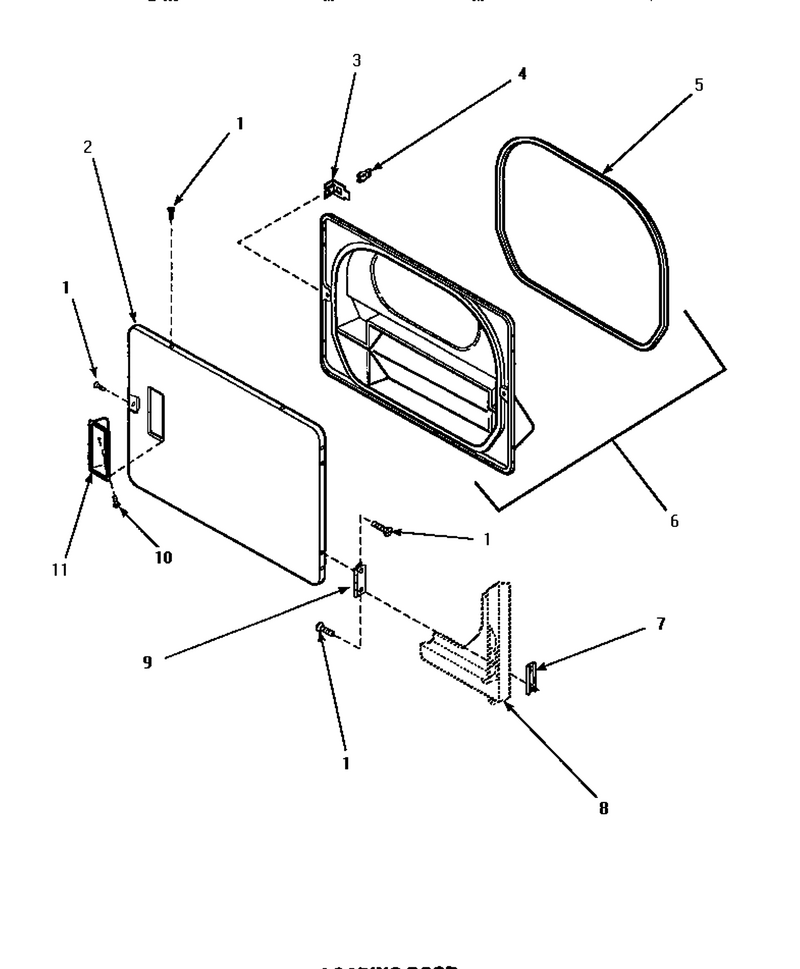

08 - Loading Door

...
...
NI
Assy,door-Home WPL-500035L
...
1
Screw, 8b-16x5/8 Tap WPL-500226
...
2
Assy, Door-Home WPL-500040L
...
3
Bracke, Door Strike WPL-500223
...
4
Strike WPL-WP500039
...
5
Seal,door WPL-500200
...
6
Assy,liner & Seal WPL-500199
...
7
Clip,door Hinge Mount WPL-500236
...
8
See Note Front Panel -- (See Lower Access Panel Page) WPL-Y00000000
...
9
Hinge, Door & Top WPL-Y503676
...
10
Screw WPL-WP8281236
...
11
Pull,door WPL-500042W

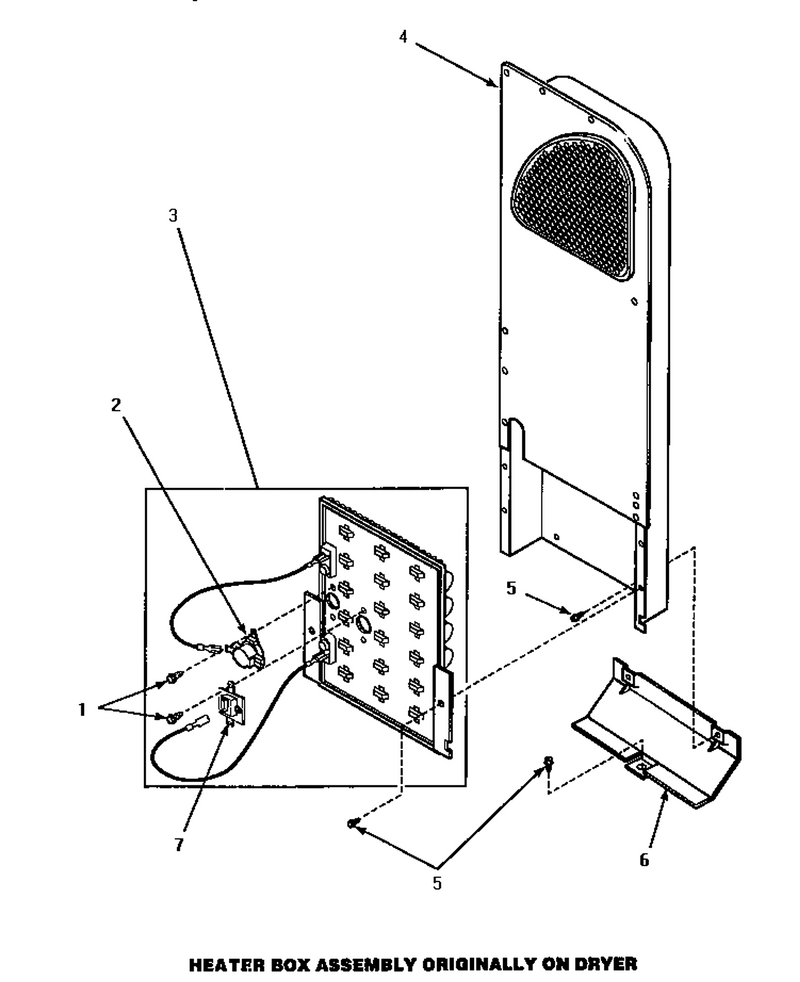

07 - Heater Box Assy, Original

...
...
1
Screw WPL-WP3177991
...
2
Thrmst-Fix WPL-WPW10116735
...
3
Heater Assembly 208v WPL-61928
...
4
See Note Heater Box Assembly -- (See Heater Box Replacement Page) WPL-Y00000000
...
5
Screw WPL-WP3390631
...
6
Cover Plate WPL-61203
...
7
Fuse-Thrml WPL-WP40113801

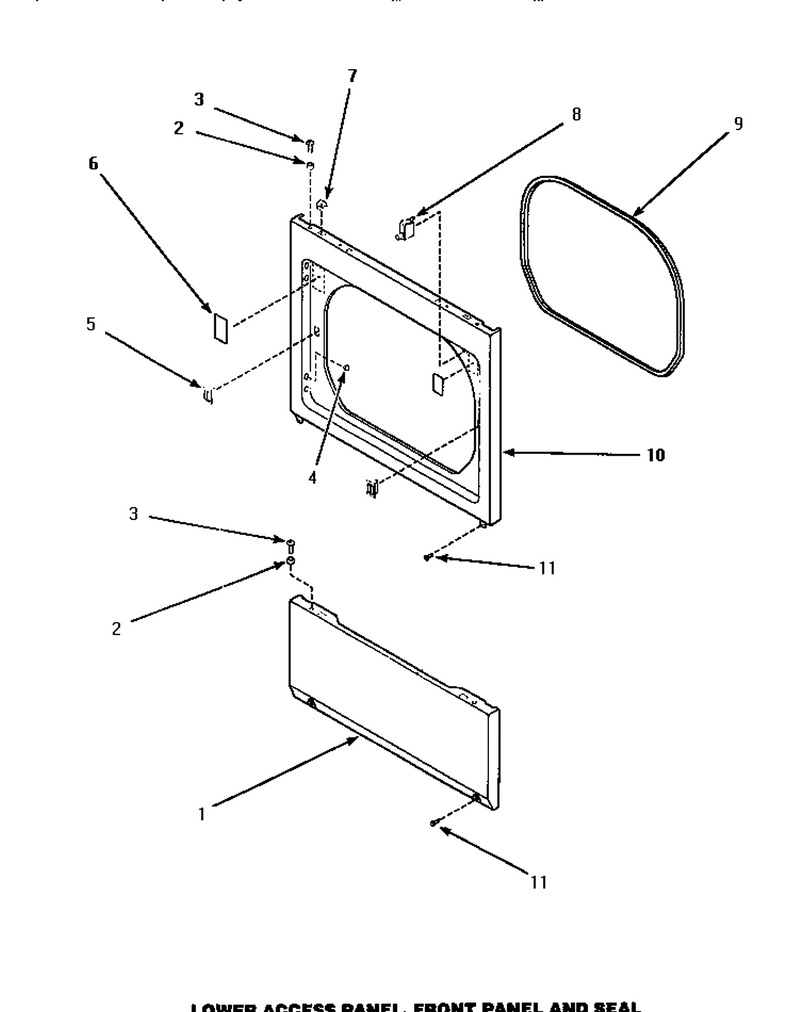

09 - Lower Access Panel, Front Panel & Seal

...
...
1
Panel, Access (Almond) WPL-500044L
...
2
Locator, Panel WPL-505187
...
3
Screw WPL-WPY014874
...
4
Screw WPL-W10815455
...
5
Door Catch La-1003 WPL-LA-1003
...
6
Sticker WPL-500281
...
7
Fastener- WPL-WP22001650
...
8
Switch-Dor WPL-W10169313
...
9
M.5 Hexago WPL-WFR500034
...
10
Panel, Front WPL-500033W
...
11
Screw WPL-WP27001200

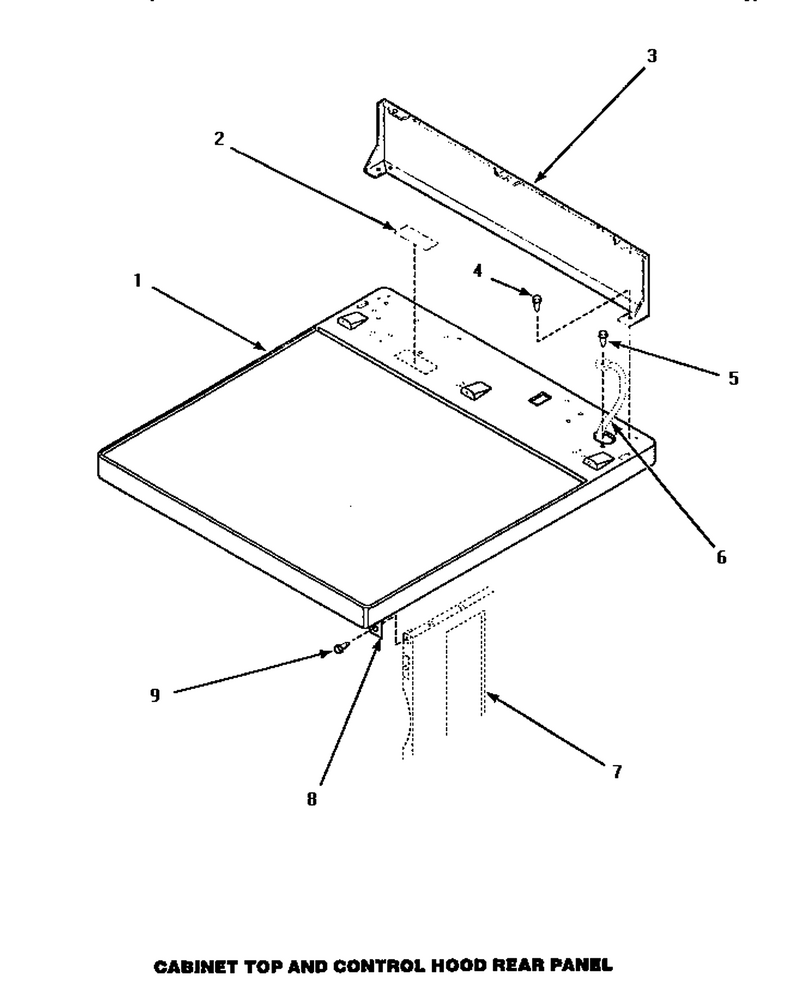

02 - Cabinet Top And Control Hood Rear Panel

...
...
1
Panel,top-Home WPL-500085LP
...
2
Sticker,disconnect Pow WPL-24903
...
3
Panel,back(Home Hood) WPL-40051401P
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP3351614
...
6
See Note Ground Wire From Rear Bulkhead, Green WPL-Y00000000
...
7
See Note Cabinet -- (See Cabinet Page) WPL-Y00000000
...
8
Shock Susp WPL-WFR500084
...
9
Screw WPL-WP27001200

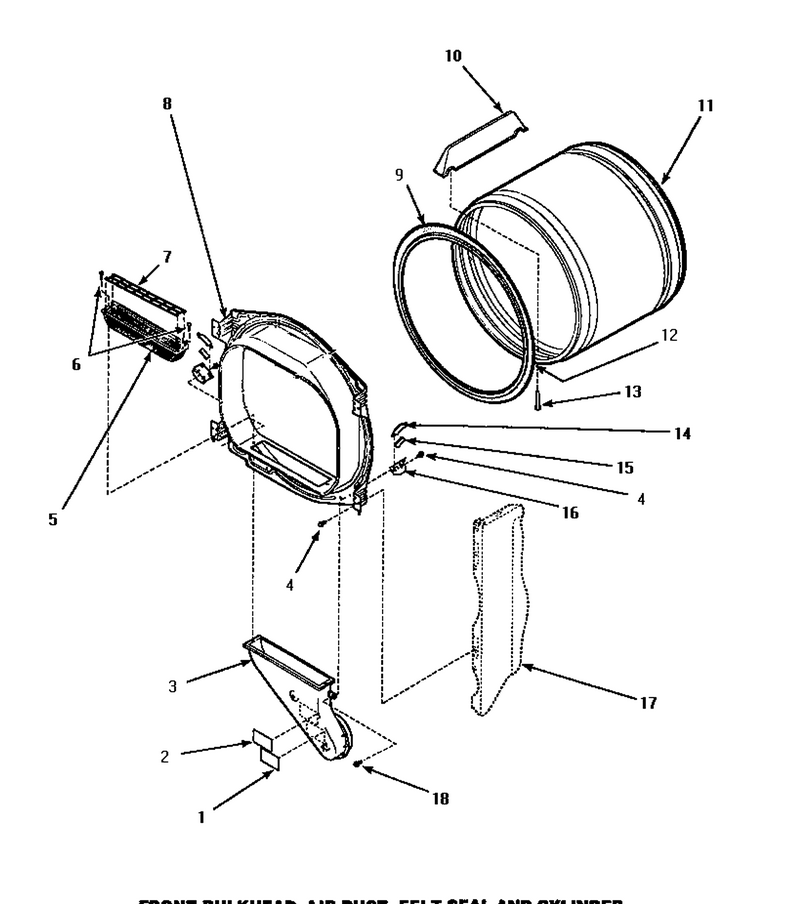

04 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

...
...
1
Sticker WPL-56259
...
2
Sticker WPL-500049
...
3
Duct, Heat WPL-502231
...
4
Screw WPL-WP3390631
...
5
Filter, Lint Kit WPL-502140P
...
6
Screw, 8b-16x5/8 Tap WPL-500226
...
7
Cover, Lint Filter WPL-502092
...
8
Assy,bulkhead-Front-Comp WPL-500117W
...
9
Seal- Cyli WPL-WP37001132
...
10
Baffle,cylinder-Wht-Short WPL-500022
...
11
Assy,cylinder-Home- WPL-500013WP
...
12
Adhesive,3m-1300-5 Oz. WPL-22506P
...
13
Screw, 10bt-12 X 1 Tap WPL-Y62588
...
14
Support WPL-WP37001298
...
15
Pad WPL-WP500121
...
16
Bracket WPL-12002090
...
17
See Note Cabinet -- (See Cabinet Page) WPL-Y00000000
...
18
Screw WPL-WP27001200

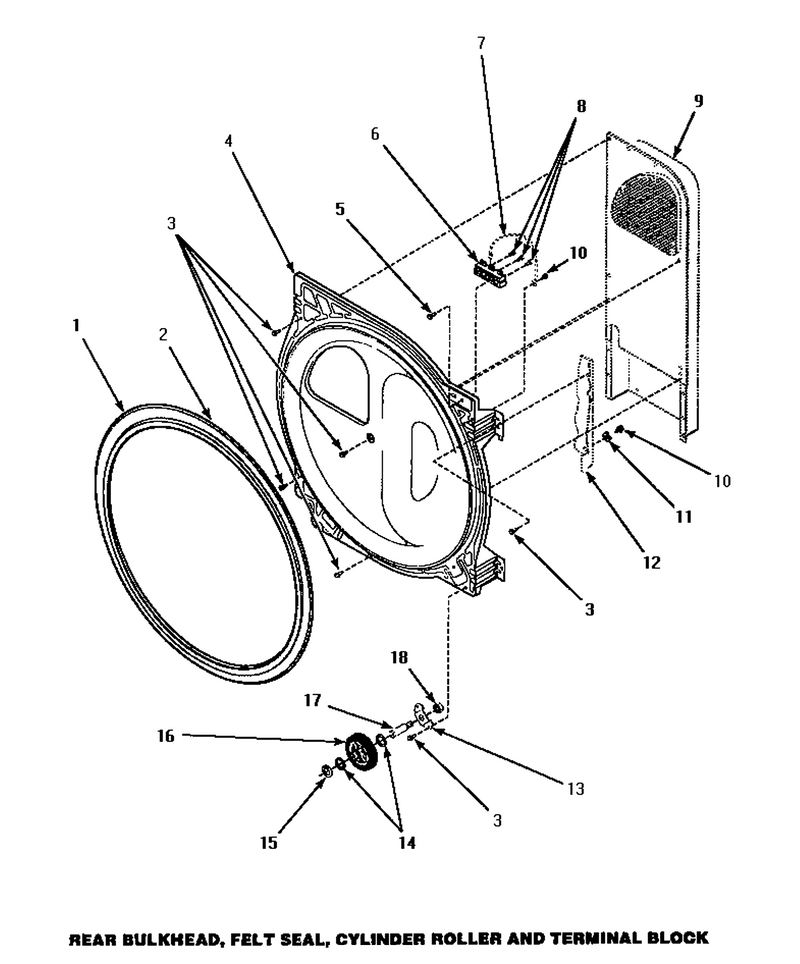

01 - Bulkhead/felt Seal/cyl Roller & Term Blk

...
...
1
Seal- Cyli WPL-WP37001132
...
2
Adhesive,3m-1300-5 Oz. WPL-22506P
...
3
Screw WPL-WP3390631
...
4
Bulkhead, Rear WPL-502614WP
...
5
Screw, No.12 X 9/16 WPL-501285
...
6
Block- Ter WPL-WP61923
...
7
See Note Ground Wire, Green -- (See Note) WPL-Y00000000
...
8
Screw WPL-WP3400094
...
9
See Note Heater Box Assembly -- (See Heater Box Assembly Page) WPL-Y00000000
...
10
Screw WPL-WP3351614
...
11
Washer,13/64idx1/2odx. WPL-51474
...
12
See Note Cabinet -- (See Cabinet, Exhaust Duct And Base Page) WPL-Y00000000
...
13
Brakt-Roll WPL-WP40113601
...
14
Washer WPL-WP233520
...
15
Ring- Reta WPL-WP23748
...
16
Support WPL-WP37001042
...
17
Shaft WPL-WP56461
...
18
Nut, 3/8-16 Serrated WPL-56156

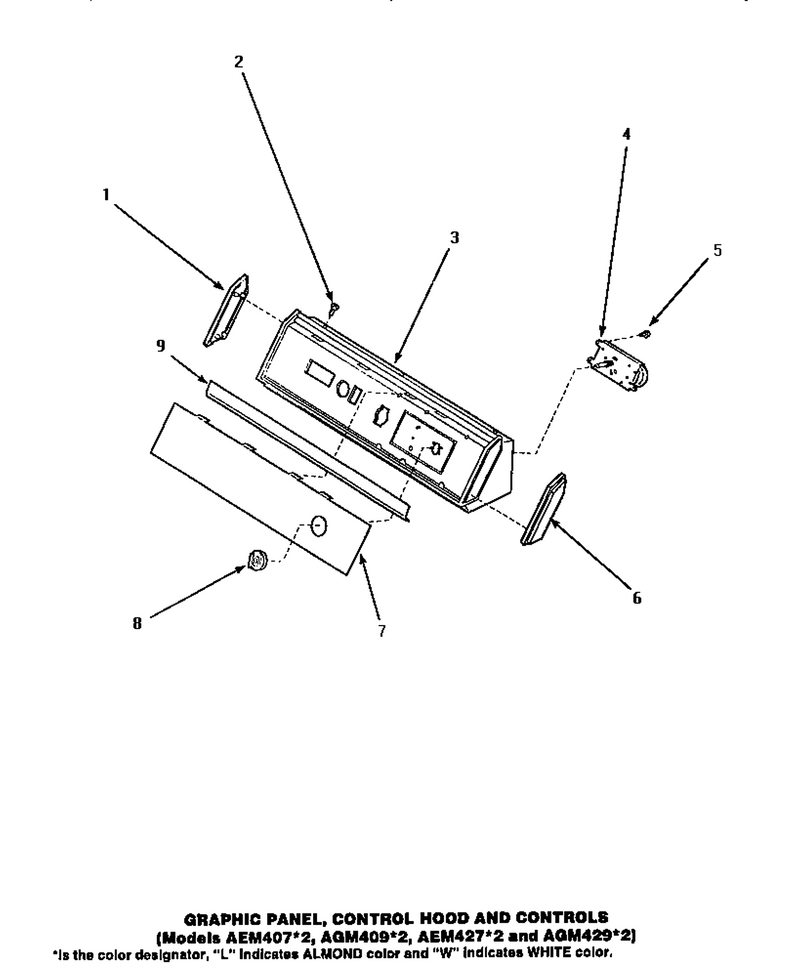

05 - Graphic Panel, Control Hood & Controls

...
...
Note: If Dryer Is Installed In A Manufactured (Mobile) Home, Or If Local Codesdo Not Permit Grounding Through The Neutral, This Wire Will Not Be Connected Tot WPL-NOTE:
...
1
Cap,end-L.h.-Chrome WPL-31249
...
2
Screw,no.8abx3/4 Pozidri WPL-31752
...
3
Assy, Hood Mtg WPL-59937P
...
4
Timer WPL-501881
...
5
Screw WPL-WP90767
...
6
Cap,end-R.h.-Chrome WPL-31248
...
7
Panel, Graphics Black WPL-502202
...
8
Assy,timer Knob & Skir WPL-62176
...
9
Trim, Cont Pnl Top WPL-61849R

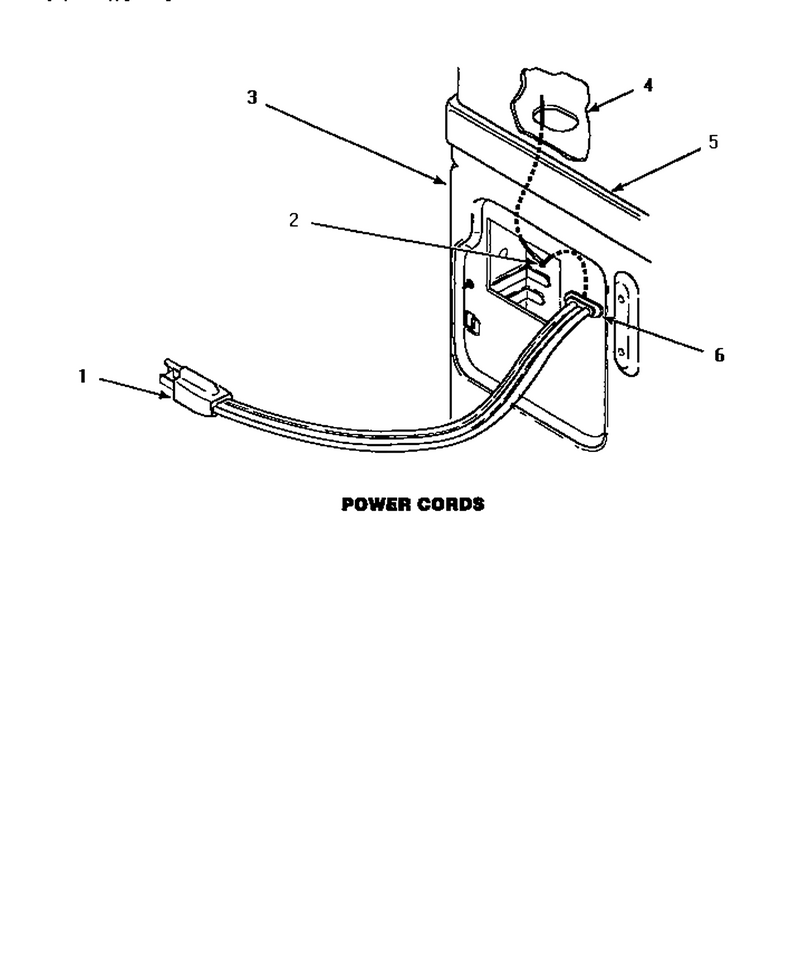

12 - Power Cord

...
...
1
Cord- Powe WPL-WP27001142
...
2
Screw WPL-WP3351614
...
3
See Note Cabinet -- (See Cabinet Page) WPL-Y00000000
...
4
See Note Control Hood Rear Panel -- (See Cabinet Top Page) WPL-Y00000000
...
5
See Note Cabinet Top -- (See Cabinet Top Page) WPL-Y00000000
...
6
Grommet, Cord WPL-211881
