Amana AEM407L

Model: AEM407L

Save Part Not Listed?
product name

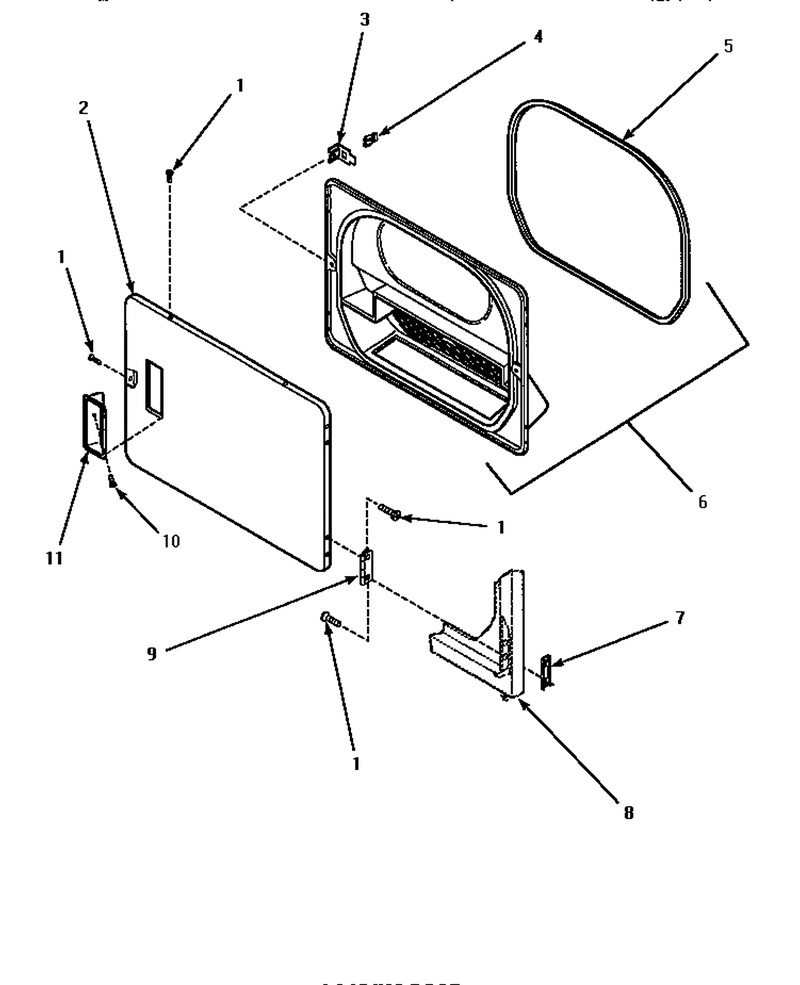

08 - Loading Door

...
...
NI
Assy,door-Home WPL-500035W
...
1
Screw, 8b-16x5/8 Tap WPL-500226
...
2
Assy, Door-Home WPL-500040L
...
3
Bracke, Door Strike WPL-500223
...
4
Strike WPL-WP500039
...
5
Seal,door WPL-500200
...
6
Assy,liner & Seal WPL-500199
...
7
Clip,door Hinge Mount WPL-500236
...
8
See Note Front Panel WPL-Y00000000
...
9
Hinge, Door & Top WPL-Y503676
...
10
Screw WPL-WP8281236
...
11
Pull,door WPL-500042H

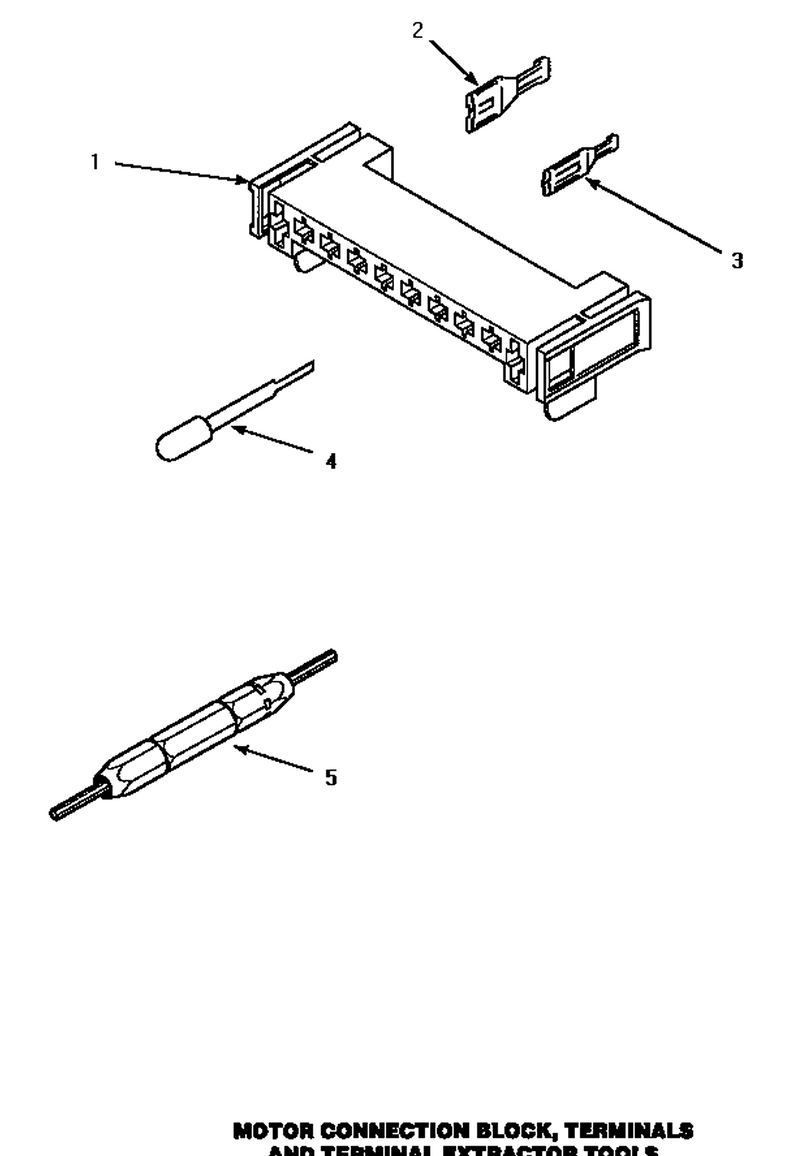

11 - Mtr Conn Block/term & Extractor Tool

...
...
1
Housing, 10 Position WPL-500338
...
2
Terminal,female 1/4 WPL-Y00256
...
3
Terminal,female-Molex- WPL-Y00188
...
4
Terminal Extractor Tool WPL-283P4
...
5
Tool,extractor Ht2066a WPL-190P4

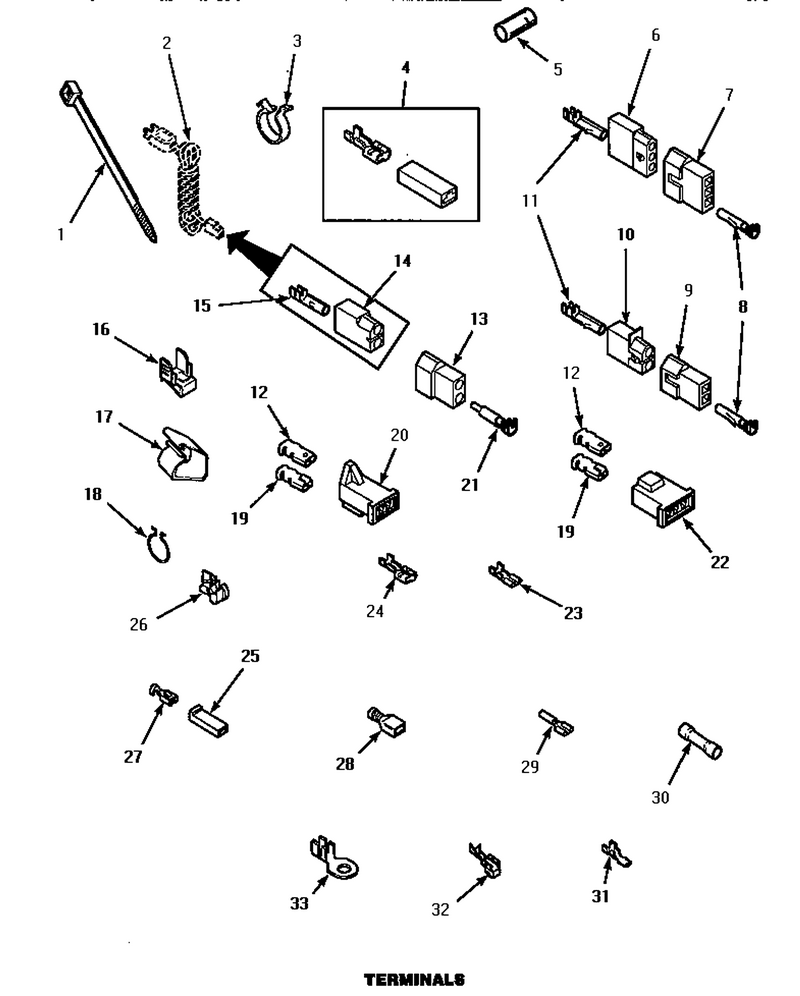

12 - Terminals

...
...
1
Wire Tie WPL-55881
...
2
See Note Power Cord -- (For Gas Models) WPL-Y00000000
...
3
Clip,wire WPL-61510
...
4
Terminal,spade-1/4 Fem WPL-Y00237
...
5
Insulator Sleeve WPL-503670
...
6
Receptacle, (Gas Valve) WPL-697780
...
7
Plug, 3 Circuit WPL-23040
...
8
Terminal,pin-Male WPL-Y00116
...
9
Plug 2 Circuit WPL-56448
...
10
Receptacle,2 Circuit WPL-56451
...
11
Female Socket Terminal WPL-Y00117
...
12
Terminal,spade WPL-Y00189
...
13
Plug WPL-56266
...
14
Receptacle,2 Circuit WPL-56265
...
15
Terminal,pin-1/8 Femal WPL-00130
...
16
Ground Clip WPL-Y00161
...
17
Clip,harness Holder WPL-35521
...
18
Clip,wire WPL-51291
...
19
Connector,receptacle WPL-Y00190
...
20
Connector,2 Circuit WPL-58799
...
21
Terminal,pin-1/8 Male WPL-Y00127
...
22
Connector,3 Circuit WPL-58800
...
23
Terminal,3/16 Spade WPL-Y00209
...
24
Spade Terminal(22 Gauge) WPL-Y00245
...
25
Connector WPL-90789
...
26
Grommet, Cord WPL-211881
...
27
Terminal,spade-1/4 Fem WPL-Y00115
...
28
Terminal WPL-WP285432
...
29
Terminal,1/4 Spade Pre WPL-Y00215
...
30
Butt Splice Connector WPL-30865
...
31
Terminal,tab 1/4 Male WPL-Y00138
...
32
Terminal,spade-1/4 Fem WPL-Y00114
...
33
Terminal,ring-10 Stud WPL-Y00111

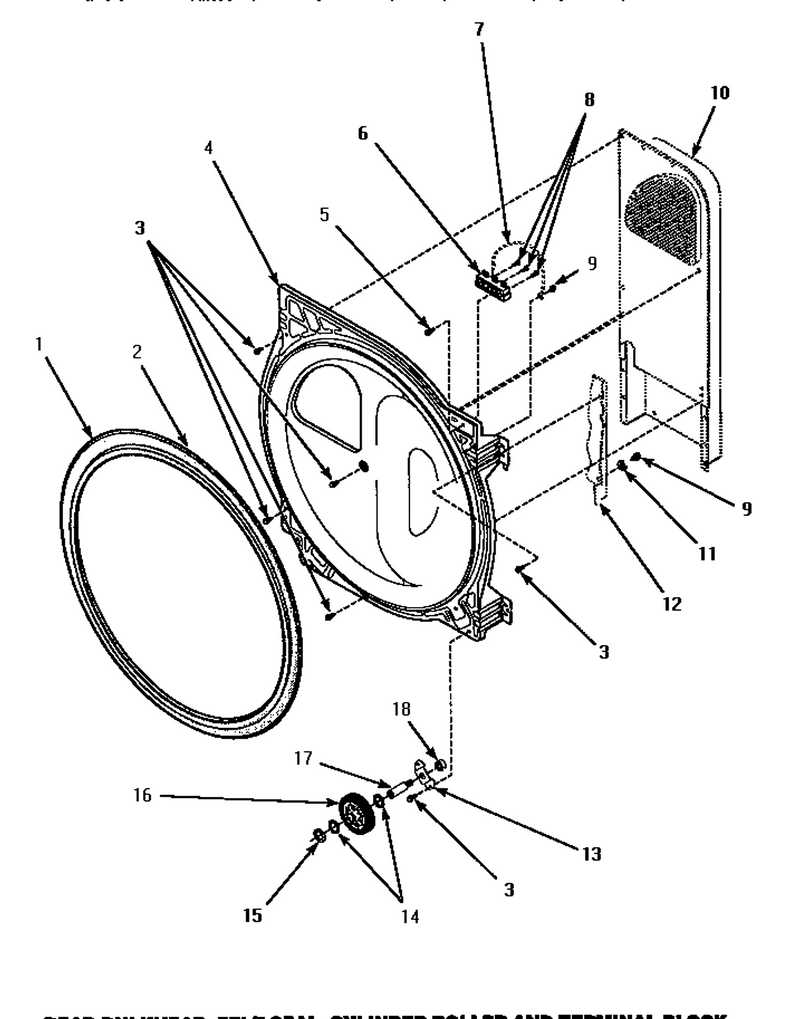

01 - Bulkhead/felt Seal/cyl Roller & Term Blk

...
...
1
Seal- Cyli WPL-WP37001132
...
2
Adhesive,3m-1300-5 Oz. WPL-22506P
...
3
Screw WPL-WP3390631
...
4
Bulkhead, Rear WPL-502614WP
...
5
Screw, No.12 X 9/16 WPL-501285
...
6
Block- Ter WPL-WP61923
...
7
See Note Ground Wire, Green -- (See Note) WPL-Y00000000
...
8
Screw WPL-WP3400094
...
9
Screw WPL-WP3351614
...
10
See Note Heater Box Assembly WPL-Y00000000
...
11
Washer,13/64idx1/2odx. WPL-51474
...
12
See Note Cabinet WPL-Y00000000
...
13
Brakt-Roll WPL-WP40113601
...
14
Washer WPL-WP233520
...
15
Ring- Reta WPL-WP23748
...
16
Support WPL-WP37001042
...
17
Shaft WPL-WP56461
...
18
Nut, 3/8-16 Serrated WPL-56156

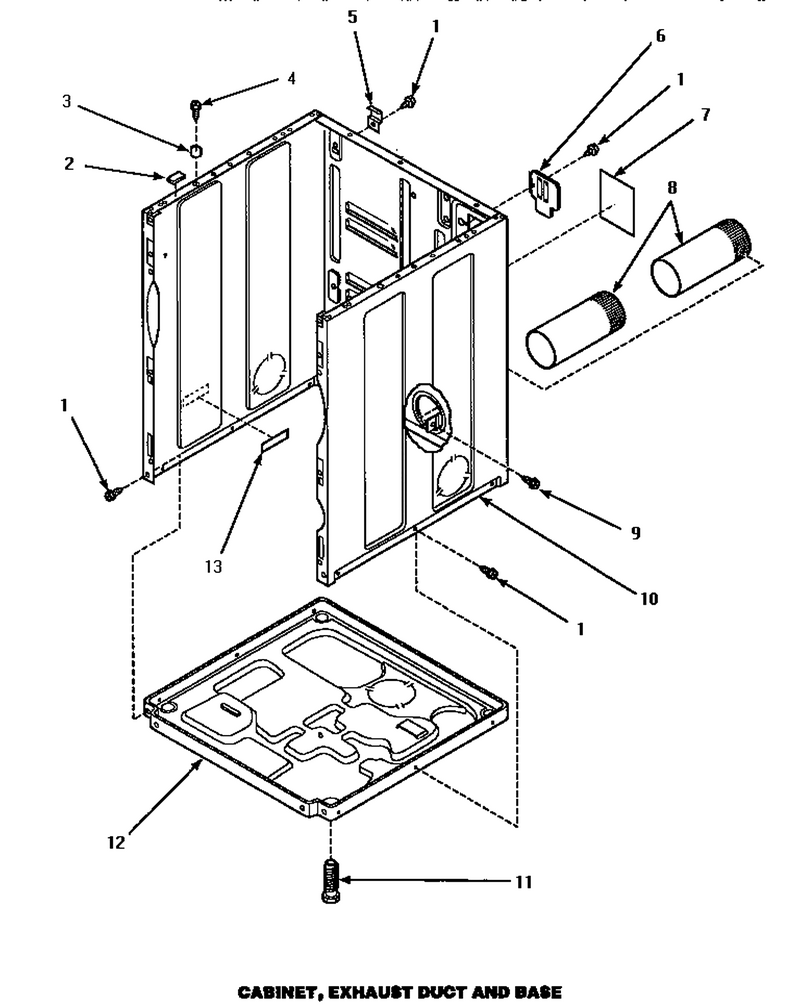

03 - Cabinet, Exhaust Duct & Base

...
...
NI
Kit-Exhst WPL-WP528P3
...
1
Screw WPL-WP27001200
...
2
Pad, Bumper WPL-Y56128
...
3
Locator, Panel WPL-505187
...
4
Screw WPL-WPY014874
...
5
Hinge, Top WPL-500003
...
6
Contactor WPL-WFR500114
...
7
Sticker WPL-501289
...
8
Exhaust Duct WPL-500064
...
9
Screw WPL-WP3390631
...
10
Assy, Cab (Home) WPL-500001LP
...
11
Leg, Leveling (Plastic) WPL-Y500101
...
12
Base, Dryer WPL-500070
...
13
Transformer WPL-660987

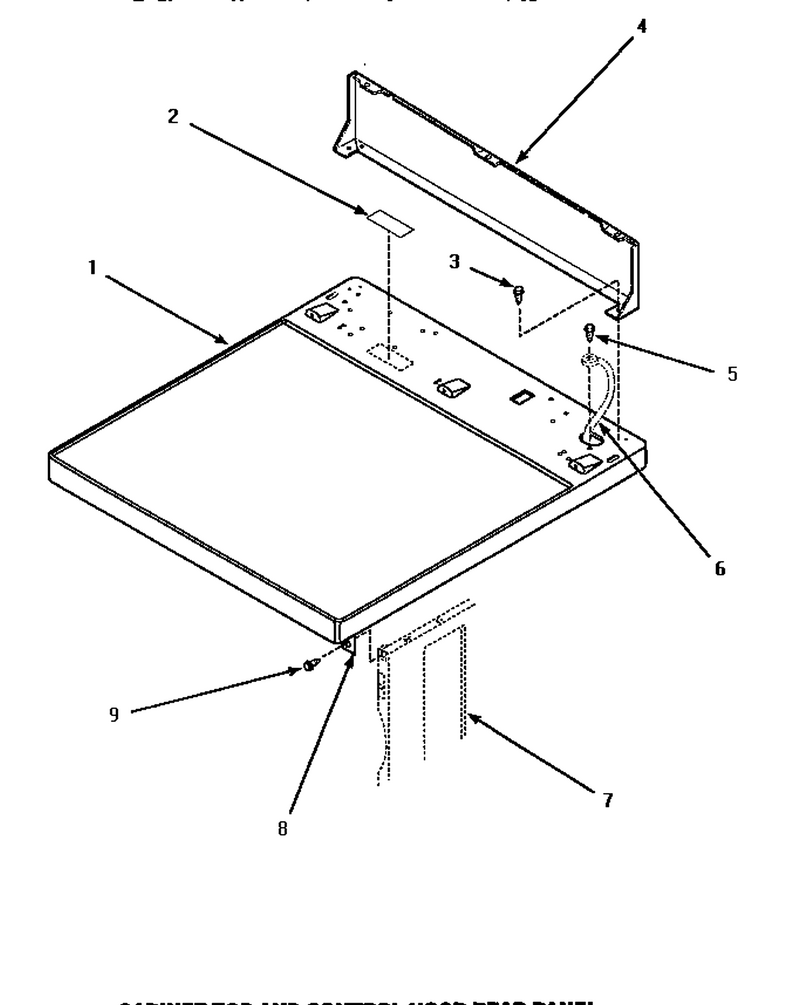

02 - Cabinet Top & Control Hood Rear Panel

...
...
If Dryer Is Installed In A Manufactured (Mobile) Home, Or If Local Codes Do Notpermit Grounding Through The Neutral, This Wire Will Not Be Connected To The Dr WPL-NOTE:
...
1
Panel,top-Home WPL-500085HP
...
2
Sticker,disconnect Pow WPL-24903
...
3
Screw WPL-WP90767
...
4
Panel,back(Home Hood) WPL-40051401P
...
5
Screw WPL-WP3351614
...
6
See Note Ground Wire From Rear Bulkhead, Green WPL-Y00000000
...
7
See Note Cabinet WPL-Y00000000
...
8
Shock Susp WPL-WFR500084
...
9
Screw WPL-WP27001200

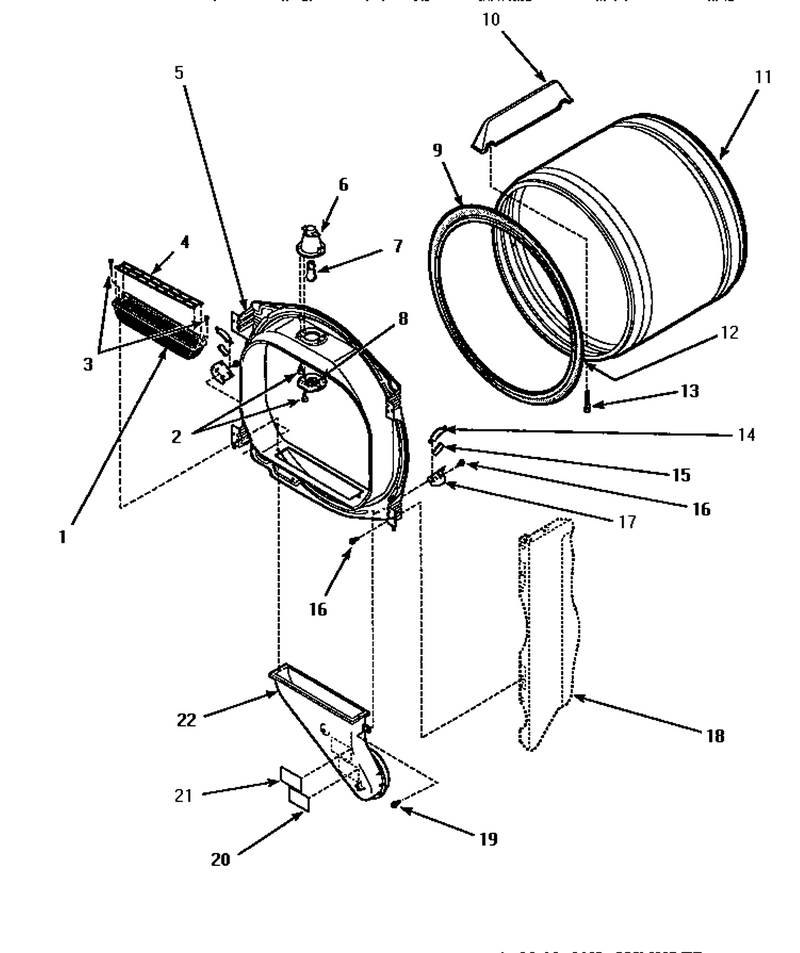

04 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

...
...
1
Filter, Lint Kit WPL-502140P
...
2
Screw WPL-M0211530
...
3
Screw, 8b-16x5/8 Tap WPL-500226
...
4
Cover, Lint Filter WPL-502092
...
5
Assy,bulkhead-Front-Comp WPL-500117W
...
6
Cylinder Light Housing WPL-500153
...
7
Bulb-Light WPL-W10857122
...
8
Lens,drum Light WPL-500094
...
9
Seal- Cyli WPL-WP37001132
...
10
Baffle,cylinder-Wht-Short WPL-500022
...
11
Assy,cylinder-Home- WPL-500013WP
...
12
Adhesive,3m-1300-5 Oz. WPL-22506P
...
13
Screw, 10bt-12 X 1 Tap WPL-Y62588
...
14
Support WPL-WP37001298
...
15
Pad WPL-WP500121
...
16
Screw WPL-WP3390631
...
17
Bracket WPL-12002090
...
18
See Note Cabinet WPL-Y00000000
...
19
Screw WPL-WP27001200
...
20
Sticker WPL-56259
...
21
Sticker WPL-500049
...
22
Duct, Heat WPL-500241

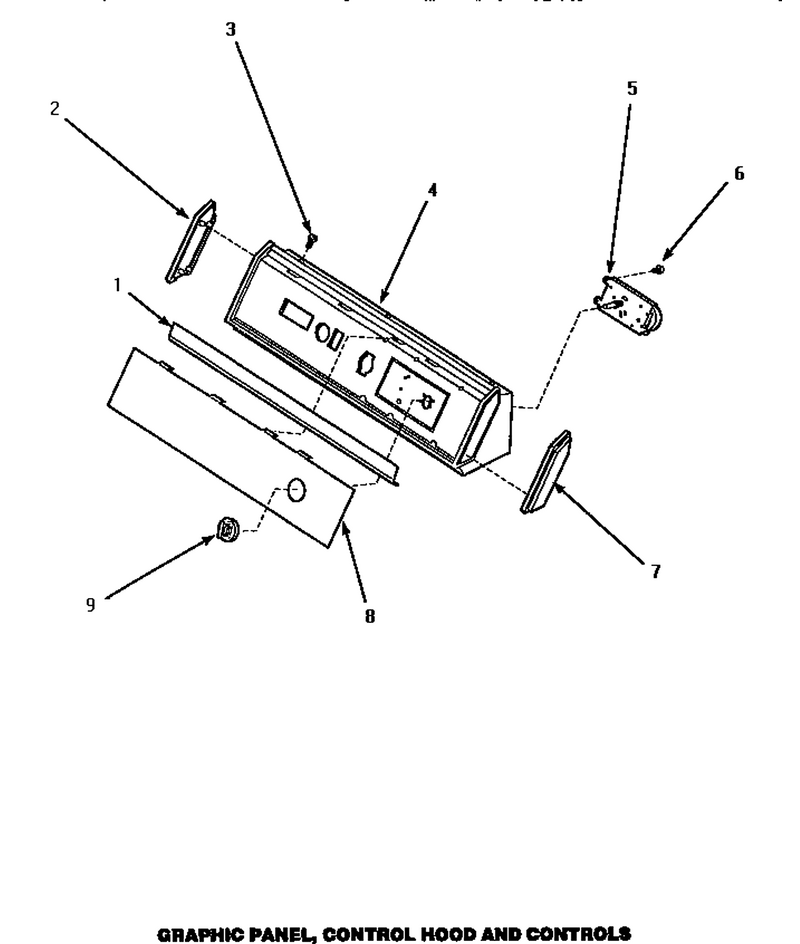

05 - Graphic Panel, Control Hood & Controls

...
...
Complete Loading Door Assembly Does Not Include 500236 Door Hinge Mounting Clipand Four 500226 Screws. WPL-NOTE:
...
2
Cap,end-L.h.-Chrome WPL-31249
...
3
Screw,no.8abx3/4 Pozidri WPL-31752
...
4
Assy, Hood Mtg WPL-59937P
...
5
Timer WPL-501881
...
6
Screw WPL-WP90767
...
7
Cap,end-R.h.-Chrome WPL-31248
...
8
Panel, Graphic WPL-502105
...
9
Assy,timer Knob & Skir WPL-62176

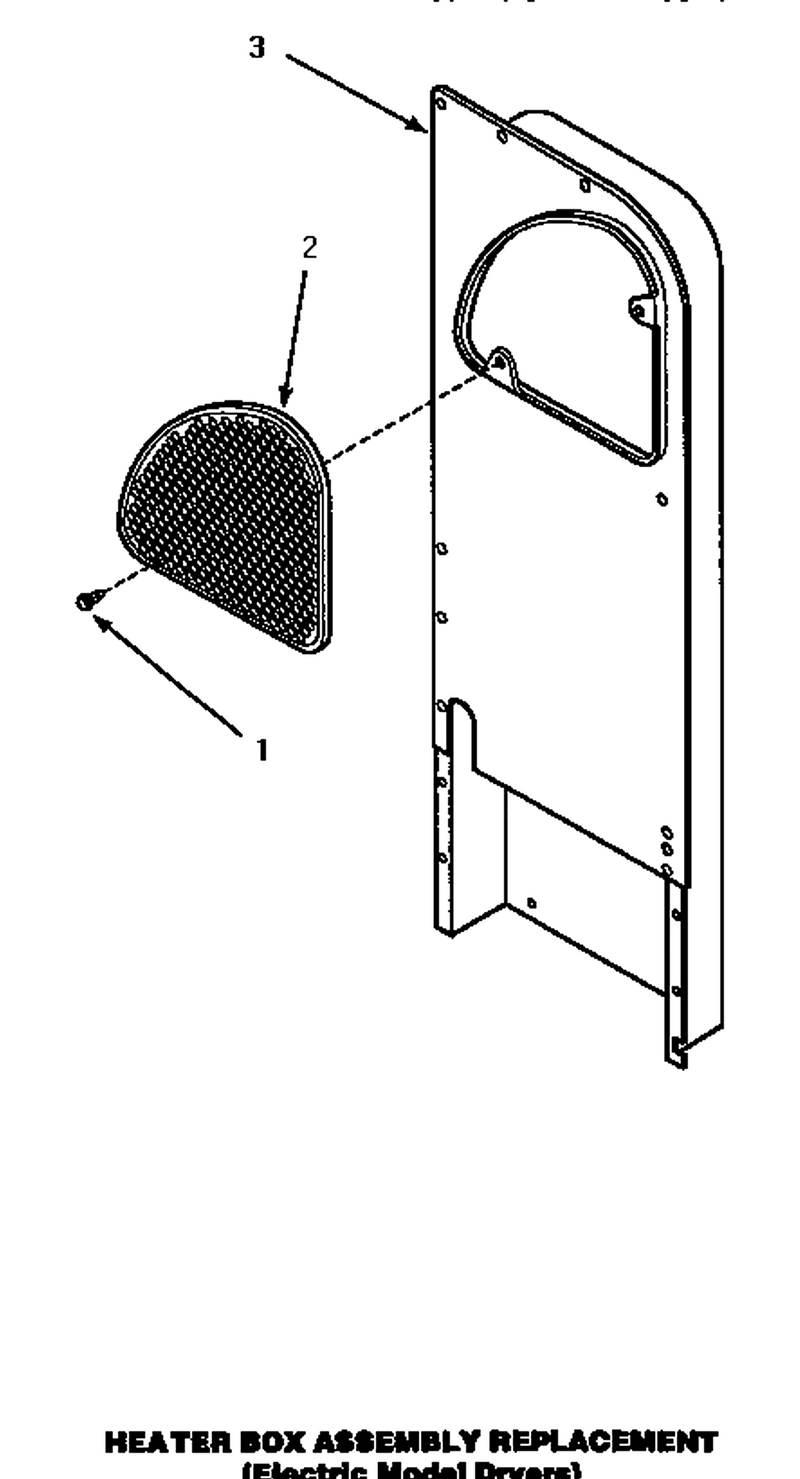

07 - Heater Box Assy (replacement)

...
...
1
Screw WPL-WP3390631
...
2
Complete T WPL-WFR500820
...
3
Heater Box Assembly WPL-500179P

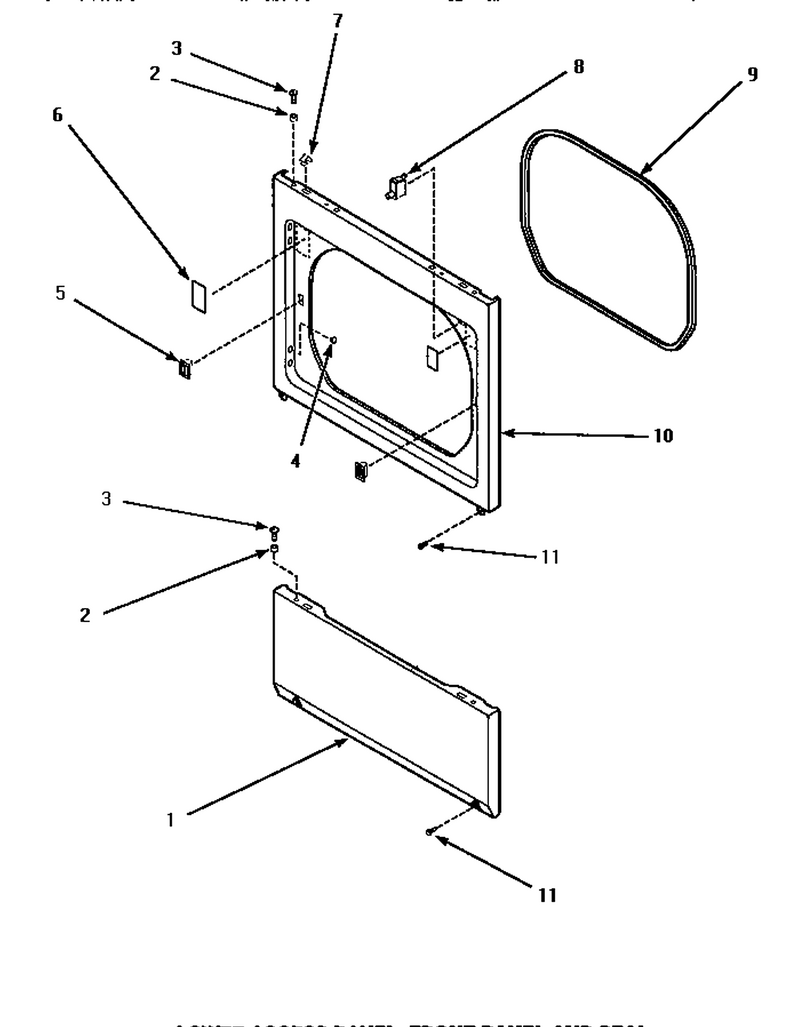

09 - Lower Access Panel, Front Panel & Seal

...
...
1
Panel, Access (Wht) WPL-40045301WP
...
2
Locator, Panel WPL-505187
...
3
Screw WPL-WPY014874
...
4
Screw WPL-W10815455
...
5
Door Catch La-1003 WPL-LA-1003
...
6
Sticker WPL-500281
...
7
Fastener- WPL-WP22001650
...
8
Switch-Dor WPL-W10169313
...
9
M.5 Hexago WPL-WFR500034
...
10
Panel,front WPL-500033H
...
11
Screw WPL-WP27001200

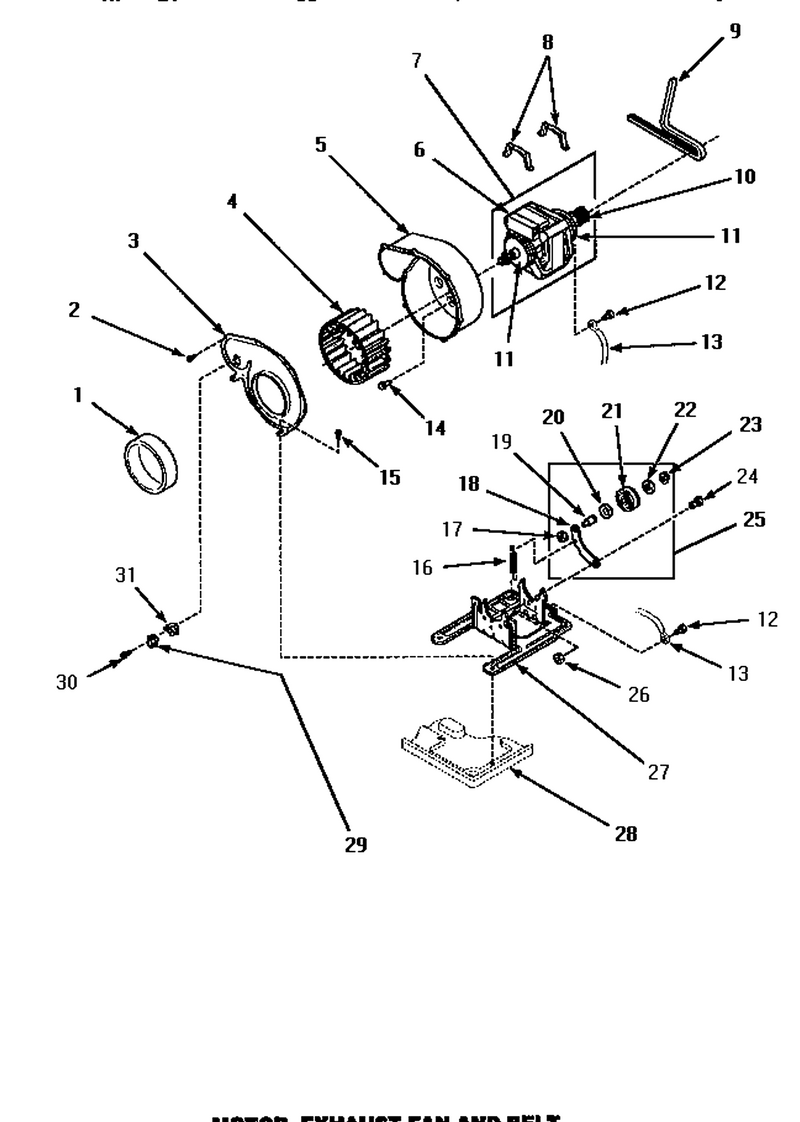

10 - Motor, Exhaust Fan & Belt

...
...
1
Ew25-30 Pi WPL-WFR500313
...
2
Screw, No.8 X 3/8 Ind H WPL-31260
...
3
Cover, Blower Housing WPL-500078
...
4
Assembly, Blower Fan WPL-56000
...
5
Housing, Blower WPL-56020
...
6
Kit- Switc WPL-R0130735
...
7
Motor-Drve WPL-WP2200376
...
8
Clamp WPL-WP660658
...
9
Belt WPL-WP40111201
...
10
Pulley,motor WPL-500011
...
11
Mount,motor-Locking WPL-58044A
...
12
Screw WPL-WP3351614
...
13
See Note Ground Wire From Motor To Mounting Bracket, Green WPL-Y00000000
...
14
Screw WPL-WP27001200
...
15
Screw WPL-WP27001200
...
16
Spring- Id WPL-WP56076
...
17
Nut, 3/8-16 Serrated WPL-56156
...
18
Asy- Idler WPL-WP37001144
...
19
Shaft WPL-WP56461
...
20
Washer WPL-WP233520
...
21
Pulley-Idr WPL-WPY54414
...
22
Washer WPL-WP233520
...
23
Ring- Reta WPL-WP23748
...
24
Complete R WPL-WFR500824
...
25
Bracket WPL-WP37001287
...
26
Nut WPL-WPW10139757
...
27
Mount, Motor WPL-503613
...
28
See Note Base WPL-Y00000000
...
29
Thermostat WPL-56410
...
30
Screw WPL-WP3177991

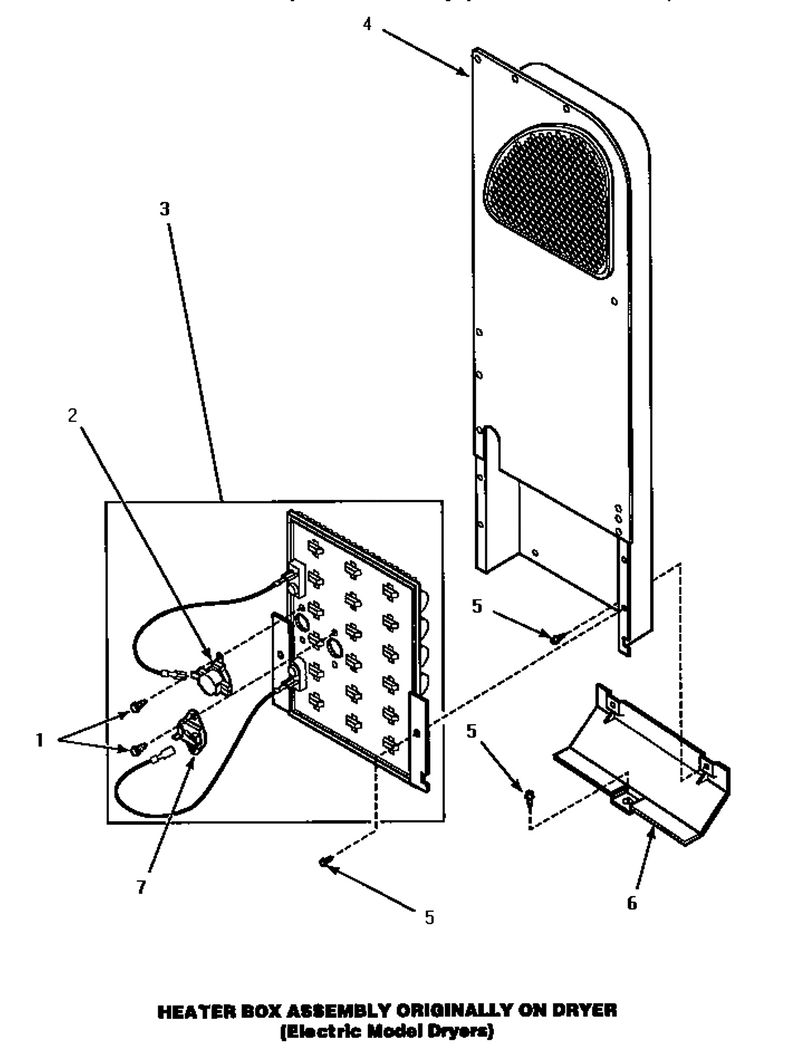

06 - Heater Box Assy (original)

...
...
1
Screw WPL-WP3177991
...
2
Thrmst-Fix WPL-WPW10116735
...
3
Heater Assembly 208v WPL-61928
...
4
See Note Heater Box Assembly WPL-Y00000000
...
5
Screw WPL-WP3390631
...
6
Cover Plate WPL-61203
...
7
Fuse-Thrml WPL-WP40113801
