Amana AE9433

Model: AE9433

Save Part Not Listed?
product name

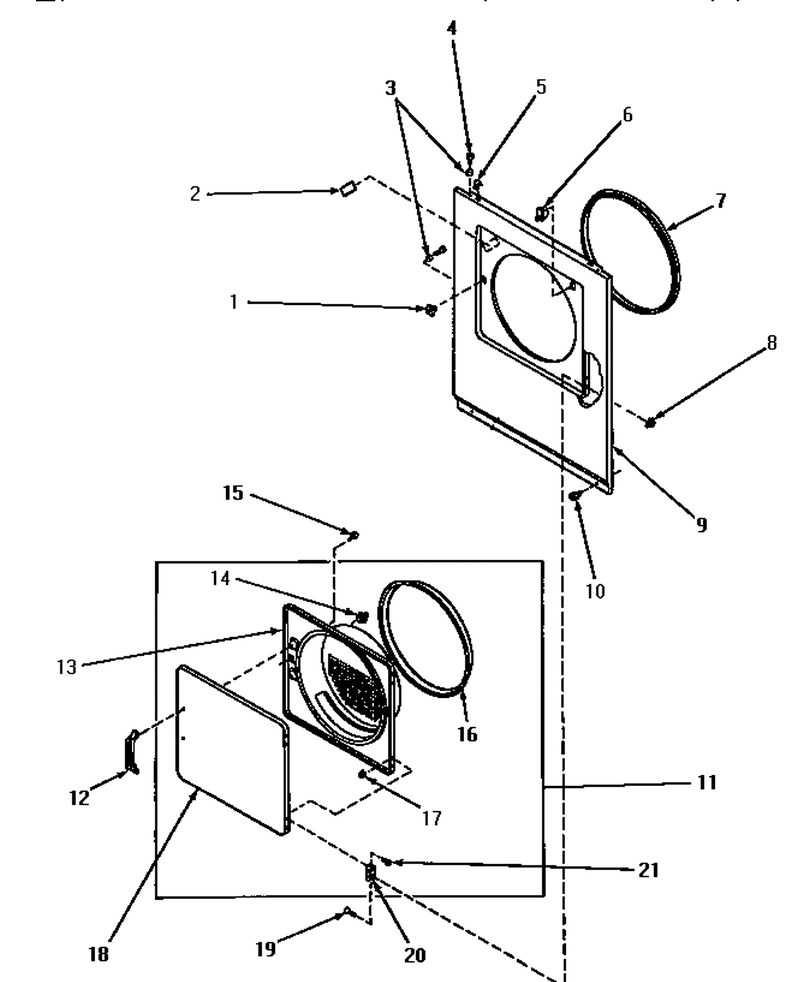

06 - Loading Door, Front Panel And Seals

...
...
1
Door Catch La-1003 WPL-LA-1003
...
2
Repl By 500281 WPL-58854
...
3
Locator, Panel WPL-505187
...
4
Screw WPL-WPY014874
...
5
Fastener- WPL-WP22001650
...
6
Switch-Dor WPL-W10169313
...
7
Seal,front Panel WPL-Y61380
...
8
Nut WPL-WP488130
...
9
Front Panel, Harvest Gold WPL-62420H
...
10
Screw WPL-WP27001200
...
11
Assy,door WPL-62151W
...
12
Pull,door WPL-54068P
...
13
Inner Door Panel, Harvest Gold WPL-62152H
...
14
Door Catch La-1003 WPL-LA-1003
...
15
Screw WPL-WP489464
...
16
Door Seal WPL-61379
...
17
Nut,speed-8a Tinn C15 WPL-23407
...
18
Door WPL-62153L
...
19
Screw,8-32 X 13/32 Fl WPL-22649
...
20
Hinge (Dryer) WPL-56045
...
21
Screw, 8b-16x5/8 Tap WPL-500226

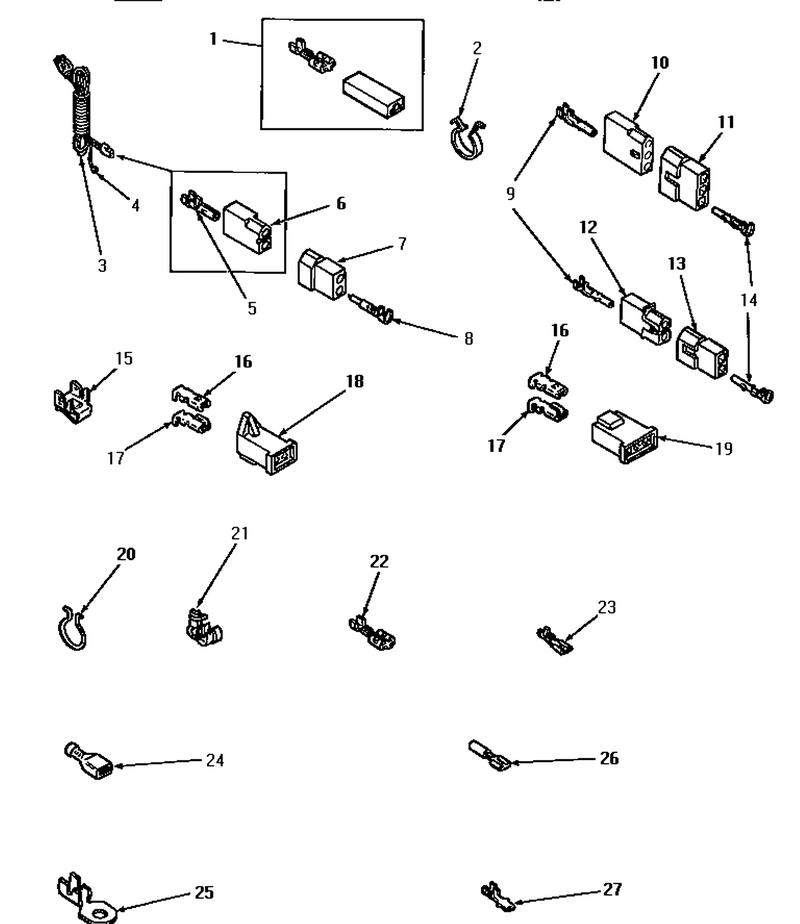

09 - Power Cord And Terminals

...
...
1
Terminal,spade-1/4 Fem WPL-Y00237
...
2
Clip,wire WPL-61510
...
3
Cord- Powe WPL-WP27001142
...
4
See Note Ground Wire, Green WPL-Y00000000
...
5
Terminal,pin-1/8 Femal WPL-00130
...
6
Receptacle,2 Circuit WPL-56265
...
7
Plug WPL-56266
...
8
Terminal,pin-1/8 Male WPL-Y00127
...
9
Female Socket Terminal WPL-Y00117
...
10
Receptacle, (Gas Valve) WPL-697780
...
11
Plug, 3 Circuit WPL-23040
...
12
Receptacle,2 Circuit WPL-56451
...
13
Plug 2 Circuit WPL-56448
...
14
Terminal,pin-Male WPL-Y00116
...
15
Ground Clip WPL-Y00161
...
16
Terminal,spade WPL-Y00189
...
17
Connector,receptacle WPL-Y00190
...
18
Connector,2 Circuit WPL-58799
...
19
Connector,3 Circuit WPL-58800
...
20
Clip,wire WPL-51291
...
21
Grommet, Cord WPL-211881
...
22
Spade Terminal(18 Gauge) WPL-Y00119
...
23
Terminal,3/16 Spade WPL-Y00209
...
24
Terminal WPL-WP285432
...
25
Terminal,ring-10 Stud WPL-Y00111
...
26
Terminal,1/4 Spade Pre WPL-Y00214
...
27
Terminal,tab 1/4 Male WPL-Y00138

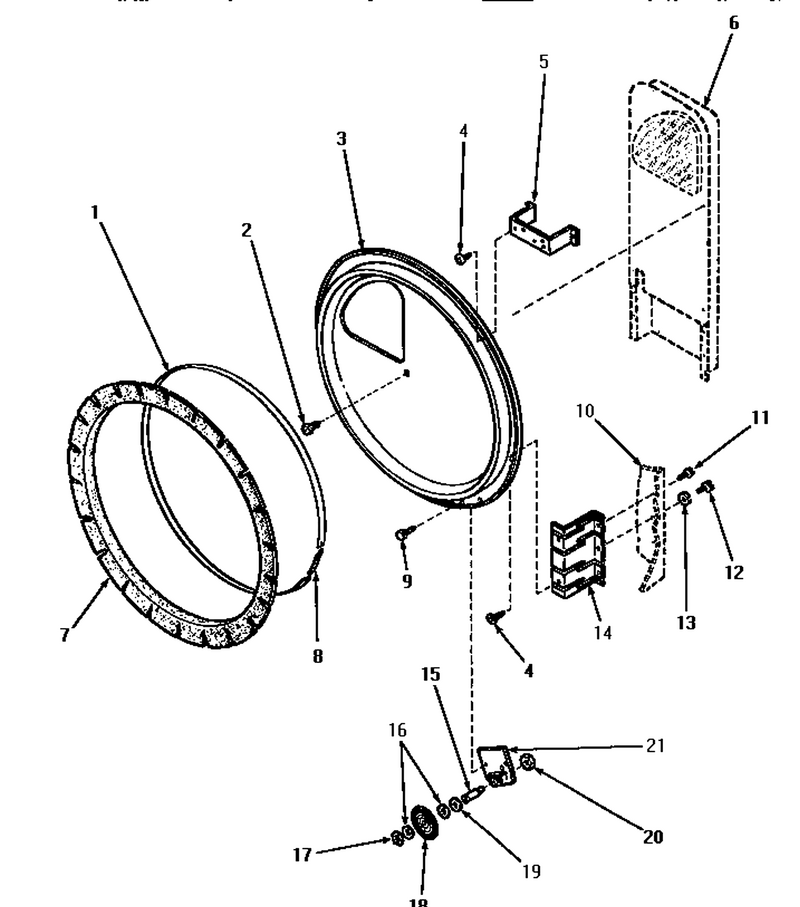

10 - Rear Blkhd, Felt Seal & Cylinder Roller

...
...
1
Strap, Seal WPL-56090P
...
2
Screw WPL-WP489464
...
3
Bulkhead, White WPL-61127P
...
4
M400664 WPL-56078
...
5
Terminal Block Bracket WPL-60823
...
6
See Note Heat Duct -- (See Page 7) WPL-Y00000000
...
7
Seal Asm WPL-WP56088
...
8
Spring WPL-52310
...
9
Screw WPL-WP3390631
...
10
See Note Cabinet -- (See Page 9, Key 10) WPL-Y00000000
...
11
Screw WPL-WP27001200
...
12
Screw,10b-16 X 1/2 Hex WPL-52909
...
13
Washer,13/64idx1/2odx. WPL-51474
...
14
Bracket,bulkhead-Rear WPL-56055
...
15
Shaft WPL-WP56461
...
16
Washer WPL-WP233520
...
17
Ring- Reta WPL-WP23748
...
18
Cylinder Roller WPL-56457
...
19
Washer,.578idx1.25odx1 WPL-23886
...
20
Nut, 3/8-16 Serrated WPL-56156
...
21
Bracket,cylinder Roller WPL-56042

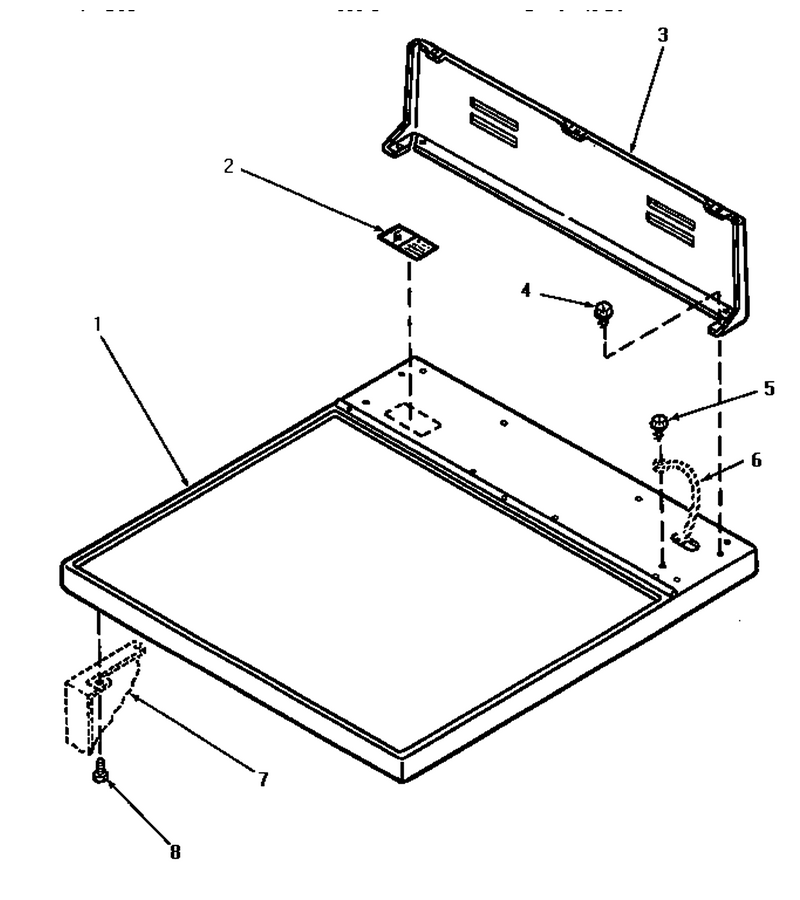

01 - Cabinet Top And Control Hood Rear Panel

...
...
1
Assy,top Panel-Domesti WPL-60815H
...
2
Sticker,disconnect Pow WPL-24903
...
3
Panel,back(Home Hood) WPL-40051401P
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP3351614
...
6
See Note Ground Wire, Green WPL-Y00000000
...
7
See Note Cabinet -- (See Page 9, Key 10) WPL-Y00000000
...
8
Screw WPL-WP27001200

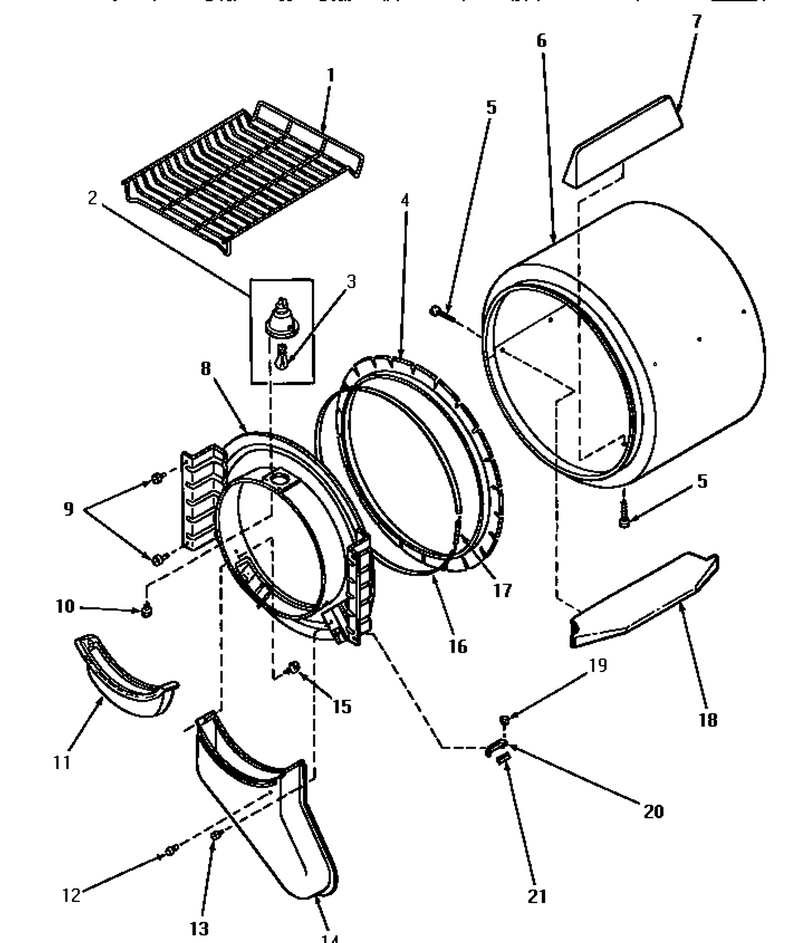

03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

...
...
1
Rack,drying WPL-58846
...
2
Cylinder Light Assembly WPL-60953P
...
3
Bulb-Light WPL-W10857122
...
4
Seal Asm WPL-WP56088
...
5
Screw,10bt X 1 Tapping WPL-56131
...
6
Assy,cylinder-White WPL-61073P
...
7
Baffle,cylinder-Short- WPL-Y61399
...
8
Assy,bulkhead-Front-Sv WPL-62142W
...
9
Screw WPL-WP27001200
...
10
Screw, No.8 X 3/8 Ind H WPL-31260
...
11
Screen WPL-61376
...
12
Bumper WPL-56938
...
13
Screw,8-18 X 3/8 Tappi WPL-56392
...
14
Assy,air Duct-Front WPL-60786
...
15
Screw WPL-WP489464
...
16
Strap, Seal WPL-56090P
...
17
Spring WPL-52310
...
18
Baffle,cylinder-Extend WPL-Y61027
...
19
Screw WPL-WP90767
...
20
Bracket WPL-WP57005
...
21
Pad,thin WPL-58049

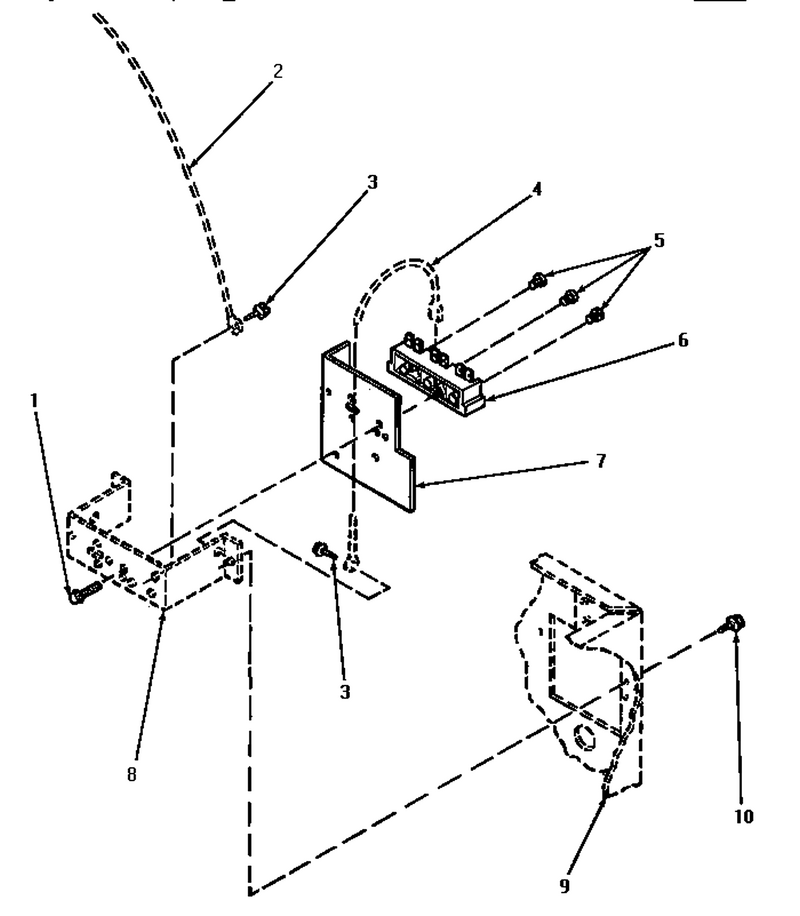

11 - Terminal Block

...
...
1
Screw, No.12 X 9/16 WPL-501285
...
2
See Note Ground Wire, Green WPL-Y00000000
...
3
Screw WPL-WP3351614
...
4
See Note Ground Wire, Green -- (See Note 1) WPL-Y00000000
...
5
Screw WPL-WP3400094
...
6
Block- Ter WPL-WP61923
...
7
Shield,terminal Block WPL-56087
...
8
See Note Terminal Block Bracket -- (See Page 6) WPL-Y00000000
...
9
See Note Cabinet -- (See Page 9, Key 10) WPL-Y00000000
...
10
Screw WPL-WP27001200

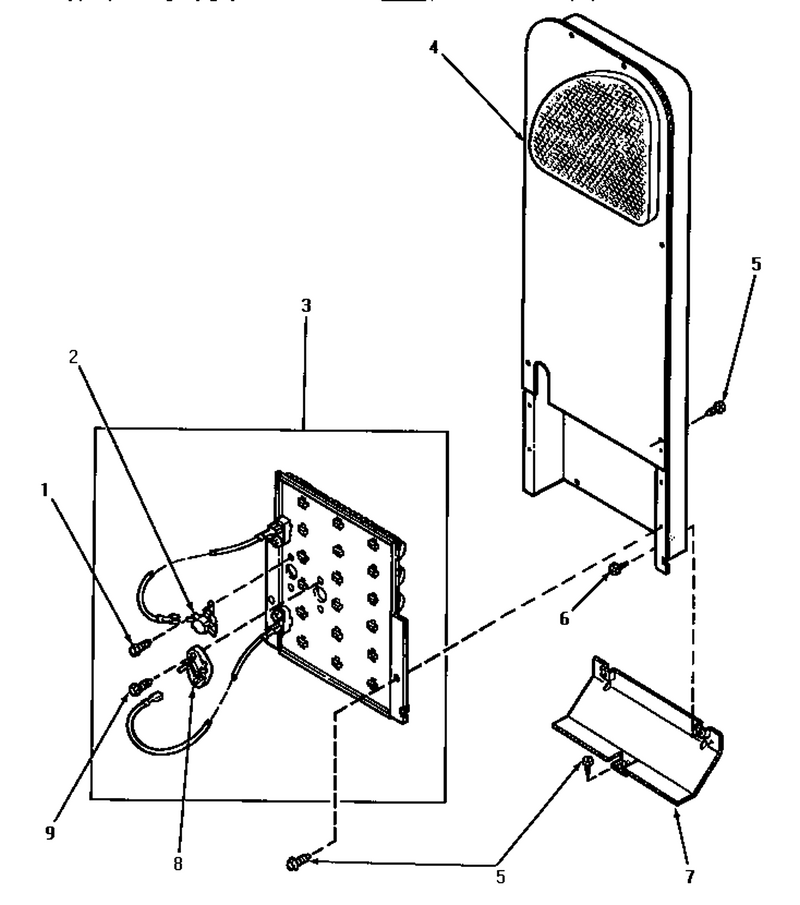

05 - Heater Box

...
...
1
Screw WPL-WP3177991
...
2
Thrmst-Fix WPL-WPW10116735
...
3
Heater Assembly 208v WPL-61928
...
4
Heater Box WPL-61161P
...
5
Screw WPL-WP27001200
...
6
Screw WPL-WP3390631
...
7
Cover Plate WPL-61203
...
8
Thrmst-Fix WPL-R9900489
...
9
Screw,no.6-20x.44/.41 In WPL-56693

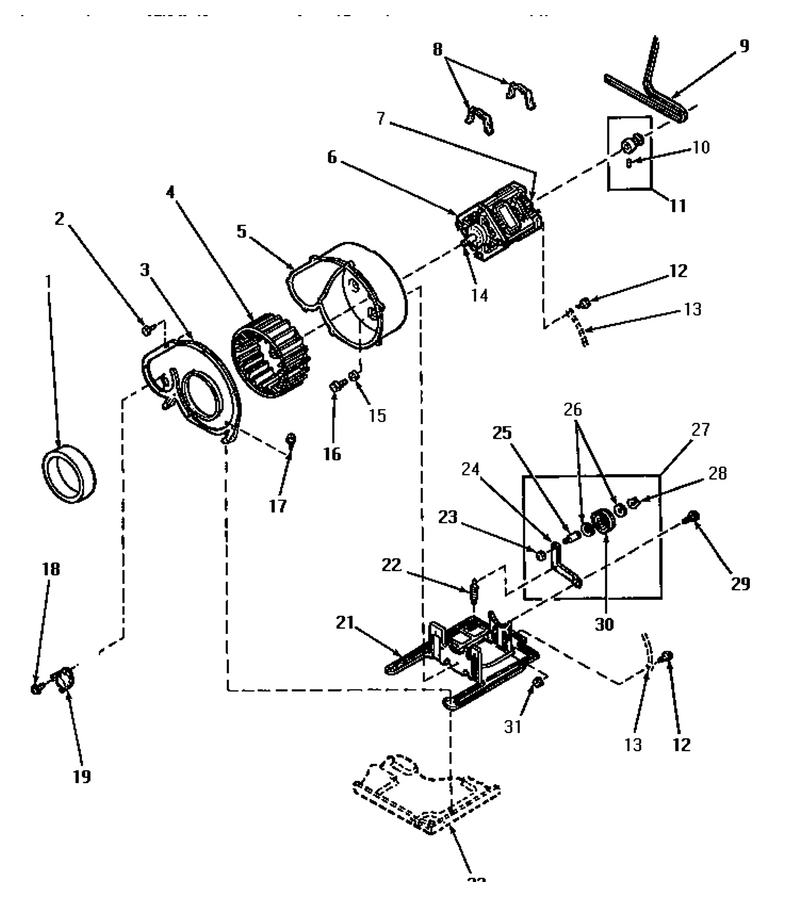

07 - Motor, Exhaust Fan And Belt

...
...
1
Seal WPL-56065
...
2
Screw WPL-WP90767
...
3
Cover,blower Housing WPL-60938P
...
4
Assembly, Blower Fan WPL-56000
...
5
Housing, Blower WPL-56020
...
6
Motor-Drve WPL-WP915P3
...
7
Switch WPL-53249
...
8
Clamp WPL-WP660658
...
9
Belt WPL-WP40111201
...
10
Setscrew WPL-52906
...
11
Motor Pulley Assembly WPL-59173
...
12
Screw WPL-WP3177991
...
13
See Note Ground Wire, Green WPL-Y00000000
...
14
Never-Seeze 1 Oz Tube WPL-27604P
...
15
Washer WPL-M0270504
...
16
Screw WPL-WP27001200
...
17
Screw WPL-WP3390631
...
18
Screw WPL-WP489464
...
19
Assy,thermistor WPL-59500
...
21
Mount, Motor WPL-503613
...
22
Spring- Id WPL-WP56076
...
23
Nut, 3/8-16 Serrated WPL-56156
...
24
Lever,idler WPL-56057
...
25
Shaft WPL-WP56461
...
26
Washer WPL-WP233520
...
27
Lever-Idl WPL-WP56170P
...
28
Ring- Reta WPL-WP23748
...
29
Screw,1/4-20 Hex Hd Sh WPL-56587
...
30
Pulley-Idr WPL-WPY54414
...
31
Nut WPL-WPW10139757
...
32
See Note Base -- (See Page 9, Key 14) WPL-Y00000000

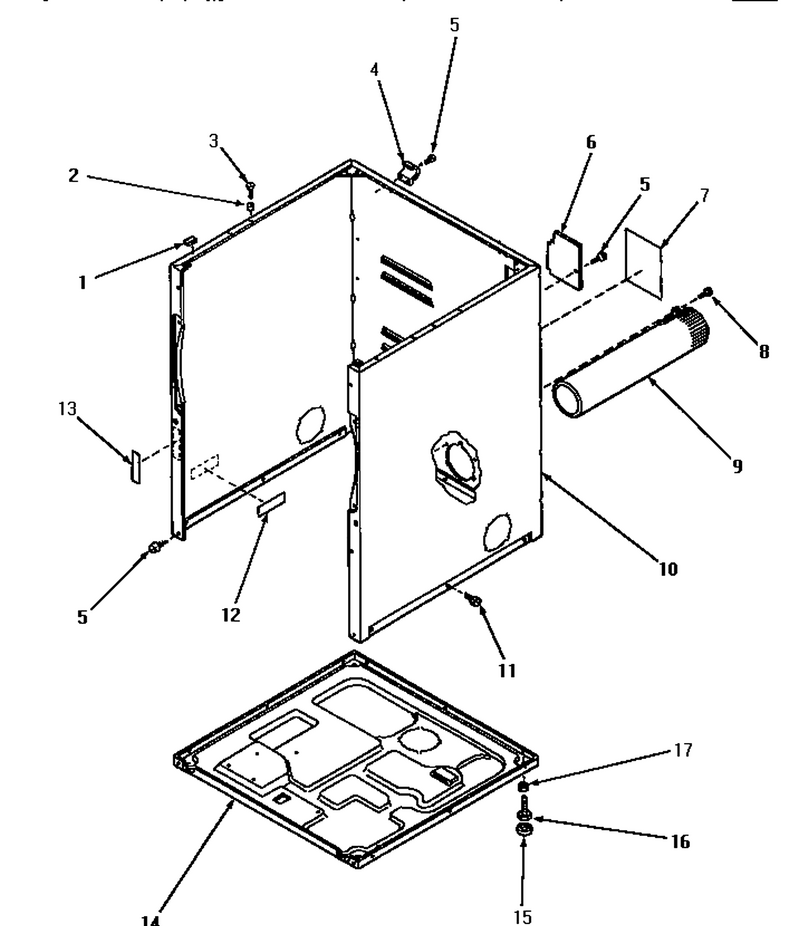

02 - Cabinet, Exhaust Duct And Base

...
...
1
Pad, Bumper WPL-Y56128
...
2
Locator, Panel WPL-505187
...
3
Screw WPL-WPY014874
...
4
Hinge, Top WPL-60826
...
5
Screw WPL-WP27001200
...
6
Acess Cover WPL-60821
...
7
Sticker,warning-Ground WPL-58866
...
8
Screw,8-18 X 3/8 Tappi WPL-56392
...
9
Assy, Exhaust Duct WPL-56118
...
10
Assy,dryer Cabinet WPL-60813HP
...
11
Screw WPL-WP27001200
...
12
Transformer WPL-660987
...
13
Sticker,disconnect Pow WPL-24903
...
14
Assy,base-Complete WPL-60811
...
15
Foot- Rubb WPL-WPY314137
...
16
Feet-Lvlng WPL-W10176519
...
17
Nut WPL-WP62739

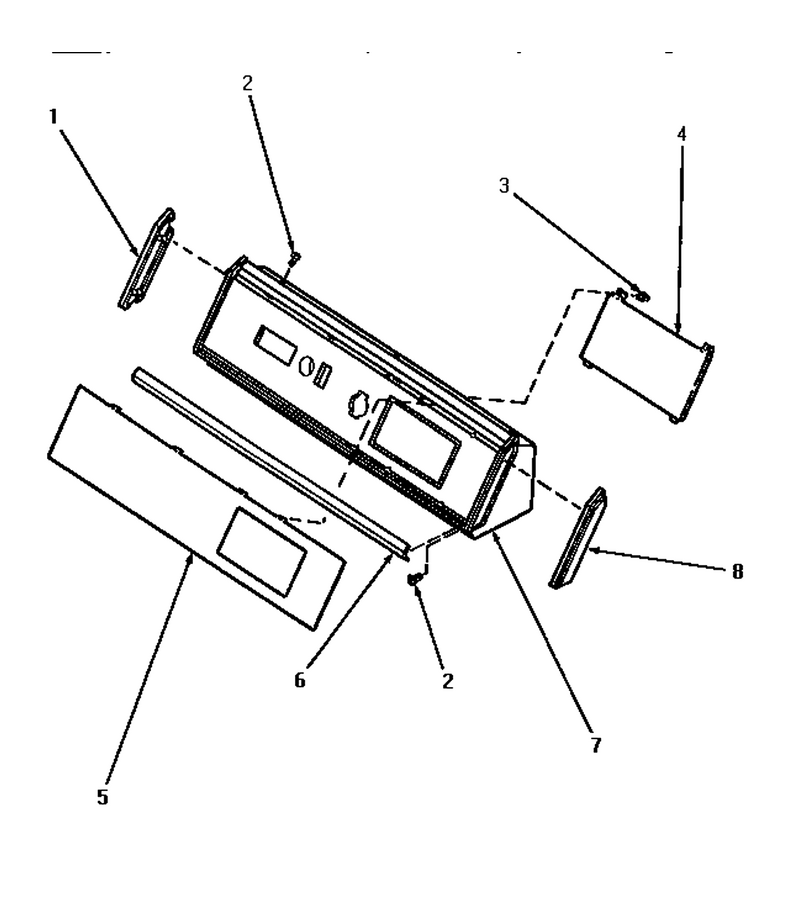

04 - Graphics Panel, Ctrl Hood And Ctrls

...
...
Note 2: Starting Serial No. S6564538ze, All Home Laundry Dryers Were Manufactured With A New Cylinder Roller. It Is Equipped With A Longer Bearing, So The Thr WPL-NOTE:
...
NI
Wire,18ga-Blu Xreplace WPL-45006
...
1
Cap,end-L.h.-Chrome WPL-31249
...
2
Screw,no.8abx3/4 Pozidri WPL-31752
...
3
Screw, No.8 X 3/8 Ind H WPL-31260
...
4
Assy, Electronic Control WPL-59608
...
5
Panel,graphic WPL-60734
...
7
Hood,dryer-Black WPL-59606
...
8
Cap,end-R.h.-Chrome WPL-31248

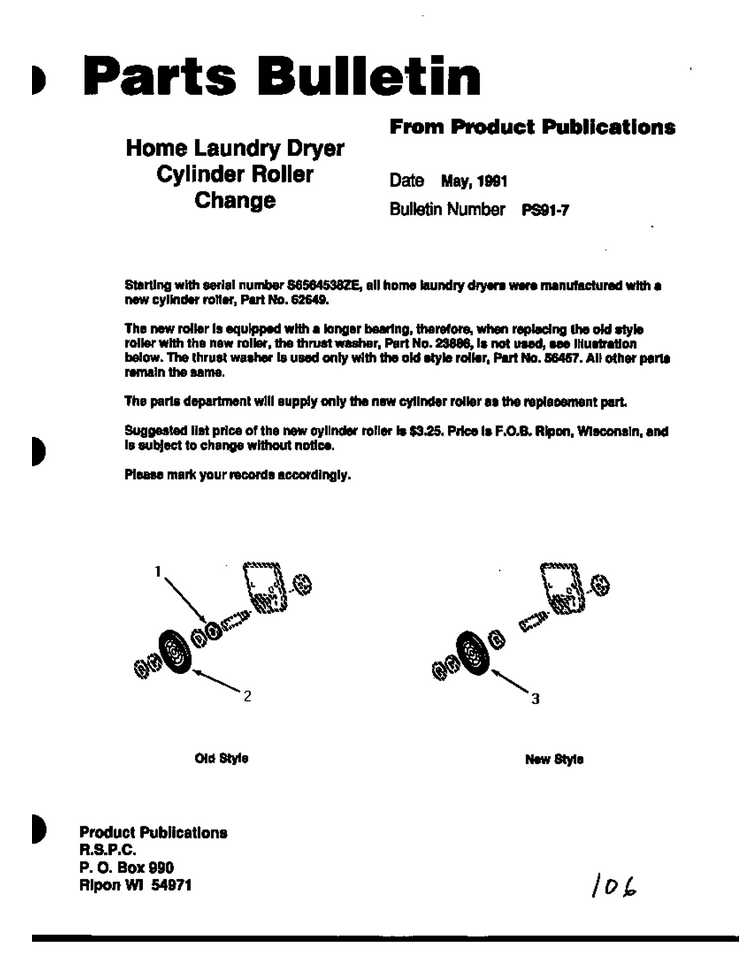

08 - Parts Bulletin

...
...
1
Washer,.578idx1.25odx1 WPL-23886
...
2
Cylinder Roller WPL-56457
...
3
Roller, Cylinder WPL-Y62649
