Amana AE4213

Model: AE4213


product name

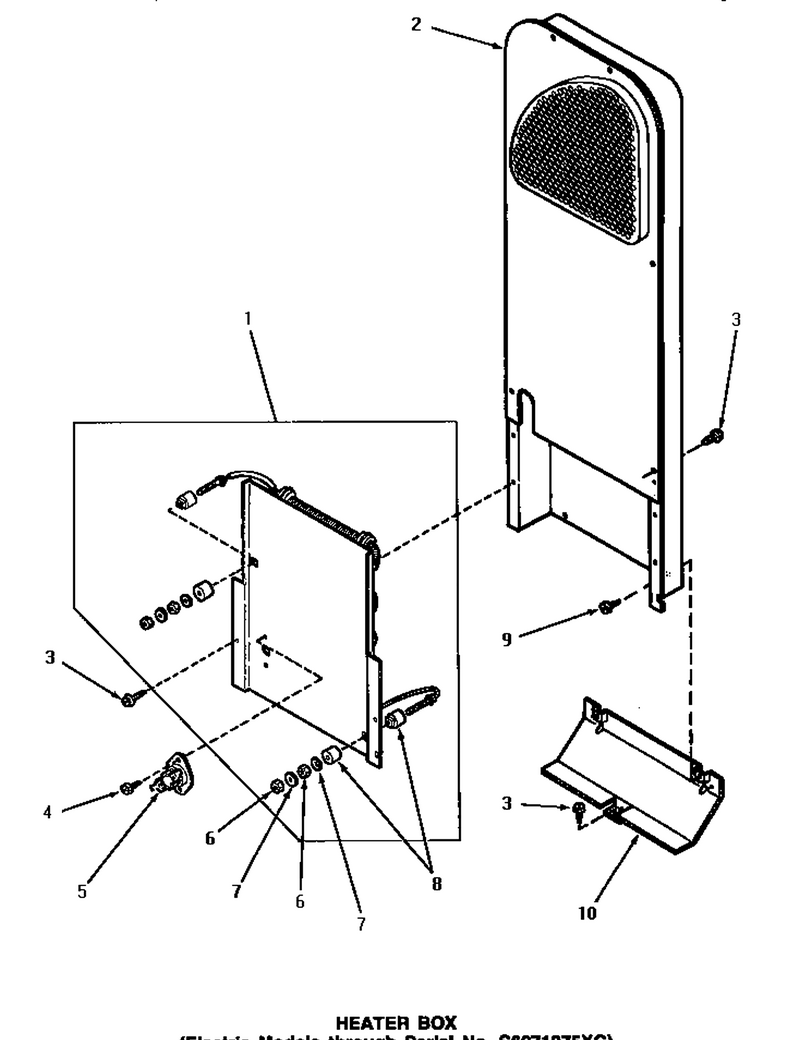

06 - Heater Box (thru Sn S6271975xg)

...
...
1
Heater Assembly 208v WPL-61928

...
2
Heater Box WPL-61161P



...
5
Thermostat,limit WPL-56082

...

...
7
Lockwasher WPL-56552

...
8
Insulator WPL-57408


...
10
Cover Plate WPL-61203

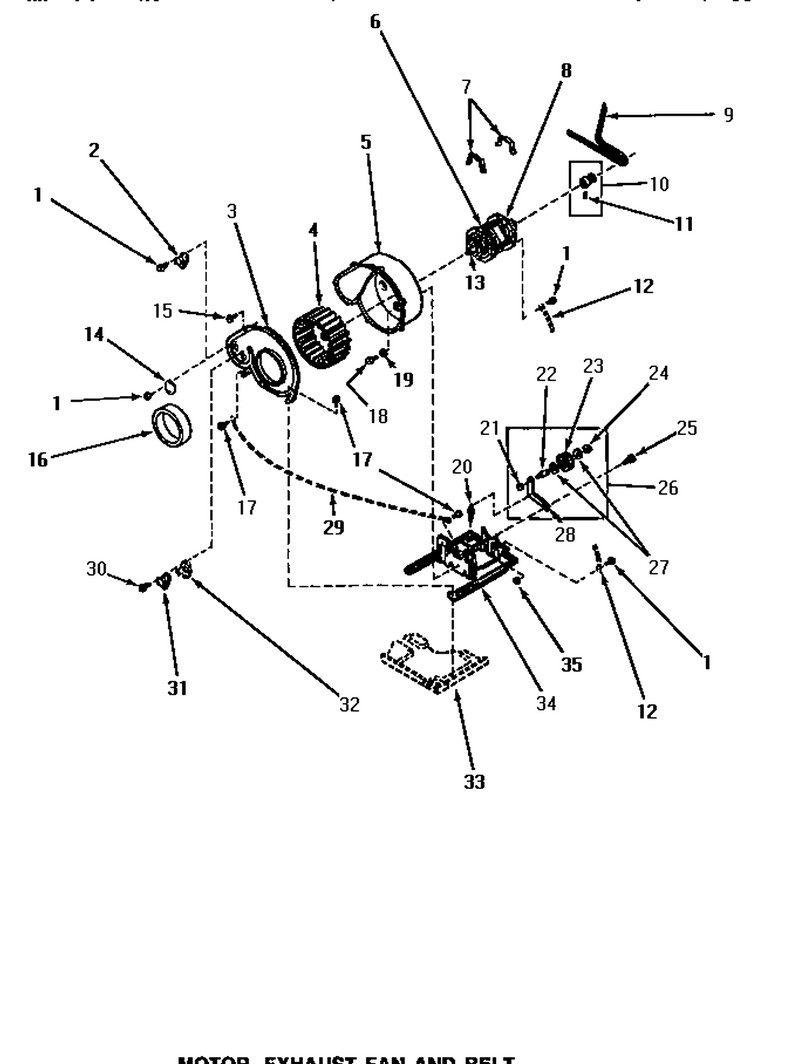

08 - Motor, Exhaust Fan & Belt

...

...
2
Thermostat WPL-56410

...
3
Cover,blower Housing WPL-60938P

...
4
Assembly, Blower Fan WPL-56000

...
5
Housing, Blower WPL-56020

...
6
Motor-Drve WPL-WP915P3

...

...
8
Switch,motor WPL-53226


...
10
Motor Pulley Assembly WPL-59173

...
11
Setscrew WPL-52906

...
12
See Note Ground Wire, Green WPL-Y00000000

...
13
Never-Seeze 1 Oz Tube WPL-27604P

...
14
Cover Plate WPL-61203

...
15

...
16

...

...

...
19

...
20
Spring- Id WPL-WP56076

...
21
Nut, 3/8-16 Serrated WPL-56156

...
22

...
23
Pulley-Idr WPL-WPY54414

...
24
Ring- Reta WPL-WP23748

...
25
Screw,1/4-20 Hex Hd Sh WPL-56587

...
26
Lever-Idl WPL-WP56170P

...
27

...
28
Lever,idler WPL-56057

...
29
See Note Ground Wire, Green -- (Through Serial No. S6181365xa) WPL-Y00000000

...
30

...
31
Thermostat WPL-56471

...
32
Heatr-Stat WPL-WP61623

...
33
See Note Base WPL-Y00000000

...
34
Mount, Motor WPL-503613

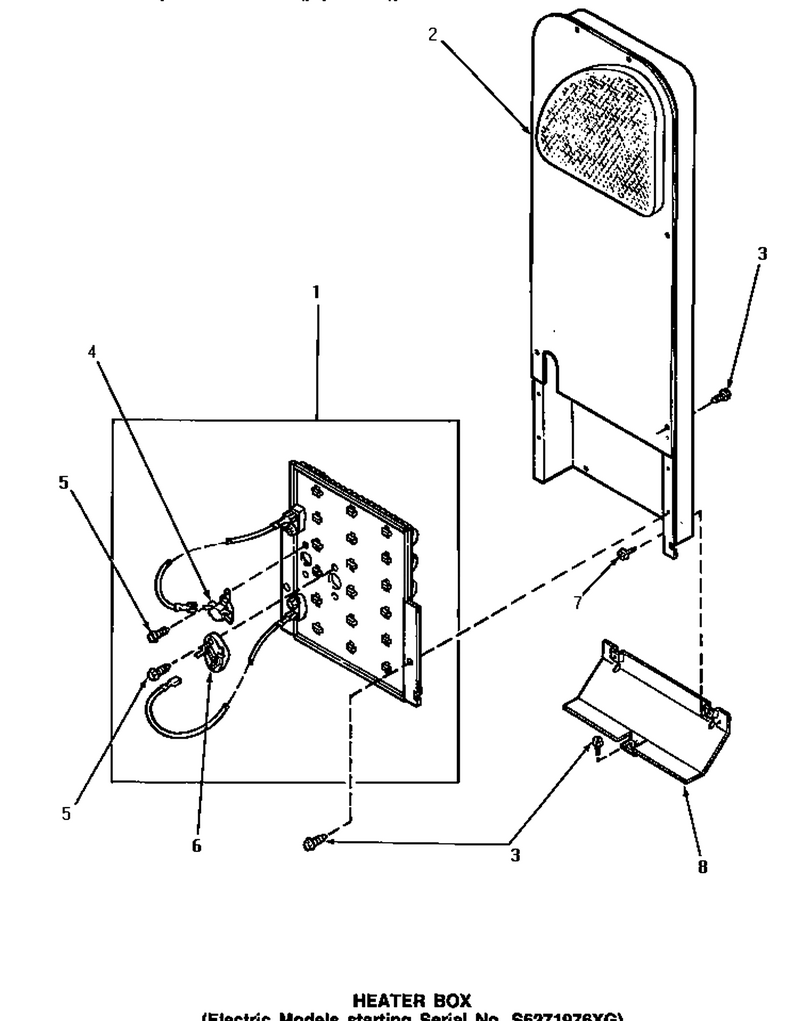

05 - Heater Box (starting Sn S6271976xg)

...
...
1
Heater Assembly WPL-61927

...
2
Heater Box WPL-61161P


...
4
Limit Thermostat WPL-62461


...
6
Thrmst-Fix WPL-R9900489


...
8
Cover Plate WPL-61203

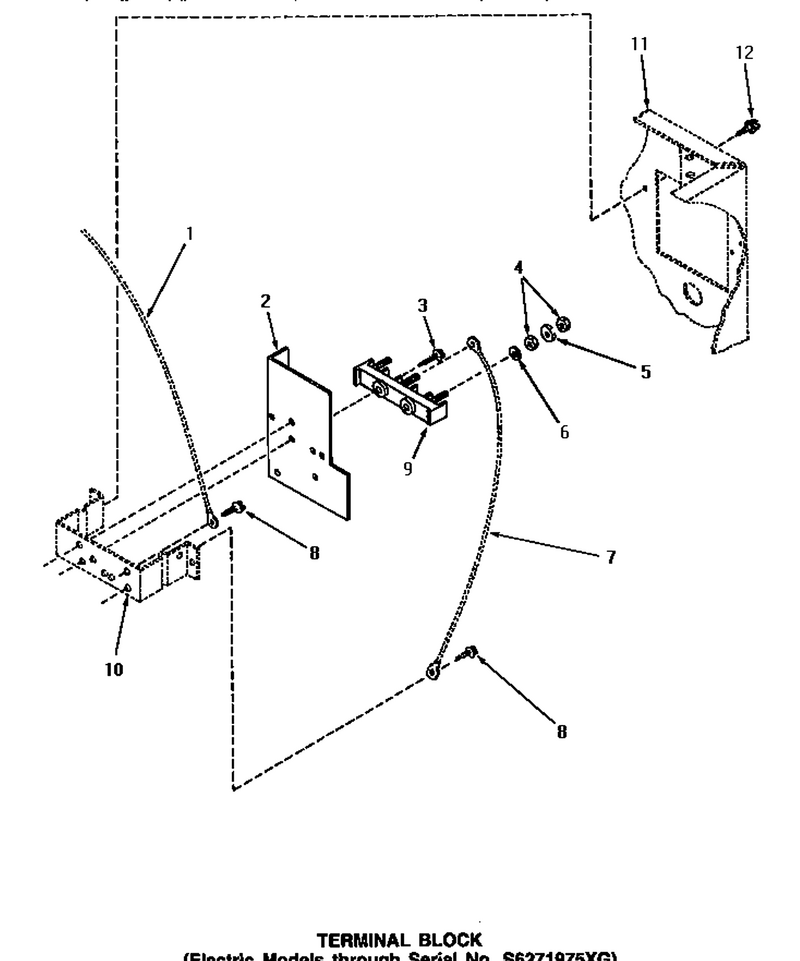

12 - Terminal Block (thru Sn S6271975xg)

...
...
1
See Note Ground Wire, Green WPL-Y00000000

...
2
Shield,terminal Block WPL-56087

...
3
Screw,10b-16 X 3/4 Rou WPL-Q6535

...

...
5
Washer,13/64idx1/2odx. WPL-51474

...
6
Lockwasher WPL-56552

...
7
See Note Ground Wire, Green -- (See Note) WPL-Y00000000


...
9
Terminal Block WPL-58555

...
10
See Note Terminal Block Bracket WPL-Y00000000

...
11
See Note Cabinet WPL-Y00000000

...

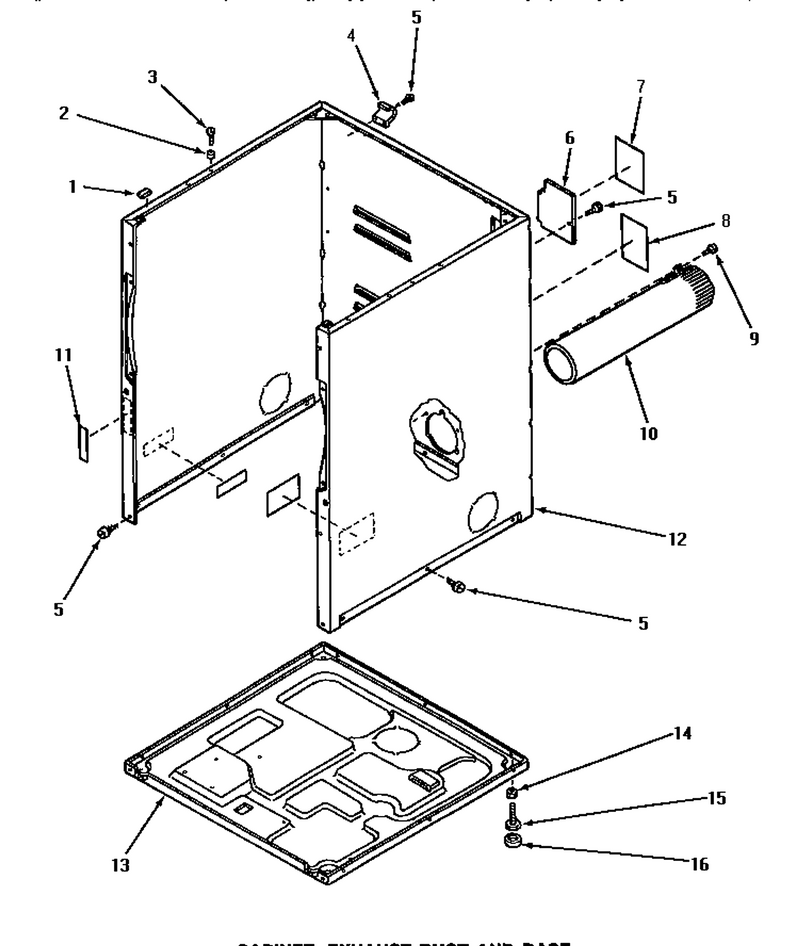

02 - Cabinet, Exhaust Duct & Base

...
...
1
Pad, Bumper WPL-Y56128

...
2
Locator, Panel WPL-505187


...
4
Hinge, Top WPL-60826


...
6
Acess Cover WPL-60821

...
7
Sticker,notice Install WPL-61206

...
8
Sticker,warning-Ground WPL-58866

...

...
10
Assy, Exhaust Duct WPL-56118

...
11
Sticker,disconnect Pow WPL-24903

...
12
Cabinet, Almond WPL-60813PL

...
13
Assy,base-Complete WPL-60811

...

...
15
Feet-Lvlng WPL-W10176519

...
16
Foot- Rubb WPL-WPY314137

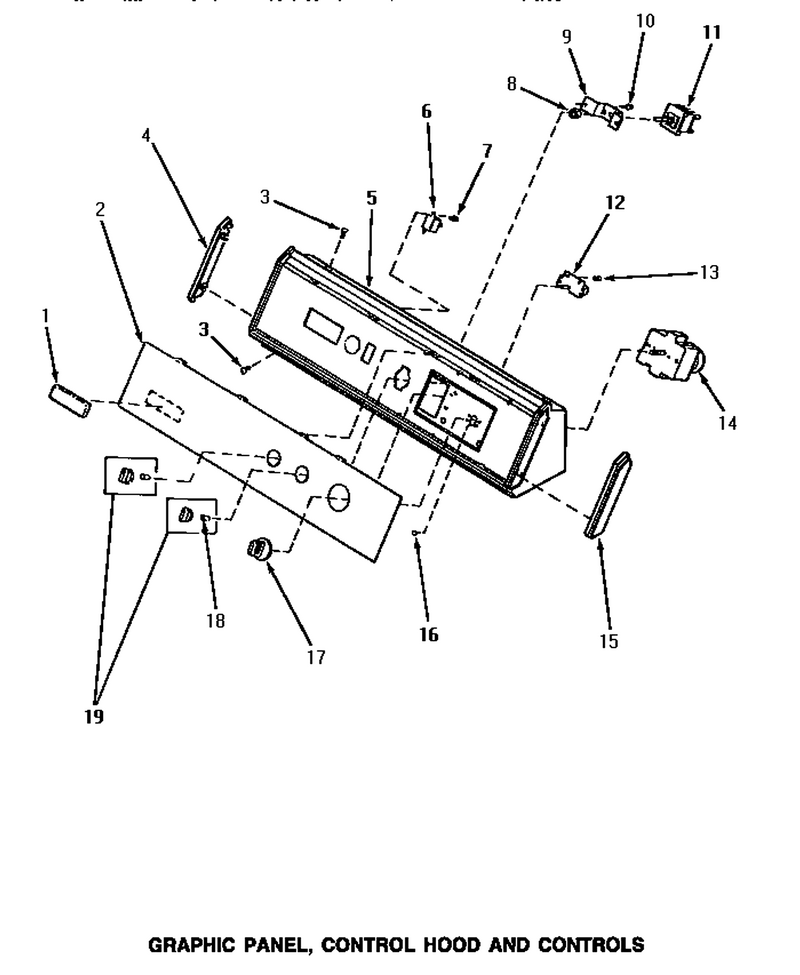

04 - Graphic Panel, Control Hood & Controls

...
...
If Dryer Is Installed In A Manufactured (Mobile) Home, Or If Local Codes Do Notpermit Grounding Through The Neutral, This Wire Will Not Be On The Dryer. See I WPL-NOTE:

...
2
Panel,graphic WPL-60055

...
3
Screw,no.8abx3/4 Pozidri WPL-31752

...
4
Cap,end-L.h.-Chrome WPL-31249

...
5
Assy,hood & Mounting P WPL-59955

...
6
Signal,non-Adjustable WPL-59446

...
7

...

...
9
Bracket,switch Mount WPL-59704

...
10
Screw, No.8 X 3/8 Ind H WPL-31260

...
11
Switch,fabric Selector WPL-Y61511

...
12
Switch,rotate-To-Start WPL-59450

...
13

...
14
Timer,4 Cycle WPL-59497

...
15
Cap,end-R.h.-Chrome WPL-31248

...
16

...
17
Assy,timer Knob & Skir WPL-59791

...
18
Retainer WPL-10519

...
19
Assy,knob-Rotary-Blk/o WPL-31286

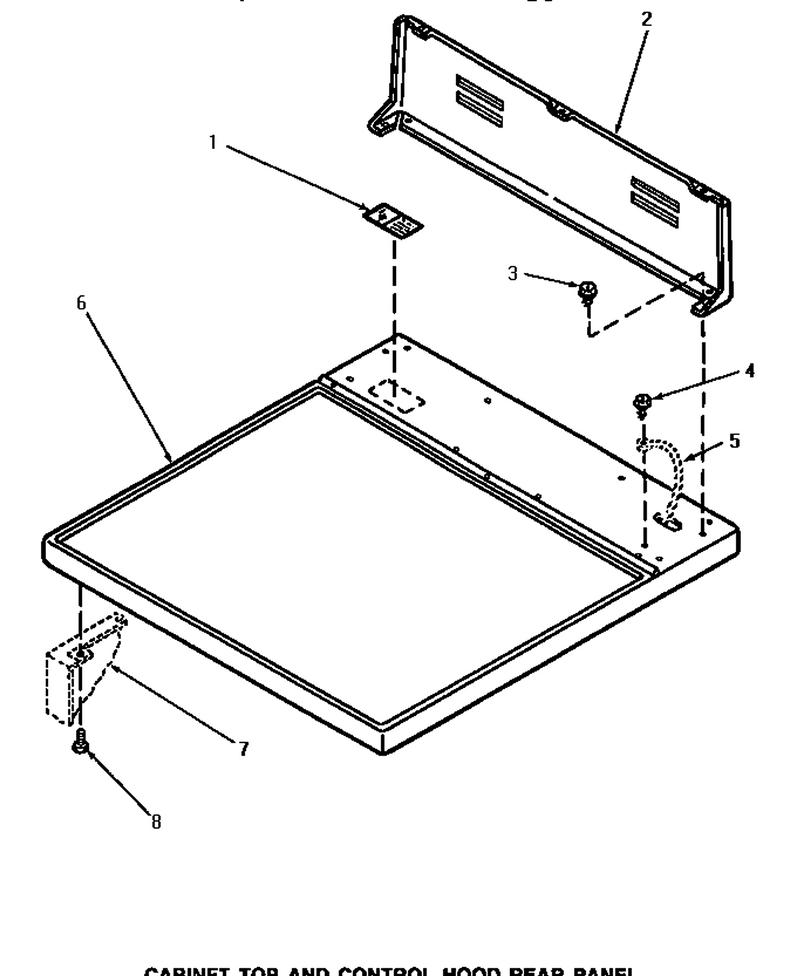

01 - Cabinet Top & Control Hood Rear Panel

...
...
1
Sticker,disconnect Pow WPL-24903

...
2
Panel,back(Home Hood) WPL-40051401P

...
3


...
5
See Note Ground Wire, Green WPL-Y00000000

...
6
Assy,top Panel-Domesti WPL-60815H

...
7
See Note Cabinet WPL-Y00000000

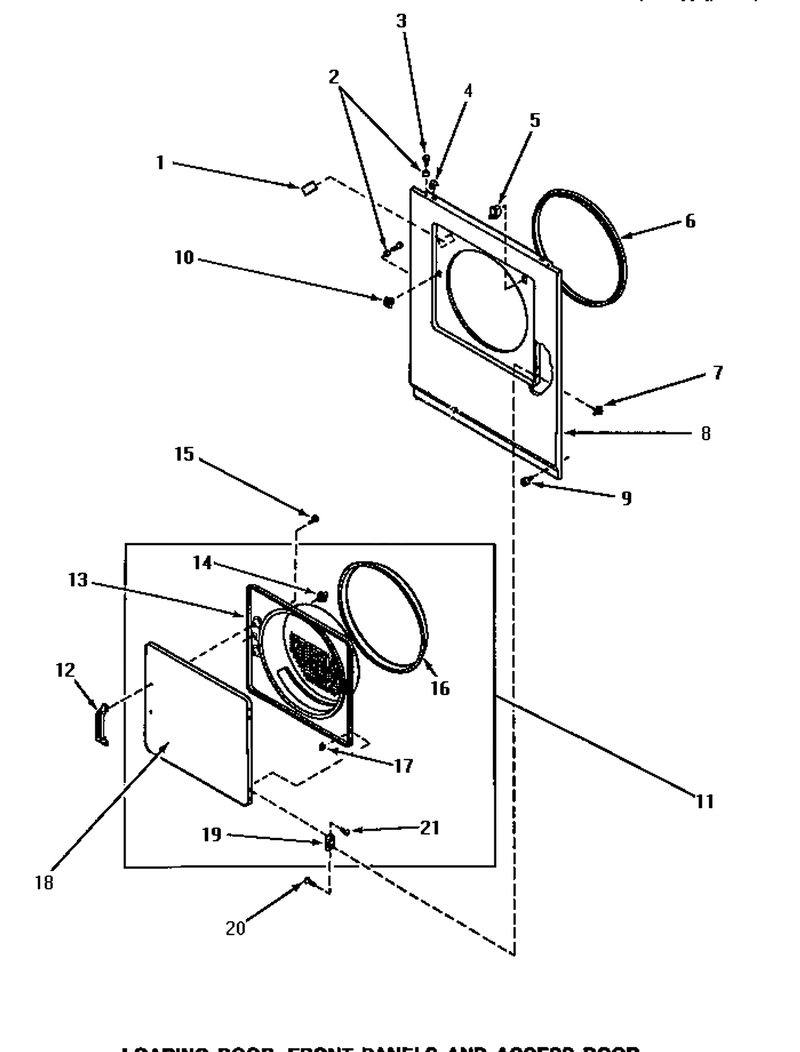

07 - Loading Door, Front Panels & Access Door

...
...
1
Repl By 500281 WPL-58854

...
2
Locator, Panel WPL-505187


...
4
Fastener- WPL-WP22001650

...
5
Switch-Dor WPL-W10169313

...
6
Seal,front Panel WPL-Y61380


...
8
Front Panel, Harvest Gold WPL-62420H


...
10
Door Catch La-1003 WPL-LA-1003

...
11
Assy,door WPL-62151H

...
12
Pull,door WPL-54068P

...
13
Inner Door Panel, Harvest Gold WPL-62152H

...
14
Door Catch La-1003 WPL-LA-1003

...
15

...
16
Door Seal WPL-61379

...
17
Nut,speed-8a Tinn C15 WPL-23407

...
18

...
19
Hinge (Dryer) WPL-56045

...
20
Screw,8-32 X 13/32 Fl WPL-22649

...
21
Screw, 8b-16x5/8 Tap WPL-500226

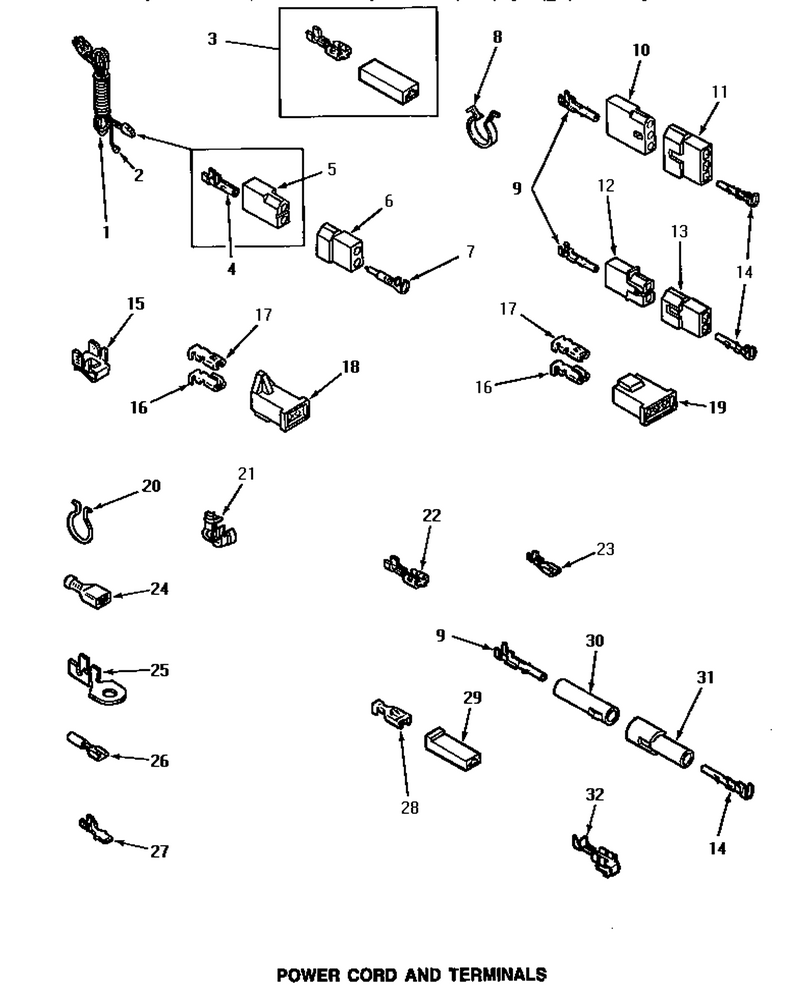

09 - Power Cord & Terminals

...
...
1
Cord- Powe WPL-WP27001142

...
2
See Note Ground Wire, Green WPL-Y00000000

...
3
Terminal,spade-1/4 Fem WPL-Y00237

...
4
Terminal,pin-1/8 Femal WPL-00130

...
5
Receptacle,2 Circuit WPL-56265

...
6

...
7
Terminal,pin-1/8 Male WPL-Y00127

...
8
Clip,wire WPL-61510

...
9
Female Socket Terminal WPL-Y00117

...
10
Receptacle, (Gas Valve) WPL-697780

...
11
Plug, 3 Circuit WPL-23040

...
12
Receptacle,2 Circuit WPL-56451

...
13
Plug 2 Circuit WPL-56448

...
14
Terminal,pin-Male WPL-Y00116

...
15
Ground Clip WPL-Y00161

...
16
Connector,receptacle WPL-Y00190

...
17
Terminal,spade WPL-Y00189

...
18
Connector,2 Circuit WPL-58799

...
19
Connector,3 Circuit WPL-58800

...
20
Clip,wire WPL-51291

...
21
Grommet, Cord WPL-211881

...
22
Spade Terminal(18 Gauge) WPL-Y00119

...
23
Terminal,spade-3/16 Fe WPL-Y00124

...
24

...
25
Terminal,ring-10 Stud WPL-Y00111

...
26
Terminal,1/4 Spade Pre WPL-Y00214

...
27
Terminal,tab 1/4 Male WPL-Y00138

...
28
Terminal,spade-1/4 Fem WPL-00122

...
29
Connector WPL-90789

...
30
Receptacle,molex WPL-26301

...
31
Plug,1 Circuit WPL-26302

...
32
Terminal,spade-1/4 Fem WPL-Y00114

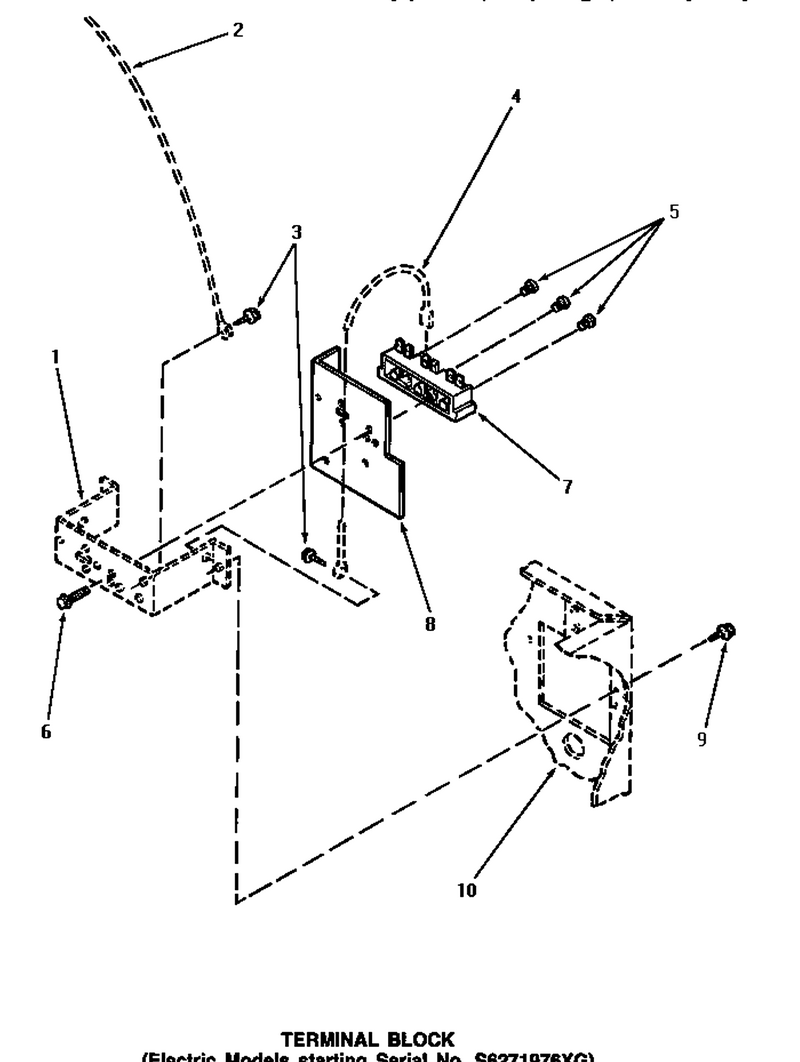

11 - Terminal Block (starting Sn S6271976xg)

...
...
1
See Note Terminal Block Bracket WPL-Y00000000

...
2
See Note Ground Wire, Green WPL-Y00000000


...
4
See Note Ground Wire, Green -- (See Note) WPL-Y00000000


...
6
Screw, No.12 X 9/16 WPL-501285

...
7
Block- Ter WPL-WP61923

...
8
Shield,terminal Block WPL-56087


...
10
See Note Cabinet WPL-Y00000000

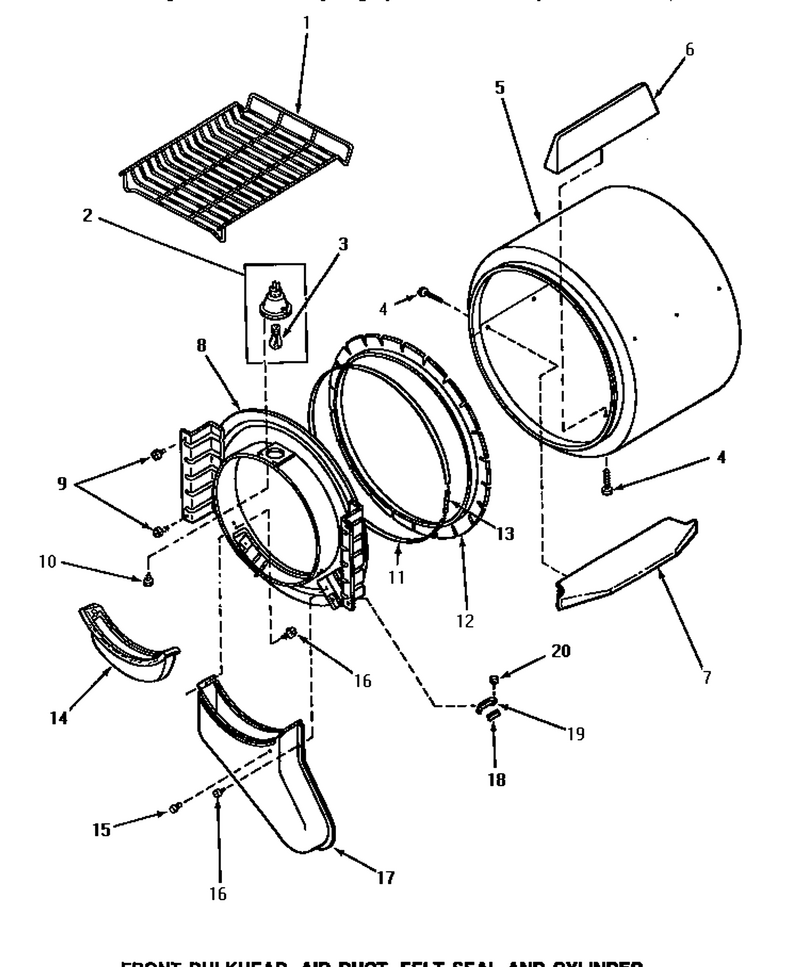

03 - Fr Blkhd, Air Duct, Felt Seal & Cylinder

...
...
1
Rack,drying WPL-58846

...
4
Screw,10bt X 1 Tapping WPL-56131

...
5
Assy,cylinder Pack WPL-60645P

...
6
Baffle,cylinder-Short- WPL-Y61399

...
7
Baffle,cylinder-Extend WPL-Y61027

...
8
Assy Bulk Head WPL-60774P


...
10
Screw, No.8 X 3/8 Ind H WPL-31260

...
11
Strap, Seal WPL-56090P

...
12
Seal Asm WPL-WP56088

...
13
Adapter, Strain Relief WPL-502496

...
14
Screen WPL-61376

...
15
Bumper WPL-56938

...
16

...
17
Assy,air Duct-Front WPL-60786

...
18
Pad,thin WPL-58049

...
19
Bracket WPL-WP57005

...
20

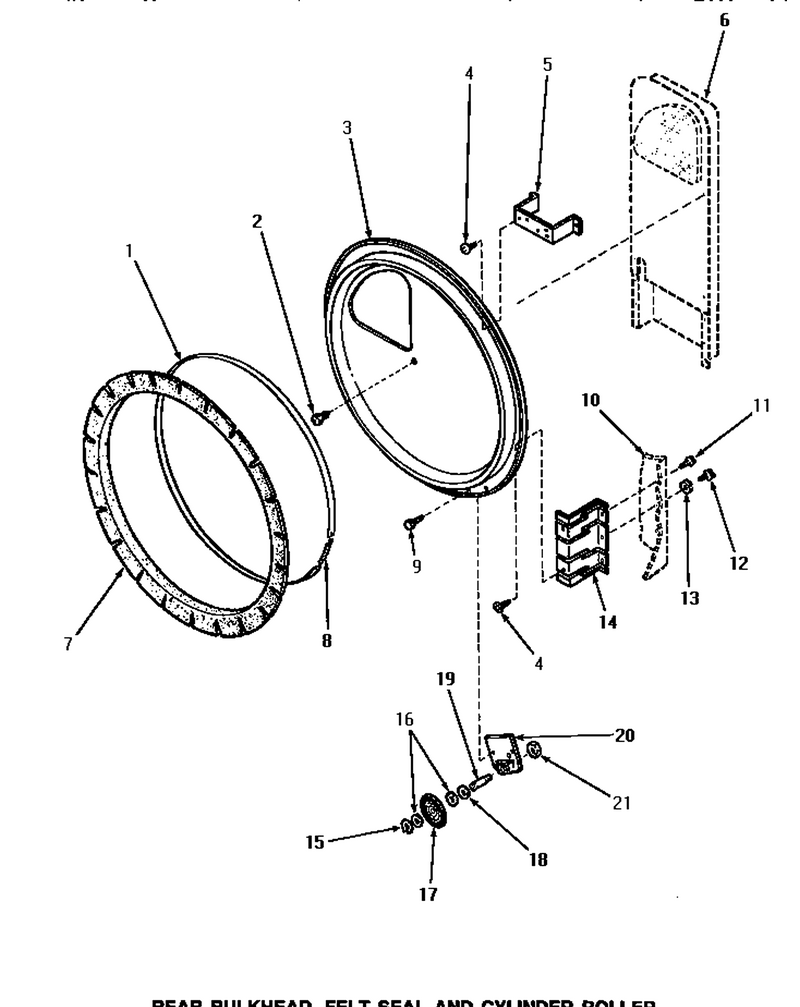

10 - Rear Blkhd, Felt Seal & Cylinder Roller

...
...
1
Strap, Seal WPL-56090P

...

...
3
Assy,rear Bulkhead WPL-61135P

...
4
M400664 WPL-56078

...
5
Bracket,terminal Block WPL-60823P

...
6
See Note Heat Duct WPL-Y00000000

...
7
Seal Asm WPL-WP56088

...
8
Spring WPL-52310


...
10
See Note Cabinet WPL-Y00000000

...

...
12
Screw,10b-16 X 1/2 Hex WPL-52909

...
13
Washer,13/64idx1/2odx. WPL-51474

...
14
Bracket,bulkhead-Rear WPL-56055

...
15
Ring- Reta WPL-WP23748

...
16

...
17
Cylinder Roller WPL-56457

...
18
Washer,.578idx1.25odx1 WPL-23886

...
19

...
20
Bracket,cylinder Roller WPL-56042

...
21
Nut, 3/8-16 Serrated WPL-56156
