Amana ADW862EAW (BOM: PADW862EAW0)

Model: ADW862EAW (BOM: PADW862EAW0)

Save Part Not Listed?
product name

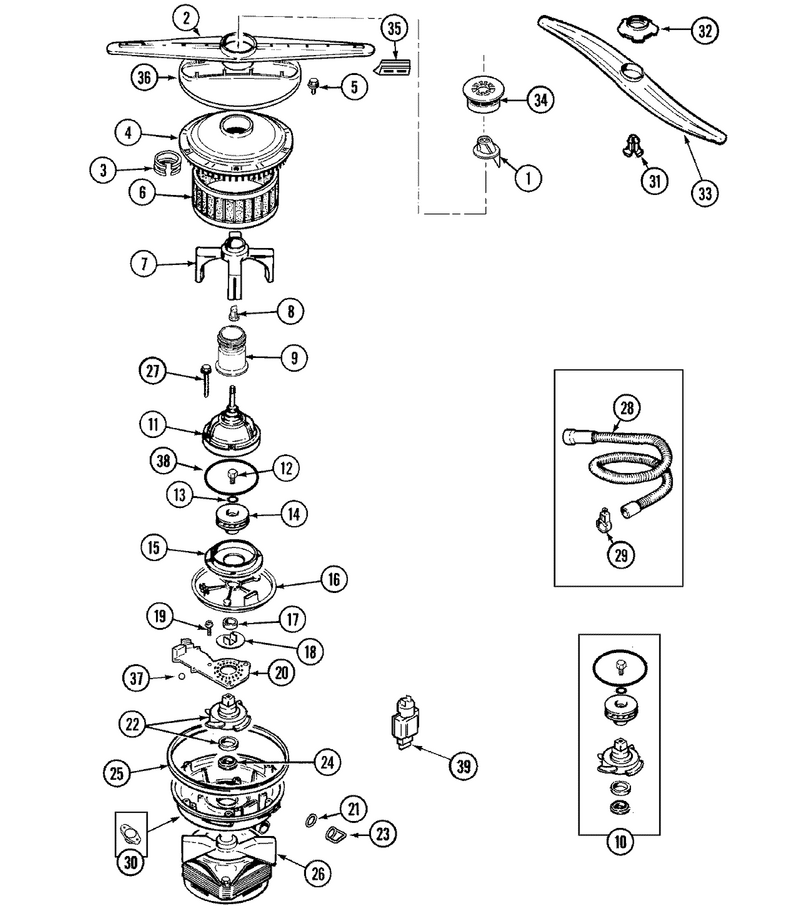

03 - Pump & Motor

...
...
1
Tower WPL-WP99001787
...
2
Arm-Spray WPL-WP99001788
...
3
Ring, Seal WPL-912313
...
4
Filter Assy., Secondary WPL-99001789
...
5
Screw, Secondary Filter WPL-99001790
...
6
Filter- Pu WPL-WP99001791
...
7
Arm-Spray WPL-WP99002043
...
8
Nut- Disch WPL-WP99001426
...
9
Support, Wash Arm WPL-99002041
...
10
Seal Kit WPL-WP6-915435
...
11
Outlet WPL-WP6-917075
...
12
Screw WPL-WP910654
...
13
Ring-O WPL-WP910934
...
14
Impeller A WPL-WP99002069
...
15
Plate, Suction WPL-99002279
...
16
Support, Filter WPL-99002280
...
17
O-Ring WPL-WP912510
...
18
Disc, Cutter WPL-912310
...
19
Screw, Handle WPL-61002031
...
20
Cover, Drain WPL-99001795
...
21
Flapper, Valve WPL-99001799
...
22
Drain Impeller Assembly WPL-903304
...
23
Clip, Retainer WPL-99001800
...
24
Seal, Pump WPL-902882
...
25
Gasket, Pump WPL-912529
...
26
Motor/pump Housing Assembly WPL-99002482
...
27
Screw WPL-912383
...
28
Hose- Drai WPL-WP99001782
...
29
Clamp WPL-WP616099
...
30
Thermistor WPL-99002565
...
31
Retainer WPL-WPW10116811
...
32
Outlet- Sn WPL-WP912680
...
33
Arm- Wash WPL-WP99002418
...
34
Nut WPL-WP99001428
...
35
Shield, Radiant WPL-99002288
...
36
Guard WPL-WP99001796
...
37
Ball-Check WPL-WP99002281
...
38
Gasket, Discharge Hsng (Upr) WPL-99001326
...
39
Sensor, Turbitity WPL-99002071

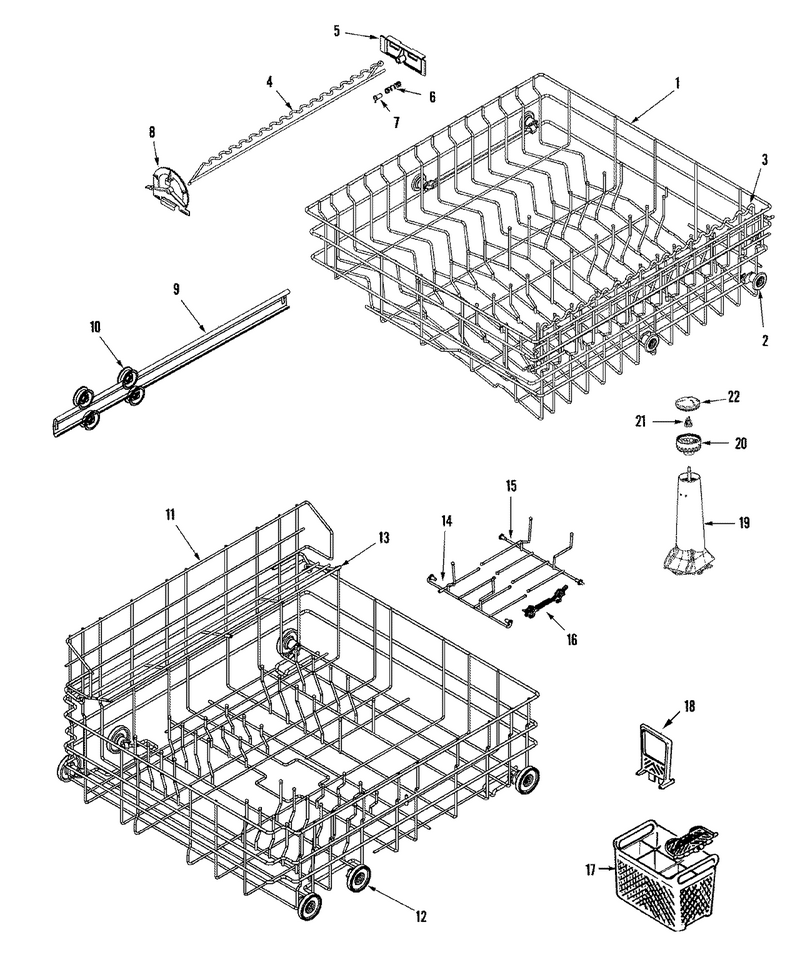

05 - Track & Rack Assembly

...
...
NI
Cap, Rack (Light Gray) WPL-99002017
...
1
Rack Assembly (Upr) WPL-99001454
...
2
Wheel WPL-WP903093
...
3
Shelf, Rack (Upr) WPL-99002456
...
4
Handler, Cup WPL-99002125
...
5
Support, Cup Handler (Rear) WPL-99001439
...
6
Spring, Cup Handler Support WPL-99001440
...
7
Support Cup, Varilock (Rear) WPL-99001461
...
8
Front, Varilock WPL-99003247
...
9
Track WPL-WPY912545
...
10
Wheel- Tub WPL-WP99002342
...
11
Dishrack WPL-W10139223
...
12
Wheel WPL-WP99002780
...
13
Shelf, Rack (Lwr) WPL-99002139
...
14
Tine-Row WPL-WP99002137
...
15
Tine-Row WPL-WP99002138
...
16
Clip- Adju WPL-WPY912709
...
17
Baskt-Ware WPL-WP6-918873
...
18
Handle, Silverware Basket WPL-Y912708
...
19
Tower, Spray (W/shaft-Gray) WPL-99001533
...
20
Diverter- WPL-WP99001442
...
21
Nut- Disch WPL-WP99001426
...
22
Nut WPL-WP99001443

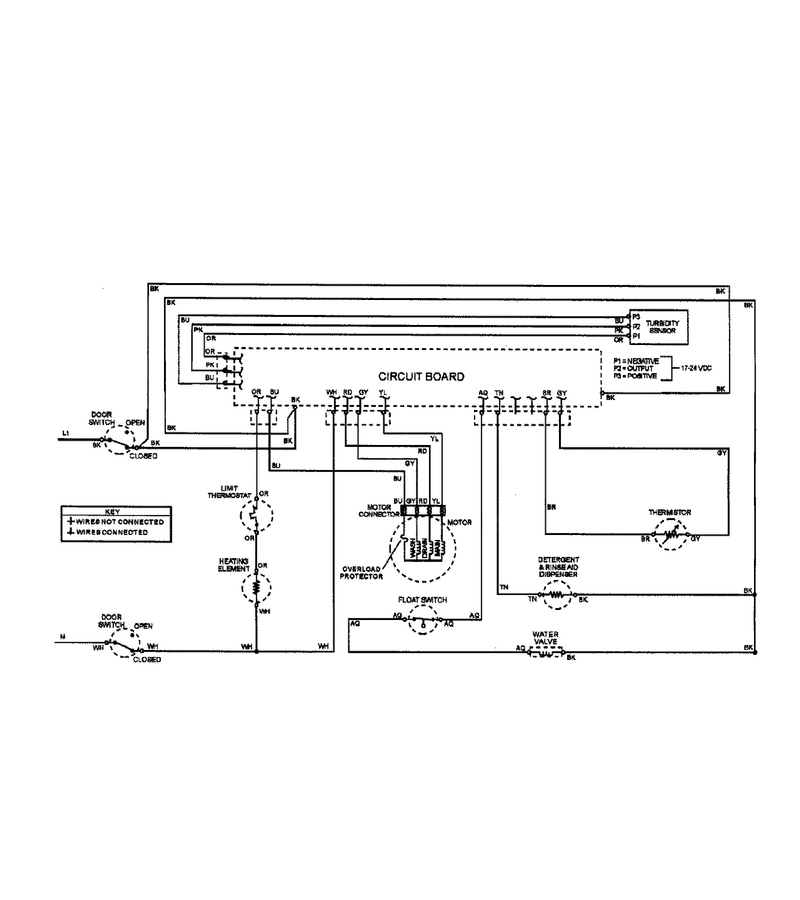

07 - Wiring Information

...
...
NI
Wiring Information WPL-15002908

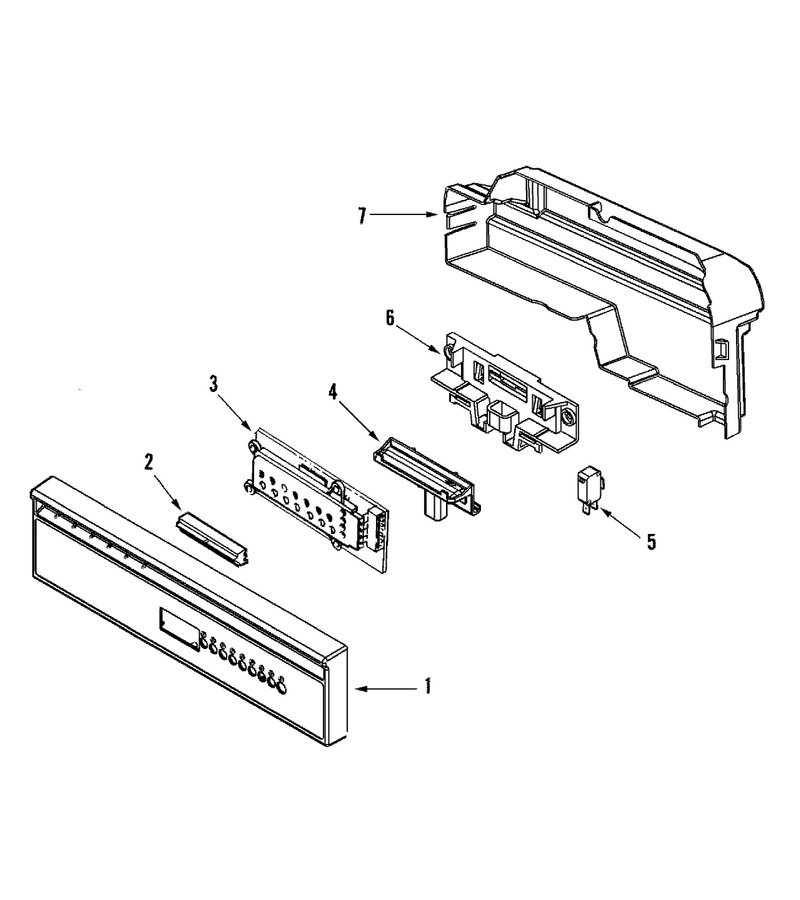

01 - Control Panel

...
...
NI
Harness, Wire WPL-99002528
...
1
Felt, Vent WPL-99002558
...
2
Seal, Vent Outlet WPL-Y913177
...
3
Control Assembly (Led) WPL-99002527
...
4
Cover, Latch WPL-99002382
...
5
Swtch-Door WPL-WP99002207
...
6
Screw WPL-WP33002917
...
7
Barrier, Control Panel WPL-99002432

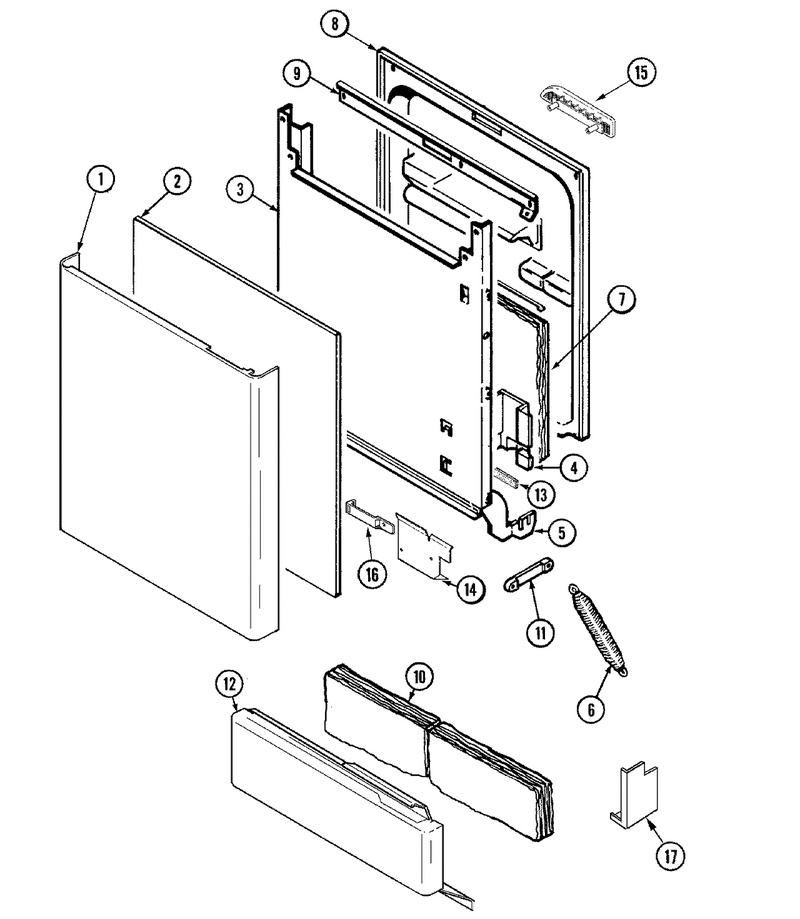

02 - Door

...
...
1
Panel, Decorator (Wht) WPL-99001416
...
2
Filler, Front Panel WPL-99001415
...
3
Ground Wire, Reinforcement WPL-99001688
...
4
Spacer WPL-WP99002362
...
5
Hinge (Rt) WPL-99001899
...
6
Spring- Do WPL-WP99002469
...
7
Pad-Ins WPL-WP6-920580
...
8
Door, Inner WPL-99002388
...
9
Seal, Reinforcement WPL-Y913178
...
10
Insulation, Access Panel WPL-99002412
...
11
Link- Door WPL-WP912653
...
12
Panel, Access (Wht) WPL-99002060
...
13
Pad-Ins WPL-WPW10117748
...
14
Shield WPL-WP6-918554
...
15
Cover, Vent WPL-Y912910
...
16
Screw WPL-WP489128
...
17
Screw, Access Panel WPL-99001194

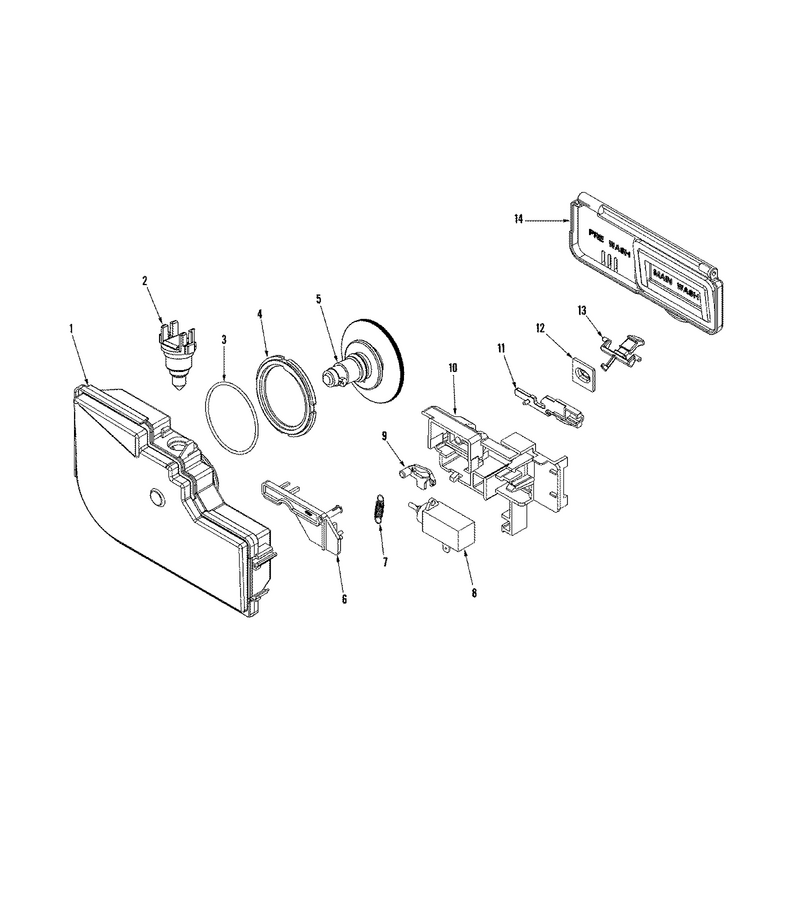

04 - Rinse Aid & Soap Dispenser

...
...
1
Reservoir WPL-WP99002833
...
2
Plunger Assembly WPL-903124
...
3
Ring-O WPL-WP99002003
...
4
Nut, Rinse Aid WPL-99002005
...
5
Knob- Rins WPL-WP6-903123
...
6
Slider WPL-99001289
...
7
Spring WPL-WPW10116816
...
8
Motor-Wax WPL-WP902899
...
9
Pivot WPL-WP99001287
...
10
Screw WPL-WP33002917
...
11
Actuator WPL-WP99001290
...
12
Grommet WPL-WP99001553
...
13
Latch WPL-WP99001291
...
14
Pin- Hinge WPL-WP6-912678

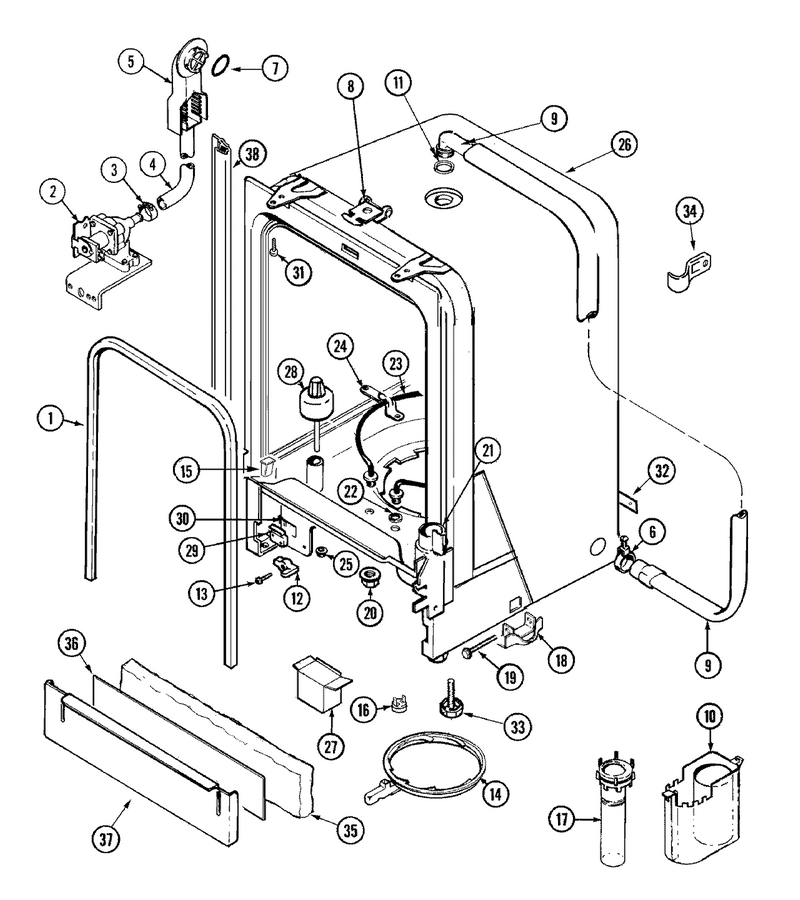

06 - Tub

...
...
1
Gasket WPL-WP902894
...
2
Screw WPL-WP489128
...
3
Clamp WPL-WP596669
...
4
Hose, Injector WPL-912633
...
5
Injector- WPL-WP912533
...
6
Clamp WPL-WPW10548433
...
7
Ring WPL-WP912644
...
8
Retainer- WPL-6-912650
...
9
Hose, Top Shower WPL-912647
...
10
Vent, Inlet WPL-Y913095
...
11
Washer, Tub Top WPL-910069
...
12
Lever, Actuator WPL-912014
...
13
Pivot Pin, Actuator Lever WPL-99002531
...
14
Ring, Locking WPL-Y912686
...
15
Deflector- WPL-WP99001885
...
16
Thermostat WPL-WP99001852
...
17
Tube, Inlet WPL-Y913096
...
18
Bracket, Adjusting WPL-912651
...
19
Screw, Adjusting Bracket WPL-912613
...
20
Nut, Heating Element WPL-912645
...
21
Screw WPL-912622
...
22
O-Ring- He WPL-WPY913079
...
23
Element- H WPL-WP99002360
...
24
Bracket, Element WPL-99002361
...
25
Nut WPL-WP911265
...
26
Pad-Ins WPL-WPW10223013
...
27
Box, Terminal WPL-912563
...
28
Float WPL-WP99002363
...
29
Switch- Wa WPL-WP99002560
...
30
Screw WPL-WP489128
...
31
Screw WPL-WP489491
...
32
Support WPL-WP912654
...
33
Levler-Leg WPL-WPW10143258
...
34
Hook- Drai WPL-WPY912790
...
35
Shield WPL-WP6-920587
...
36
Damper, Toe Panel WPL-99001204
...
37
Screw, Access Panel WPL-99001194
...
38
Seal, Sound (Wht) WPL-99002335
