Amana ADM-1B (BOM: P8554803S)

Model: ADM-1B (BOM: P8554803S)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

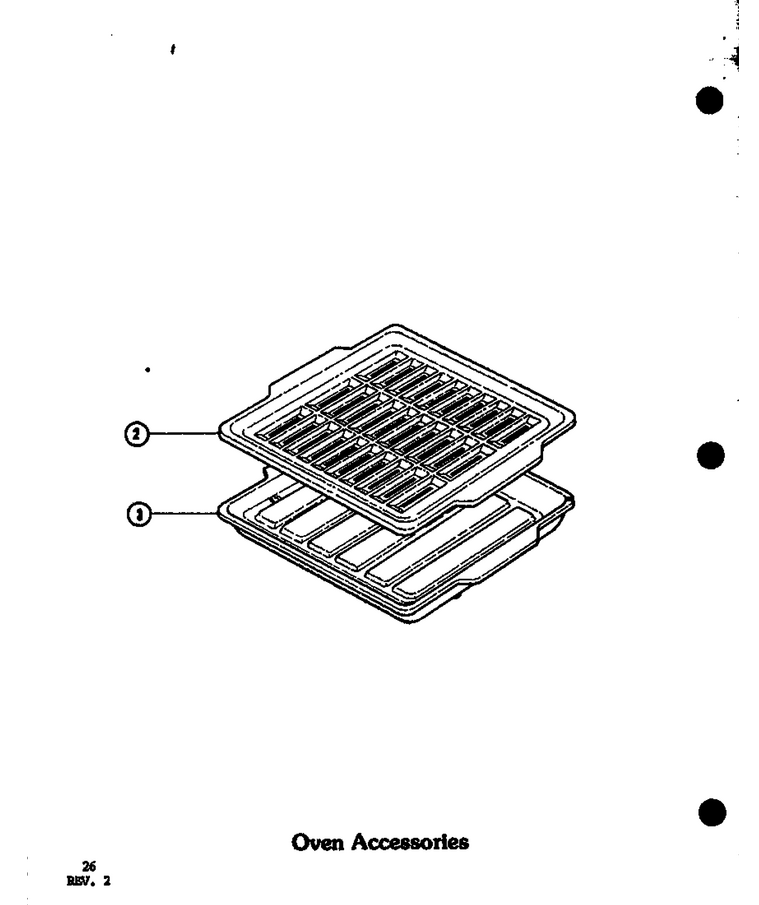

06 - Oven Accessories

...
...
2
Procelain Broiler (Pan And Grid) WPL-4396923
...
3
Procelain Broiler (Pan And Grid) WPL-4396923

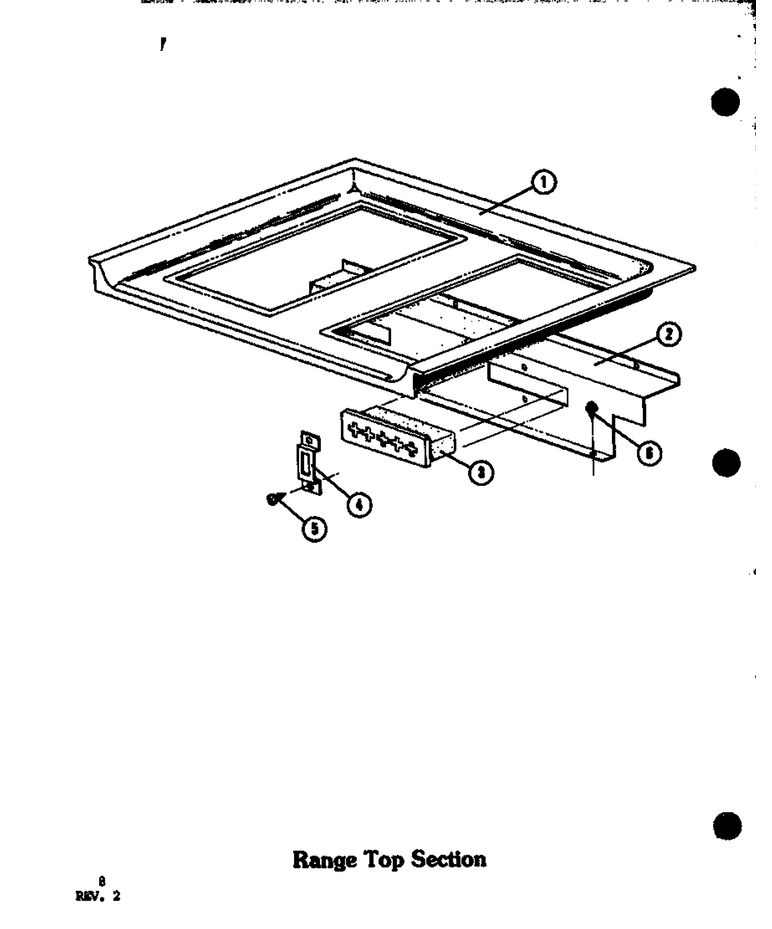

08 - Range Top Section

...
...
NI
Element, Contact-Module Top WPL-Y0042123
...
1
Main Top, Chrome WPL-R0199146
...
2
Plug Block Baffle Du976 966 WPL-R0199147
...
3
Plug Block Modular Top WPL-Y0042210
...
4
Plug Block Mtg Brkt Et590 595 WPL-Y0040965
...
5
Screw, No.6-32 X .250 Pan Hd Ph WPL-31750303
...
6
Screw WPL-WP90767

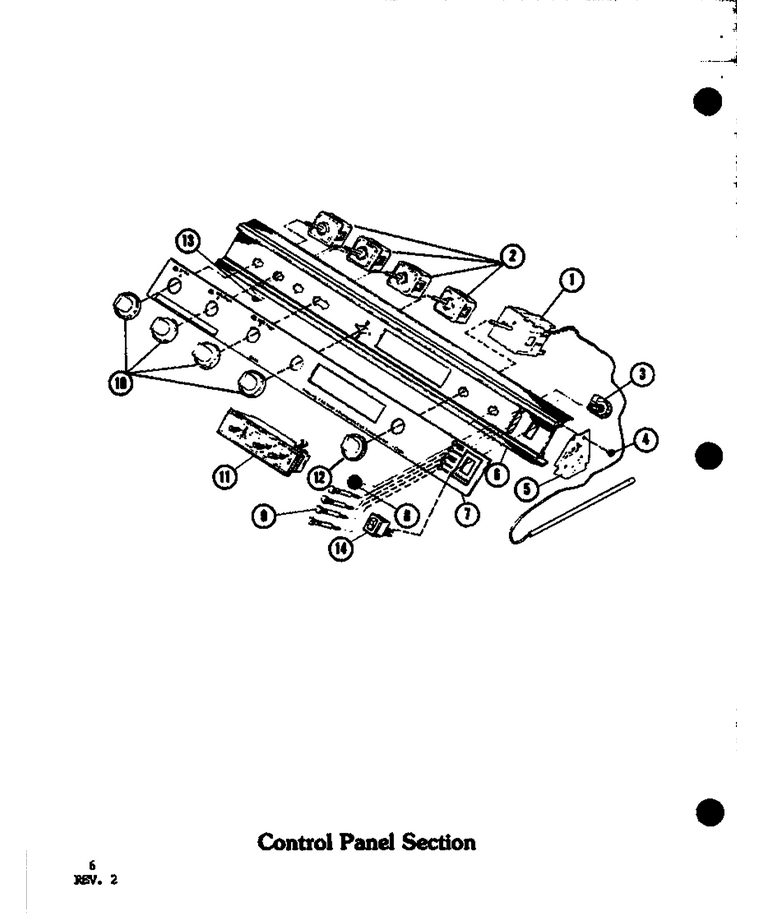

03 - Control Panel Section

...
...
NI
5644107 W.h. WPL-Y0043531
...
1
Pyro Thermostat With Top Heat WPL-R0199132
...
2
Switch-Inf WPL-W11121639
...
3
Oven Light Switch WPL-R0199135
...
4
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
5
End Cap Lt. C.pan. Pyro Th WPL-R0199137
...
6
Control Panl Ext WPL-R0199138
...
7
Control Panel Inlay Amana WPL-R0199139
...
8
Knurl Nut WPL-R0199140
...
9
Indicator Lights WPL-R0199141
...
10
Knob, Surface Switch WPL-R0199142
...
11
Clock, Automatic WPL-R0199143
...
12
Knob Thermostet Kingseeley Ama WPL-R0199144
...
13
Screw WPL-WP3400882
...
14
Switch, On-Off WPL-R0199145

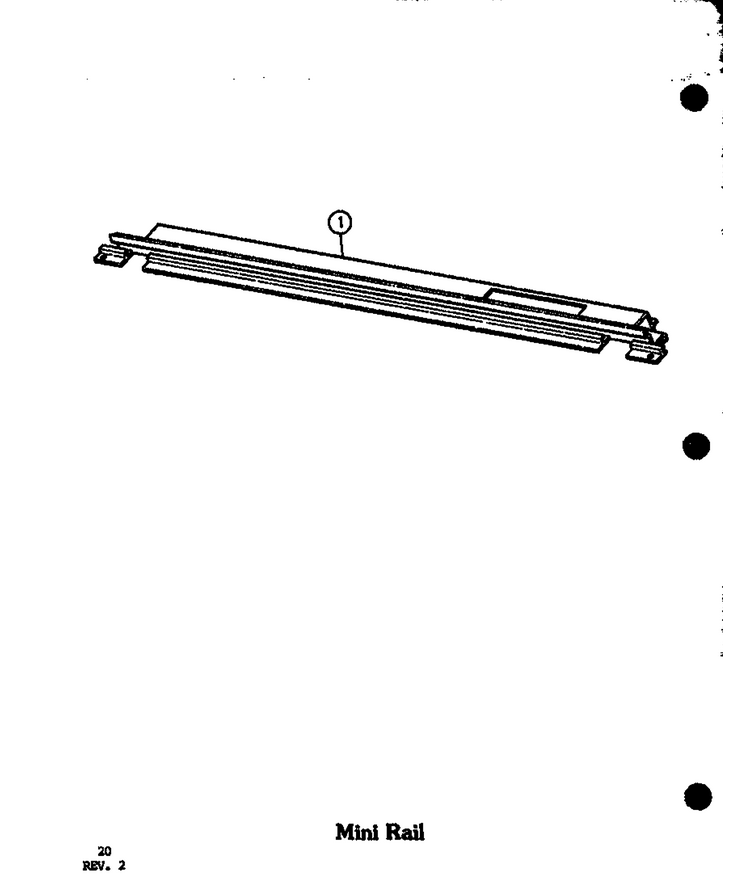

05 - Mini Rail

...
...
NI
Screw WPL-WP90767
...
1
Back Rail Extrusion WPL-R0199159

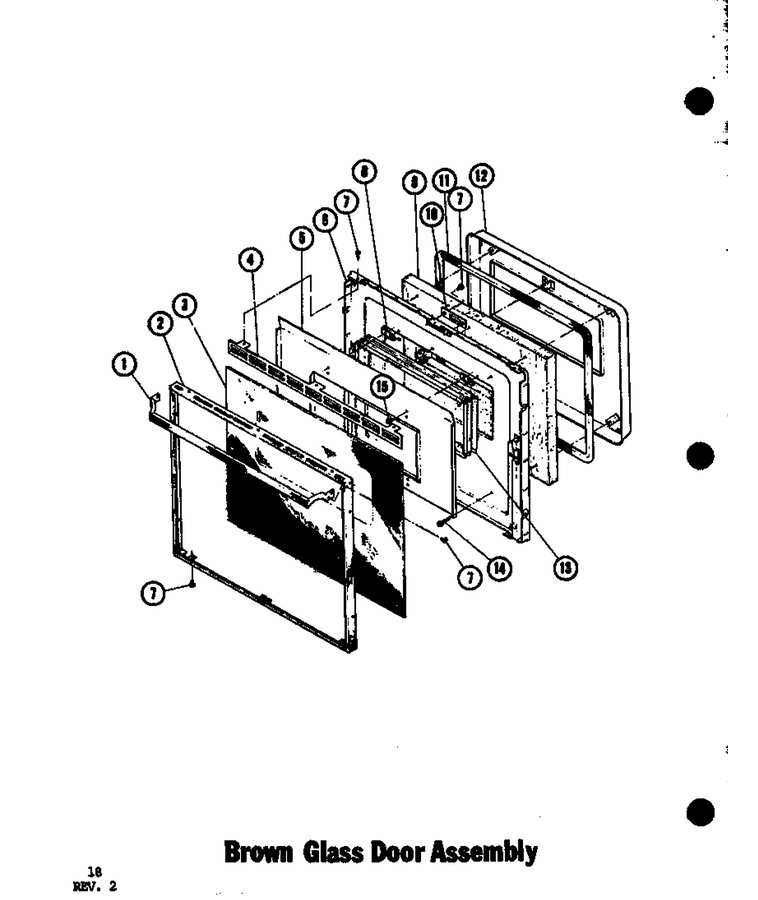

01 - Brown Glass Door Assy

...
...
1
Door Handle WPL-R0199206
...
2
Door Frame WPL-R0199149
...
3
Brown Glass WPL-R0199150
...
4
Top Door Trim Pyro Th WPL-R0199151
...
5
Inner Baffle Th Pyro Door WPL-R0199152
...
6
Door Liner, Gray WPL-Y040242Y
...
7
Screw No.8x3/8 Sq. Drive WPL-Y0041832
...
8
Window Mtg Brkt Pyro Th Dr WPL-R0199154
...
9
Insulation,wrapper WPL-R0199155
...
10
Latch Plate WPL-Y0052039
...
11
Gasket, Door (76``) WPL-31715903
...
12
Door Pad WPL-R0199245
...
13
Window Assy WPL-R0157858
...
14
Screw, No. 8a X 1/4 WPL-Y0041799
...
15
Screw WPL-WP90767

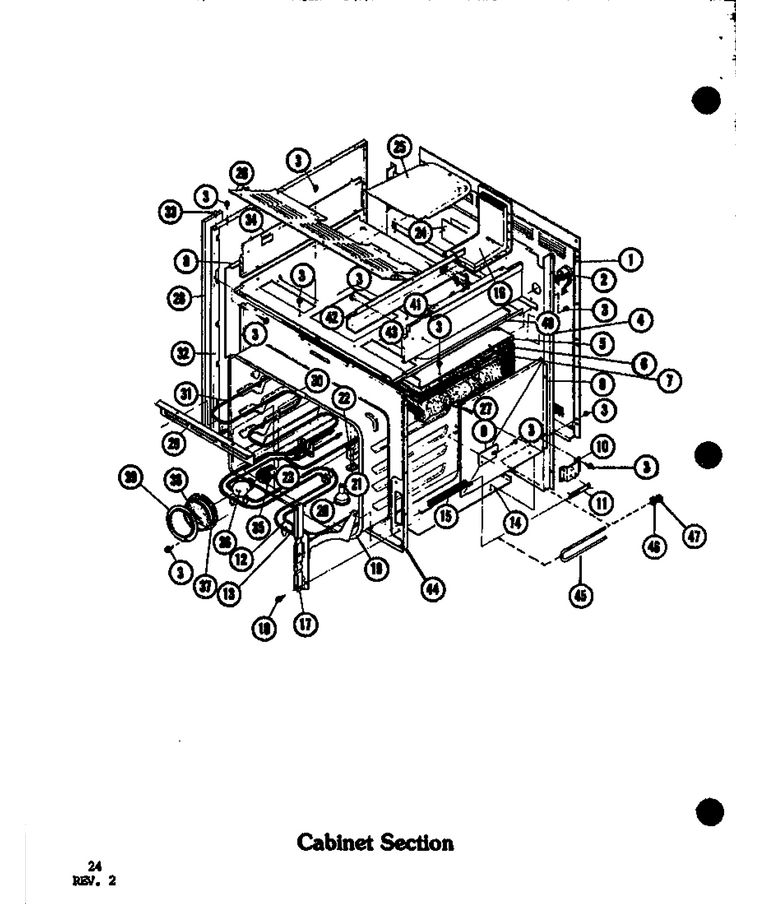

02 - Cabinet Assy

...
...
NI
Term Block Cover Pyro Th WPL-R0199198
...
1
Rear Wire Shield WPL-R0199166
...
2
5644004 W.j. WPL-R0199167
...
3
Screw WPL-WP90767
...
4
Cabinet Back Loboy WPL-R0199168
...
5
Top Insulation Retain Pyro Th WPL-R0199169
...
6
Insulation 2x20x26 WPL-R0199170
...
7
Insulation 26x4x20 Awx Hitemp WPL-R0199171
...
8
Side Insul Retain Pyro Th WPL-R0199172
...
9
Bracket, Oven Mounting-Pyro WPL-Y0041017
...
10
Bracket, Spring Mounting WPL-R0157897
...
11
Brkt-Door Spring WPL-R0157798
...
12
Slo/cook Element T.h.pyro WPL-R0199174
...
13
Bake Element Pyro Th WPL-Y0042146
...
14
Bot Insul Retain Pyro Th WPL-Y0040774
...
16
Flue Box W/a Pyro Th WPL-R0199177
...
17
Hinge Assy WPL-Y0052095
...
18
Screw WPL-WP3400882
...
19
Sub 311144e, Kit, Oven Liner WPL-311144E
...
20
Smoke Eliminator WPL-R0157813
...
21
Capillary Hole Cover Plate WPL-R0157808
...
22
Oven Probe Brkt Pyro Th WPL-R0199179
...
23
Screw WPL-R0199180
...
24
Relay Mtg Plate Pyro Th WPL-R0199181
...
25
Cover, Door Latch WPL-40775CG
...
26
Switch Shield WPL-R0199183
...
27
Insulation,wrapper WPL-R0157839
...
28
Side Trim Lt WPL-R0199184
...
29
Broil Element Support Pyro WPL-Y0040902
...
30
Chip Cover WPL-R0199186
...
31
Broil Unit For Pyro T.h. Range WPL-R0199187
...
32
Side Panel WPL-302911G
...
33
Top Spacer WPL-Y0042007
...
34
Burner Box WPL-R0199190
...
35
Socket, Oven Light WPL-Y0316385
...
36
Light Bulb WPL-8009
...
37
Gasket,oven Light WPL-Y0041987
...
38
Oven Light Lens Pyro. Walloven WPL-Y0042769
...
39
Lens Retainer Stainless Steel WPL-R0199255
...
40
Burner Box WPL-R0199191
...
41
Unit Support Bracket WPL-R0199192
...
42
Wire Channel Du976 966 WPL-R0199193
...
43
Burner Box WPL-R0199194
...
44
Main Front-Dk Gr WPL-R0199246

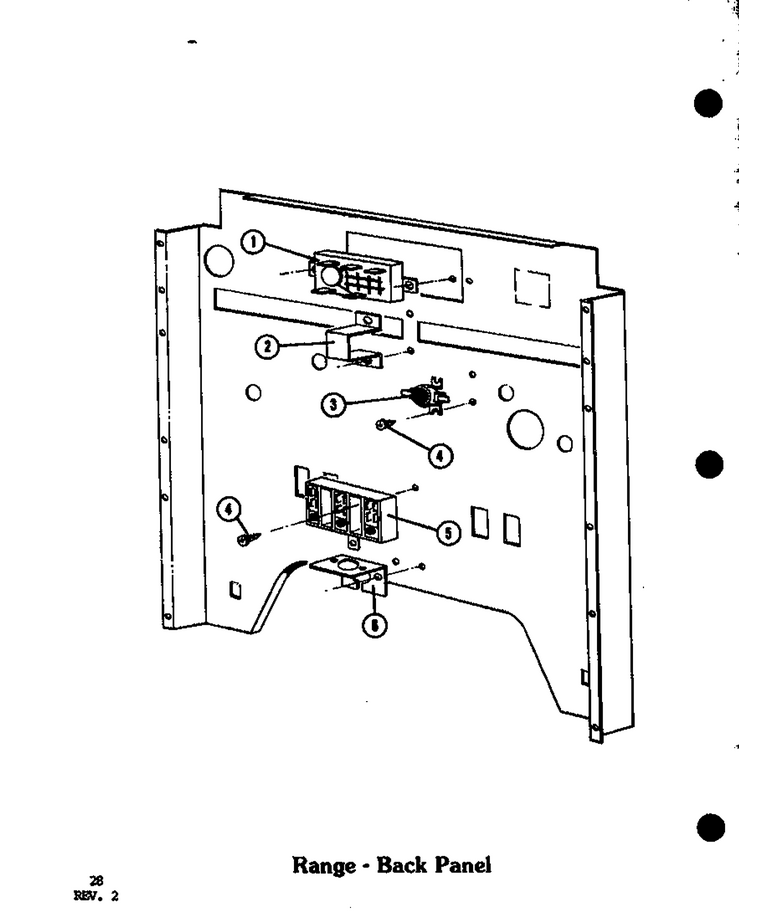

07 - Range - Back Panel

...
...
1
Relay, Oven WPL-Y0091669
...
2
Spacer Brkt Pyro T.h. WPL-R0199203
...
3
Limit Control-Lower Oven-225 WPL-Y0042046
...
4
Screw WPL-WP90767
...
5
Term Blk 1m-Min WPL-R0199204
...
6
Conduit Mounting Bracket WPL-R0199205

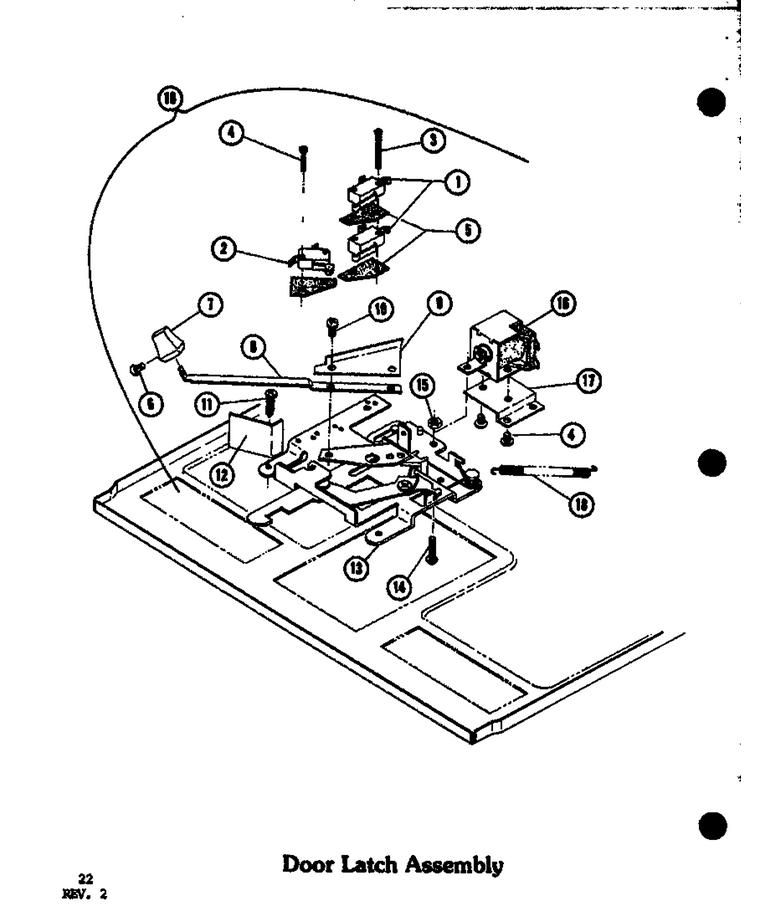

04 - Door Latch Assy

...
...
1
Switch-Clean/primary Interlock WPL-Y0067919
...
2
Main Contact Switch WPL-R0157873
...
3
Screw 4-40x15/16`` WPL-Y0041821
...
4
Screw WPL-M0234040
...
5
Insulator-Switch WPL-R0157781
...
6
Screw 6 32x5/16 Ph Fh WPL-Y0041769
...
7
Door Latch Handle WPL-R0199068
...
8
Door Latch Lever Pyro Th WPL-R0199160
...
9
Terminal Shield WPL-R0199161
...
10
Screw, No.6-32 X .250 Pan Hd Ph WPL-31750303
...
11
Screw WPL-WP90767
...
12
Sight Shield Pyro Th WPL-R0199162
...
13
Door Latch Assy Th WPL-R0199163
...
14
Screw 6 32x1 Slotted Rn Brass WPL-R0157855
...
15
Nut K WPL-M0282005
...
16
Solenoid Eaton Pyro Th Wo WPL-Y0042049
...
17
Door Lock Assembly WPL-R0199164
...
18
Spring WPL-R0157852
...
19
Door Lock Assembly WPL-R0199164
