Amana ACT100WW (BOM: P1133380NWW)

Model: ACT100WW (BOM: P1133380NWW)

Save Part Not Listed?
product name

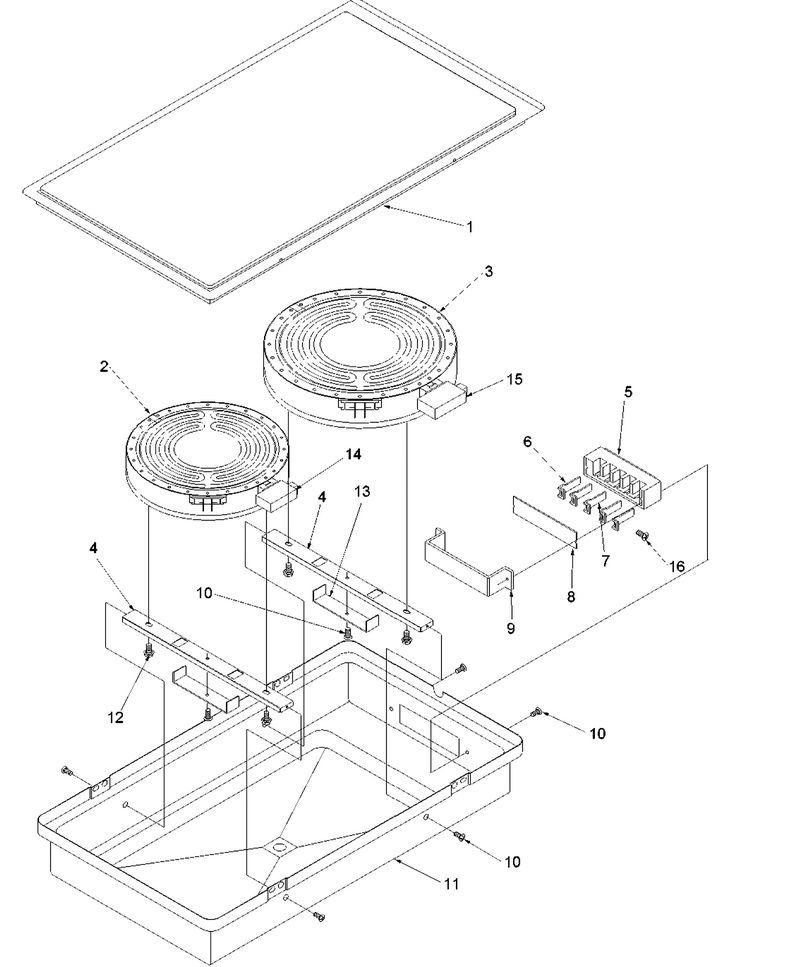

01 - Act100, Act101, Cc14, And Xst2072

...
...
NI
Screw WPL-WP8281227
...
1
Assy, Module Top (Black) WPL-31729801B
...
2
Element, Ribbon 1200w WPL-0316131
...
3
Elmnt-Surf WPL-W10823710
...
4
Brkt, Element Mtg WPL-Y0316133
...
5
Module, Plug Block WPL-Y0314569
...
6
Contact, Spade-Ground WPL-Y0052041
...
7
Contact, Spade-Ground WPL-Y0052041
...
8
Insulator-Cooktop Module WPL-Y0041994
...
9
Plug Block Mtg Brkt WPL-Y0040964
...
10
Screw WPL-W11245710
...
11
Module Pan, Electric WPL-31907501
...
12
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
13
Spring, Element WPL-Y0306683
...
14
Tod, Limiter D014 WPL-0316904
...
15
Tod, Limiter C017 WPL-0316903
...
16
Screw WPL-WP3400882
