Amana ACS7270AW (BOM: PACS7270AW0)

Model: ACS7270AW (BOM: PACS7270AW0)

Save Part Not Listed?
product name

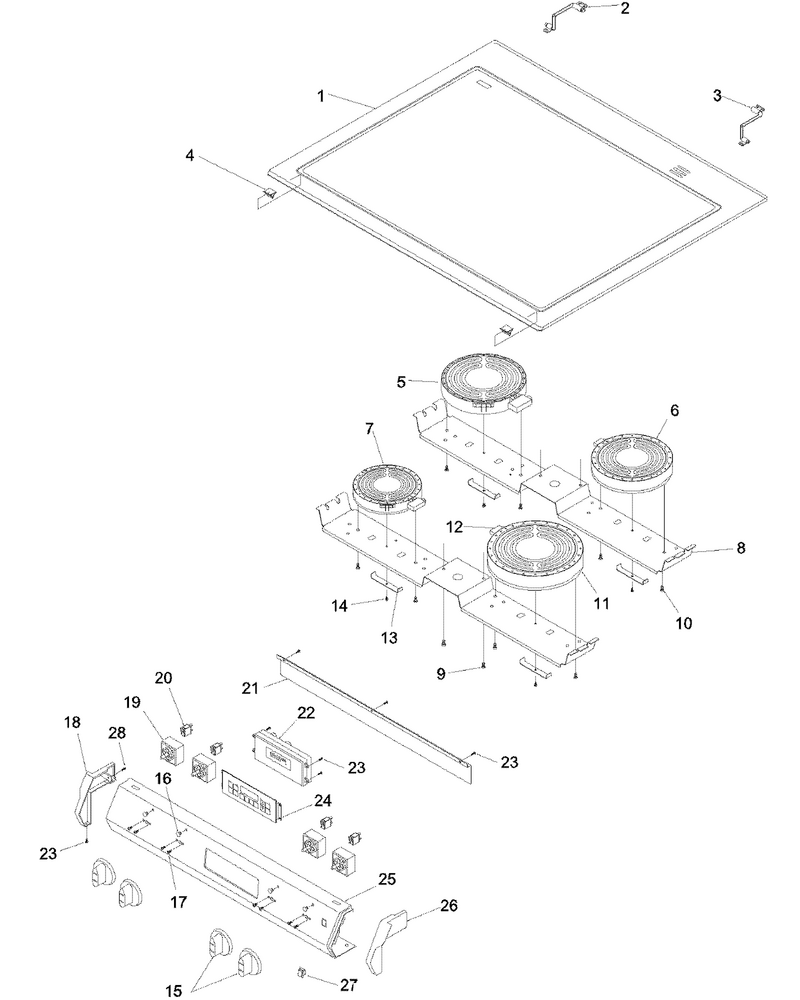

03 - Main Top And Backguard

...
...
NI
Harness, Wire Infinite/radiant WPL-77001027
...
1
Assy-Top WPL-32059905W
...
2
Hinge, Main Top (Lt) WPL-31769702
...
3
Hinge, Main Top (Rt) WPL-31769701
...
4
Clip, Spring WPL-Y0316394
...
5
Elmnt-Surf WPL-W10823710
...
6
Elmnt-Surf WPL-W10823699
...
7
Elmnt-Surf WPL-WP32082801
...
8
Bracket, Element WPL-Y0316165
...
9
Screw, No.8-18 X 1/4 P Trs Hd WPL-31750422
...
10
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
11
Elmnt-Surf WPL-W10823726
...
12
Limiter-Dual WPL-0316689
...
13
Spring, Element WPL-Y0306683
...
14
Screw WPL-W11245710
...
15
Knob, Switch (Wht) WPL-31926619W
...
16
Lens, Indicator Light WPL-31780502
...
17
Screw, No.8-32 X 1/4 WPL-31750714
...
18
End Cap, Cont Pnl (Lt-Wht) WPL-31742702W
...
19
Switch- In WPL-WP74011243
...
20
Light-Ind WPL-WP903115
...
21
Heat Shield, Control Panel WPL-0316650
...
22
Erc, Control Module WPL-77001242
...
23
Screw, No.6-20 X .375 Panhd(Blk) WPL-31750315
...
24
Panel, Membrane Switch (Wht) WPL-32061702W
...
25
Panel, Control-Screened (Wht) WPL-32053302W
...
26
End Cap, Cont Pnl (Rt-Wht) WPL-31742705W
...
27
Switch, Rocker (Wht) WPL-31986602W
...
28
Screw WPL-W11245710

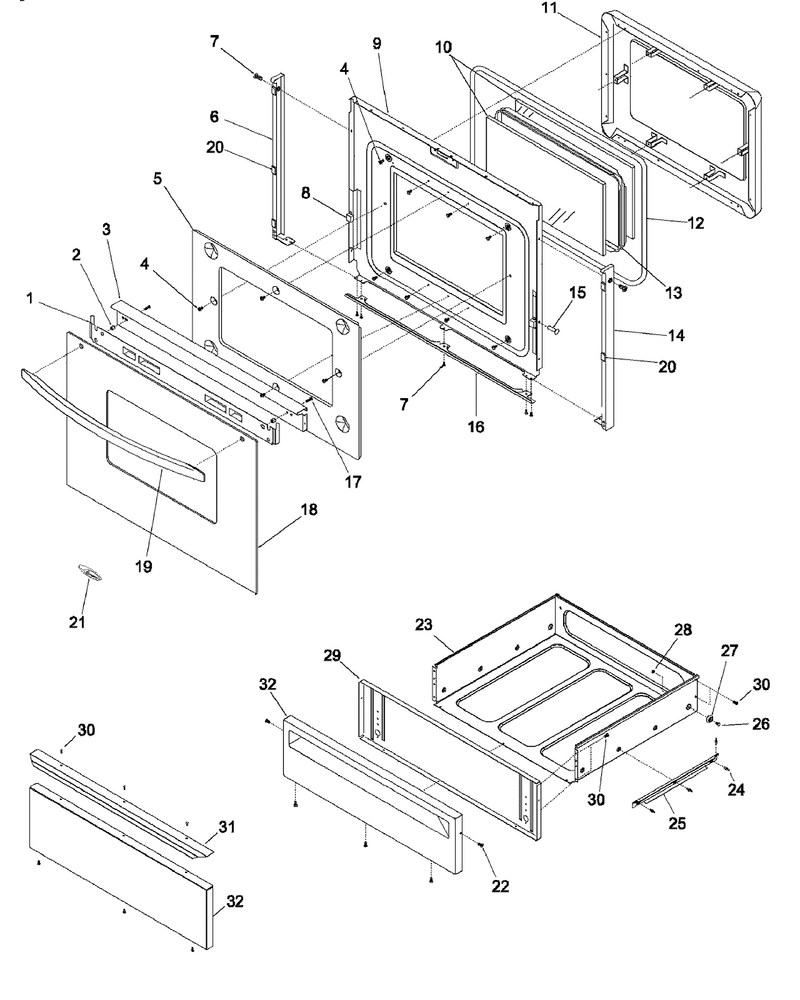

04 - Oven Door And Storage Drawer

...
...
NI
Insulation, Door Pad-Long WPL-31975501
...
1
Shield, Heat (Glass) WPL-32054101
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top (Wht) WPL-32054203W
...
4
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
5
Shield, Heat WPL-Y0309068
...
6
End Cap, Door (Lt-Wht) WPL-309523W
...
7
Screw WPL-W11245710
...
8
Bumper, Rubber WPL-Y0309627
...
9
Backer, Oven Door WPL-317023CG
...
10
Glass, Door WPL-Y0317019
...
11
Pad, Oven Door WPL-317021CG
...
12
Gasket, Oven Door (67``) WPL-31715902
...
13
Frame, Window Pack WPL-Y0317020
...
14
End Cap, Door (Rt-Wht) WPL-309522W
...
15
Rivet, Pop WPL-Y0302648
...
16
Support- G WPL-R9800243
...
17
Screw, No.10-32x1 3/8 Pan Ph Hd WPL-31750522
...
18
Glass, Oven Door (Wht) WPL-316238W
...
19
Handle- Ov WPL-77001119
...
20
Tape, Foam WPL-0043184
...
21
Nameplate (Amana Plus) WPL-Y12528501
...
23
Drawer, Storage (Wht) WPL-32059403W
...
24
Rivet, Pop WPL-Y0097822
...
25
Track, Storage Drawer WPL-31733301
...
26
Bolt, Shoulder 10-32 WPL-31750717
...
27
Roller, Drawer WPL-31733401
...
28
Nut, Lock WPL-22004193
...
29
Liner, Drawer Panel (Blk) WPL-31927401B
...
30
Screw WPL-W11245710
...
32
Panel, Drawer (Wht) WPL-309176W

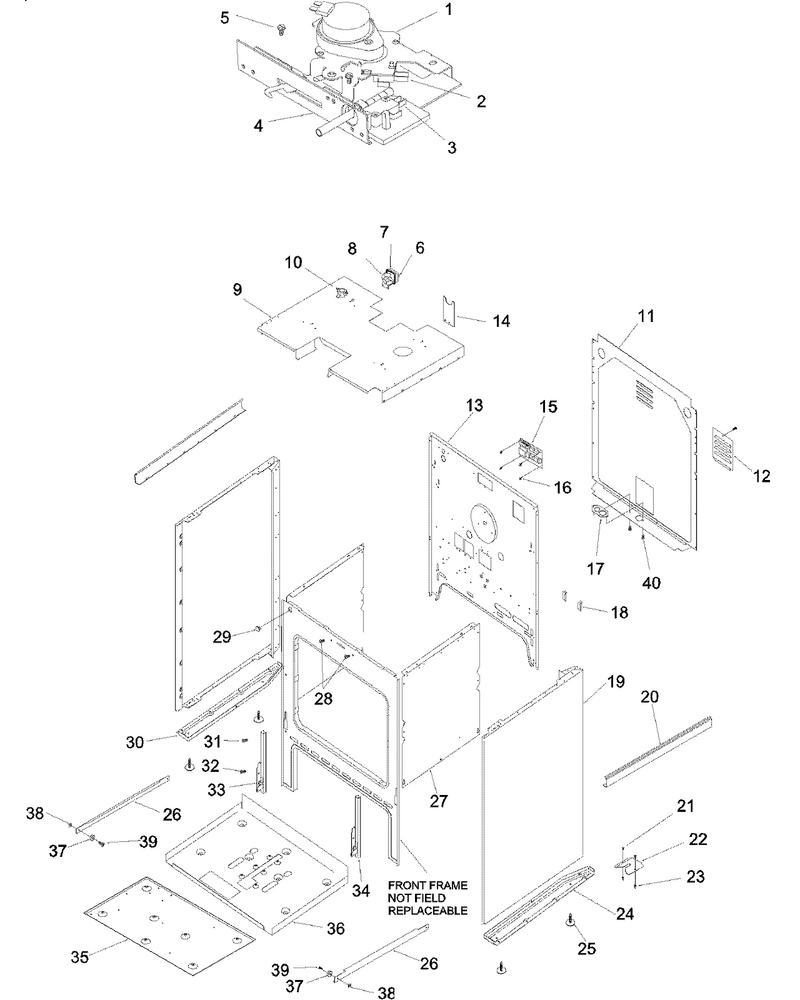

01 - Cabinet

...
...
NI
Anti-Tip Pack WPL-31970801
...
1
Latch, Door WPL-31933401
...
2
Switch, Micro WPL-31899201
...
3
Switch, Plunger WPL-31933601
...
4
Bracket, Latch Mounting WPL-31848301
...
5
Screw WPL-WP693995
...
6
Bolt, Shoulder 10-32 WPL-31750717
...
7
Fan Assy, Cooling (W/blade) WPL-Y0309884
...
8
Blade, Fan WPL-Y0314375
...
9
Retainer, Top Insulation WPL-31723601
...
10
Thermostat, High Limit WPL-Y0316699
...
11
Cover, Rear WPL-31757101
...
12
Plate, Access WPL-31757201
...
13
Retainer, Rear WPL-31791201
...
14
Bracket, Vent Tube WPL-31938301
...
15
Board, Relay WPL-Y0316079
...
16
Support-Circuit Board WPL-Y0306900
...
17
Plate, Main Inlet Wire WPL-0058311
...
18
Cable, Clip Esm WPL-Y0091587
...
19
Panel, Side (Wht) WPL-31825104W
...
20
Filler Strip (Wht) WPL-316325W
...
21
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
22
Bracket, Anti Tip WPL-31945201
...
23
Anchor, Plastic WPL-Y0301555
...
24
Brace, Leveling Leg (Rt) WPL-31854502
...
25
Leg,leveling Xxx WPL-314187B
...
26
Track, Mounting WPL-32075601
...
27
Retainer, Insulation (Side) WPL-0304282
...
28
Screw WPL-WP7101P126-60
...
29
Plug, Button (3/4``-Blk) WPL-Y0315328
...
30
Brace, Leveling Leg (Lt) WPL-31854501
...
31
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
32
Screw WPL-WP4159193
...
33
Hinge, Oven Door (Lt) WPL-31715201
...
34
Hinge-Door WPL-R0706011
...
35
Shield, Heat WPL-Y0315146
...
36
Retainer, Insulation (Bottom) WPL-Y0309061
...
37
Roller, Drawer WPL-31733401
...
38
Nut, Lock WPL-22004193
...
39
Screw, No.10-32x1/2 (Ph Taptite) WPL-31750511
...
40
Screw WPL-W11245710

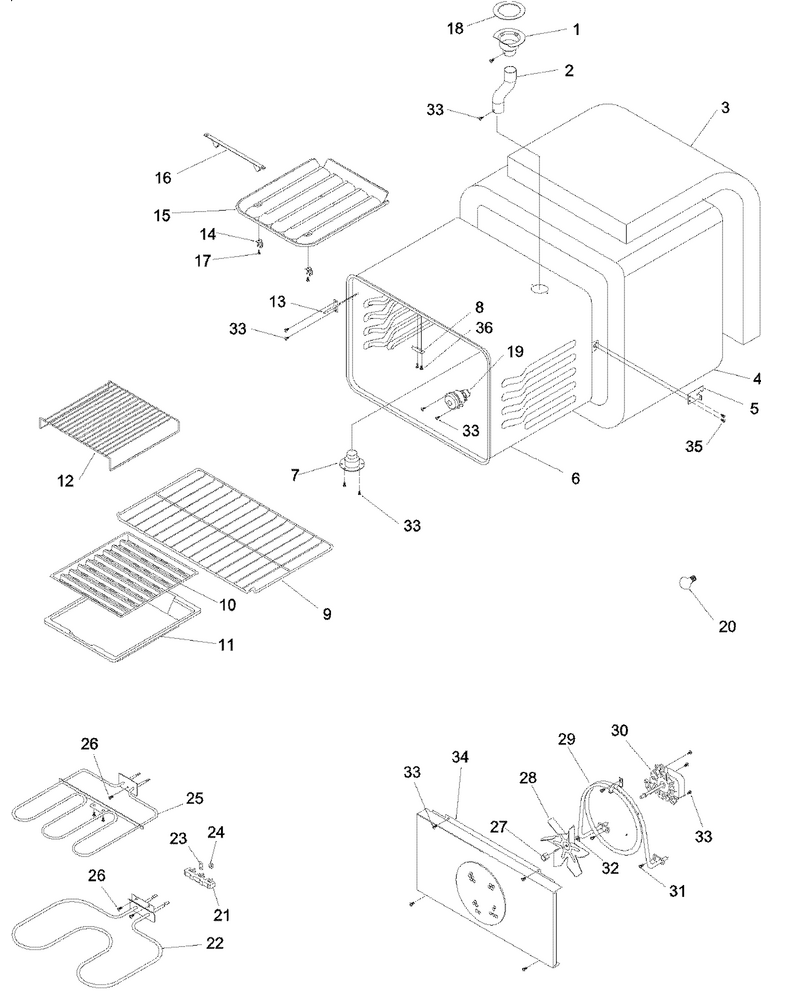

02 - Cavity

...
...
1
Adapter, Vent Tube WPL-Y0316762
...
2
Tube, Vent WPL-31938101
...
3
Insulation, Top (Rr) WPL-31976601
...
4
Insulation, Wrapper WPL-31976501
...
5
Bracket, Oven Cavity WPL-Y0058852
...
6
Oven, Cavity (Enamelled) WPL-31822101CG
...
7
Eliminator, Smoke WPL-31938201
...
8
Cover, Chip WPL-Y0315022
...
9
Rack, Oven WPL-309988J
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Procelain Broiler (Pan And Grid) WPL-4396923
...
12
Rack, Broiler WPL-Y0306531
...
13
Sensor WPL-WP31968201
...
14
Bracket, Mounting WPL-0315402
...
15
Reflector, Broil Element WPL-Y0315403
...
16
Bracket, Reflector Mounting WPL-Y0061557
...
17
Rivet, Pop WPL-Y0097822
...
18
Gasket, Vent WPL-31865901
...
19
Oven Light Assy WPL-31823701
...
20
Light Bulb WPL-8009
...
21
Block-Term WPL-WP8203546
...
22
Element- B WPL-WP77001094
...
23
Block-Term WPL-WPW10245259
...
24
Hex Nut (Nkl) WPL-31750124
...
25
Element- B WPL-WPY0061732
...
26
Screw WPL-WP7101P126-60
...
27
Nut, Lt Hand Thread WPL-0307037
...
28
Blade, Fan WPL-Y0307036
...
29
Element, Conv Oven(240v-2200w) WPL-77001135
...
30
Fan Assy, Convection (W/blade) WPL-Y0307035
...
31
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
32
Washer (Zn) WPL-0307038
...
33
Screw WPL-W11245710
...
34
Cover, Fan (Cg) WPL-31843201CG
...
35
Screw WPL-WP693995
...
36
Screw WPL-W11245710

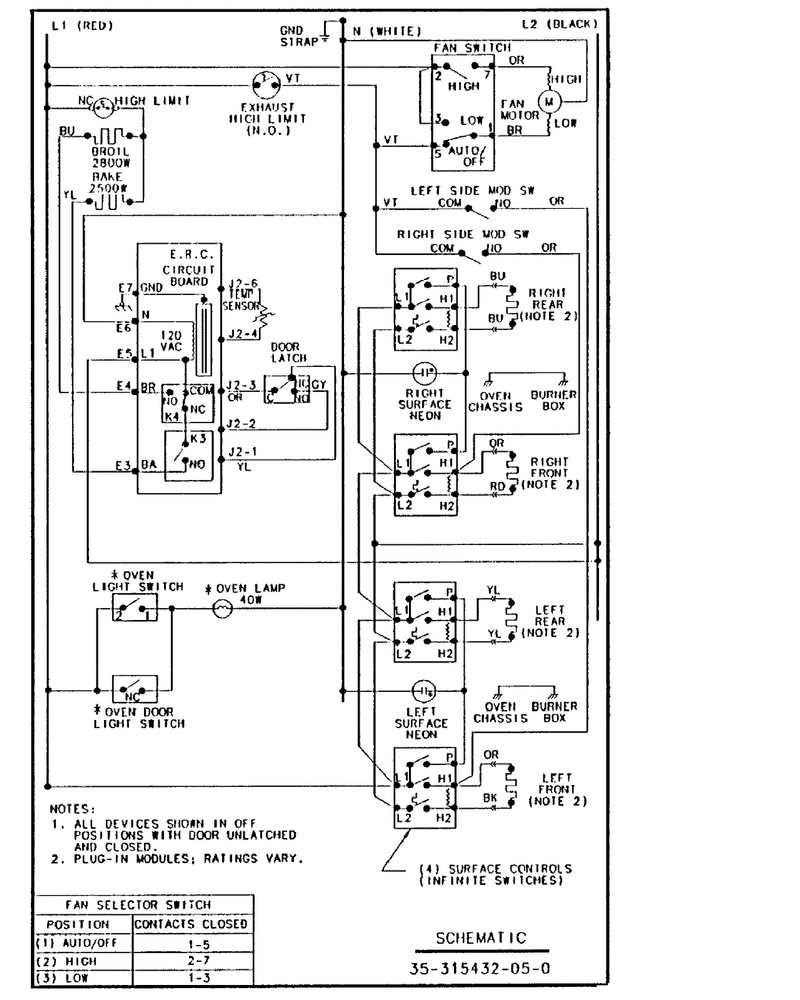

06 - Wiring Information

...
...
NI
Wiring Information WPL-15003254

...
...
1
Amana Cooking WPL-16021454
...
2
Manual, Service WPL-RS2320004
...
3
Tech Sheets WPL-16023340
...
4
Instr, Install (Elec S/i) WPL-31971301
...
5
Owners Manual WPL-77001177
...
6
Sheet,quick Start(Acs7270/7280 WPL-32065601
...
7
Scraper, Cooktop WPL-WA906B
...
8
Cleaner, Cooktop WPL-W10355051
