Amana ACS200x (BOM: P1133382NCC)

Model: ACS200x (BOM: P1133382NCC)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

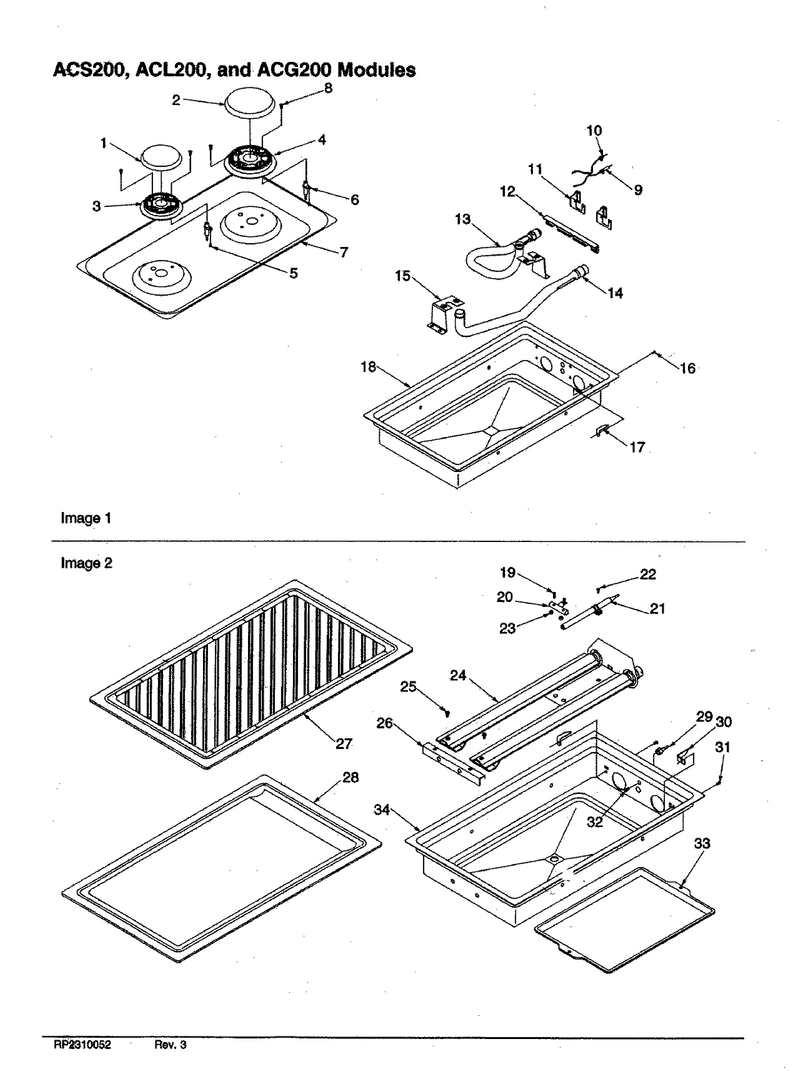

01 - Gas Cartridge, Griddle, Grill

...
...
All Cartridges WPL-NOTE:
...
1
Cap-Burner WPL-WP31782602SY
...
2
Cap-Burner WPL-WP31782702SY
...
3
Top Burner WPL-WPY0315768
...
4
Burnr-Head WPL-WP7504P109-60
...
5
Screw, Electrode WPL-Y0316775
...
6
Igntr-Surf WPL-WPY0316773
...
7
Top, Module-Sealed Burner (Ss) WPL-Y0316364
...
8
Screw WPL-WPY04100059
...
9
Electrode, Burner Ign. 21``wire WPL-Y0316389
...
10
Electrode, Burner Ign. 1o``wire WPL-Y0315751
...
11
Brkt, Venturi Clamping WPL-31813601
...
12
Brkt, Venturi Clamping WPL-31813601
...
13
Venturi, Rear Burner-Hw WPL-31909401
...
14
Venturi, Front Burner-Hw WPL-31909301
...
15
Brkt, Burner Mtg. WPL-Y0315755
...
16
Screw WPL-WP74004005
...
17
Strike, Grille Pan WPL-31892401
...
18
Screw WPL-WP693995
...
19
Screw 4-40x15/16`` WPL-Y0041821
...
20
Flash Tube Kgt591 WPL-Y0040841
...
21
Grille, Electrode WPL-Y0042217
...
22
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
23
Nut, Keps No.4-40 WPL-31750112
...
24
Assy, Grille Burner (Gas) WPL-31891801B
...
25
Screw WPL-WP693995
...
26
Grille Burner Rear Support WPL-Y0041041
...
27
Grille , Low Smoke (Blk) WPL-31902101B
...
28
Griddle, Cast (Gas) WPL-31902001B
...
29
Ground Pin Xst311 Kgt591 WPL-Y0041898
...
30
Strike, Grille Pan WPL-31892401
...
31
Screw WPL-WP74004005
...
32
Screw WPL-WP3400882
...
33
Pan, Grease Kgt591 WPL-32067501
...
34
Module Pan & Deflector WPL-31789702CG
