Amana ACO1860AC (BOM: PACO1860AC1)

Model: ACO1860AC (BOM: PACO1860AC1)

Save Part Not Listed?
product name

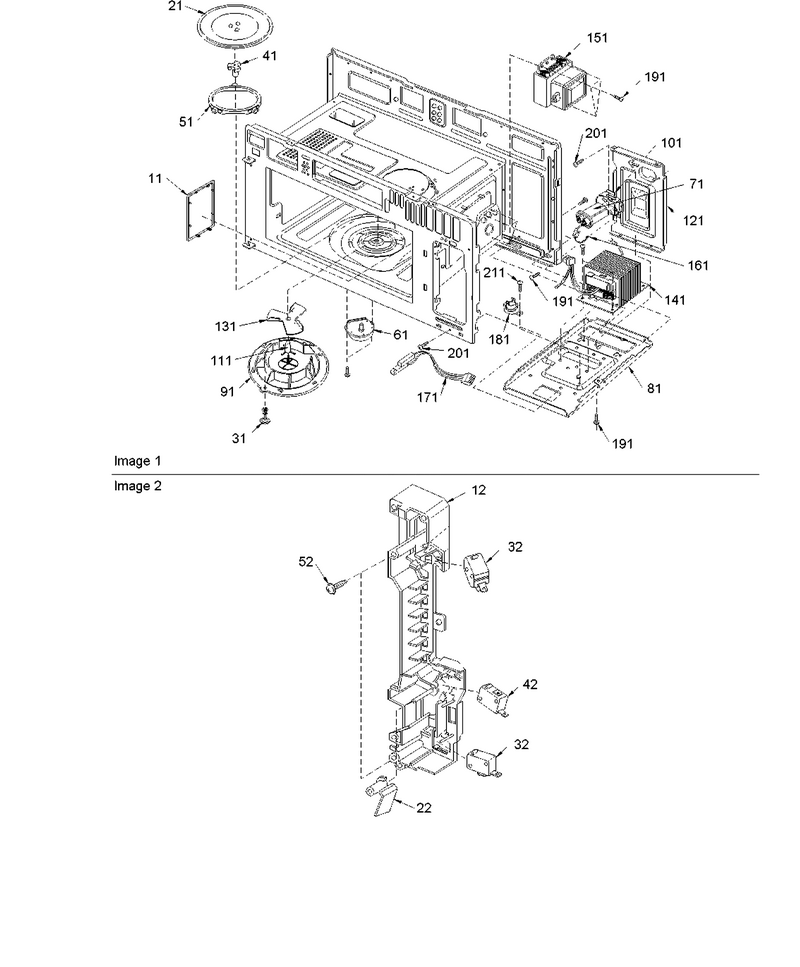

05 - Magnetron, Transformer & Latch

...
...
11
Canopy WPL-8184278
...
12
Latch Board WPL-8183558
...
21
Tray, Glass WPL-R0130603
...
22
Lever, Latch WPL-R9800416
...
31
Rivet-Stir WPL-WP4359508
...
32
Switch- Pr WPL-WP56001036
...
41
Support WPL-W11199019
...
42
Switch Micro Primary WPL-4392027
...
51
Support WPL-WPW10207752
...
52
Screw WPL-R0654111
...
61
Motor, Turn Table WPL-R0130610
...
71
Capacitor- WPL-WP59001168
...
81
Plate, Bottom WPL-R0130613
...
91
Cover, Stirrer Fan WPL-R0131687
...
101
Bracket, Capacitor WPL-R0130615
...
111
Holder, Stirrer Fan WPL-R0130616
...
121
Guide, Air WPL-R0130618
...
131
Fan, Stirrer WPL-R0130619
...
141
Transformer, H.v. WPL-R0130620
...
151
Magnetron WPL-W10859575
...
161
Diode- Bla WPL-WPR9800486
...
171
Wire, Lead Assy WPL-R0130624
...
181
Thermostat, Bimetal WPL-R0131460
...
211
Screw, Pan Hd S/tap WPL-R0654029

...
...
0
Assy,pwb(Pcb)main WPL-R0130645
...
1
Manual, Service WPL-RS2100011

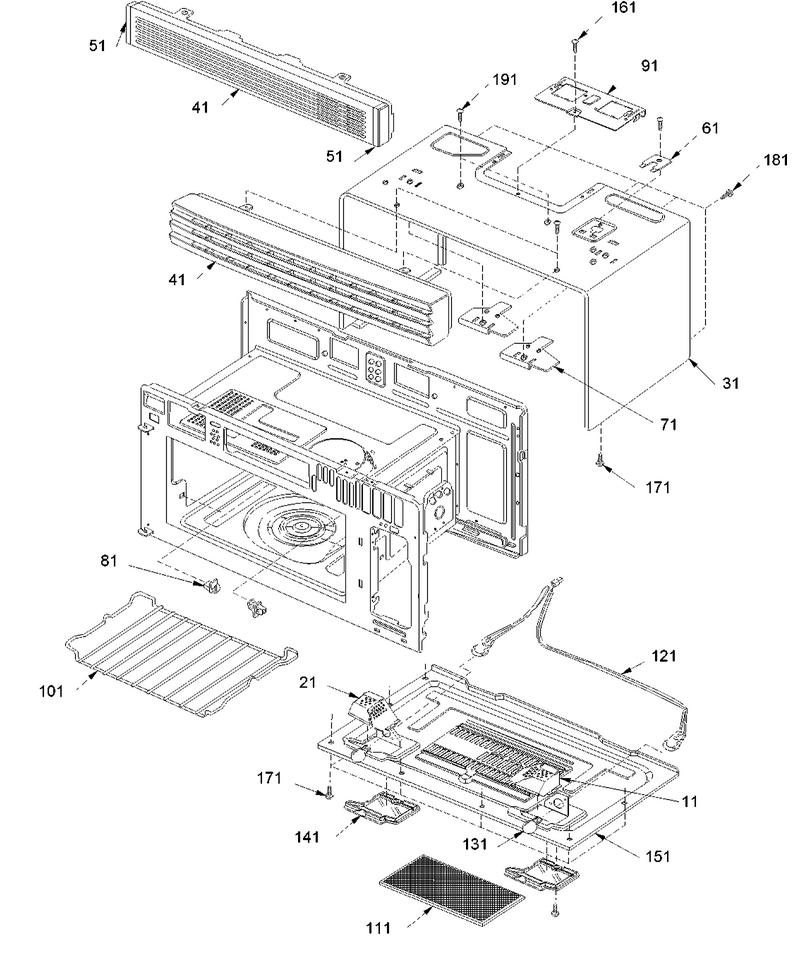

07 - Outer Case, Rack, Lights, & Filters

...
...
11
Reflector (Rt) WPL-R0130599
...
21
Reflector (Lt) WPL-R0130600
...
31
Cabinet (Bsq) WPL-R0130643
...
41
Grille, Vent (Bsq) WPL-R0130644
...
61
Cover, Power Cord WPL-R9800374
...
71
Bracket, Mounting WPL-R9800364
...
81
Holder, Shelf WPL-R9800384
...
91
Mount, Plate WPL-R0130606
...
101
Shelf WPL-W10192853
...
111
Filter- Gr WPL-WPR0130608
...
121
Wire, Lead Assy WPL-R0130611
...
131
Bulb-Light WPL-WPA3073101
...
141
Cover- Lam WPL-WPR0130614
...
151
Plate, Base WPL-R0130626
...
161
Screw WPL-W11380570
...
181
Rod, Release WPL-R0654138

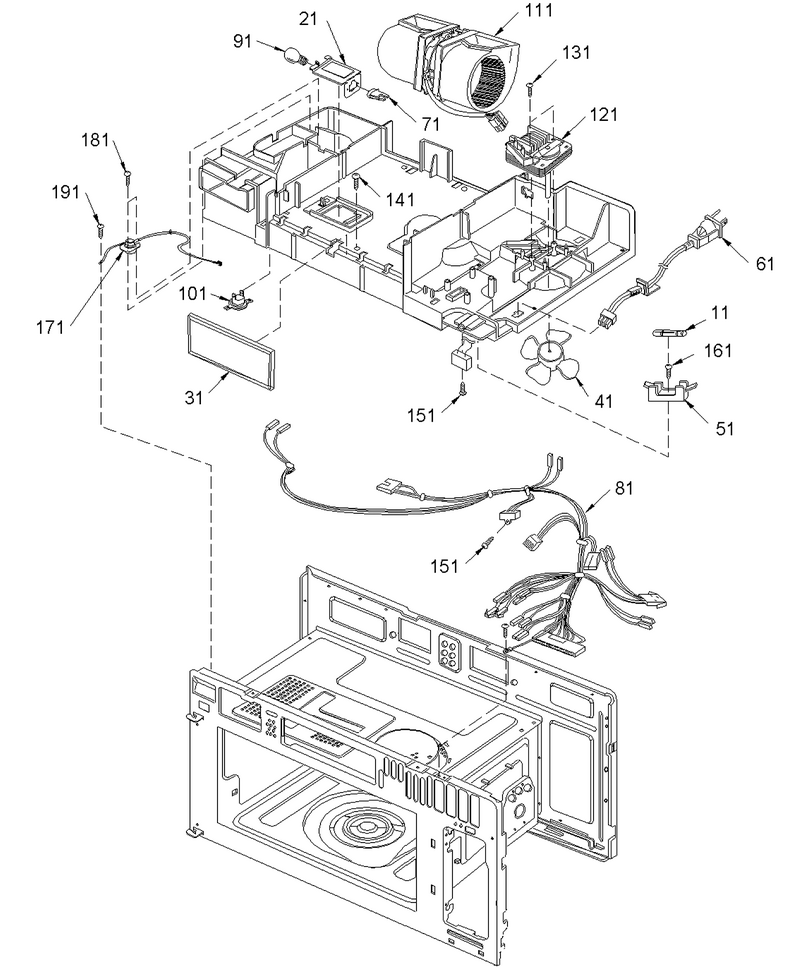

01 - Blower Motor & Air Duct

...
...
11
Fuse 20 A WPL-WPM0805101
...
21
Cover WPL-R9800462
...
31
Filter- Ch WPL-WPR0131462
...
41
Propeller WPL-8184292
...
51
Block-Fuse WPL-W10206728
...
61
Cord, Power WPL-R9800466
...
71
Socket, Lamp WPL-R9800407
...
81
Wire, Lead Assy WPL-R0130623
...
91
Bulb-Light WPL-8206232A
...
101
Thermostat, Bimetal WPL-R0131461
...
111
Motor, Ventilation WPL-R0130628
...
121
Motor, Fan WPL-R0130627
...
131
Screw, Tap Th WPL-R9800412
...
141
Screw, Tap Th WPL-R9800360
...
151
Screw WPL-8169475
...
161
Screw, Pan Hd WPL-R0654180
...
171
Sensor Assy WPL-R0130646
...
181
Screw, Pan Hd S/tap WPL-R0654030
...
191
Screw WPL-4344826

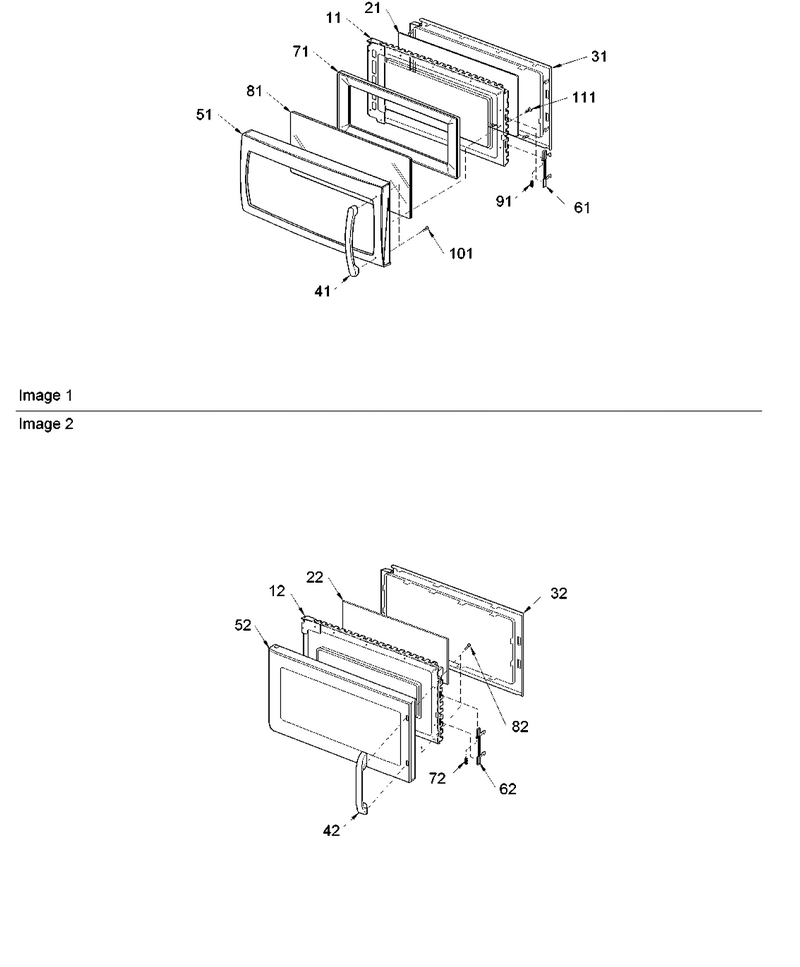

03 - Doors

...
...
11
Assy,door Frame WPL-R0130588
...
12
Assy,door Frame WPL-R0130588
...
21
Tape, Seal WPL-R0130589
...
22
Tape, Seal WPL-R0130589
...
31
Cover, Choke WPL-R0130590
...
32
Cover, Choke WPL-R0130590
...
41
Handle,door (Bsq) WPL-R0130637
...
51
Panel, Door (Bsq) WPL-R0130638
...
61
Latch, Door WPL-R9900260
...
62
Latch, Door WPL-R9900260
...
71
Baffle (Bsq) WPL-R0130639
...
72
Spring, Latch WPL-58001029
...
81
Glass WPL-R0130640
...
82
Rod, Release WPL-R0654138
...
91
Spring, Latch WPL-58001029
...
101
Rod, Release WPL-R0654138

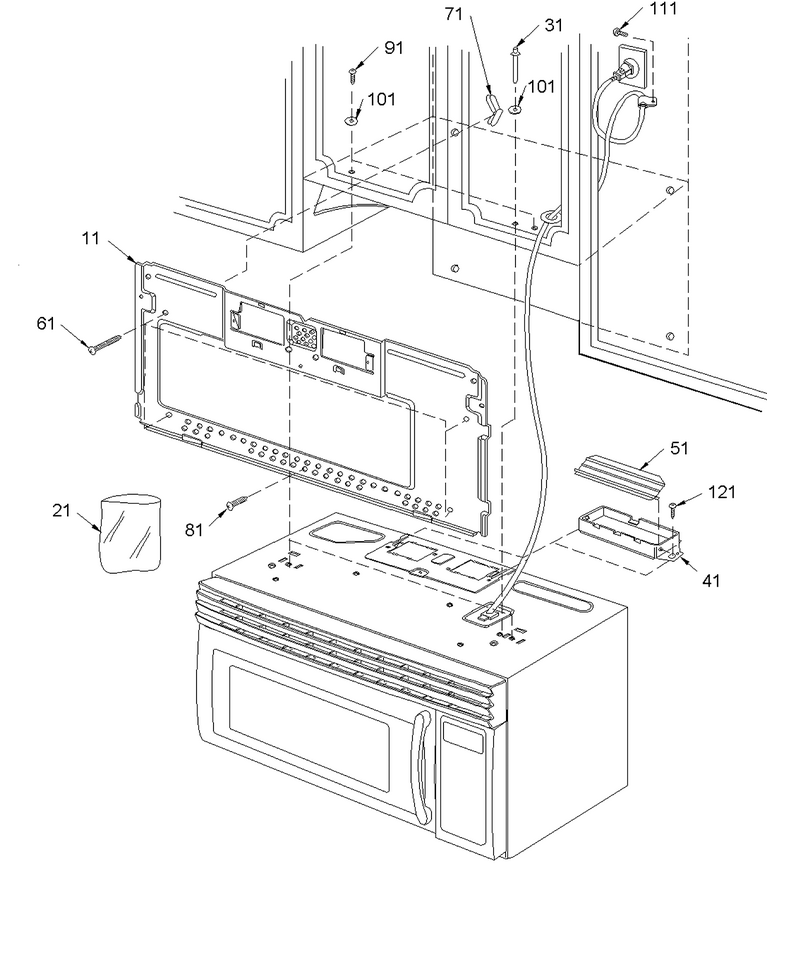

04 - Installation

...
...
NI
Template, Wall WPL-R0130657
...
11
Plate, Mounting WPL-R0130625
...
21
Kit, Mtg Hardware WPL-R9800681
...
31
Rod WPL-R9800497
...
41
Adapter WPL-815092
...
51
Damper, Air WPL-R9800478
...
61
Bolt, Toggle WPL-R9800480
...
71
Wing Nut WPL-R9800479
...
81
Screw WPL-WP4158323
...
91
Screw WPL-R9800487
...
101
Washer WPL-R9800489
...
111
Screw WPL-WPY706189
...
121
Screw WPL-8169475

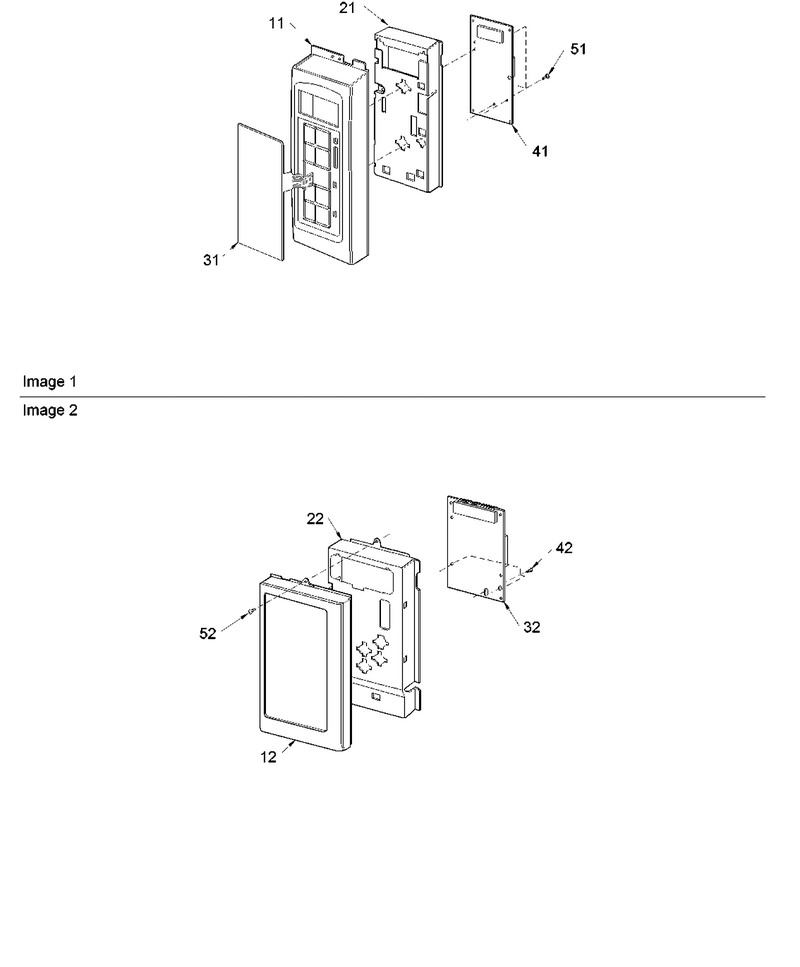

02 - Controller

...
...
11
Panel, Control (Bsq) WPL-R0130641
...
21
Bracket, Control Panel WPL-R0130596
...
31
Switch, Membrane (Bsq) WPL-R0130647
...
41
Assy,pwb(Pcb)main WPL-R0130645
...
51
Screw, Pan Hd WPL-R0654180
