Amana ACM1580AB (BOM: PACM1580AB1)

Model: ACM1580AB (BOM: PACM1580AB1)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

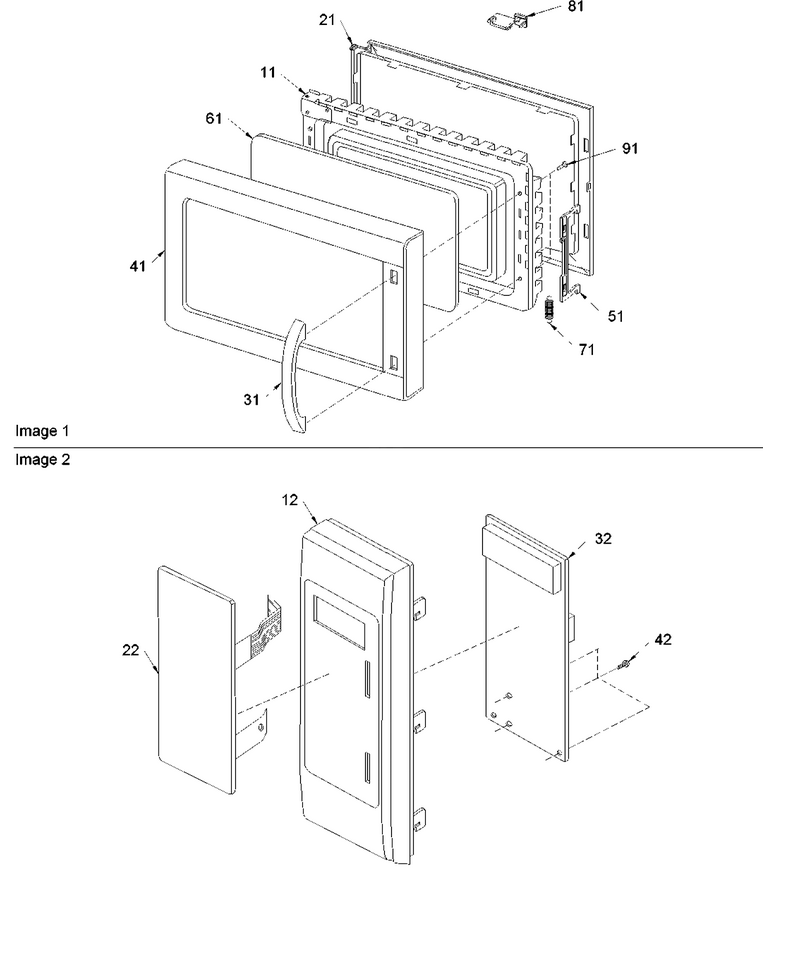

02 - Door & Controller

...
...
11
Frame, Door WPL-8183543
...
12
Control Panel (Black) WPL-8183570
...
21
Choke Cover WPL-8183544
...
22
Membrane,key (Blk) WPL-R0131457
...
31
Handle, Door (Blk) WPL-R0130660
...
32
Control, Board WPL-R0130666
...
41
Panel, Door (Blk) WPL-R0130661
...
42
Screw Tapping,pan Head WPL-R0131048
...
51
Latch, Door WPL-R9900260
...
61
Glass (Blk) WPL-R0130662
...
71
Spring WPL-R0130663
...
81
Cap, Top Hinge WPL-R9900342
...
91
Screw, Pan Hd WPL-R0654180

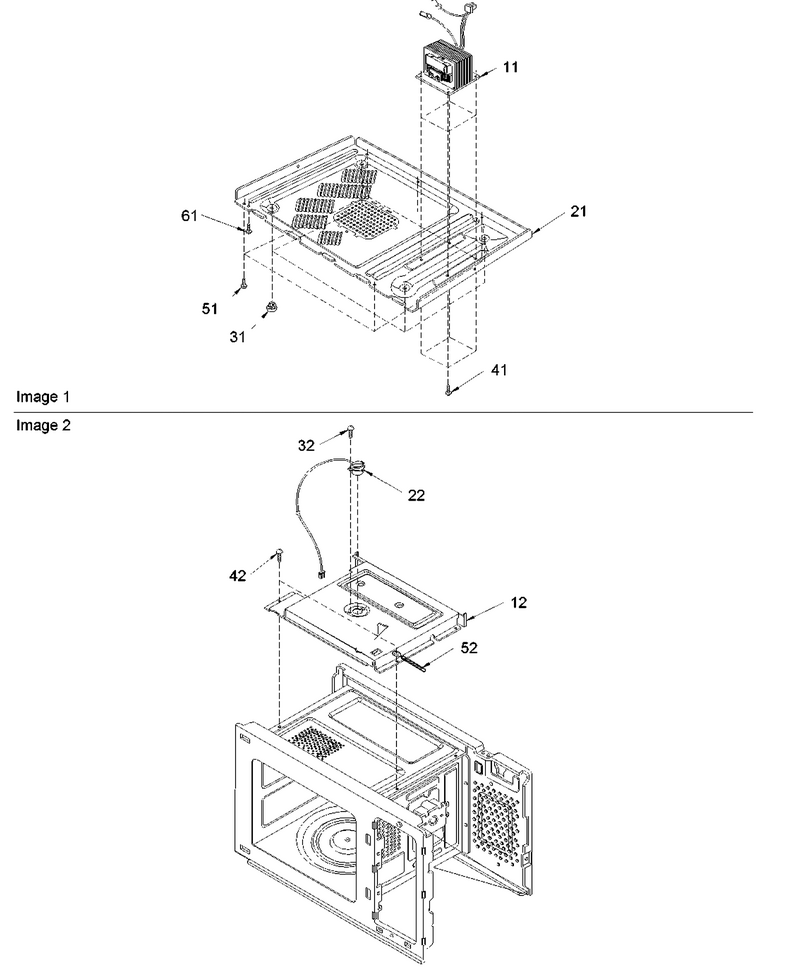

01 - Base & Sensor

...
...
11
Transformer, H.v. WPL-R9900405
...
12
Tunnel, Air WPL-R0130675
...
21
Plate, Base WPL-R0131026
...
22
Assy,sensor WPL-R0131018
...
31
Cap WPL-R0131027
...
32
Screw, Pan Hd S/tap WPL-R0654029
...
41
Screw WPL-4344826
...
42
Screw WPL-W11380570
...
51
Screw WPL-4344826
...
52
Holder, Wire WPL-R0131047
...
61
Rod, Release WPL-R0654138

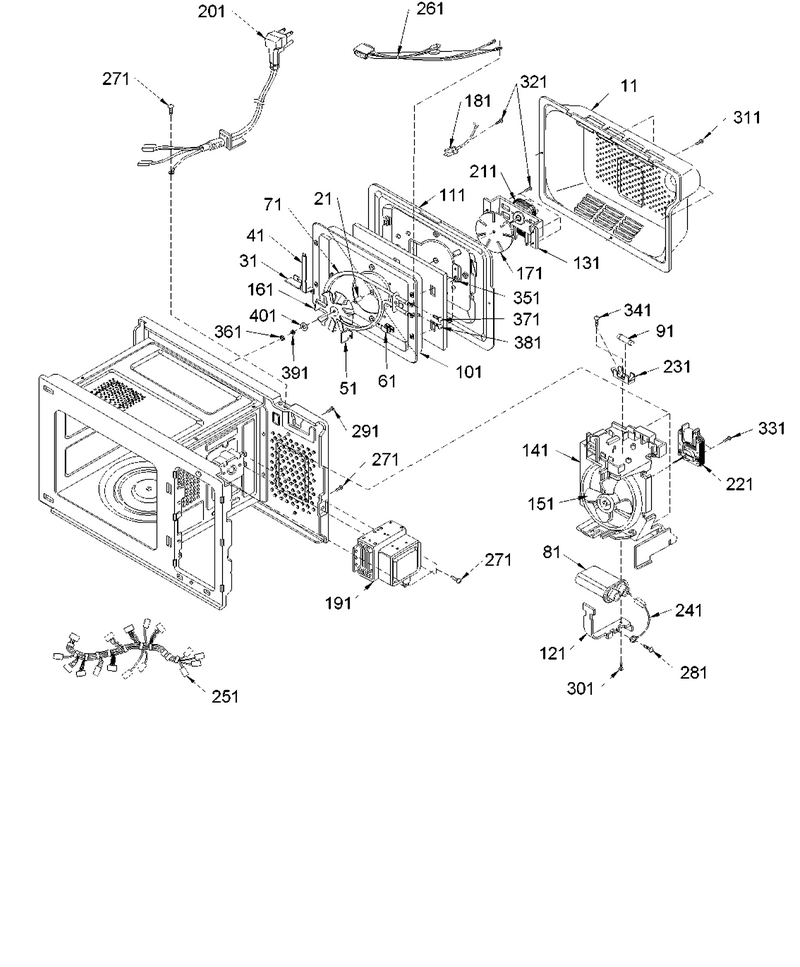

03 - Interior

...
...
11
Cover, Back WPL-8183569
...
21
Ring, Shaft WPL-R0654123
...
31
Bracket, Heater WPL-R0130670
...
41
Bracket, Heater WPL-R0130671
...
51
Bracket, Heater WPL-R0130672
...
61
Holder WPL-R0130673
...
71
Heater,sheath WPL-R0130676
...
81
Capacitor- WPL-WP59001168
...
91
Fuse 20 A WPL-WPM0805101
...
101
Plate, Inner WPL-R0130680
...
111
Chamber WPL-R0130681
...
121
Bracket, H.v.c. WPL-4359161
...
131
Bracket, Motor WPL-R0654086
...
141
Guide, Suction WPL-R0130684
...
151
Fan Blade WPL-R9800422
...
161
Fan, Stirrer WPL-R0130686
...
171
Fan, Anti-C WPL-R0654083
...
181
Thermistor WPL-R0130687
...
191
Magnetron WPL-W10859575
...
201
Power Cord WPL-R0131017
...
211
Motor, Ventilation WPL-R0131019
...
221
Motor, Fan WPL-R0131020
...
231
Block-Fuse WPL-W10206728
...
241
Diode- Bla WPL-WPR9800486
...
251
Wire, Assy Lead WPL-R0131022
...
261
Wire, Lead Assy WPL-R0131023
...
281
Screw WPL-4344826
...
291
Screw, Special D WPL-R0654178
...
301
Rod, Release WPL-R0654138
...
311
Screw, Pan Hd S/tap WPL-R0654030
...
331
Screw, Tap Th WPL-R9800411
...
341
Screw Tapping,pan Head WPL-R0131048
...
351
Nut, Hex WPL-R0654026
...
361
Nut, Hex WPL-R0654027
...
371
Screw WPL-R0131030
...
381
Screw, Trus Hd Mach. WPL-R0654025
...
391
Washer, Spring Lock WPL-R0654045
...
401
Washer WPL-R0654044

...
...
0
Kit,trim-Micro(Black)27`` WPL-PAST2780AB0
...
1
Mnl,parts(Microwave-Domestic) WPL-RP2100013

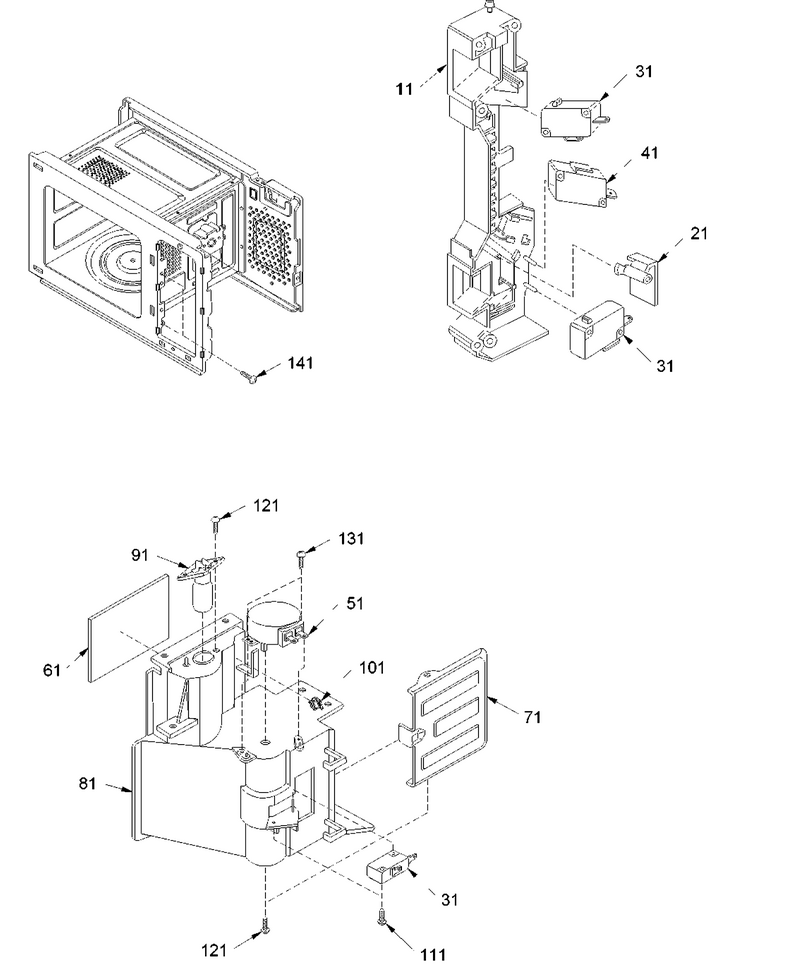

04 - Latch Board

...
...
11
Board, Latch WPL-53001363
...
21
Lever, Latch WPL-R9800416
...
31
Switch- Pr WPL-WP56001036
...
41
Switch Micro Primary WPL-4392027
...
51
Motor, Turn Table WPL-R9900084
...
61
Cover, Lamp WPL-R0130682
...
71
Bracket, Damper WPL-R0130683
...
81
Air Duct WPL-8183563
...
91
Lmp-Basles WPL-WP8183592
...
101
Thrmst-Fix WPL-WP815076
...
111
Screw, Pan Hd S/tap WPL-R0654031
...
121
Rod, Release WPL-R0654138
...
131
Screw, Pan Hd WPL-R0654180
...
141
Screw, Special D WPL-R0654178

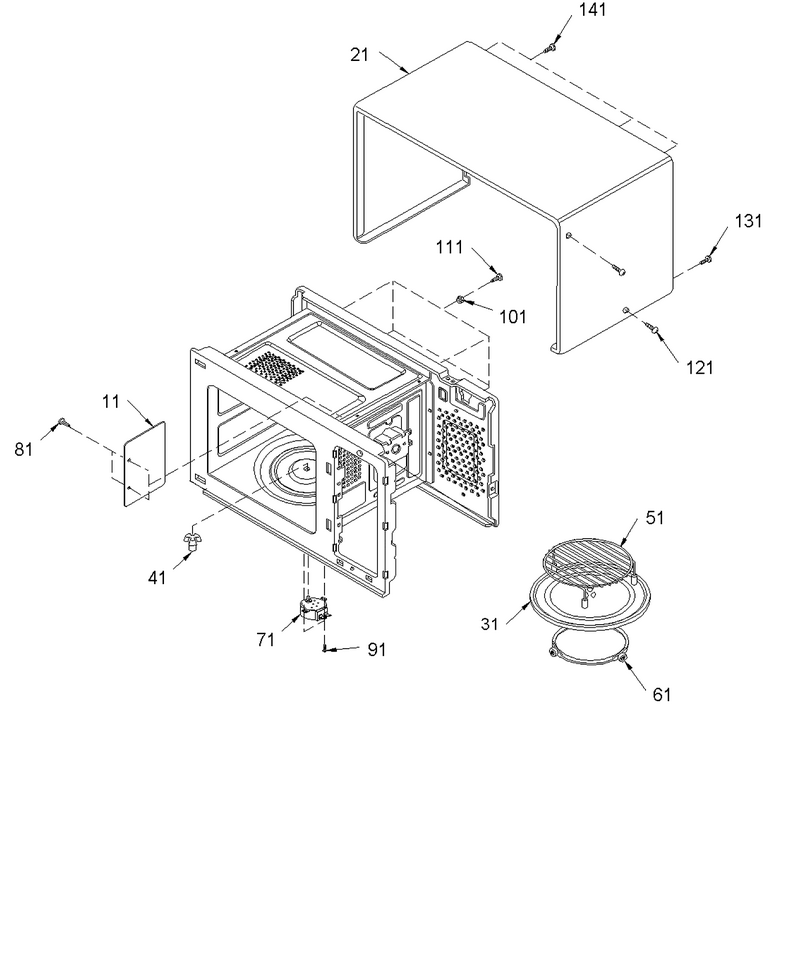

06 - Oven Cavity

...
...
11
Canopy, Mica WPL-R0130667
...
21
Wrapper, Outer (Blk) WPL-R0130668
...
31
Tray-Cook WPL-WP8172138
...
41
Support WPL-W11199019
...
51
Rack WPL-8172251
...
61
Ring Assembly WPL-8183560
...
71
Motor-Turn WPL-WPW10192843
...
81
Screw Tapping,truss Head WPL-R0131031
...
91
Screw, Pan Hd WPL-R0654180
...
101
Nut, Hex WPL-R0654026
...
111
Screw WPL-W10841091
...
121
Screw, Tap Th WPL-R9800309
...
131
Screw WPL-R9900401
...
141
Screw WPL-W11380570
