Amana ACF4265AW (BOM: PACF4265AW0)

Model: ACF4265AW (BOM: PACF4265AW0)

Save Part Not Listed?
product name

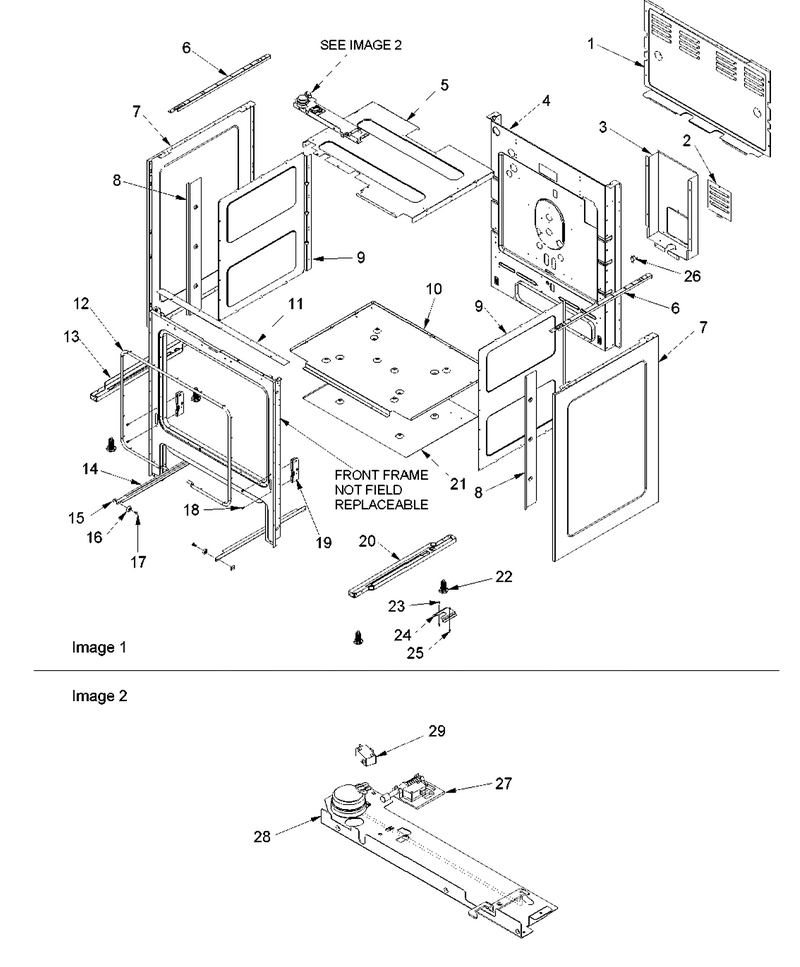

01 - Cabinet

...
...
NI
Switch, Hi Limit WPL-Y0053584
...
1
Cover, Lower Rear WPL-77001052
...
2
Plate, Access WPL-31757201
...
3
Raceway, Lower Wire WPL-31955101
...
4
Rear Retainer (Electric) WPL-77001053
...
5
Retainer Insulation (Top) WPL-31936704
...
6
Brace, Top Chassis WPL-31943101
...
7
Panel, Side (Wht) WPL-32041004W
...
8
Shield, Side Panel WPL-32034001
...
9
Retainer Insulation (Side) WPL-32032401
...
10
Retainer Insulation (Bottom) WPL-31931902
...
11
Bracket, Maintop (Blk) WPL-32040801B
...
12
Gasket, Oven Door WPL-31946501
...
13
Assy, Btm Brace/level Leg-Lt WPL-31968501
...
14
Track, Mounting WPL-32075601
...
15
Nut, Lock WPL-22004193
...
16
Roller, Drawer WPL-31733401
...
17
Bolt, Shoulder 10-32 WPL-31750717
...
18
Screw, 10-24x .500 Trhdwh(Blk) WPL-31750530
...
19
Receiver, Hinge WPL-31946801
...
20
Assy, Btm Brace/level Leg-Rt WPL-31968502
...
21
Heat Shield, Drawer WPL-32075901
...
22
Leg, Plastic Leveling WPL-31949001B
...
23
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
24
Bracket, Anti Tip WPL-31945201
...
25
Anchor, Plastic WPL-Y0301555
...
26
Thermostat, High Limit WPL-Y0316699
...
27
Switch, Plunger-Class N WPL-32041401
...
28
Auto Latch (Electric) WPL-32040901
...
29
Switch, Micro-Class N WPL-32041201

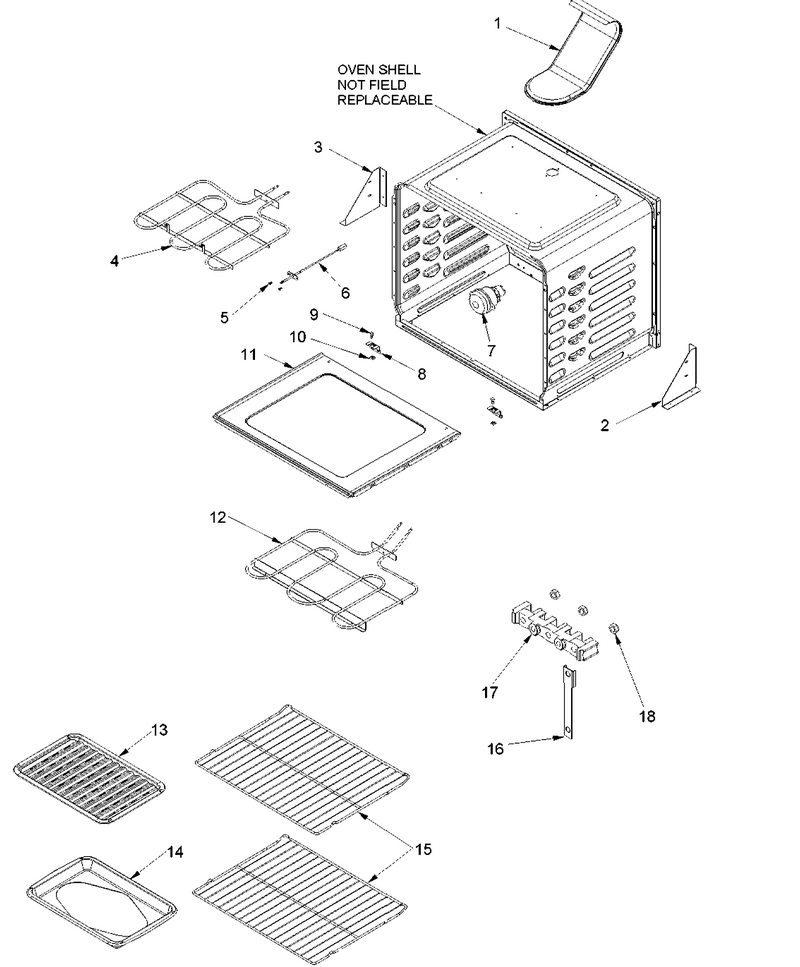

02 - Cavity

...
...
NI
Insulation, Back WPL-31966301
...
1
Tube, Vent WPL-32037701
...
2
Gusset, Oven Support-Rt WPL-31937101
...
3
Gusset, Oven Support-Lt WPL-31937102
...
4
Element, Broil (3000 Watts) WPL-77001102
...
6
Sensor WPL-W10850495
...
7
Oven Light Assy WPL-31823701
...
8
Brkt, Support-Oven Btm WPL-31945401
...
9
Screw, Oven Bottom WPL-31750723
...
10
Nut, Speed WPL-31750129
...
11
Bottom, Oven (Cg) WPL-31940806CG
...
12
Element, Bake (240v-2800w) WPL-31967101
...
13
Grid, Broiler WPL-31959401CG
...
14
Pan, Broiler WPL-31959301CG
...
15
Rack, Oven-24.080`` X 17.750`` WPL-32016001J
...
16
Ground Strap WPL-31967801
...
17
Block-Term WPL-WP8203546
...
18
Hex Nut (Nkl) WPL-31750124

...
...
0
Scraper, Cooktop WPL-WA906B
...
20
Manual, Use And Care WPL-32066601
...
30
Instr,install(Elec Ranges) WPL-32055801

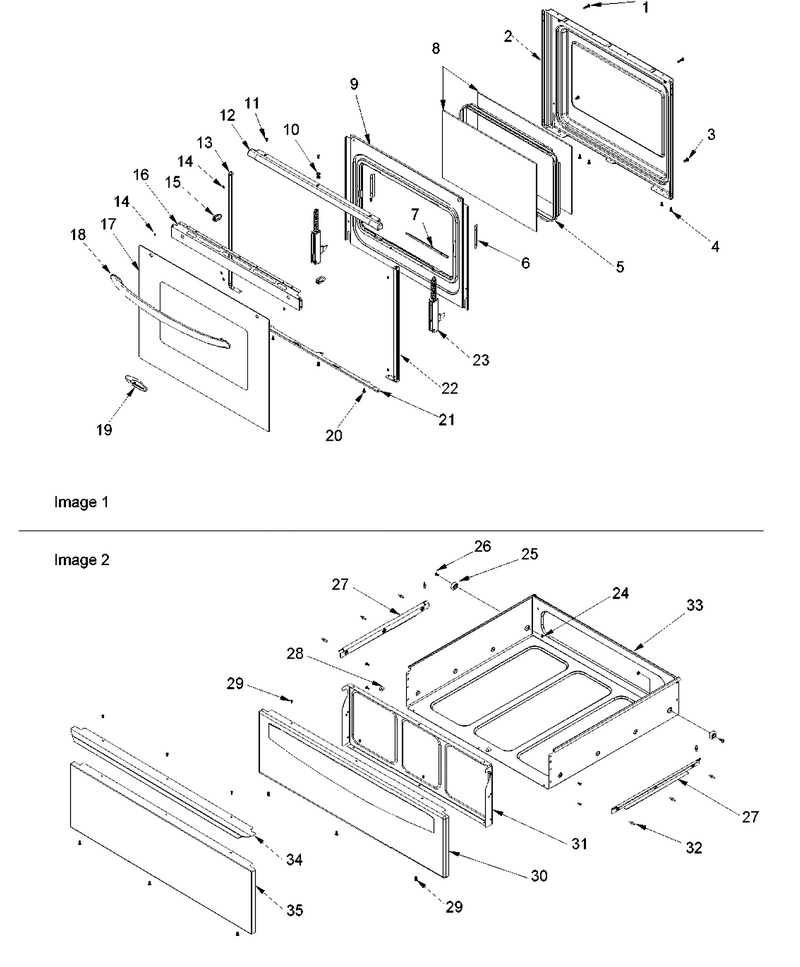

05 - Oven Door And Storage Drawer

...
...
NI
Insulation, Door (Xxl) Window WPL-31947602
...
1
Screw, 10-32 X 2.00`` WPL-31750529
...
2
Backer, Oven Door (Xxl) WPL-31932204CG
...
3
Screw, 10-24x .500 Trhdwh(Blk) WPL-31750530
...
4
Screw, 8-32 X .312 Trhdwh(Blk) WPL-31750434
...
5
Frame, Window Pack (Xxl) WPL-31942001
...
6
Window Brkt, Dr Ht Shield WPL-32050701
...
7
Window Brkt, Dr Ht Shield WPL-32050601
...
8
Glass, Window (Xxl) WPL-32028101
...
9
Shield- He WPL-77001126
...
10
Washer, Flat 5/32 X 7/16 O.d. WPL-31750010
...
11
Screw WPL-WP98008545
...
12
Trim, Top Door (Wht) WPL-31946402W
...
13
Trim, Side Door Lt (Wht) WPL-31944505W
...
15
Bushing, Door Handle (Blk) WPL-31947901
...
16
Heat Shield (Blk) WPL-32039502B
...
17
Glass, Oven Door (Wht) WPL-31946703W
...
18
Handle, Door (Wht) WPL-31935503W
...
19
Nameplate (Amana Plus) WPL-Y12528501
...
21
Angle, Glass Support (Wht) WPL-31944601W
...
22
Trim, Side Door Rt (Wht) WPL-31944501W
...
23
Hinge, Oven Door (Xxl) WPL-31946302
...
24
Nut, Lock WPL-22004193
...
25
Roller, Drawer WPL-31733401
...
26
Bolt, Shoulder 10-32 WPL-31750717
...
27
Track, Storage Drawer WPL-31733301
...
28
Bumper, Oven Door WPL-Y0063661
...
30
Drawer Panel (Wht) WPL-31937804W
...
31
Liner, Drawer Panel (Blk) WPL-31942802B
...
32
Rivet, Pop WPL-Y0097822
...
33
Wrapper, Storage Dr (Wht) WPL-32059401W

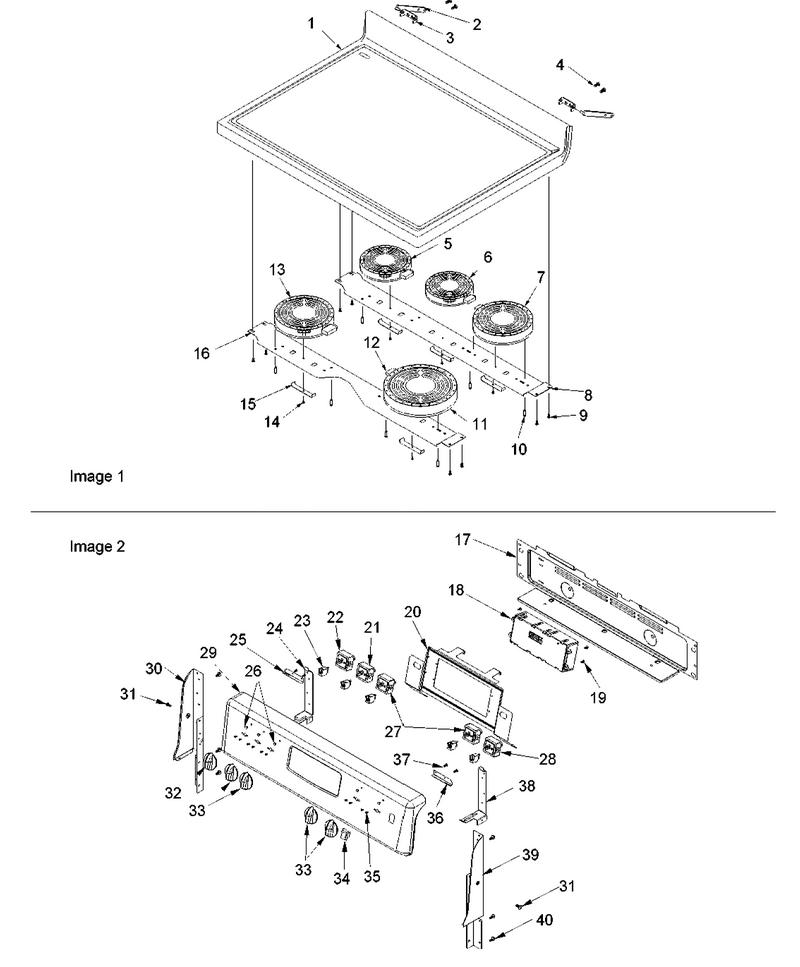

03 - Main Top And Backguard

...
...
NI
Harness- B WPL-32082001
...
1
Assy, Top/glass (White) WPL-31921803WW
...
2
Pin, Hinge WPL-Y0315931
...
3
Brkt, Hinge Strap Mtg WPL-Y0306150
...
5
Elmnt-Surf WPL-W10823699
...
6
Element- R WPL-32083201
...
7
Elmnt-Surf WPL-WP32082801
...
8
Brkt, Elem (Rear W/z) WPL-31921601
...
9
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
10
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
11
Elmnt-Surf WPL-W10823726
...
12
Limiter-Dual WPL-0316689
...
13
Elmnt-Surf WPL-W10823710
...
14
Screw WPL-W11245710
...
15
Spring, Element WPL-Y0306683
...
16
Brkt, Elem (Front) WPL-31921701
...
17
Cover, Upper Rear WPL-31954402
...
18
Erc-Sigma/elec(White) WPL-32059603W
...
19
Screw WPL-WP693995
...
20
Bracket,clock Mtg(Sigma) WPL-31937402
...
21
Switch, Infinite Csi (B) WPL-31926702
...
22
Switch,inf(120p-1241) WPL-31890802
...
23
Light-Ind WPL-WP903115
...
24
Brkt, Mtg-Bkgd Pivot (Lt) WPL-32044002
...
25
Mtg Bracket, Backguard Lt WPL-32030702
...
26
Mtg Bracket, Backguard Rt WPL-32030701
...
27
Switch, Infinite Csi (Y) WPL-31926701
...
28
Switch, Dual Infinite WPL-32031002
...
29
Backguard WPL-77001010
...
30
Support, Backguard (Wht) Lt WPL-31937604W
...
31
Screw WPL-W11245710
...
32
Knob, Warming Zone (Wht) WPL-31942503W
...
33
Knob, Switch (Wht) WPL-31942606W
...
34
Switch, Rocker (Wht) WPL-31986602W
...
35
Screw, No.8-32 X 1/4 WPL-31750714
...
36
Mtg Bracket, Backguard Rt WPL-32030701
...
37
Screw WPL-W11245710
...
38
Brkt, Mtg-Bkgd Pivot (Rt) WPL-32044001
...
39
Support, Backguard (Wht) Rt WPL-31937608W
...
40
Screw WPL-WP693995
