Amana ACF3375AS (BOM: PACF3375AS0)

Model: ACF3375AS (BOM: PACF3375AS0)

Save Part Not Listed?
product name

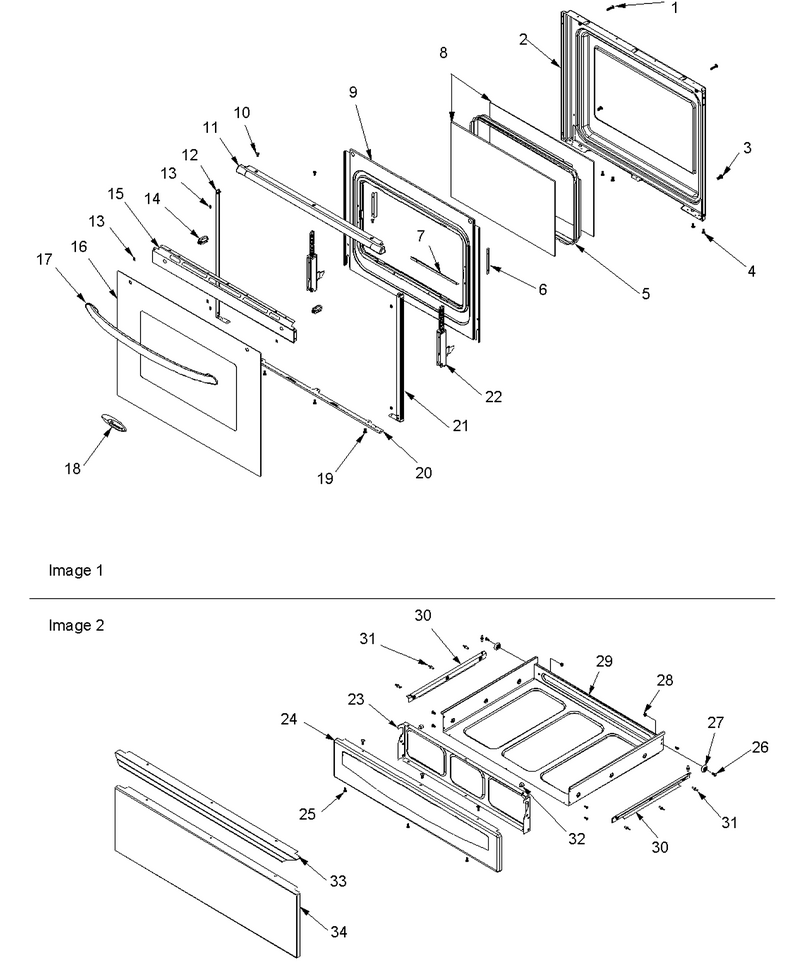

04 - Oven Door And Storage Drawer

...
...
NI
Insulation, Door (Xxl) Window WPL-31947603
...
1
Screw, 10-32 X 2.00`` WPL-31750529
...
2
Backer, Oven Door (Xxl) WPL-31932204CG
...
3
Screw, 10-24x .500 Trhdwh(Blk) WPL-31750530
...
4
Screw, 8-32 X .312 Trhdwh(Blk) WPL-31750434
...
5
Frame, Window Pack (Xxl) WPL-31942001
...
6
Window Brkt, Dr Ht Shield WPL-32050701
...
7
Window Brkt, Dr Ht Shield WPL-32050601
...
8
Glass, Window (Xxl) WPL-32028101
...
9
Shield- He WPL-77001126
...
10
Screw WPL-WP98008545
...
11
Trim, Top Door (Blk) WPL-31946401B
...
12
Trim, Side Door Lt (Blk) WPL-31944507B
...
13
Cushion, Glass (3/8 X 3/8) WPL-32035001
...
14
Bushing, Door Handle (Blk) WPL-31947901
...
15
Heat Shield (Blk) WPL-32039502B
...
16
Assy, Oven Door Face (Ss) WPL-32017601SS
...
17
Handle, Door (Ss) WPL-31935502-SS
...
18
Nameplate (Amana Plus) WPL-Y12528501
...
19
Screw WPL-W11245710
...
21
Trim, Side Door Rt (Blk) WPL-31944503B
...
22
Hinge, Oven Door (Ss) WPL-32052801
...
23
Liner, Drawer Panel-Gas WPL-32074701
...
25
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
26
Bolt, Shoulder 10-32 WPL-31750717
...
27
Roller, Drawer WPL-31733401
...
28
Nut, Lock WPL-22004193
...
29
Wrapper, Storage Drwr-Gas(Wht) WPL-31942902W
...
30
Track, Storage Drawer WPL-31733301
...
31
Rivet, Pop WPL-Y0097822
...
32
Bumper, Oven Door WPL-Y0063661
...
33
Handle, Drawer (Ss) WPL-32016301SS
...
34
Panel, Drawer-Gas (Ss) WPL-32016201SS

02 - Cavity And Backguard

...
...
NI
Harness, Main (Sigma) WPL-32030201
...
1
Shield, Backguard (Blk) WPL-31986501B
...
2
Assy, Flue (Cg) WPL-31941202CG
...
3
Gusset, Oven Support-Lt WPL-31937102
...
4
Gusset, Oven Support-Rt WPL-31937101
...
5
Brkt, Support-Oven Btm WPL-31945401
...
6
Nut, Speed WPL-31750129
...
7
Oven Light Assy WPL-31823701
...
8
Sensor WPL-W10850495
...
9
Screw WPL-W11245710
...
10
Screw, Oven Bottom WPL-31750723
...
11
Bottom, Oven (Cg) WPL-32077201
...
12
Rack, Oven-24.080`` X 17.750`` WPL-32016001J
...
13
Grid, Broiler WPL-31959401CG
...
14
Pan, Broiler WPL-31959301CG
...
15
Screw WPL-W11245710
...
16
Support, Backguard (Blk) Lt WPL-31937602B
...
17
Brkt-Bkgd WPL-32043902
...
18
Module-Spk WPL-WP31962701
...
19
Cover, Upper Rear WPL-31954401
...
20
Screw WPL-WP693995
...
21
Screw WPL-W11245710
...
22
Erc-Sigma/gas(Black) WPL-32059501B
...
23
Bracket,clock Mtg(Sigma) WPL-31937402
...
24
Screw, No.8-18 X 1/4 P Trs Hd WPL-31750422
...
25
Mtg Bracket, Backguard Rt WPL-32030701
...
26
Brkt, Mtg-Bkgd Pivot (Rt) WPL-32044001
...
27
Support, Backguard (Blk) Rt WPL-31937606B
...
28
Screw WPL-W11245710
...
29
Assy,bkgd Panel/ovrly(Stn Stl) WPL-32051201SS
...
30
Mtg Bracket, Backguard Lt WPL-32030702
...
31
Control, Limit WPL-32012701
...
32
Wire Harness, Ignitor-35/31`` WPL-32014101
...
33
Wire Harness, Ignition-34/28`` WPL-32012001

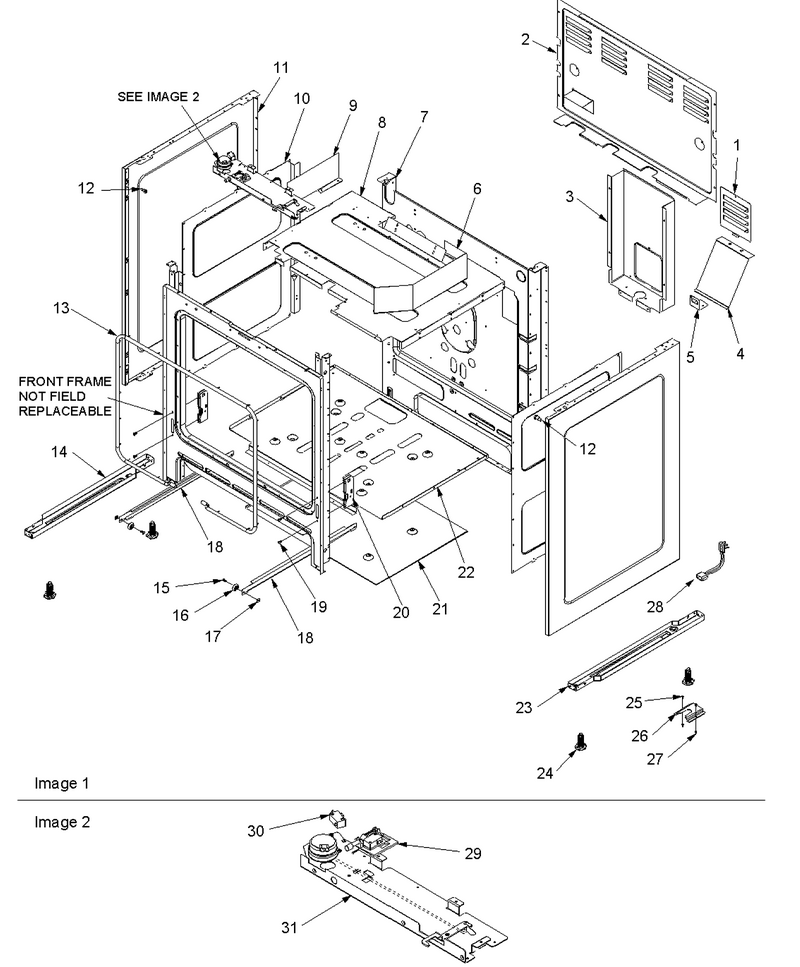

01 - Cabinet

...
...
1
Plate, Access WPL-31757201
...
2
Cover, Lower Rear WPL-32021401
...
3
Raceway, Lower Wire WPL-31955101
...
4
Wire Shield (Gas) WPL-32027101
...
5
Bracket, Mounting-Supply Cord WPL-31956001
...
6
Shield, Side Panel-Lg Burner WPL-32006101
...
7
Retainer Insulation (Rear)-Gas WPL-77001001
...
8
Retainer Insulation (Top) WPL-31936701
...
9
Shield, Side Panel-Rt WPL-32006001
...
10
Retainer Insulation (Side) WPL-32032401
...
11
Panel, Side (Blk) WPL-32041002B
...
12
Screw, Shoulder Abno.8-18 X .550 WPL-31750718
...
13
Gasket, Oven Door WPL-32057601
...
14
Assy, Btm Brace/level Leg-Lt WPL-31968501
...
15
Bolt, Shoulder 10-32 WPL-31750717
...
16
Roller, Drawer WPL-31733401
...
17
Nut, Lock WPL-22004193
...
18
Track, Mounting WPL-32075601
...
19
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
20
Receiver, Hinge WPL-31946801
...
21
Heat Shield, Drawer WPL-32075901
...
22
Retainer, Bottom (Gas) WPL-77001089
...
23
Assy, Btm Brace/level Leg-Rt WPL-31968502
...
24
Leg, Plastic Leveling WPL-31949001B
...
25
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
26
Bracket, Anti Tip WPL-31945201
...
27
Anchor, Plastic WPL-Y0301555
...
28
Power Cord WPL-Y0306654
...
29
Assy, Plunger Switch (Class F) WPL-32006701
...
30
Switch, Micro (Class F) WPL-32006601
...
31
Autolatch- WPL-32081801

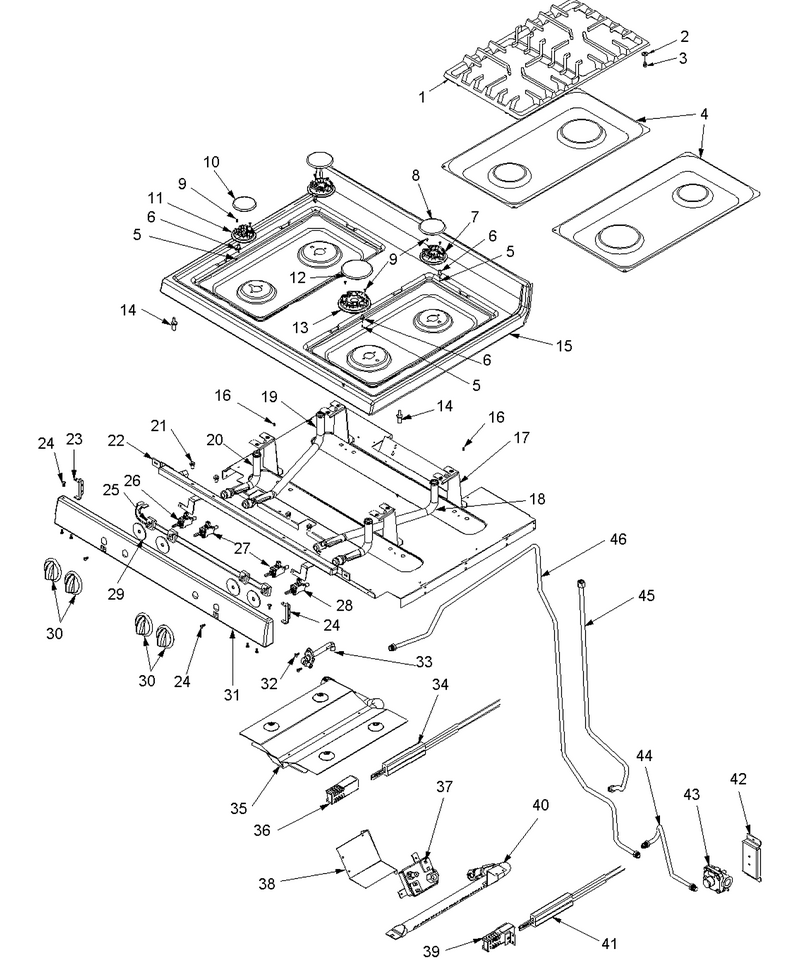

03 - Maintop And Gas Supply

...
...
NI
Screw, Stud WPL-31750709
...
1
Grate-Double Cast(Matte Blk)9k WPL-316175MB
...
2
Washer, Stainless Steel WPL-Y0308025
...
3
Pad, Grate (Includes 5 Pads) WPL-814323
...
4
Bowl- Burn WPL-WP315600B
...
5
Screw, Electrode WPL-Y0316775
...
6
Igntr-Surf WPL-WPY0316773
...
7
Top Burner WPL-WPY0315768
...
8
Cap, Burner 9k (Matte Blk) WPL-31782601MB
...
9
Screw WPL-WPY04100059
...
10
Cap-Burner WPL-WP8284669
...
11
Top Burner (Small 5k) WPL-Y0315769
...
12
Cap-Burner WPL-WP31782701MB
...
13
Burnr-Head WPL-WP7504P109-60
...
14
Screw, Stud WPL-31750709
...
15
Maintop, Gas (Blk) WPL-31949102B
...
16
Screw WPL-W11245710
...
17
Brkt, Venturi Mtg WPL-31945301
...
18
Tube, Venturi-Right Rear WPL-31899502
...
19
Tube, Venturi-Left Rear WPL-31899501
...
20
Tube, Venturi-Front WPL-31899401
...
21
Screw WPL-WP8273096
...
22
Manifold Pipe WPL-31985501
...
23
Bracket, Manifold Mtg (Blk) WPL-32045501B
...
24
Screw WPL-W11245710
...
25
Harness, Spark Switch WPL-31962001
...
26
Valve, Gas 270 Deg (5k Btu) WPL-Y0315960
...
27
Valve, Gas 270 Deg (9.7k Btu) WPL-31983802
...
28
Valve,270 Deg-13.0k Btu WPL-31983801
...
29
Shield, Switch WPL-Y0314316
...
30
Knob,top Burner(Black)comm`l WPL-32032101B
...
31
Manifold Panel(Stn Stl) WPL-32015001SS
...
32
Screw WPL-WP7101P126-60
...
33
Elbow, Orifice-No.54 Hood WPL-32079501
...
34
Igntr-Oven WPL-WP7432P136-60
...
35
Assy, Broil Burner WPL-32076601
...
36
Bracket, Igniter Mounting WPL-31957101
...
37
Valve, Gas Safety WPL-31946901
...
38
Bracket, Dual Valve WPL-32054401
...
39
W/a Bake Igniter Mtg WPL-77001091
...
40
Burner, Bake WPL-31945701
...
41
Igntr-Oven WPL-WP7432P136-60
...
42
Brkt, Mtg-Pressure Regulator WPL-31948201
...
43
Regulator, Pressure WPL-31947001
...
44
Tubing, Valve To Regulator WPL-31945901
...
45
Tubing, Valve To Broil WPL-31946001
...
46
Tubing, Manifold To Regulator WPL-31946101
