Amana ACE5302 (BOM: P1332914M)

Model: ACE5302 (BOM: P1332914M)

Save Part Not Listed?
product name

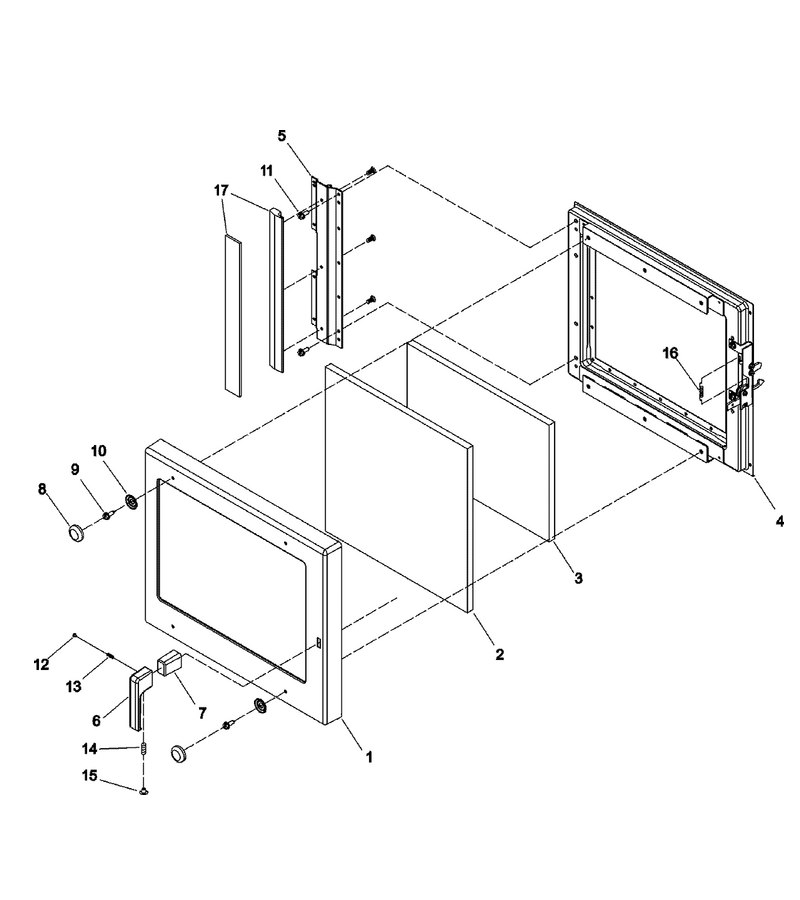

02 - Door

...
...
NI
Bit For Crow Foot Drive Screws WPL-92113P01
...
1
Door-Outer WPL-59001511
...
2
Insul-Door (Large Sheet) WPL-59001720
...
3
Insul-Door (Small Sheet) WPL-59001719
...
4
Inner Door Assy- Ace WPL-59002021
...
5
Hinge- Door WPL-59001869
...
6
Door Handle WPL-12490902
...
7
Insert,handle WPL-12576901
...
8
Cap-Screw WPL-59001660
...
9
Screw-Tc/holt WPL-13042701
...
10
Washer, Cap Screw WPL-M0295502
...
11
Screw WPL-WP12990527
...
12
Plug, Button (Blk) WPL-12360703
...
13
Screw- Set/cone WPL-59002036
...
14
Screw WPL-WP8533976
...
15
Plug, Button (Wht) WPL-M0310305
...
16
Spring-Door Latch WPL-59001721
...
17
Hinge Cover (Gray) WPL-59001230

04 - Fuses, Blower, Heater Box,

...
...
1
Screw-Sm/hex WPL-12990526
...
2
Screw-Tc/pan WPL-13041801
...
3
Nut,cap WPL-12538001
...
4
Blade, Fan WPL-12537901
...
5
Washer WPL-12546101
...
6
Screw, Sm WPL-67006425
...
7
Screw WPL-WP489464
...
8
Screw-Tc/round WPL-67006950
...
9
Screw-Tc/round WPL-67006950
...
10
Screw-Sm/pan WPL-12990606
...
11
Fan Blade WPL-B5706704
...
12
Screw-Tf/hex WPL-12992305
...
13
Scroll Weld WPL-10797203
...
14
Wheel, Blower WPL-C3670809
...
15
Screw-Sm/hex WPL-12990526
...
16
Screw WPL-WP59002061
...
17
Fuse WPL-WPM0805102
...
18
Bushing-Snap WPL-M0571003
...
19
Bracket,blower Weld WPL-12000812
...
20
Cord, Power WPL-59002001
...
21
Relief- Strain WPL-M0370009
...
22
Screw-Sm/hex WPL-12990522
...
23
Fuse,20 Amp WPL-M0805203
...
24
Screw-Sm/pan WPL-12990606
...
25
Filter-Line WPL-12130001

...
...

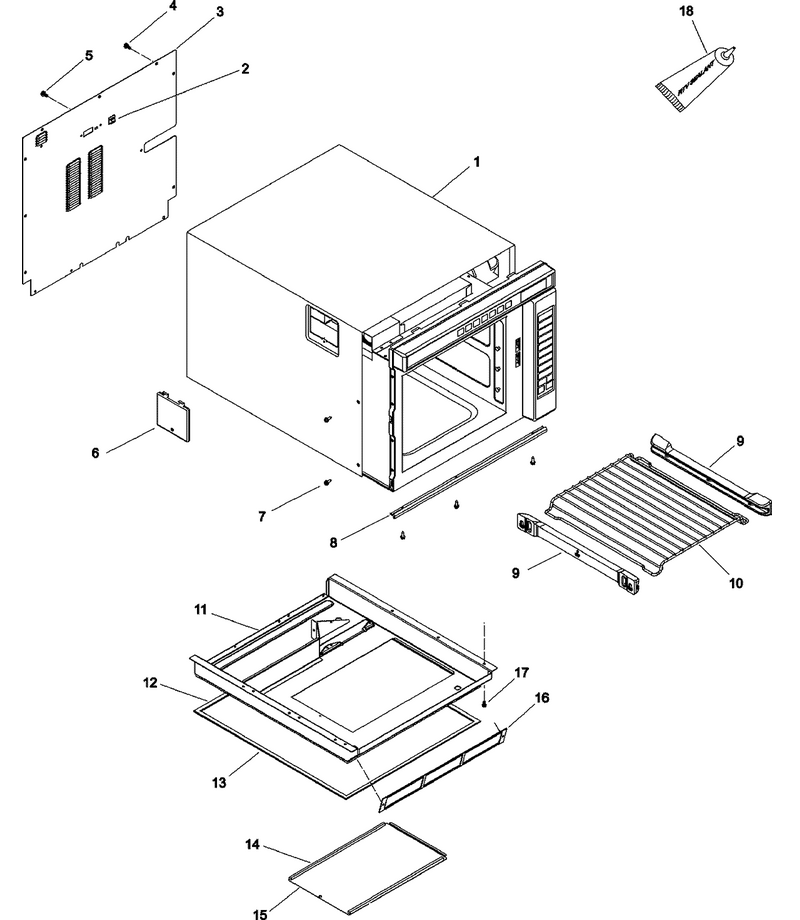

1
Manual-Owners WPL-59001627
...
2
Manual-Service WPL-RS5320016
...
3
Manual-Prod Safety WPL-13062001
...
4
Tech Sht, Comm Micro WPL-16027601
...
5
Harness-Triacs & Rtd Wires WPL-13018601
...
6
Harness-Pc Board WPL-13018301
...
7
Harness-Interlock WPL-13018201
...
8
Harness-Oven Lt WPL-13018401
...
9
Harness-Oven WPL-13018501
...
10
Wire-Hv Jumper WPL-13017704
...
11
Wire-Hv Jumper WPL-13017705
...
12
Wire-Hv Jumper WPL-13017706
...
13
Bit For Crow Foot Drive Screws WPL-92113P01
...
14
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408
...
15
Flat Sheet WPL-59001516
...
16
Rack & Guide Kit WPL-59001517
...
17
Fry Basket WPL-59001518
...
18
Pizza Stone WPL-59001519
...
19
Cavity Cleaner WPL-59001520
...
20
Drip Tray WPL-59001521

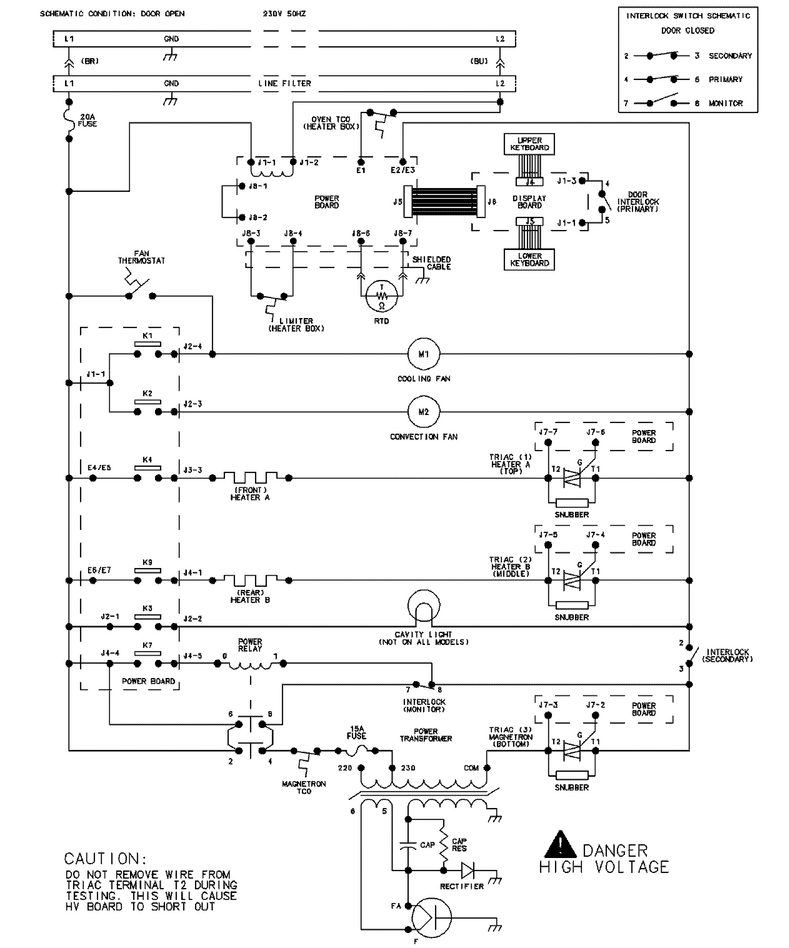

07 - Wiring Information

...
...
NI
Wiring Information WPL-15003376

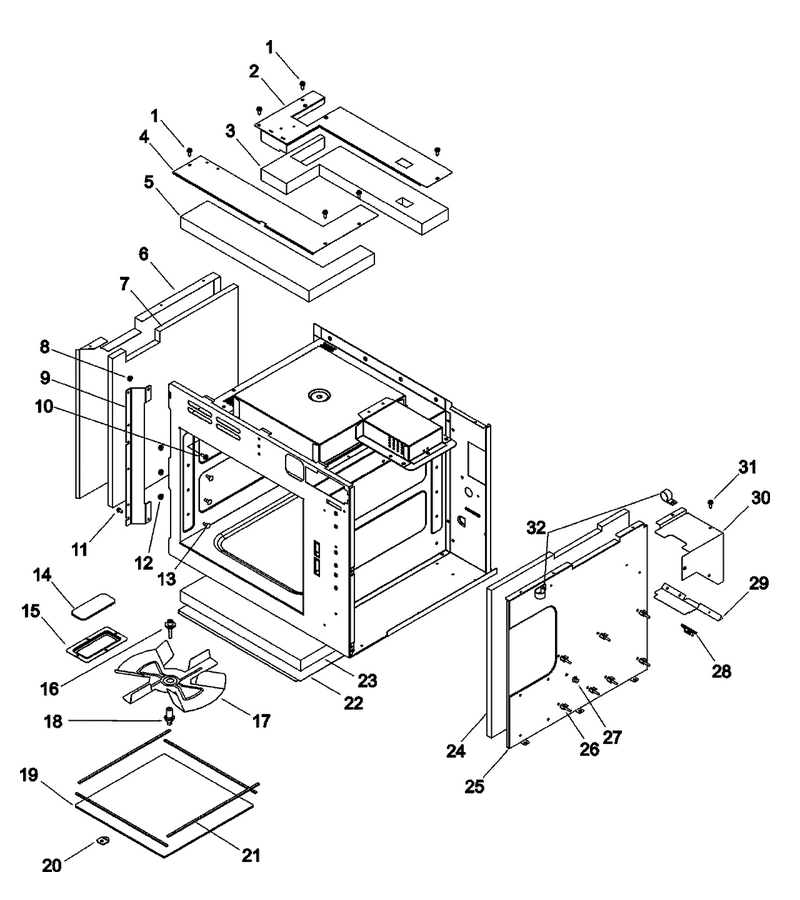

01 - Cabinet

...
...
1
Wrapper-Oc (Ss) WPL-10908901Q
...
2
Clip WPL-WPM0104106
...
3
Access Pan Weld (Blk) WPL-12002804
...
4
Screw-Sm/hex WPL-12990526
...
5
Screw WPL-WP3388228
...
6
Cover Light (Ss) WPL-10785608
...
7
Screw-Tf/oval WPL-13042001
...
8
Screw-Tf/oval WPL-13042002
...
9
Rack Guide Assy WPL-12523203
...
10
Rack-Oven WPL-12487403
...
11
Assy, Base Pan & Gaskets WPL-R0150116
...
12
Basepan Gasket-Cut WPL-59001646
...
13
Basepan Gasket-Cut WPL-59001647
...
14
Gasket,per Ft WPL-A30303-30
...
15
Bottom Access Panel WPL-10782402
...
16
Screw-Thumb WPL-13042801
...
17
Screw WPL-WP489128
...
18
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408

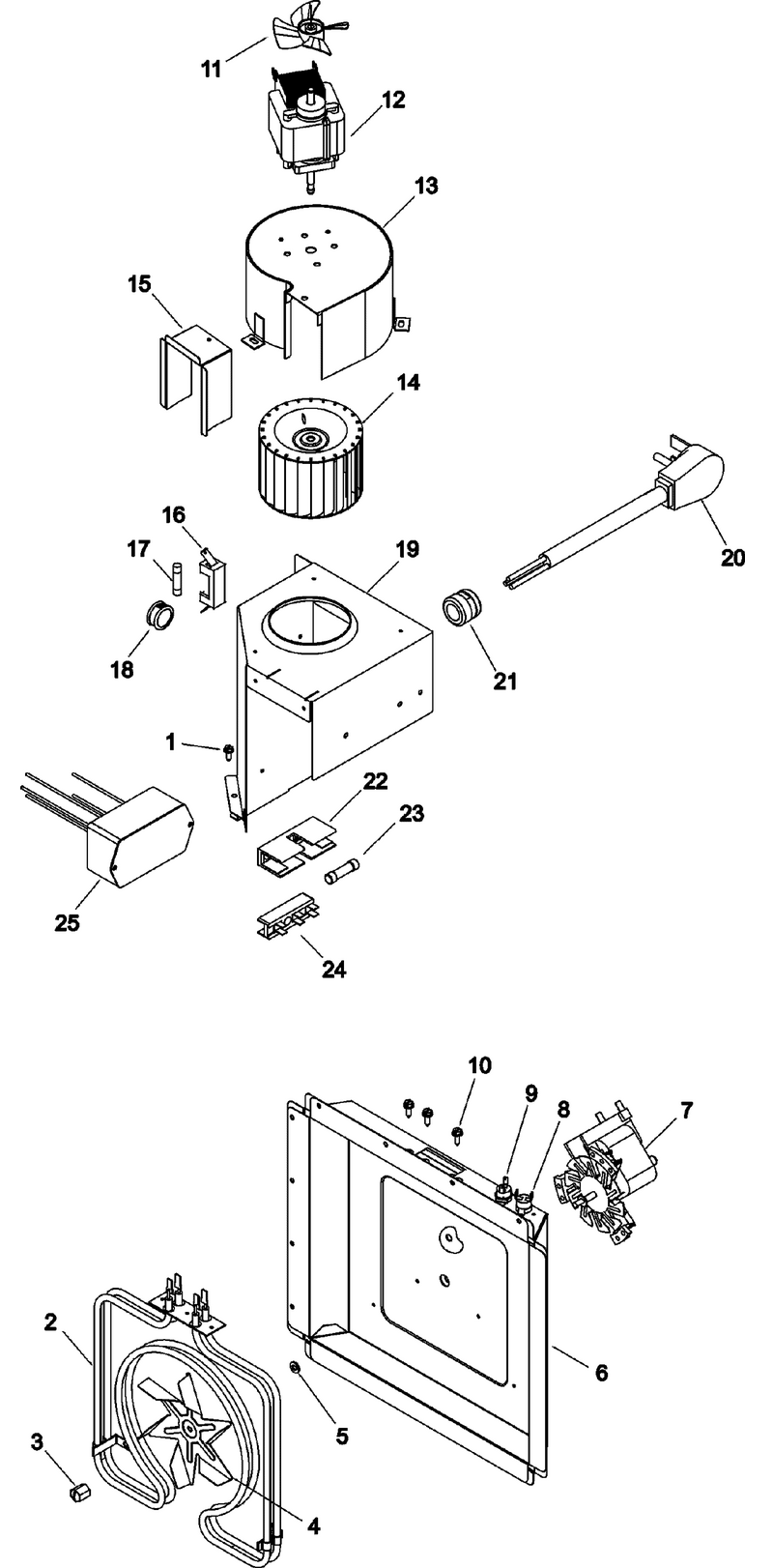

05 - Stirrer, Ducts,

...
...
1
Screw-Sm/hex WPL-12990526
...
2
Retainer-Top Back Insul WPL-10977401
...
3
Insul- Top Back Retainer WPL-12000701
...
4
Retainer-Top Front Insul WPL-10978002
...
5
Insul- Top Front Retainer WPL-12000702
...
6
Retainer-Side Insul Lt WPL-10977301
...
7
Insul- Side Retainer Lt WPL-12000501
...
8
Nut-No.6 Keps WPL-13045501
...
9
Brkt, Hinge Supp WPL-12189004
...
10
Screw-Mach WPL-M0202557
...
11
Screw-Tf/hex Rohs WPL-59002047
...
12
Nut-No.8 Keps WPL-59002051
...
13
Bolt-Shldr WPL-12030101
...
14
Glass-Oven Light WPL-12047501
...
15
Retainer, Oven Light Glass WPL-10978201
...
16
Shaft, Stirrer WPL-12004401
...
17
Blade, Stirrer WPL-10825904Q
...
18
Kit-Insert & Blade Stirrer WPL-R0130737
...
19
Assy, Stirrer Cover WPL-R0150115
...
20
Screw WPL-M0213815
...
21
Gasket WPL-12019002
...
22
Screw WPL-67007110
...
23
Insul-Bottom Retainer WPL-12000703
...
24
Insul- Side Retainer Rt WPL-12000401
...
25
Screw WPL-67007110
...
26
Screw-Sm/hex WPL-12990522
...
27
Not Required Part Or See Note WPL-W10124350
...
28
Clip WPL-WPM0104106
...
29
Duct-Blower/mag WPL-10978601
...
30
Cover-Mag Inlet WPL-10978702
...
31
Screw-Sm/hex WPL-12990522
...
32
Screw WPL-WP90767

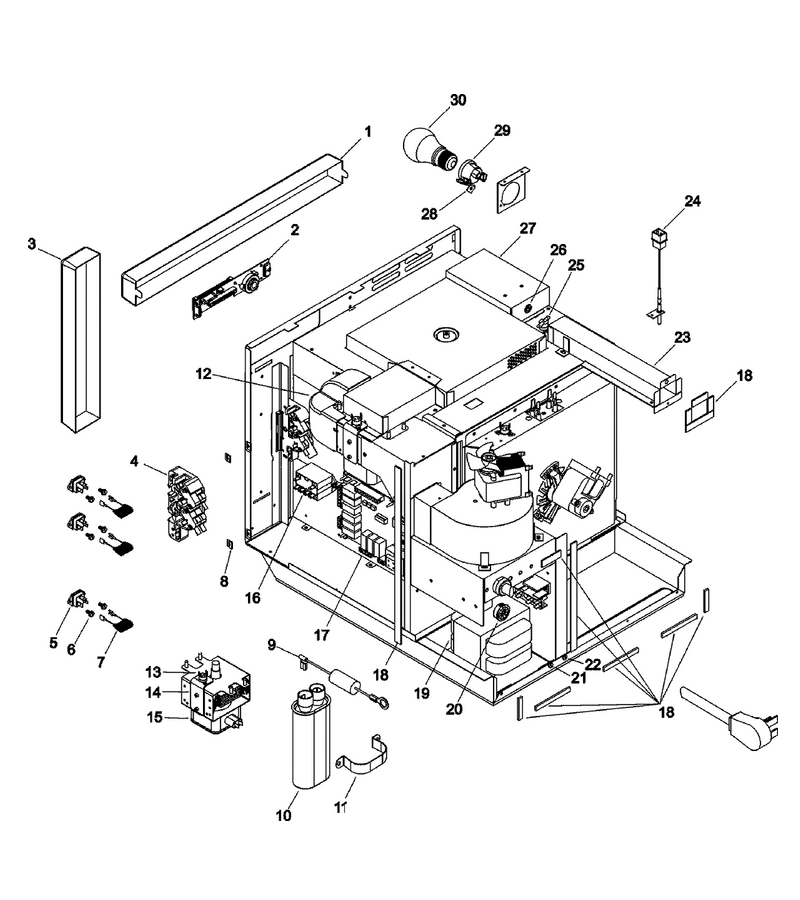

03 - Electrical Components

...
...
1
Assy, Touch Panel-Top WPL-R0000280
...
2
Board,display WPL-12502404
...
3
Screw-Tf/hex Rohs WPL-59002047
...
4
Switch, Interlock Kit WPL-12002647
...
5
Kit, Triac Assy WPL-R0157373
...
6
Screw-Sm/hex WPL-12990526
...
7
Snubber Assembly WPL-59002017
...
8
Nut-No.6 Speed WPL-M0287016
...
9
Screw-Tf/hex Rohs WPL-59002047
...
10
Capacitor-1.30 WPL-59001172
...
11
Screw WPL-WP489497
...
12
Duct-Mag/wvgd WPL-12018101
...
13
Cutout-Thermal WPL-B5684119
...
14
Brkt-Tco Mtg WPL-10999501
...
15
Magnetron-T WPL-59001484
...
16
Screw WPL-WP90767
...
17
Board-Hv WPL-12502810
...
18
Gasket,per Ft WPL-A30303-30
...
19
Transformer-Hv 230v 50 Hz WPL-10788620
...
20
Snap Bushing WPL-M0571001
...
21
Screw WPL-WP90767
...
22
Screw WPL-WP12990527
...
23
Flue Duct Weld WPL-12002901
...
24
Sensor-Temp WPL-12000202
...
25
Thermal Protector WPL-B5684102
...
26
Bushing WPL-A3293501
...
27
Cover,lamp WPL-12630501
...
28
Screw WPL-WP59002061
...
29
Socket, Light WPL-B8376801
...
30
Bulb-Light WPL-WP67002552
