Amana ACE530 (BOM: P1325907M)

Model: ACE530 (BOM: P1325907M)

Save Part Not Listed?
product name

...
...
1
Use & Care-English WPL-59001509
...
2
Manual-Service WPL-RS5320016
...
3
Manual-Prod Safety WPL-16021751
...
4
Tech Sheet WPL-59001628
...
5
Harness-Triacs & Rtd Wires WPL-12537703
...
6
Harness-Pc Board WPL-13018301
...
7
Harness-Interlock WPL-13018201
...
8
Harness-Oven Light WPL-12004302
...
9
Harness, Wiring-Main WPL-59001658
...
10
Wire, H.v. WPL-12026901
...
11
Jumper Wire WPL-D7718009
...
12
Wire, H.v. WPL-12026901
...
13
Bit For Crow Foot Drive Screws WPL-92113P01
...
14
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408
...
15
Flat Sheet WPL-59001516
...
16
Rack & Guide Kit WPL-59001517
...
17
Fry Basket WPL-59001518
...
18
Pizza Stone WPL-59001519
...
19
Cavity Cleaner WPL-59001520
...
20
Drip Tray WPL-59001521

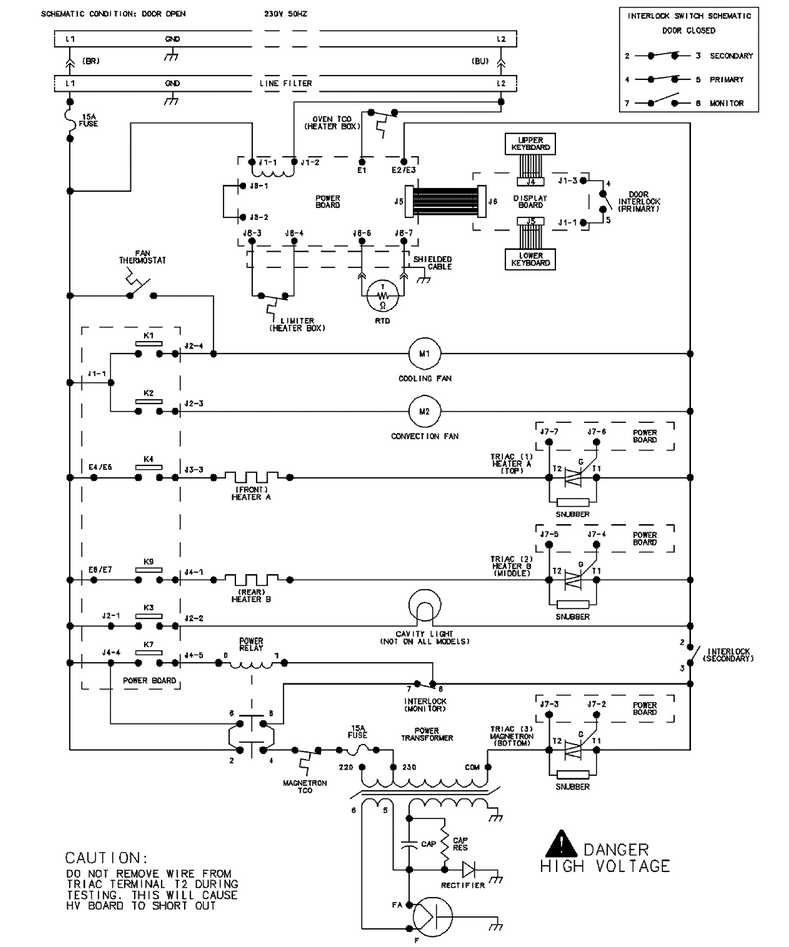

07 - Wiring Information

...
...
NI
Wiring Information WPL-15003376

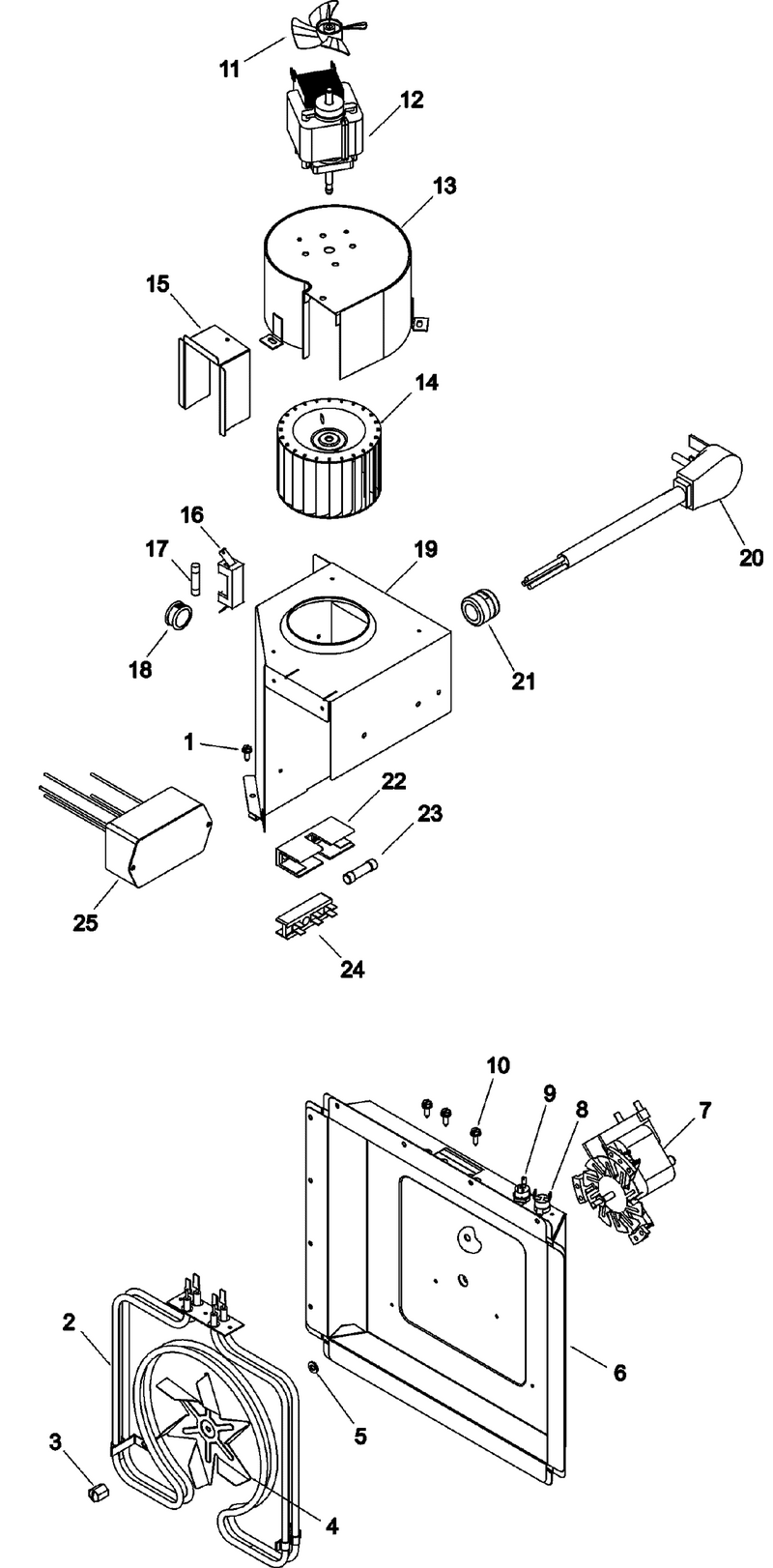

04 - Fuses, Blower, Heater Box,

...
...
1
Screw WPL-WP90767
...
2
Screw WPL-WP488234
...
3
Nut,cap WPL-12538001
...
4
Blade, Fan WPL-12537901
...
5
Washer WPL-12546101
...
6
Screw (3) WPL-67006425
...
7
Motor,convection WPL-12537803
...
8
Screw WPL-M0232012
...
9
Screw WPL-M0232012
...
10
Screw WPL-W10856125
...
11
Fan Blade WPL-B5706704
...
12
Screw WPL-M0253916
...
13
Scroll Weld WPL-10797203
...
14
Wheel, Blower WPL-C3670809
...
15
Screw WPL-WP90767
...
16
Block-Fuse WPL-W10206728
...
17
Fuse WPL-WPM0805102
...
18
Bushing-Snap WPL-M0571003
...
19
Screw WPL-WP90767
...
20
Cord, Power WPL-59002001
...
21
Relief- Strain WPL-M0370009
...
22
Screw WPL-WP489349
...
23
Fuse,20 Amp WPL-M0805203
...
24
Screw WPL-WP90767
...
25
Filter-Line WPL-12130001

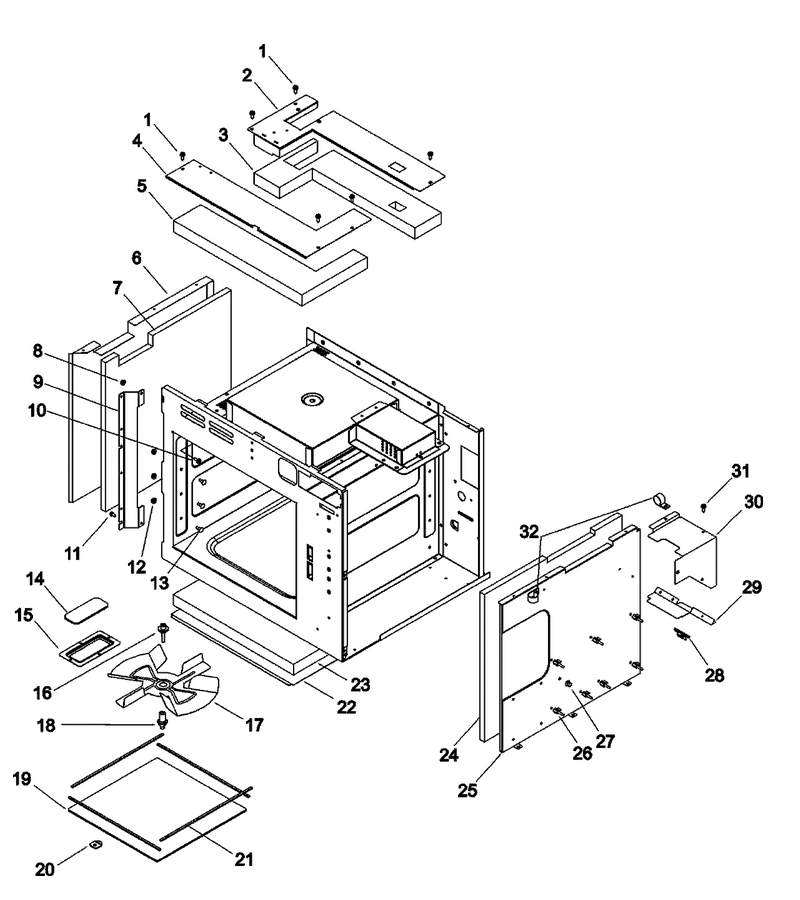

05 - Stirrer, Ducts,

...
...
1
Screw WPL-WP90767
...
2
Retainer-Top Back Insul WPL-10977401
...
3
Insul- Top Back Retainer WPL-12000701
...
4
Retainer-Top Front Insul WPL-10978002
...
5
Insul- Top Front Retainer WPL-12000702
...
6
Retainer-Side Insul Lt WPL-10977301
...
7
Insul- Side Retainer Lt WPL-12000501
...
8
Nut K WPL-M0282005
...
9
Brkt, Hinge Supp WPL-12189004
...
10
Screw WPL-M0213815
...
11
Screw, Hex Head WPL-59001208
...
12
Nut WPL-WP488130
...
13
Bolt-Shldr WPL-12030101
...
14
Glass-Oven Light WPL-12047501
...
15
Screw WPL-M0213815
...
16
Shaft, Stirrer WPL-12004401
...
17
Blade, Stirrer WPL-10825904Q
...
18
Kit-Insert & Blade Stirrer WPL-R0130737
...
19
Assy, Stirrer Cover WPL-R0150115
...
20
Retainer-Tray WPL-12188901
...
21
Gasket WPL-12019002
...
22
Screw WPL-WP489128
...
23
Insul-Bottom Retainer WPL-12000703
...
24
Insul- Side Retainer Rt WPL-12000401
...
25
Screw WPL-WP489128
...
26
No.6 F X 1/4`` Screw (25) WPL-5043-W
...
27
Support WPL-M0585507
...
28
Clip WPL-WPM0104106
...
29
Duct-Blower/mag WPL-10978601
...
30
Cover-Mag Inlet WPL-10978702
...
31
Screw WPL-WP489349
...
32
Screw WPL-WP90767

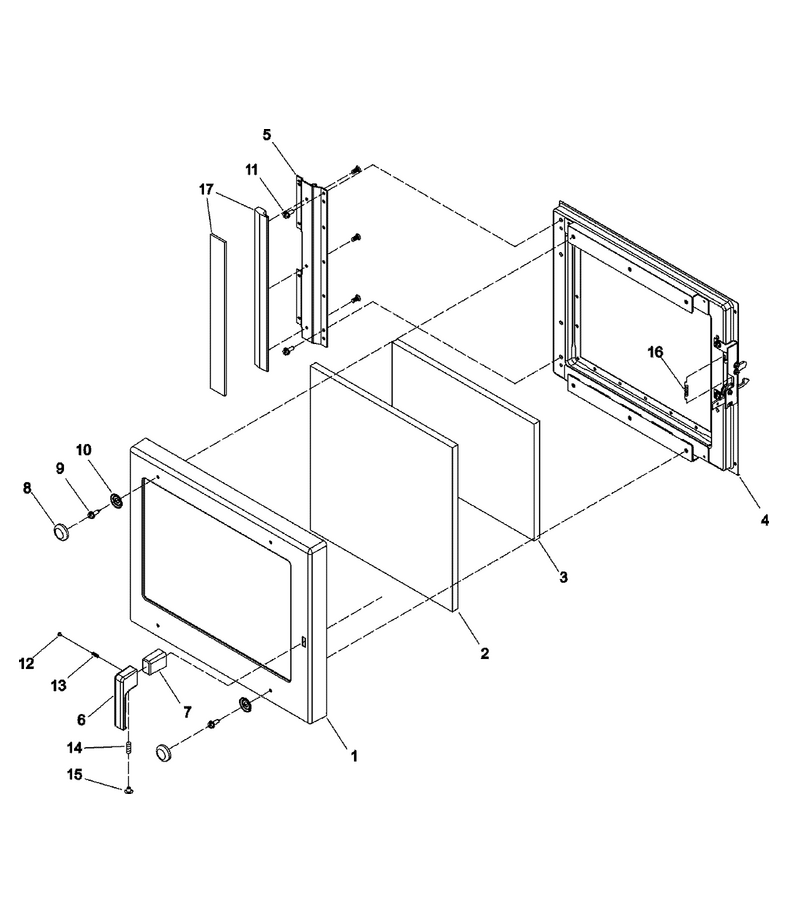

02 - Door

...
...
NI
Bit For Crow Foot Drive Screws WPL-92113P01
...
1
Door-Outer WPL-59001511
...
2
Insulation, Door-Large WPL-12474902
...
3
Insulation, Door-Small WPL-12474901
...
4
Kit- Inner WPL-12002760
...
5
Hinge-Door WPL-12002863
...
6
Door Handle WPL-12490902
...
7
Insert,handle WPL-12576901
...
8
Cap-Screw WPL-59001660
...
9
No.8 Ab X 1/2`` Crow Foot Hd Scr WPL-5145-E
...
10
Washer, Cap Screw WPL-M0295502
...
11
Screw WPL-WP12990527
...
12
Plug, Button (Blk) WPL-12360703
...
13
Screw WPL-WP8533976
...
14
Set Screw WPL-M0206943
...
15
Plug, Button (Wht) WPL-M0310305
...
16
Spring-Door Latch WPL-59001721
...
17
Hinge Cover (Gray) WPL-59001230

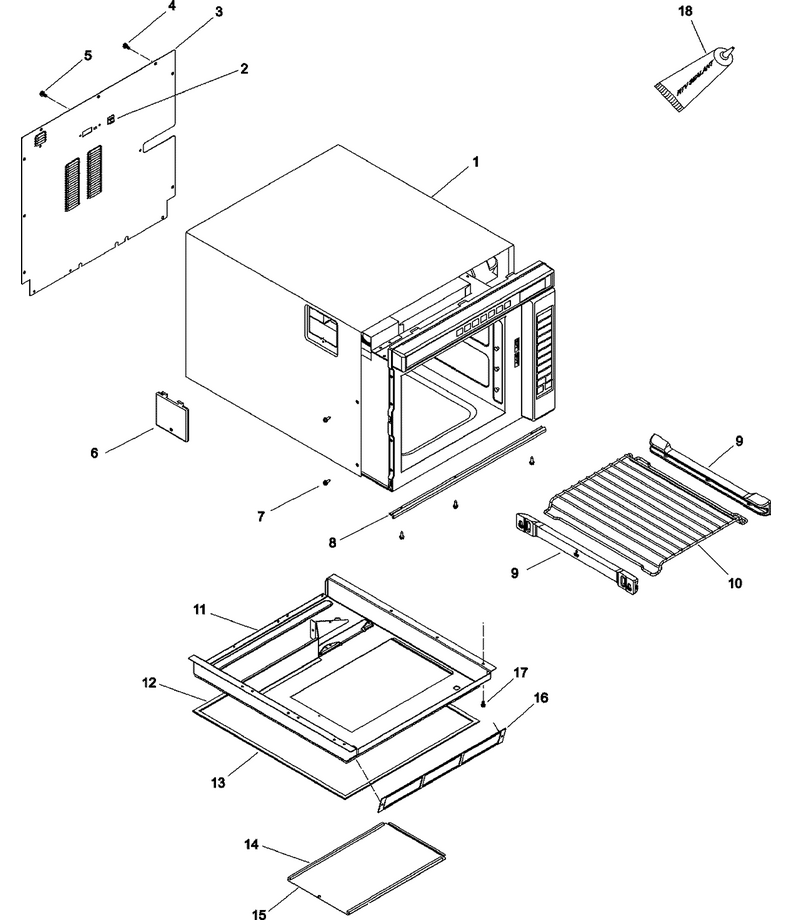

01 - Cabinet

...
...
1
Wrapper-Oc (Ss) WPL-10908901Q
...
2
Clip WPL-WPM0104106
...
3
Access Pan Weld (Blk) WPL-12002804
...
4
Screw WPL-WP3388228
...
5
Screw WPL-WP90767
...
6
Clip WPL-M0288213
...
7
Screw, T F WPL-M0249619
...
8
Screw, T F WPL-M0249619
...
9
Assy, Rack Guide WPL-12523201Q
...
10
Rack-Oven WPL-12487403
...
11
Assy, Base Pan & Gaskets WPL-R0150116
...
12
Basepan Gasket-Cut WPL-59001646
...
13
Basepan Gasket-Cut WPL-59001647
...
14
Gasket (Inch) WPL-A3030301
...
15
Bottom Access Panel WPL-10782402
...
16
Screw-Thumb WPL-13042901
...
17
Screw WPL-WP489128
...
18
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408

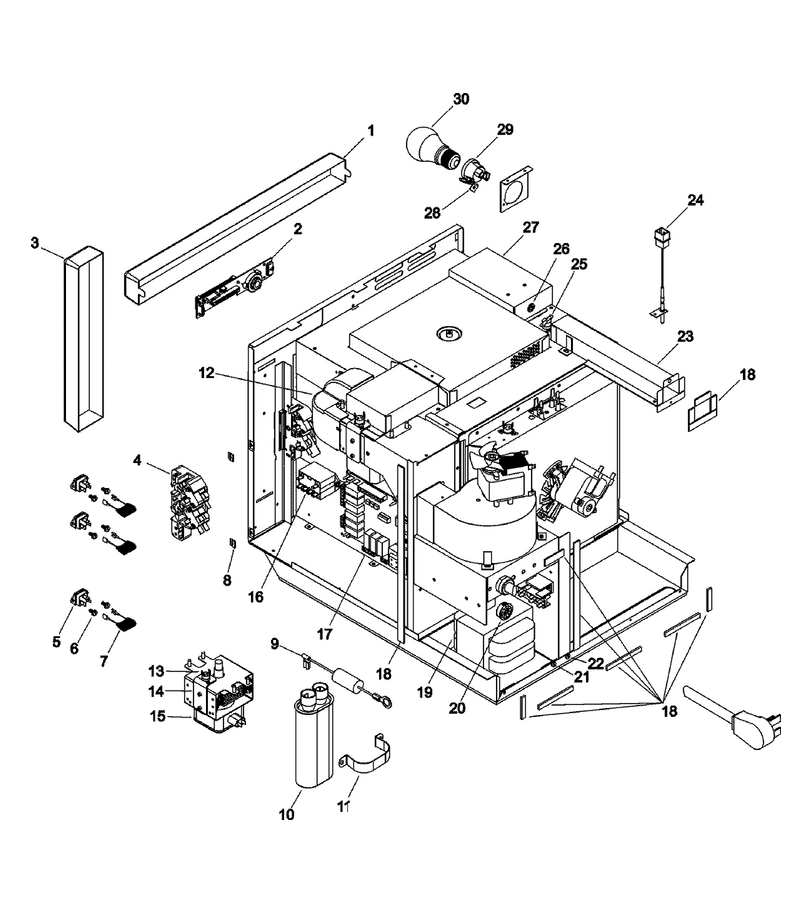

03 - Electrical Components

...
...
1
Assy, Touch Panel-Top WPL-R0000280
...
2
Screw WPL-M0234114
...
3
Screw, Hex Head WPL-59001208
...
4
Screw-Sm/hex WPL-12990523
...
5
Triac WPL-D7681501
...
6
Screw WPL-WP90767
...
7
Snubber Assembly WPL-59002017
...
8
Nut-Speed WPL-M0287001
...
9
Rectifier WPL-WP13091701
...
10
Capacitor-1.30 WPL-59001172
...
11
Strap, Capacitor WPL-A4055406
...
12
Screw WPL-WP90767
...
13
Cutout-Thermal WPL-B5684119
...
14
Brkt-Tco Mtg WPL-10999501
...
15
Magnetron-T WPL-59001484
...
16
Screw WPL-WP90767
...
17
Board,hv Amana Program WPL-12559101Q
...
18
Gasket (Inch) WPL-A3030301
...
19
Transformer-Hv 230v 50 Hz WPL-10788620
...
20
Snap Bushing WPL-M0571001
...
21
Screw WPL-WP90767
...
22
Screw WPL-WP3388228
...
23
Screw WPL-WP90767
...
24
Sensor-Temp WPL-12000202
...
25
Thermal Protector WPL-B5684102
...
26
Bushing WPL-A3293501
...
27
Screw WPL-WP90767
...
28
Screw WPL-WP489349
...
29
Screw WPL-WP59002061
...
30
Bulb-Light WPL-WP67002552
