Amana ACE230SBC2 (BOM P1331306M)

Model: ACE230SBC2 (BOM P1331306M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

...
...
001
Sealer,rtv 2.8 Oz-Red-Hi-Temp WPL-59001950
...
002
Mnl,svc-Comm`l Comb Micro Xno WPL-RS2220002
...
003
Manual-Prod Safety WPL-16021751
...
004
Use & Care-English WPL-NLA
...
005
Instr-Quick Start WPL-59001510
...
006
Harness-Wiring WPL-59001507
...
007
Harness-Triacs & Rtd Wires WPL-59001953
...
008
Harness-Interlock WPL-13018201
...
009
Harness-Oven Light WPL-12543401
...
010
Harness-Pc Board WPL-13018301
...
011
Jumper Wire WPL-D7718009
...
012
Wire, H.v. WPL-12026901
...
013
Wire, H.v. WPL-12026901
...
014
Bit For Crow Foot Drive Screws For Outer Door Screws WPL-92113P01
...
015
Flat Sheet WPL-59001516
...
016
Rack & Guide Kit WPL-NLA
...
017
Fry Basket WPL-59001518
...
018
Pizza Stone WPL-59001519
...
019
Cavity Cleaner WPL-59001520

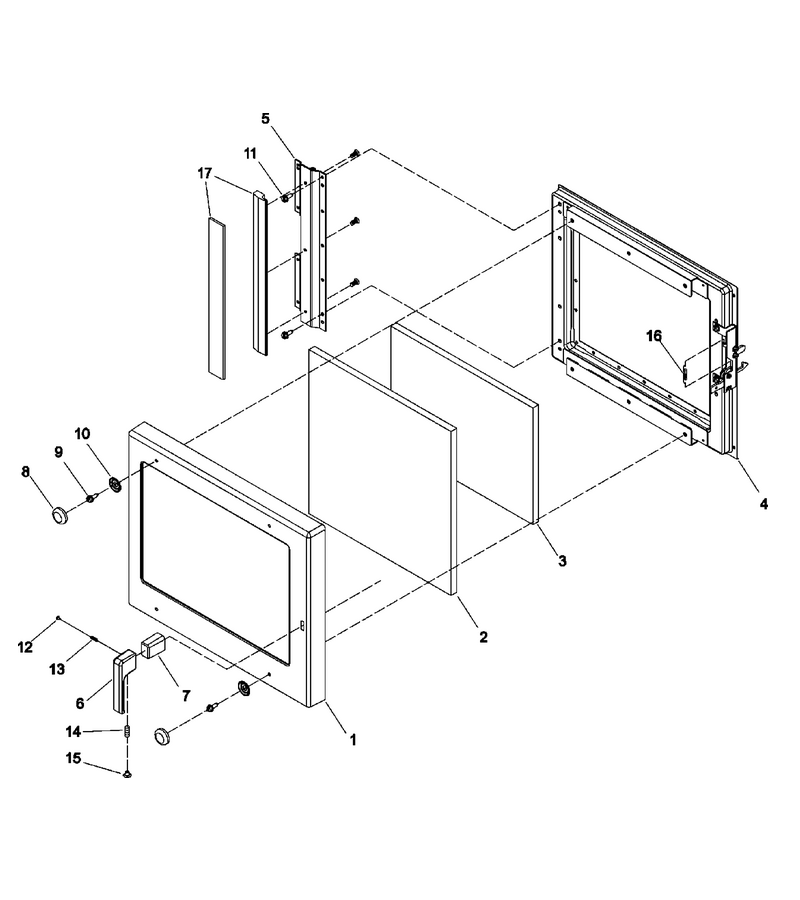

02 - Door

...
...
001
Door-Outer WPL-59001511
...
002
Insulation, Door-Large WPL-12474902
...
003
Insulation, Door-Small WPL-12474901
...
004
Kit- Inner WPL-12002760
...
005
Hinge- Door WPL-59001869
...
006
Door Handle WPL-12490902
...
007
Insert,handle WPL-12576901
...
008
Cap-Screw WPL-59001660
...
009
No.8 Ab X 1/2`` Crow Foot Hd Scr WPL-5145-E
...
010
Washer, Cap Screw WPL-M0295502
...
011
Screw WPL-WP12990527
...
012
Plug, Button (Blk) WPL-12360703
...
013
Screw WPL-WP8533976
...
014
Set Screw WPL-M0206943
...
015
Plug, Button (Wht) WPL-M0310305
...
016
Spring-Door Latch WPL-59001721
...
017
Hinge Cover (Gray) WPL-59001230
...
018
Bit For Crow Foot Drive Screws WPL-92113P01

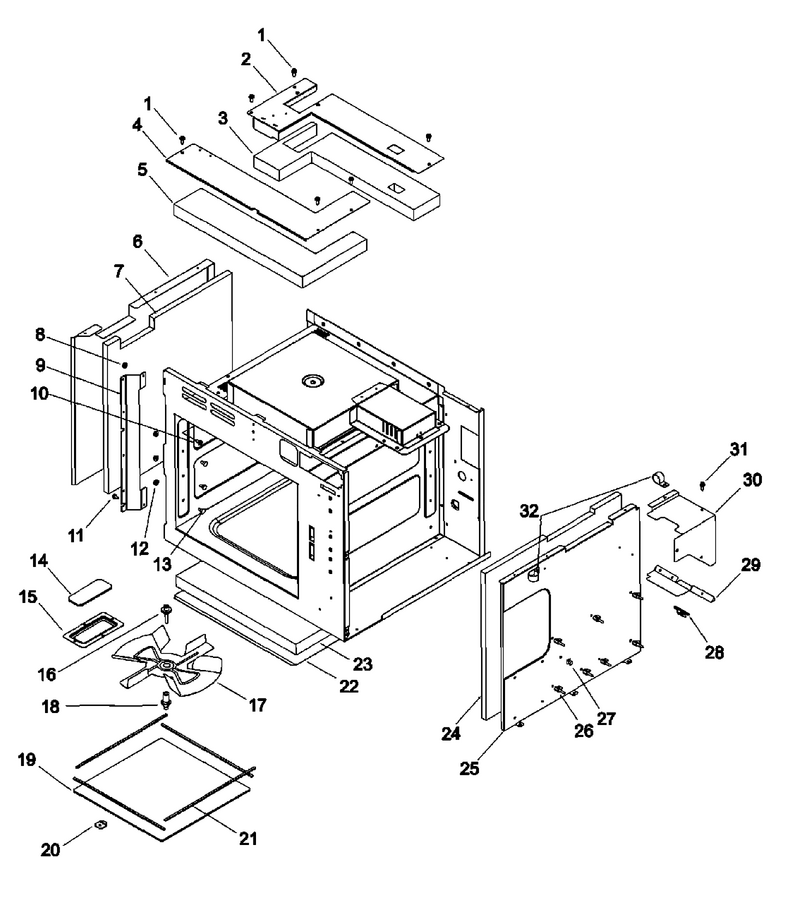

04 - Stirrer, Ducts,

...
...
001
Screw WPL-WP90767
...
002
Retainer-Top Back Insul WPL-10977401
...
003
Insul- Top Back Retainer WPL-12000701
...
004
Retainer-Top Front Insul WPL-10978002
...
005
Insul- Top Front Retainer WPL-12000702
...
006
Retainer-Side Insul Lt WPL-10977301
...
007
Insul- Side Retainer Lt WPL-12000501
...
008
Nut K WPL-M0282005
...
009
Brkt, Hinge Supp WPL-12189004
...
010
Screw WPL-M0213815
...
011
Screw, Hex Head WPL-59001208
...
012
Nut WPL-WP488130
...
013
Bolt-Shldr WPL-12030101
...
014
Glass-Oven Light WPL-12047501
...
015
Retainer, Oven Light Glass WPL-10978201
...
016
Shaft, Stirrer WPL-12004401
...
017
Blade, Stirrer WPL-10825904Q
...
018
Kit-Insert & Blade Stirrer WPL-R0130737
...
019
Assy, Stirrer Cover WPL-R0150115
...
020
Screw WPL-M0213815
...
021
Gasket WPL-12019002
...
022
Screw WPL-WP489128
...
023
Insul-Bottom Retainer WPL-12000703
...
024
Insul- Side Retainer Rt WPL-12000401
...
025
Screw WPL-WP489128
...
026
No.6 F X 1/4`` Screw (25) WPL-5043-W
...
027
Support WPL-M0585507
...
028
Clip WPL-WPM0104106
...
029
Screw WPL-WP90767
...
030
Cover-Mag Inlet WPL-10978702
...
031
Screw WPL-WP489349
...
032
Screw WPL-WP90767

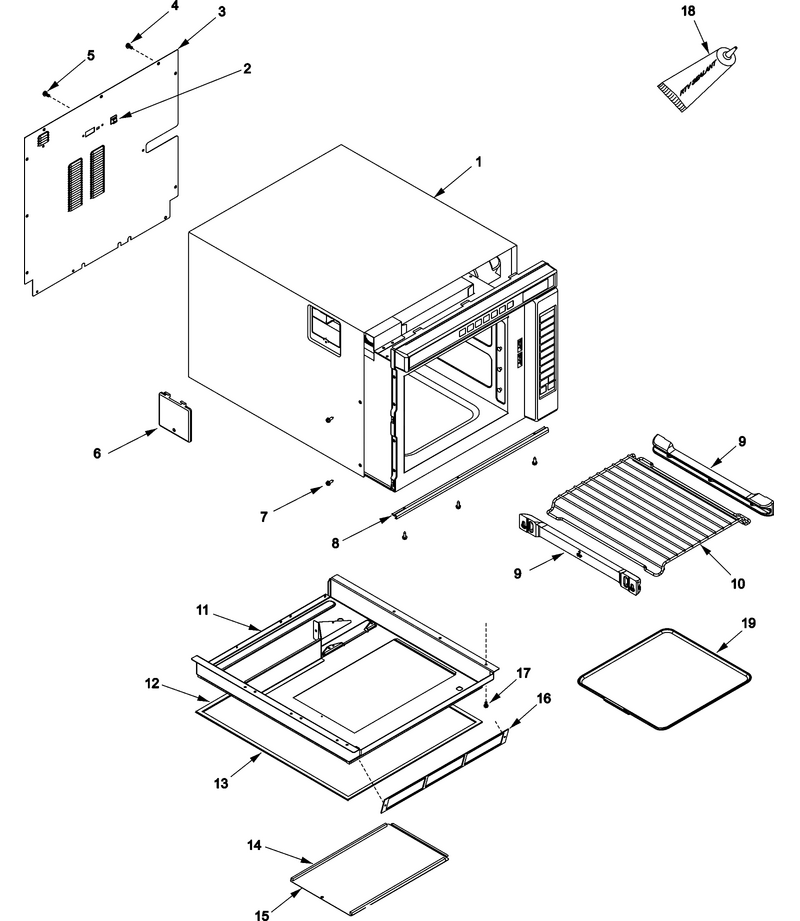

01 - Cabinet

...
...
001
Wrapper-Oc (Ss) WPL-10908901Q
...
002
Clip WPL-WPM0104106
...
003
Access Pan Weld (Blk) WPL-12002804
...
004
Screw WPL-WP3388228
...
005
Screw WPL-WP90767
...
006
Screw, T F WPL-M0249619
...
007
Screw, T F WPL-M0249619
...
008
Screw, T F WPL-M0249619
...
009
Assy, Rack Guide WPL-12523201Q
...
010
Rack-Oven WPL-12487403
...
011
Assy, Base Pan & Gaskets WPL-R0150116
...
012
Basepan Gasket-Cut WPL-59001646
...
013
Basepan Gasket-Cut WPL-59001647
...
014
Gasket (Inch) WPL-A3030301
...
015
Bottom Access Panel WPL-10782402
...
016
Screw-Thumb WPL-13042901
...
017
Screw WPL-WP489128
...
018
Sealer,rtv 2.8 Oz-Red-Hi-Temp WPL-59001950
...
019
Grease Tray Assy WPL-59001942

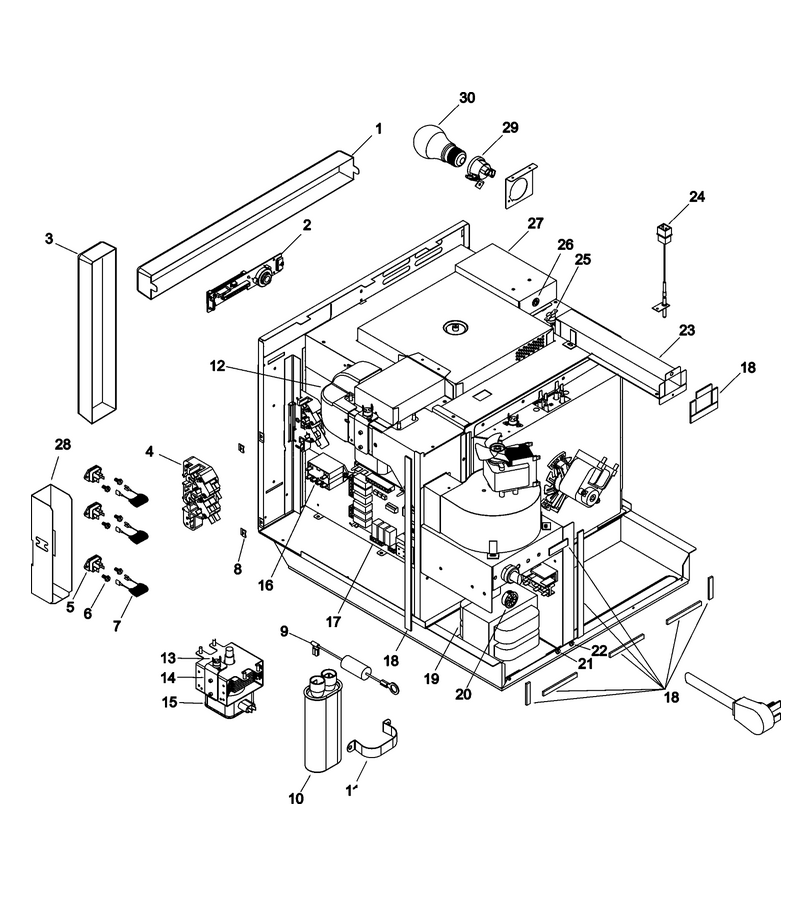

03 - Electrical Components

...
...
001
Assy, Touch Panel-Top WPL-R0000280
...
002
Screw WPL-M0234114
...
003
Screw, Hex Head WPL-59001208
...
004
Switch, Interlock Kit WPL-12002636
...
005
Triac WPL-D7681501
...
006
Screw WPL-WP90767
...
007
Snubber Assembly WPL-59002017
...
008
Nut-Speed WPL-M0287001
...
009
Rectifier WPL-WP13091701
...
010
Capacitor-.69 WPL-59001160
...
011
Screw, Hex Head WPL-59001208
...
012
Duct-Mag/wvgd WPL-12018101
...
013
Cutout-Thermal WPL-B5684119
...
014
Brkt-Tco Mtg WPL-10999501
...
015
Magnetron-T WPL-10489402
...
016
Relay WPL-12492202
...
017
Board,hv Amana Prog- Ace_Sbc WPL-59001943
...
018
Gasket (Inch) WPL-A3030301
...
019
Transformer-Hv WPL-59001626
...
020
Snap Bushing WPL-M0571001
...
021
Screw WPL-WP90767
...
022
Screw WPL-WP3388228
...
023
Screw WPL-WP90767
...
024
Sensor-Temp WPL-12000202
...
025
Thermal Protector- Fan WPL-B5684102
...
026
Bushing WPL-A3293501
...
027
Screw WPL-WP90767
...
028
Shield, Triac WPL-12210101
...
029
Screw WPL-WP489349
...
030
Bulb-Light WPL-WP67002552

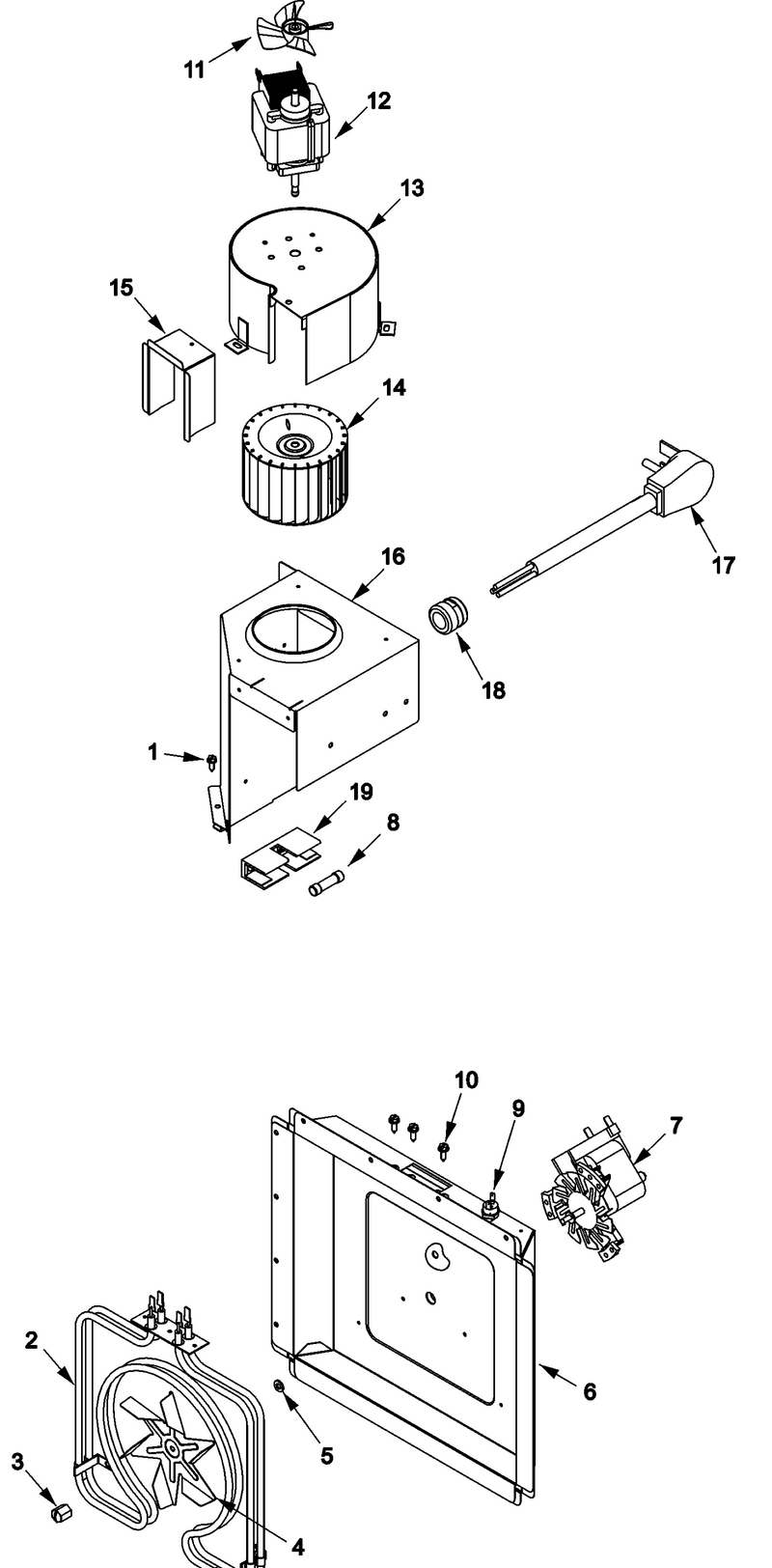

05 - Fuses, Blower, Heater Box,

...
...
001
Screw WPL-WP90767
...
002
Screw WPL-WP488234
...
003
Nut,cap WPL-12538001
...
004
Blade, Fan WPL-12537901
...
005
Washer WPL-12546101
...
006
Screw (3) WPL-67006425
...
007
Screw WPL-WP489464
...
008
Fuse- 30a WPL-M0805205
...
009
M4d69 Protector WPL-31866P01
...
010
Screw WPL-W10856125
...
011
Fan Blade WPL-B5706704
...
012
Screw WPL-M0253916
...
013
Scroll Weld WPL-10797203
...
014
Wheel, Blower WPL-C3670809
...
015
Transition-Blower WPL-10977801
...
016
Screw WPL-WP90767
...
017
Power Cord Kit WPL-R0131016
...
018
Strain Relief WPL-8536977
...
019
Screw WPL-WP489349

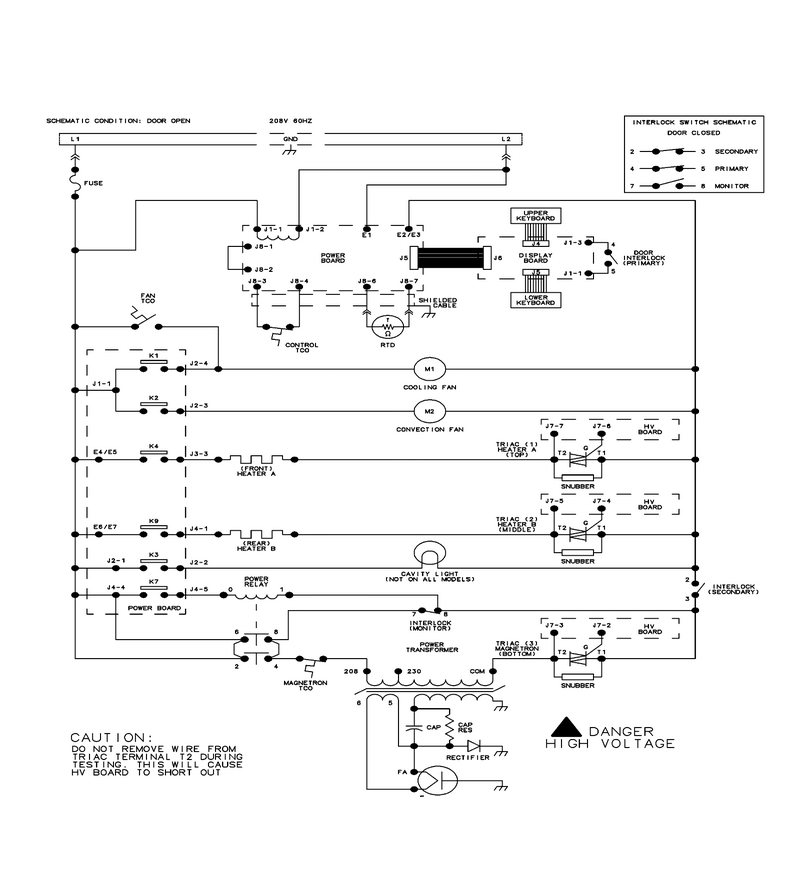

07 - Wiring Information

...
...
001
Wiring Information WPL-15003079
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
