Amana ACE2302 (BOM: P1331305M)

Model: ACE2302 (BOM: P1331305M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

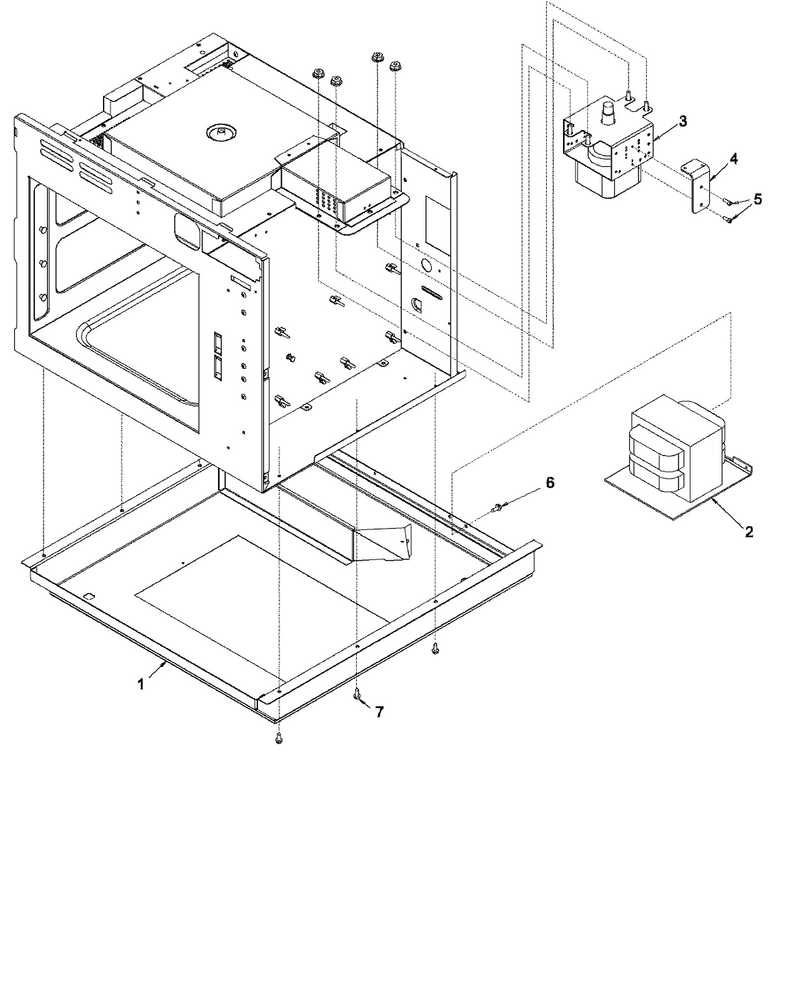

01 - Base

...
...
1
Gasket (Inch) WPL-A3030301
...
2
Transformer-Hv WPL-59001626
...
3
Magnetron-T WPL-10489402
...
4
Brkt-Tco Mtg WPL-10999501
...
5
Screw T.c WPL-M0229916
...
6
Screw WPL-WP90767
...
7
Screw WPL-WP489128

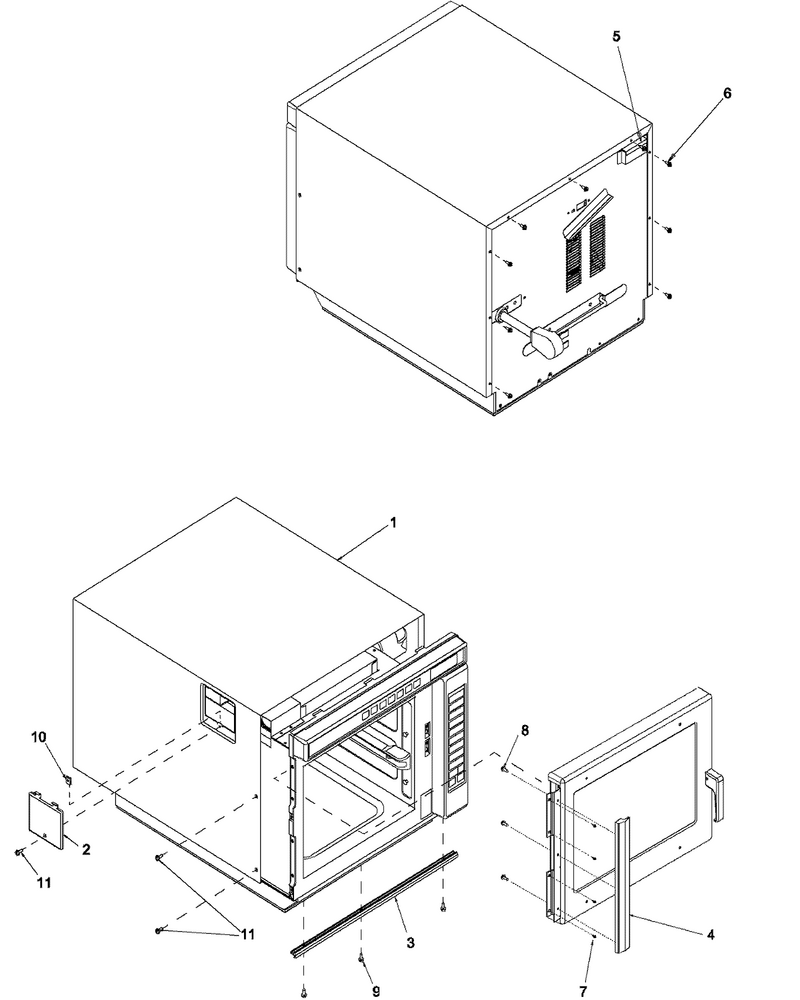

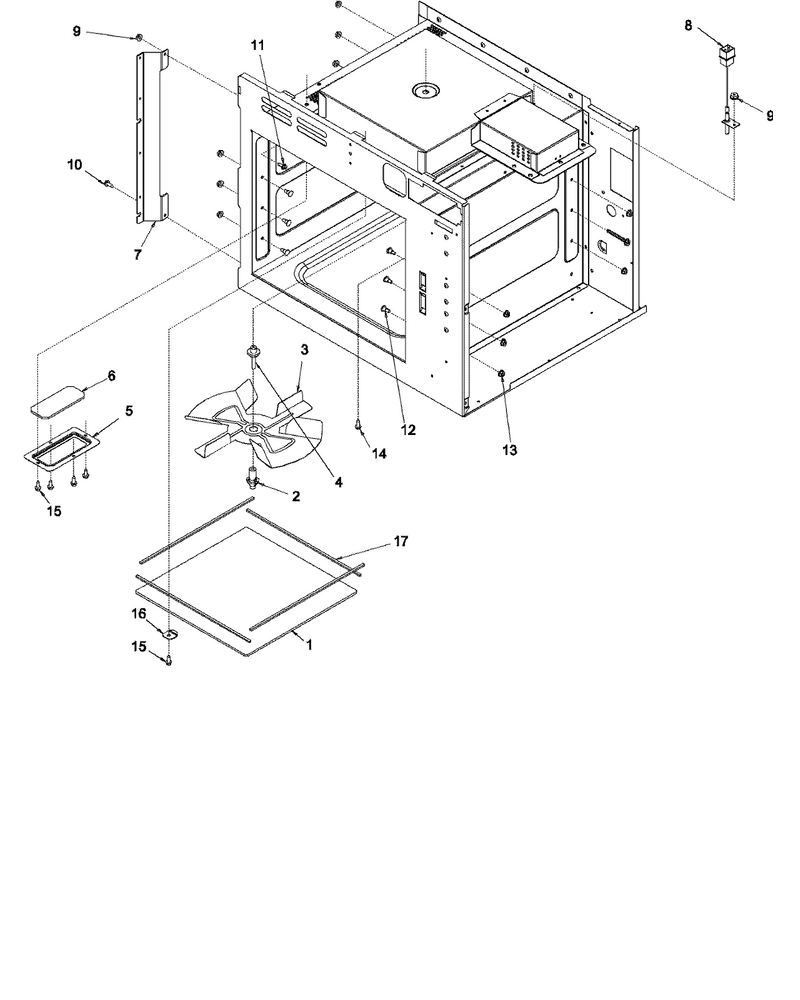

08 - Outercase

...
...
1
Wrapper-Oc (Ss) WPL-10908901Q
...
2
Cover Light (Ss) WPL-10785608
...
3
Trim-Oc (Brushed) WPL-10909001
...
4
Hinge Cover (Gray) WPL-59001230
...
5
Cover, Vent WPL-12470201
...
6
Screw WPL-WP3388228
...
7
Screw WPL-WP90767
...
8
Screw WPL-W11245710
...
9
Screw, T F WPL-M0249619
...
10
Clip WPL-M0288213
...
11
Screw, T F WPL-M0249619

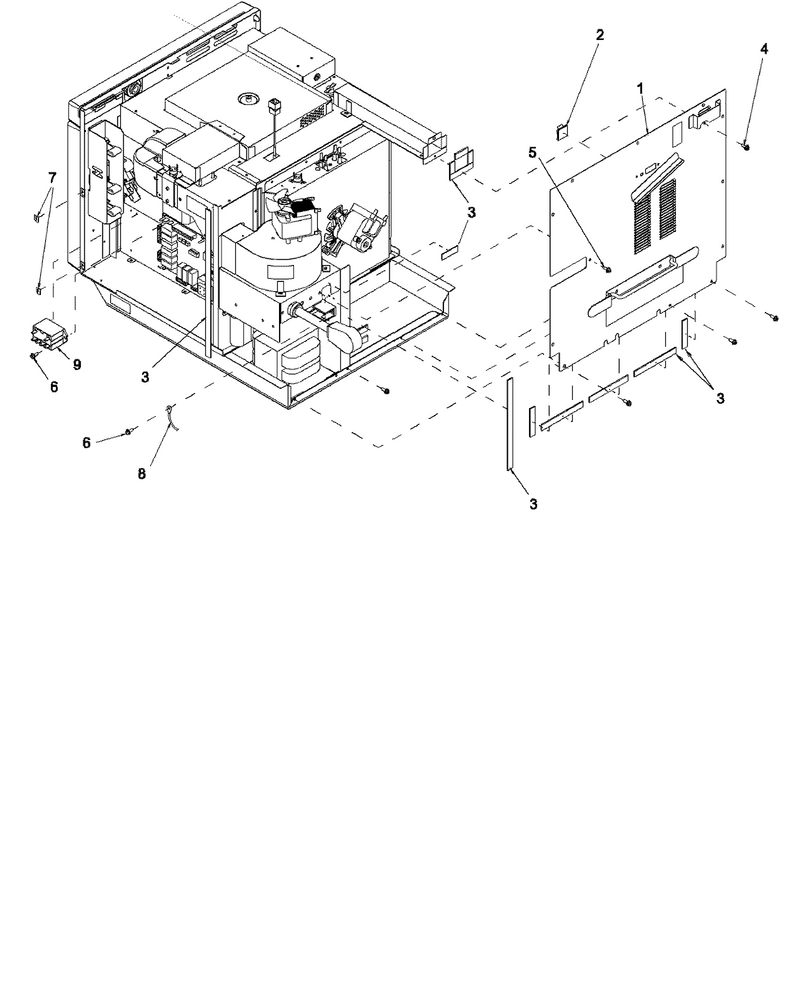

10 - Rear Panel

...
...
1
Access Pan Weld (Blk) WPL-12002804
...
2
Clip WPL-WPM0104106
...
3
Gasket (Inch) WPL-A3030301
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP3388228
...
6
Screw WPL-WP90767
...
7
Nut-Speed WPL-M0287001
...
8
Power Cord Kit WPL-R0131016
...
9
Relay WPL-12492202

...
...
1
Manual, Commercial Microwaves WPL-16022240
...
2
Mnl,svc-Comm`l Comb Micro Xno WPL-RS2220002
...
3
Manual-Prod Safety WPL-16021751
...
4
Use & Care-English WPL-59001509
...
5
Instr-Quick Start WPL-59001510
...
6
Harness-Wiring WPL-59001507
...
7
Harness-Triacs & Rtd Wires WPL-59001953
...
8
Harness-Interlock WPL-13018201
...
9
Harness-Oven Light WPL-12543401
...
10
Harness-Pc Board WPL-13018301
...
11
Jumper Wire WPL-D7718009
...
12
Wire, H.v. WPL-12026901
...
13
Wire, H.v. WPL-12026901
...
14
Bit For Crow Foot Drive Screws WPL-92113P01
...
15
Flat Sheet WPL-59001516
...
16
Rack & Guide Kit WPL-59001517
...
17
Fry Basket WPL-59001518
...
18
Pizza Stone WPL-59001519
...
19
Cavity Cleaner WPL-59001520
...
20
Drip Tray WPL-59001521
...
21
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408

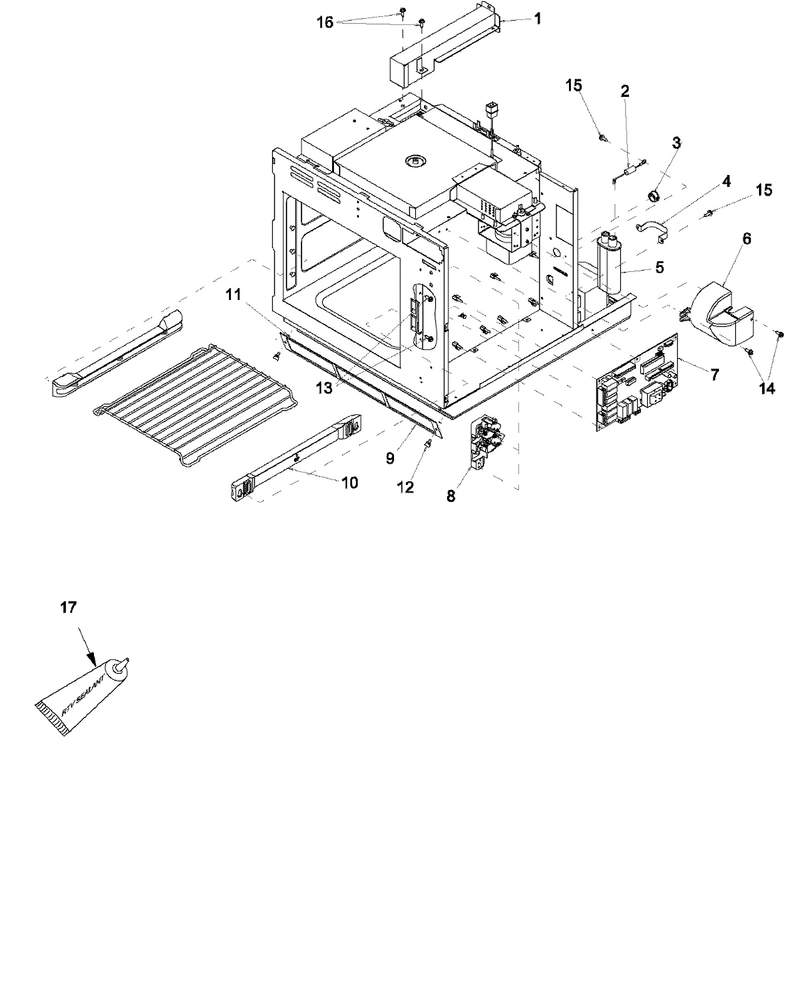

05 - Electrical Components

...
...
1
Flue Duct Weld WPL-12002901
...
2
Rectifier WPL-WP13091701
...
3
Snap Bushing WPL-M0571001
...
4
Strap, Capacitor WPL-A4055406
...
5
Capacitor-.69 WPL-59001160
...
6
Duct-Mag/wvgd WPL-12018101
...
7
Board,hv Amana Program WPL-12559101Q
...
8
Switch, Interlock Kit WPL-12002636
...
9
Grille, Air Inlet WPL-10853102
...
10
Rack-Oven WPL-12487403
...
11
Washer, Nylon WPL-M0274066
...
12
Screw-Thumb WPL-13042901
...
13
Screw-Sm/hex WPL-12990523
...
14
Screw WPL-WP90767
...
15
Screw, Tf WPL-M0231704
...
16
Screw WPL-WP90767
...
17
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408

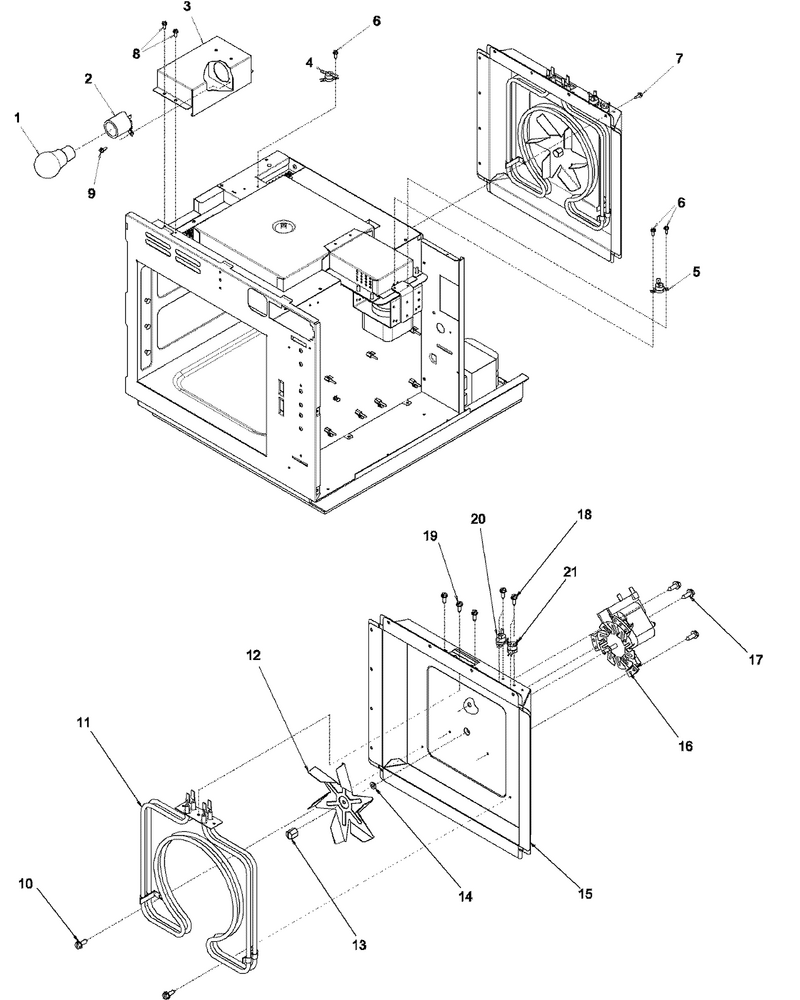

06 - Heater Box

...
...
1
Bulb-Light WPL-WP67002552
...
2
Kit-Lamp Receptacle Brk & Scre WPL-59001686
...
3
Cover,lamp WPL-12630501
...
4
Thermal Protector WPL-B5684102
...
5
Cutout-Thermal WPL-B5684119
...
6
Screw WPL-M0232012
...
7
Screw (3) WPL-67006425
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP489349
...
10
Screw WPL-WP488234
...
11
Assy, Heater WPL-12000106
...
12
Blade, Fan WPL-12537901
...
13
Nut,cap WPL-12538001
...
14
Washer WPL-12546101
...
15
Heater Box WPL-59001513
...
16
Motor, Convection WPL-12537802
...
17
Screw WPL-WP489464
...
18
Screw WPL-M0232012
...
19
Screw WPL-W10856125
...
20
M4d69 Protector WPL-31866P01
...
21
Compound WPL-R0195031

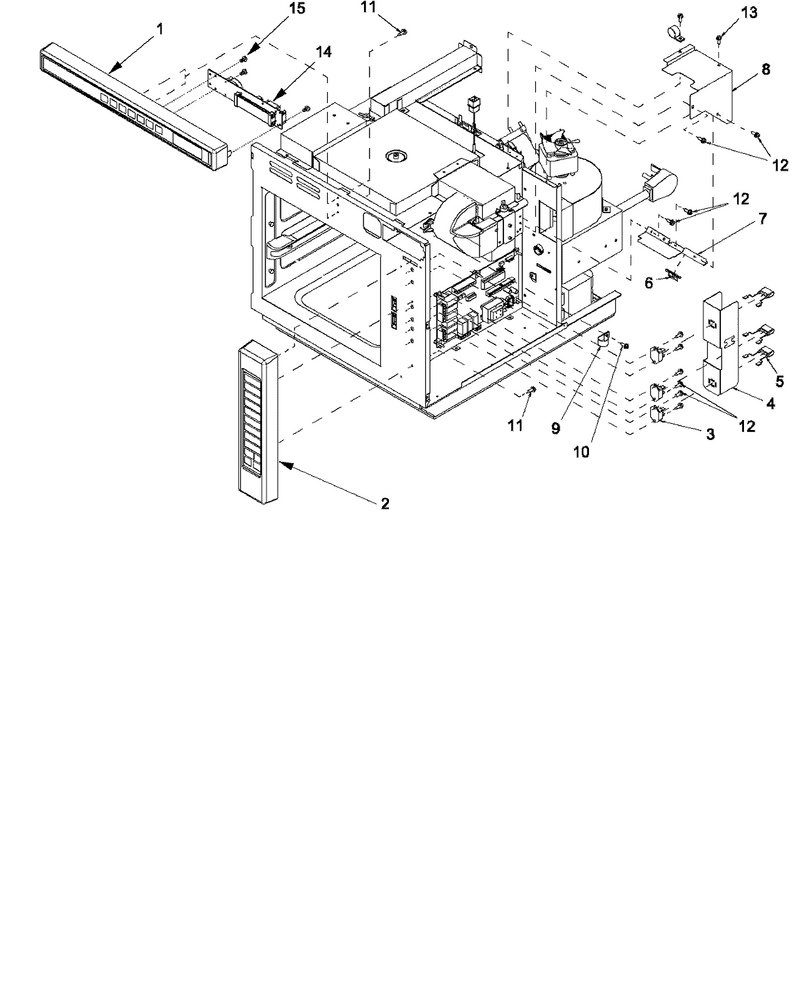

03 - Control

...
...
1
Assy, Touch Panel-Top WPL-R0000280
...
2
Touch Panel(Side) WPL-R0130109
...
3
Kit, Triac Assy WPL-R0157373
...
4
Shield, Triac WPL-12210101
...
5
Snubber Assembly WPL-59002017
...
6
Clip WPL-WPM0104106
...
7
Duct-Blower/mag WPL-10978601
...
8
Cover-Mag Inlet WPL-10978702
...
9
Clamp, Tube WPL-M0102305
...
10
Screw T.c WPL-M0229916
...
11
Screw, Tf WPL-M0231704
...
12
Screw WPL-WP90767
...
13
Screw WPL-WP489349
...
14
Board,display WPL-12502404
...
15
Screw WPL-M0234114

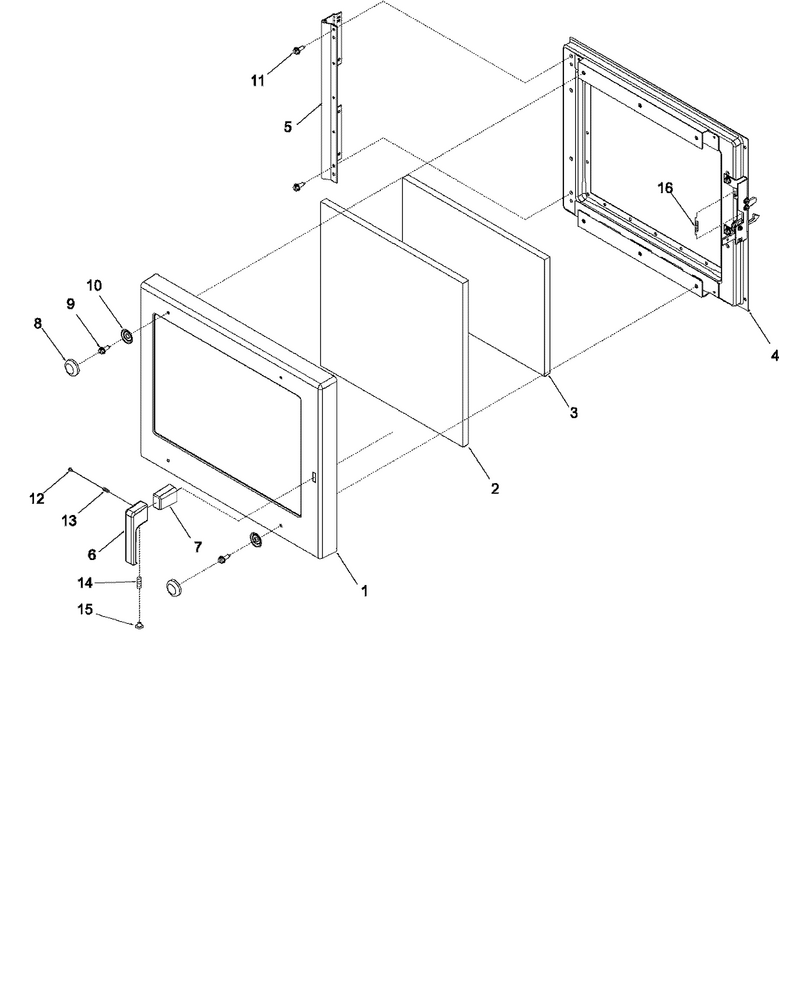

04 - Door

...
...
1
Door-Outer WPL-59001511
...
2
Insulation, Door-Large WPL-12474902
...
3
Insulation, Door-Small WPL-12474901
...
4
Kit- Inner WPL-12002760
...
5
Hinge- Door WPL-59001869
...
6
Door Handle WPL-12490902
...
7
Insert,handle WPL-12576901
...
8
Cap-Screw WPL-59001660
...
9
No.8 Ab X 1/2`` Crow Foot Hd Scr WPL-5145-E
...
10
Washer, Cap Screw WPL-M0295502
...
11
Screw WPL-WP12990527
...
12
Plug, Button (Blk) WPL-12360703
...
13
Screw WPL-WP8533976
...
14
Screw WPL-WP8533976
...
15
Plug, Button (Wht) WPL-M0310305
...
16
Spring-Door Latch WPL-59001721

11 - Stirrer

...
...
1
Assy, Stirrer Cover WPL-R0150115
...
2
Kit-Insert & Blade Stirrer WPL-R0130737
...
3
Blade, Stirrer WPL-10825904Q
...
4
Shaft, Stirrer WPL-12004401
...
5
Retainer, Oven Light Glass WPL-10978201
...
6
Glass-Oven Light WPL-12047501
...
7
Brkt, Hinge Supp WPL-12189004
...
8
Sensor-Temp WPL-12000202
...
9
Nut K WPL-M0282005
...
10
Screw, Tf WPL-M0231704
...
11
Screw-Mach WPL-M0202557
...
12
Bolt-Shldr WPL-12030101
...
13
Nut WPL-WP488130
...
14
Screw, T F WPL-M0249619
...
15
Screw WPL-M0213815
...
16
Retainer-Tray WPL-12188901
...
17
Gasket WPL-12019002

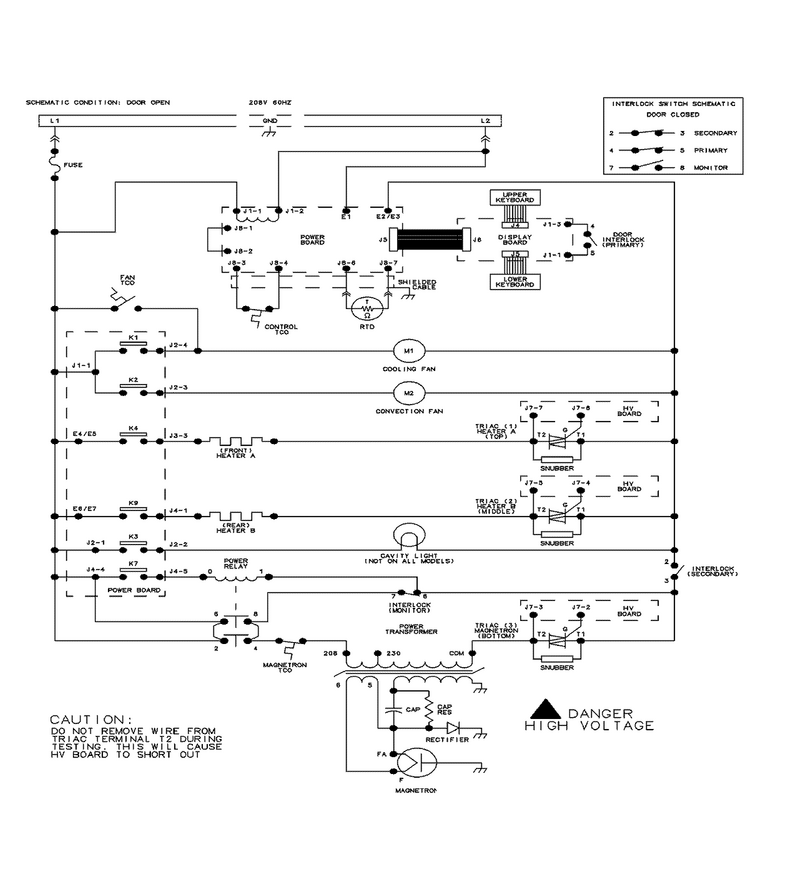

13 - Wiring Information

...
...
NI
Wiring Information WPL-15003079

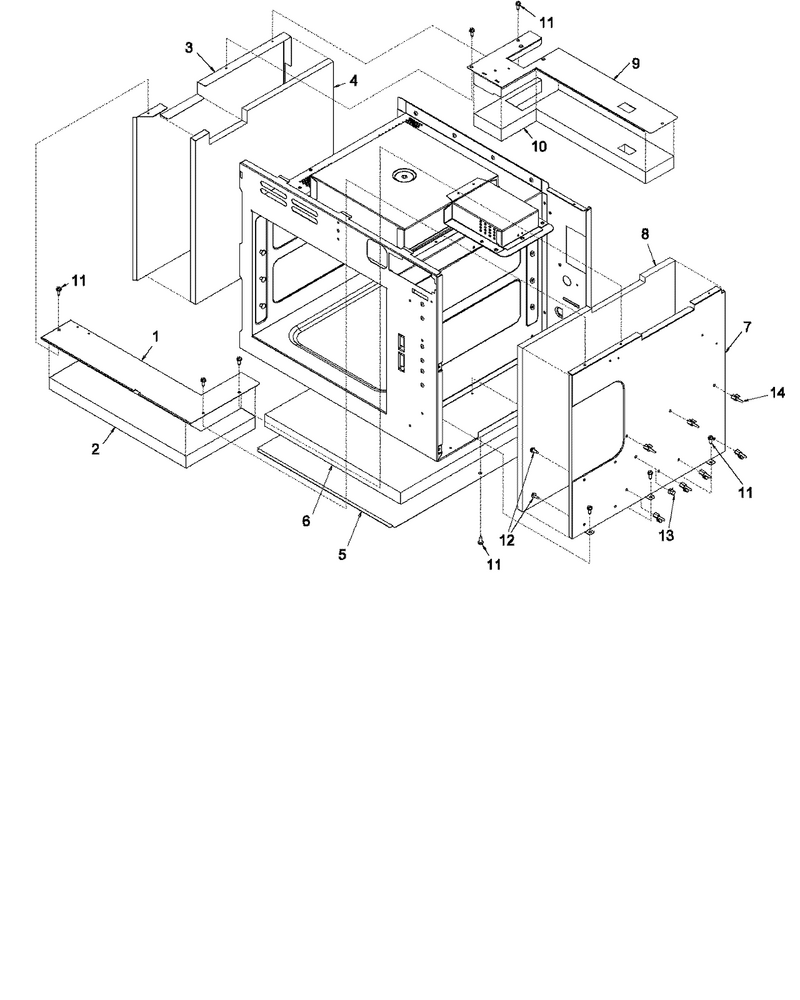

07 - Outer Cavity

...
...
1
Retainer-Top Front Insul WPL-10978002
...
2
Insul- Top Front Retainer WPL-12000702
...
3
Retainer-Side Insul Lt WPL-10977301
...
4
Insul- Side Retainer Lt WPL-12000501
...
5
Retainer-Bottom Insul WPL-10977501
...
6
Insul-Bottom Retainer WPL-12000703
...
7
Retainer-Side Insul Rt WPL-10977102
...
8
Insul- Side Retainer Rt WPL-12000401
...
9
Retainer-Top Back Insul WPL-10977401
...
10
Insul- Top Back Retainer WPL-12000701
...
11
Screw WPL-WP90767
...
12
No.6 F X 1/4`` Screw (25) WPL-5043-W
...
13
Support P-C Bd A WPL-M0590602
...
14
Support WPL-M0585507

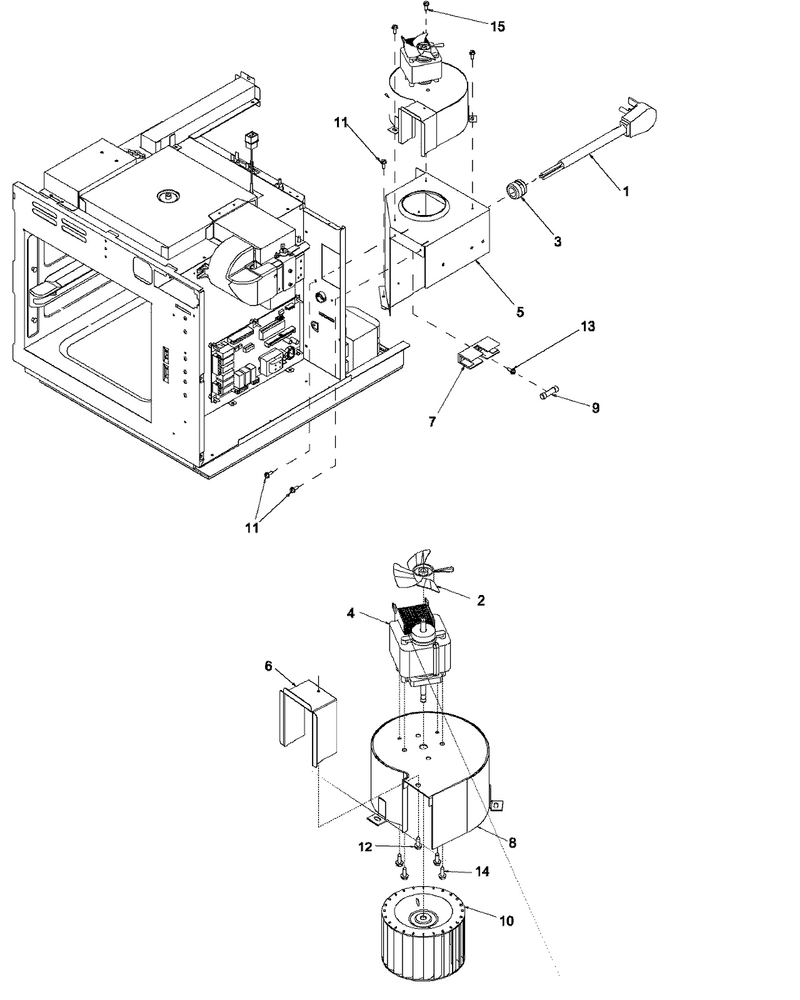

02 - Blower

...
...
1
Power Cord Kit WPL-R0131016
...
2
Fan Blade WPL-B5706704
...
3
Strain Relief WPL-8536977
...
4
Motor- Blower WPL-10773307
...
5
Weld,blower Brkt WPL-12000810
...
6
Transition-Blower WPL-10977801
...
7
Fuse Holder WPL-10091101
...
8
Scroll Weld WPL-10797203
...
9
Fuse- 30a WPL-M0805205
...
10
Wheel, Blower WPL-C3670809
...
11
Screw WPL-WP90767
...
12
Screw WPL-WP90767
...
13
Screw WPL-WP489349
...
14
Screw WPL-M0253916
...
15
Screw, Tf WPL-M0231704

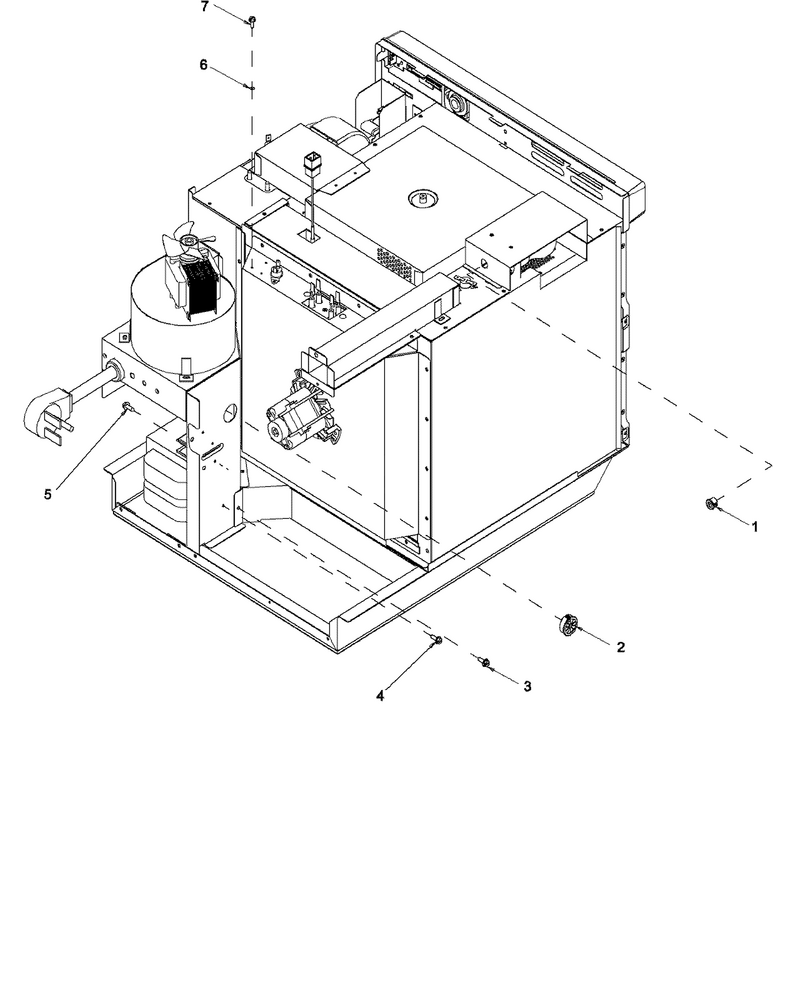

09 - Plugs

...
...
1
Bushing WPL-A3293501
...
2
Bushing-Snap WPL-M0571003
...
3
Screw WPL-WP90767
...
4
Screw WPL-WP90767
...
5
Washer WPL-M0272503
...
6
Screw WPL-M0234114
