Amana ACE230 (BOM P1324412M)

Model: ACE230 (BOM P1324412M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

...
...
001
Manual, Commercial Microwaves WPL-NLA
...
002
Mnl,svc-Comm`l Comb Micro Xno WPL-RS2220002
...
003
Manual-Prod Safety WPL-16021751
...
004
Use & Care-English WPL-NLA
...
005
Instr-Quick Start WPL-59001510
...
006
Harness-Wiring WPL-59001507
...
007
Harness-Triacs & Rtd Wires WPL-59001953
...
008
Harness-Interlock WPL-13018201
...
009
Harness-Oven Light WPL-12543401
...
010
Harness-Pc Board WPL-13018301
...
011
Jumper Wire WPL-D7718009
...
012
Wire, H.v. WPL-12026901
...
013
Wire, H.v. WPL-12026901
...
014
Bit For Crow Foot Drive Screws For Outer Door Screws WPL-92113P01
...
015
Flat Sheet WPL-59001516
...
016
Rack & Guide Kit WPL-NLA
...
017
Fry Basket WPL-59001518
...
018
Pizza Stone WPL-59001519
...
019
Cavity Cleaner WPL-59001520
...
020
Drip Tray WPL-NLA
...
021
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408

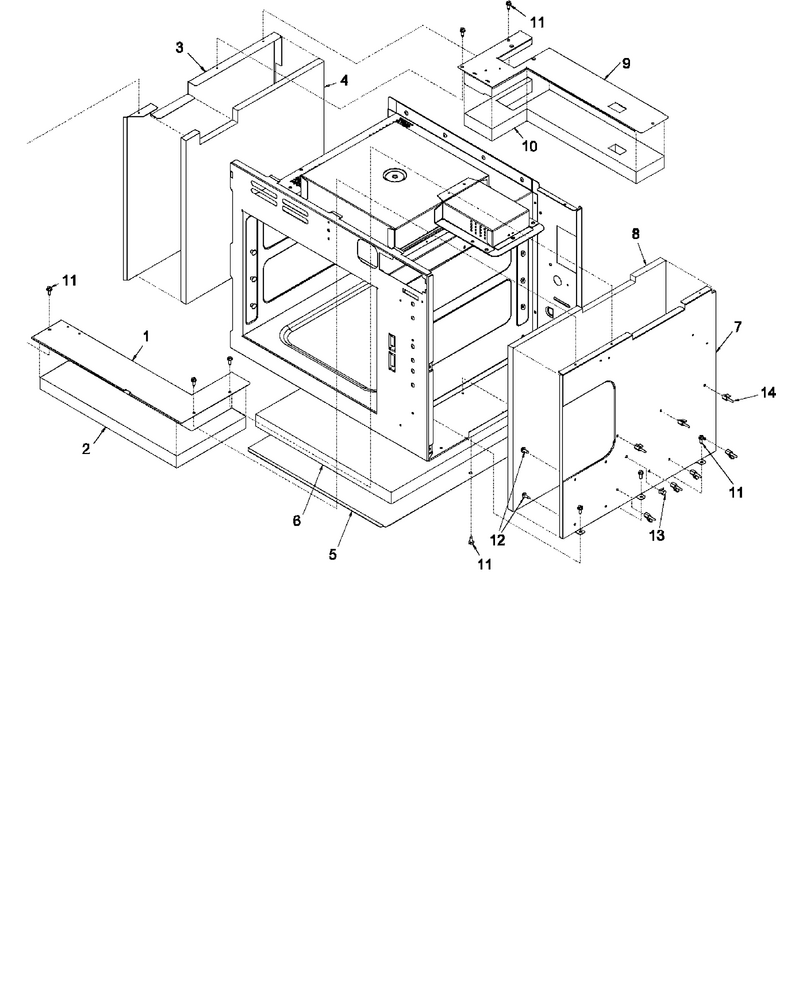

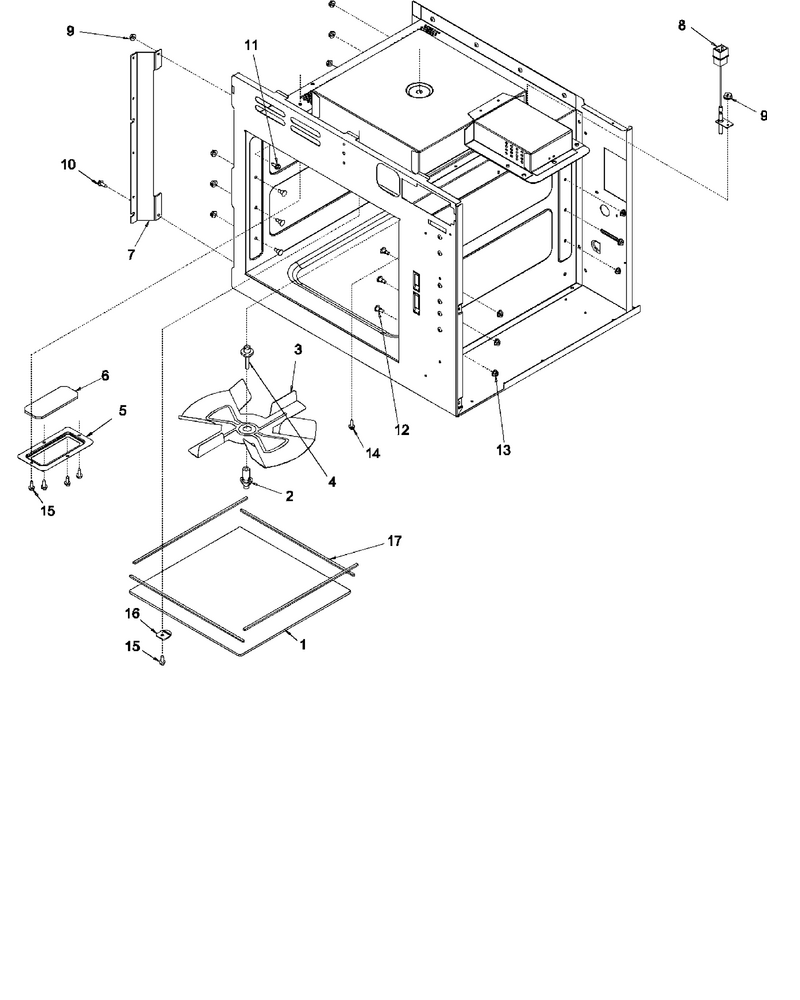

08 - Outer Cavity

...
...
001
Retainer-Top Front Insul WPL-10978002
...
002
Insul- Top Front Retainer WPL-12000702
...
003
Retainer-Side Insul Lt WPL-10977301
...
004
Insul- Side Retainer Lt WPL-12000501
...
005
Retainer-Bottom Insul WPL-10977501
...
006
Insul-Bottom Retainer WPL-12000703
...
007
Retainer-Side Insul Rt WPL-10977102
...
008
Insul- Side Retainer Rt WPL-12000401
...
009
Retainer-Top Back Insul WPL-10977401
...
010
Insul- Top Back Retainer WPL-12000701
...
011
Screw WPL-WP90767
...
012
No.6 F X 1/4`` Screw (25) WPL-5043-W
...
013
Support P-C Bd A WPL-M0590602
...
014
Support WPL-M0585507

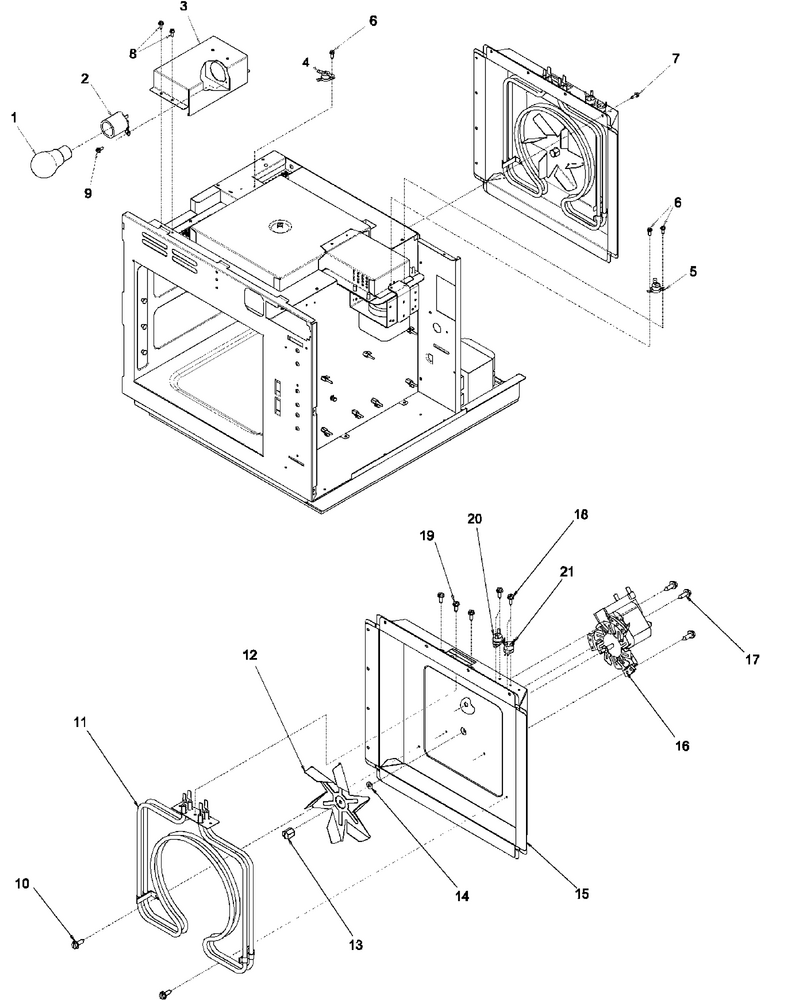

10 - Heater Box

...
...
001
Bulb-Light WPL-WP67002552
...
002
Kit-Lamp Receptacle Brk & Scre WPL-59001686
...
003
Cover,lamp WPL-12630501
...
004
Thermal Protector WPL-B5684102
...
005
Cutout-Thermal WPL-B5684119
...
006
Screw WPL-M0232012
...
007
Screw (3) WPL-67006425
...
008
Screw WPL-WP90767
...
009
Screw WPL-WP489349
...
010
Screw WPL-WP488234
...
011
Assy, Heater WPL-12000106
...
012
Blade, Fan WPL-12537901
...
013
Nut,cap WPL-12538001
...
014
Washer WPL-12546101
...
015
Heater Box WPL-59001513
...
016
Motor, Convection WPL-12537801
...
017
Screw WPL-WP489464
...
018
Screw WPL-M0232012
...
019
Screw WPL-W10856125
...
020
M4d69 Protector WPL-31866P01
...
021
Compound WPL-R0195031

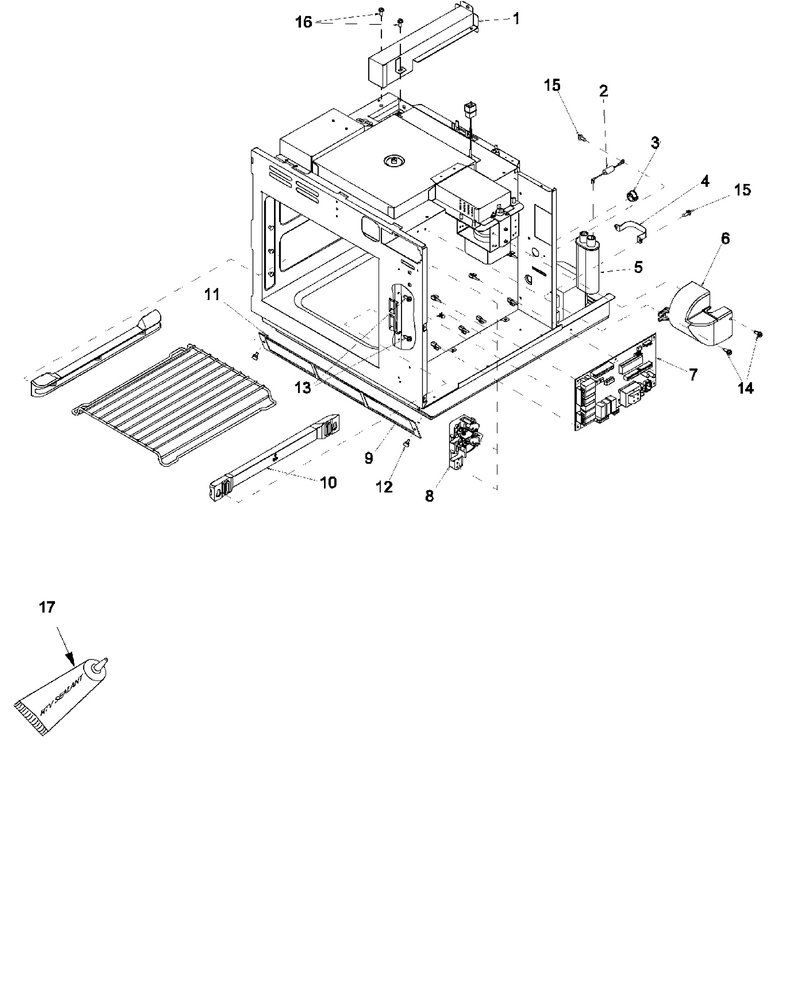

02 - Electrical Components

...
...
001
Flue Duct Weld WPL-12002901
...
002
Rectifier WPL-WP13091701
...
003
Snap Bushing WPL-M0571001
...
004
Strap, Capacitor WPL-A4055406
...
005
Capacitor-.69 WPL-59001160
...
006
Duct-Mag/wvgd WPL-12018101
...
007
Board,hv Amana Program WPL-12559101Q
...
008
Switch, Interlock Kit WPL-12002636
...
009
Grille, Air Inlet WPL-10853102
...
010
Assy, Rack Guide WPL-12523201Q
...
011
Washer, Nylon WPL-M0274066
...
012
Screw-Thumb WPL-13042901
...
013
Screw-Sm/hex WPL-12990523
...
014
Screw WPL-WP90767
...
015
Screw, Tf WPL-M0231704
...
016
Screw WPL-WP90767
...
017
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408

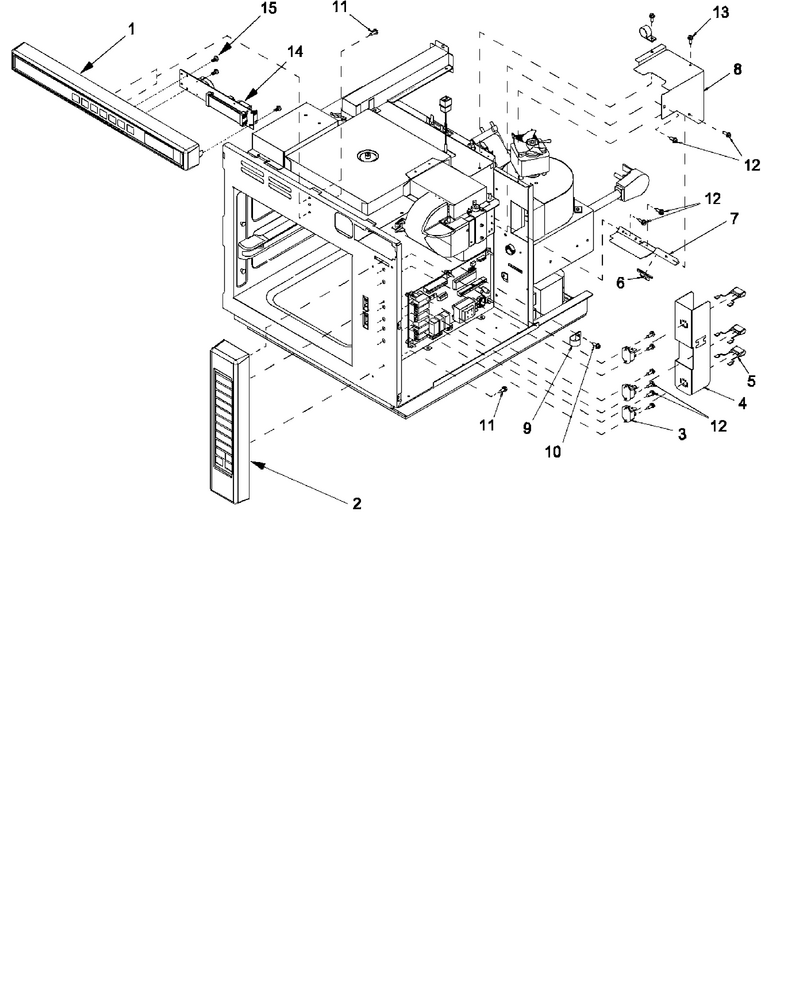

03 - Control

...
...
001
Assy, Touch Panel-Top WPL-R0000280
...
002
Touch Panel(Side) WPL-R0130109
...
003
Triac WPL-D7681501
...
004
Shield, Triac WPL-12210101
...
005
Snubber Assembly WPL-59002017
...
006
Clip WPL-WPM0104106
...
007
Duct-Blower/mag WPL-10978601
...
008
Cover-Mag Inlet WPL-10978702
...
009
Clamp, Tube WPL-M0102305
...
010
Screw T.c WPL-M0229916
...
011
Screw, Tf WPL-M0231704
...
012
Screw WPL-WP90767
...
013
Screw WPL-WP489349
...
014
Board,display WPL-12502404
...
015
Screw WPL-M0234114

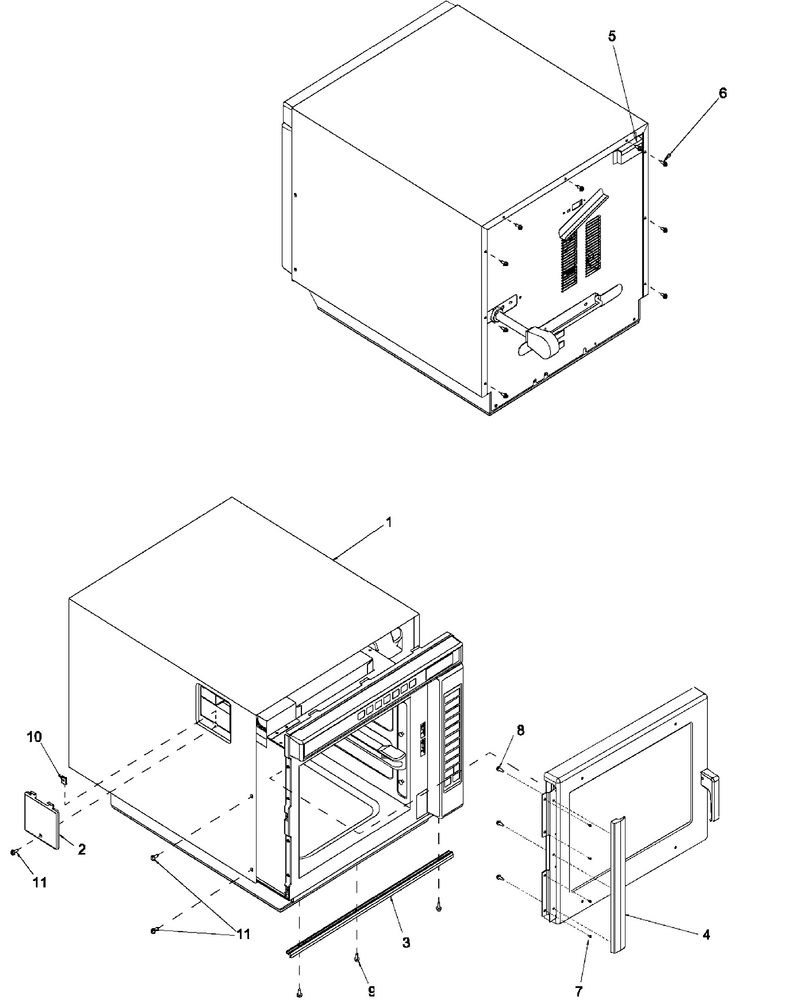

01 - Outercase

...
...
001
Wrapper-Oc (Ss) WPL-10908901Q
...
002
Cover Light (Ss) WPL-10785608
...
003
Trim-Oc (Brushed) WPL-NLA
...
004
Hinge Cover (Gray) WPL-59001230
...
005
Cover, Vent WPL-12470201
...
006
Screw WPL-WP3388228
...
007
Screw WPL-WP90767
...
008
Screw WPL-W11245710
...
009
Screw, T F WPL-M0249619
...
010
Clip WPL-NLA
...
011
Screw, T F WPL-M0249619

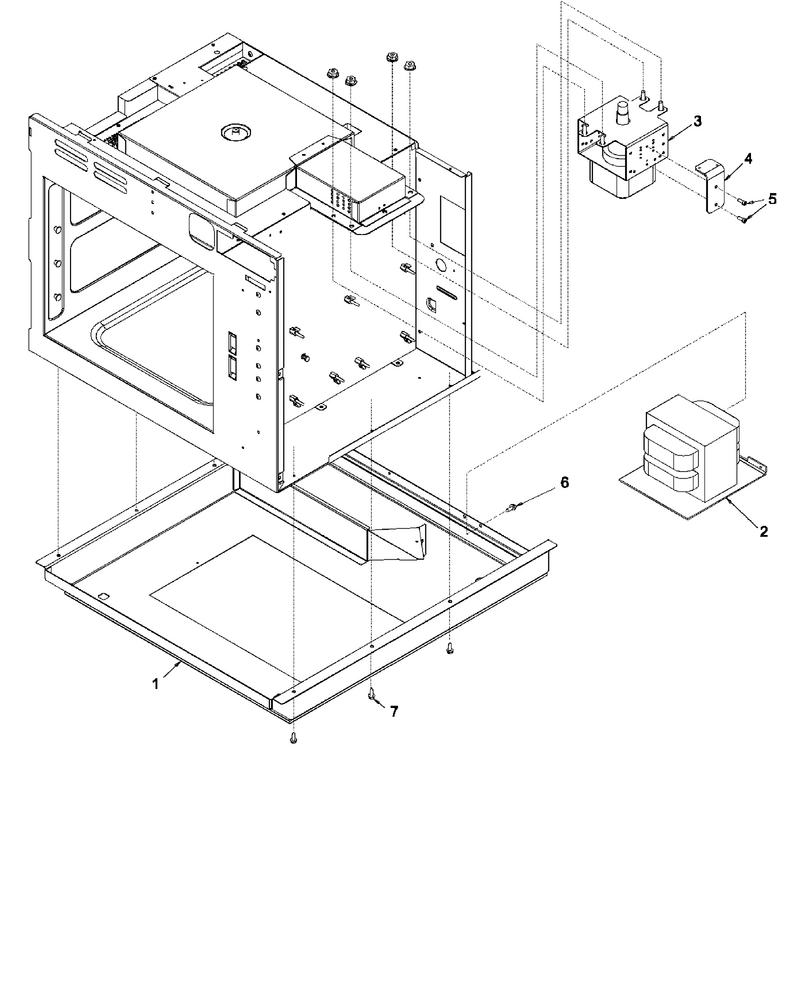

09 - Base

...
...
001
Gasket (Inch) WPL-A3030301
...
002
Transformer-Hv WPL-59001626
...
003
Magnetron-T WPL-10489402
...
004
Brkt-Tco Mtg WPL-10999501
...
005
Screw T.c WPL-M0229916
...
006
Screw WPL-WP90767
...
007
Screw WPL-WP489128

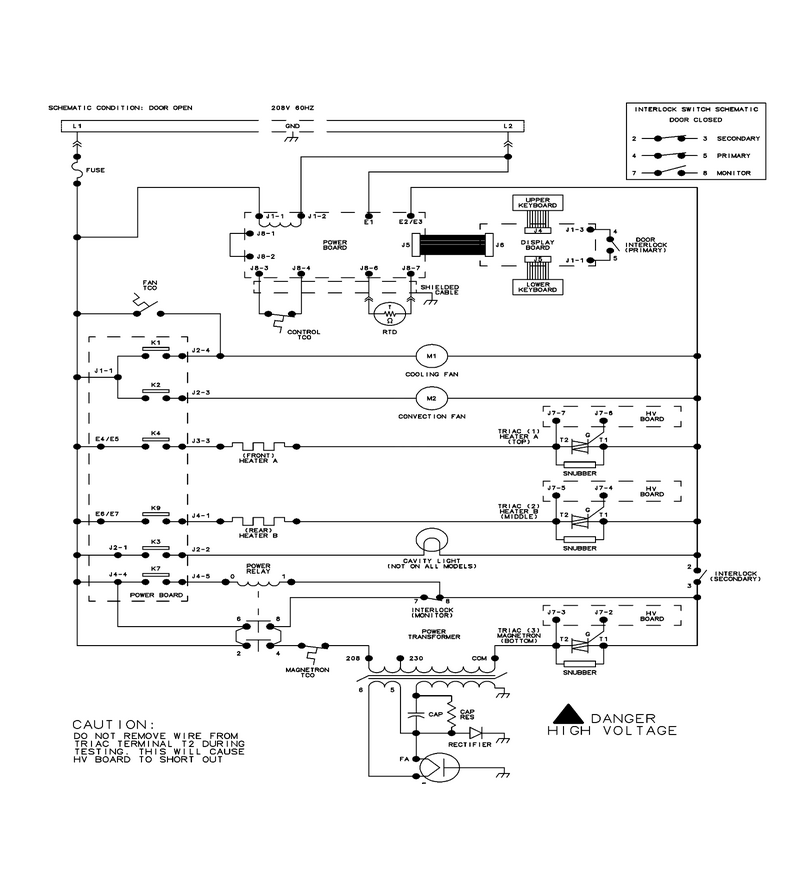

11 - Wiring Information

...
...
001
Wiring Information WPL-15003079

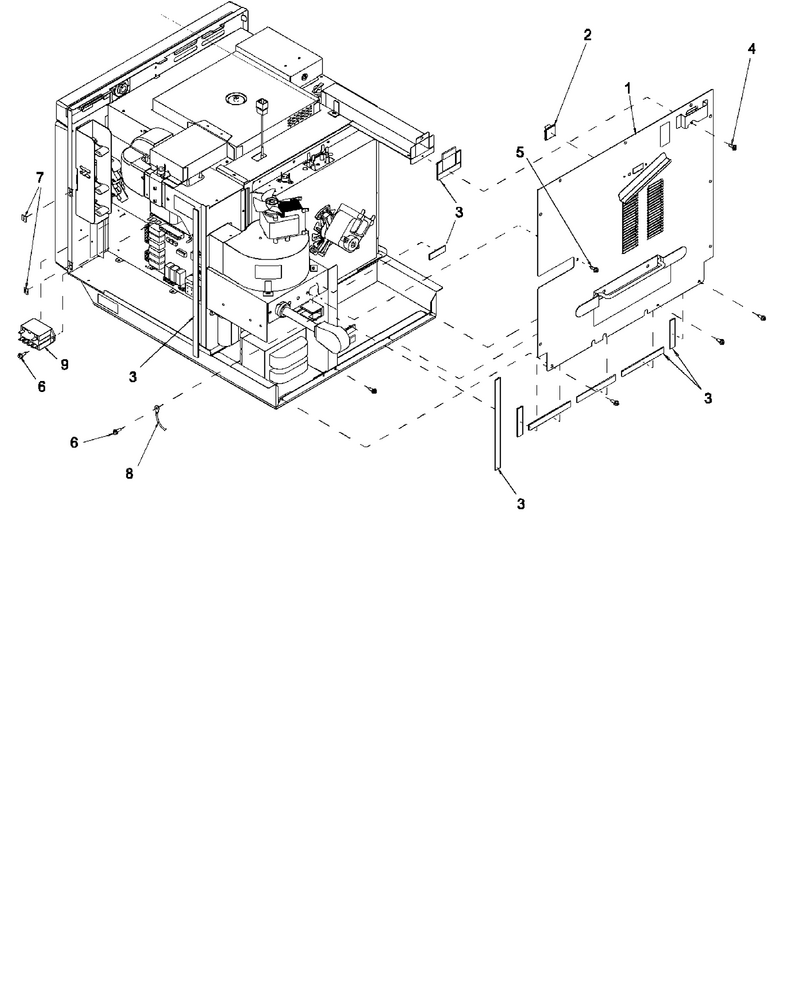

05 - Rear Panel

...
...
001
Access Pan Weld (Blk) WPL-12002804
...
002
Clip WPL-WPM0104106
...
003
Gasket (Inch) WPL-A3030301
...
004
Screw WPL-WP90767
...
005
Screw WPL-WP3388228
...
006
Screw WPL-WP90767
...
007
Nut-Speed WPL-M0287001
...
008
Power Cord Kit WPL-R0131016
...
009
Relay WPL-12492202

07 - Stirrer

...
...
001
Assy, Stirrer Cover WPL-R0150115
...
002
Kit-Insert & Blade Stirrer WPL-R0130737
...
003
Blade, Stirrer WPL-10825904Q
...
004
Shaft, Stirrer WPL-12004401
...
005
Retainer, Oven Light Glass WPL-10978201
...
006
Glass-Oven Light WPL-12047501
...
007
Brkt, Hinge Supp WPL-12189004
...
008
Sensor-Temp WPL-12000202
...
009
Nut K WPL-M0282005
...
010
Screw, Tf WPL-M0231704
...
011
Screw-Mach WPL-M0202557
...
012
Bolt-Shldr WPL-12030101
...
013
Nut WPL-WP488130
...
014
Screw, T F WPL-M0249619
...
015
Screw WPL-M0213815
...
016
Retainer-Tray WPL-12188901
...
017
Gasket WPL-12019002

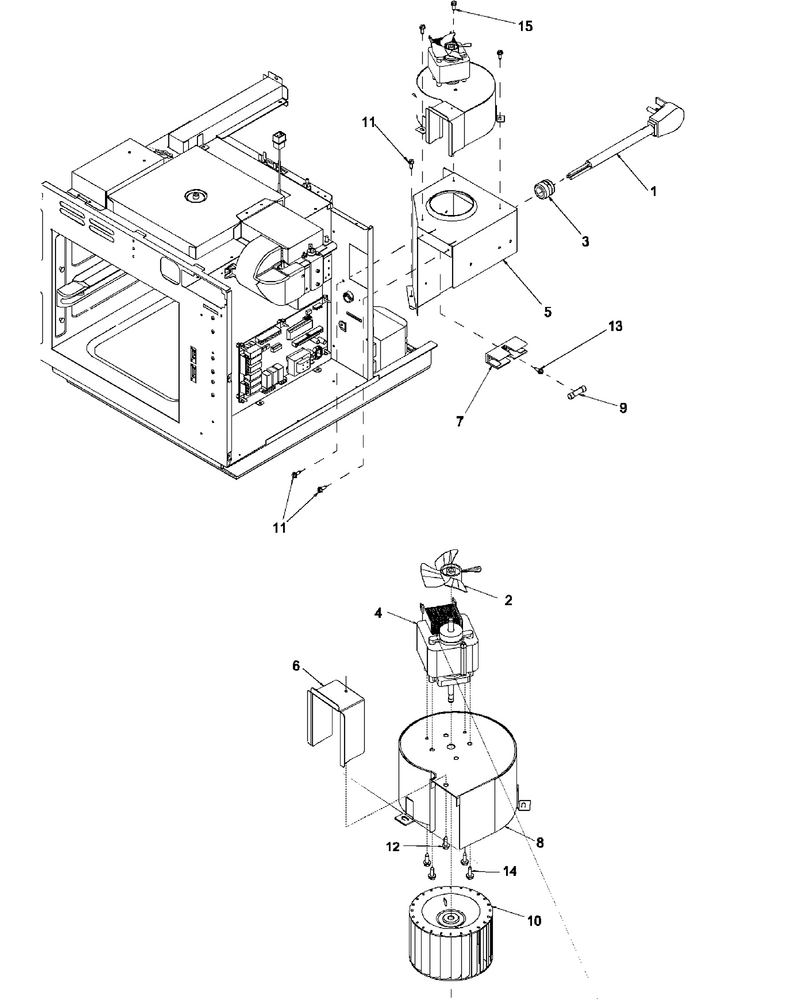

04 - Blower

...
...
001
Power Cord Kit WPL-R0131016
...
002
Fan Blade WPL-B5706704
...
003
Strain Relief WPL-8536977
...
004
Motor- Blower WPL-10773306
...
005
Weld,blower Brkt WPL-12000810
...
006
Transition-Blower WPL-10977801
...
007
Fuse Holder WPL-10091101
...
008
Scroll Weld WPL-10797203
...
009
Fuse- 30a WPL-M0805205
...
010
Wheel, Blower WPL-C3670809
...
011
Screw WPL-WP90767
...
012
Screw WPL-WP90767
...
013
Screw WPL-WP489349
...
014
Screw WPL-M0253916
...
015
Screw, Tf WPL-M0231704

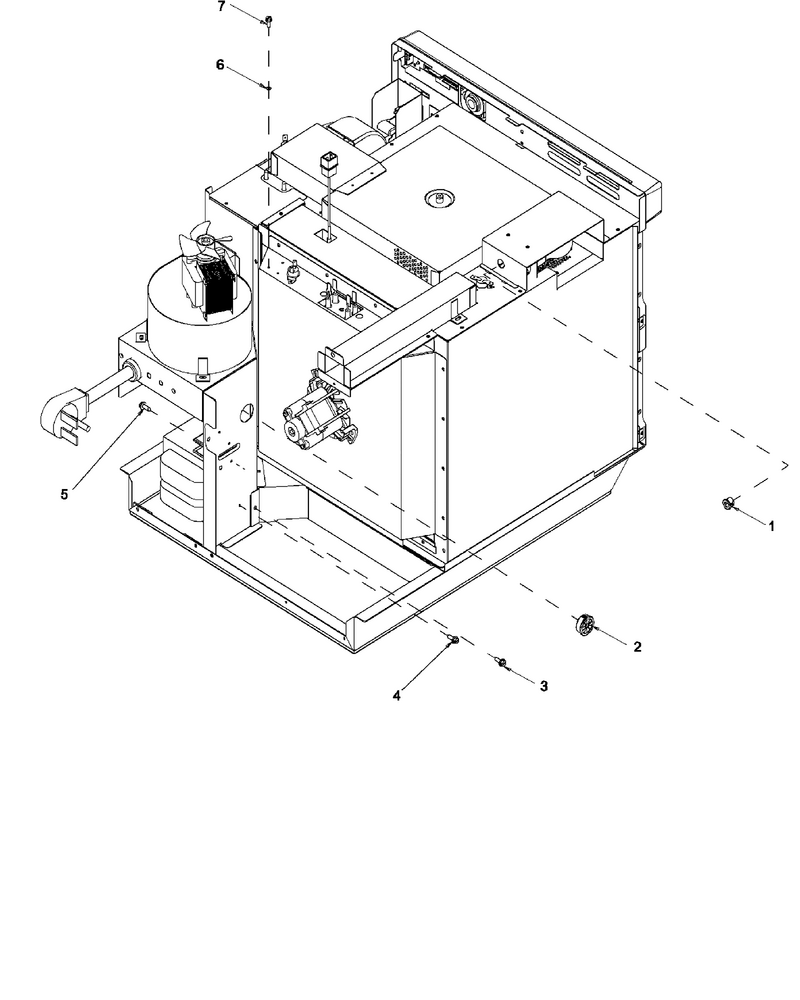

06 - Plugs

...
...
001
Bushing WPL-A3293501
...
002
Bushing-Snap WPL-M0571003
...
003
Screw WPL-WP90767
...
004
Screw WPL-WP90767
...
005
Washer WPL-M0272503
...
006
Screw WPL-M0234114

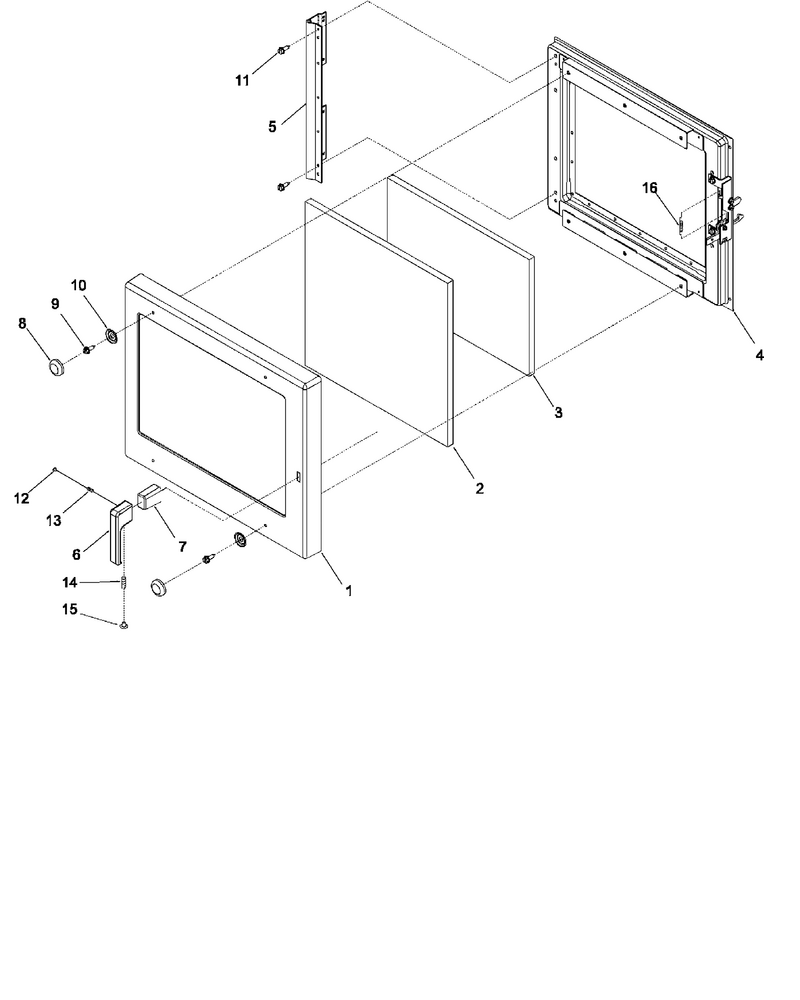

13 - Door

...
...
001
Door-Outer WPL-59001511
...
002
Insulation, Door-Large WPL-12474902
...
003
Insulation, Door-Small WPL-12474901
...
004
Kit- Inner WPL-12002760
...
005
Hinge- Door WPL-59001869
...
006
Door Handle WPL-12490902
...
007
Insert,handle WPL-12576901
...
008
Cap-Screw WPL-59001660
...
009
No.8 Ab X 1/2`` Crow Foot Hd Scr WPL-5145-E
...
010
Washer, Cap Screw WPL-M0295502
...
011
Screw WPL-WP12990527
...
012
Plug, Button (Blk) WPL-12360703
...
013
Screw WPL-WP8533976
...
014
Set Screw WPL-M0206943
...
015
Plug, Button (Wht) WPL-M0310305
...
016
Spring-Door Latch WPL-59001721
