Amana ACE208D (BOM: P1324404M)

Model: ACE208D (BOM: P1324404M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

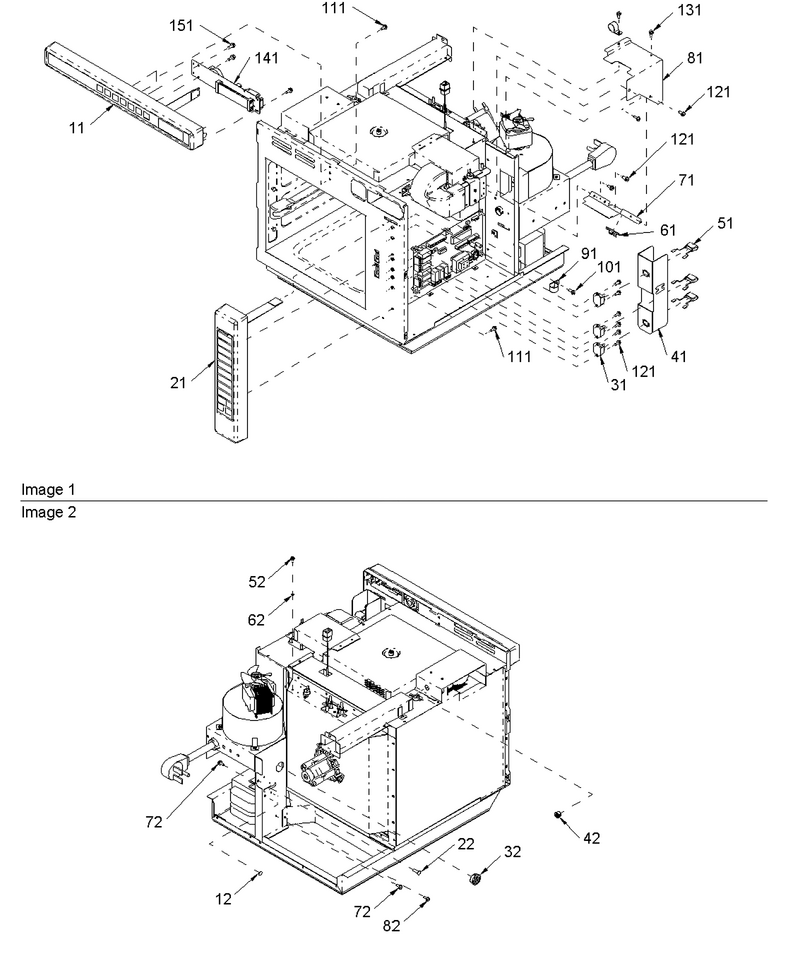

03 - Control

...
...
NI
Harness-Triacs & Rtd Wires WPL-59001953
...
11
Assy, Touch Panel-Top WPL-R0000280
...
12
Plug WPL-M0310015
...
21
Touch Panel (Side)- Ace208d WPL-59001868
...
22
Plug WPL-M0310016
...
31
Triac WPL-D7681501
...
32
Bushing-Snap WPL-M0571003
...
41
Shield, Triac WPL-12210101
...
42
Bushing WPL-A3293501
...
51
Snubber Assembly WPL-59002017
...
52
Screw WPL-M0234114
...
61
Clip WPL-WPM0104106
...
62
Washer WPL-M0272503
...
71
Duct-Blower/mag WPL-10978601
...
72
Screw WPL-WP90767
...
81
Cover-Mag Inlet WPL-10978702
...
82
Screw WPL-WP90767
...
91
Clamp, Tube WPL-M0102305
...
101
Screw T.c WPL-M0229916
...
111
Screw, Tf WPL-M0231704
...
121
Screw WPL-WP90767
...
131
Screw WPL-WP489349
...
141
Board,display WPL-12502404
...
151
Screw WPL-M0234114

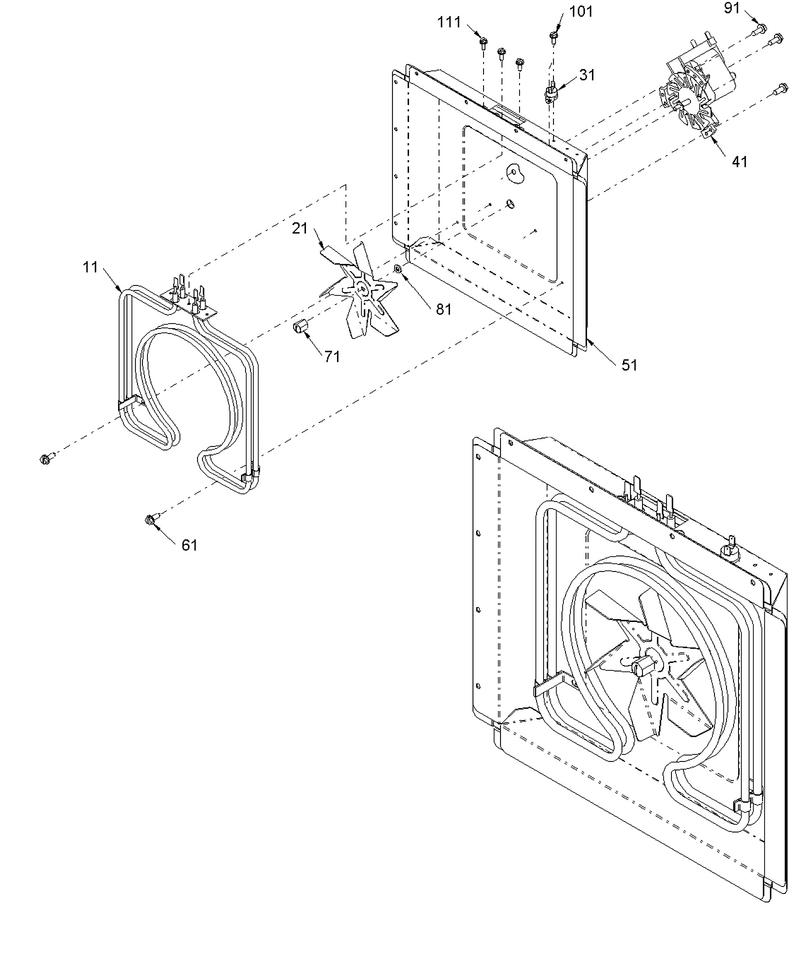

04 - Heat Box

...
...
11
Assy, Heater WPL-12000105
...
21
Blade, Fan WPL-12537901
...
31
M4d69 Protector WPL-31866P01
...
41
Motor, Convection WPL-12537801
...
51
Heater Box Weld WPL-12020002
...
61
Screw WPL-WP488234
...
71
Nut,cap WPL-12538001
...
81
Washer WPL-12546101
...
91
Screw WPL-WP489464
...
101
Screw WPL-M0232012
...
111
Screw WPL-W10856125

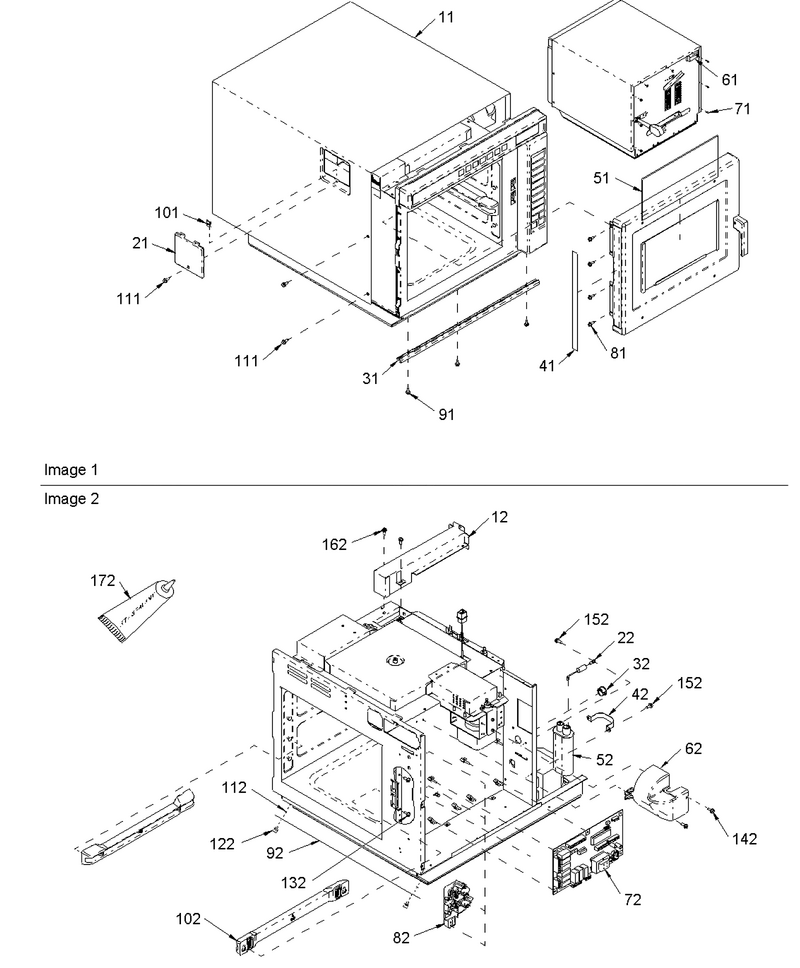

06 - Outercase & Electrical

...
...
NI
Harness-Pc Board WPL-13018301
...
11
Wrapper-Oc (Ss) WPL-10908901Q
...
12
Flue Duct Weld WPL-12002901
...
21
Cover Light (Ss) WPL-10785608
...
22
Rectifier WPL-WP13091701
...
31
Trim-Oc (Brushed) WPL-10909001
...
32
Snap Bushing WPL-M0571001
...
41
Hinge Shield W Adhesive WPL-12089001
...
42
Strap, Capacitor WPL-A4055406
...
51
Assy,menu Panel WPL-12615001Q
...
52
Capacitor-.69 WPL-59001160
...
61
Cover, Vent WPL-12470201
...
62
Duct-Mag/wvgd WPL-12018101
...
71
Screw WPL-WP3388228
...
72
Board, Hv Amana Prog-Donatos WPL-59001042
...
81
Screw WPL-WP90767
...
82
Switch, Interlock Kit WPL-12002636
...
91
Screw, T F WPL-M0249619
...
92
Grille, Air Inlet WPL-10853102
...
101
Clip WPL-M0288213
...
102
Assy, Rack Guide WPL-12523201Q
...
111
Screw, T F WPL-M0249619
...
112
Washer, Nylon WPL-M0274066
...
122
Screw-Thumb WPL-13042901
...
132
Screw-Sm/hex WPL-12990523
...
142
Screw WPL-WP90767
...
152
Screw, Tf WPL-M0231704
...
162
Screw WPL-WP90767
...
172
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408

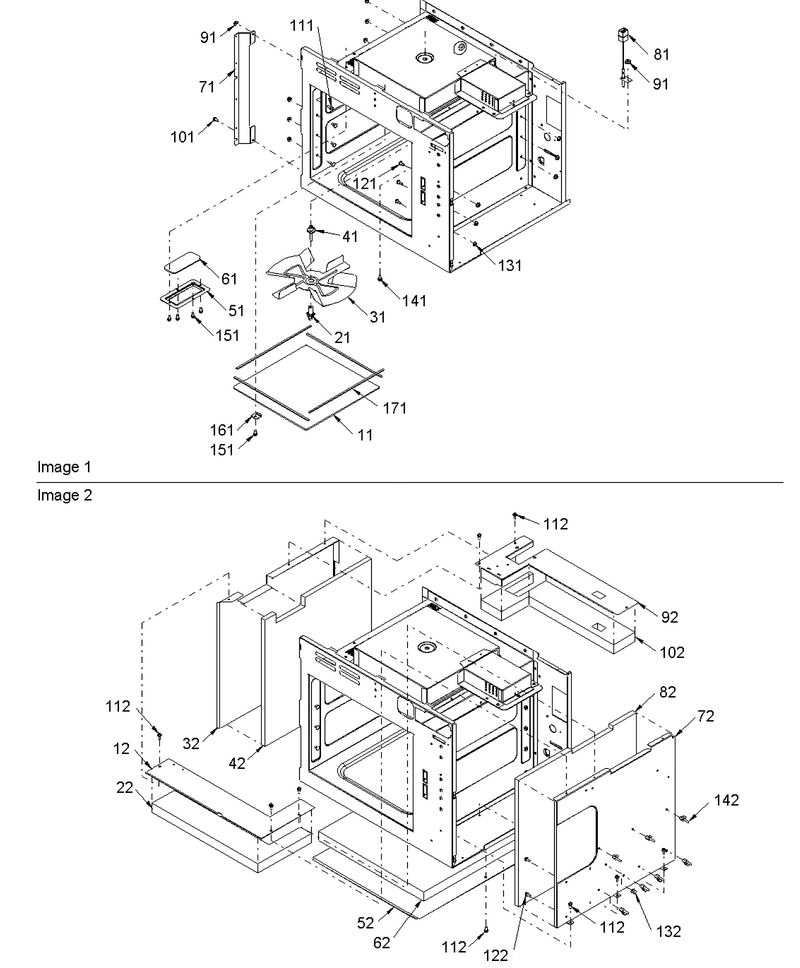

08 - Stirrer System & Outer Cavity

...
...
11
Assy, Stirrer Cover WPL-R0150115
...
12
Retainer-Top Front Insul WPL-10978002
...
21
Kit-Insert & Blade Stirrer WPL-R0130737
...
22
Insul- Top Front Retainer WPL-12000702
...
31
Blade, Stirrer WPL-10825904Q
...
32
Retainer-Side Insul Lt WPL-10977301
...
41
Shaft, Stirrer WPL-12004401
...
42
Insul- Side Retainer Lt WPL-12000501
...
51
Retainer, Oven Light Glass WPL-10978201
...
52
Retainer-Bottom Insul WPL-10977501
...
61
Glass-Oven Light WPL-12047501
...
62
Insul-Bottom Retainer WPL-12000703
...
71
Brkt, Hinge Supp WPL-12189004
...
72
Retainer-Side Insul Rt WPL-10977102
...
81
Sensor-Temp WPL-12000202
...
82
Insul- Side Retainer Rt WPL-12000401
...
91
Nut K WPL-M0282005
...
92
Retainer-Top Back Insul WPL-10977401
...
101
Screw, Tf WPL-M0231704
...
102
Insul- Top Back Retainer WPL-12000701
...
111
Screw-Mach WPL-M0202557
...
112
Screw WPL-WP90767
...
121
Bolt-Shldr WPL-12030101
...
122
No.6 F X 1/4`` Screw (25) WPL-5043-W
...
131
Nut WPL-WP488130
...
132
Support P-C Bd A WPL-M0590602
...
141
Screw, T F WPL-M0249619
...
142
Support WPL-M0585507
...
151
Screw WPL-M0213815
...
161
Retainer-Tray WPL-12188901
...
171
Gasket WPL-12019002

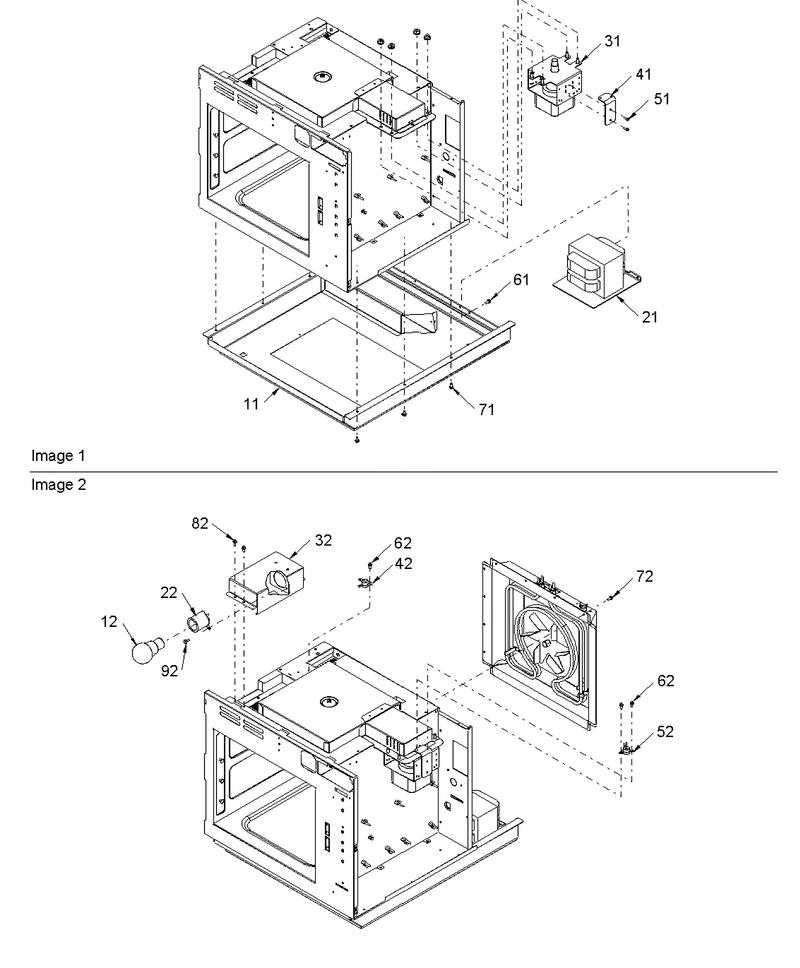

01 - Base & Heater Box

...
...
11
Assy,basepan WPL-10851701Q
...
12
Bulb-Light WPL-WP67002552
...
21
Transformer-Hv WPL-59001626
...
22
Kit-Lamp Receptacle Brk & Scre WPL-59001686
...
31
Magnetron-T WPL-10489402
...
32
Cover,lamp WPL-12630501
...
41
Brkt-Tco Mtg WPL-10999501
...
42
Thermal Protector WPL-B5684102
...
51
Screw T.c WPL-M0229916
...
52
Cutout-Thermal WPL-B5684119
...
61
Screw WPL-WP90767
...
62
Screw WPL-M0232012
...
71
Screw WPL-WP489128
...
72
Screw (3) WPL-67006425
...
82
Screw WPL-WP90767
...
92
Screw WPL-WP489349

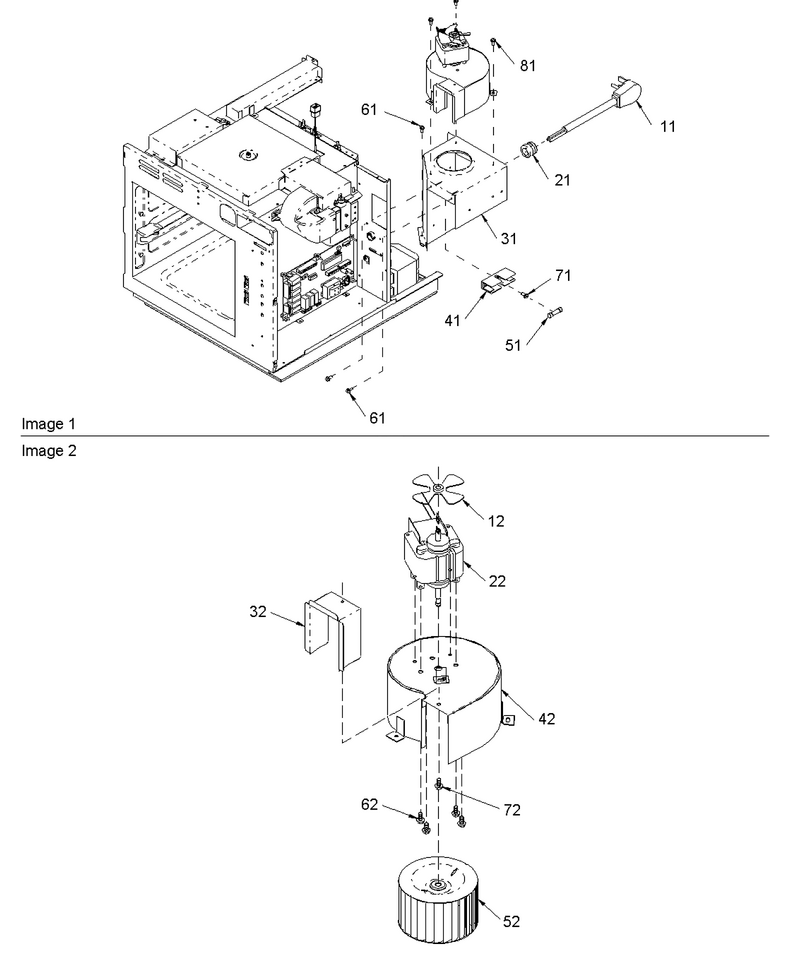

02 - Blower

...
...
11
Power Cord WPL-10098919
...
12
Fan Blade WPL-B5706704
...
21
Strain Relief WPL-8536977
...
22
Motor- Blower WPL-10773306
...
31
Weld,blower Brkt WPL-12000810
...
32
Transition-Blower WPL-10977801
...
41
Fuse Holder WPL-10091101
...
42
Scroll Weld WPL-10797203
...
51
Fuse- 30a WPL-M0805205
...
52
Wheel, Blower WPL-C3670809
...
61
Screw WPL-WP90767
...
62
Screw WPL-WP90767
...
71
Screw WPL-WP489349
...
72
Screw WPL-M0253916
...
81
Screw, Tf WPL-M0231704

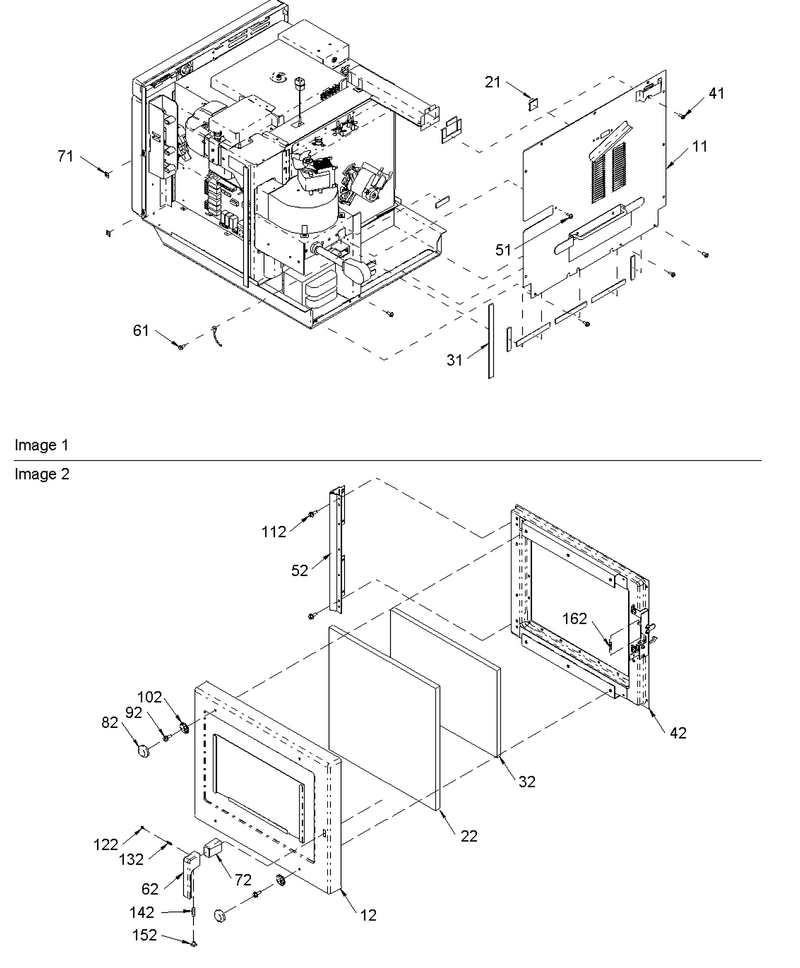

07 - Rear Panel & Door

...
...
NI
Harness, Wiring WPL-12537601
...
11
Access Pan Weld (Blk) WPL-12002804
...
12
Door, Outer WPL-12162510
...
21
Clip WPL-WPM0104106
...
22
Insulation, Door-Large WPL-12474902
...
32
Insulation, Door-Small WPL-12474901
...
41
Screw WPL-WP90767
...
42
Kit- Inner WPL-12002760
...
51
Screw WPL-WP3388228
...
52
Hinge, Door WPL-12003804
...
61
Screw WPL-WP90767
...
62
Door Handle WPL-12490902
...
71
Nut-Speed WPL-M0287001
...
72
Insert,handle WPL-12576901
...
82
Cap-Screw WPL-59001660
...
92
No.8 Ab X 1/2`` Crow Foot Hd Scr WPL-5145-E
...
102
Washer, Cap Screw WPL-M0295502
...
112
Screw WPL-WP3388228
...
122
Plug, Button (Blk) WPL-12360703
...
132
Screw WPL-WP8533976
...
142
Set Screw WPL-M0206943
...
152
Plug, Button (Wht) WPL-M0310305
...
162
Spring-Door Latch WPL-59001721

...
...
1
Tech Sheets WPL-16022314
