Amana AC22082C2D (BOM: P1225009R)

Model: AC22082C2D (BOM: P1225009R)

Save Part Not Listed?
product name

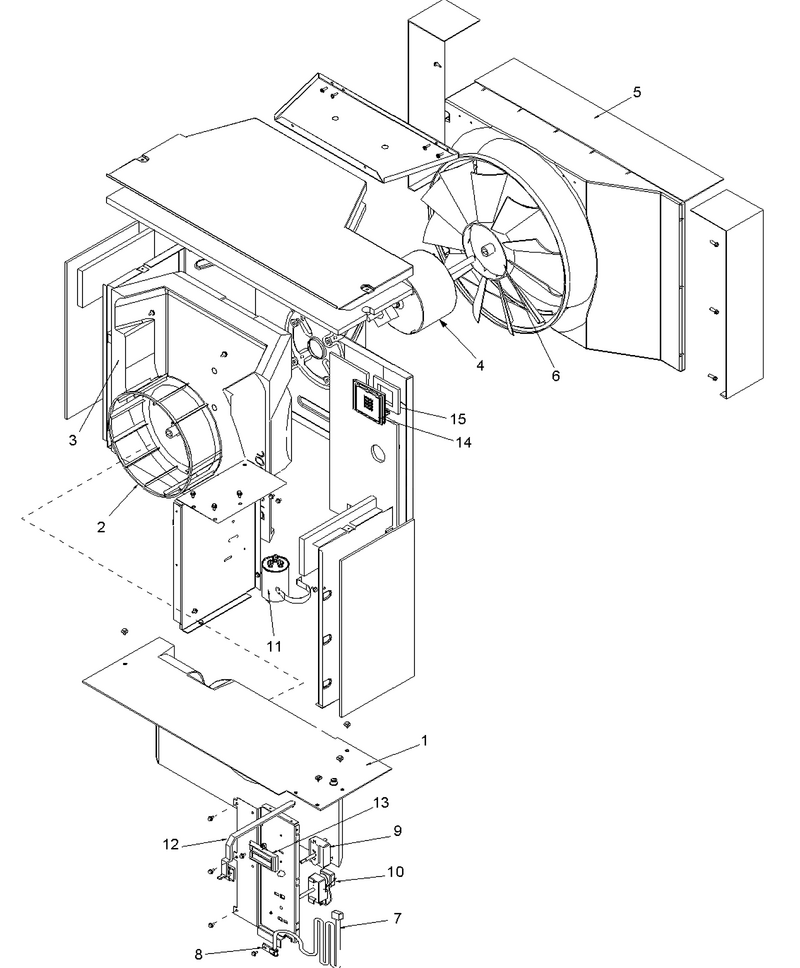

01 - Center Partition Assy And Controls

...
...
NI
Service Ha WPL-BT1292201
...
1
Venturi, Fan WPL-BT3010004
...
2
Wheel, Blower WPL-BT1368016
...
3
Styrofoam Scroll WPL-BT3006004
...
4
Motor, 1/4hp 208/230v (serv) WPL-BT1340005S
...
5
Shroud, Fan (large) WPL-BT3011002
...
6
Fan Blade- WPL-BT1086702
...
7
Cord, Power 230v 20 Amp 65`` WPL-BT1210006
...
8
Relief, Power Cord (large) WPL-BT1393401
...
9
Switch, Power (serv) WPL-BT1370803
...
10
Thermostat, Short Shaft (serv) WPL-BT1370801
...
11
Capacitor WPL-BT9457005
...
12
Linkage- WPL-BT3076202
...
13
Slide, Damper Control WPL-BT3076302
...
14
Door, Exhaust (rac) WPL-BT3076100
...
15
Foam Gasket WPL-BT1392611

...
...
1
Manual-Use And Care WPL-RAC-OM-06-A
...
2
Mnl,pts-22,000 Btu Rac WPL-RP4110020
...
3
Mnl, Svc Rac (see Note) WPL-RS4110004
...
4
Tech Sheet, Room Air (see Not WPL-RT4110012

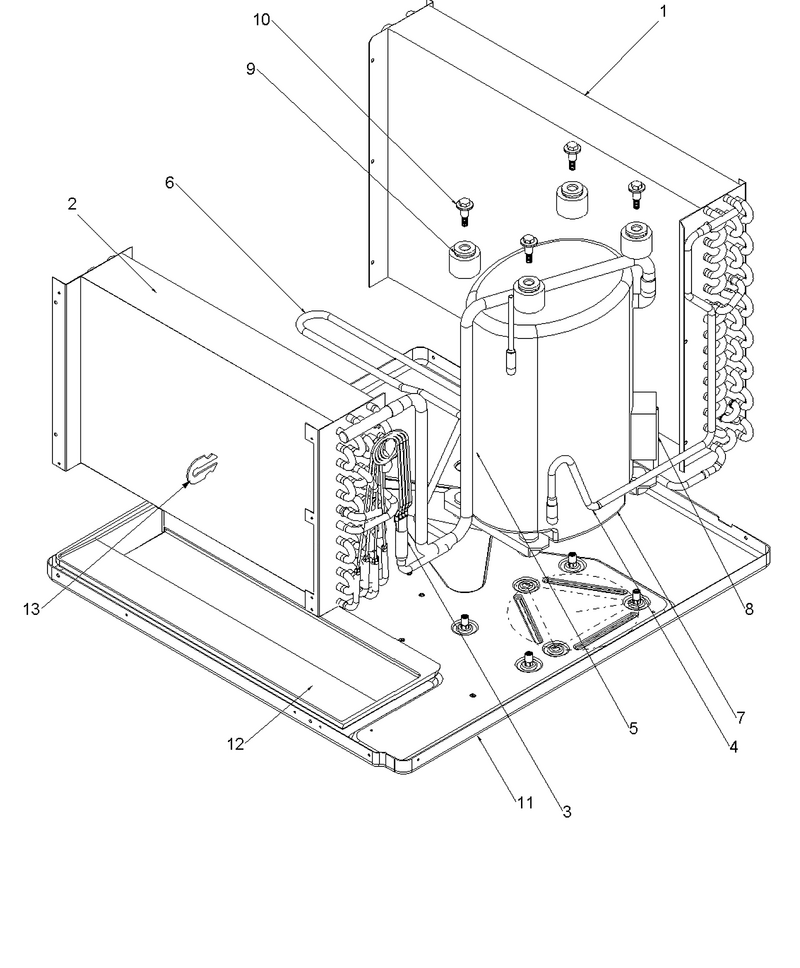

02 - Evaporator, Condenser And Compressor

...
...
NI
Plug Wire,compressor WPL-BT3068516
...
1
Assy, Cond Coil Tubing WPL-3096508
...
2
Assy, Evap Coil Tubing WPL-3096015
...
3
Assy, Capillary Tube WPL-3093844
...
4
Discharge Line WPL-30936215
...
5
Suction Line WPL-30936217
...
6
Assy, Liquid Line WPL-3093836
...
7
Compressor WPL-BT9266204S
...
8
Clip, Retainer WPL-BT1392311
...
9
Grommet. Comp WPL-A3448601
...
10
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704
...
11
Assy,basepan Service WPL-3050208S
...
12
Pan, Drain (styrofoam Large) WPL-BT3005002
...
13
Clip, Bulb WPL-BT1531802

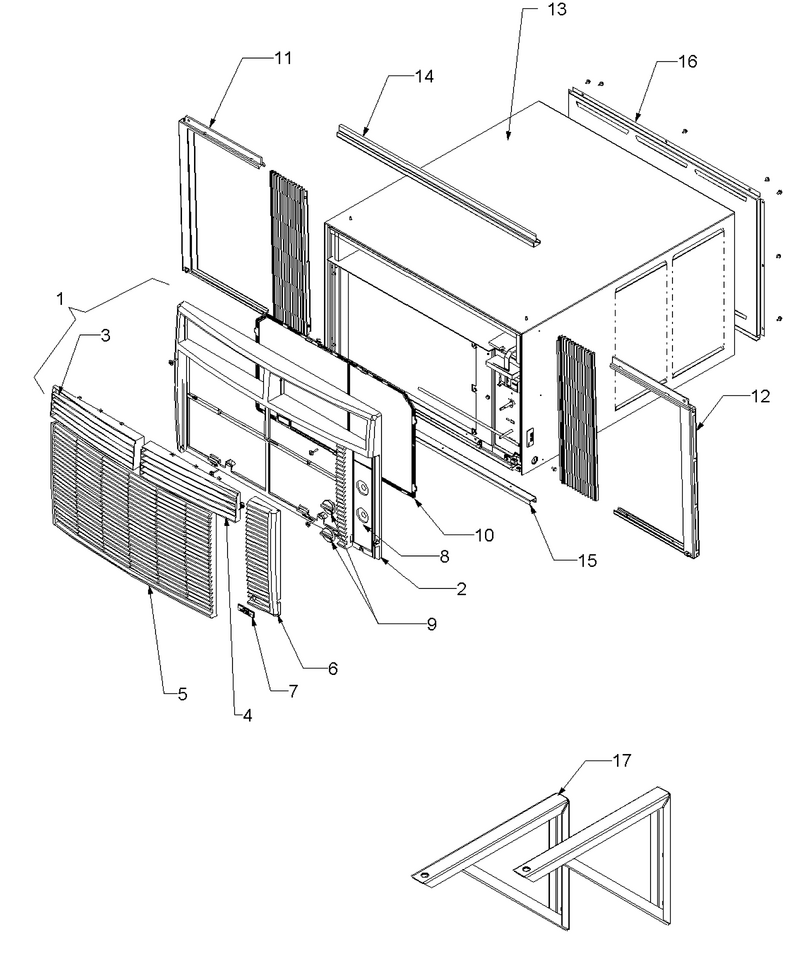

04 - Outercase, Curtains And Front Assy

...
...
NI
Gasket WPL-10839702
...
1
Assy Front WPL-BT3075029
...
2
Assy Front WPL-BT3075029
...
3
Assy Front WPL-BT3075029
...
4
Assy Front WPL-BT3075029
...
5
Assy Front WPL-BT3075029
...
6
Door, Control (large) WPL-BT3075302
...
7
Logo, 1st Edition `amana` WPL-BT3075920
...
8
Label, Amana WPL-BT14933282
...
9
Knob- Rac WPL-WPBT3075631
...
10
Frame, Filter WPL-BT1419201
...
11
Assy, Shutter Lg-Lt WPL-BT3074113
...
12
Assy, Shutter Lg-Rt WPL-BT3074112
...
13
Assy, Wrapper WPL-3050801
...
14
Support, Top (w/paint Lrg) WPL-3003002P
...
15
Support, Bottom (brk/paint Lrg WPL-3003102P
...
16
Pnl, Rear Louver (w/paint Lrg) WPL-3002206P
...
17
Brkt, Support (lrg Serv) WPL-3084002
