Amana AC10190A1D (BOM: P1225036R)

Model: AC10190A1D (BOM: P1225036R)

Save Part Not Listed?
product name

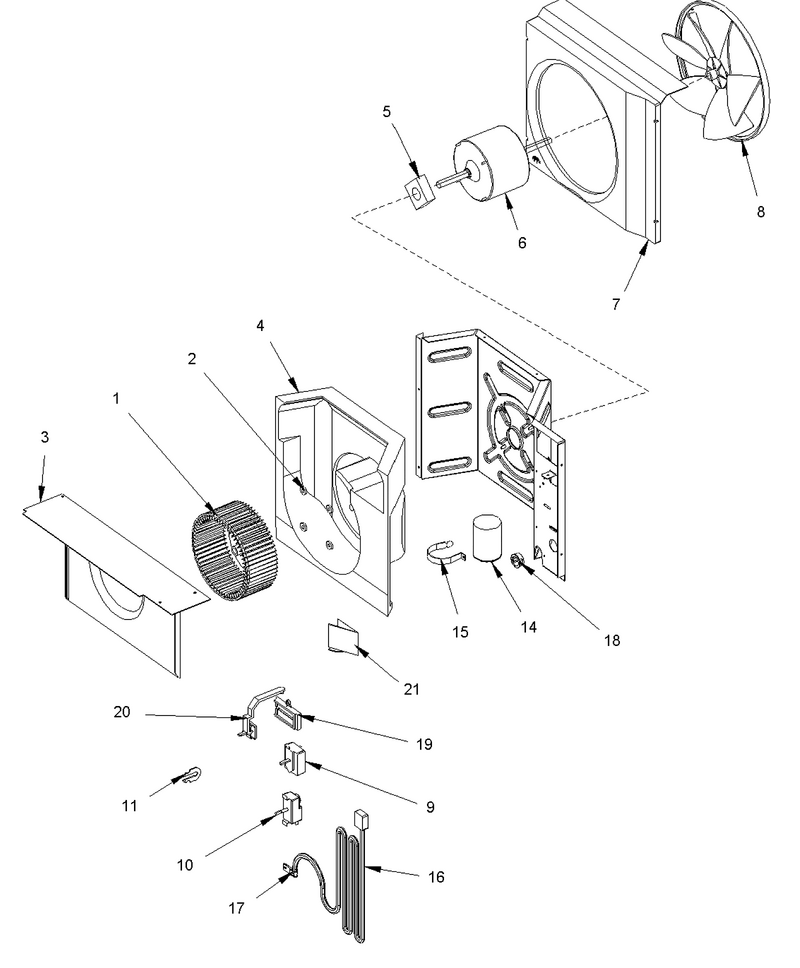

02 - Fan And Control Assy

...
...
1
Wheel, Blower (serv) WPL-BT1368000
...
2
Locknut, Nylon No.8-32 WPL-BT1393001
...
3
Partition, Blower (small) WPL-BT3010000
...
4
Scroll, Styrofoam (small) WPL-BT3006000
...
5
Gasket, Motor Mount WPL-BT1392612
...
6
Motor 1/8 Hp 115 WPL-BT1340001C
...
7
Shroud, Fan (small Rac) WPL-BT3011000
...
8
Fan Blade, Plastic WPL-C6379801
...
9
Switch, Power (serv) WPL-BT1370803
...
10
Thermostat, Short Shaft (serv) WPL-BT1370801
...
11
Clip, Bulb WPL-BT1531802
...
14
Capacitor WPL-BT9457002
...
15
Strap, Capacitior WPL-3084801
...
16
Cord, Power WPL-Y20057501
...
17
Relief, Power Cord (large) WPL-BT1393401
...
18
Bushing, 1`` Dia. WPL-BT1392100
...
19
Slide, Damper Control WPL-BT3076302
...
20
Lever-Cool Gray (small) WPL-BT3076220
...
21
Door, Exhaust (rac) WPL-BT3076100

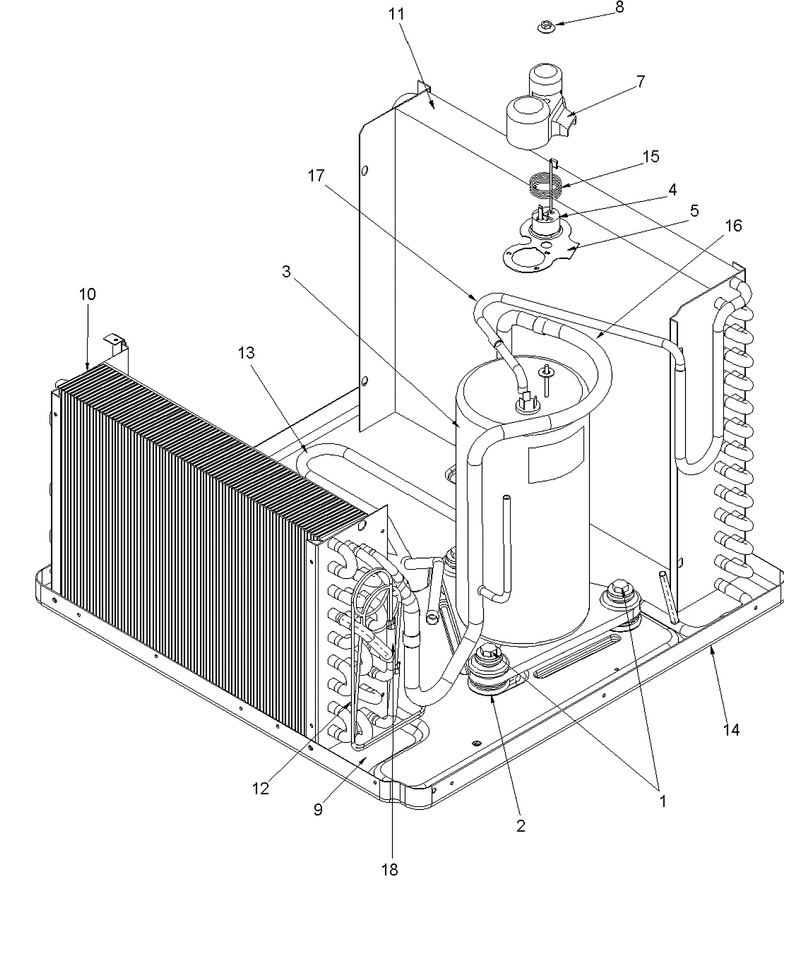

01 - Compressor Assy

...
...
1
Bolt, Comp. Shoulder 5/16-18 WPL-BT1393704
...
2
Grommet. Comp WPL-A3448601
...
3
Compressor WPL-D9831802
...
4
Overload WPL-D6961630
...
5
Gasket, Compressor (tec) WPL-BT1392604
...
7
Cap Compressor WPL-BT3055500
...
8
Nut, (tecumseh) WPL-BT1393000
...
9
Pan, Drain (styrofoam Small) WPL-BT3005000
...
10
Assy,evap Coil Tubing WPL-3096038
...
11
Assy, Cond Coil Tubing WPL-3096509
...
12
Assy, Capillary Tube WPL-3093852
...
13
Assy, Liquid Line WPL-3093871
...
14
Assy,basepan(small) WPL-3050210
...
16
Tube, Suction WPL-3093722
...
17
Tube, Discharge WPL-30936211

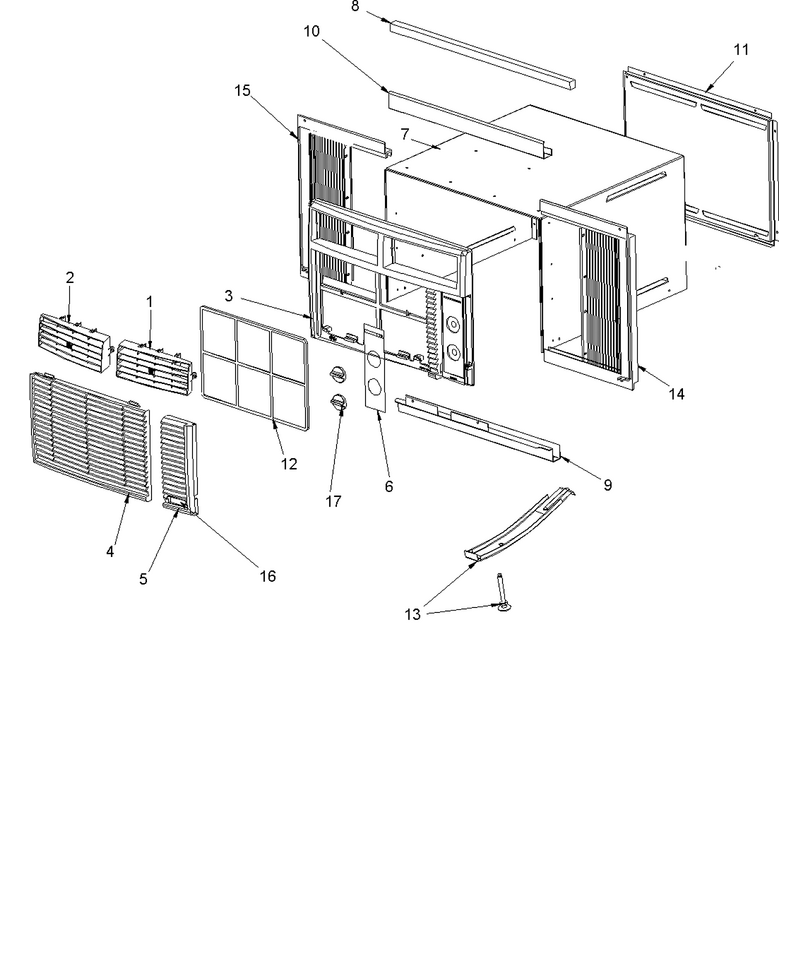

03 - Outer Case Assy

...
...
NI
Kit, Hardware (small) WPL-BT1393200
...
1
Not Good Part Per Goodman WPL-BT3045410
...
2
Not Good Part Per Goodman WPL-BT3045412
...
3
Grill - Front WPL-BT3075021
...
4
Grill - Front WPL-BT3075021
...
5
Grill - Front WPL-BT3075021
...
6
Grill - Front WPL-BT3075021
...
7
Wrapper Assy WPL-3050802
...
8
Gasket WPL-10839702
...
9
Guide, Bottom (w/paint Sm) WPL-3003103P
...
10
Support, Top (w/paint Small) WPL-3003000P
...
11
Panel, Rear Louver (service) WPL-3002200P
...
12
Filter, Air (serv) WPL-BT1369600
...
13
Bracket, Support WPL-3084003
...
14
Assy, Curtain (service)small R WPL-3073004
...
15
Assy, Curtain (service)lh Smal WPL-3073000
...
16
Logo, 1st Edition `amana` WPL-BT3075920
...
17
Knob- Rac WPL-WPBT3075631
