Amana ABR2527FES (BOM: ABR2527FEx0)

Model: ABR2527FES (BOM: ABR2527FEx0)

Save Part Not Listed?
product name

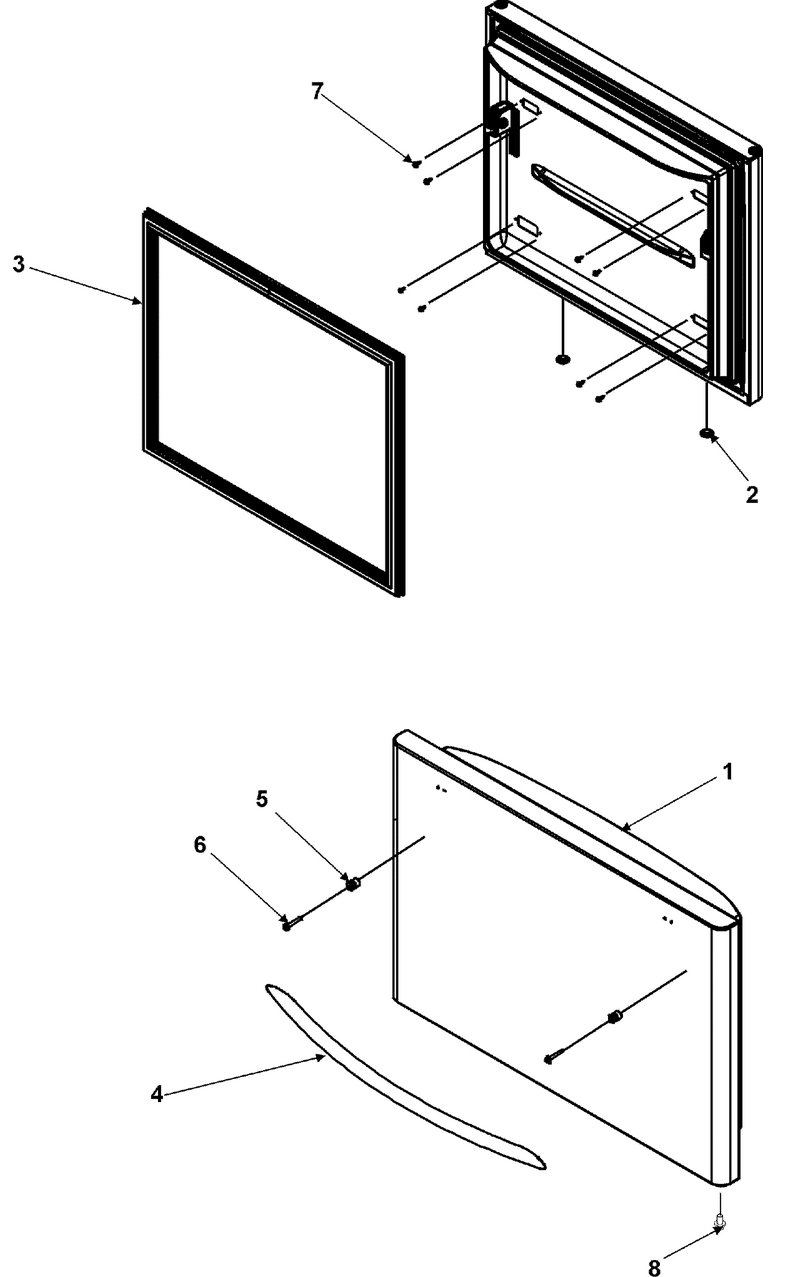

05 - Freezer Door

...
...
1
Door Assy., Frz. Foam (stnls) WPL-67006596
...
2
Plug, Vent (blk) WPL-67004838
...
3
Gasket, Door (black) WPL-W10436252
...
4
Handle WPL-WPW10136873
...
5
Plate WPL-WP67006113
...
6
Screw WPL-WP3387230
...
7
Screw, Handle (black) WPL-12991101
...
8
Closer WPL-WP67003639

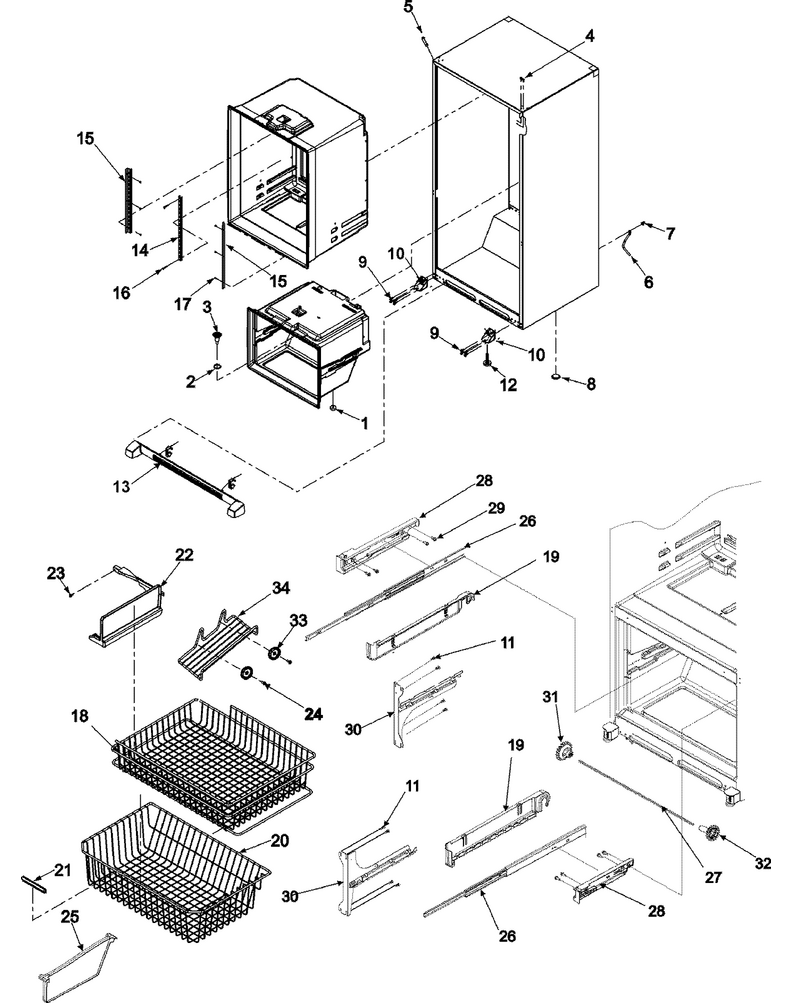

06 - Interior Cabinet & Freezer Shelving

...
...
1
Gasket- Dr WPL-WPB8381501
...
2
Seal- O Ri WPL-WPM0500703
...
3
Funnel WPL-W10815413
...
4
Pop Rivet WPL-A4539607
...
6
Tube, Drain WPL-67001066
...
7
Clip, Drain Tube WPL-67001067
...
8
Plug, Button WPL-A3076901
...
9
Screw, Sm/hex WPL-67006564
...
10
Bracket, Foot Cabinet WPL-67007174
...
11
Screw WPL-WP98165
...
12
Feet-Lvlng WPL-W11177593
...
13
Grille-Frt WPL-WPW10534153
...
14
Ladder, Center WPL-67001073
...
15
Ladder, Sides WPL-67001317
...
16
Screw WPL-W10709795
...
17
Screw (3) WPL-67006425
...
18
Basket, Frz. (upr) WPL-67004987
...
19
Bracket WPL-WPW10280613
...
19A
Bracket WPL-WPW10280608
...
20
Basket-Fzr WPL-WPW10503184
...
21
Handle, Basket/shelf WPL-10508506
...
22
Divider, Basket (upper) WPL-67004127
...
23
Screw WPL-67006608
...
24
Screw WPL-WP67006908
...
25
Divider, Basket WPL-67006644
...
26
Slide WPL-WP67006607
...
27
Shaft WPL-W11028221
...
28
Adapter, Side (rt) WPL-67004865
...
28A
Adapter, Side (lt) WPL-67004864
...
29
Screw WPL-WP489474
...
30
Bracket- D WPL-WP12812502WD
...
31
Gear (inclds. Both) WPL-12002497
...
32
Gear (inclds. Both) WPL-12002497
...
33
Spacer- Ic WPL-WP10972101
...
34
Rack, Ice Tray WPL-12646501

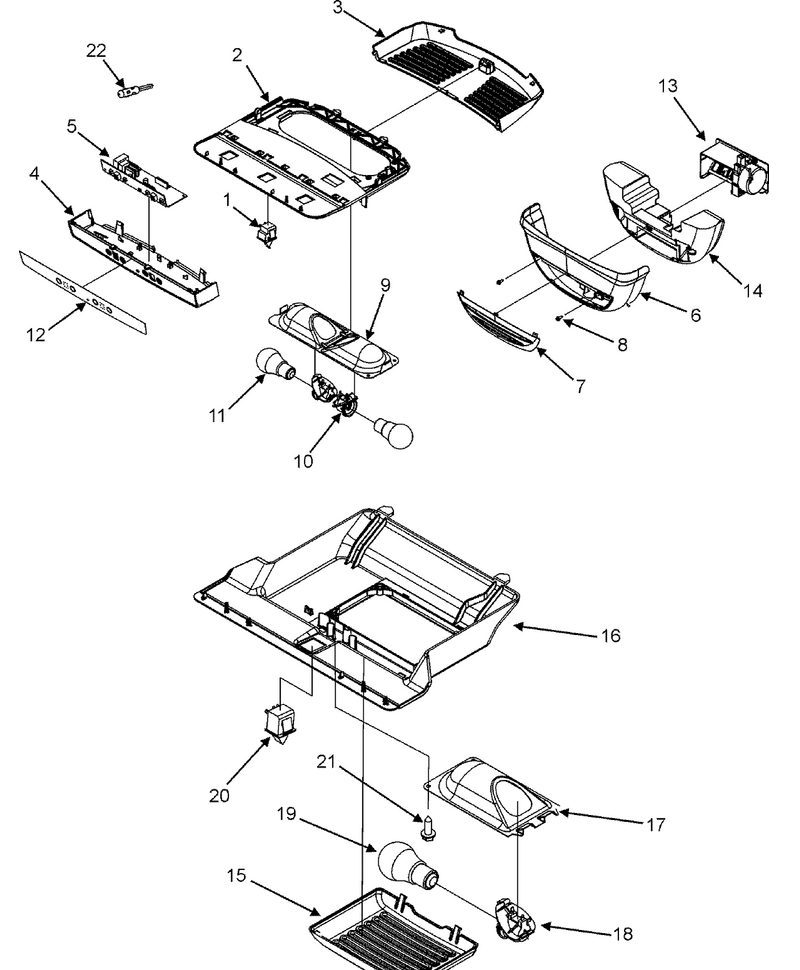

03 - Controls

...
...
NI
Harns-Wire WPL-WPW10422363
...
1
Switch WPL-W11384469
...
2
Module, Light WPL-Y67003896
...
3
Cover WPL-W11284721
...
4
Housing WPL-WPW10464769
...
5
Frost Kit, S X S Domestic WPL-12002756
...
6
Cover-Box WPL-WP12806701
...
7
Insert, Damper Cover WPL-67003900
...
8
Screw WPL-WP400021-1
...
9
Housing, Light WPL-12806601
...
10
Socket WPL-W11447232
...
11
Bulb-Light WPL-W11679940
...
12
Overlay, Control WPL-67004279
...
13
Control WPL-WPW10196393
...
14
Insulation WPL-WP13012402
...
15
Cover, Fz Light WPL-67003905
...
16
Module, Fz Control WPL-67003906
...
17
Housing WPL-W11702858
...
18
Socket WPL-W11447232
...
19
Bulb-Light WPL-W11679940
...
20
Switch WPL-W11396033
...
21
Screw WPL-W10709797
...
22
Thermistor Kit WPL-12002355

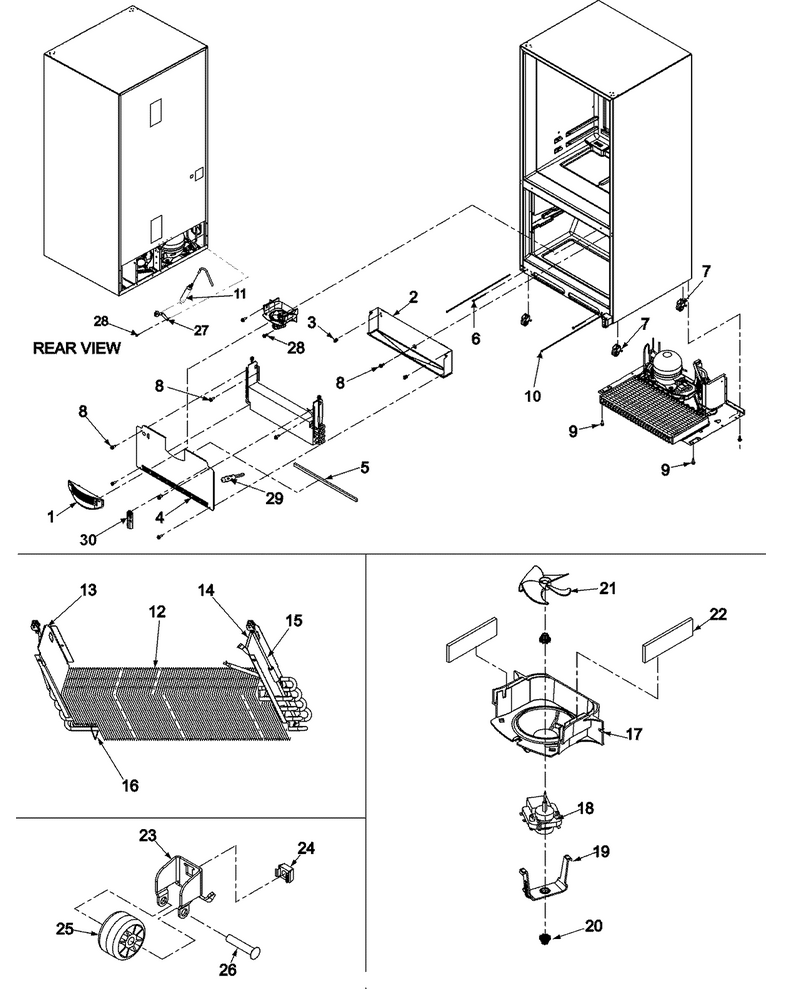

04 - Evaporator Area & Rollers

...
...
NI
Thermostat WPL-WP67003426
...
1
Grille WPL-WPW10175909
...
2
Tray-Drip WPL-W11547653
...
3
Clip, Evaporator WPL-10623002
...
4
Cover-Evap WPL-W11727809
...
5
Gasket WPL-W11159728
...
6
Screw WPL-71003131
...
7
Roller Bracket Assembly WPL-67006118
...
8
Screw, Sm WPL-67006425
...
9
Screw WPL-12992101
...
10
Bolt, Adjusting (rear) WPL-67006612
...
11
Drier WPL-WPB2150504
...
12
Kit, Evap Replacement WPL-12002041
...
13
Dam, Left Return WPL-67001083
...
14
Dam, Right Return WPL-67001084
...
15
Heater- De WPL-WP67002493
...
16
Clip WPL-W11673433
...
17
Shroud, Evap Fan WPL-67002777
...
18
Motor-Evap WPL-WPW10128551
...
19
Bracket WPL-WP67005633
...
20
Grommet, Fan Motor (tan) WPL-12732802
...
21
Blade-Fan WPL-WP2169142
...
22
Gasket WPL-W10856123
...
23
Bracket, Foot WPL-12456801V
...
24
Nut, Speed WPL-M0286708
...
25
Roller WPL-WP10450603
...
26
Rivet WPL-M1205302
...
27
Clip, Drier WPL-10547002
...
28
Screw WPL-WP33001882
...
29
Thermistor Kit WPL-12002355
...
30
Cover- Fz WPL-WP67003924

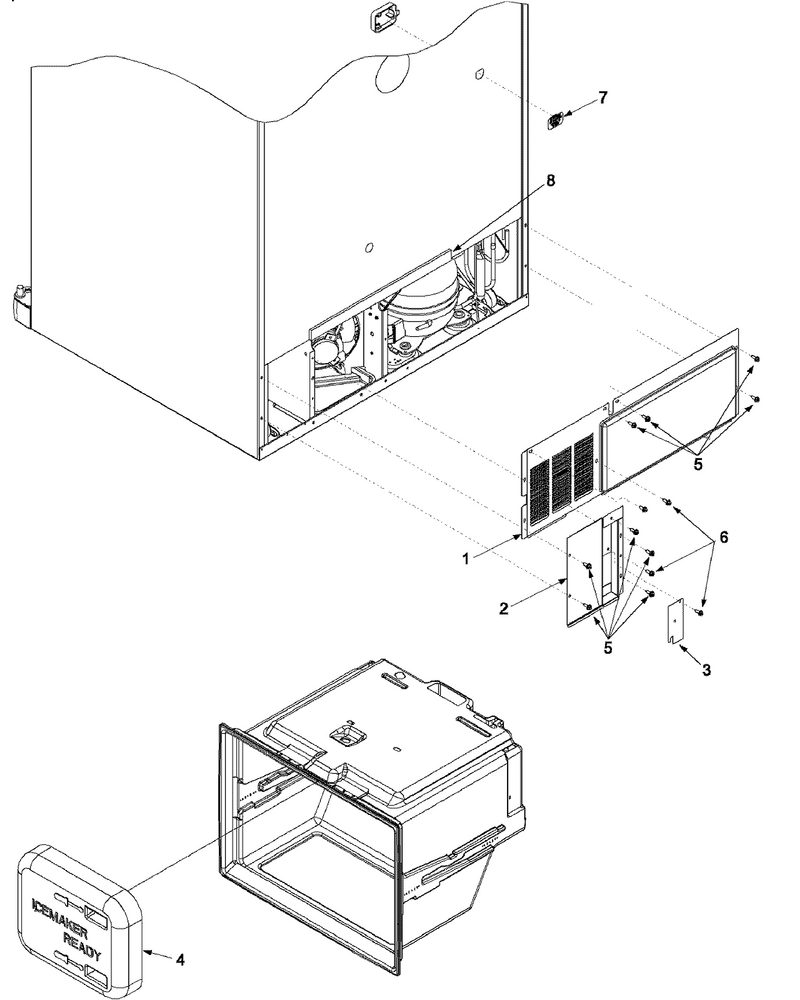

01 - Cabinet Back

...
...
NI
Cord-Power WPL-WP67006506
...
1
Fiber, Acoustic WPL-67003796
...
2
Cover, Water Valve WPL-12479803
...
3
Plate, Cover WPL-12479901
...
4
Cover-Tube WPL-WP67001098
...
5
Screw, Sm WPL-67006425
...
6
Screw WPL-WP489128
...
7
Label WPL-W11685757
...
8
Gasket, Mc Back WPL-B5759649

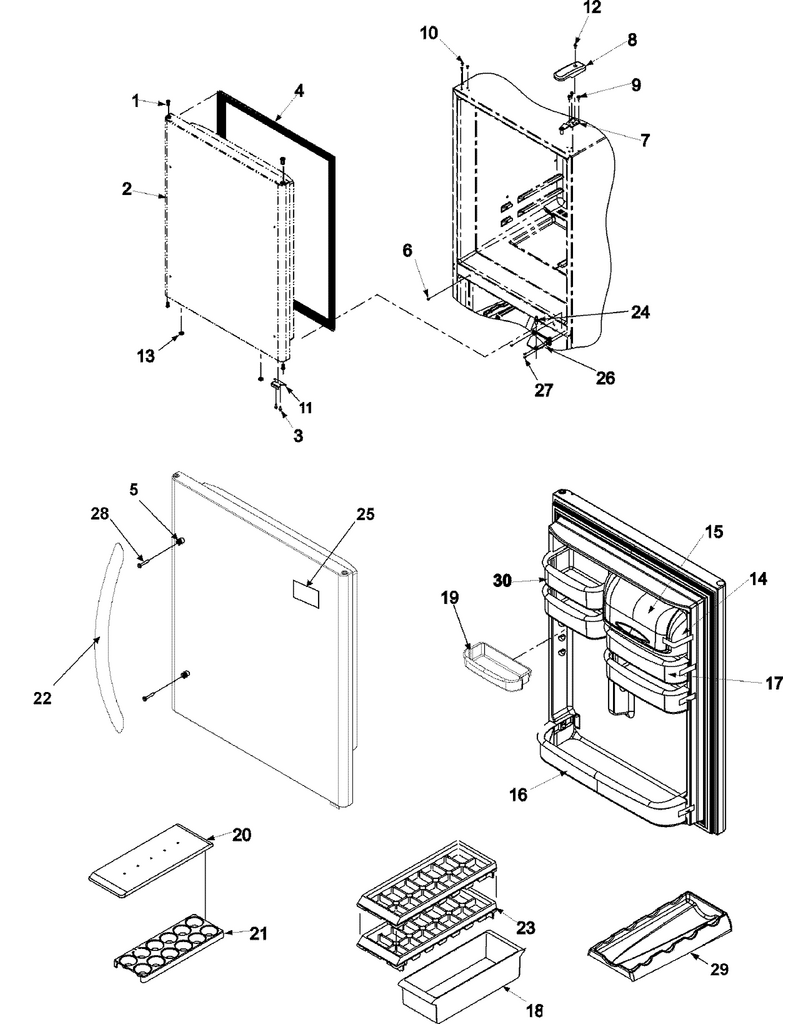

08 - Refrigerator Door

...
...
1
Bushing, Door (blk) WPL-67004978
...
2
Door Assy., Ref. Foam (stnls) WPL-67006826
...
3
Screw WPL-WP98165
...
4
Gasket-Fip WPL-W10849442
...
5
Plate WPL-WP67006113
...
6
Screw WPL-WP98165
...
7
Hinge-Door WPL-WP12566606ED
...
8
Cover, Top Hinge (blk) WPL-67001012
...
9
Screw WPL-WP489349
...
10
Plug, Top Hinge Button (blk) WPL-M0310731
...
11
Stop-Door WPL-W11708403
...
12
Screw WPL-WP8281196
...
13
Plug, Vent (blk) WPL-67004838
...
14
Tray- Dair WPL-WP67001279
...
15
Door Comp WPL-WP12744905
...
16
Retainer, Door WPL-67002477
...
17
Gripper, Bucket (medium) WPL-W10450022
...
18
Container WPL-WP10423131
...
19
Bucket, Short Assy WPL-67004871
...
20
Lid, Utility WPL-10436404
...
21
Tray, Egg WPL-10436506
...
22
Handle WPL-WPW10136873
...
23
Tray WPL-WP841180A
...
24
Pin WPL-WP67006642
...
25
Nameplate (amana Plus) WPL-Y12528501
...
26
Hinge-Door WPL-WP12607104ED
...
27
Screw WPL-WP67006380
...
28
Screw WPL-WP3387230
...
29
Trivet, Bottle WPL-67001656
...
30
Gripper, Bucket WPL-67003213

...
...
1
Icemaker Install Kit WPL-8003RP
...
2
Tech Sht, Btm Mt WPL-16026956
...
3
Manual, Owners WPL-67006811
...
4
Tag, Energy WPL-67004683

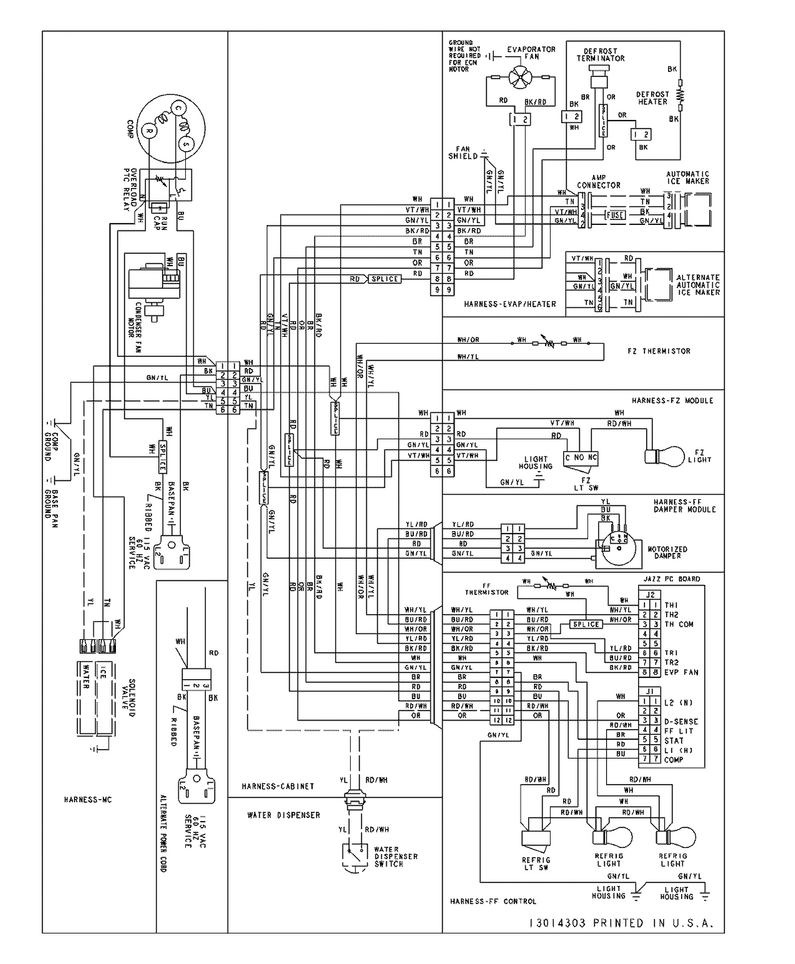

11 - Wiring Information

...
...
NI
Wiring Information WPL-15003918

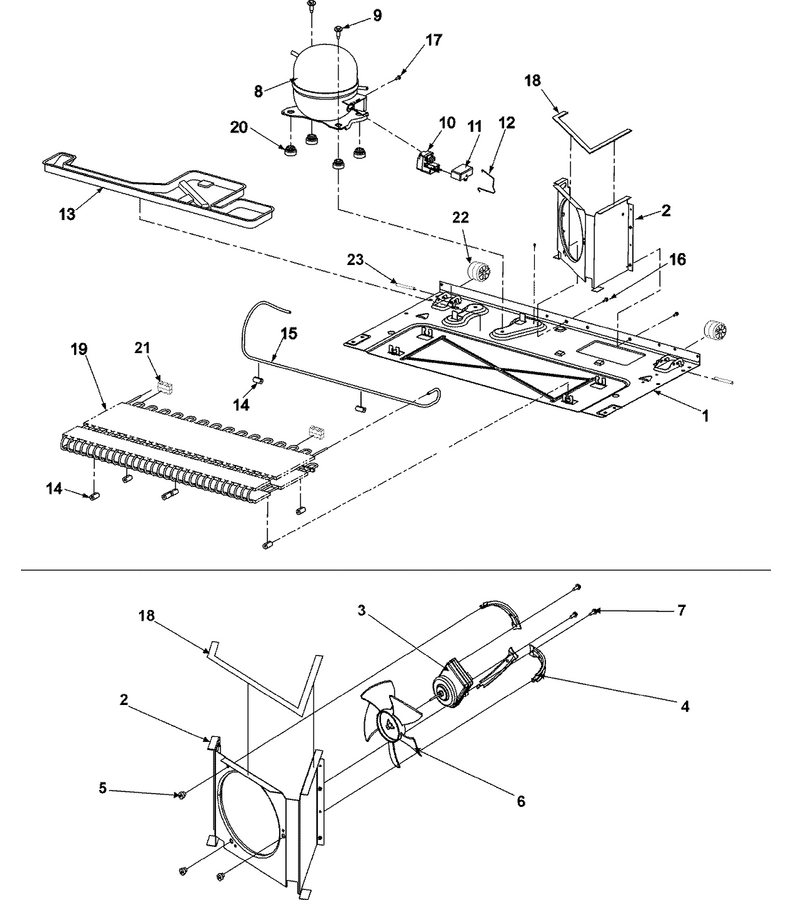

02 - Compressor

...
...
NI
Harness, Mc WPL-67005251
...
1
Basepan WPL-12457108
...
2
Shroud, Condenser Fan WPL-67001090
...
3
Motor-Cond WPL-W11613295
...
4
Bracket WPL-WP67004953
...
5
Grommet- B WPL-WP61004743
...
6
Blade, Fan WPL-W10156818
...
7
Screw WPL-WP67004954
...
8
Compressor Kit (contains Items 12, 17, 27, & 29) WPL-W10160407
...
9
Screw (2) WPL-12846902
...
10
Start-Dev WPL-W10613606
...
11
Start-Dev WPL-W10613606
...
12
Strap, Bale WPL-12576801
...
13
Pan- Drain WPL-WP12579803
...
14
Grommet, Condenser WPL-67005680
...
15
Tube WPL-WP12866903
...
16
Screw, Sm WPL-67006425
...
17
Screw WPL-12992301
...
18
Seal-Strip WPL-WP854334
...
19
Condenser WPL-WP67006131
...
20
Grommet, Compressor WPL-67003493
...
21
Block, Eps Condenser WPL-67005491
...
22
Roller WPL-WP67005149
...
23
Axle, Roller WPL-67006434

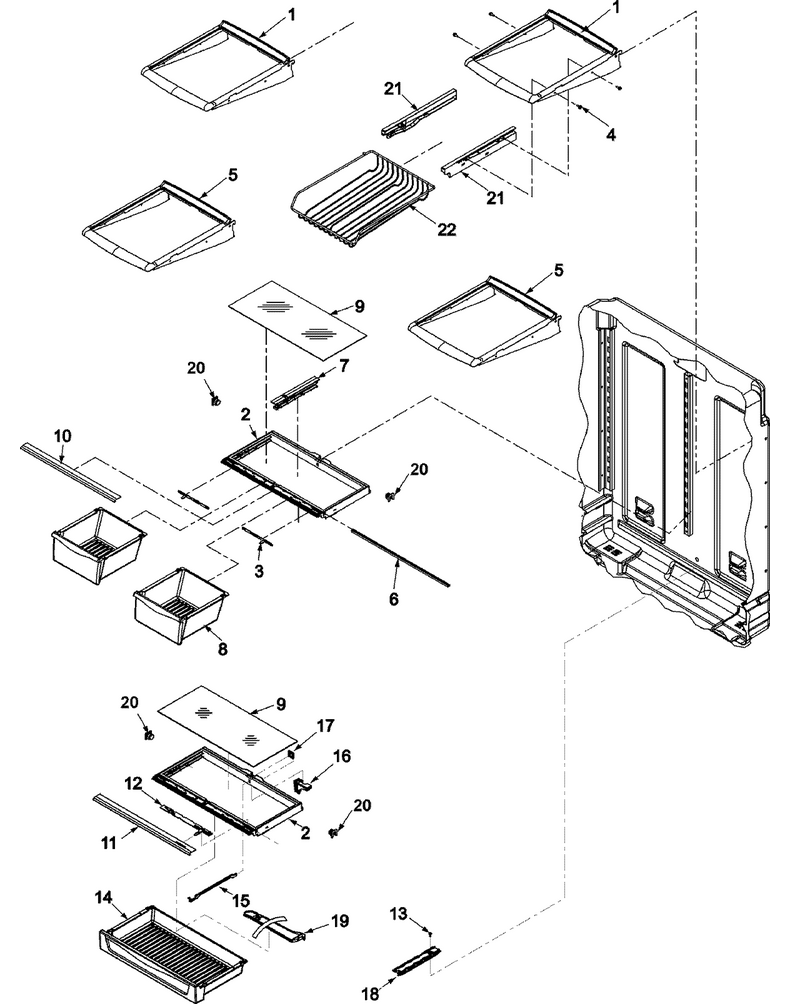

09 - Refrigerator Shelving

...
...
1
Shelf, Sta WPL-67004680
...
2
Frame- Cri WPL-WP67003854
...
3
Slide WPL-WP67005864
...
4
Screw WPL-W11233072
...
5
Shelf, Glide Out WPL-67004637
...
6
Brace- Cri WPL-WP12642303WD
...
7
Rail-Centr WPL-WPW10326469
...
8
Pan, Crisper WPL-67004697
...
9
Glass- Cri WPL-WP67006704
...
10
Trim-Shelf WPL-WPW10231344
...
11
Trim-Shelf WPL-W10656987
...
12
Slide,pantry WPL-67002002
...
13
Screw (3) WPL-67006425
...
14
Pan, Pantry WPL-67005917
...
15
Bar, Pantry WPL-12531402
...
16
Tunnel- Pa WPL-WP12531601
...
17
Gasket, Pantry WPL-W10368789
...
18
Track WPL-WP67001719
...
19
Divider, Pantry WPL-67004556
...
20
Support- C WPL-WP12603701
...
21
Glide Lt WPL-WP67001054
...
21A
Glide Rt WPL-WP67001053
...
22
Rack, Can WPL-67004585

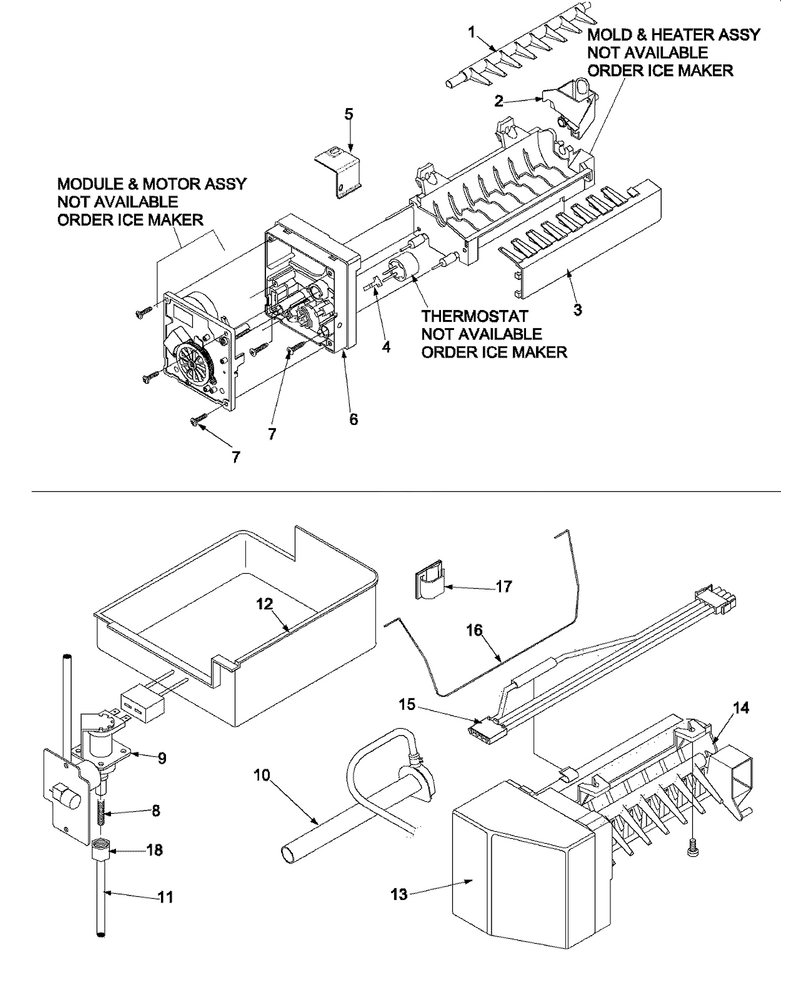

07 - Optional Ice Maker Kit Ic11b P1328003w

...
...
NI
Clip- Spee WPL-WPM0114003
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Stripr WPL-WP2182124
...
4
Clip WPL-WP2315522
...
5
Bracket WPL-WP2256087
...
6
Housing-Im WPL-WP2195914
...
7
Screw WPL-WP681249
...
8
Clip WPL-WPM0104106
...
9
Valve-Inlt WPL-WP67003753
...
10
Tube-Water WPL-W11176463
...
11
Tube-Water WPL-W10823511
...
12
Pan-Ice WPL-WP67001255
...
13
Cover-Frnt WPL-WPW10289690
...
14
Ice Maker Assy. WPL-D7824706Q
...
15
Harns-Wire WPL-WPD7813010
...
16
Arm-Shut WPL-WP67004028
...
17
Clamp WPL-W10833902
...
18
Screw WPL-WP489128
