Amana ABL1927FES (BOM: ABL1927FES0)

Model: ABL1927FES (BOM: ABL1927FES0)

Save Part Not Listed?
product name

...
...
1
Icemaker Install Kit WPL-8003RP
...
2
Tech Sht, Btm Mt WPL-16026956
...
3
Manual, Owners WPL-67006811
...
4
Svc Man, Btm Mt WPL-16025629
...
5
Tag, Energy WPL-12918126

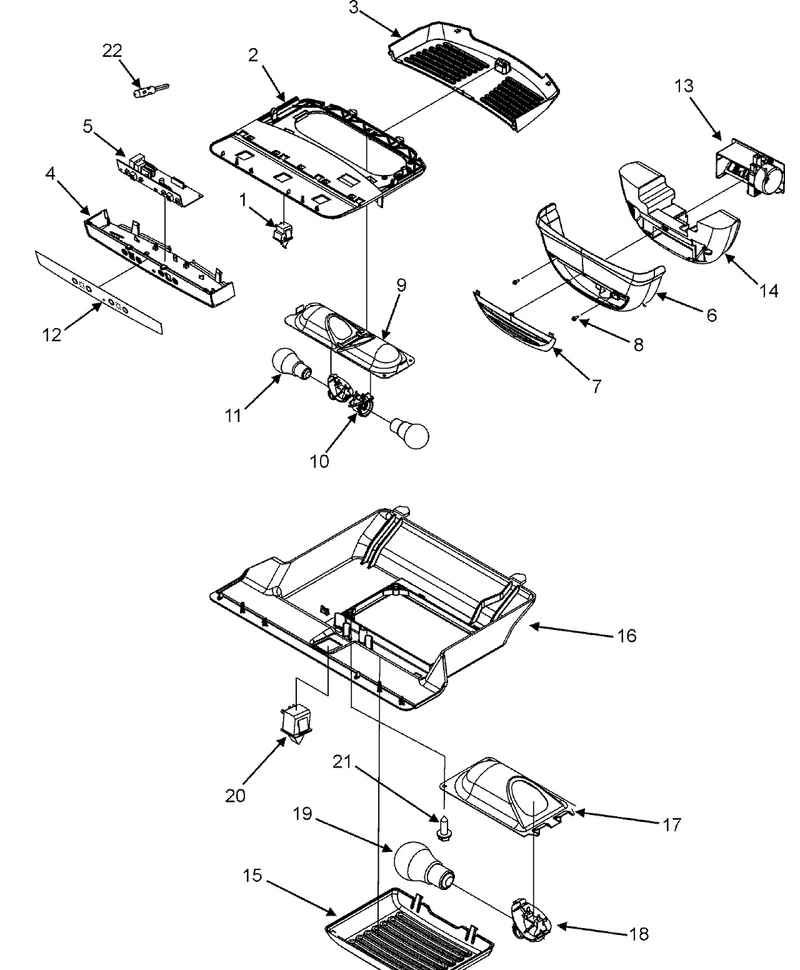

03 - Controls

...
...
NI
Harness, Fz Module WPL-67006094
...
1
Switch WPL-W11384469
...
2
Module, Light WPL-Y67003896
...
3
Cover WPL-W11284721
...
4
Housing WPL-WPW10464769
...
5
Frost Kit, S X S Domestic WPL-12002756
...
6
Cover-Box WPL-WP12806701
...
7
Insert, Damper Cover WPL-67003900
...
8
Screw WPL-WP400021-1
...
9
Housing, Light WPL-12806601
...
10
Socket WPL-W11447232
...
11
Bulb-Light WPL-W11679940
...
12
Overlay, Control WPL-67004279
...
13
Control WPL-WPW10196393
...
14
Insulation WPL-WP13012402
...
15
Cover, Fz Light WPL-67003905
...
16
Module, Fz Control WPL-67003906
...
17
Housing WPL-W11702858
...
18
Socket WPL-W11447232
...
19
Bulb-Light WPL-W11679940
...
20
Switch WPL-W11396033
...
21
Screw WPL-W10709797
...
22
Thermistor Kit WPL-12002355

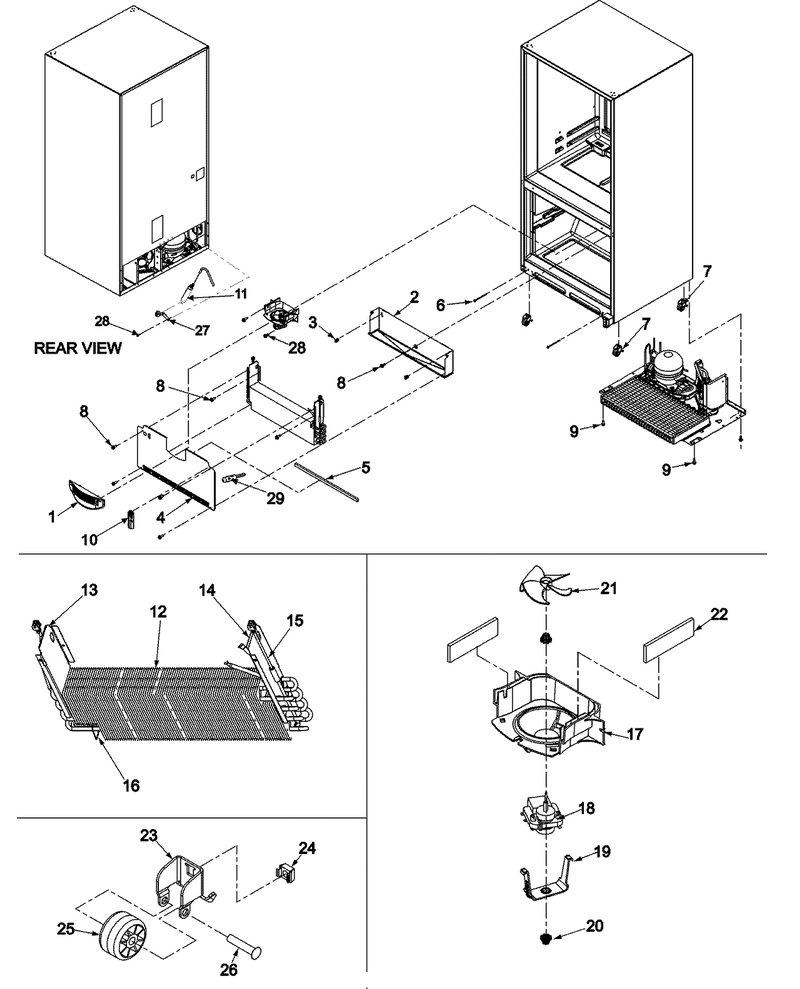

04 - Evaporator Area & Rollers

...
...
NI
Thermostat WPL-WP67003426
...
1
Grille WPL-WPW10175909
...
2
Tray, Drip WPL-W11337775
...
3
Clip, Evaporator WPL-10623002
...
4
Cover-Evap WPL-WPW10308414
...
5
Gasket, Bottom WPL-A3189394
...
6
Screw WPL-71003131
...
7
Roller Bracket Assembly WPL-67006118
...
8
Screw, Sm WPL-67006425
...
9
Screw WPL-12992101
...
10
Cover- Fz WPL-WP67003924
...
11
Drier WPL-WPB2150504
...
12
Kit, Evaporator WPL-12002051
...
13
Dam, Left Return WPL-67001083
...
14
Dam, Right Return WPL-67001084
...
15
Heater- De WPL-WP67002135
...
16
Clip WPL-W11673433
...
17
Shroud, Evap Fan WPL-67002777
...
18
Motor-Evap WPL-WPW10128551
...
19
Bracket WPL-WP67005633
...
20
Grommet, Fan Motor (tan) WPL-12732802
...
21
Blade-Fan WPL-WP2169142
...
22
Gasket WPL-W10856123
...
23
Bracket, Foot WPL-12456801V
...
24
Nut, Speed WPL-M0286708
...
25
Roller WPL-WP10450603
...
26
Rivet WPL-M1205302
...
27
Clip, Drier WPL-10547002
...
28
Screw WPL-WP33001882
...
29
Thermistor WPL-67006883

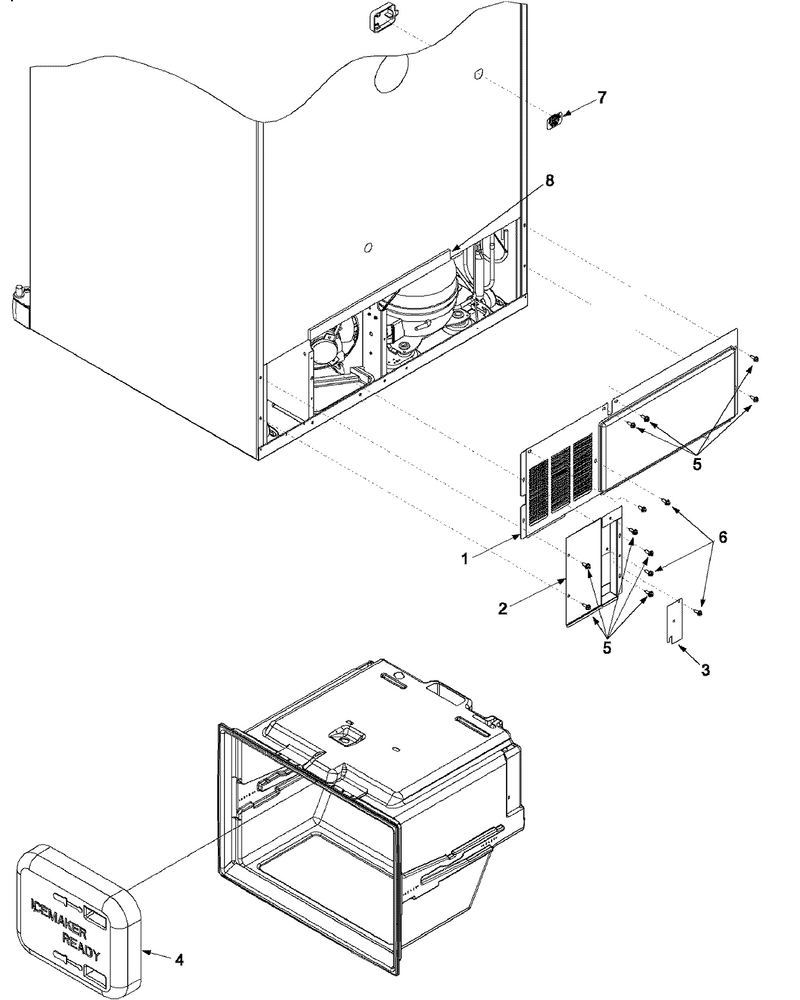

01 - Cabinet Back

...
...
NI
Cord-Power WPL-WP67006506
...
1
Cover, Mc Back WPL-67006101
...
2
Cover, Water Valve WPL-67001173
...
3
Plate, Cover WPL-12479901
...
4
Cover-Tube WPL-WP67001098
...
5
Screw, Sm WPL-67006425
...
6
Screw WPL-WP489128
...
7
Label WPL-W11685757
...
8
Gasket, Mc Back WPL-B5759649

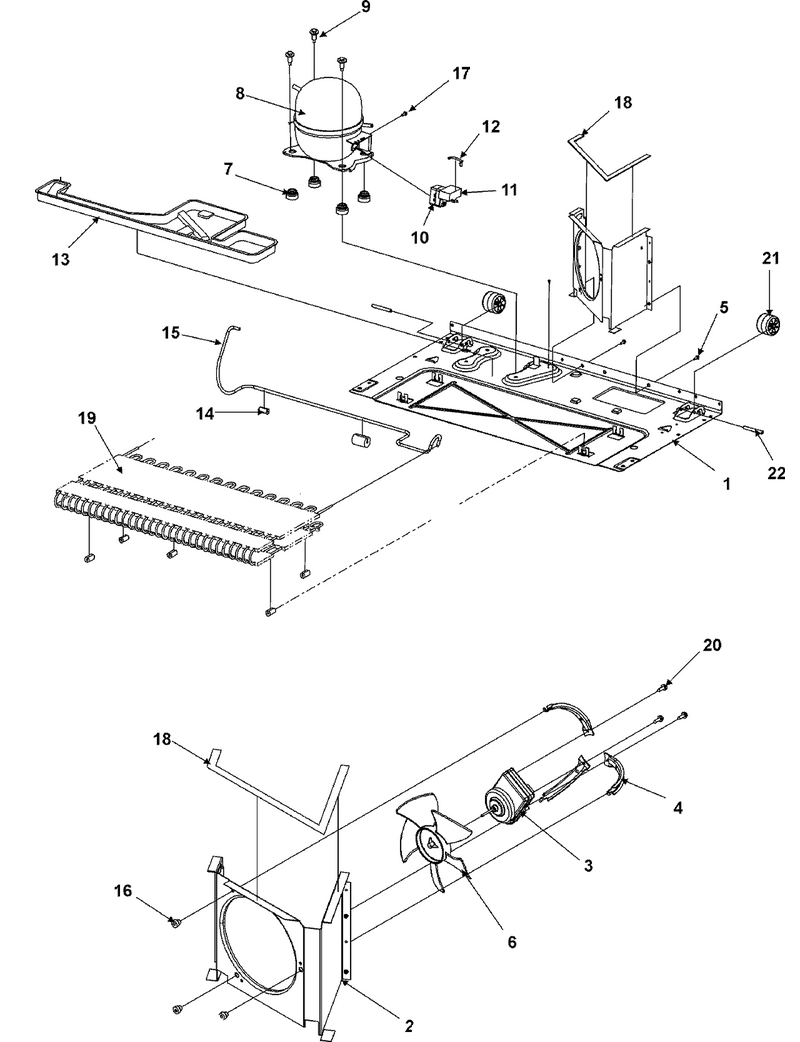

02 - Compressor

...
...
NI
Harness, Mc WPL-67005251
...
1
Basepan WPL-67006914
...
2
Shroud, Condenser Fan WPL-67001090
...
3
Motor-Cond WPL-W11613295
...
4
Bracket WPL-WP67004953
...
5
Screw, Sm WPL-67006425
...
6
Blade, Fan WPL-W10156818
...
7
Grommet, Compressor WPL-67003493
...
8
Compressor Kit (contains Items 12, 17, 27, & 29) WPL-W10160407
...
9
Screw (2) WPL-12846902
...
10
Start-Dev WPL-W10613606
...
11
Start-Dev WPL-W10613606
...
12
Clip, Capacitor WPL-67007052
...
13
Pan, Drain WPL-67004713
...
14
Grommet, Condenser WPL-67005680
...
15
Tube, Discharge WPL-67004203
...
16
Grommet- B WPL-WP61004743
...
17
Screw WPL-12992301
...
18
Seal-Strip WPL-WP854334
...
19
Condenser WPL-67006133
...
20
Screw WPL-WP67004954
...
21
Roller WPL-WP67005149
...
22
Axle, Roller WPL-67006434

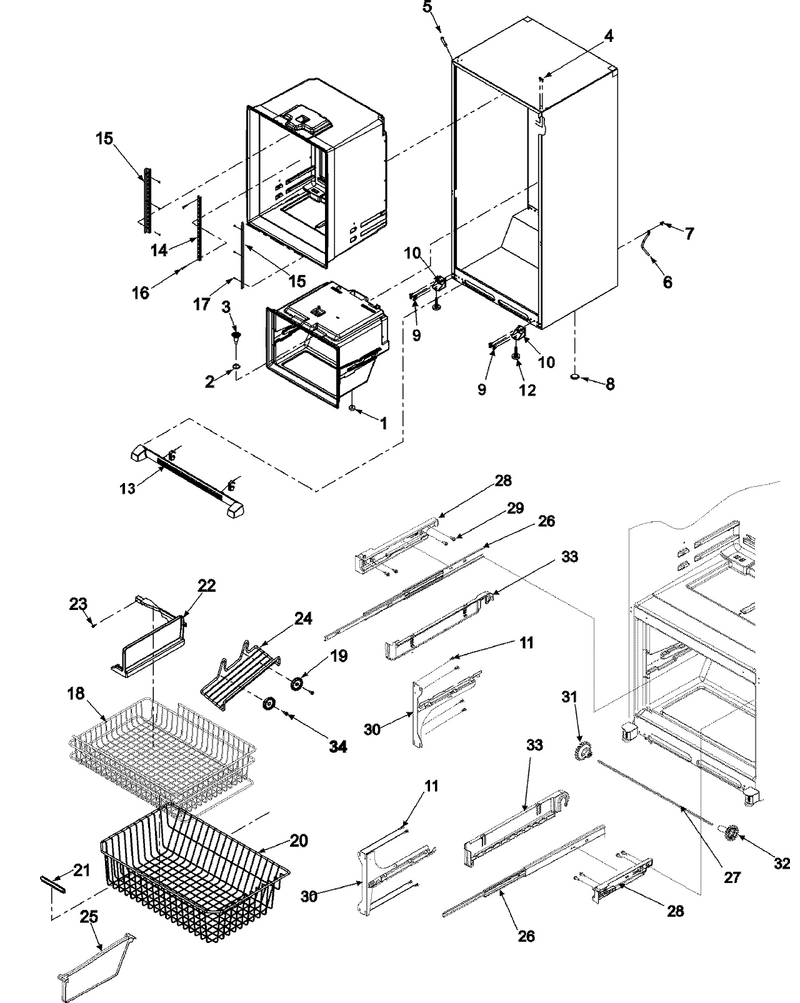

06 - Interior Cabinet & Freezer Shelving

...
...
1
Gasket- Dr WPL-WPB8381501
...
2
Seal- O Ri WPL-WPM0500703
...
3
Funnel WPL-W10815413
...
4
Pop Rivet WPL-A4539607
...
6
Tube, Drain WPL-67001066
...
7
Clip, Drain Tube WPL-67001067
...
8
Plug, Button WPL-A3076901
...
9
Screw, Sm/hex WPL-67006564
...
10
Bracket, Foot Cabinet WPL-67007174
...
11
Screw WPL-WP98165
...
12
Feet-Lvlng WPL-W11177593
...
13
Clip- Toe WPL-WP12627302
...
14
Ladder, Center WPL-67001073
...
15
Ladder, Sides WPL-67001302
...
16
Screw WPL-W10709795
...
17
Screw (3) WPL-67006425
...
18
Basket, Upper WPL-67004985
...
19
Spacer- Ic WPL-WP10972101
...
20
Basket, Freezer (lower) WPL-W10503182
...
21
Handle, Basket/shelf WPL-10508506
...
22
Divider, Basket (upper) WPL-67004127
...
23
Screw WPL-67006608
...
24
Rack, Ice Tray WPL-12646501
...
25
Divider, Basket WPL-67006644
...
26
Slide WPL-WP67006607
...
27
Shaft, Rack WPL-W10802329
...
28
Adapter, Side (rt) WPL-67004865
...
28A
Adapter, Side (lt) WPL-67004864
...
29
Screw WPL-WP489474
...
30
Bracket- D WPL-WP12812501WD
...
31
Gear (inclds. Both) WPL-12002497
...
32
Gear (inclds. Both) WPL-12002497
...
33
Bracket WPL-WPW10280613
...
33A
Bracket WPL-WPW10280608
...
34
Screw WPL-WP67006908

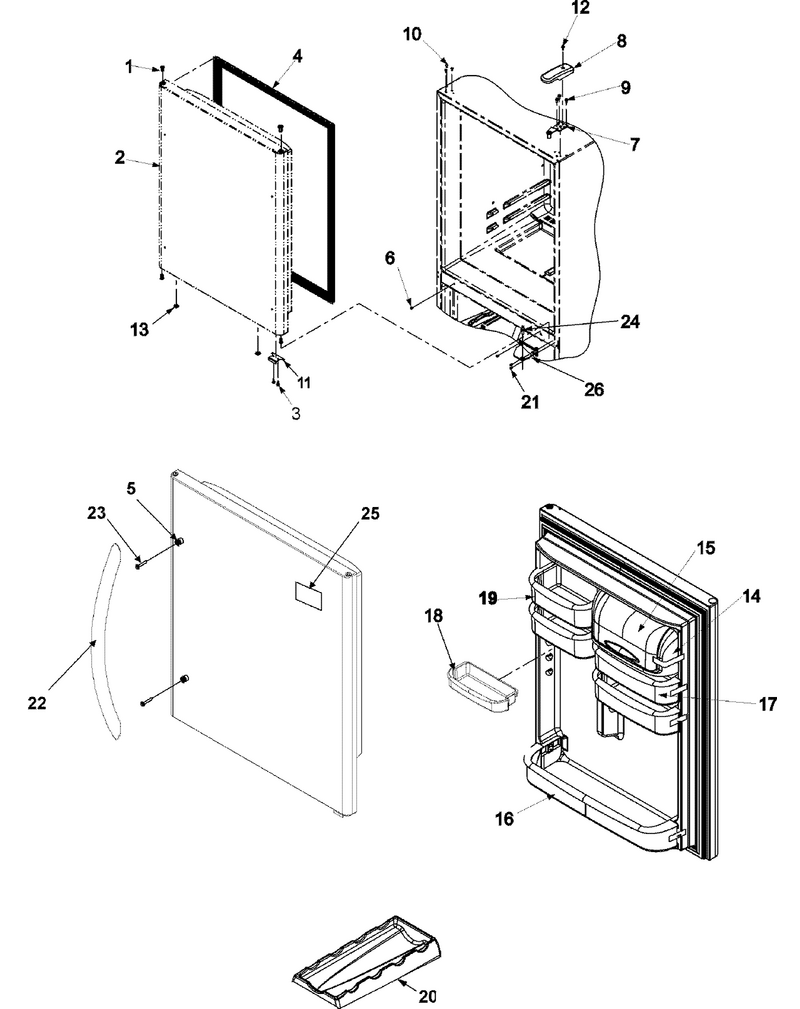

08 - Refrigerator Door

...
...
NI
Closer WPL-WP67003639
...
1
Bushing, Door (blk) WPL-67004978
...
2
Door Assy., Ref. Foam (stnls) WPL-67006931
...
3
Screw WPL-WP98165
...
4
Gasket-Fip WPL-WPW10436245
...
5
Plate WPL-WP67006113
...
6
Screw WPL-WP98165
...
7
Hinge-Door WPL-WP12566606ED
...
8
Cover, Top Hinge (blk) WPL-67001012
...
9
Screw WPL-WP489349
...
10
Plug, Top Hinge Button (blk) WPL-M0310731
...
11
Stop-Door WPL-W11708403
...
12
Screw WPL-WP8281196
...
13
Plug, Vent (blk) WPL-67004838
...
14
Tray- Dair WPL-WP67001279
...
15
Door Comp WPL-WP12744905
...
16
Retainer, Door WPL-67001139
...
17
Bin-Cntlvr WPL-WPW10371193
...
18
Bucket (2) Small WPL-67001141
...
19
Sm Ref Bucket/grip Assy WPL-67003771
...
20
Trivet, Bottle WPL-67001656
...
21
Screw WPL-WP67006380
...
22
Handle WPL-WPW10136873
...
23
Screw WPL-WP3387230
...
24
Pin WPL-WP67006642
...
25
Nameplate (amana Plus) WPL-Y12528501
...
26
Hinge-Door WPL-WP12607104ED

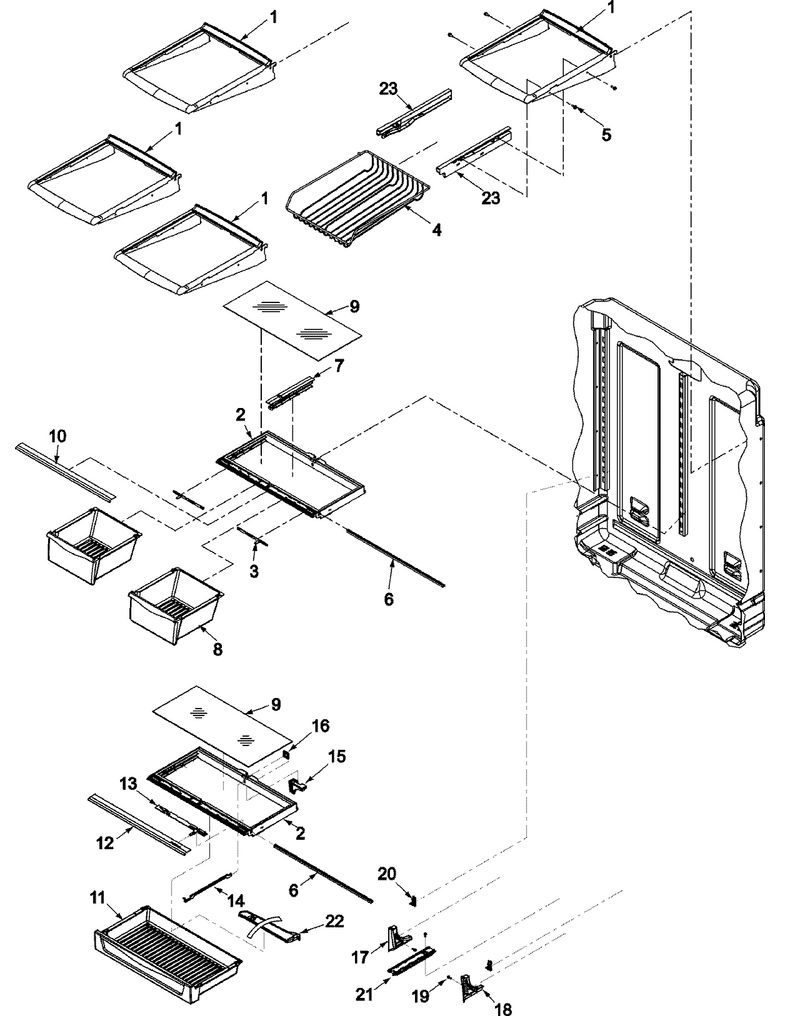

09 - Refrigerator Shelving

...
...
1
Shelf, Ref Glide Out WPL-67004281
...
2
Frame WPL-WPW10671240
...
3
Slide WPL-WP67005864
...
4
Rack Can WPL-67001301
...
5
Screw WPL-W11233072
...
6
Support WPL-WP12227302WD
...
7
Rail-Centr WPL-WPW10671238
...
8
Pan-Crispr WPL-W10833530
...
9
Shelf-Glas WPL-WP67006877
...
10
Trim-Shelf WPL-WPW10231337
...
11
Pan, Pantry WPL-67005905
...
12
Extrusion, Pantry Front WPL-67002279
...
13
Slide,pantry WPL-67002002
...
14
Bar,pantry WPL-67002003
...
15
Tunnel- Pa WPL-WP12531601
...
16
Gasket, Pantry WPL-W10368789
...
17
Support- L WPL-WP67001721
...
18
Support- R WPL-WP67001722
...
19
Screw (3) WPL-67006425
...
20
Hook- Ladd WPL-WP67001716
...
21
Track WPL-WP67001719
...
22
Divider- P WPL-WP67001923
...
23
Glide Rt WPL-WP67001053
...
23A
Glide Lt WPL-WP67001054

11 - Wiring Information

...
...
NI

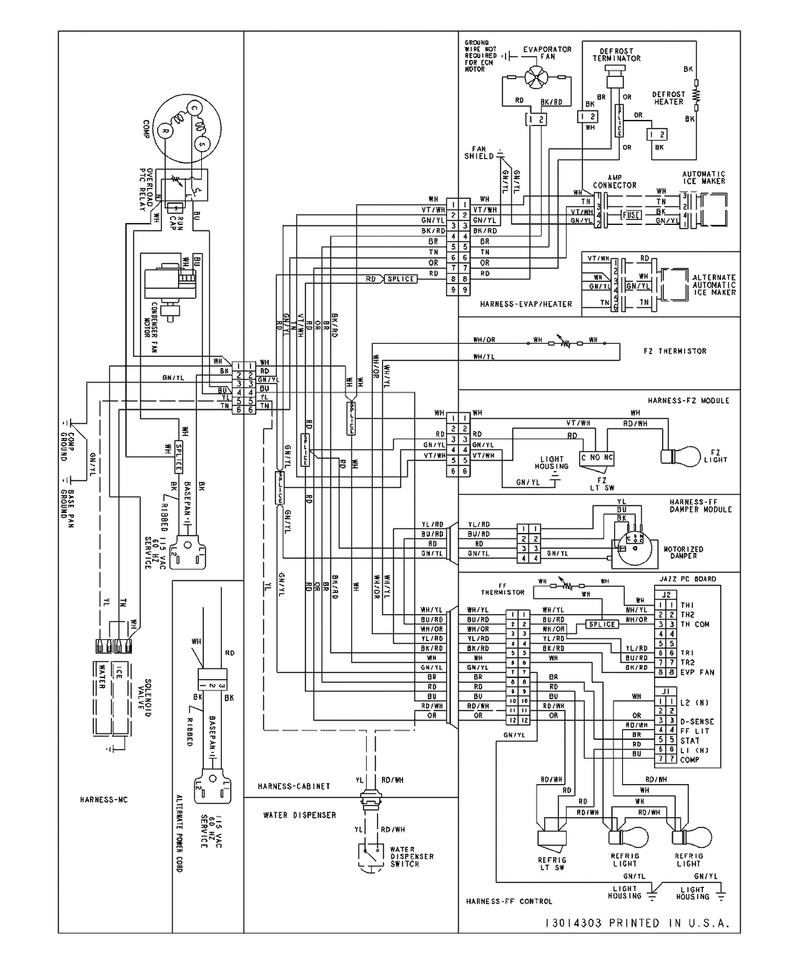

Wiring Information WPL-15003918

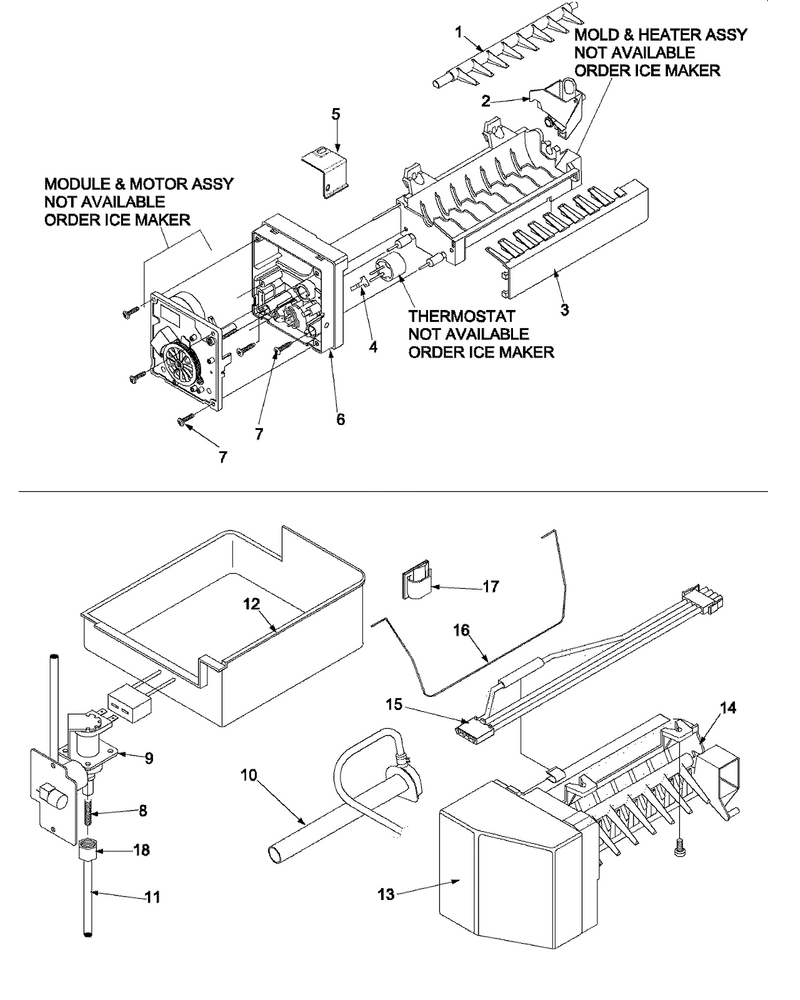

07 - Optional Ice Maker Kit Ic11b P1328003w

...
...
NI
Retainer, Tube WPL-67001258
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Stripr WPL-WP2182124
...
4
Clip WPL-WP2315522
...
5
Bracket WPL-WP2256087
...
6
Housing-Im WPL-WP2195914
...
7
Screw WPL-WP681249
...
8
Clip WPL-WPM0104106
...
9
Valve-Inlt WPL-WP67003753
...
10
Tube-Water WPL-W11176463
...
11
Tube-Water WPL-W10823511
...
12
Pan-Ice WPL-WP67001255
...
13
Cover-Frnt WPL-WPW10289690
...
14
Ice Maker Assy. WPL-D7824706Q
...
15
Harns-Wire WPL-WPD7813010
...
16
Arm-Shut WPL-WP67004028
...
17
Clamp WPL-W10833902
...
18
Screw WPL-WP489128

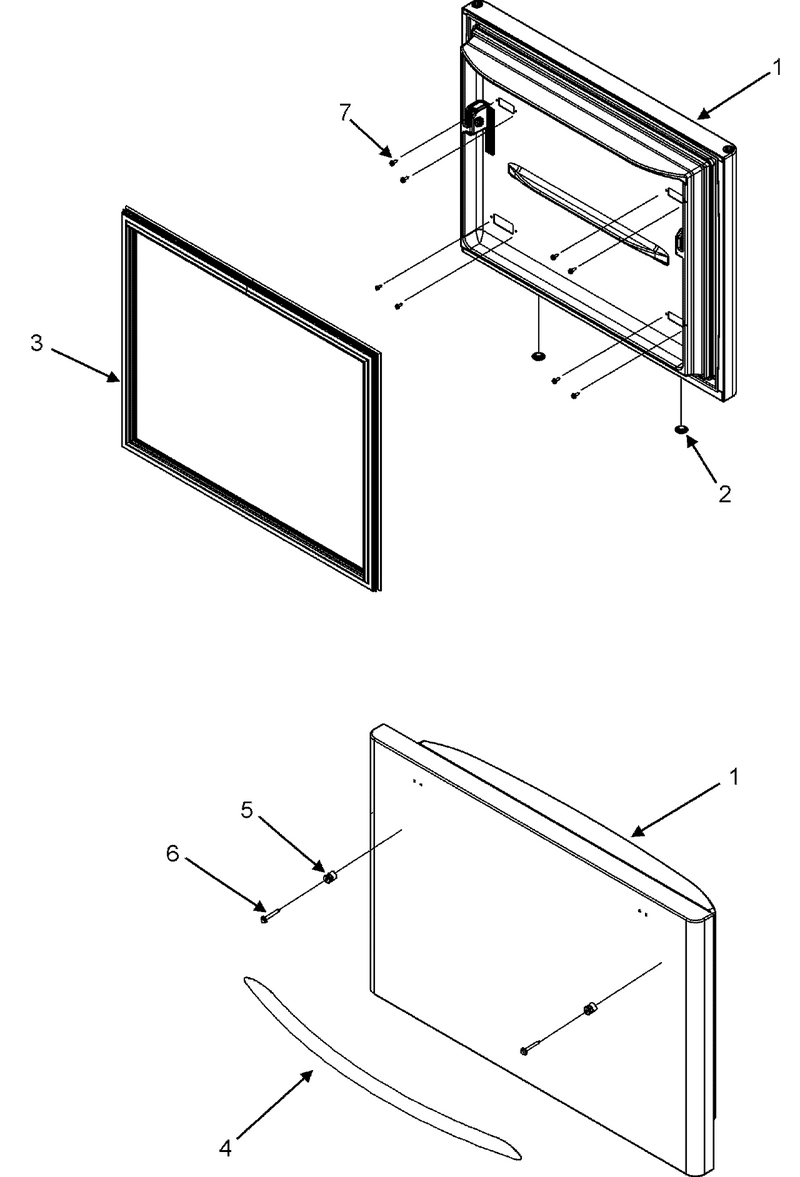

05 - Freezer Door

...
...
1
Ddor Assy., Frz. Foam (stnls) WPL-67006959
...
2
Plug, Vent (blk) WPL-67004838
...
3
Gasket-Fip WPL-WPW10436247
...
4
Handle WPL-WPW10136873
...
5
Plate WPL-WP67006113
...
6
Screw WPL-WP3387230
