Amana ABB2224BRB05

Model: ABB2224BRB05

Save Part Not Listed?
product name

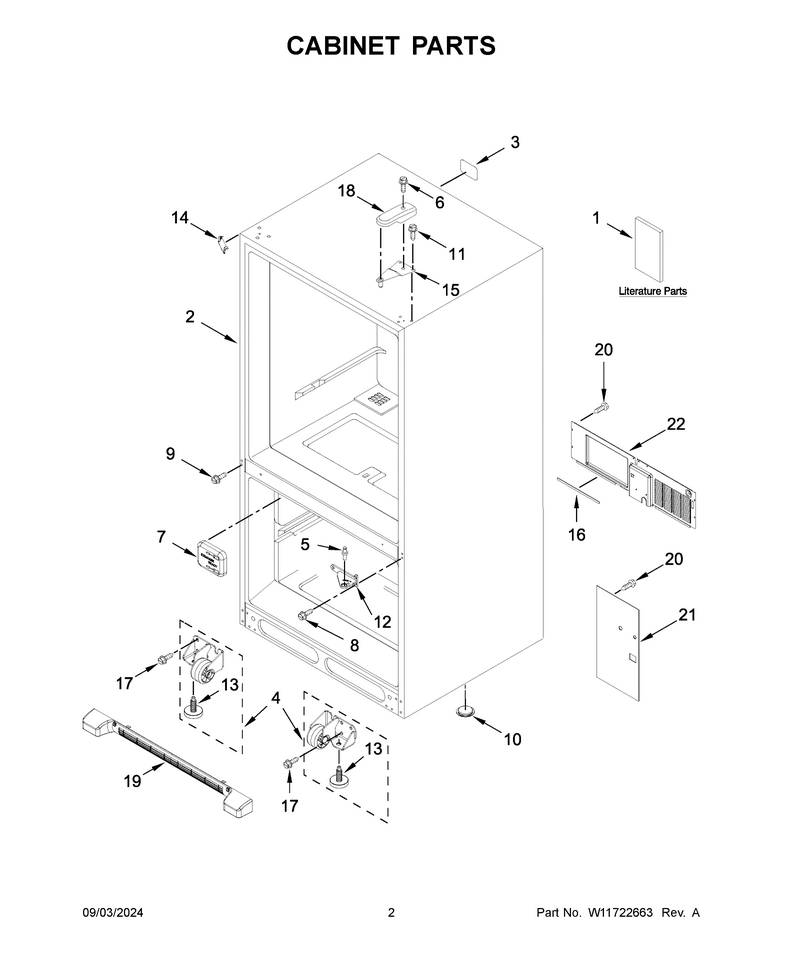

02 - Cabinet Parts

...
...
1
Owner's Manual WPL-W11479841
...
1A
Energy Guide WPL-W11644237
...
1B
Tech Sheet WPL-W11312474
...
2
Cabinet (Not A Servicable Part) WPL---
...
3
Label WPL-W11685757
...
4
Roller-Cab WPL-WPW10515763
...
4A
Roller-Cab WPL-WPW10515762
...
5
Pin WPL-WP67006642
...
6
Screw WPL-WP8281196
...
7
Cover-Tube WPL-W11533743
...
8
Screw WPL-W11573362
...
9
Screw WPL-WP489349
...
10
Plug, Button (White) WPL-M0310343
...
11
Screw WPL-WP489349
...
12
Hinge-Door WPL-W11689473
...
13
Leveler WPL-WPW10141622
...
14
Cover, Corner (Blk) WPL-67003485
...
15
Hinge-Door WPL-WP12566606ED
...
16
Gasket WPL-W11534847
...
17
Screw (8) WPL-67006564
...
18
Cover, Top Hinge (Blk) WPL-67001012
...
19
Grille-Frt WPL-WPW10534162
...
20
Screw WPL-W11686675
...
21
Cover-Valv WPL-W11684617
...
22
Cover-Back WPL-WPW10210979

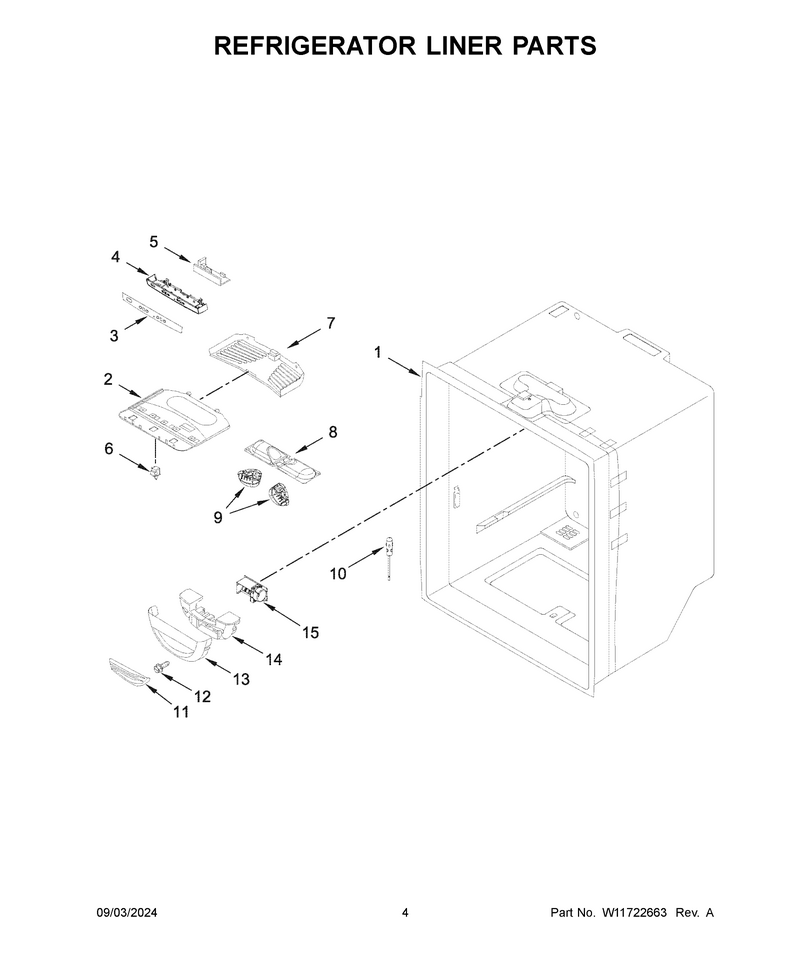

03 - Refrigerator Liner Parts

...
...
NI
Harns-Wire WPL-W11619328
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Module, Light WPL-W10464757
...
3
Overlay WPL-W10593588
...
4
Housing WPL-WPW10464769
...
5
Cntrl-Elec WPL-W11524469
...
6
Switch WPL-W11384469
...
7
Cover WPL-W11284721
...
8
Housing, Light WPL-W10443023
...
9
Module WPL-W11602886
...
10
Thermistor Kit WPL-12002355
...
11
Insert, Damper Cover WPL-67003900
...
12
Screw WPL-WP400021-1
...
13
Cover-Box WPL-WP12806701
...
14
Insulation WPL-W11750607
...
15
Control WPL-WPW10594330

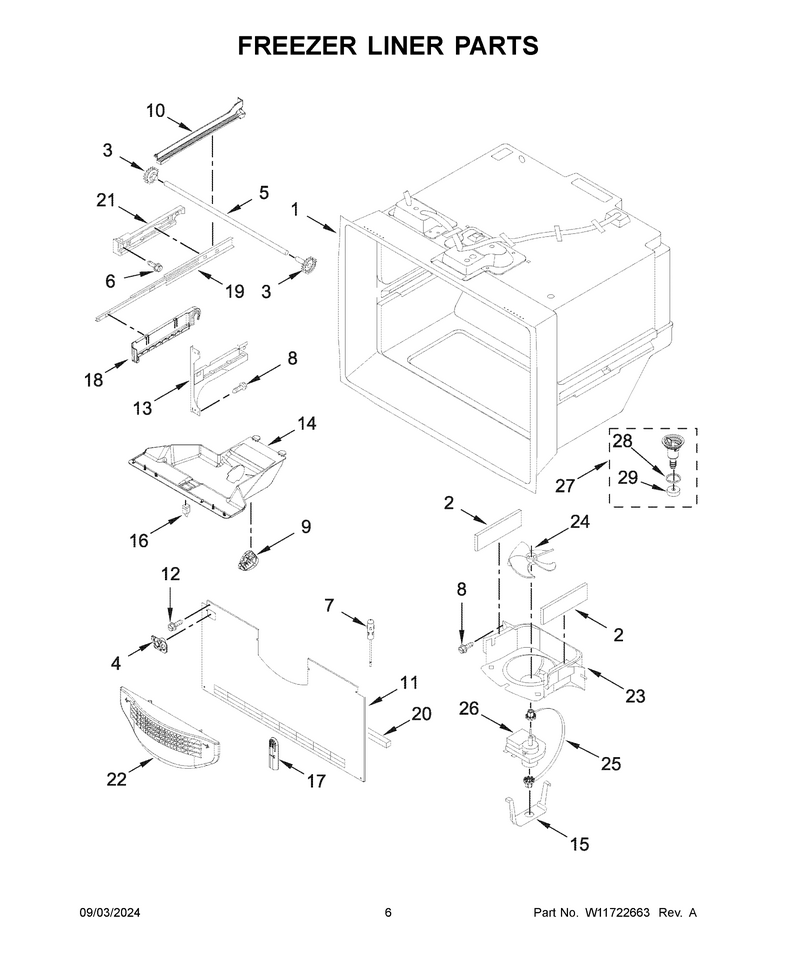

04 - Freezer Liner Parts

...
...
1
Liner (Not A Serviceable Part) WPL---
...
2
Gasket WPL-W10856123
...
3
Gear WPL-12002497
...
4
Guide, Fill Tube WPL-W11341630
...
5
Shaft WPL-W11715937
...
6
Screw WPL-WP489474
...
7
Thermistor Kit WPL-12002355
...
8
Screw WPL-WP98165
...
9
Module WPL-W11602886
...
10
Rail WPL-W11489993
...
10A
Rail WPL-W11489994
...
11
Cover, Evaporator WPL-W10308415
...
12
Screw (3) WPL-67006425
...
13
Bracket WPL-WPW10330991
...
13A
Bracket WPL-WPW10330993
...
14
Housing WPL-WPW10277025
...
15
Clip, Evaporator Motor WPL-13058002
...
16
Switch WPL-W11396033
...
17
Cover- Fz WPL-WP67003924
...
18
Bracket WPL-WPW10280608
...
18A
Bracket WPL-WPW10280613
...
19
Slide WPL-W11658402
...
20
Gasket WPL-W11159742
...
21
Bracket WPL-WPW10284684
...
21A
Bracket WPL-WPW10284685
...
22
Grille WPL-WPW10175909
...
23
Shroud WPL-WPW10167023
...
24
Blade-Fan WPL-WP2169142
...
25
Grommet, Fan Motor WPL-W10121318
...
26
Motor-Evap WPL-WPW10128551
...
27
Funnel WPL-W10815413
...
28
Seal- O Ri WPL-WPM0500703
...
29
Gasket- Dr WPL-WPB8381501

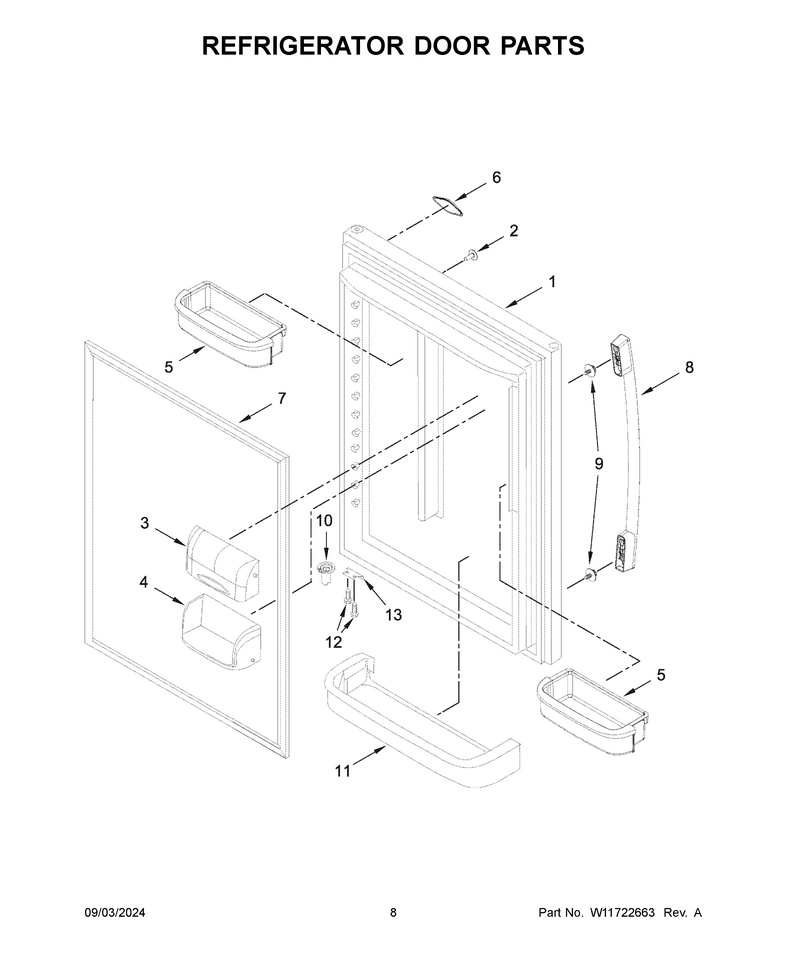

05 - Refrigerator Door Parts

...
...
1
Dor-Fip Bl WPL-13109401BQ
...
2
Button- Pl WPL-WP12246608
...
3
Door-Comp WPL-WP67003637
...
4
Tray- Dair WPL-WP67001279
...
5
Bucket- Me WPL-WP67001021
...
6
Nameplate (Amana Plus) WPL-Y12528501
...
7
Gasket, Door (Grey) WPL-W10443314
...
8
Handle WPL-W11351146
...
9
Screw WPL-WPW10288153
...
10
Closer WPL-WP67003639
...
11
Retainer, Ref Door WPL-67001019
...
12
Screw WPL-WP67006908
...
13
Stop-Door WPL-W11708403

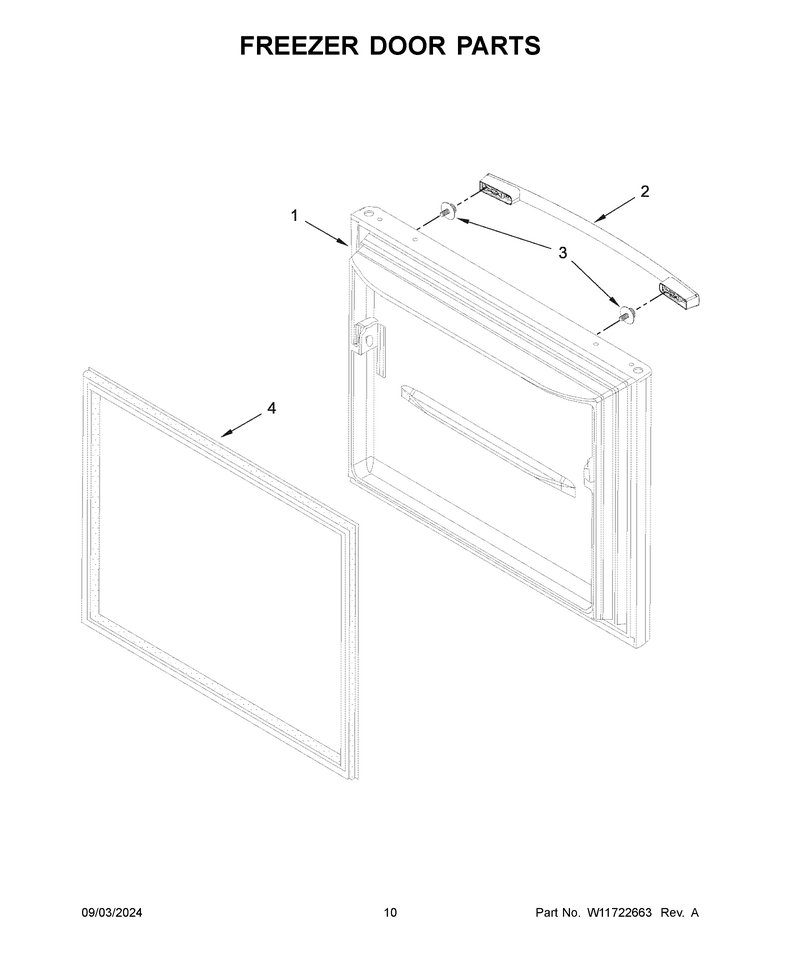

06 - Freezer Door Parts

...
...
1
Dor-Fip Bl WPL-13109214BQ
...
2
Handle WPL-W11351146
...
3
Screw WPL-WPW10288153
...
4
Gasket, Door (Grey) WPL-W10443316

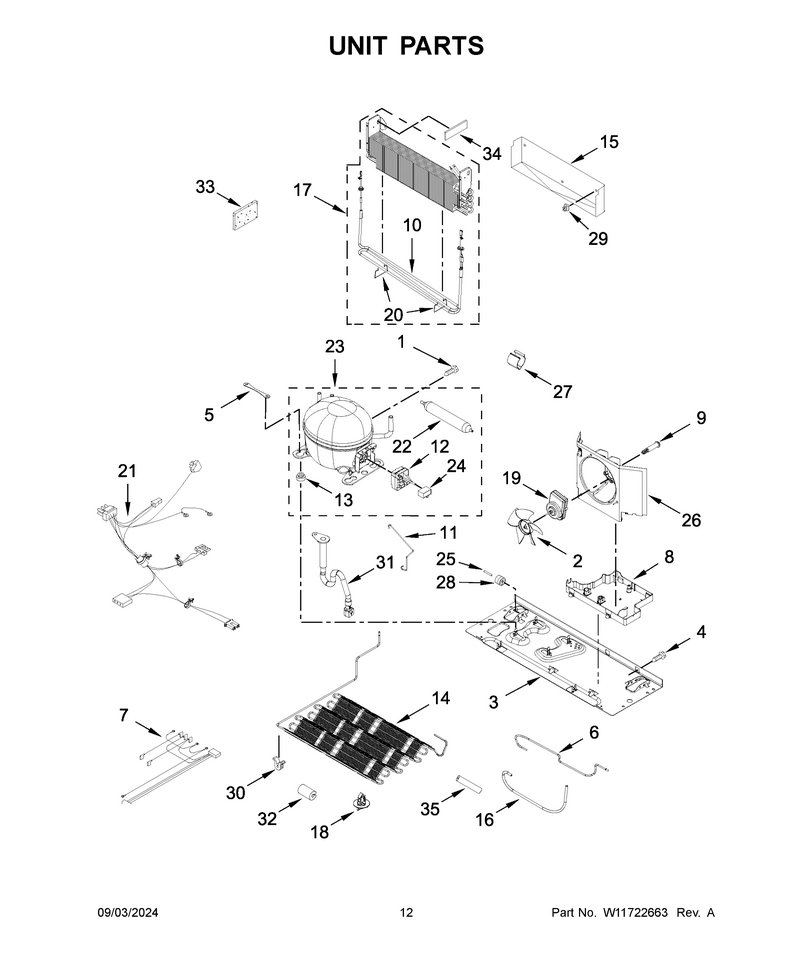

07 - Unit Parts

...
...
NI
Refrigerant Charge 49 Grams (R600a) WPL---
...
1
Screw WPL-12992301
...
2
Blade-Fan WPL-WP12825803
...
3
Plate WPL-W11727652
...
4
Screw (3) WPL-67006425
...
5
Strap, Compressor WPL-W10236396
...
6
Tube, Discharge WPL-W11566600
...
7
Harns-Wire WPL-W11524653
...
8
Pan-Drip WPL-WPW10655367
...
9
Screw WPL-W10829281
...
10
Heater WPL-W11524652
...
11
Clip WPL-W11524474
...
12
Start-Dev WPL-W11524472
...
13
Grommet WPL-WPW10169124
...
14
Condenser WPL-W11482308
...
14A
5 Nk Ms 00 (High Side To Condenser) WPL-W11506623
...
14B
6/5 Nr Ms 00 (Suction Line To Condenser) WPL-W11504432
...
15
Tray-Drip WPL-W11524470
...
16
Tube, Suction WPL-W11566588
...
17
Evap Repar WPL-W11598432
...
17A
8/2 Nr Al 00 (Capillary Tube To Evaporator) WPL-W11504423
...
17B
8.5/8 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504415
...
18
Clip, Condenser WPL-W10815863
...
19
Motor-Cond WPL-W11613295
...
20
Clip, Heater WPL-W11380964
...
21
Harns-Wire WPL-W11741475
...
22
Drier-Tube WPL-W11109499
...
22A
5/4 Nr Ms 00 (Suction Line To Condenser) WPL-W11504445
...
22B
5/1.8 Nr Ms 00 (Capillary Tube To Drier) WPL-W11504447
...
23
Compressor WPL-W11547313
...
23A
8.5/6 Nr Ms 00 (Suction Tube To Compressor) WPL-W11504416
...
23B
7/5 Nr Ms 00 (High Pressure Side To Compressor) WPL-W11504431
...
23C
6 Nk Ms 00 (Charging Tube To Compressor) WPL-W11506621
...
23D
Tube, Charging (1/4 In W/ Schrader Valve) WPL-W11506635
...
24
Capacitor WPL-WPW10350564
...
25
Axle, Roller (2) WPL-67006434
...
26
Shroud WPL-W11556315
...
27
Clip, Drier WPL-W10281329
...
28
Roller WPL-WP67005149
...
29
Clip, Evaporator WPL-10623002
...
30
Grommet WPL-WPW10137529
...
31
Tube-Drain WPL-W10619951
...
32
Grommet WPL-W10852725
...
33
Insulation WPL-W11553819
...
34
Gasket WPL-W11451451
...
35
Sleeve WPL-W11751592

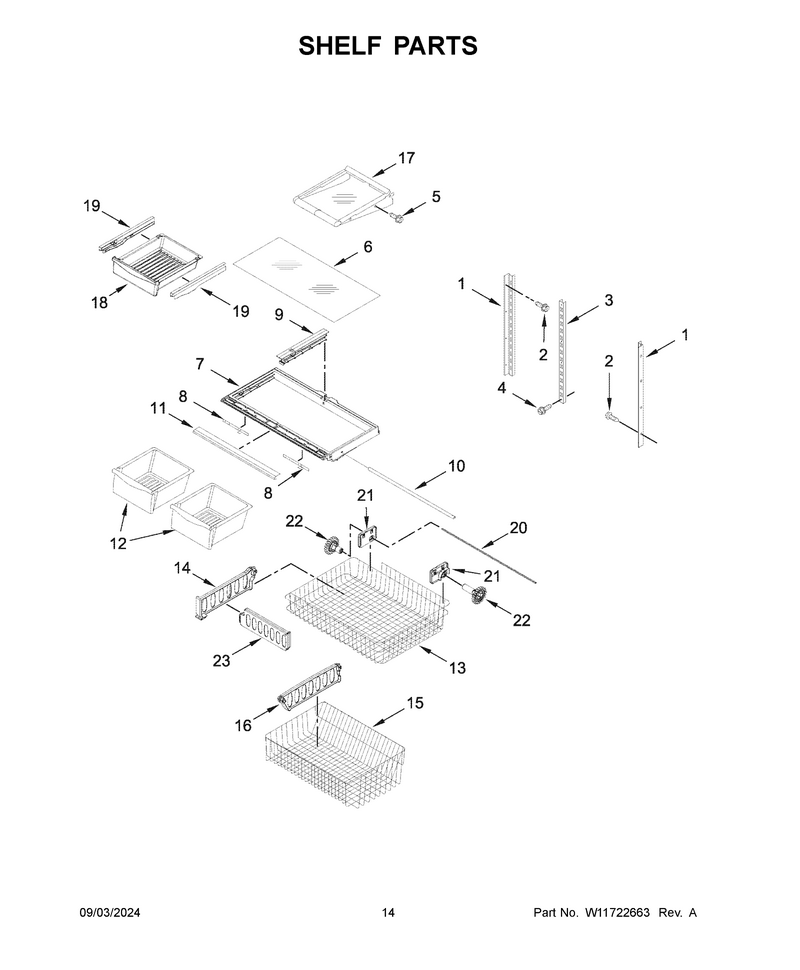

08 - Shelf Parts

...
...
1
Ladder, Side WPL-W10251969
...
2
Screw (3) WPL-67006425
...
3
Ladder, Center WPL-W10273463
...
4
Screw WPL-W10215666
...
5
Screw WPL-W11233072
...
6
Glass- Cri WPL-WP67006878
...
7
Frame WPL-W10858393
...
8
Slide WPL-WP67005864
...
9
Rail-Centr WPL-WPW10671238
...
10
Brace- Cri WPL-WP12227303WD
...
11
Trim-Shelf WPL-WPW10231343
...
12
Pan-Crispr WPL-WP67002633
...
13
Basket-Fzr WPL-W11281084
...
14
Divider, Basket (Upper) WPL-W10241046
...
15
Basket-Fzr WPL-W11281087
...
16
Divider WPL-W10847995
...
17
Shelf-Glas WPL-W11402523
...
18
Pan- Deli WPL-WP67001314
...
19
Glide Lt WPL-WP67001054
...
19A
Glide Rt WPL-WP67001053
...
20
Shaft, Rack WPL-W10802339
...
21
Mount, Gear (Left Hand) WPL-W10348259
...
21A
Mount, Gear (Right Hand) WPL-W10348260
...
22
Gear WPL-WPW10474716
...
22A
Gear WPL-WPW10474715
...
23
Divider, Basket (Upper) WPL-W10311695

...
...
NI
Field Installable Ice Maker, Icemaker Add-On Kit (Includes Valve & Ice Bin) WPL-W11459724
