Amana ABB2222FEW (BOM: ABB2222FEx0)

Model: ABB2222FEW (BOM: ABB2222FEx0)

Save Part Not Listed?
product name

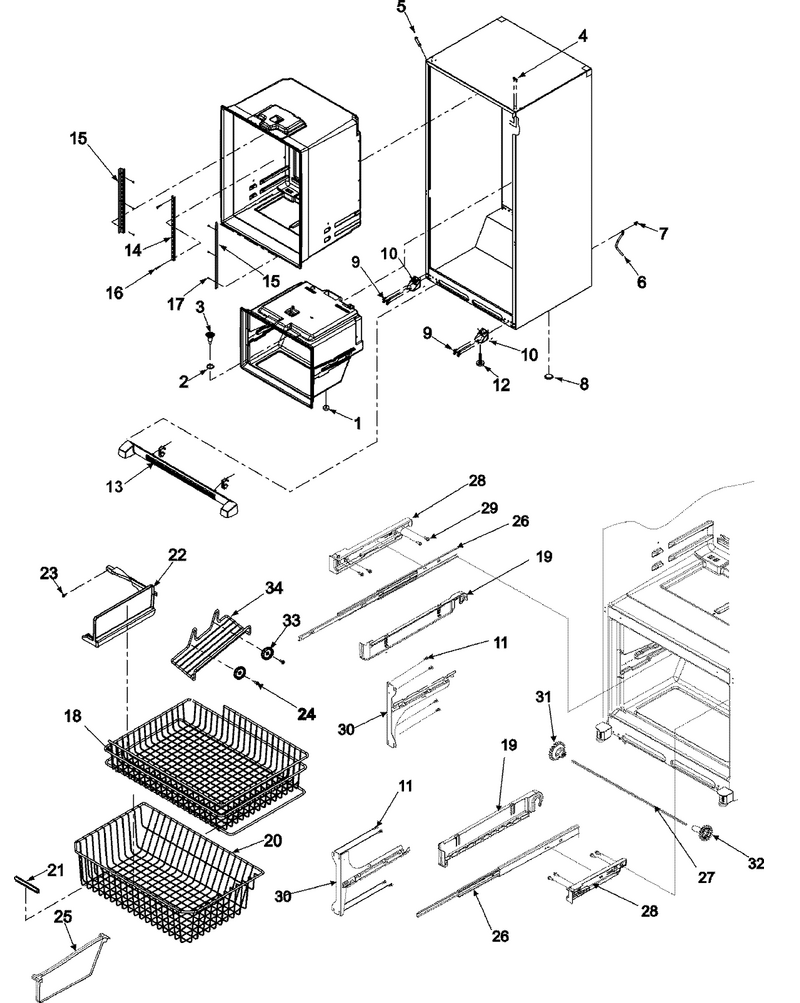

06 - Interior Cabinet & Freezer Shelving

...
...
1
Gasket- Dr WPL-WPB8381501
...
2
Seal- O Ri WPL-WPM0500703
...
3
Funnel WPL-W10815413
...
4
Pop Rivet WPL-A4539607
...
5
Cover, Corner (wht) WPL-67003484
...
6
Tube, Drain WPL-67001066
...
7
Clip, Drain Tube WPL-67001067
...
8
Plug, Button WPL-A3076901
...
9
Screw WPL-67006491
...
10
Bracket, Foot Cabinet WPL-67006112
...
11
Screw WPL-WP98165
...
12
Feet-Lvlng WPL-W11177593
...
13
Clip- Toe WPL-WP10551502
...
14
Ladder, Center WPL-67001073
...
15
Ladder, Sides WPL-67001317
...
16
Screw WPL-W10709795
...
17
Screw (3) WPL-67006425
...
18
Basket, Upper WPL-67004986
...
19
Bracket WPL-WPW10280613
...
20
Basket, Lower 33 WPL-67006024
...
21
Handle, Basket/shelf WPL-10508506
...
22
Divider, Basket (upper) WPL-67004127
...
23
Screw WPL-67006608
...
24
Screw WPL-WP67006908
...
25
Divider, Basket WPL-67006644
...
26
Slide WPL-WP67006607
...
27
Shaft WPL-W11715937
...
28
Adapter, Side (lt) WPL-67004864
...
28A
Adapter, Side (rt) WPL-67004865
...
29
Screw WPL-WP489474
...
30
Bracket- D WPL-WP12812502WD
...
31
Gear (inclds. Both) WPL-12002497
...
32
Gear (inclds. Both) WPL-12002497
...
33
Spacer- Ic WPL-WP10972101
...
34
Rack, Ice Tray WPL-12646501

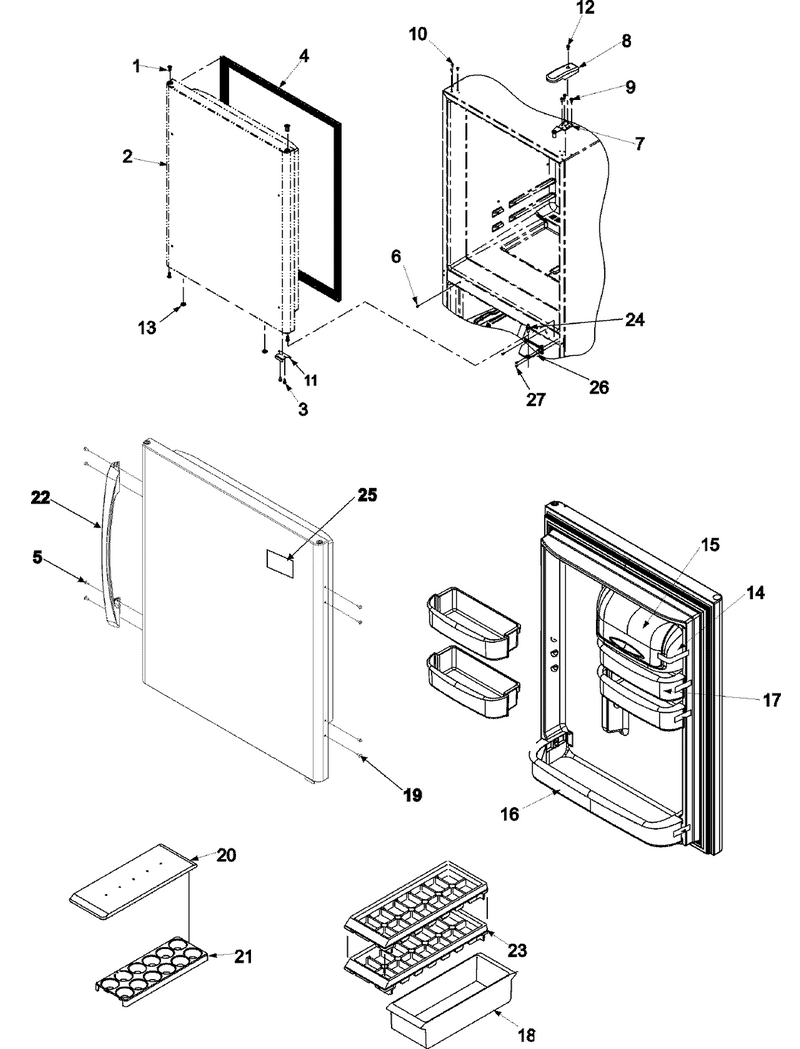

08 - Refrigerator Door

...
...
1
Bushing- D WPL-WP67004977
...
2
Door Assy., Ref. Foam (wht) WPL-67004363
...
3
Screw WPL-WP98165
...
4
Door Gasket, Magnetic (white) WPL-W10443313
...
5
Screw, Hi Torque WPL-67006668
...
6
Screw WPL-WP489349
...
7
Hinge-Door WPL-WP12566606ED
...
8
Cover, Top Hinge (wht) WPL-67001014
...
9
Screw WPL-WP489349
...
10
Button- Pl WPL-WP67001130
...
11
Stop, Door (white) WPL-12968202W
...
12
Screw WPL-WP8281196
...
13
Plug, Vent (wht) WPL-10712401
...
14
Tray- Dair WPL-WP67001279
...
15
Door Comp WPL-WP12744905
...
16
Retainer, Ref Door WPL-67001019
...
17
Bucket- Me WPL-WP67001021
...
18
Container WPL-WP10423131
...
19
Button- Pl WPL-WP67001130
...
20
Container WPL-WP10423131
...
21
Tray, Egg WPL-10436506
...
22
Handle WPL-WPW10179172
...
23
Tray WPL-WP841180A
...
24
Pin WPL-WP67006642
...
25
Nameplate (amana Plus) WPL-Y12528501
...
26
Hinge- Cen WPL-WP12607103WD
...
27
Screw WPL-WP67006380

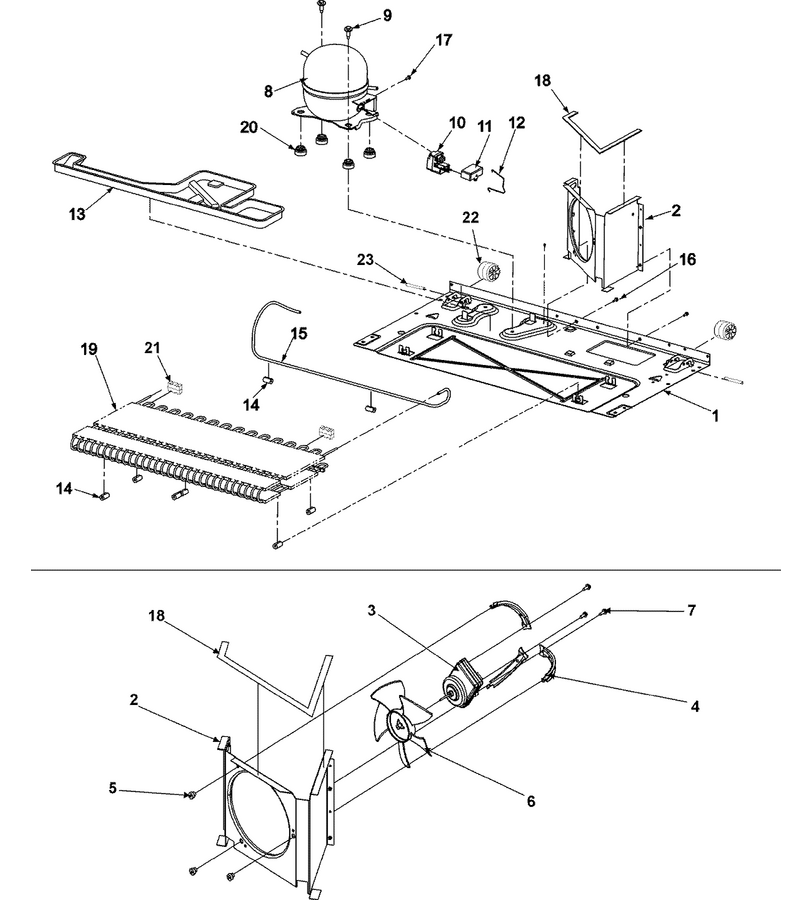

02 - Compressor

...
...
1
Basepan, Machine Compartment WPL-67005744
...
2
Shroud, Condenser Fan WPL-67001090
...
3
Motor-Cond WPL-W11613295
...
4
Bracket WPL-WP67004953
...
5
Grommet- B WPL-WP61004743
...
6
Blade, Fan WPL-W10156818
...
7
Screw WPL-WP67004954
...
8
Compressor Kit (contains Items 12, 17, 27, & 29) WPL-W10160407
...
9
Screw (2) WPL-12846902
...
10
Start-Dev WPL-W10613606
...
11
Start-Dev WPL-W10613606
...
12
Strap, Bale WPL-12576801
...
13
Pan, Drain WPL-67004713
...
14
Grommet, Condenser WPL-67005680
...
15
Tube, Discharge WPL-67004262
...
16
Screw, Sm WPL-67006425
...
17
Screw WPL-12992301
...
18
Seal-Strip WPL-WP854334
...
19
Condenser WPL-WP67006132
...
20
Grommet, Compressor WPL-67003493
...
21
Block, Eps Condenser WPL-67005491
...
22
Roller WPL-WP67005149
...
23
Harness, Mc WPL-67005251

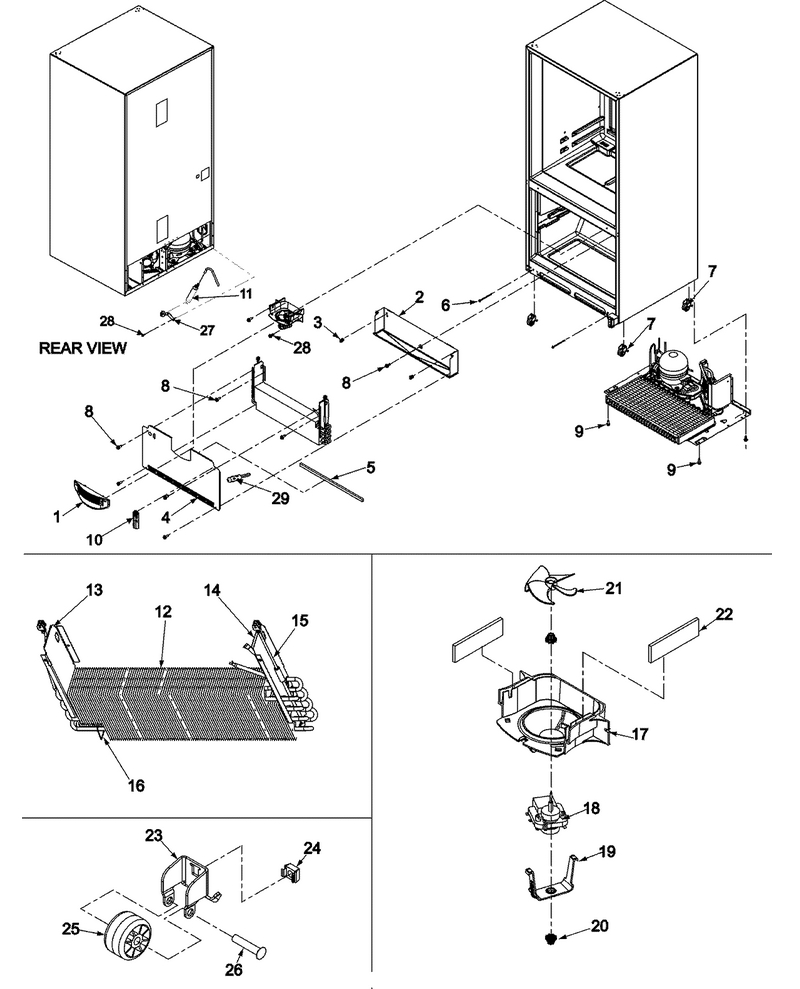

04 - Evaporator Area & Rollers

...
...
NI
Thermostat WPL-WP67003426
...
1
Grille WPL-WPW10175909
...
2
Tray-Drip WPL-WPW10292802
...
3
Clip, Evaporator WPL-10623002
...
4
Cover, Evaporator WPL-W10308415
...
5
Gasket WPL-W11159742
...
6
Screw WPL-71003131
...
7
Roller Bracket Assy WPL-67002227
...
8
Screw, Sm WPL-67006425
...
9
Screw WPL-12992101
...
10
Thermistor WPL-67006883
...
11
Drier WPL-WPB2150504
...
12
Kit, Evaporator WPL-12001919
...
13
Dam, Left Return WPL-67001083
...
14
Dam, Right Return WPL-67001084
...
15
Heater- De WPL-WP67001794
...
16
Clip WPL-W11673433
...
17
Shroud, Evap Fan WPL-67002777
...
18
Motor-Evap WPL-WPW10128551
...
19
Bracket WPL-WP67005633
...
20
Grommet- F WPL-WP67002780
...
21
Blade-Fan WPL-WP2169142
...
22
Gasket WPL-W10856123
...
23
Bracket, Foot WPL-12456801V
...
24
Nut, Speed WPL-M0286708
...
25
Roller WPL-WP10450603
...
26
Rivet WPL-M1205302
...
27
Clip, Drier WPL-10547002
...
28
Screw WPL-WP33001882
...
29
Cover- Fz WPL-WP67003924

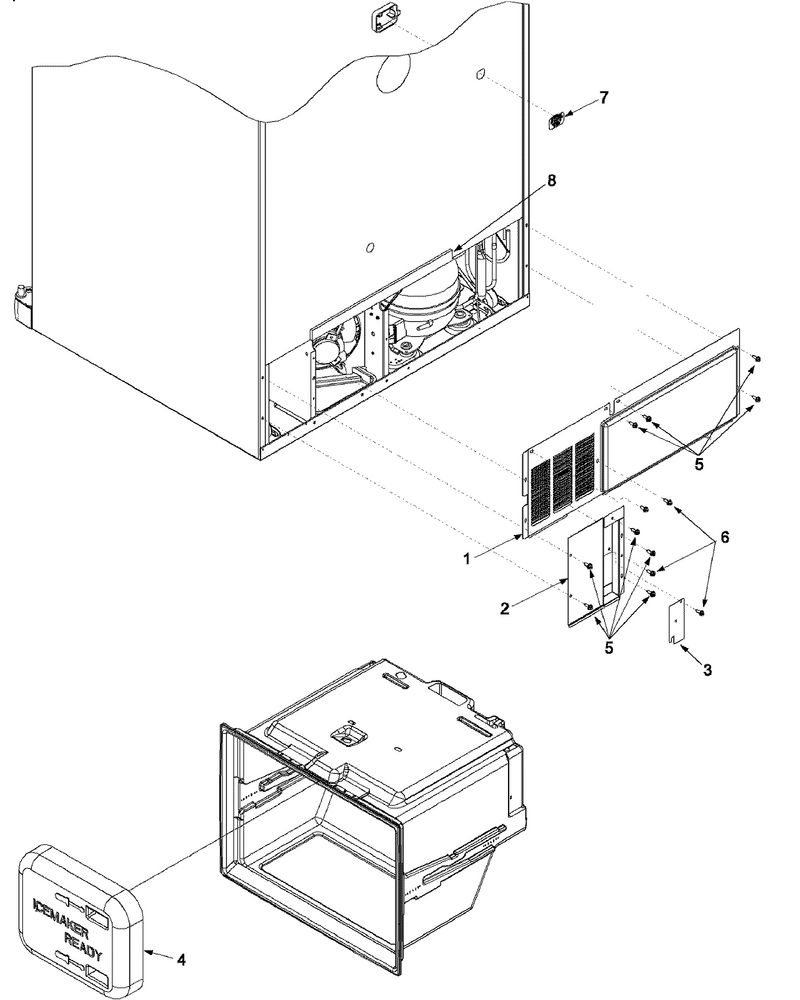

01 - Cabinet Back

...
...
NI
Cord-Power WPL-WP67006506
...
1
Cover, Mc Back WPL-67006101
...
2
Cover, Water Valve WPL-67001097
...
3
Plate, Cover WPL-12479901
...
4
Cover-Tube WPL-WP67001098
...
5
Screw, Sm WPL-67006425
...
6
Screw WPL-WP489128
...
7
Label WPL-W11685757
...
8
Gasket, Mc Back WPL-B5759649

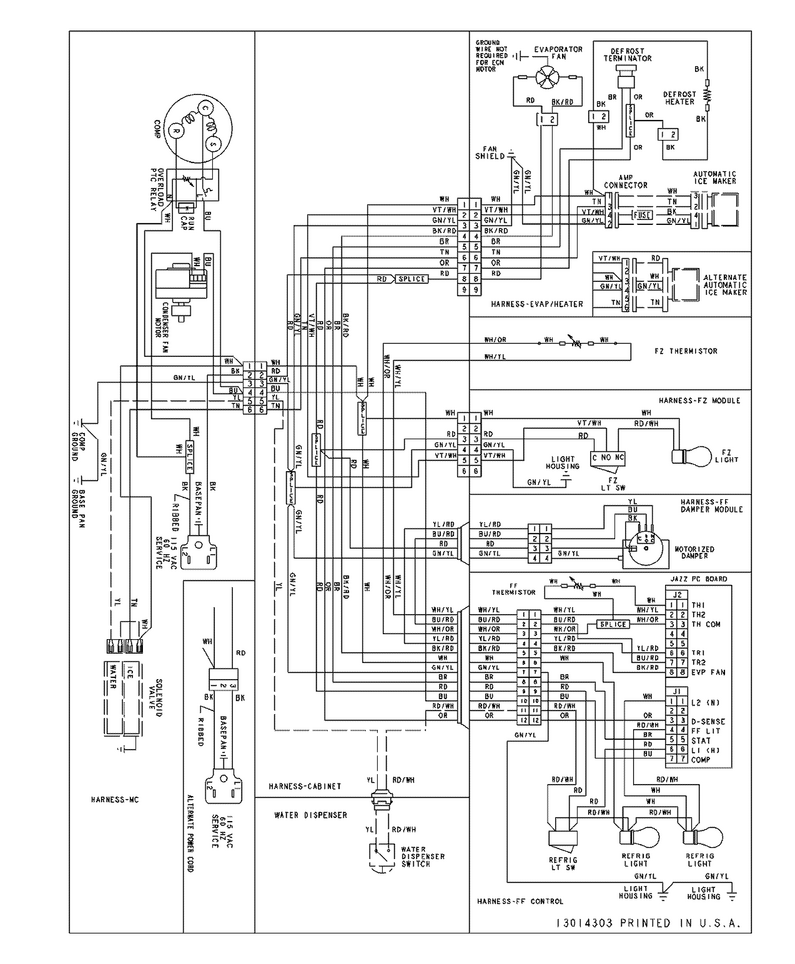

11 - Wiring Information

...
...
NI
Wiring Information WPL-15003918

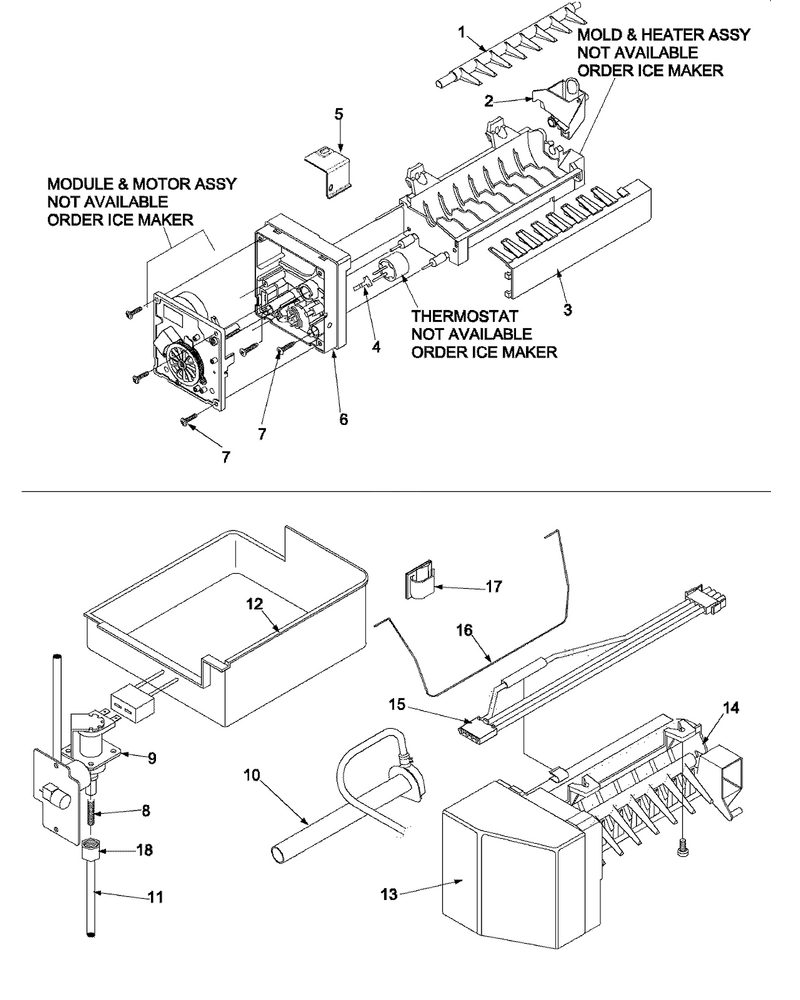

07 - Optional Ice Maker Kit

...
...
NI
Bracket, Water Valve WPL-69363-1
...
1
Ice Maker Assy. WPL-D7824706Q
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Ejectr WPL-WP627843
...
4
Arm-Stripr WPL-WP2182124
...
5
Housing-Im WPL-WP2195914
...
6
Clip WPL-WP2315522
...
7
Screw WPL-95105-1
...
8
Screw WPL-WP681249
...
9
Bracket WPL-WP2256087
...
10
Screw WPL-WP489128
...
11
Capacitor WPL-876776
...
12
Wire Harness, Ice Maker WPL-67672-1
...
13
Arm, Sensor WPL-68112-1
...
14
Cover-Frnt WPL-WPW10289690
...
15
Clamp WPL-WP488366
...
16
Valve-Inlt WPL-WP61005273
...
17
Clip- Spee WPL-WPM0114003
...
18
Tube WPL-WPB5705307

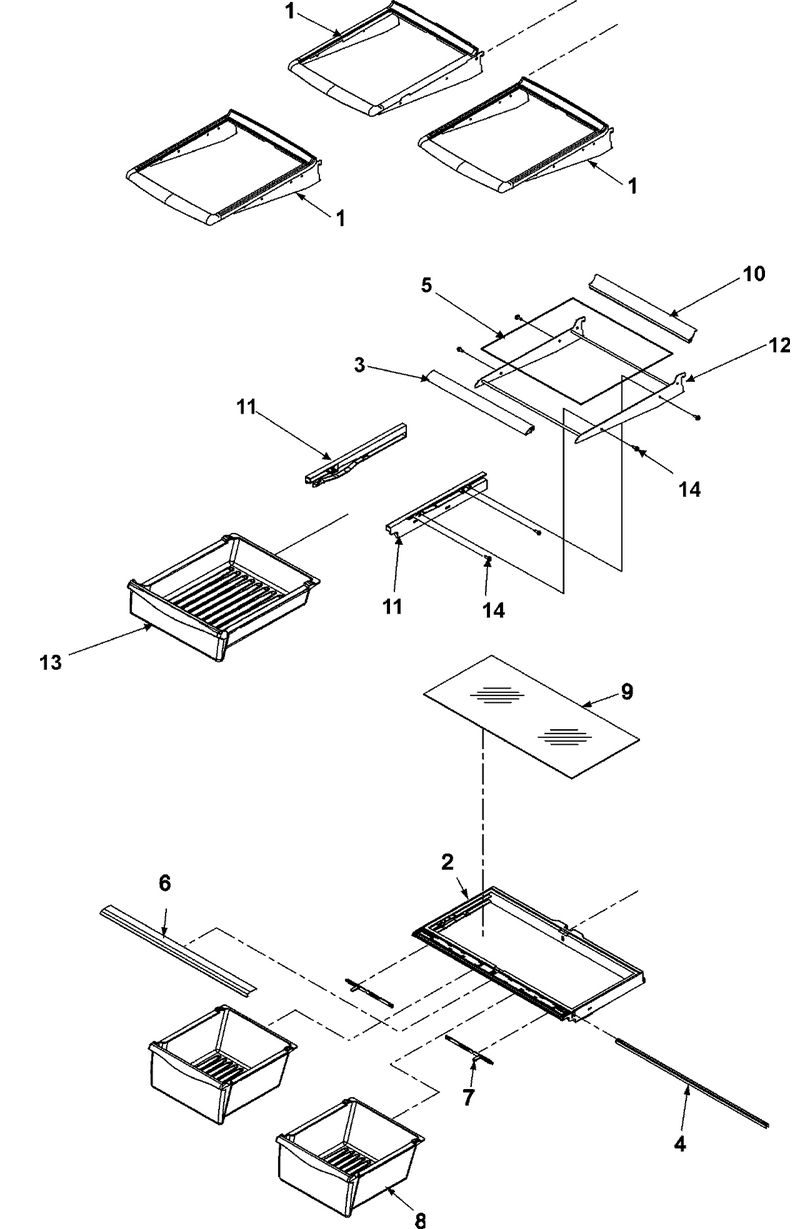

09 - Refrigerator Shelving

...
...
NI
Rail-Centr WPL-WPW10671238
...
1
Assy, Glass Shelf WPL-10480430
...
2
Frame WPL-WPW10568041
...
3
Extr, Front Shelf WPL-10459927
...
4
Brace- Cri WPL-WP12227303WD
...
5
Glass, Shelf WPL-10370099
...
6
Extr, Crisper Front WPL-67004420
...
7
Slide WPL-WP67005864
...
8
Pan-Crispr WPL-WP67002633
...
9
Glass- Cri WPL-WP67006878
...
10
Extr, Rear Shelf WPL-10946008
...
11
Glide Rt WPL-WP67001053
...
11A
Glide Lt WPL-WP67001054
...
12
Frame, Shelf WPL-10460107
...
13
Pan- Deli WPL-WP67001314
...
14
Screw WPL-W11233072

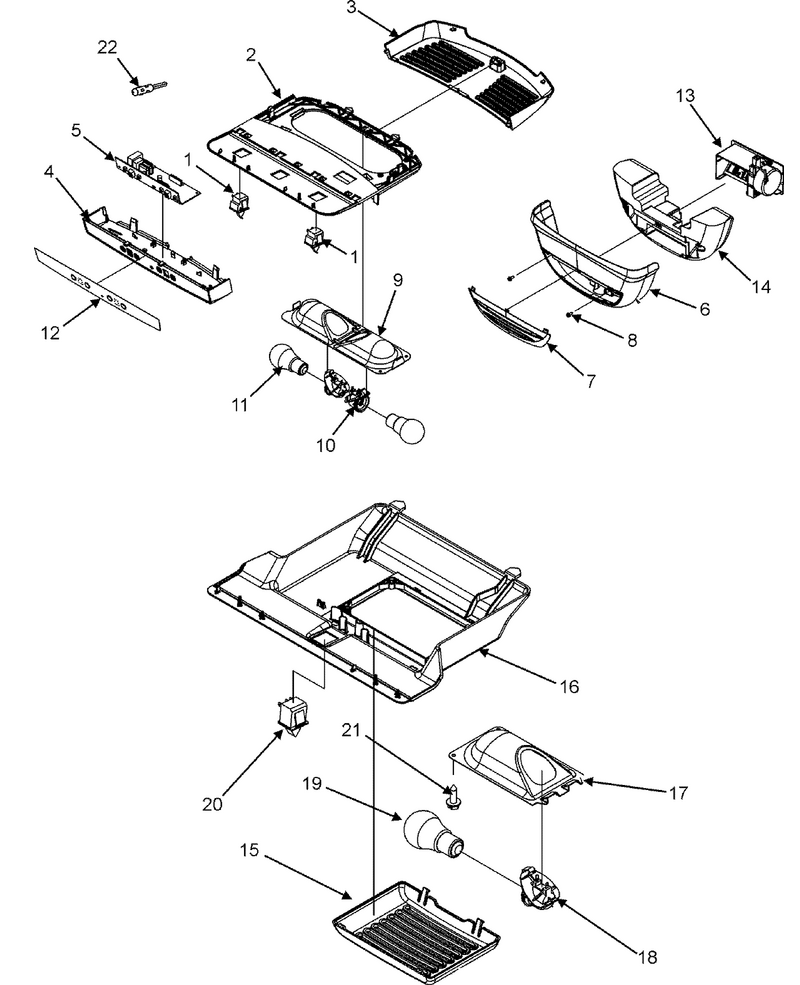

03 - Controls

...
...
NI
Harness, Fz Module WPL-67006094
...
1
Switch WPL-W11384469
...
2
Module, Light WPL-Y67003896
...
3
Cover WPL-W11284721
...
4
Housing WPL-WPW10464769
...
5
Cntrl-Elec WPL-WPW10503278
...
6
Cover-Box WPL-WP12806701
...
7
Insert, Damper Cover WPL-67003900
...
8
Screw WPL-WP400021-1
...
9
Housing, Light WPL-12806601
...
10
Socket WPL-W11447232
...
11
Bulb-Light WPL-W11679940
...
12
Overlay, Control WPL-67004279
...
13
Control WPL-WPW10196393
...
14
Insulation WPL-WP13012402
...
15
Cover, Fz Light WPL-67003905
...
16
Module, Fz Control WPL-67003906
...
17
Housing WPL-W11702858
...
18
Socket WPL-W11447232
...
19
Bulb-Light WPL-W11679940
...
20
Switch WPL-W11396033
...
21
Screw WPL-W10709797
...
22
Thermistor Kit WPL-12002355

...
...
1
Icemaker Install Kit WPL-8003RP
...
2
Sheet, Tech Data WPL-67006716
...
3
Manual, Owners WPL-67006811
...
4
Svc Man, Btm Mt WPL-16025629
...
5
Tag- Energ WPL-12918130

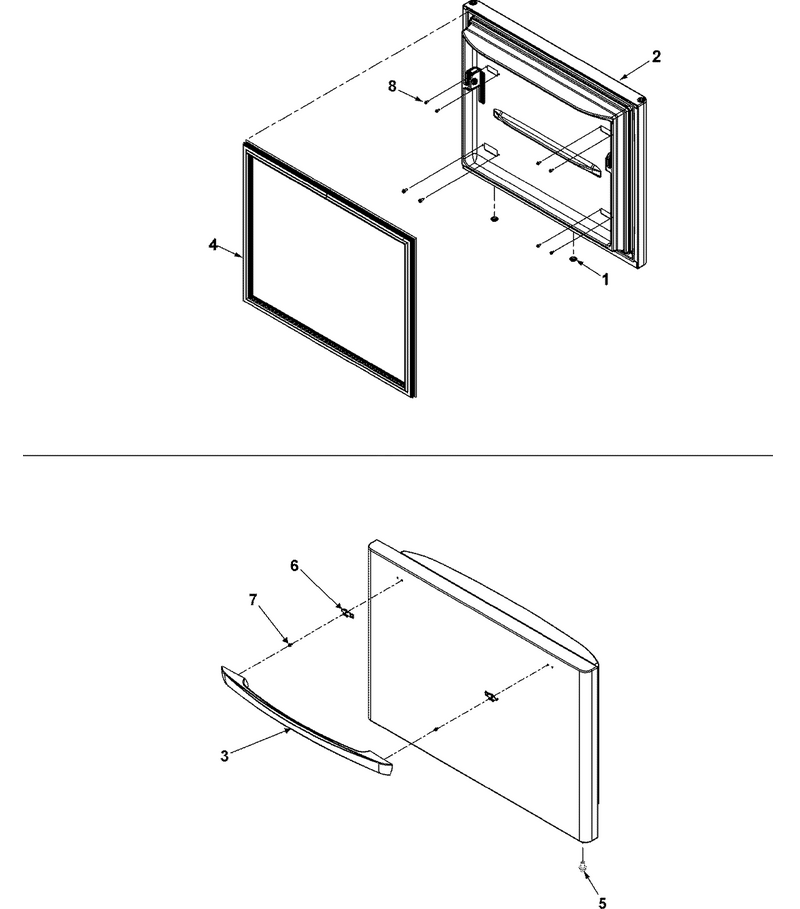

05 - Freezer Door

...
...
1
Plug, Vent (wht) WPL-10712401
...
2
Door Assy., Frz. Foam (wht) WPL-67006851
...
3
Handle Assy Face Mount (wht) WPL-W10119666
...
4
Door Gasket, Magnetic (white) WPL-W10443313
...
5
Closer WPL-WP67003638
...
6
Clip- Hand WPL-WP67007126
...
7
Screw WPL-WP67006197
...
8
Screw, Handle (black) WPL-12991101
