Amana AB2026LEKS (BOM: AB2026LEKS0)

Model: AB2026LEKS (BOM: AB2026LEKS0)

Save Part Not Listed?
product name

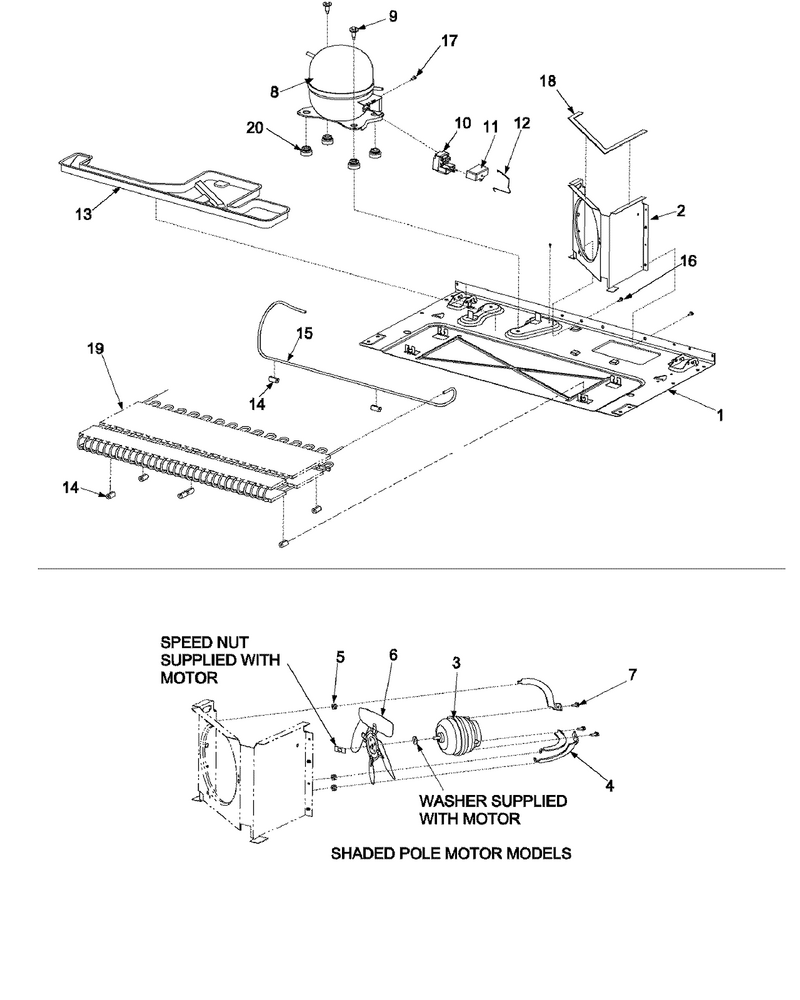

02 - Compressor

...
...
NI
Harness, Mc WPL-67005063
...
1
Basepan WPL-12457108
...
2
Shroud, Condenser WPL-12687101
...
3
Motor, Condenser Fan WPL-67005104
...
4
Bracket, Condenser Motor WPL-67003354
...
5
Grommet- B WPL-WP61004743
...
6
Blade- Con WPL-WP12587601
...
7
Screw WPL-WPM0223816
...
8
Compressor WPL-W10309997
...
9
Screw, Shldr WPL-M0221523
...
10
Start-Dev WPL-W10848274
...
11
Capacitor WPL-WP2201147
...
12
Strap, Bale WPL-67004687
...
13
Pan, Drain WPL-67004744
...
14
Grommet (2) WPL-67005680
...
15
Tube WPL-WP12866903
...
16
Screw (3) WPL-67006425
...
17
Screw WPL-12992301
...
18
Seal-Strip WPL-WP854334
...
19
Condenser WPL-WP67006131
...
20
Grommet, Compressor WPL-67003493

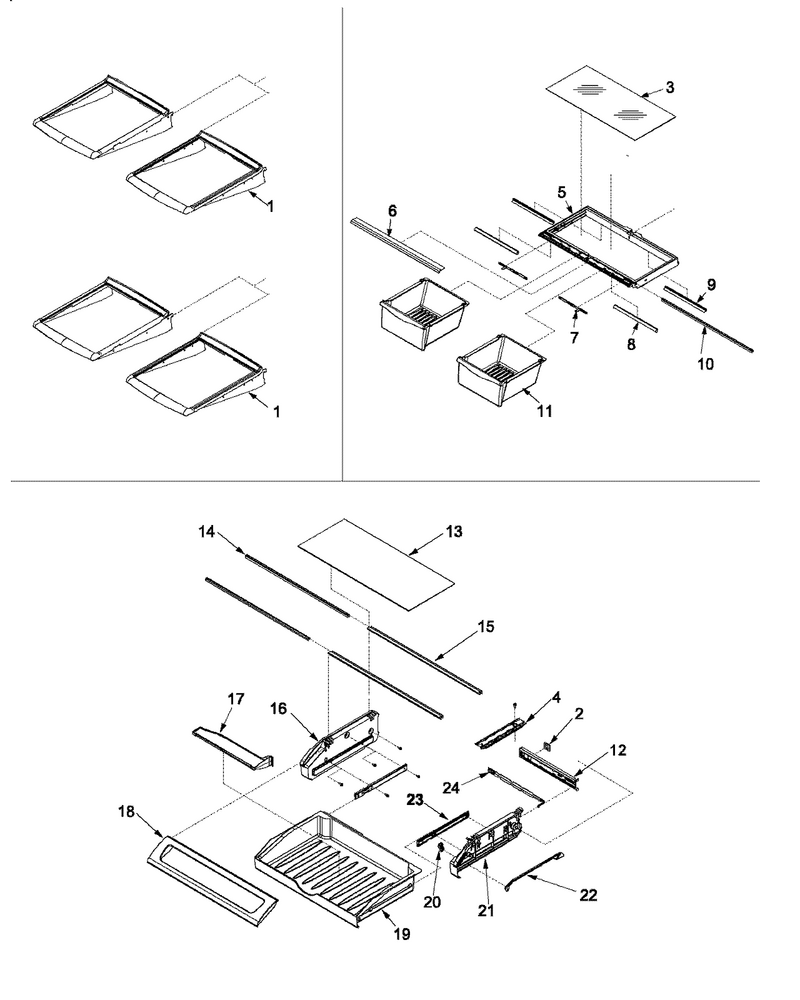

09 - Refrigerator Shelving

...
...
1
Shelf, Glide Out WPL-67004801
...
2
Gasket, Pantry WPL-67002329
...
3
Shelf-Glas WPL-WP67006655
...
4
Track WPL-WP67001719
...
5
Frame WPL-WP67006185
...
6
Trim-Shelf WPL-WPW10231346
...
7
Slide WPL-WP67005864
...
8
Seal- Fron WPL-WP67003417
...
9
Seal- Rear WPL-WP67002513
...
10
Brace- Cri WPL-WP12227304WD
...
11
Pan- Crisp WPL-WP67002659
...
12
Housing, Control WPL-12656202
...
13
Glass- Pan WPL-WP67002332
...
14
Support WPL-WP12227305WD
...
15
Extr- Glas WPL-WP67006010
...
16
Endcap WPL-WP12656105
...
17
Divider- P WPL-WP67002321
...
18
Cover WPL-W10827015
...
19
Pan-Utilty WPL-W11490183
...
20
Knob WPL-W11498983
...
21
Screw-Sm WPL-M0238636
...
22
Bar, Temp Control WPL-67003794
...
23
Screw WPL-WPW10348409
...
24
Slide- Tem WPL-WP67003793

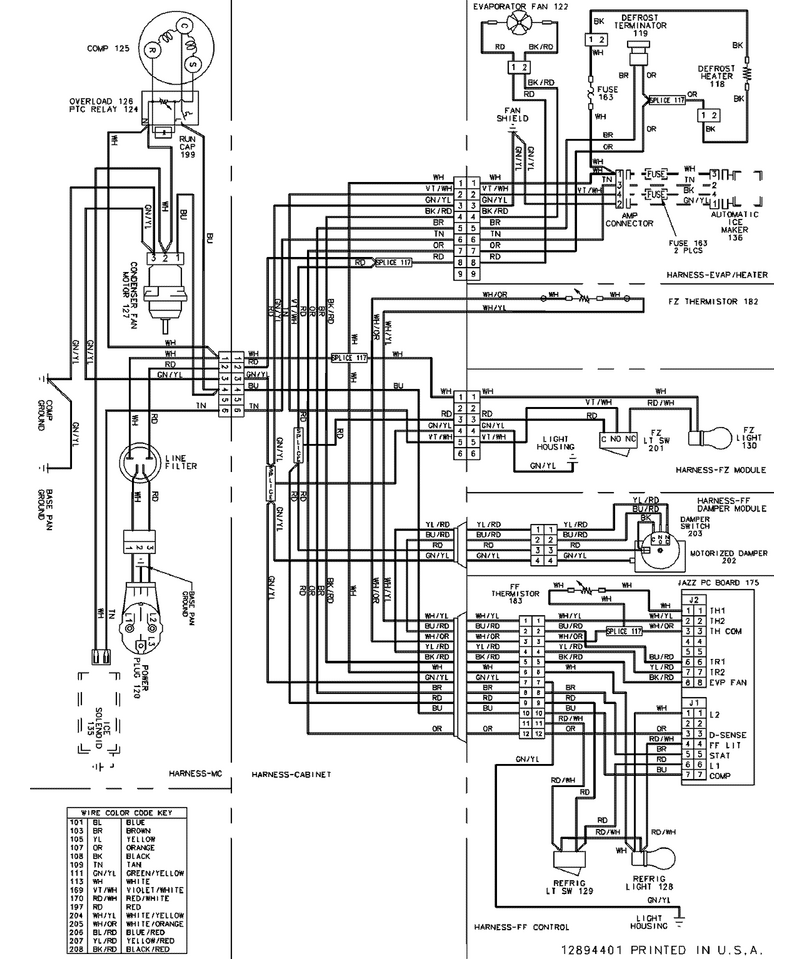

11 - Wiring Information

...
...
NI
Wiring Information WPL-15003635

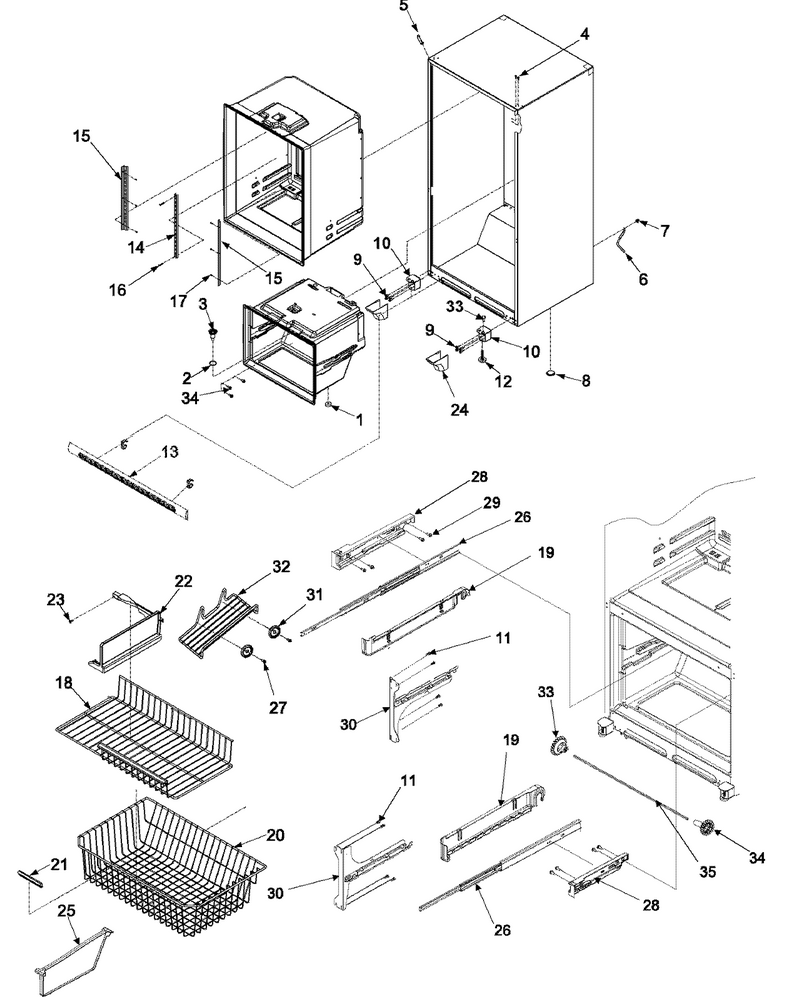

06 - Interior Cabinet & Freezer Shelving

...
...
1
Gasket- Dr WPL-WPB8381501
...
2
Seal- O Ri WPL-WPM0500703
...
3
Funnel WPL-W10815413
...
4
Pop Rivet WPL-A4539607
...
5
Cover, Corner (blk) WPL-67003485
...
6
Tube, Drain WPL-67001066
...
7
Clip, Drain Tube WPL-67001067
...
8
Plug, Button WPL-A3076901
...
9
Screw WPL-WP67006715
...
10
Hinge-Door WPL-W10215663
...
11
Screw WPL-WP98165
...
12
Feet-Lvlng WPL-W11177593
...
13
Grille Asy WPL-WP67002224
...
14
Ladder, Center WPL-67001073
...
15
Ladder, L/r Side WPL-67002489
...
16
Screw WPL-W10709795
...
17
Screw (3) WPL-67006425
...
18
Basket, Upper WPL-67002975
...
19
Bracket WPL-W10251557
...
20
Basket, Lower WPL-W10503185
...
21
Handle, Basket/shelf WPL-10508506
...
22
Divider, Basket (upper) WPL-67004127
...
23
Screw WPL-W10856125
...
24
Cover, Lwr Hinge (blk) WPL-12561901B
...
25
Divider, Basket (lwr) WPL-67004812
...
26
Kit- Slide WPL-12002684
...
27
Screw WPL-WP67006908
...
28
Adapter, Slide (left) WPL-W10284690
...
28A
Adapter, Slide (right) WPL-W10284691
...
29
Screw WPL-WP489474
...
30
Bracket WPL-WPW10330993
...
31
Spacer- Ic WPL-WP10972101
...
32
Rack, Ice Tray WPL-12646501
...
33
Gear (inclds. Both) WPL-12002497
...
34
Gear (inclds. Both) WPL-12002497
...
35
Shaft WPL-W11028221

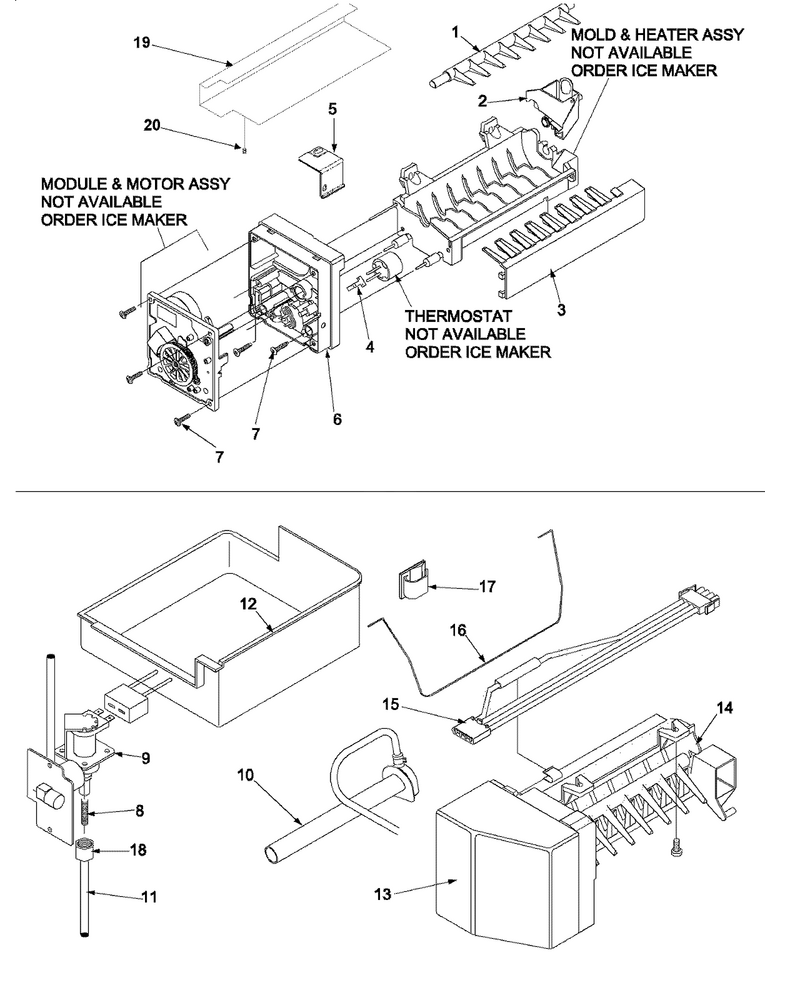

07 - Optional Ice Maker Kit-Ic511

...
...
NI
Screw WPL-WP98165
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Arm-Stripr WPL-WP2182124
...
4
Clip WPL-WP2315522
...
5
Bracket WPL-WP2256087
...
6
Housing-Im WPL-WP2195914
...
7
Screw WPL-WP681249
...
8
Spring WPL-WPA1055105
...
9
Valve, Water WPL-67002250
...
10
Tube-Water WPL-W11176463
...
11
Tube-Water WPL-W10823511
...
12
Pan-Ice WPL-WP67001255
...
13
Cover-Frnt WPL-WPW10289690
...
14
Bracket, I/m WPL-B8391802
...
15
Harns-Wire WPL-W10146392
...
16
Arm-Shut WPL-WP67004028
...
17
Clip WPL-WPM0104106
...
18
Nut WPL-WP627018
...
19
Shield, Ice Maker WPL-D7846203
...
20
Screw WPL-WP90767

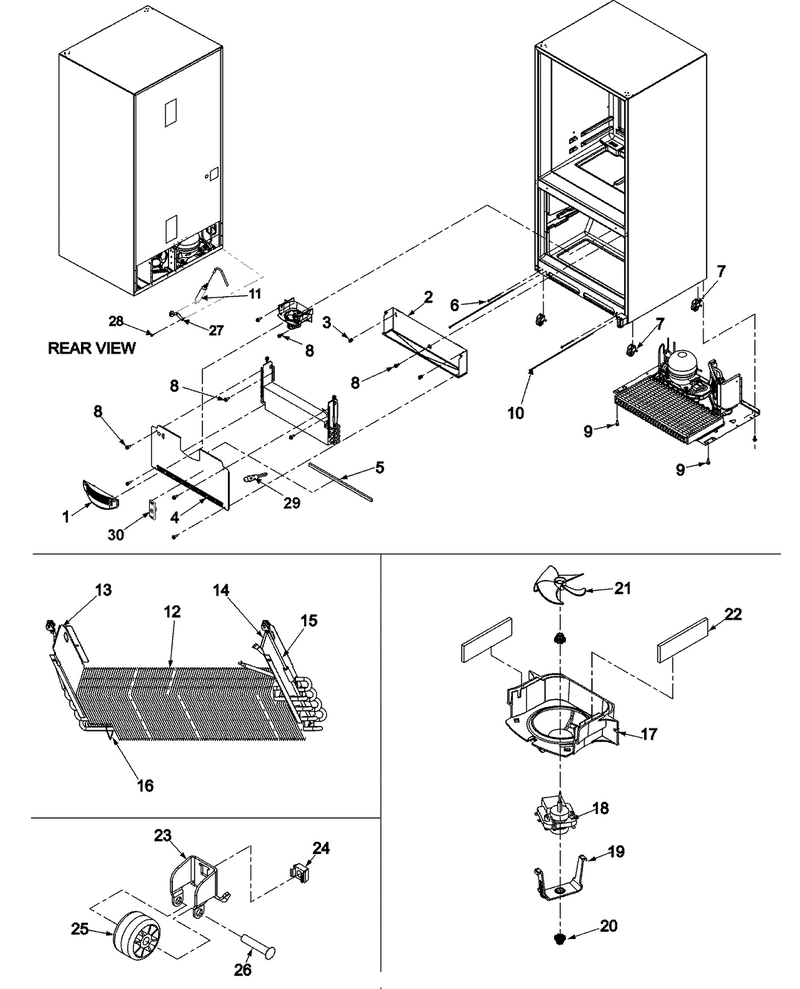

04 - Evaporator Area & Rollers

...
...
NI
Harness, Evap Heater WPL-67005061
...
1
Grille WPL-WPW10175909
...
2
Tray-Drip WPL-W11547653
...
3
Clip, Evaporator WPL-10623002
...
4
Cover-Evap WPL-W11727809
...
5
Gasket WPL-67005058
...
6
Screw WPL-71003131
...
7
Roller Bracket Assy WPL-67002227
...
8
Screw (3) WPL-67006425
...
9
Screw, Tf WPL-M0260242
...
10
Grommet, Screw WPL-M0580205
...
11
Drier WPL-WPB2150504
...
12
Kit, Evap Replacement WPL-12002041
...
13
Dam, Left Return WPL-67001083
...
14
Dam, Right Return WPL-67001084
...
15
Heater, Defrost WPL-67005059
...
16
Clip WPL-W11673433
...
17
Shroud, Evap Fan WPL-67002777
...
18
Motor- Eva WPL-WP67005023
...
19
Bracket WPL-WP67005633
...
20
Grommet- F WPL-WP67002780
...
21
Blade-Fan WPL-WP2169142
...
22
Gasket WPL-W10856123
...
23
Bracket, Foot WPL-12456801V
...
24
Nut, Speed WPL-M0286708
...
25
Roller WPL-WP10450603
...
26
Rivet WPL-M1205302
...
27
Clip, Drier WPL-10547002
...
28
Screw WPL-W10709801
...
29
Thermistor Kit WPL-12002355
...
30
Cover- Fz WPL-WP67003924

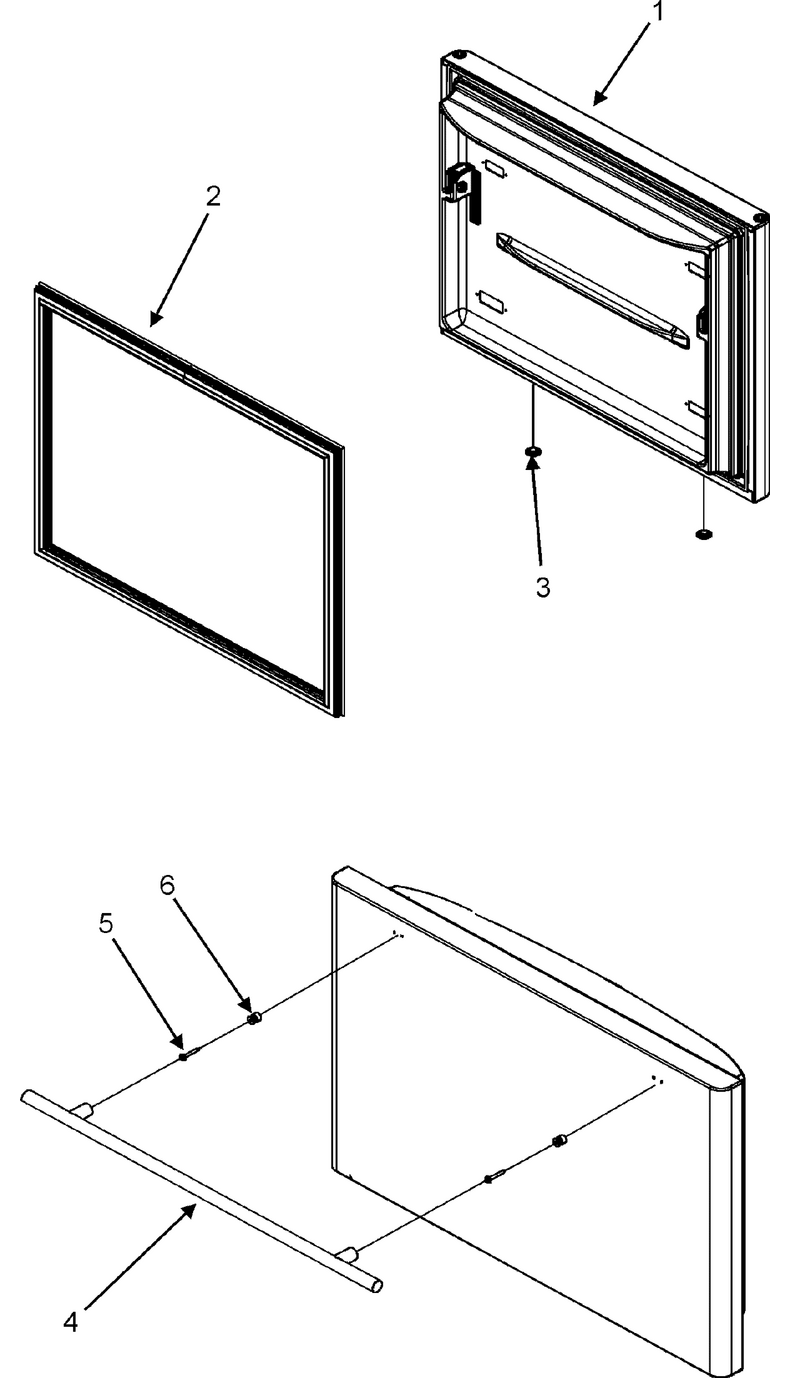

05 - Freezer Door

...
...
1
Door Assy., Frz. Foam (stnls) WPL-67004699
...
2
Gasket, Door (black) WPL-W10436252
...
4
Handle Fz WPL-67005101
...
5
Screw WPL-WP3934714
...
6
Stand-Off Handle WPL-67005102

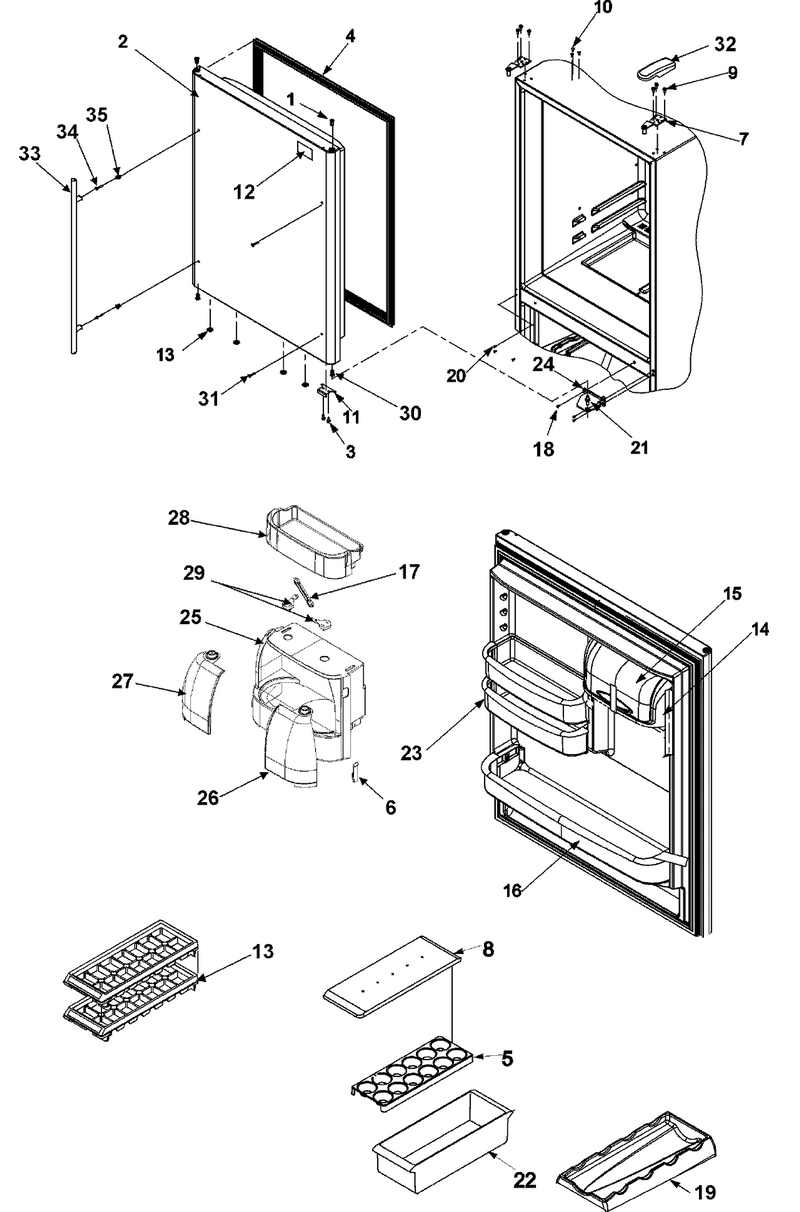

08 - Refrigerator Door

...
...
3
Screw WPL-WPW10348409
...
4
Gasket-Fip WPL-W10849442
...
5
Tray, Egg WPL-10436506
...
6
Hook, Chiller Frame WPL-67004602
...
7
Hinge-Door WPL-WP12566606ED
...
8
Lid, Utility WPL-10436404
...
9
Screw WPL-WP489349
...
12
Nameplate (amana Plus) WPL-Y12528501
...
13
Tray WPL-WP841180A
...
14
Tray- Dair WPL-WP67001279
...
15
Door Comp WPL-WP12744905
...
16
Retainer, Door WPL-67004717
...
17
Linkage, Chiller Ctr WPL-67004601
...
18
Screw WPL-WP67006380
...
19
Trivet, Bottle WPL-67001656
...
20
Screw WPL-WP489349
...
21
Pin WPL-WP67006642
...
22
Container WPL-WP10423131
...
23
Bucket, Ref Dr (large) WPL-67003776
...
24
Center Hinge WPL-12655103ED
...
25
Frame, Chiller WPL-67004720
...
26
Door, Chiller (rt) WPL-67004598
...
27
Door, Chiller (lt) WPL-67004599
...
28
Bucket, Chiller WPL-67004721
...
29
Linkage, Chiller WPL-67002293
...
30
Closer WPL-WP67003639
...
31
Plug, Vent (blk) WPL-67004838
...
32
Cover, Top Hinge (blk) WPL-67001012
...
33
Handle WPL-WP12850909
...
34
Screw WPL-W11028216
...
35
Stand-Off Handle WPL-67005100

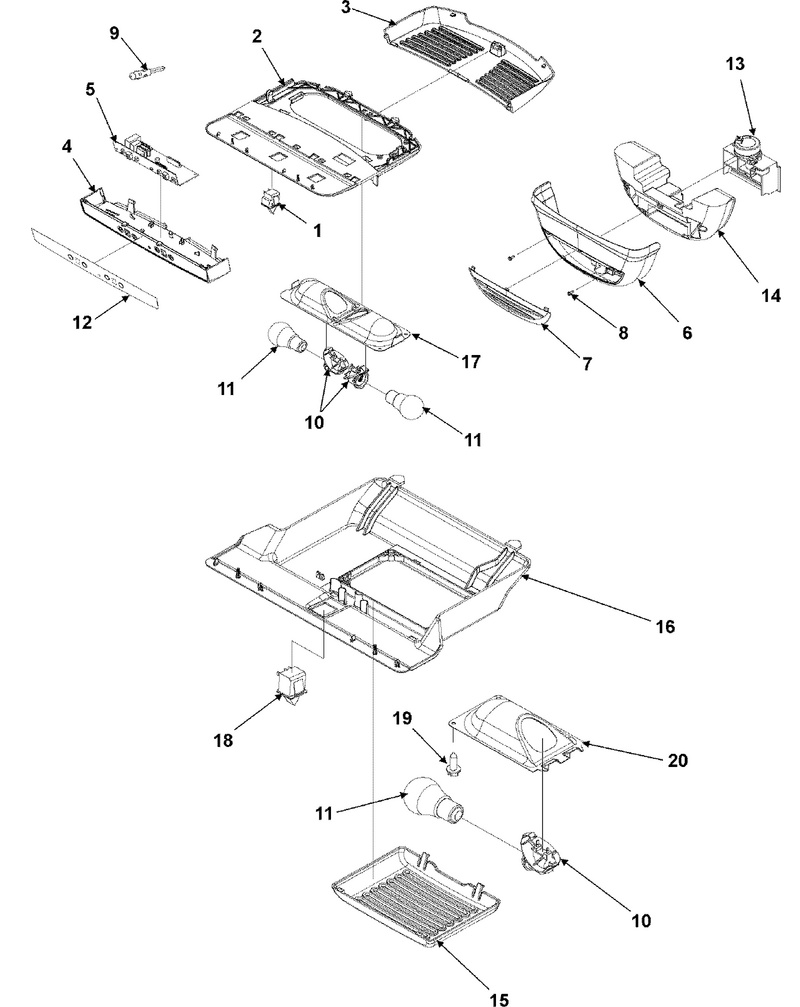

03 - Controls

...
...
NI
Harness, Ff Control WPL-67005073
...
1
Switch WPL-W11384469
...
2
Module, Light WPL-Y67003896
...
3
Cover WPL-W11284721
...
4
Housing WPL-WPW10464769
...
5
Cntrl-Elec WPL-WPW10503278
...
6
Cover-Box WPL-WP12806701
...
7
Insert, Damper Cover WPL-67003900
...
8
Screw WPL-WP400021-1
...
9
Thermistor Kit WPL-12002355
...
10
Socket WPL-W11447232
...
11
Light Bulb WPL-8009
...
12
Overlay, Control WPL-67005078
...
13
Control- D WPL-WP67005014
...
14
Insulation WPL-WP67003904
...
15
Cover, Fz Light WPL-67003905
...
16
Module, Fz Control WPL-67003906
...
17
Housing, Light WPL-12806601
...
18
Switch WPL-W11396033
...
19
Screw WPL-WPW10139210
...
20
Housing WPL-W11702858

...
...
1
Sheet, Tech Data WPL-67005076
...
2
Manual, Use & Care WPL-12828113
...
3
Icemaker Install Kit WPL-8003RP
...
4
Svc Man, Export Btm Mt WPL-16023324

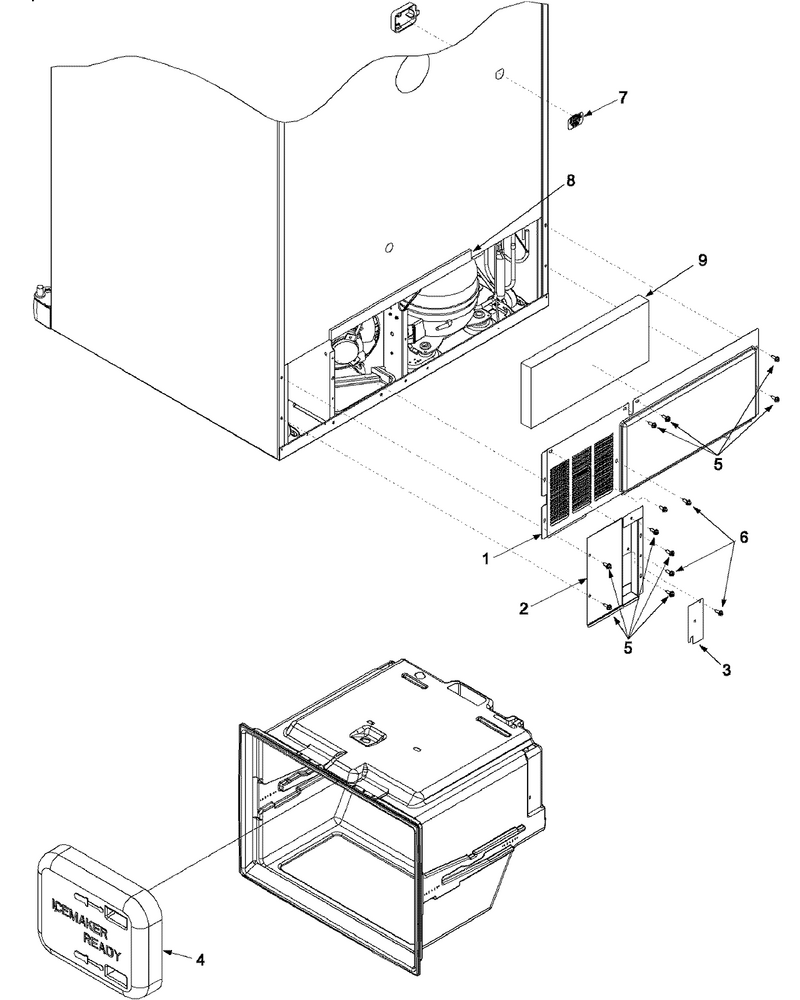

01 - Cabinet Back

...
...
NI
Cord, Power WPL-67002229
...
1
Back, Mach Comp WPL-67002230
...
2
Cover, Water Valve WPL-12479804
...
3
Plate, Cover WPL-12479901
...
4
Cover-Tube WPL-WP67001098
...
5
Screw (3) WPL-67006425
...
6
Screw, 8-32 X 3/8 WPL-681390
...
7
Label WPL-W11685757
...
8
Gasket, Mc Back WPL-B5759649
...
9
Fiber, Acoustic WPL-67003796
